PPT-21页-油浸电力变压器基础知识

  • 2026-11-03 15:01:01
PPT-21页-油浸电力变压器基础知识

点击上方“蓝字”关注，永远不迷路

今天给大家分享一份硬核干货—— 《PPT-21页-油浸电力变压器基础知识》 。

别看只有短短21页，这份PPT可以说是 “麻雀虽小，五脏俱全” 。它没有长篇大论的公式推导，而是用最直观的图示和最精炼的语言，帮你快速建立对油变的结构认知。

👇 获取方式：

老规矩，无套路分享。 关注本号，文末点阅读原文获取。

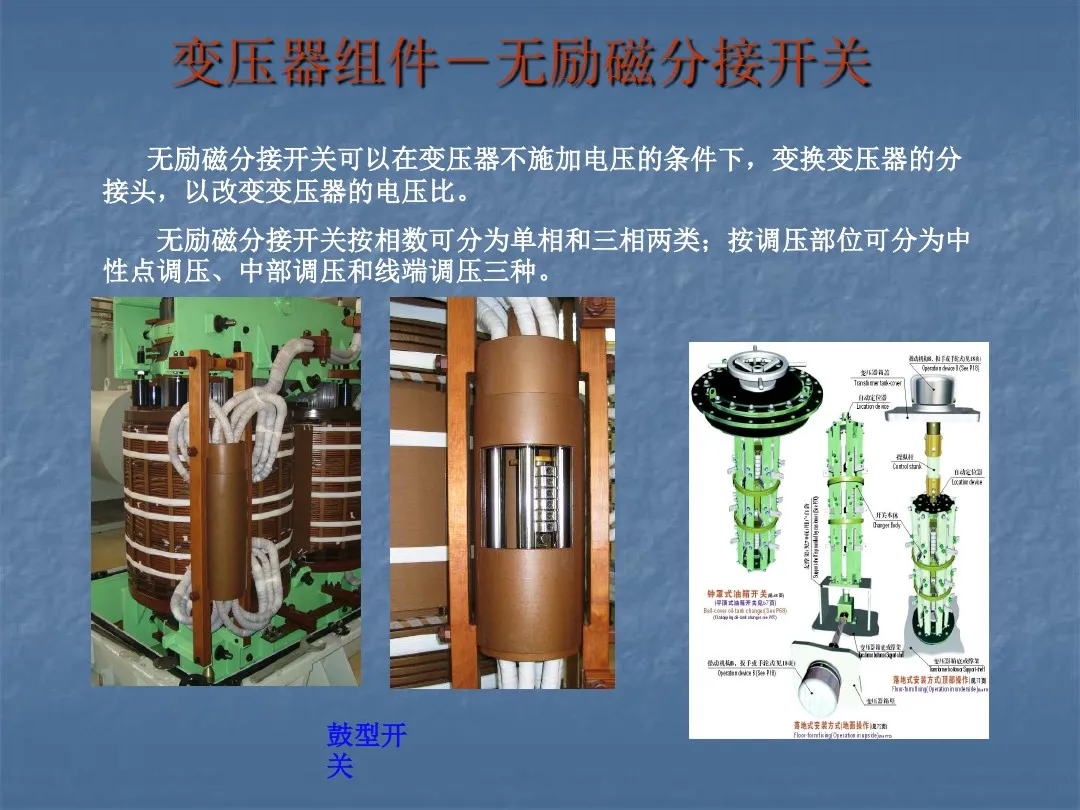

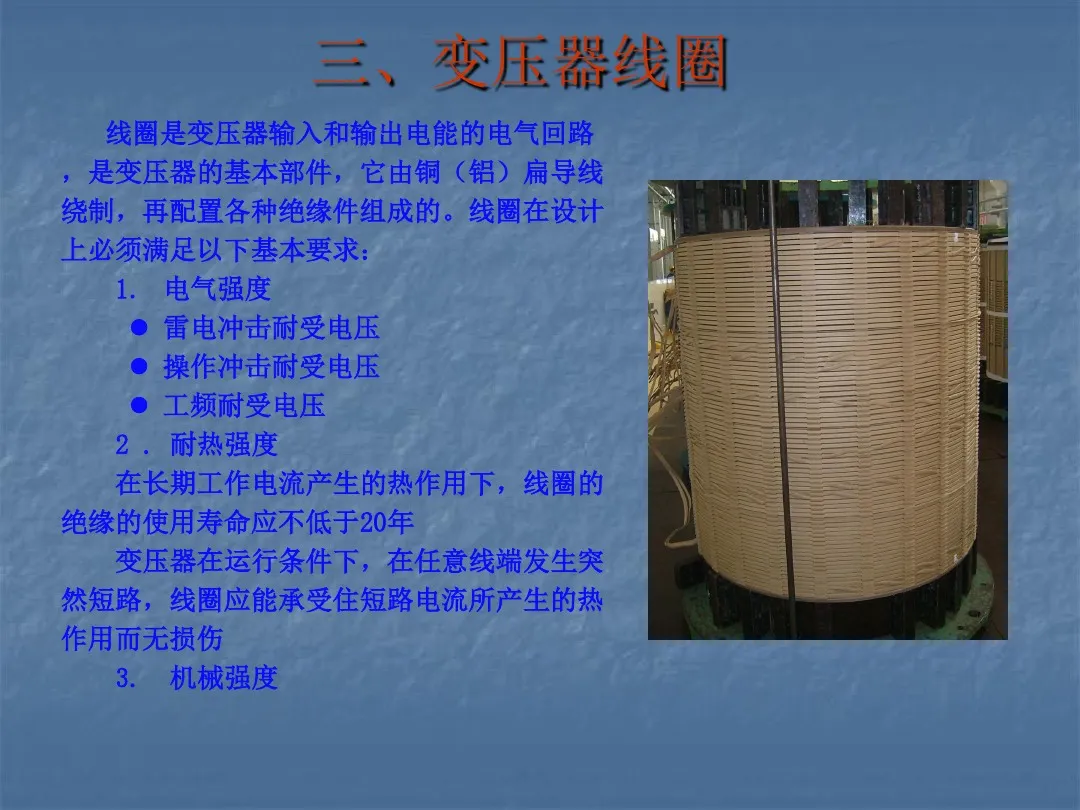

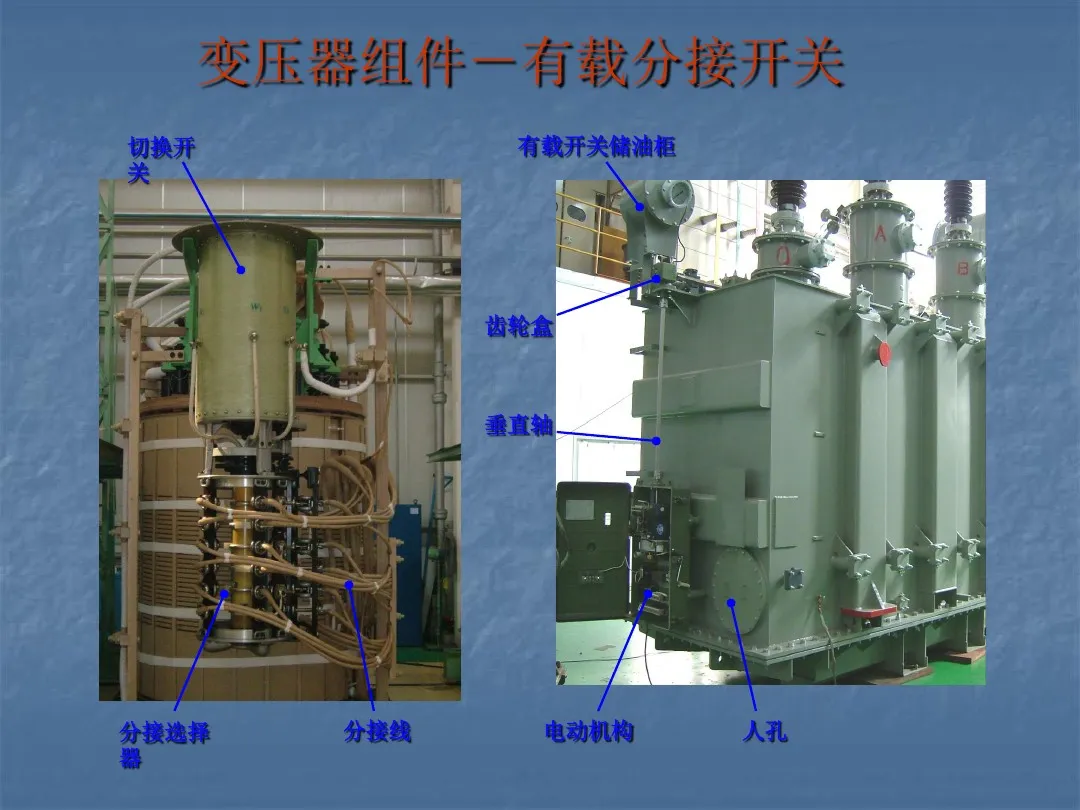

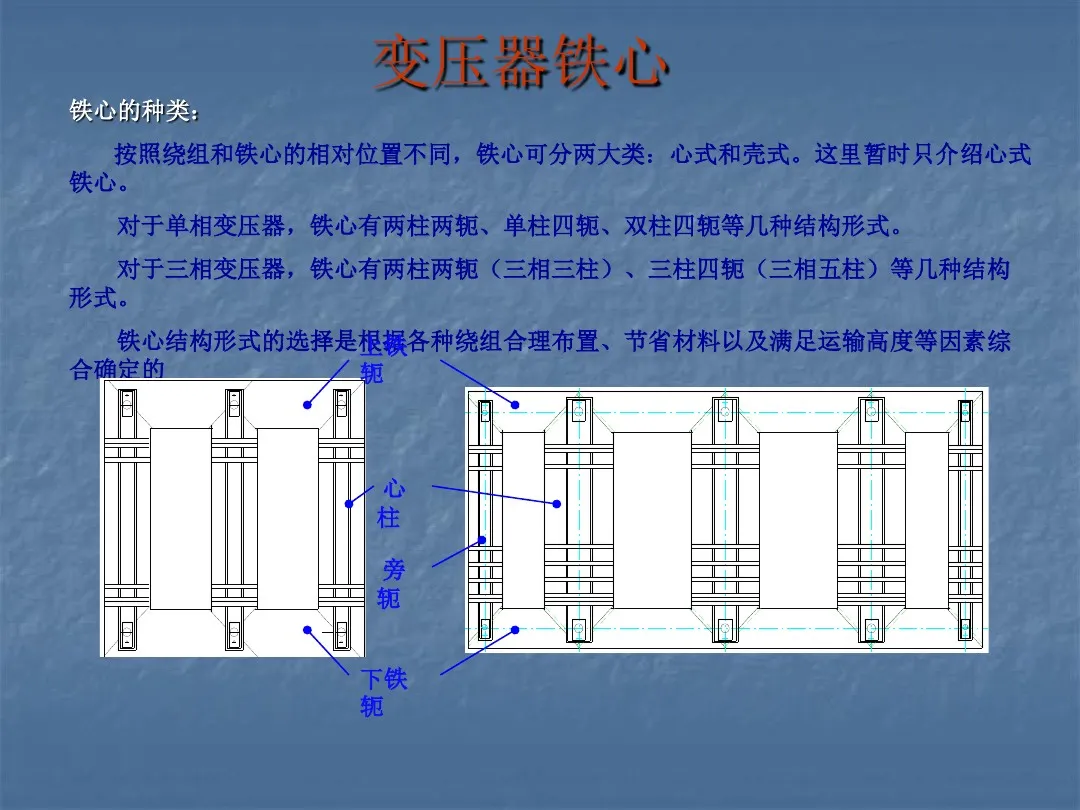

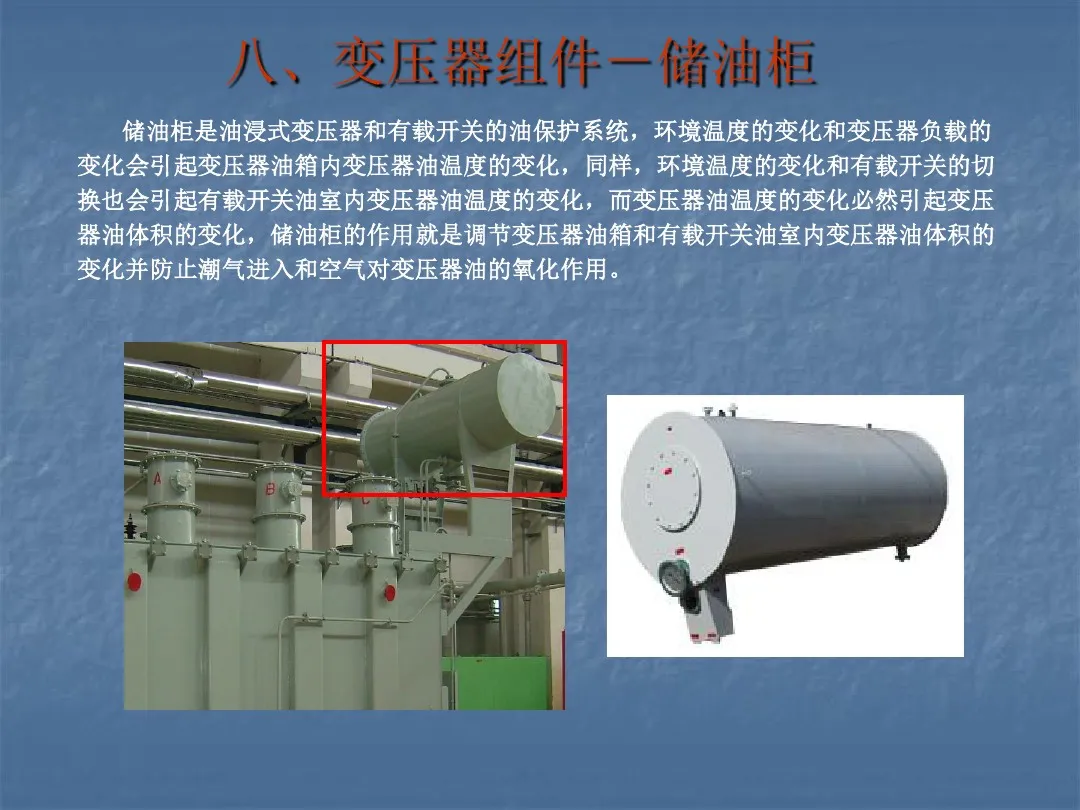

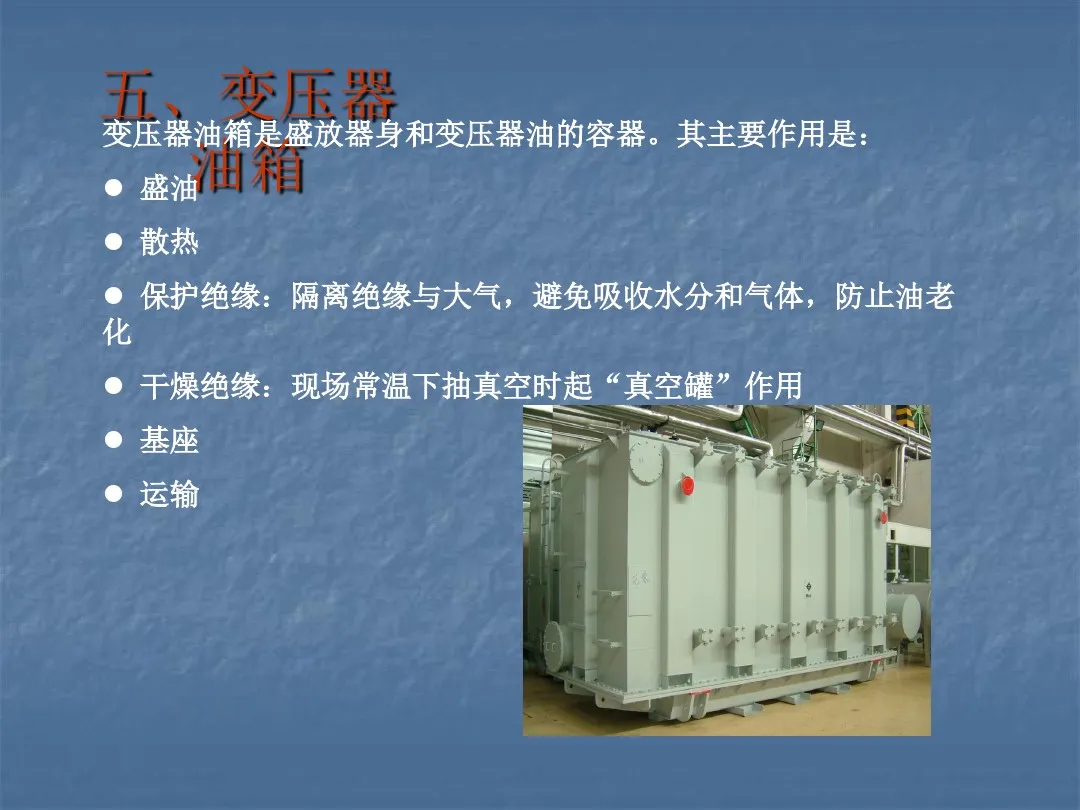

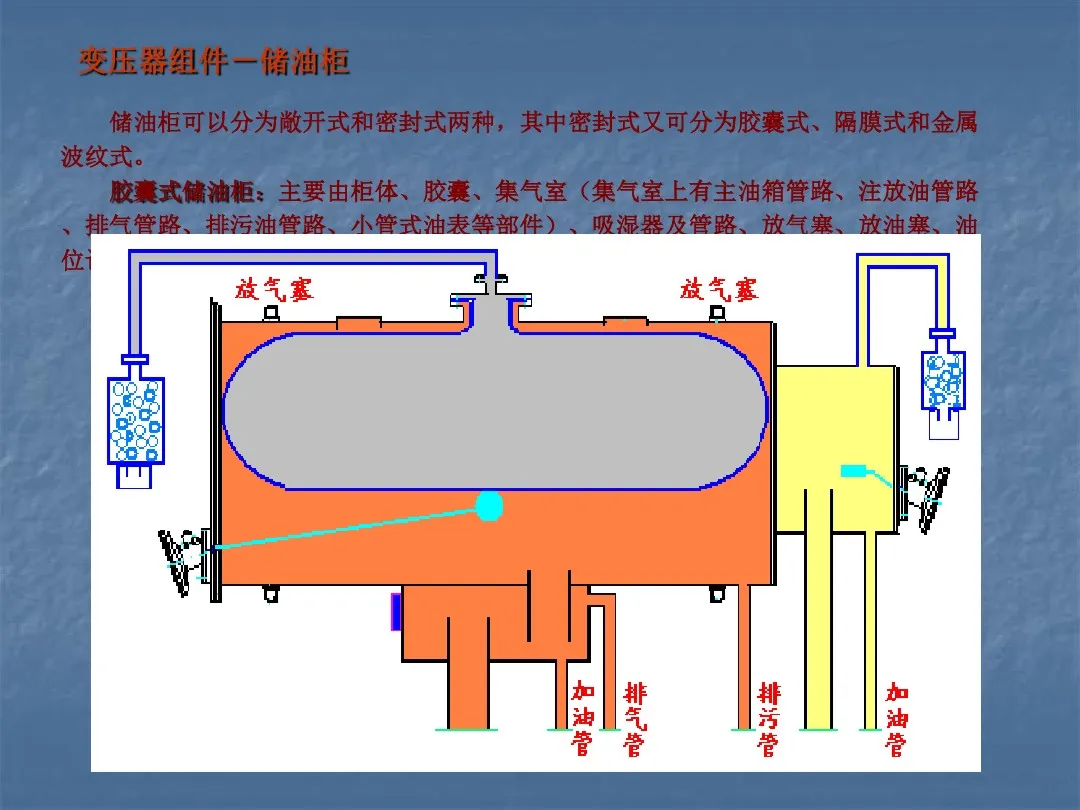

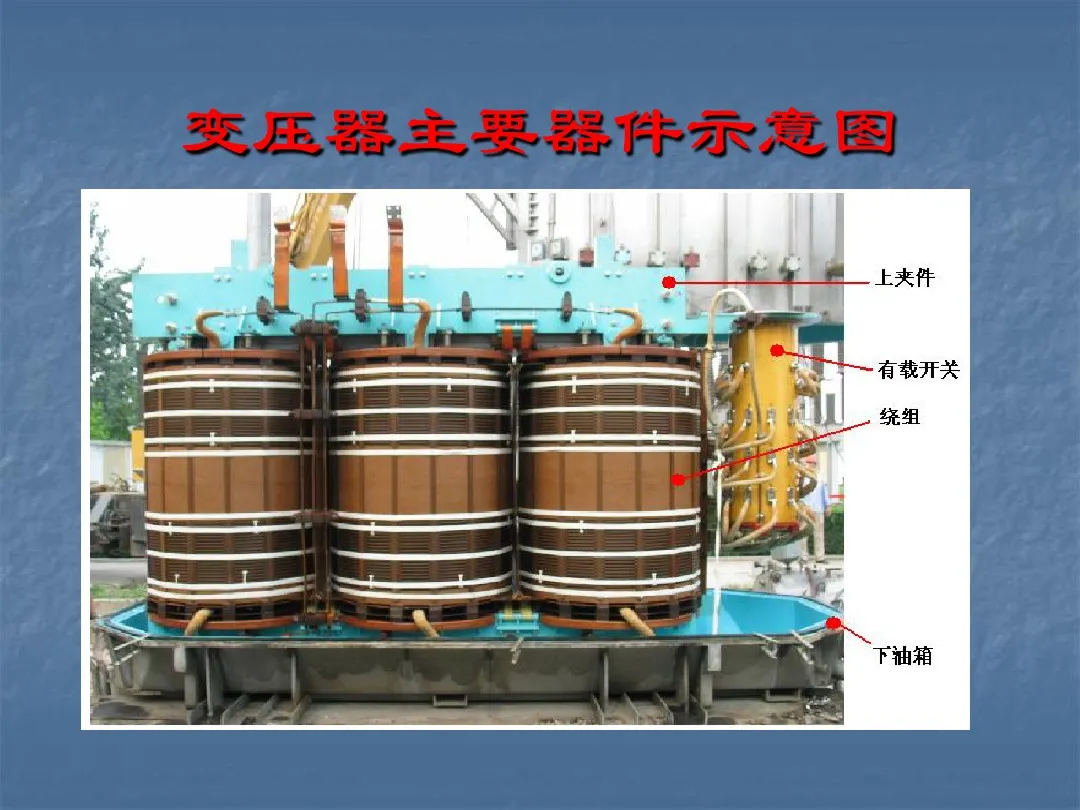

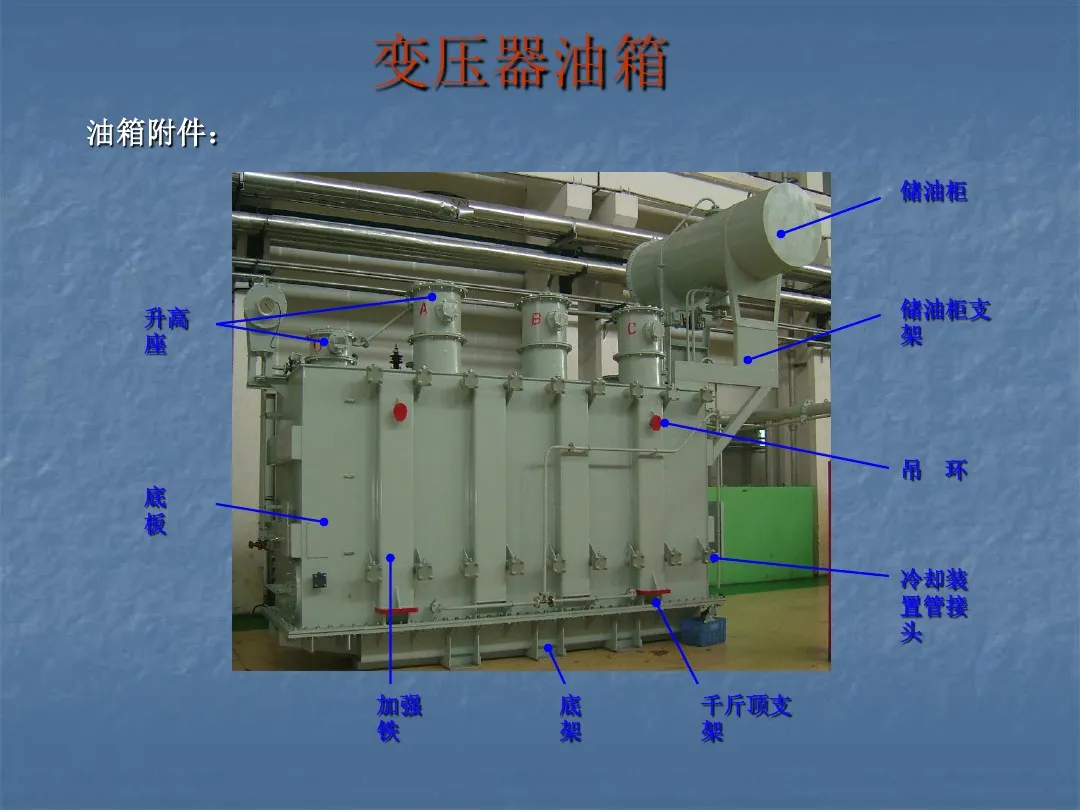

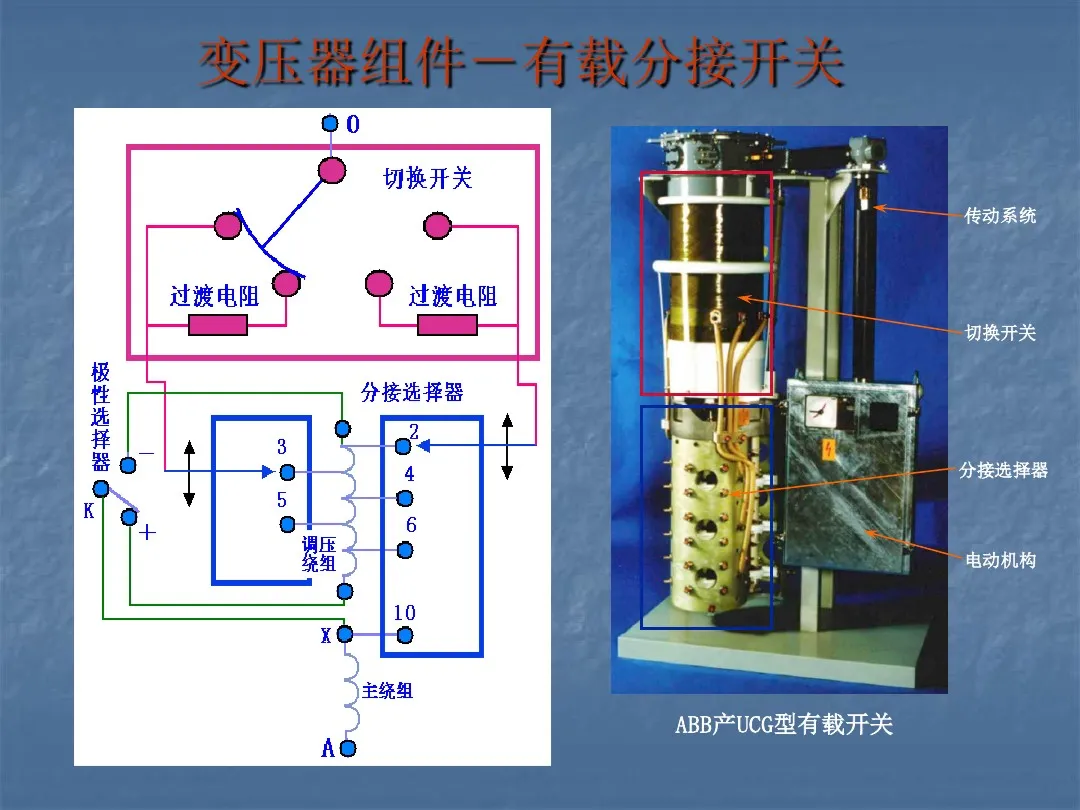

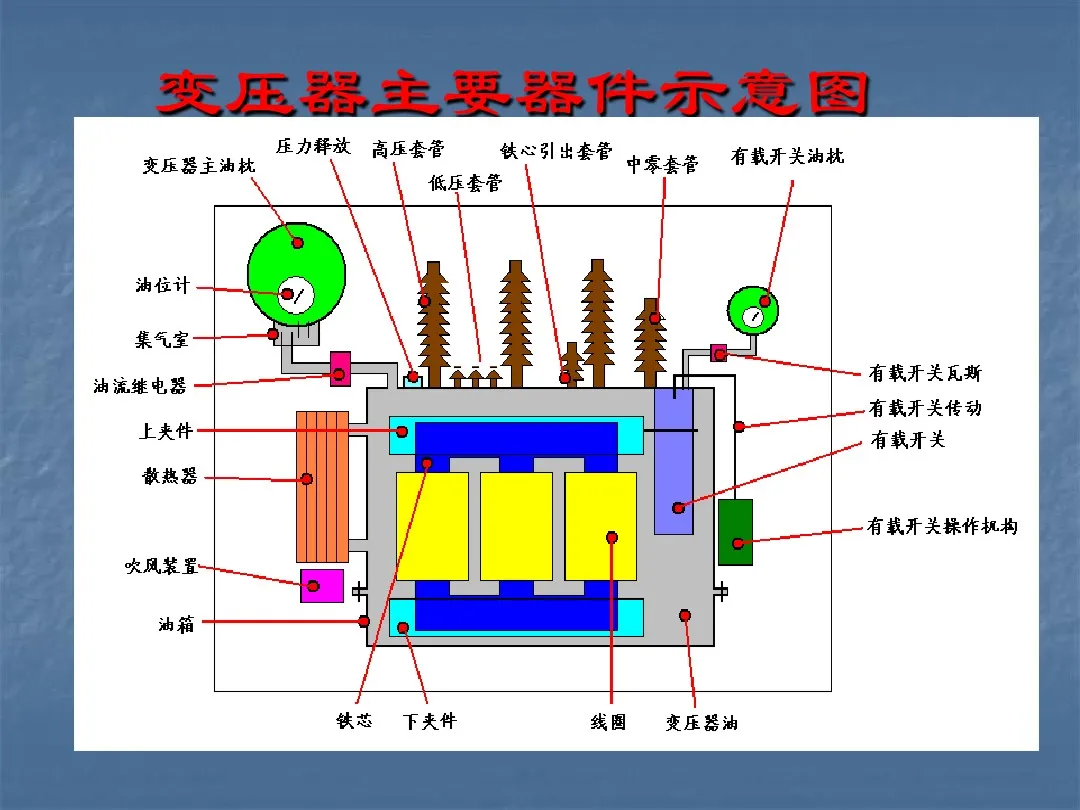

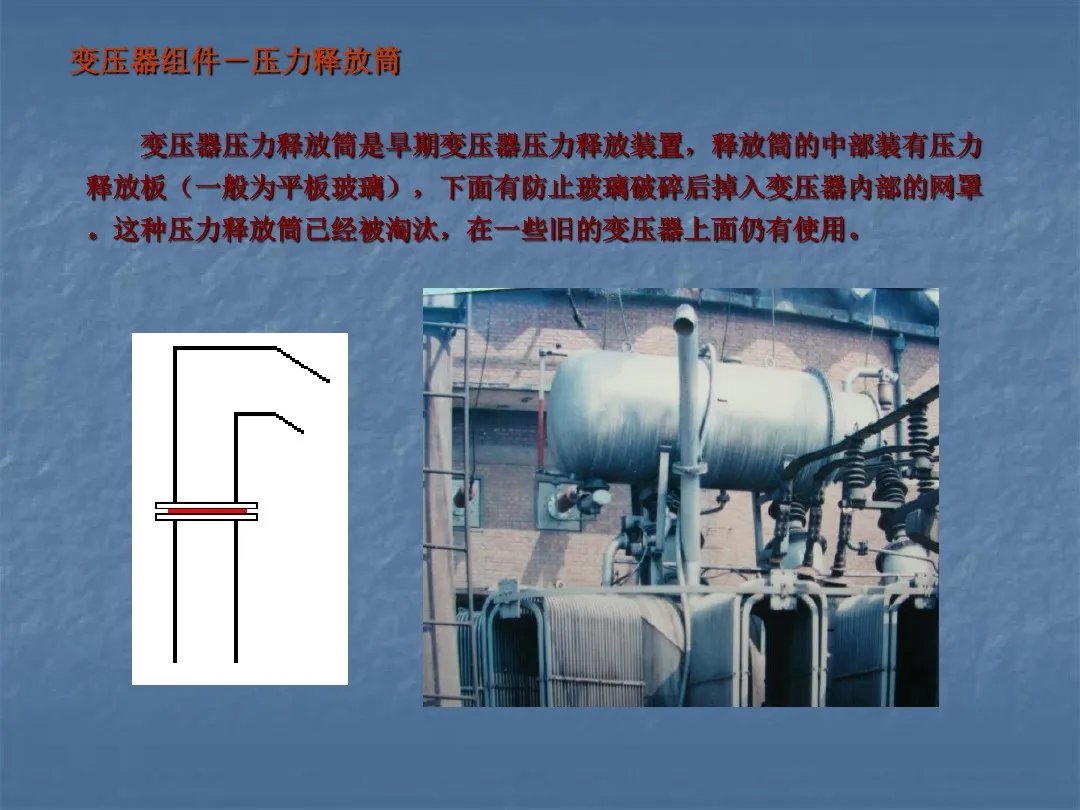

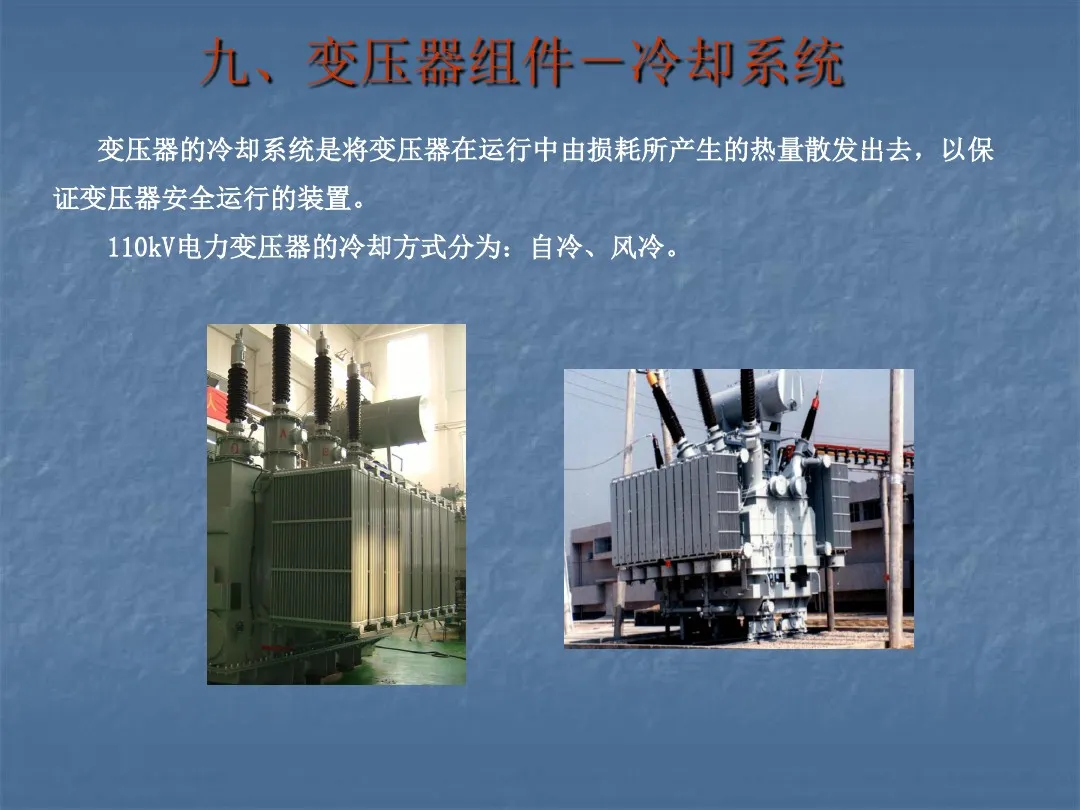

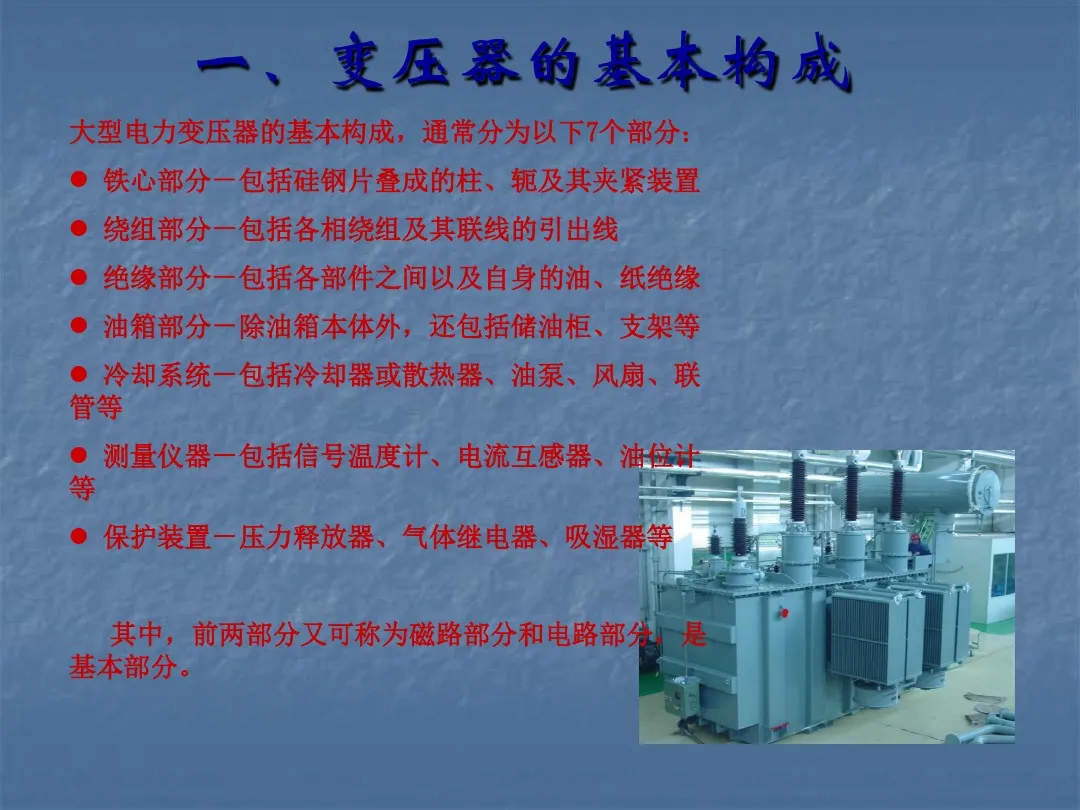

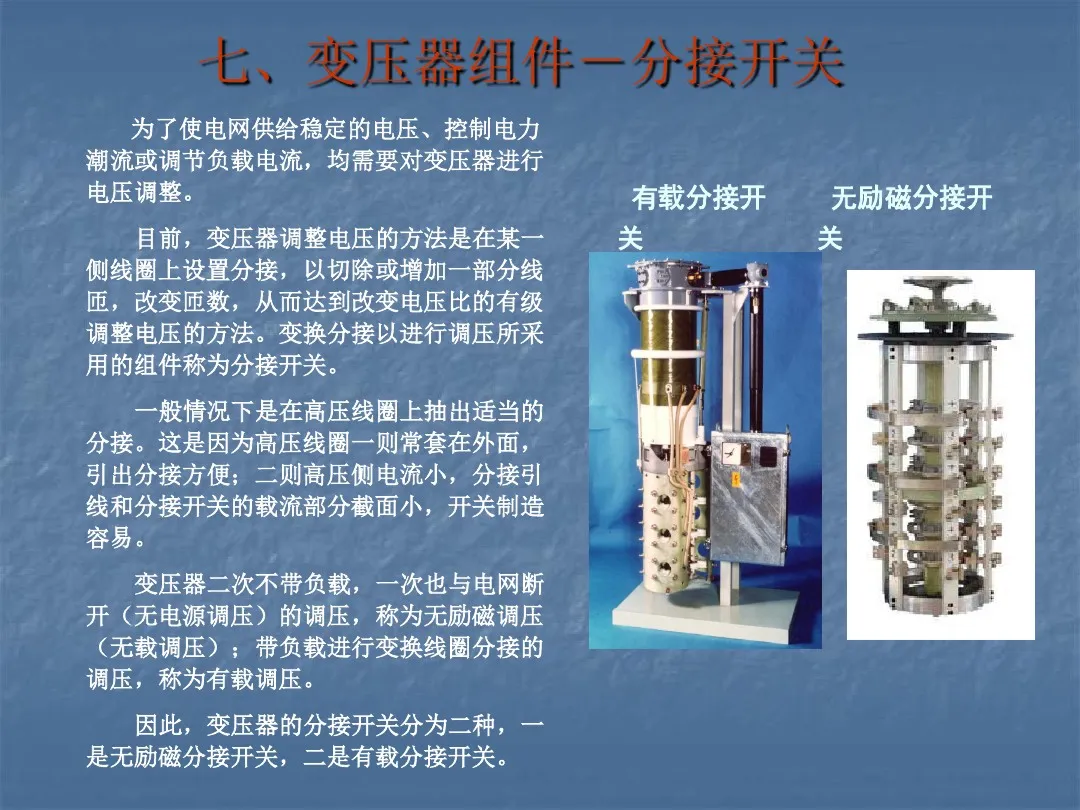

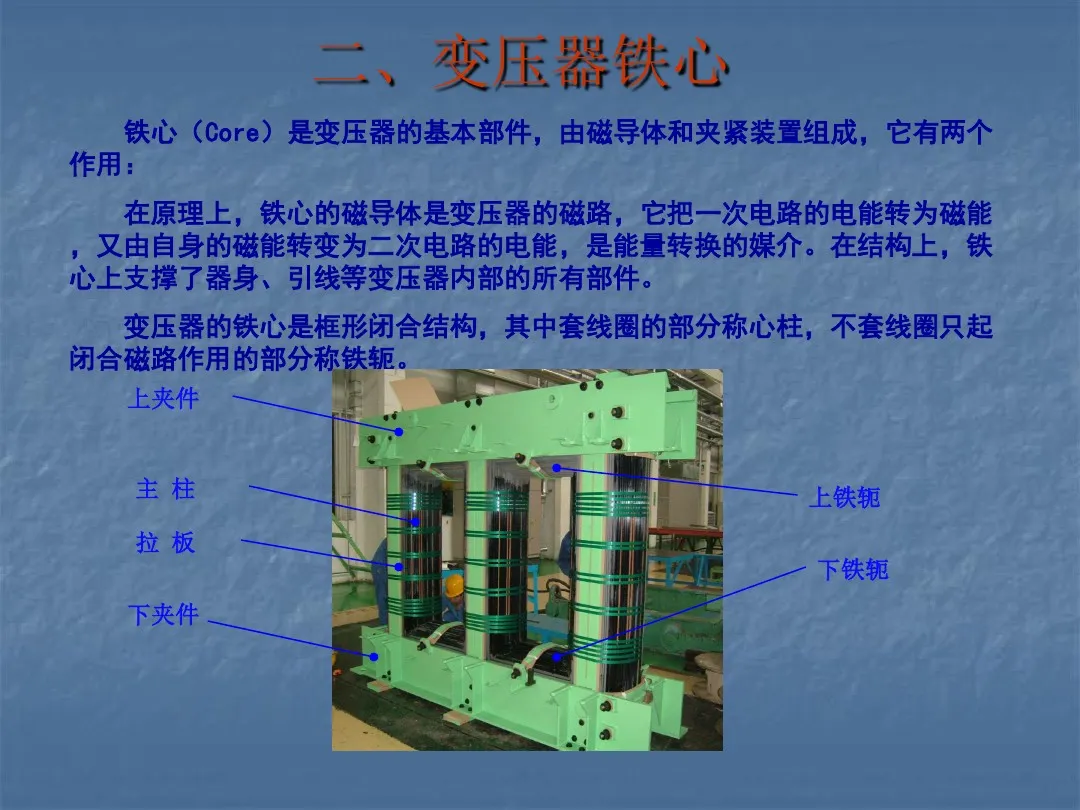

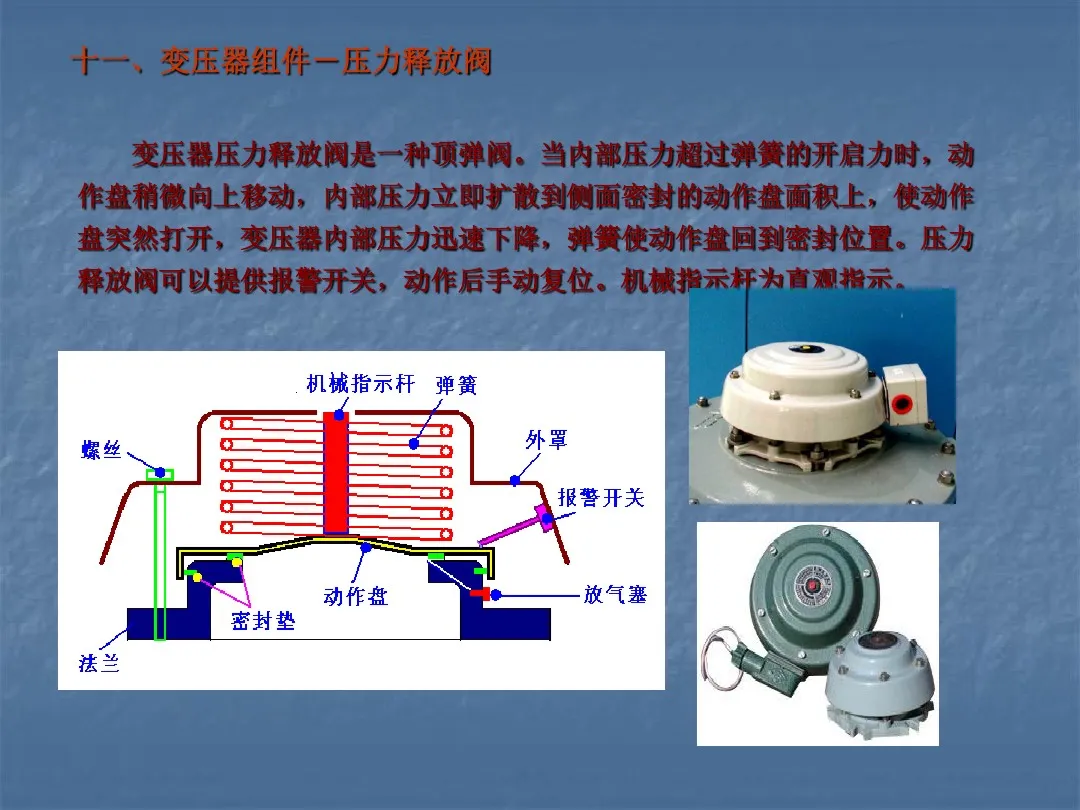

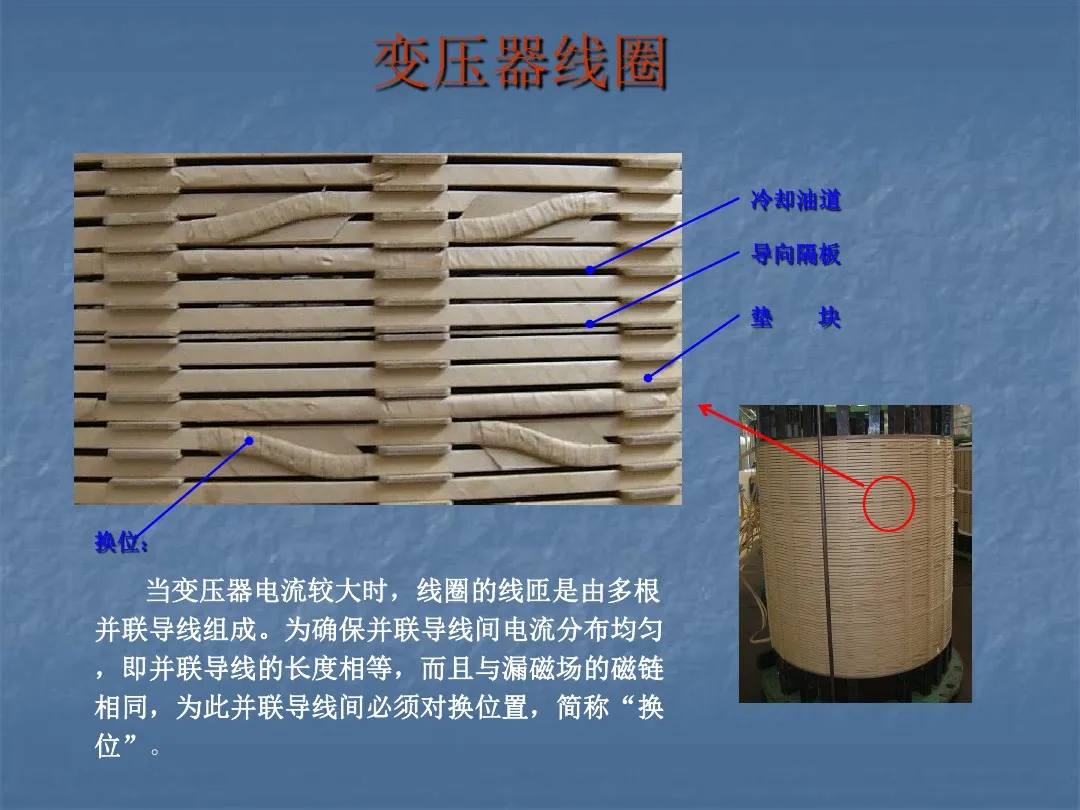

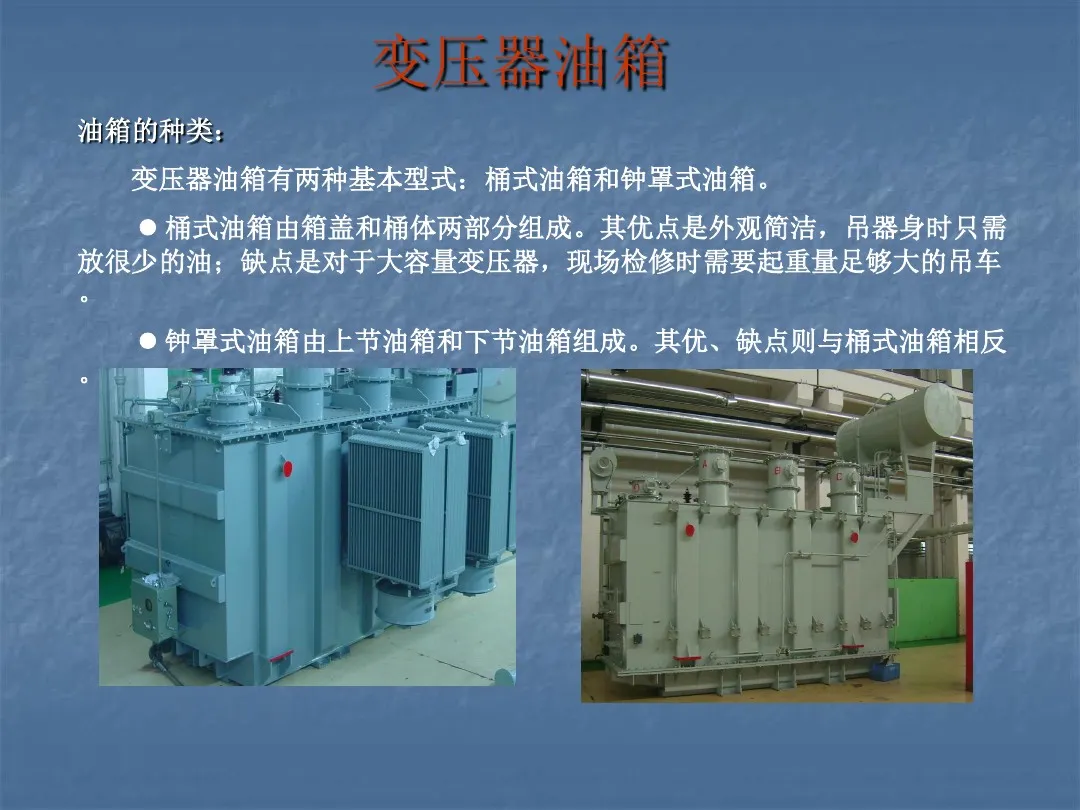

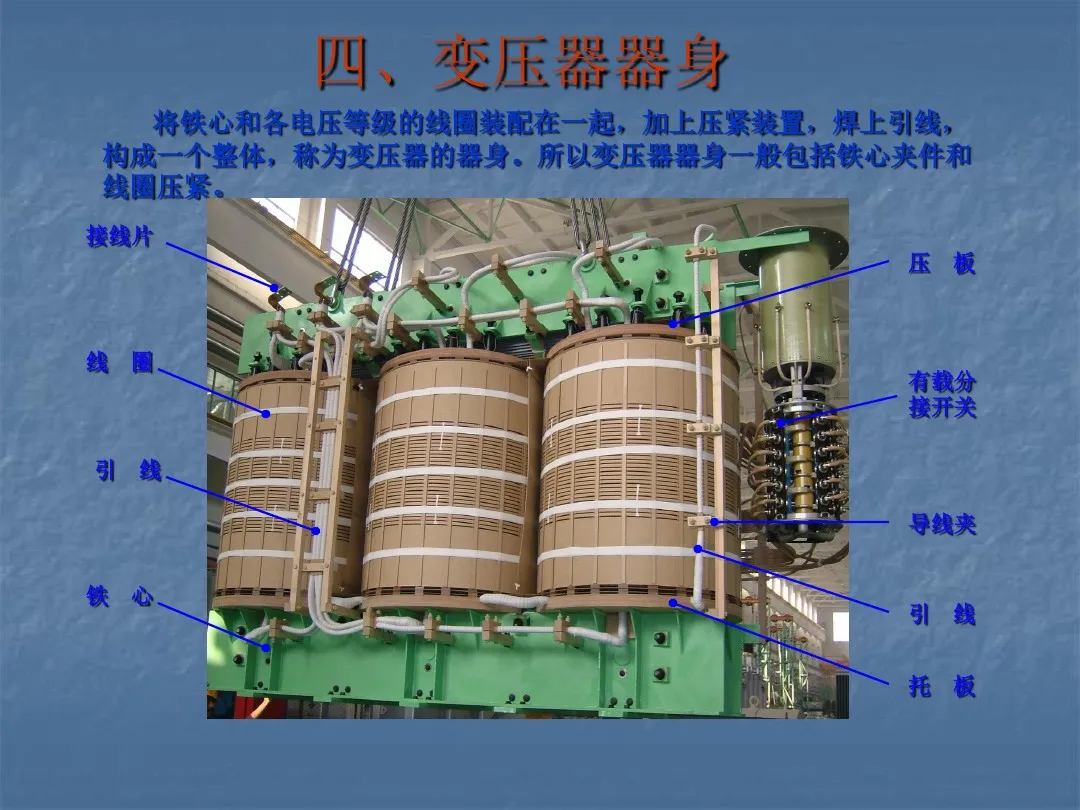

PPT内容：

点击阅读原文获取源文件

更多资料可添加网盘群获取

百度网盘群号：958646646

技术交流群：公众号菜单栏

喜欢请分享给更多的人！

致力于分享电气工程领域最新、最实用、最有启发性的内容，点击关注，我们一起探索更多精彩！
