Word图片排版——图片如何自动编号

  • 2026-03-31 13:59:54
Word图片排版——图片如何自动编号
用题注和seq域可以对图片进行自动编号，如果中途插入或者删除一些图片，序号可以自动更新并·连续下去。
题注法

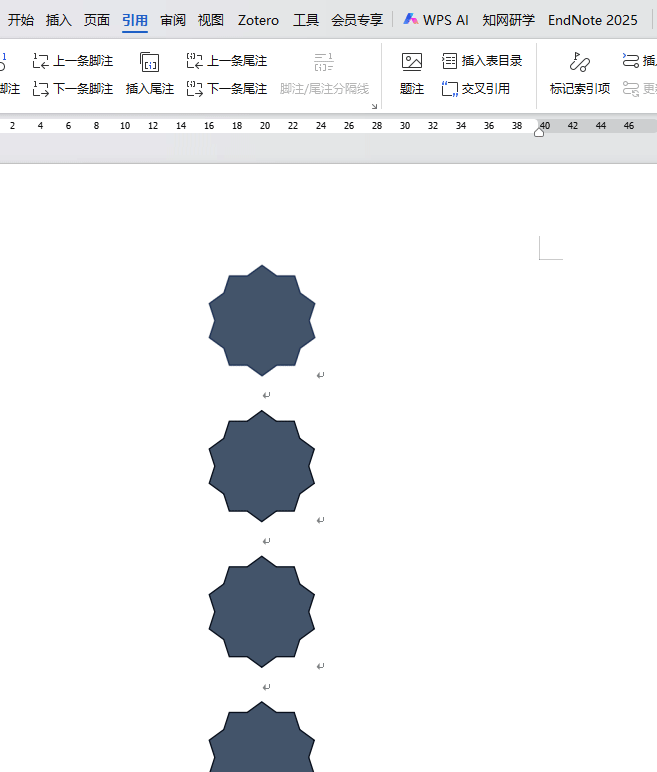

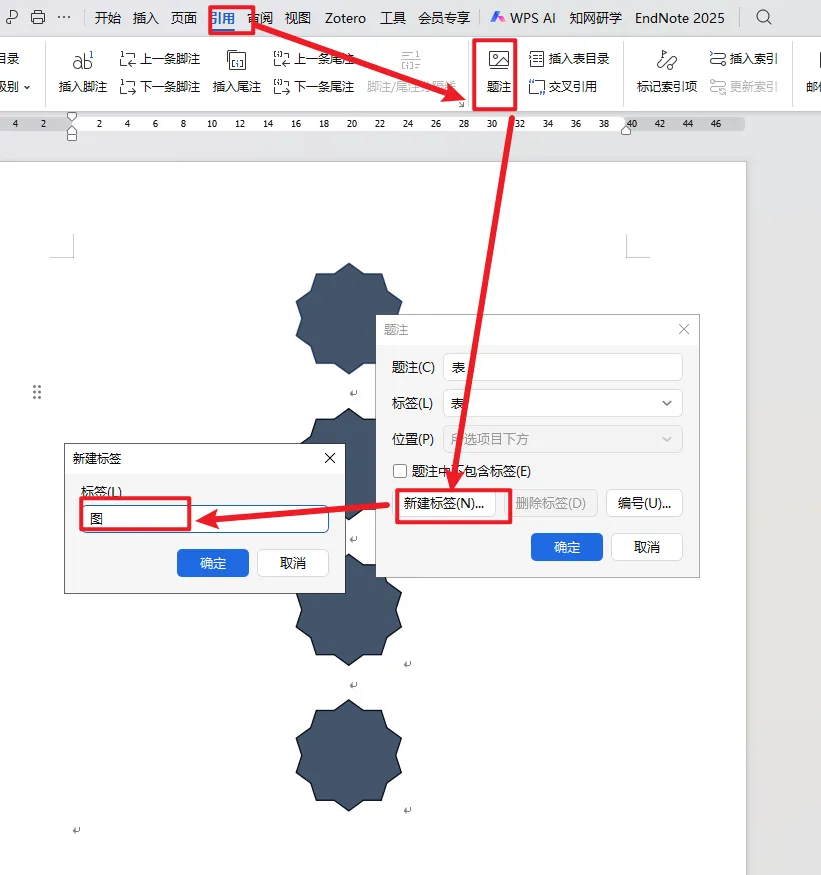

在引用处插入题注，没有需要的标签可以新建一个如图、Fig、Figure等，题注分两部分，标签是不变的部分，后面的数字是会自动变化。
插入一个题注后，就可以把题注复制到其他图片下面，然后更新域，序号会自动变化。
每一个不同的标签后面的数字都是单独从1连续下去，比如图片1后面有一个图的标签，就会是图1，不是图2，之后出现一个图片的标签才是图片2。
seq域代码法
题注用的也是seq域加上前面的标签图、图片等，用seq域需要手动在前面输入图、图片的字样。

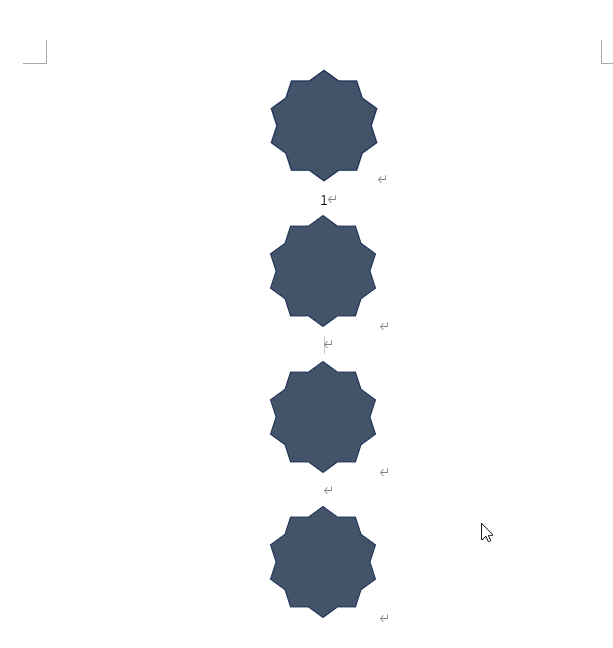

手动输入域代码，同时按住ctrl和F9键两个按键，会出现一个带阴影的花括号，之后就输入seq和标识符（按自己需要输入）就可以，再选中花括号部分按一下F9，会回到正常显示状态。
序号更新
选中有域代码的部分，按一下F9键，就可以实现更新，如果全部要更新的话可以按住ctrl和a两个按键全选文档，所有和域代码有关的都会更新。
如果全选文档更新域的话，记得保存副本，不然可能出现其他地方的域代码显示错误。
