Excel双层饼图制作方法

  • 2026-04-02 14:03:02
Excel双层饼图制作方法

来都来了，往下看看呗~

记得“点赞”＋“收藏”+“关注”喔~

本文使用WPS表格演示

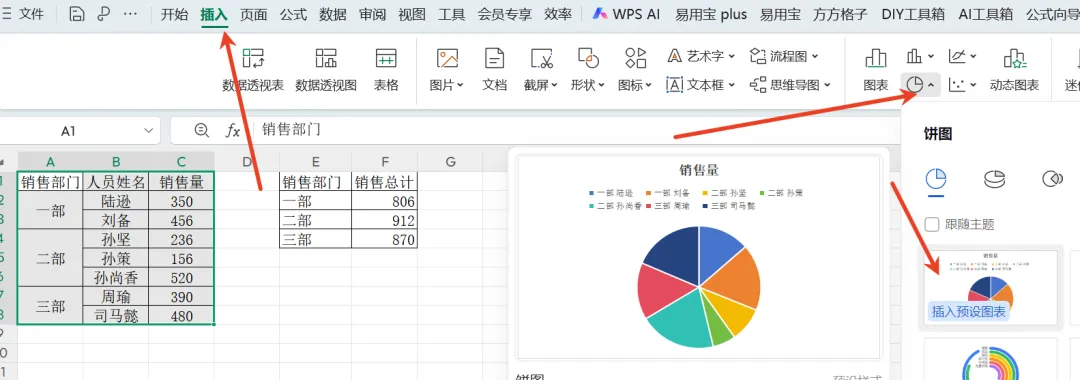

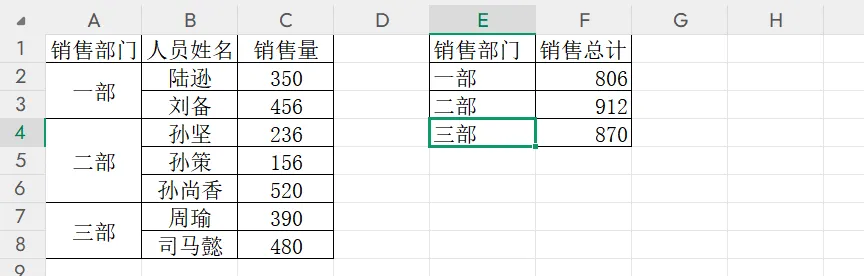

1、选中第一个表数据，点击插入---选择饼图，第一个饼图

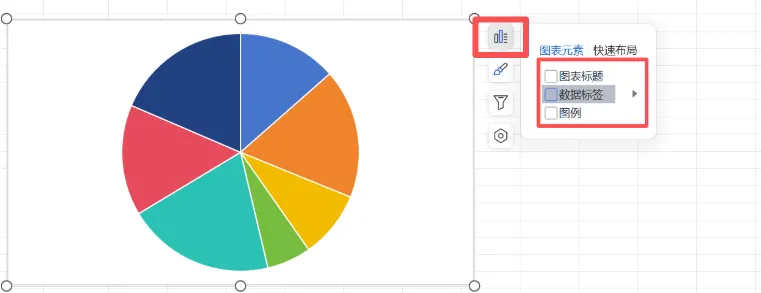

2、取消数据标签，图例，图表标题前面的勾选

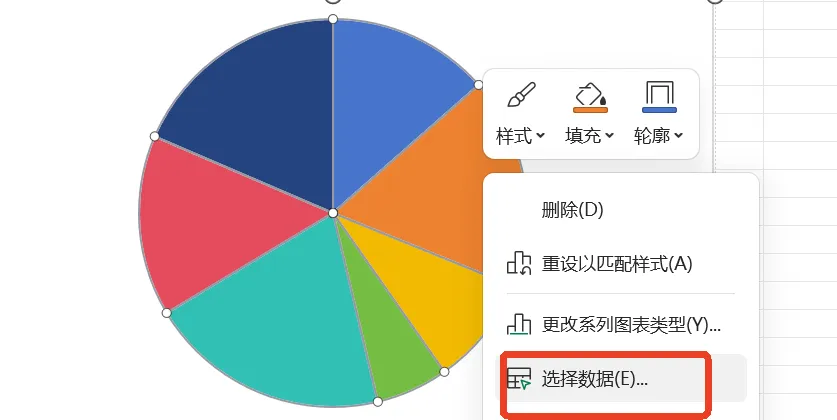

3、在图表上右击，点击选择数据

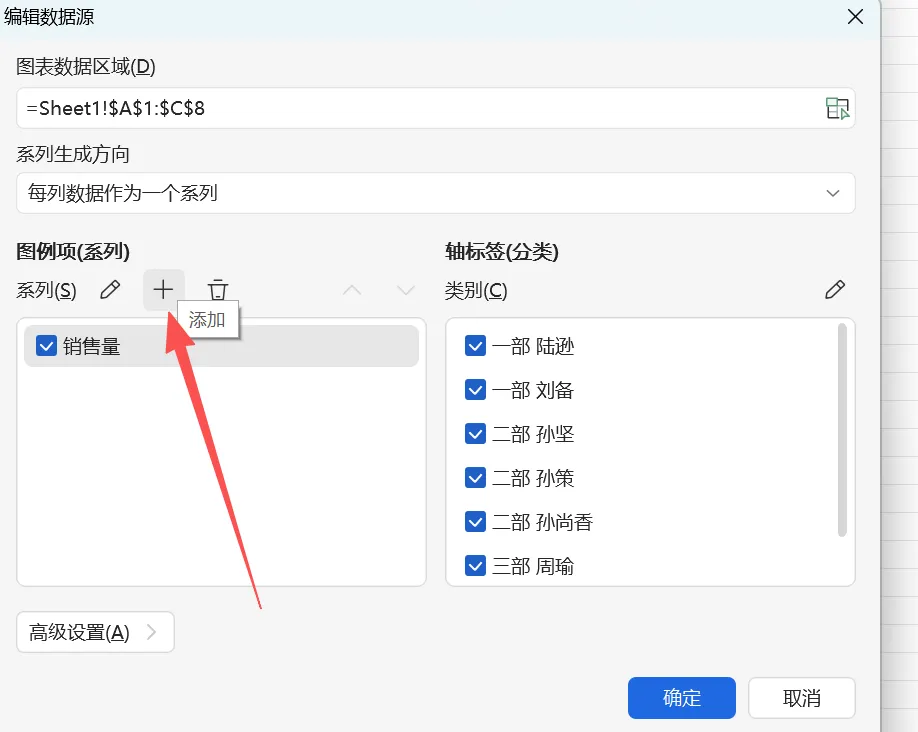

4、点击添加

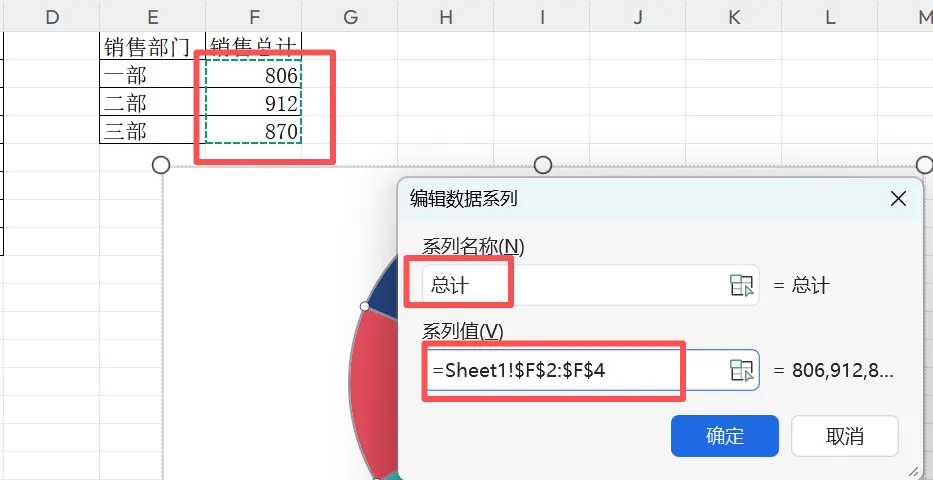

5、系列名填写为总计，系列值数据选择销售总计中的数据（F列的数据），完成点确定

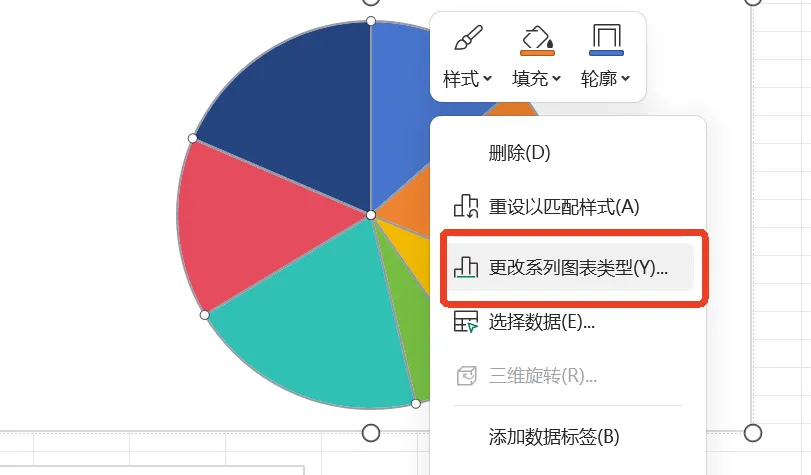

6、右击图表，点击更改系列图表类型

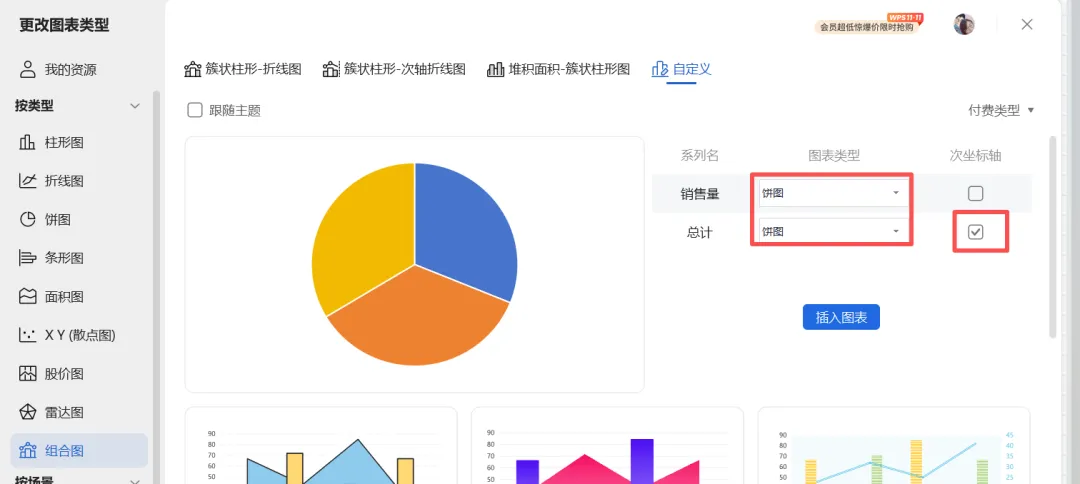

7、点击左侧组合图，销售量，总计都选择饼图，总计勾选次坐标轴，选择完成，点击插入图表

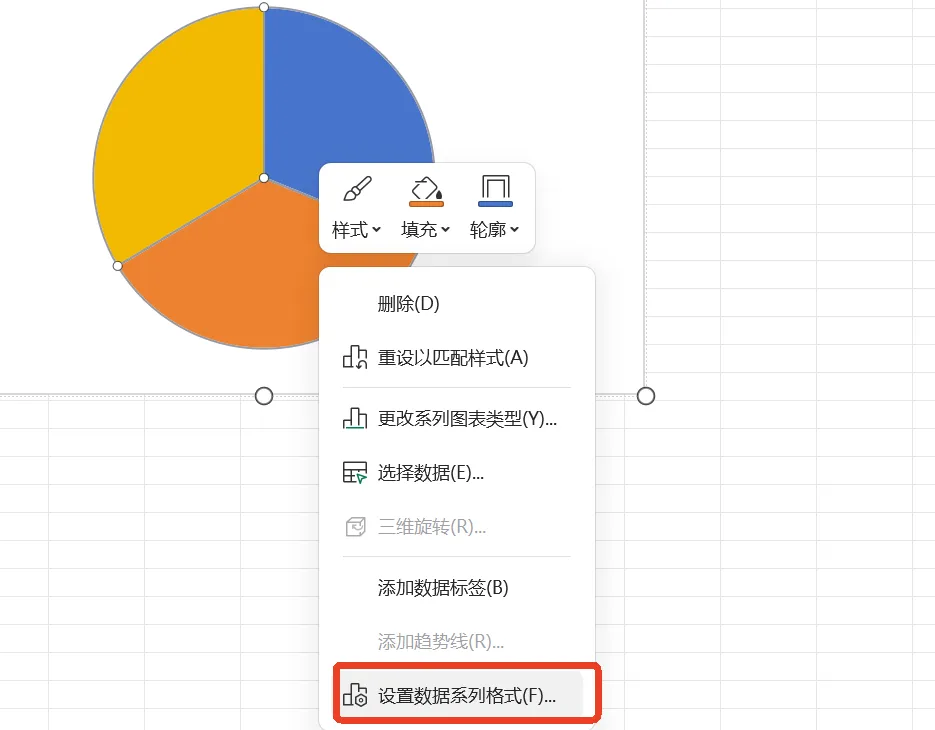

8、右键图表，选择设置数据系列格式

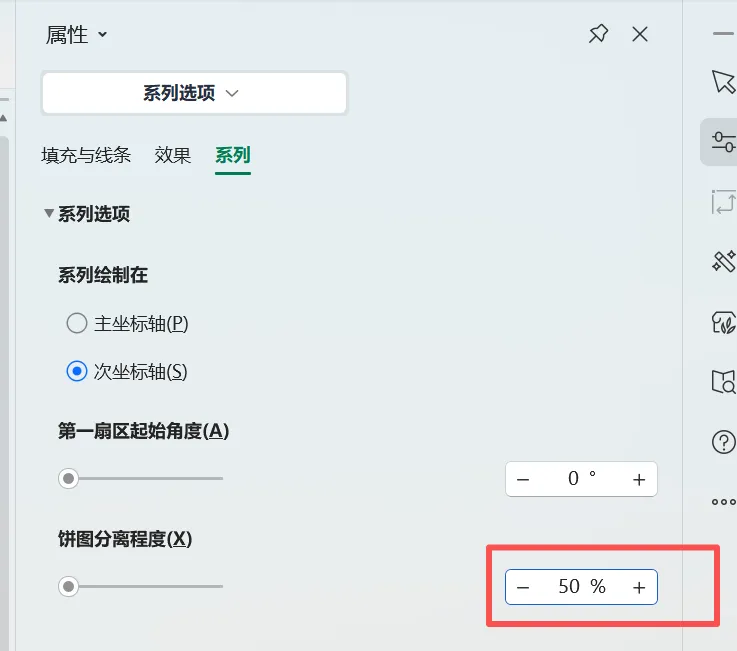

9、右侧饼图分离程度选择50%，敲回车

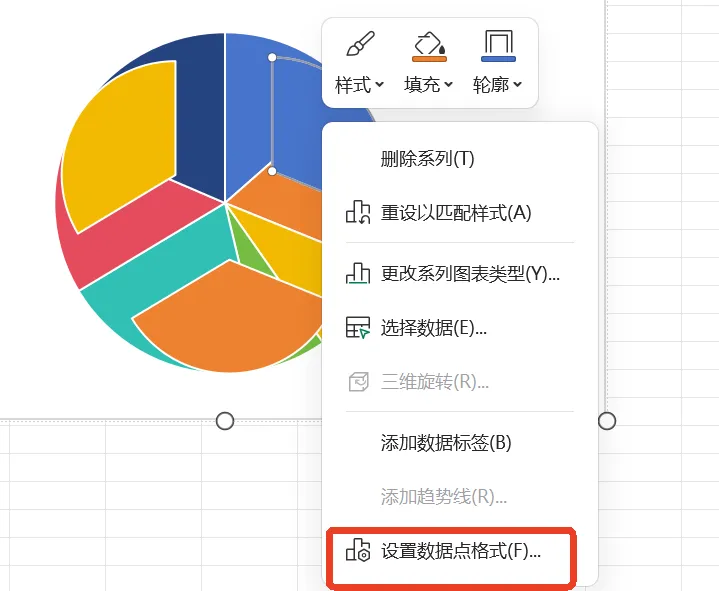

10、右击小扇形，选择设置数据点格式

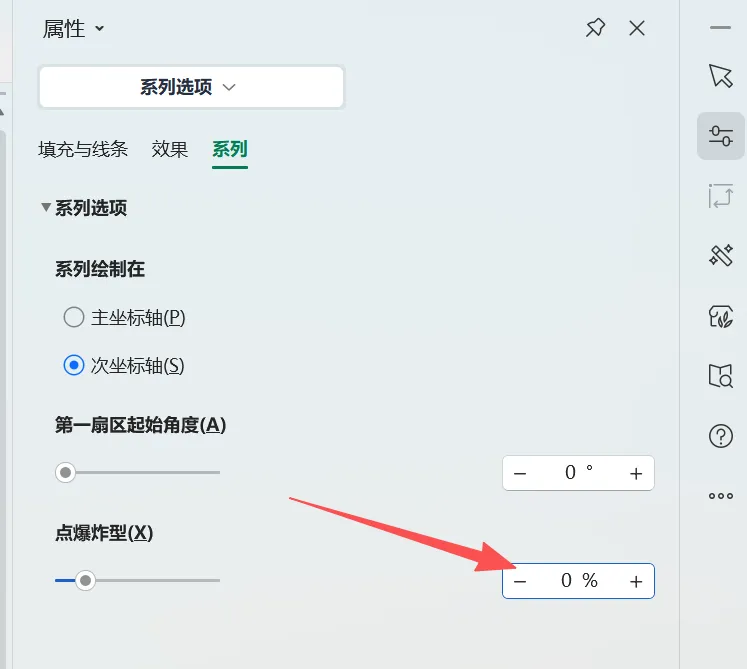

11、点爆炸型修改为0%（将每个小扇形都设置一下）

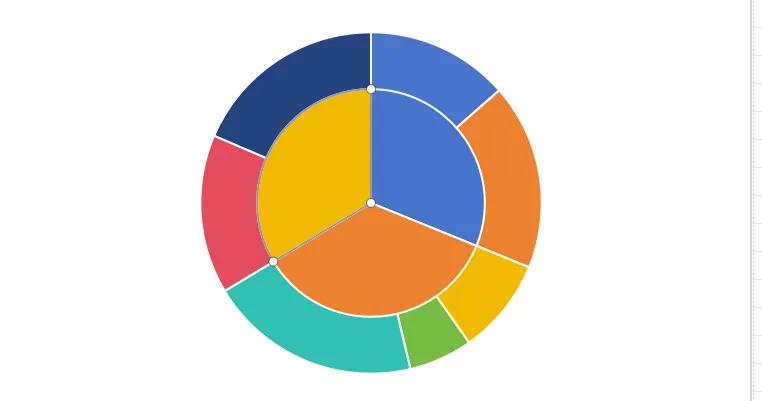

12、设置完成之后，扇形图如下：

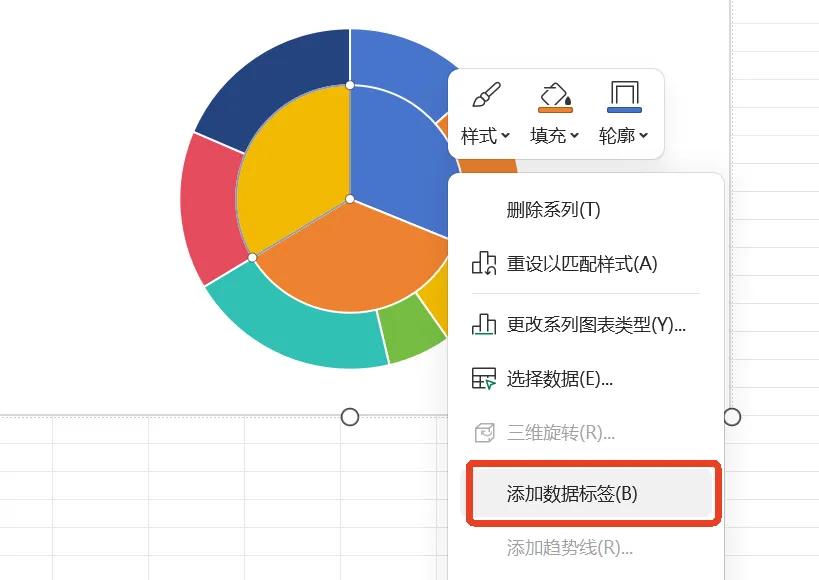

13、点击内部小扇形，右击扇形，选择添加数据标签

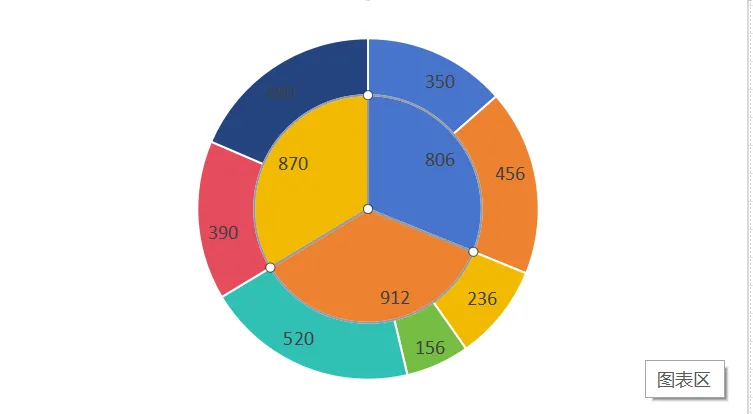

14、点击外部大扇形，右击扇形，选择添加数据标签，设置完成扇形如下：

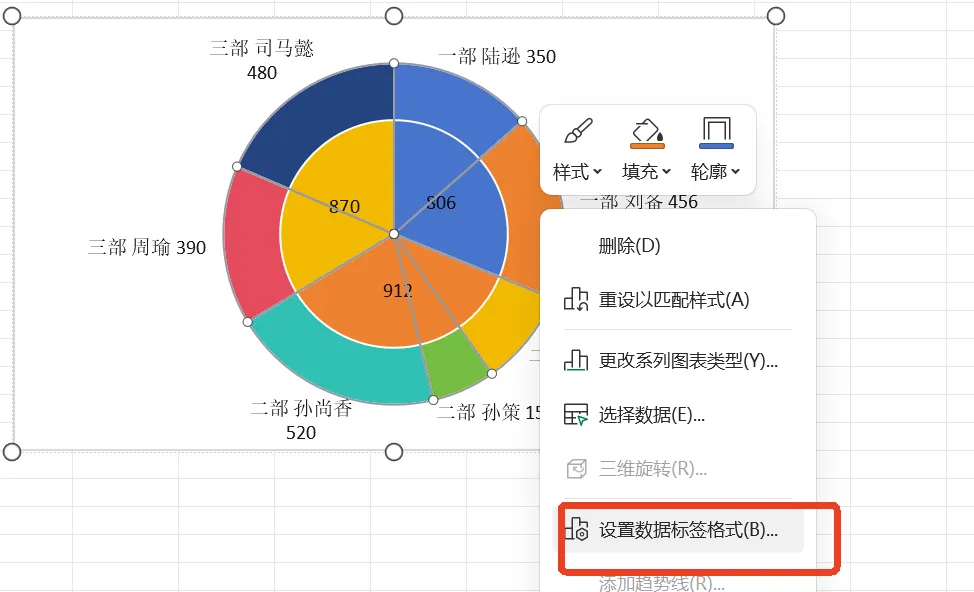

15、右击扇形，选择设置数据标签格式，美化图表

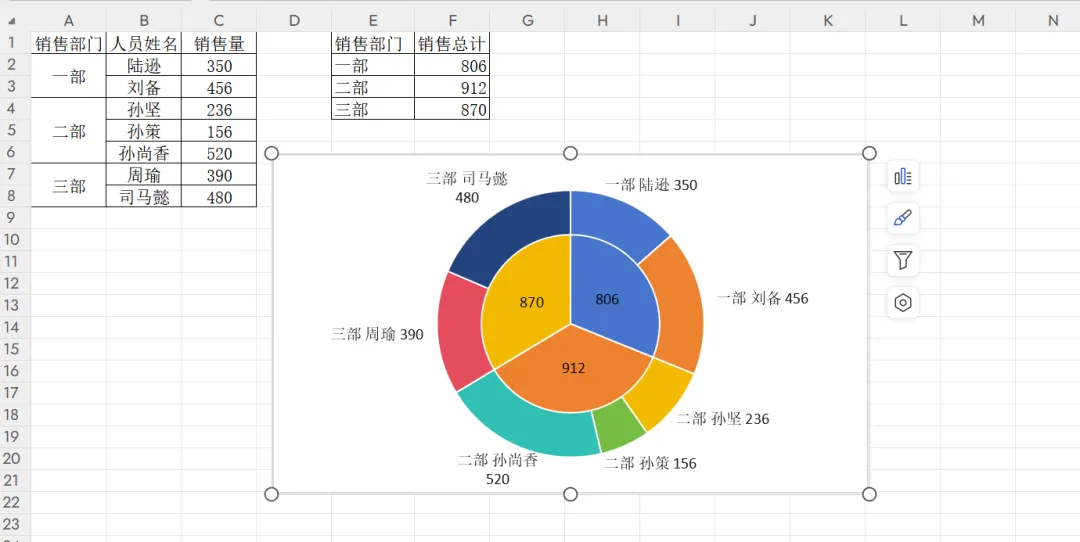

16、成品图展示
