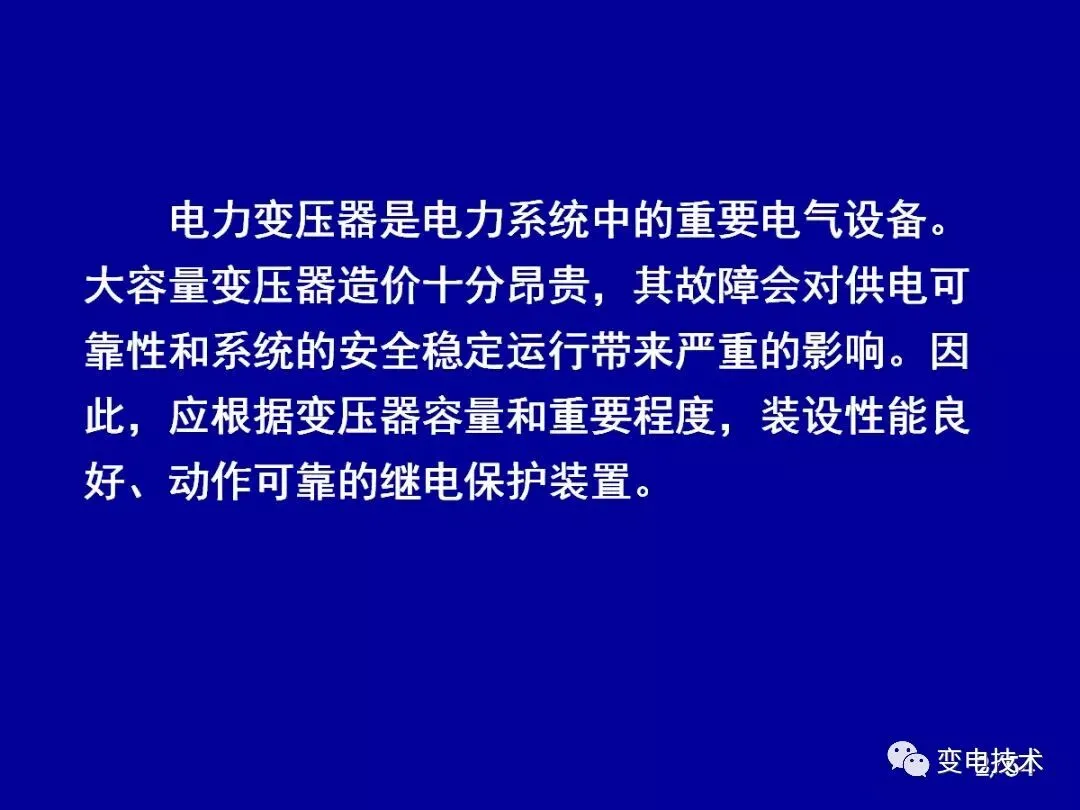

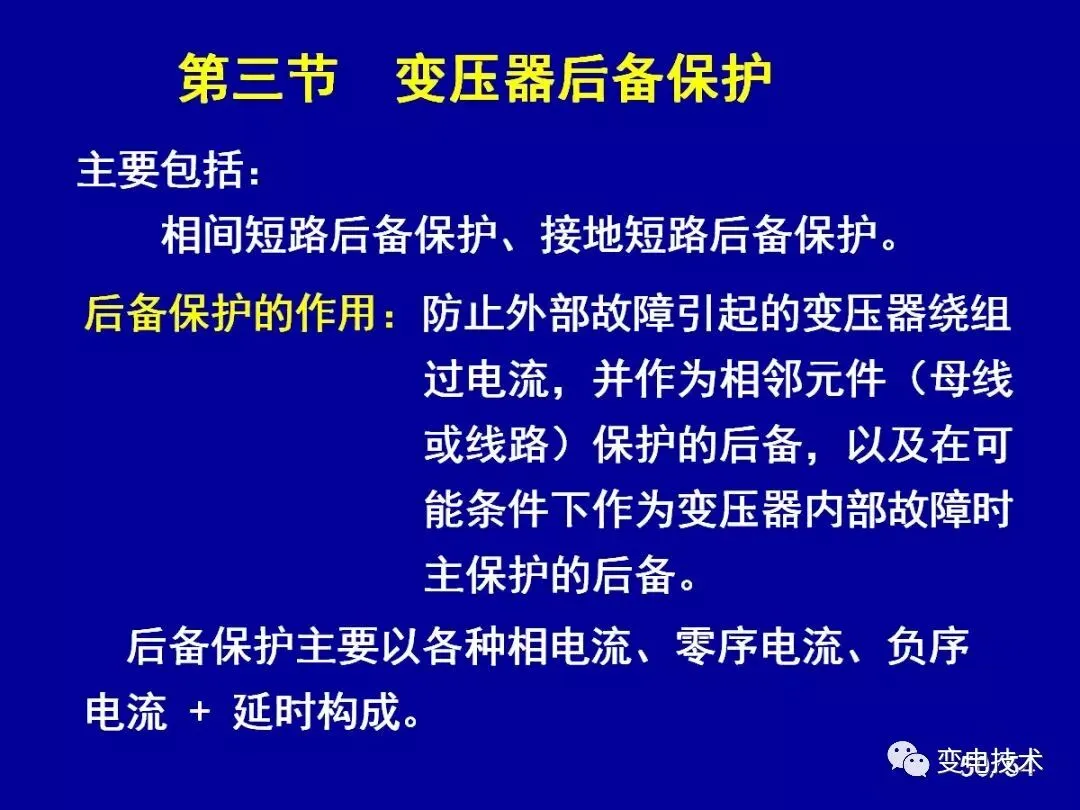

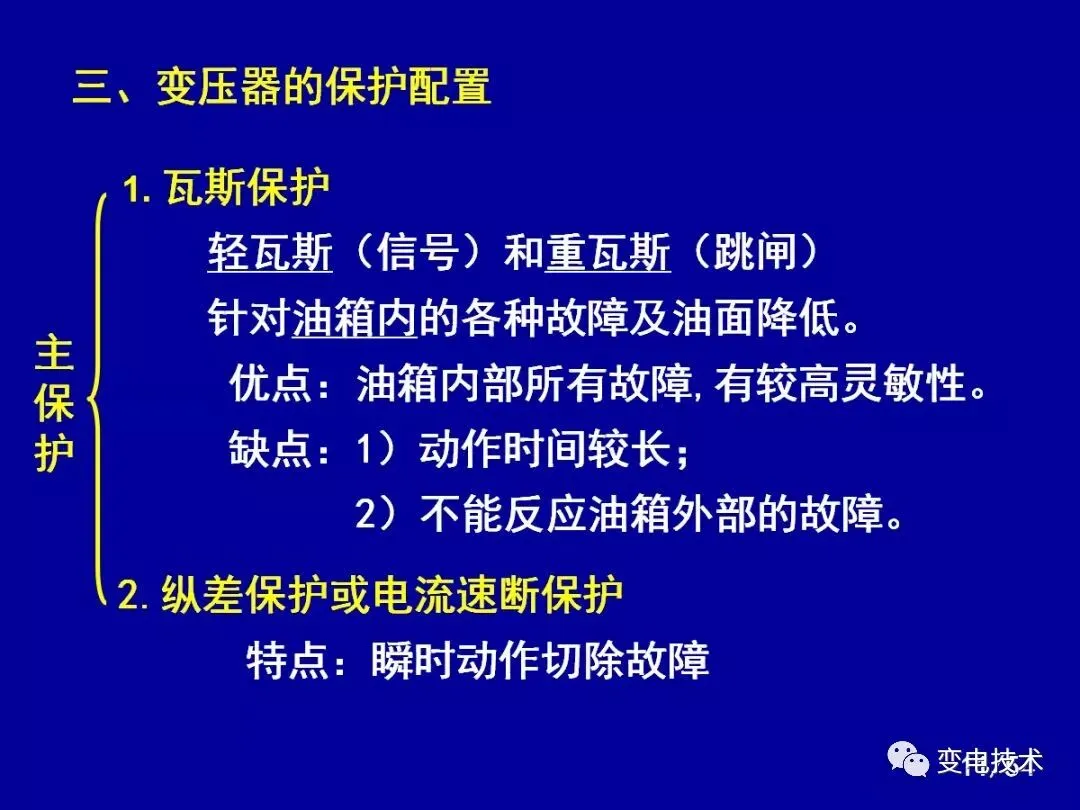

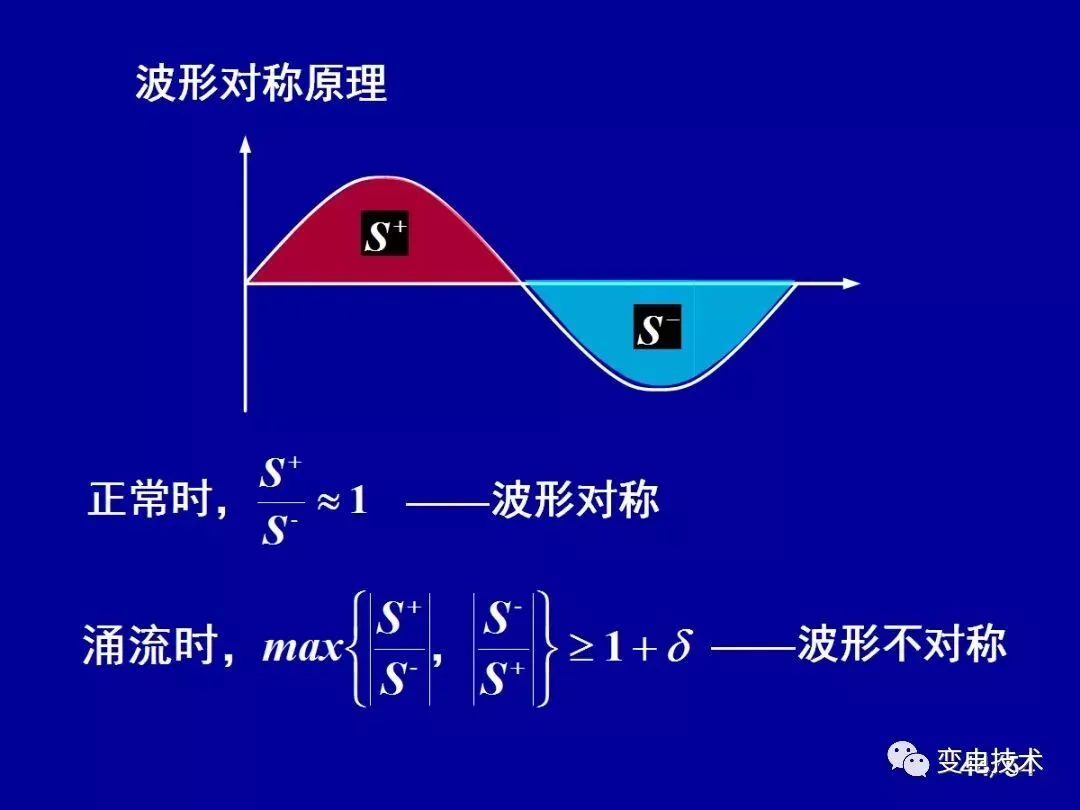

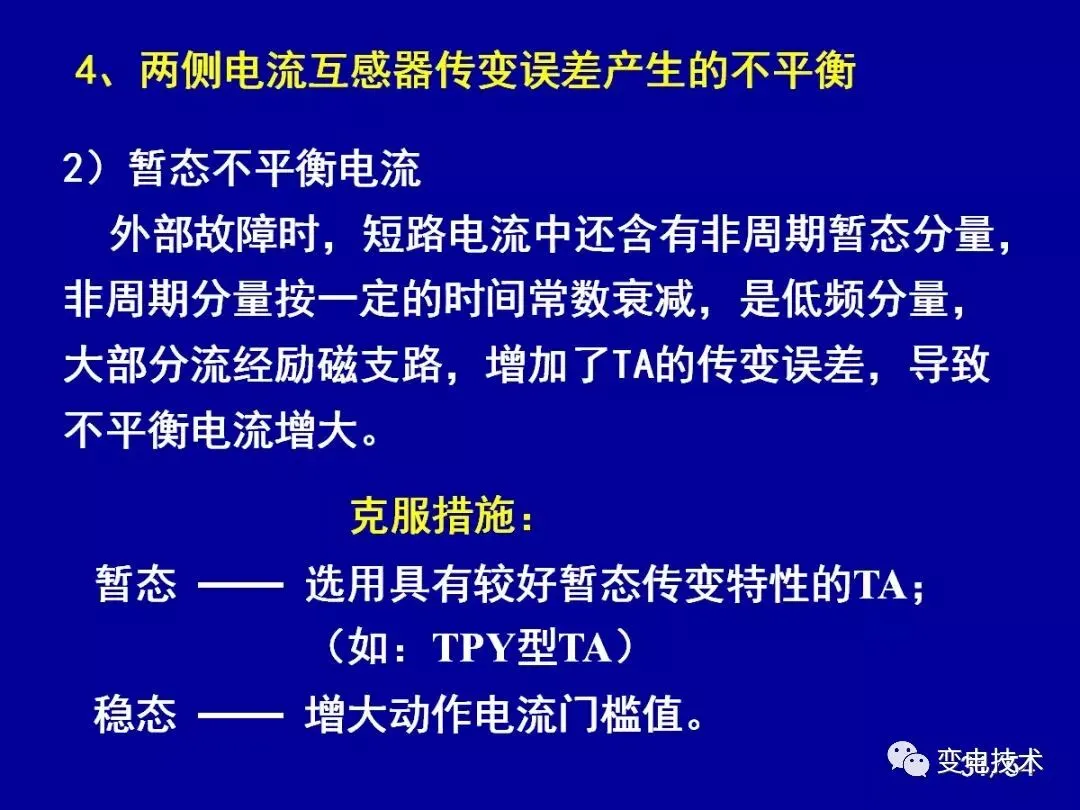

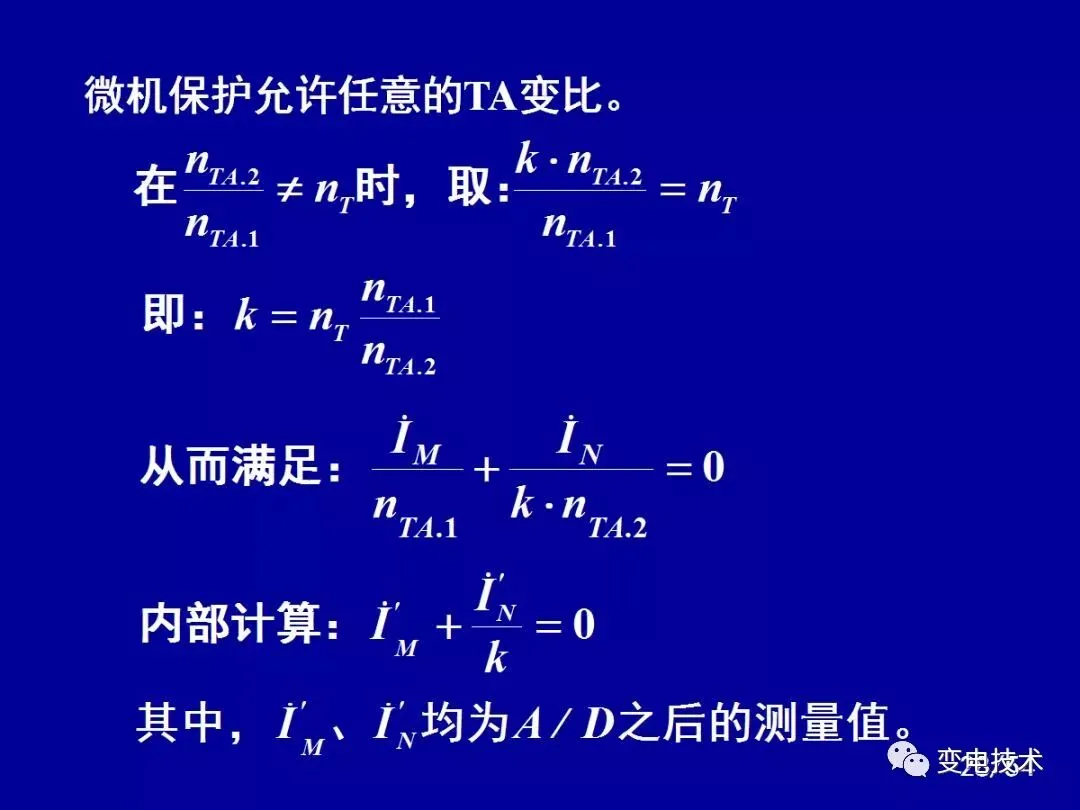

54页PPT教你如何全方位保护变压器!

  • 2026-04-08 23:51:12
54页PPT教你如何全方位保护变压器!

一个学技术的公众号

ID:BianDianJiShu

●变压器下放鹅卵石的原因？

●断路器及断路器控制回路详解

●变电规程|DL/T 573-2021电力变压器检修导则

●GIS设备简介

●第一次有人把电流互感器介绍得这么好！

●变压器的基本结构及主要部件

本文来自：【网络媒体】版权归原作者所有，只供变电专业技术人员交流和学习，无任何商业用途，如有侵权请联系我们删除。

关于电力知识你还有什么想了解的，欢迎评论区告诉我们哦~~

编辑：江湖君，微信：songpo98

点亮在看，你最好看！

本文来自网友投稿或网络内容，如有侵犯您的权益请联系我们删除，联系邮箱：wyl860211@qq.com 。
