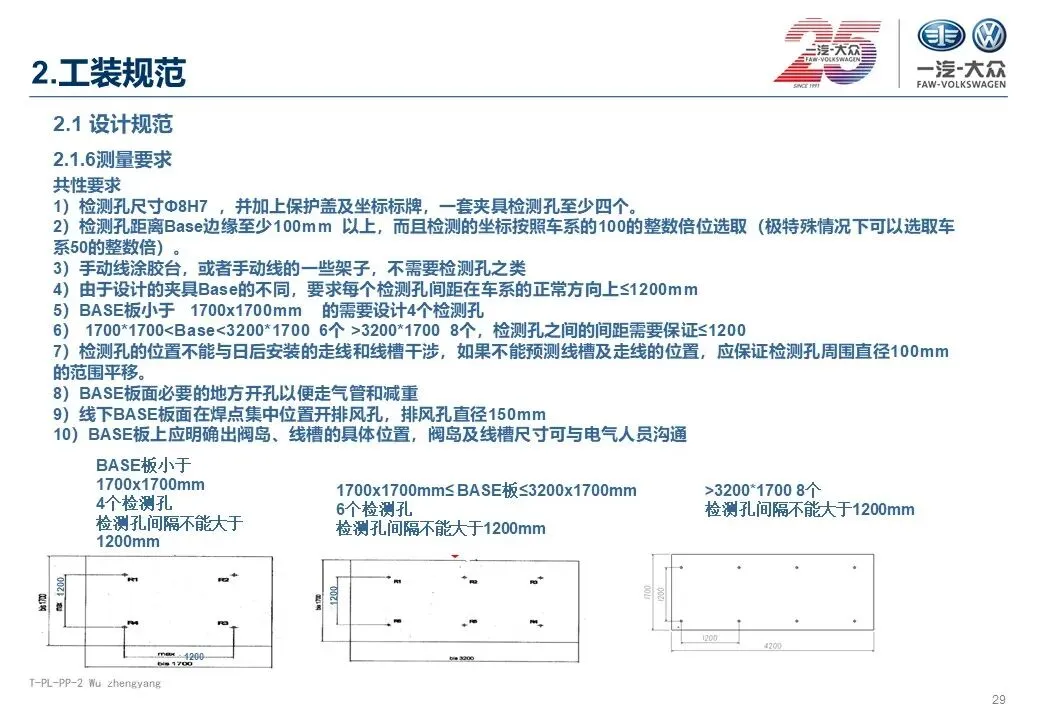

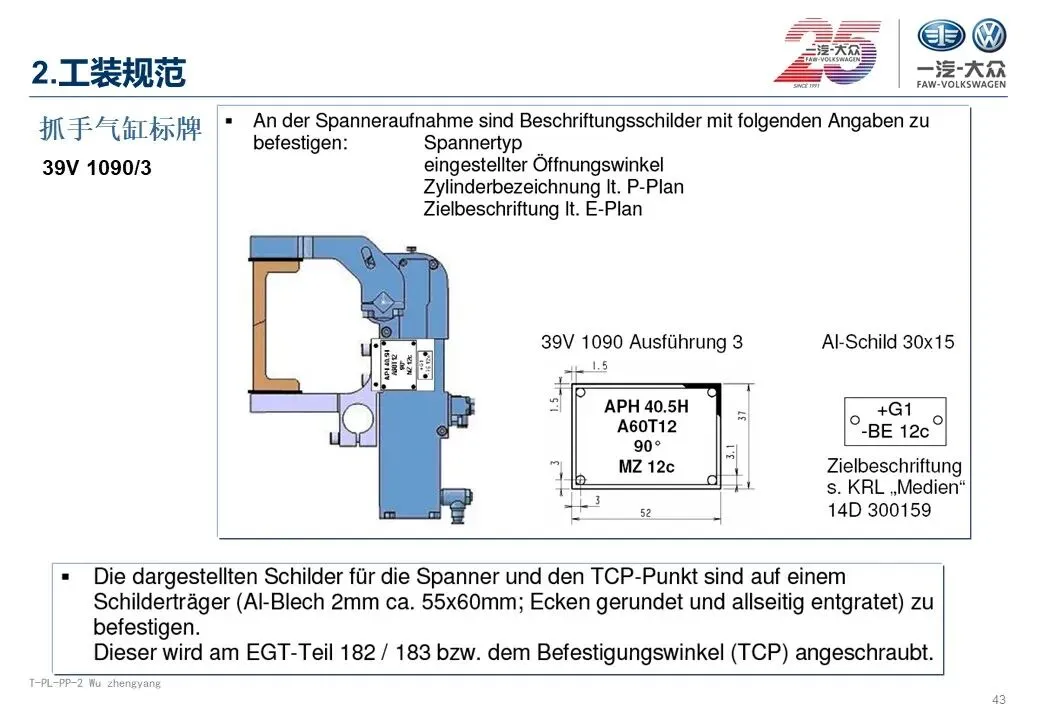

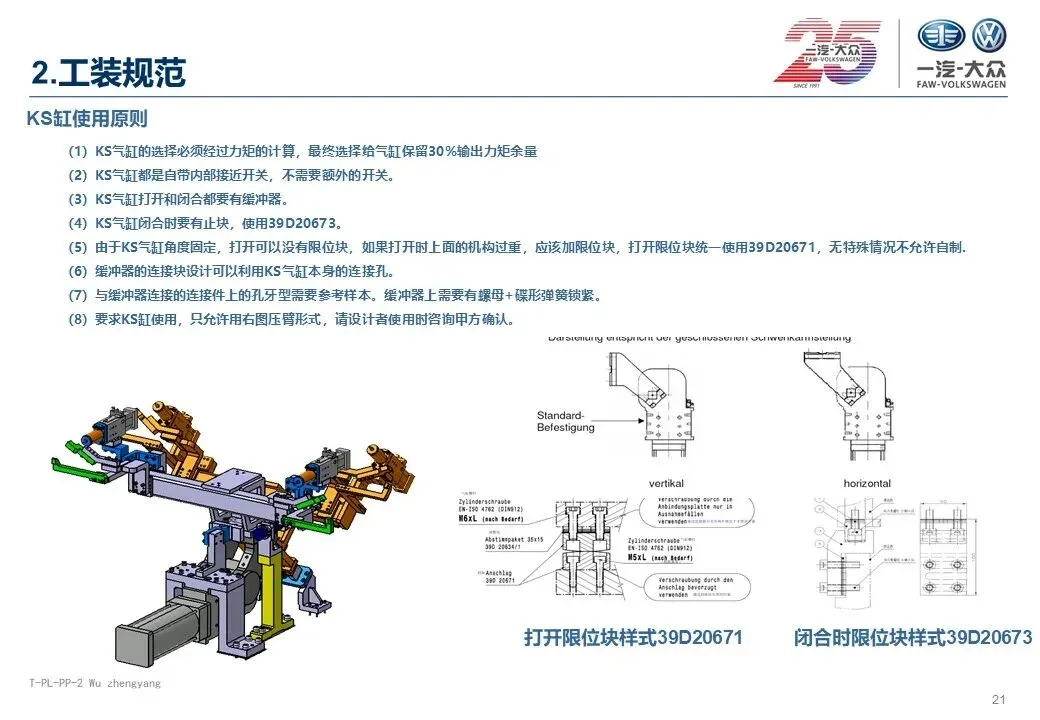

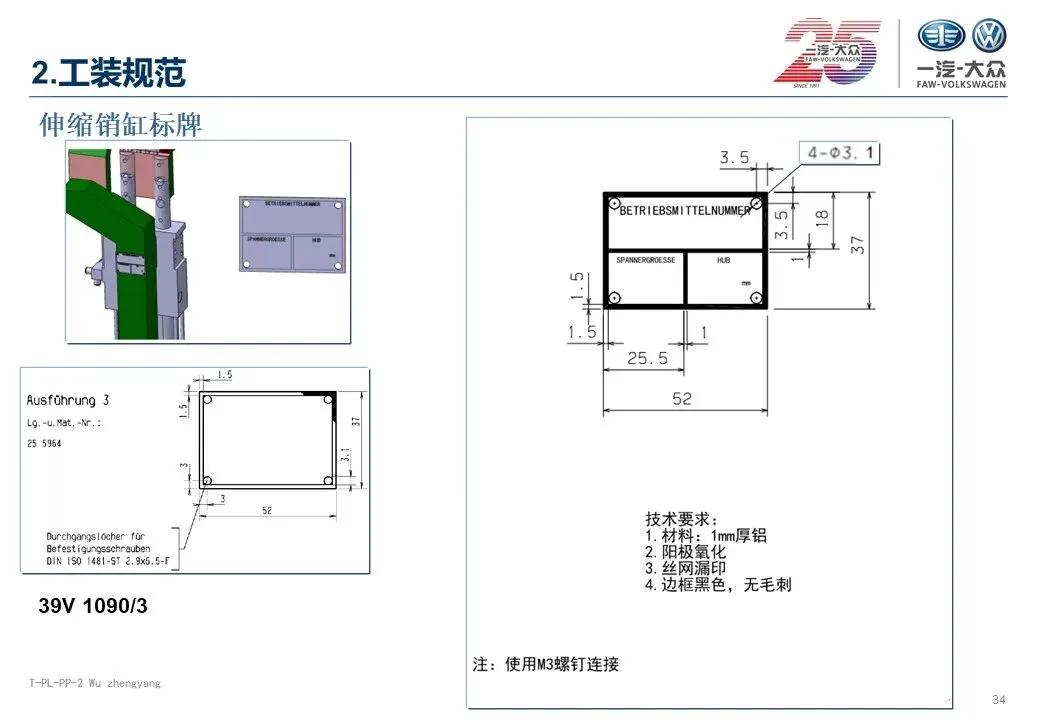

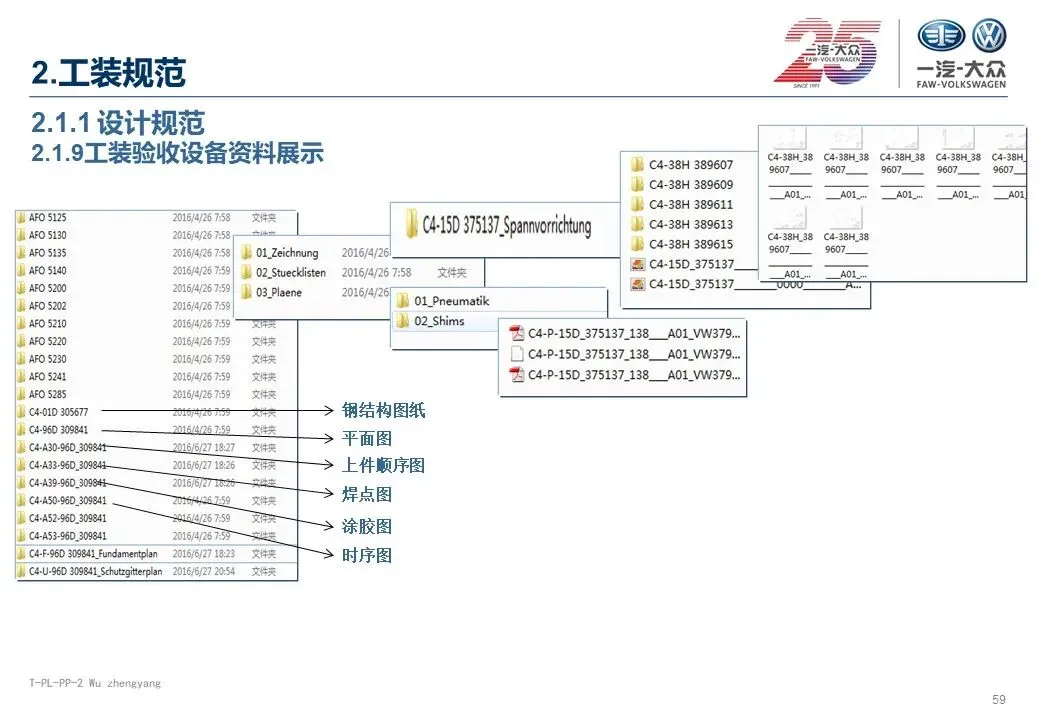

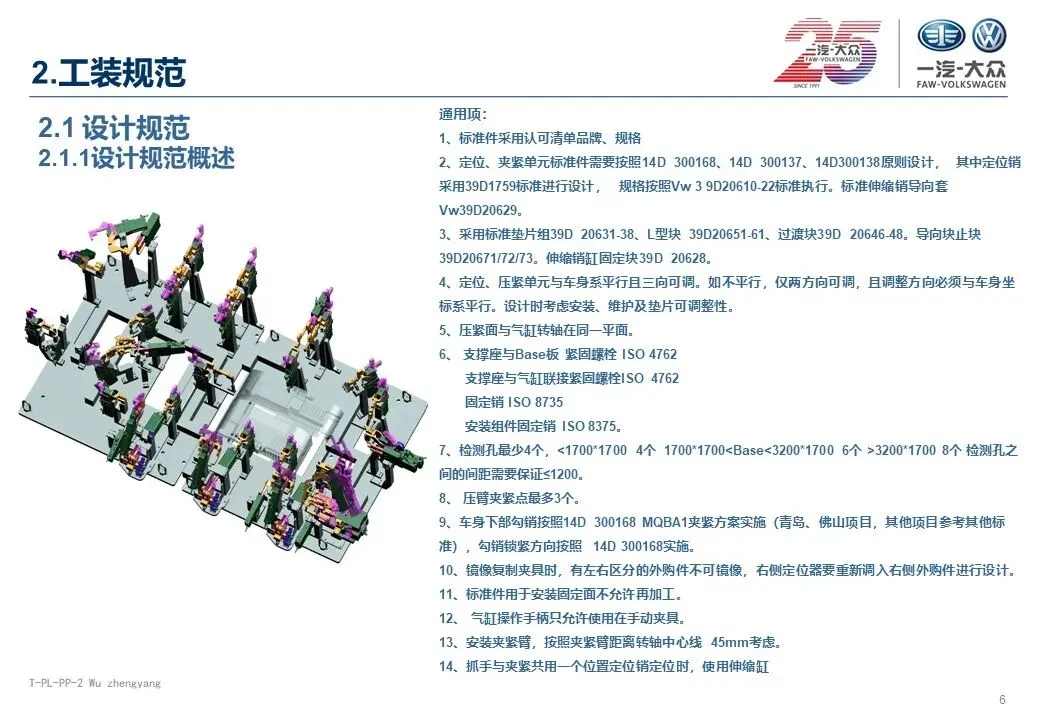

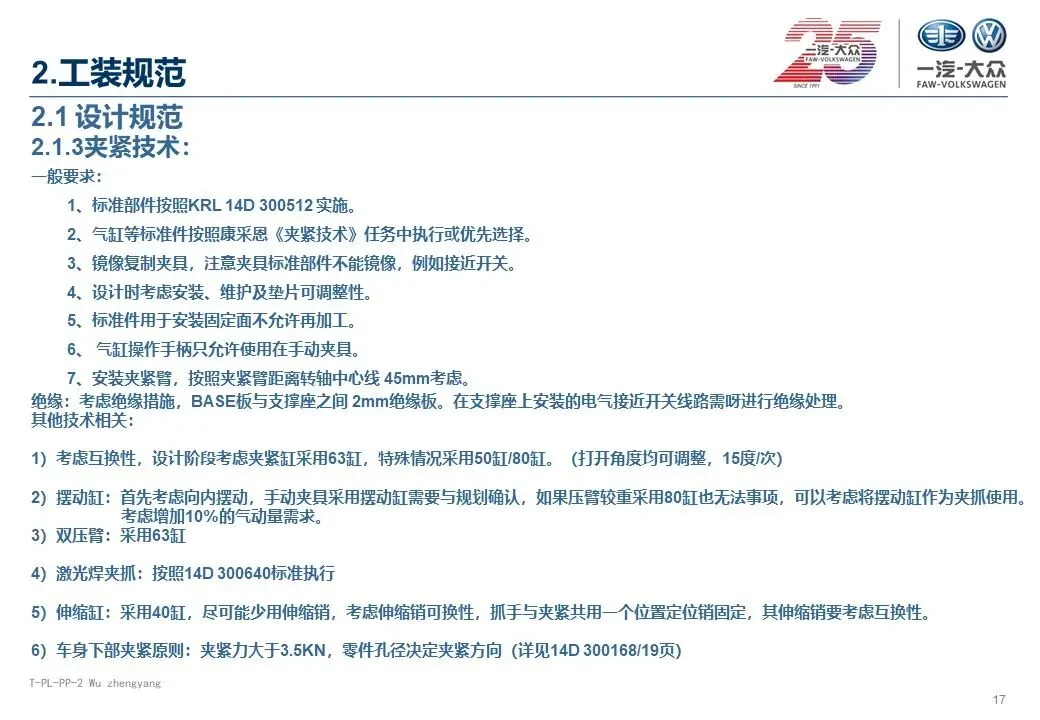

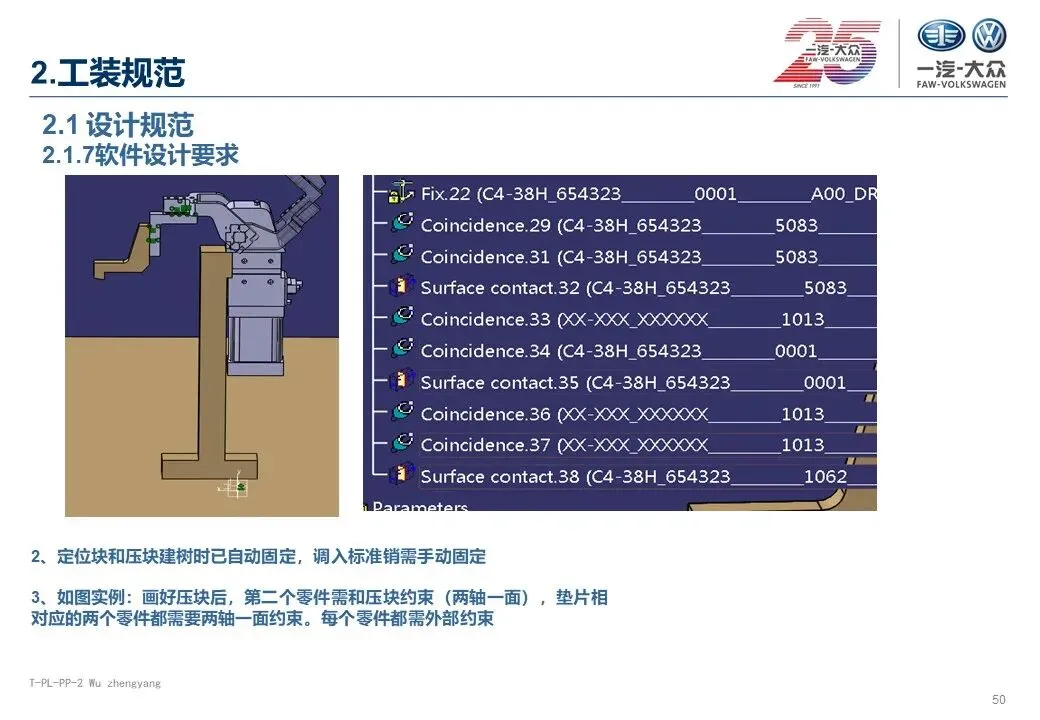

65页PPT详解 一汽大众焊装夹具设计 制造规范

  • 2026-10-29 17:21:10
65页PPT详解 一汽大众焊装夹具设计 制造规范

免责声明：公众号文章部分原创，部分系网络转载，版权归原作者所有。如涉及版权，请联系删除！
