210页,八大机械传动知识培训PPT,绝对干货

  • 2026-04-07 21:01:13
210页,八大机械传动知识培训PPT,绝对干货

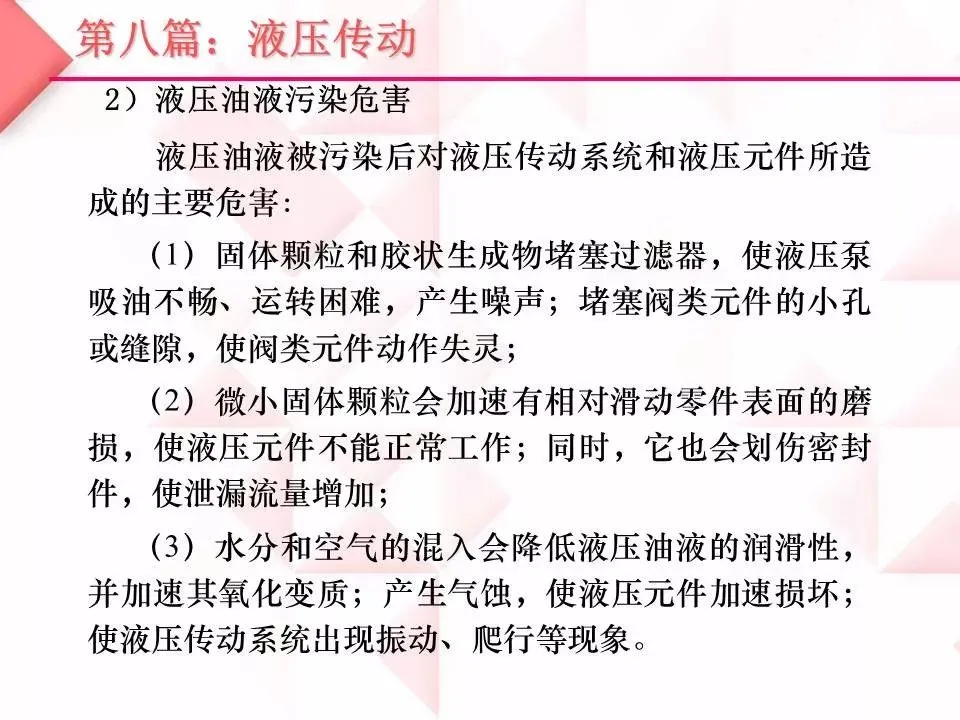

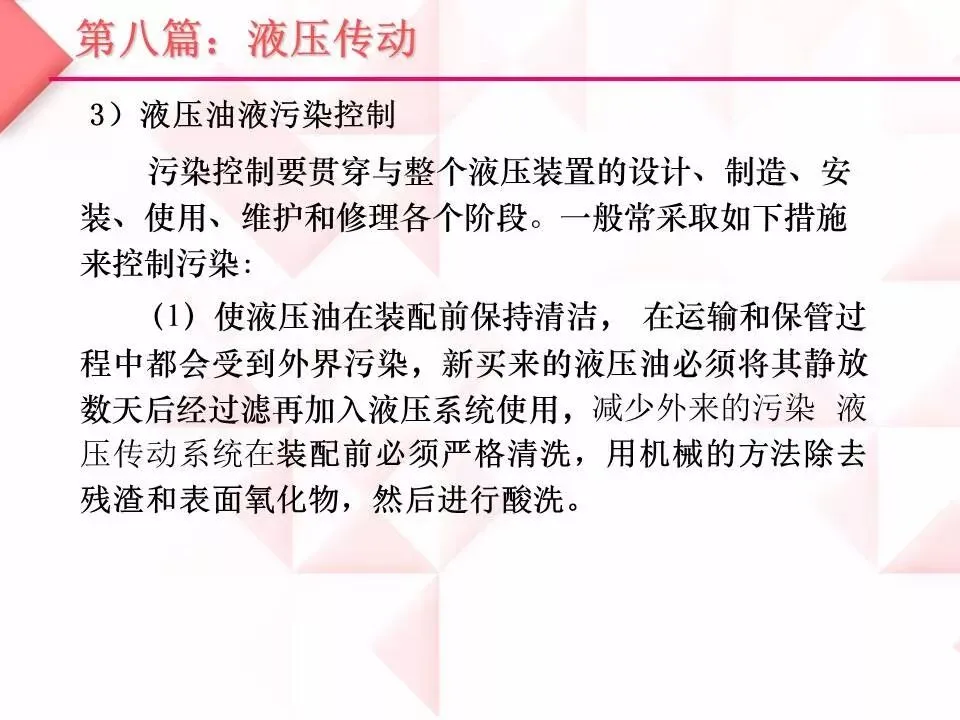

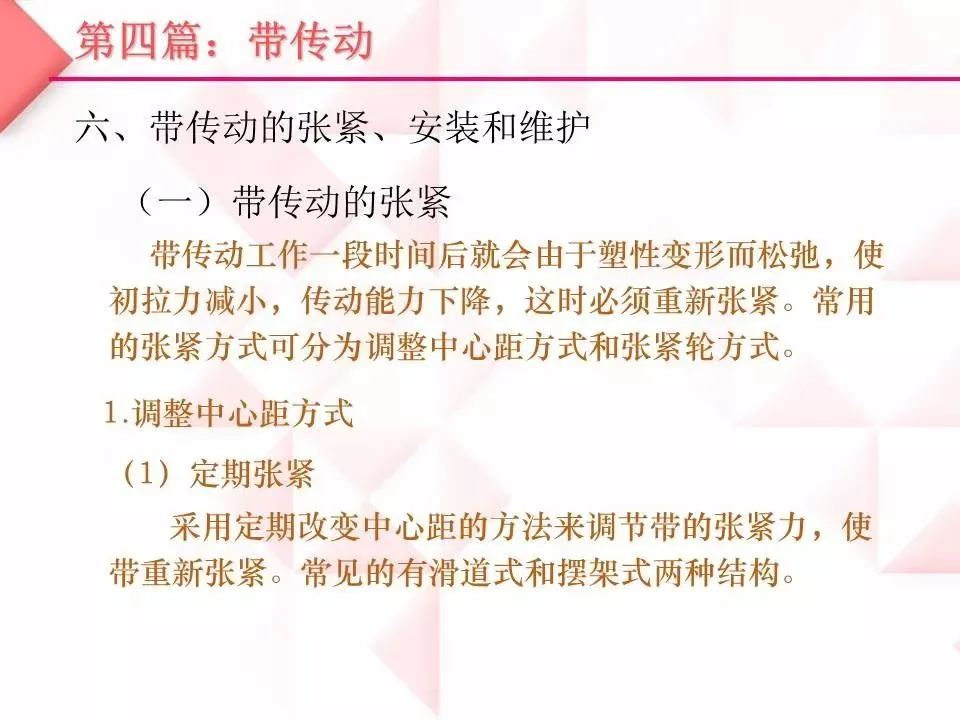

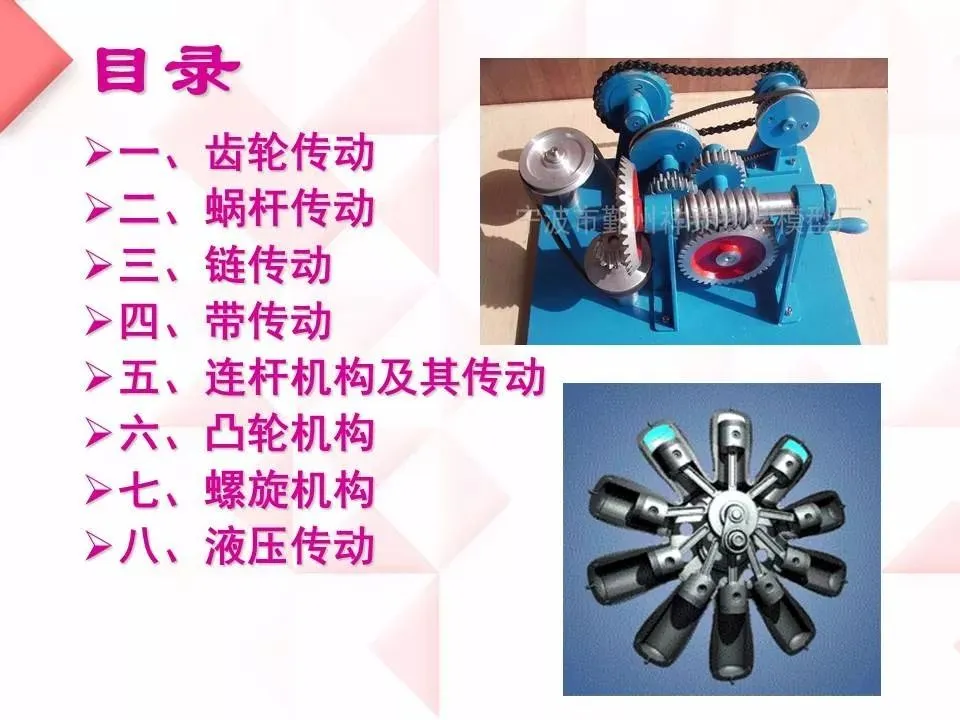

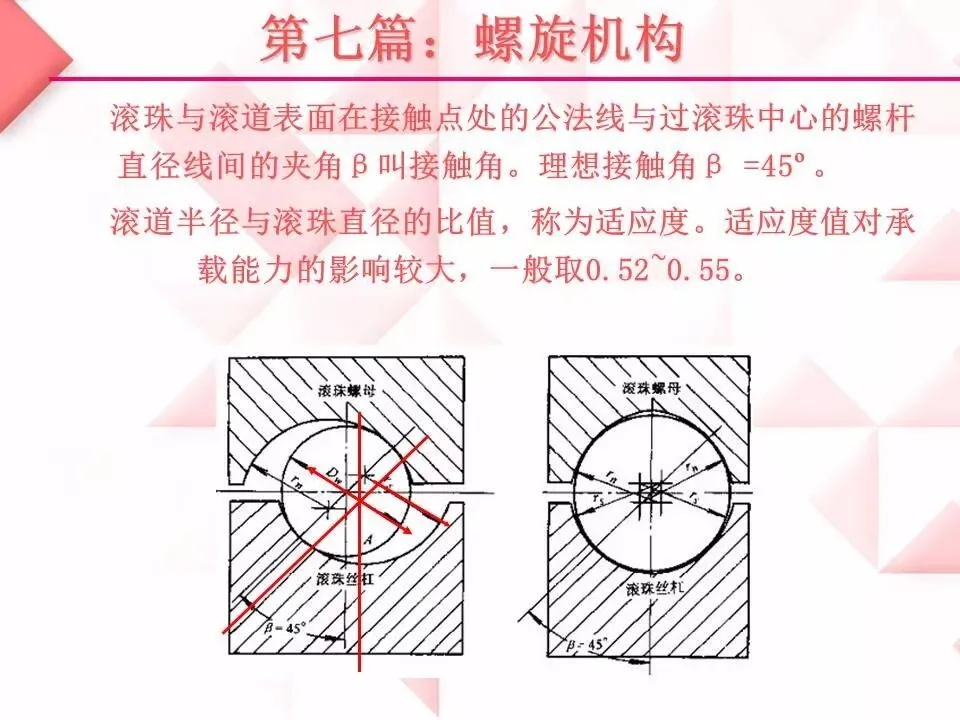

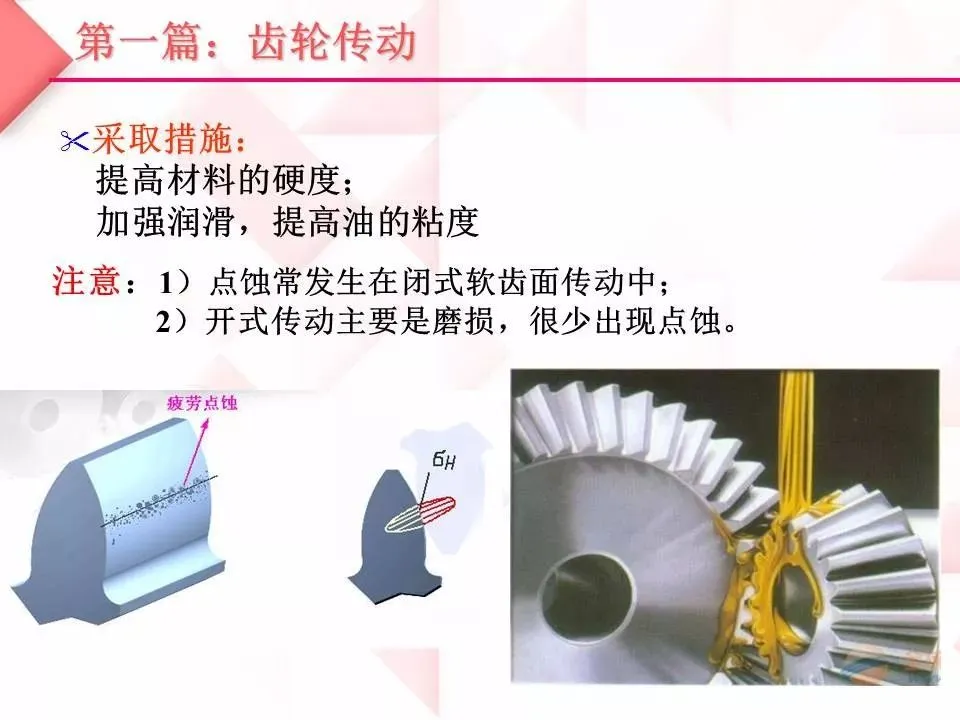

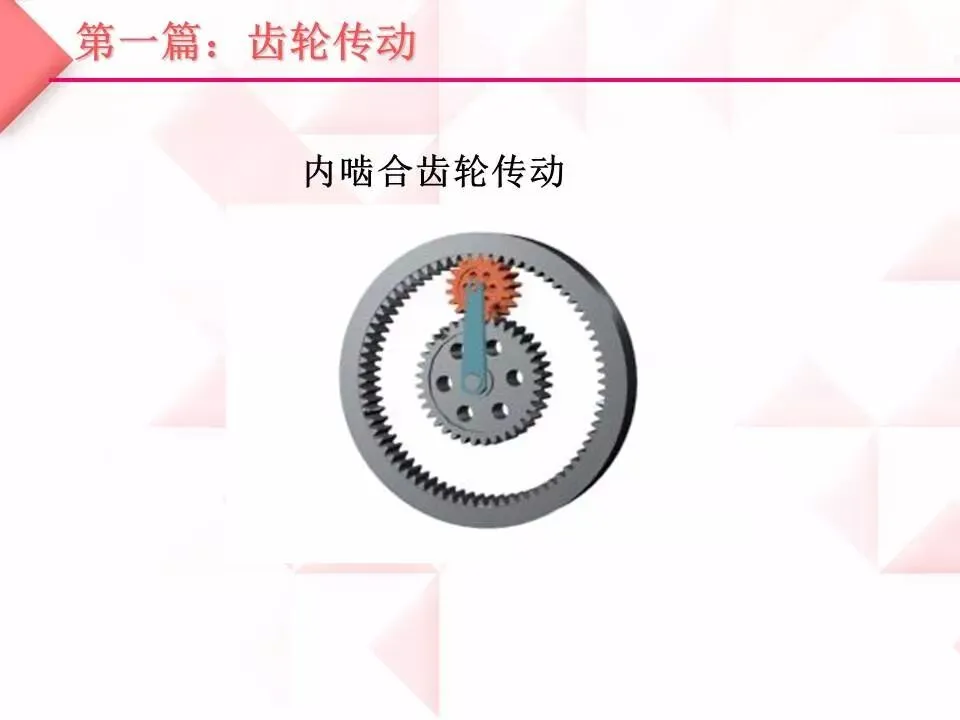

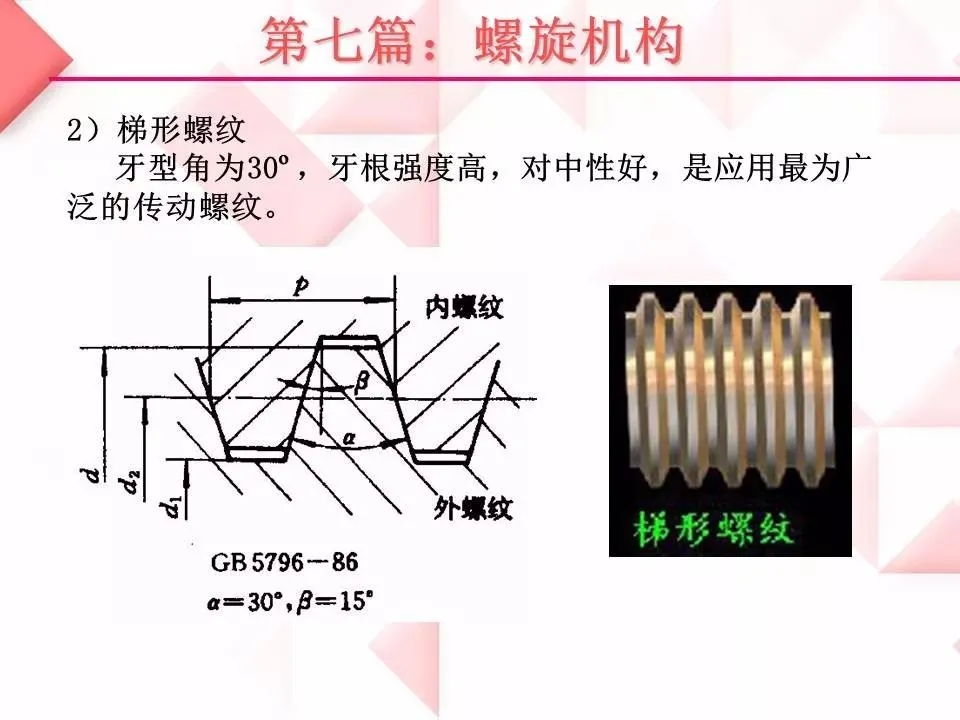

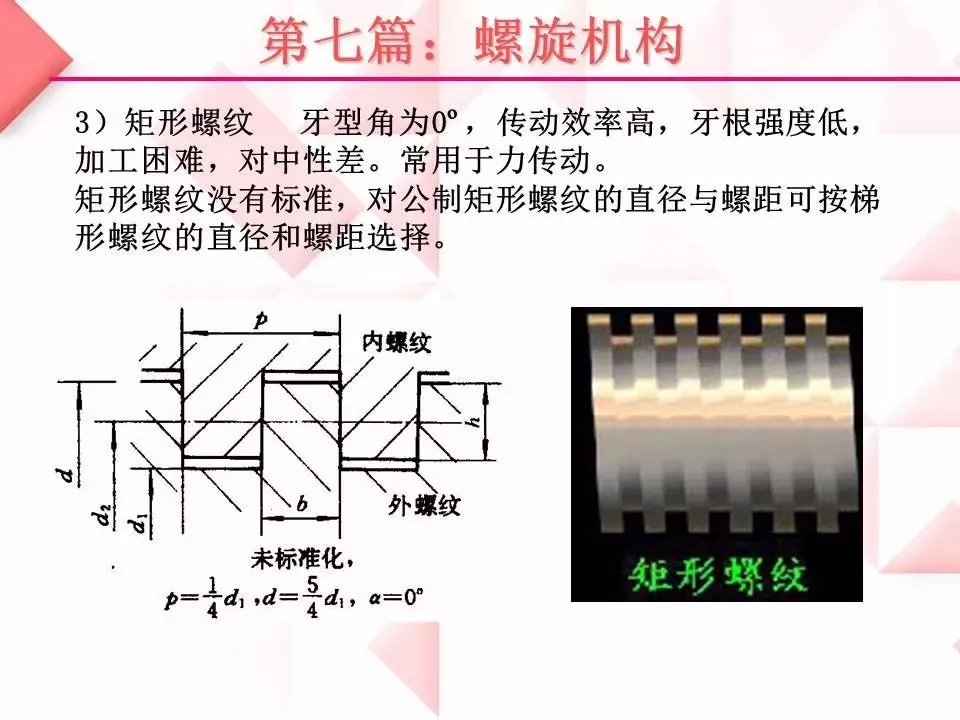

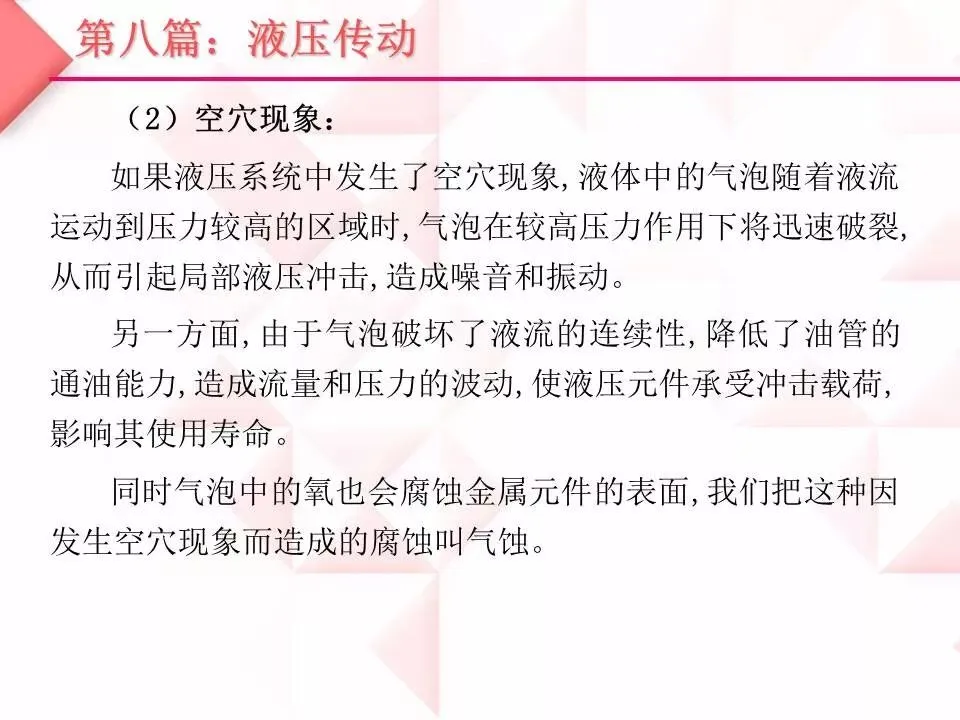

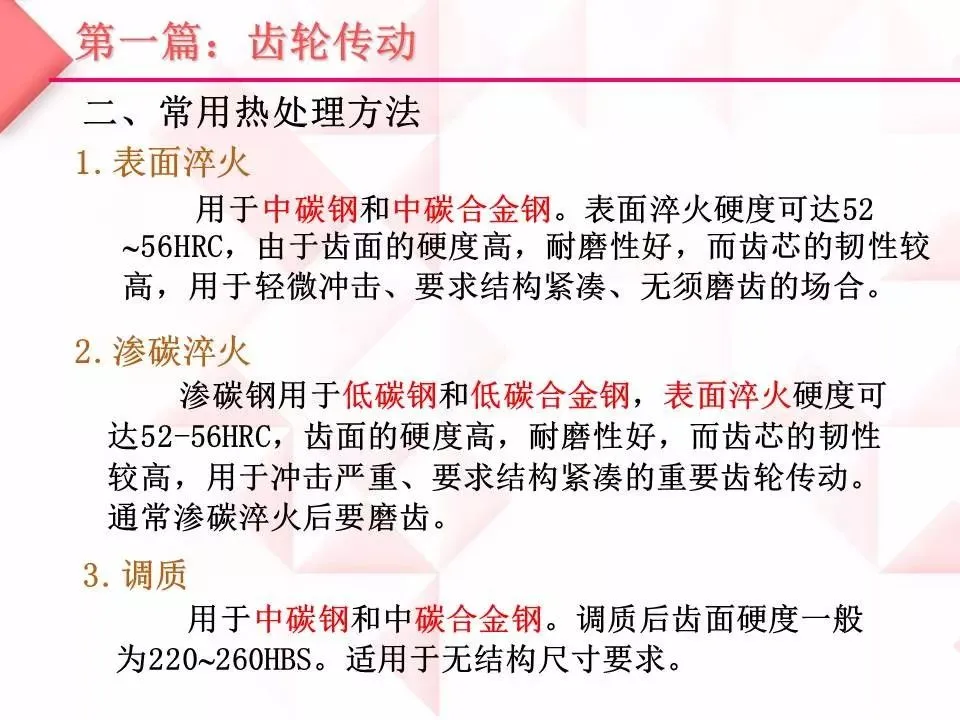

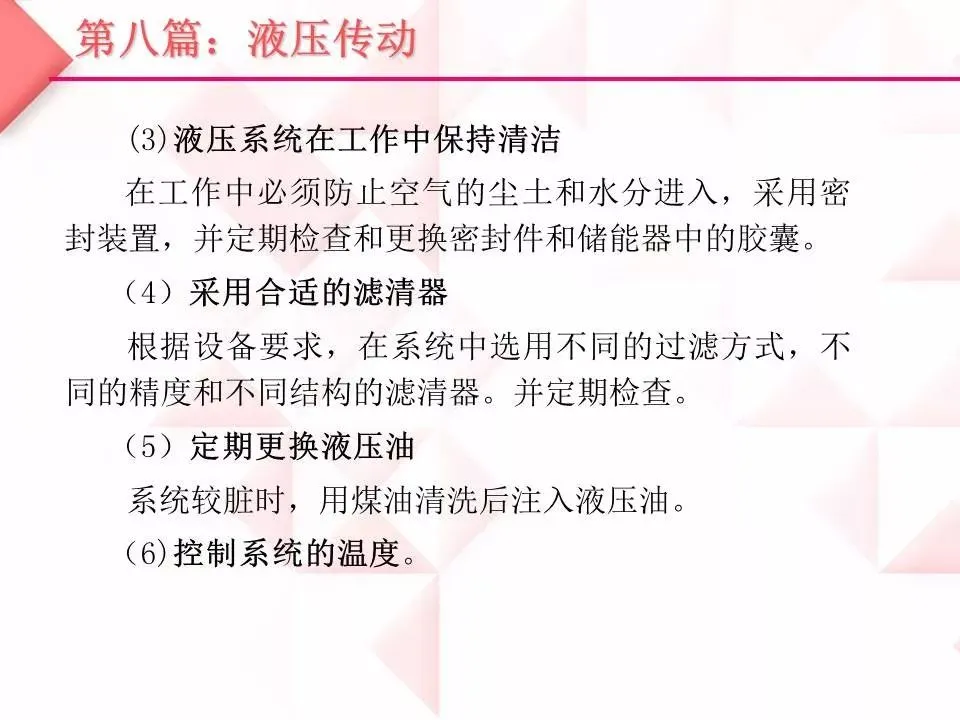

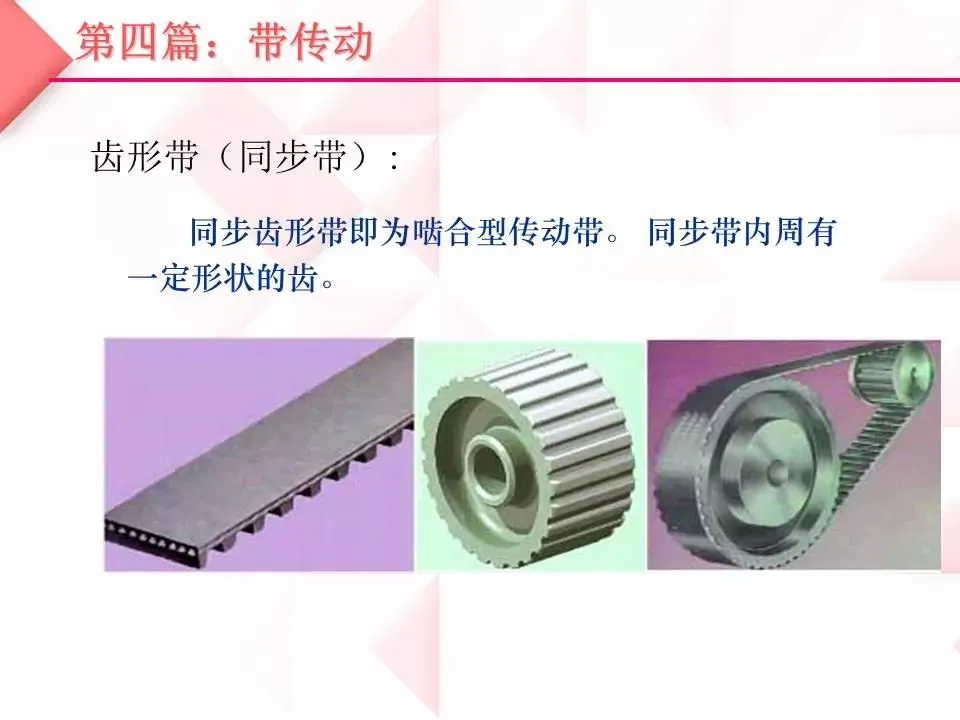

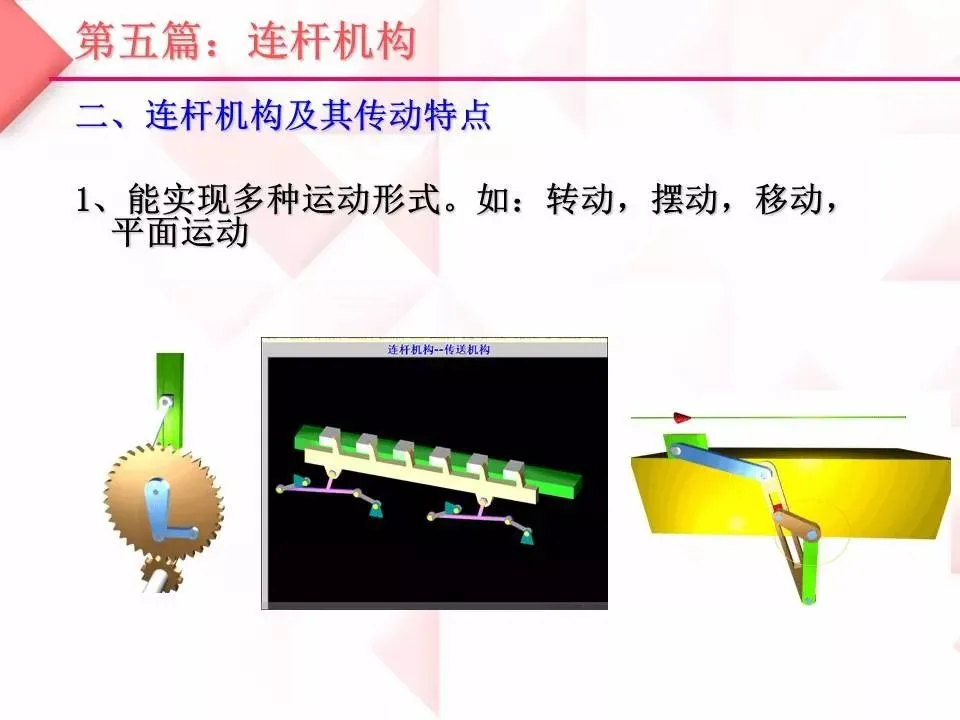

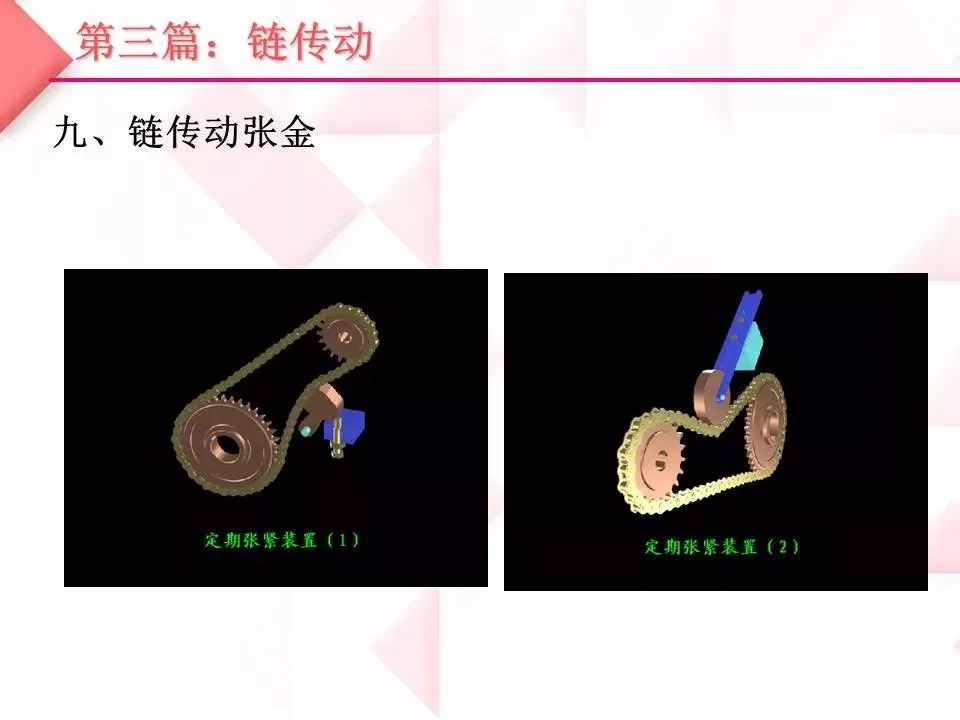

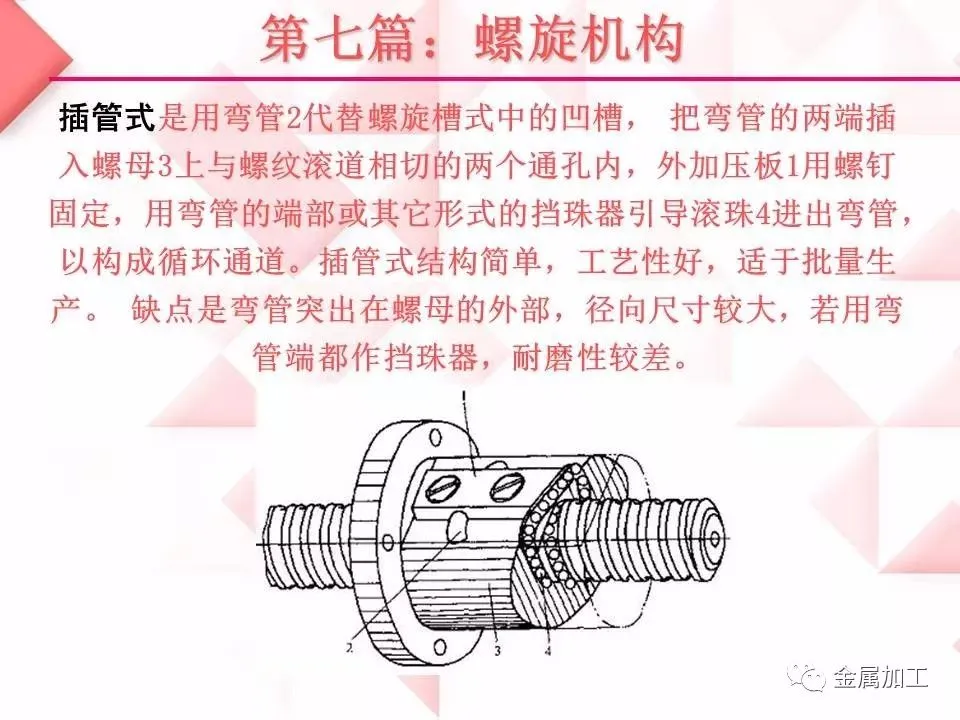

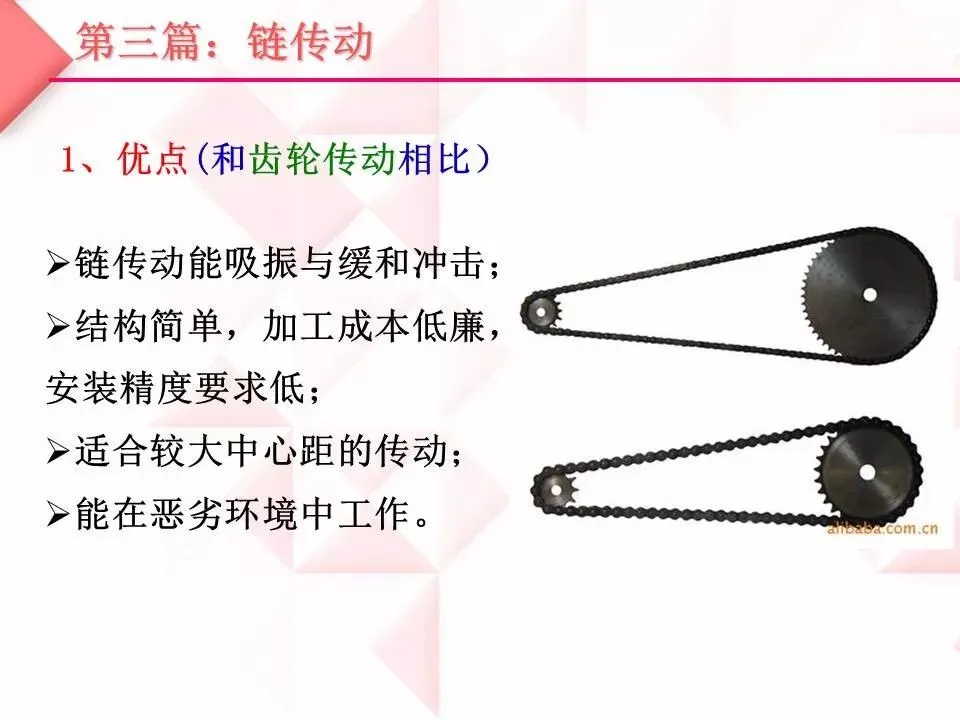

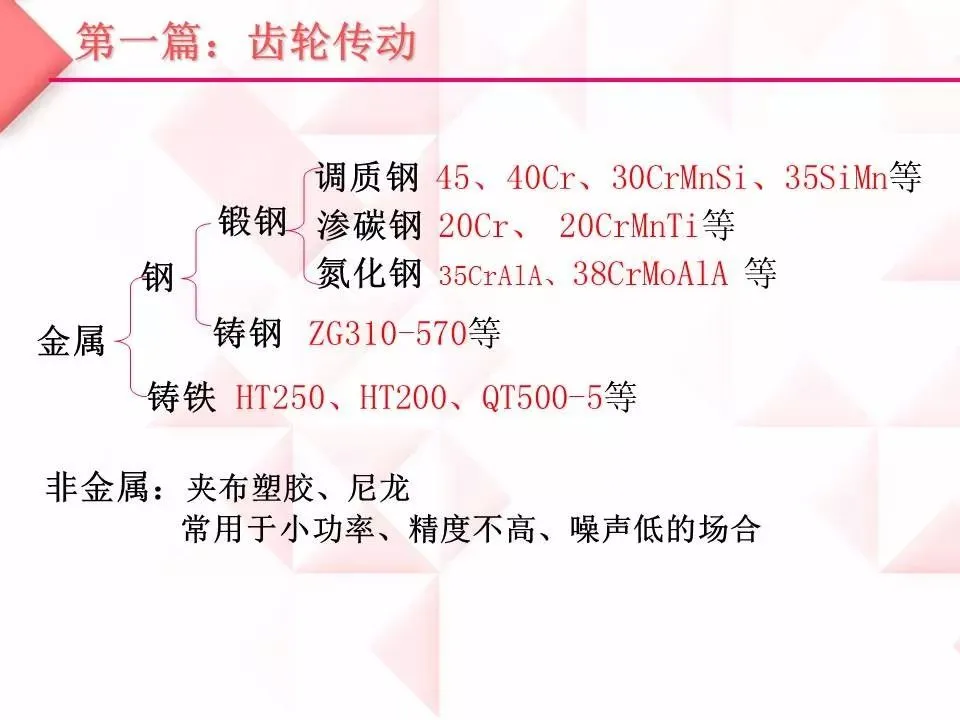

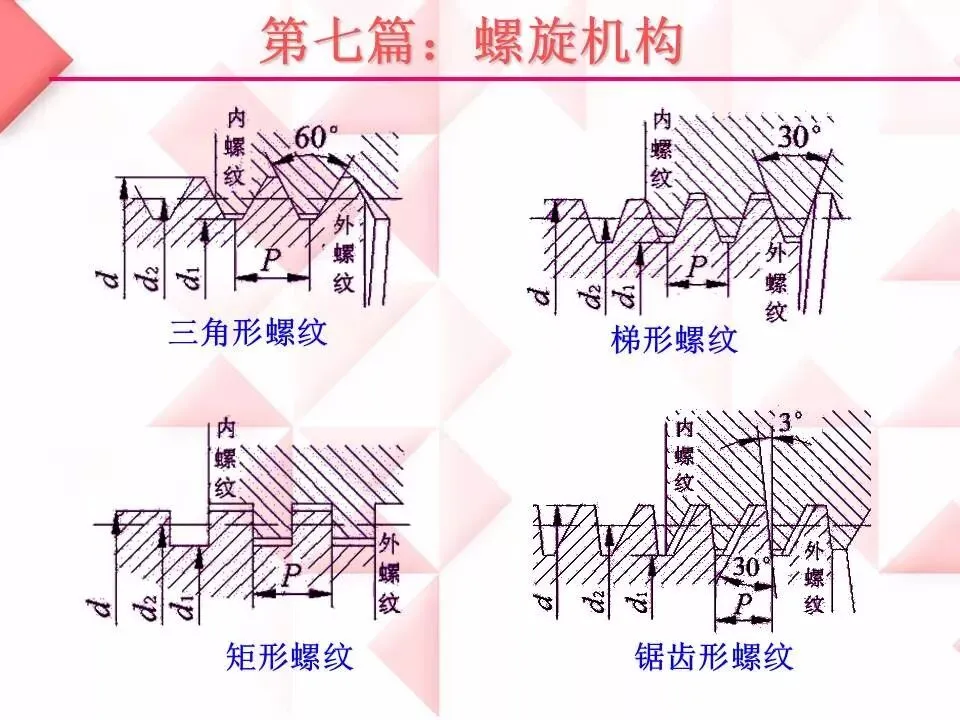

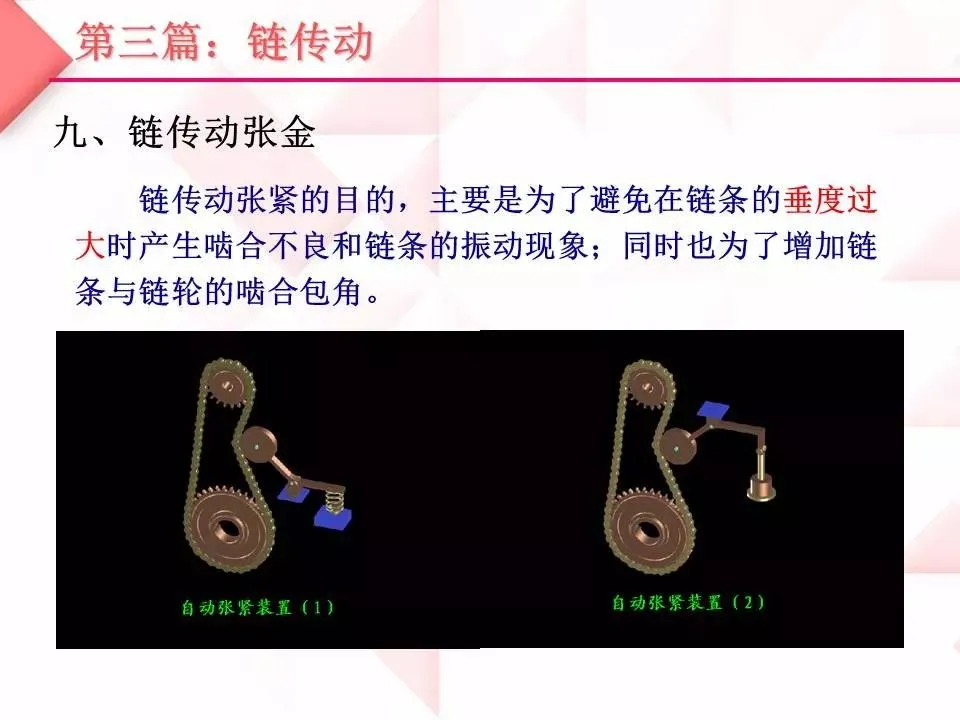

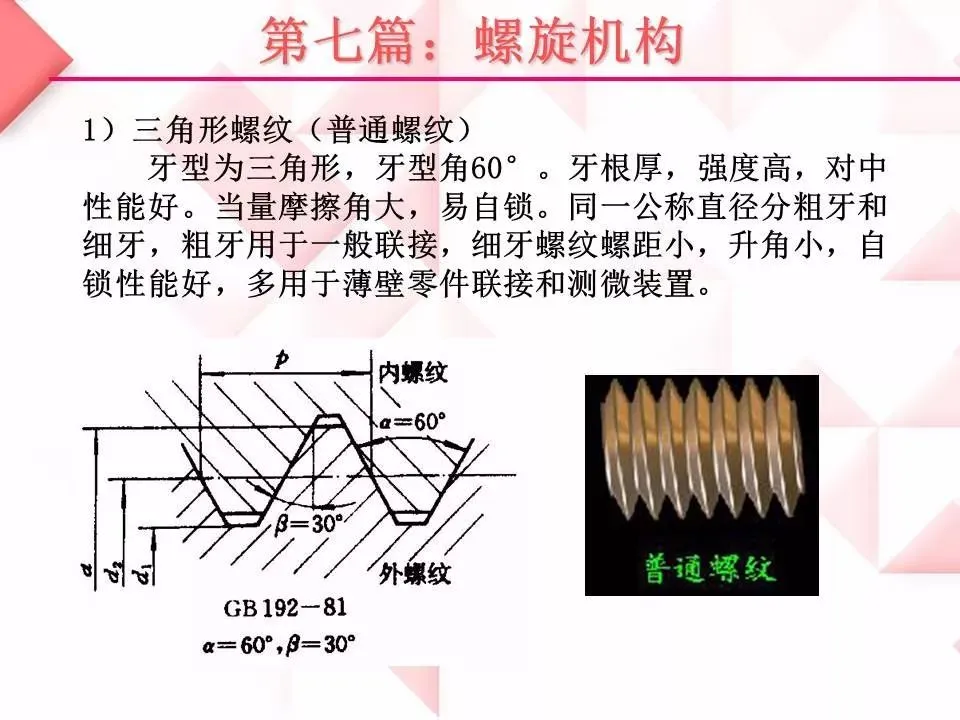

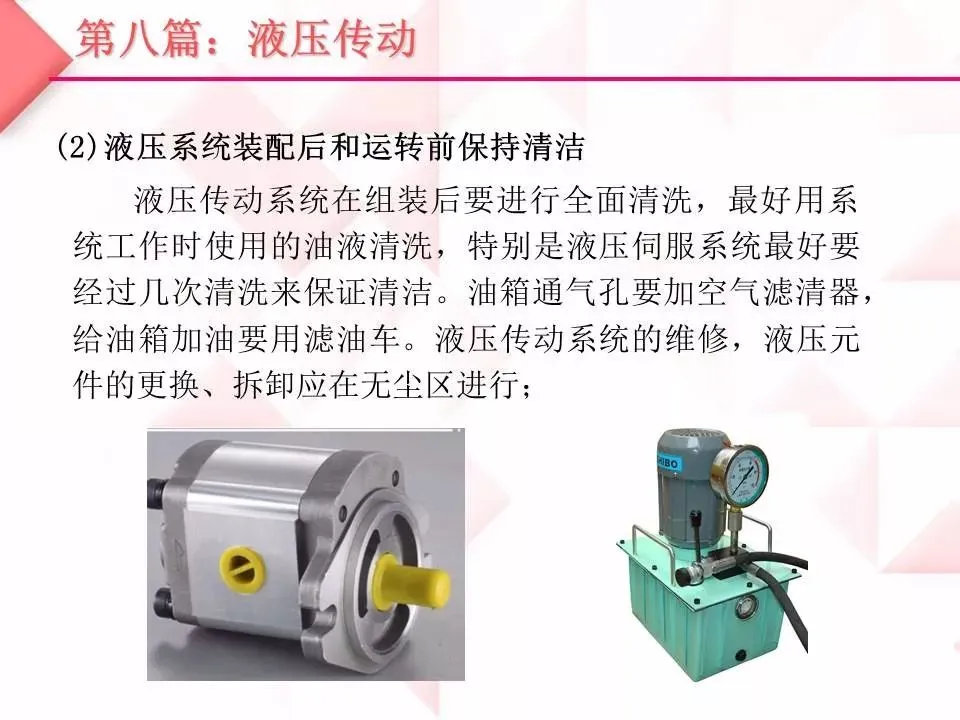

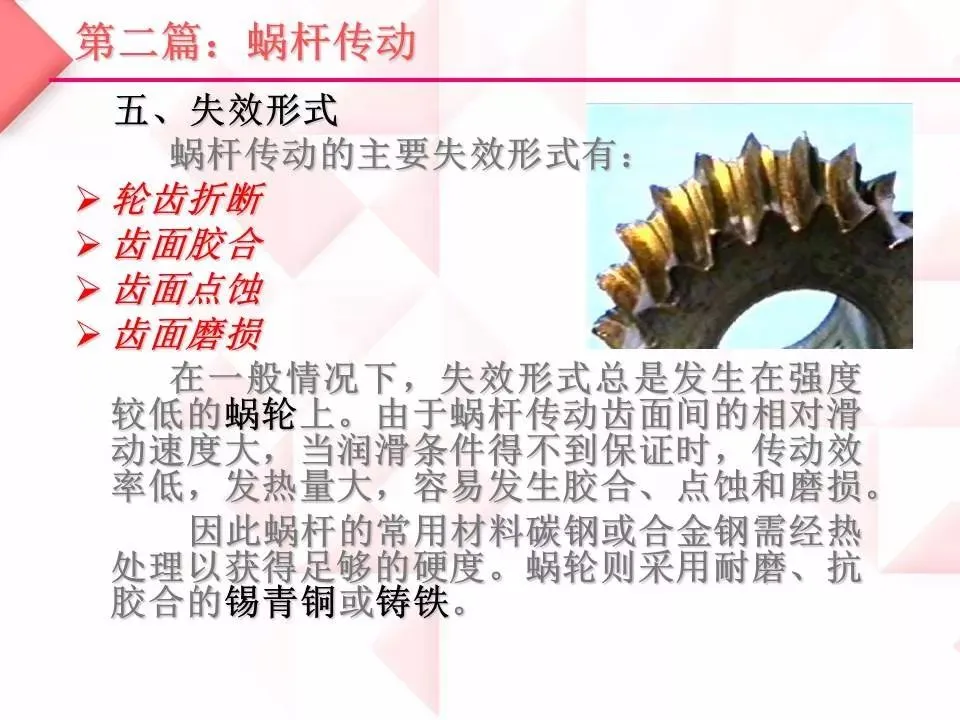

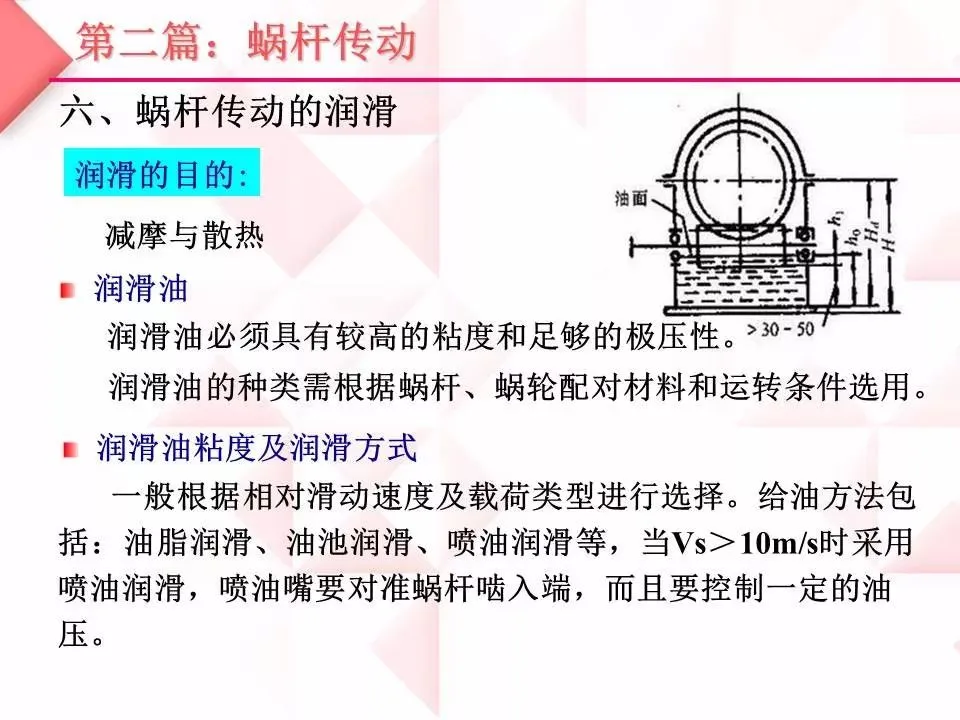

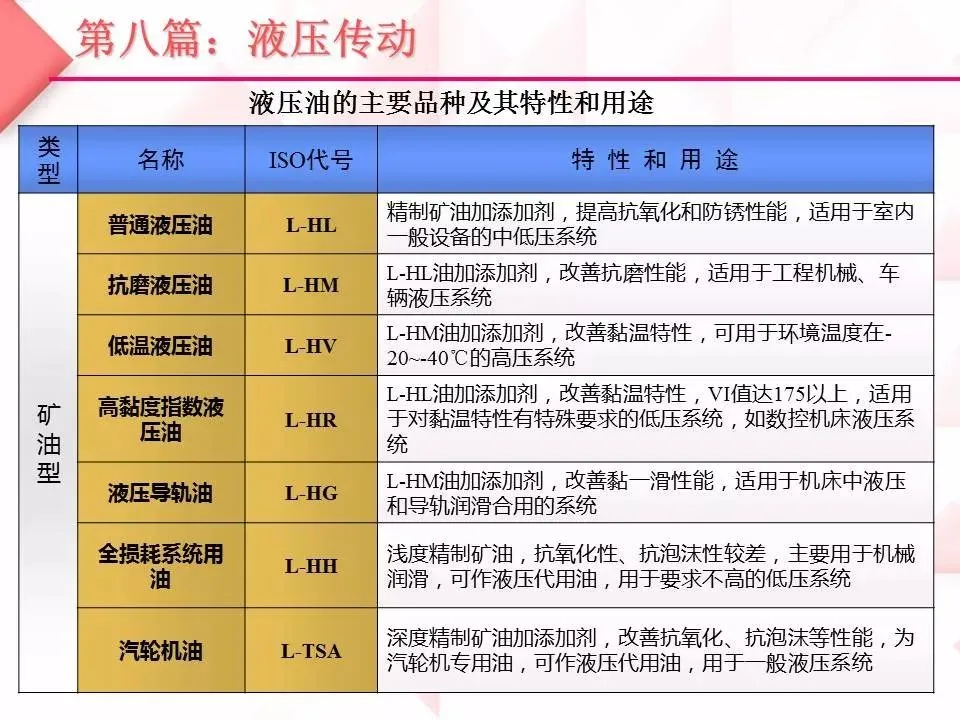

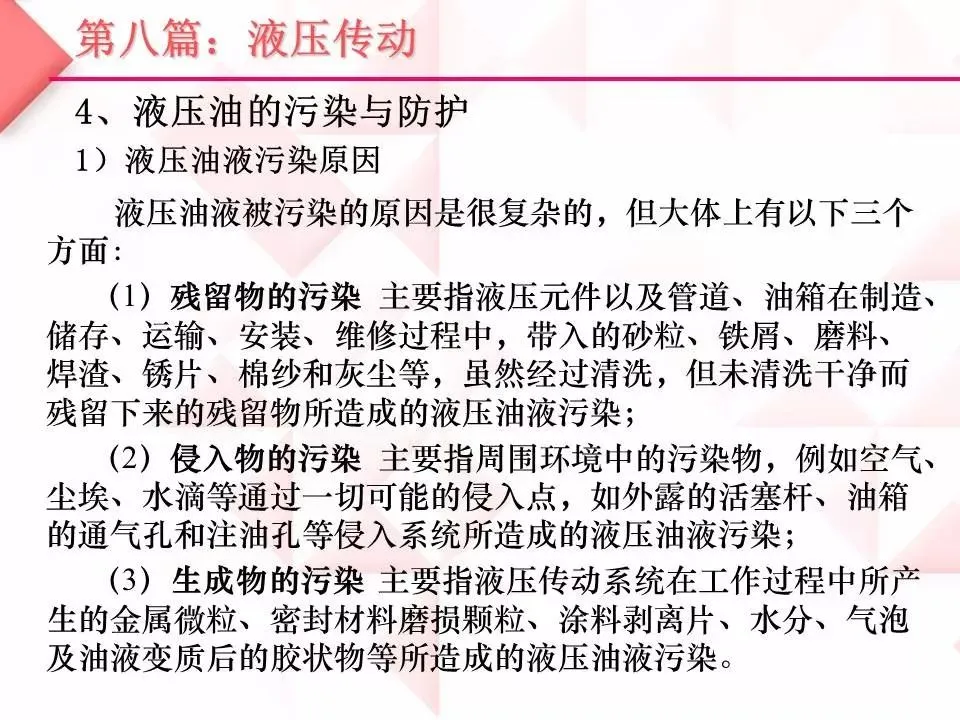

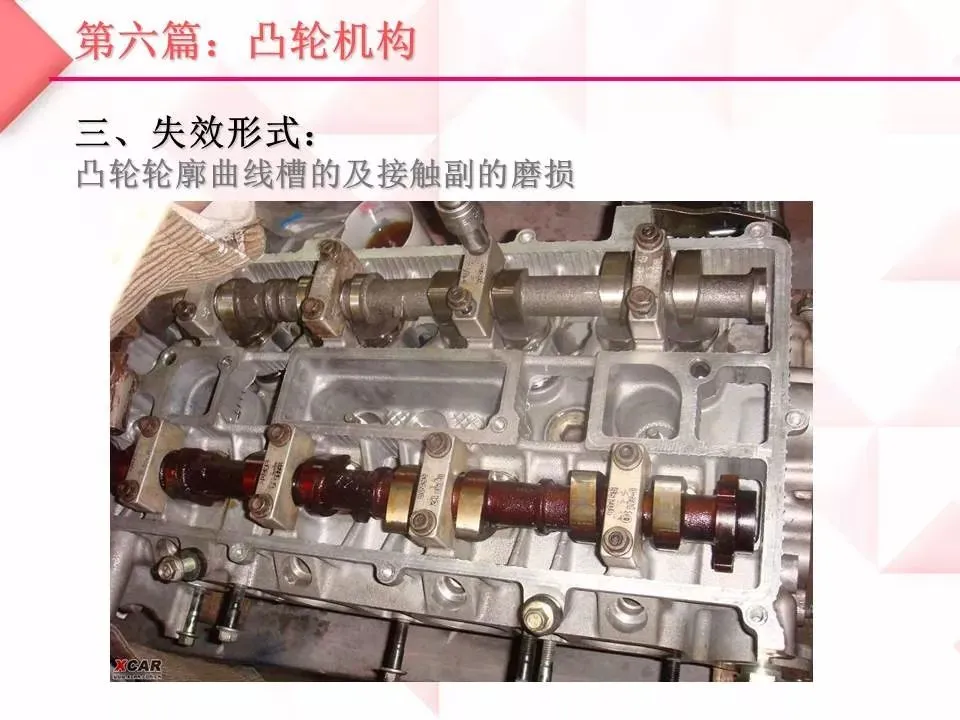

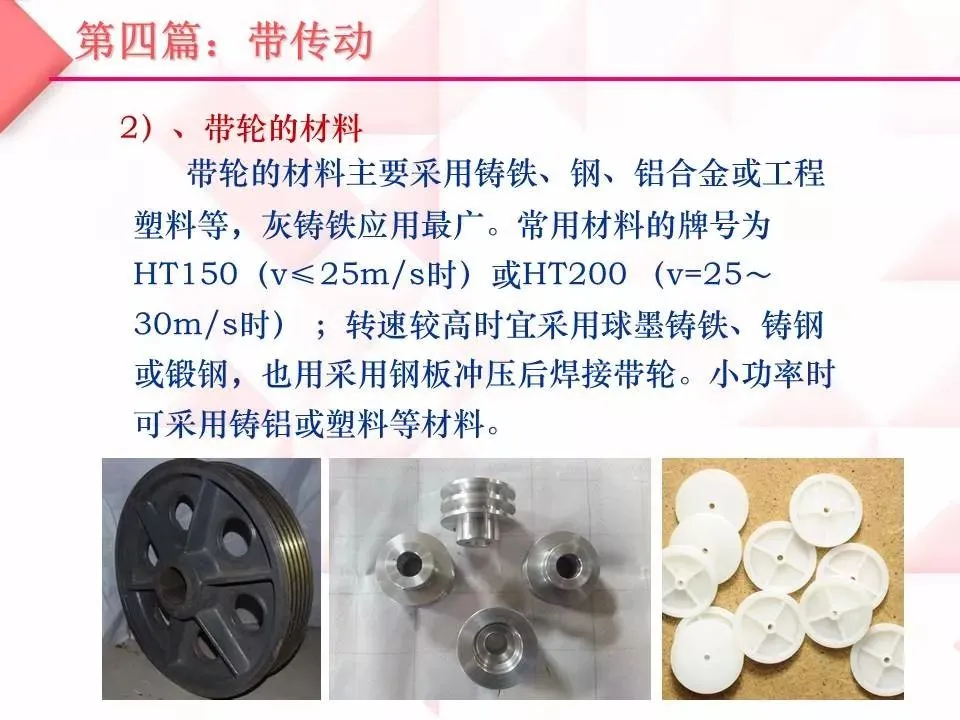

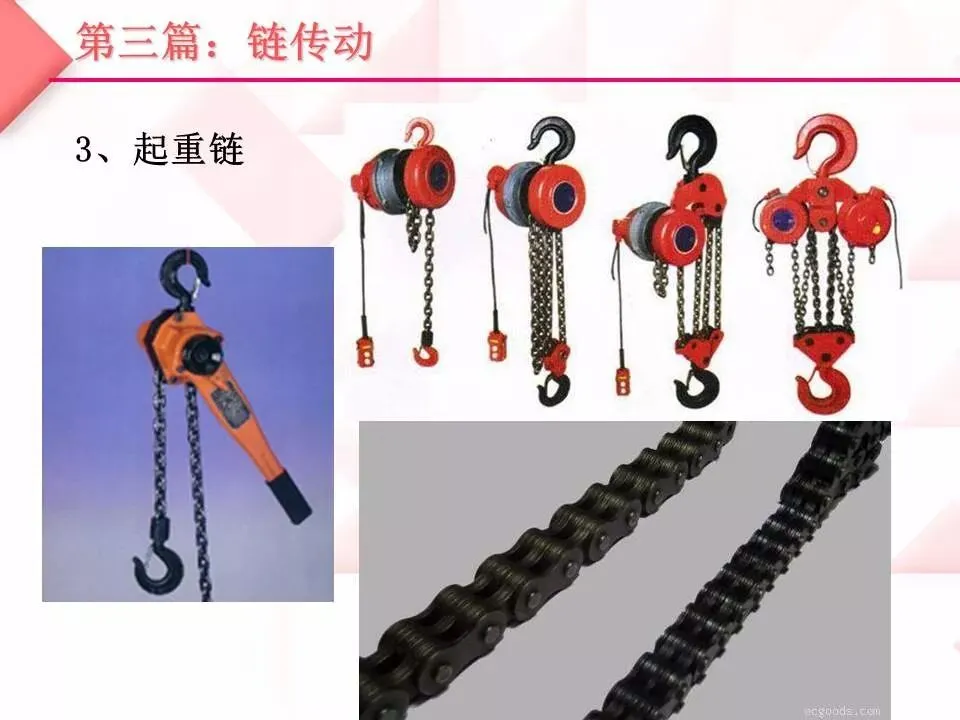

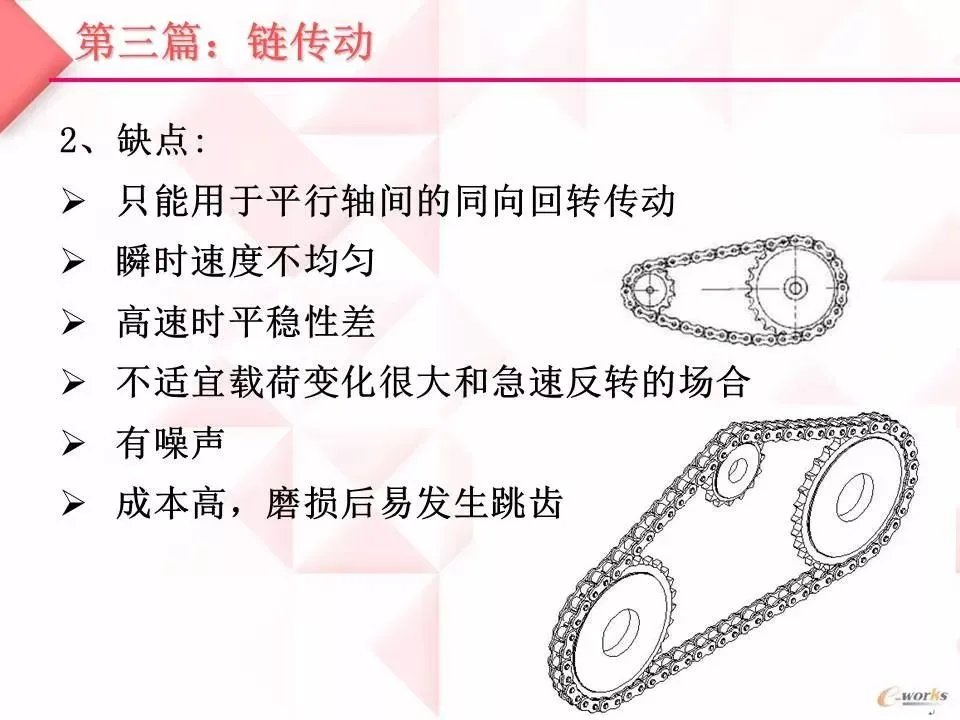

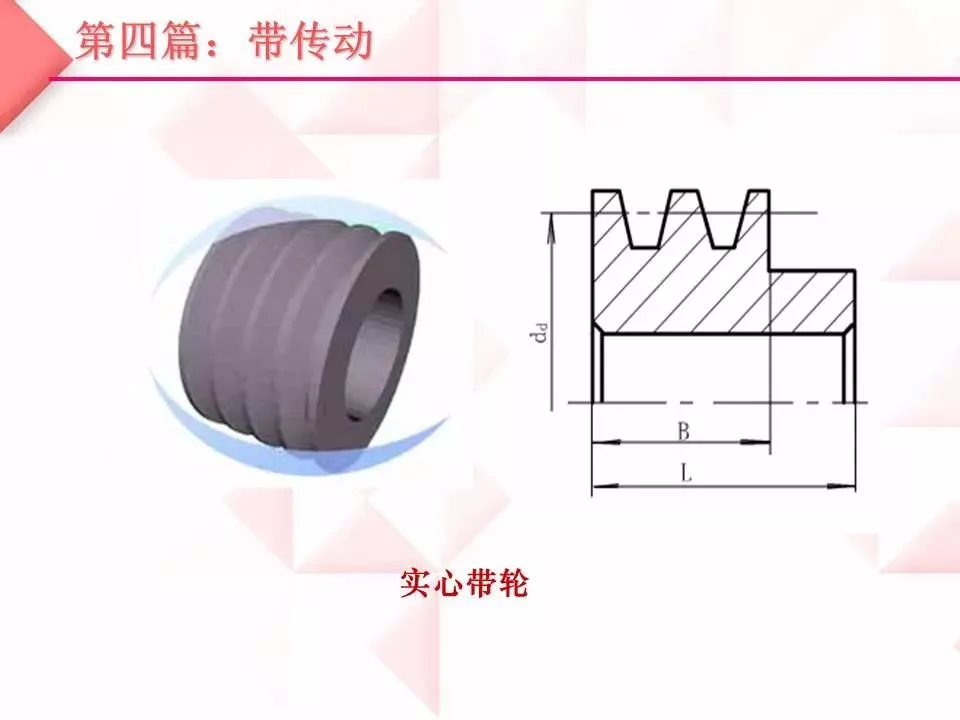

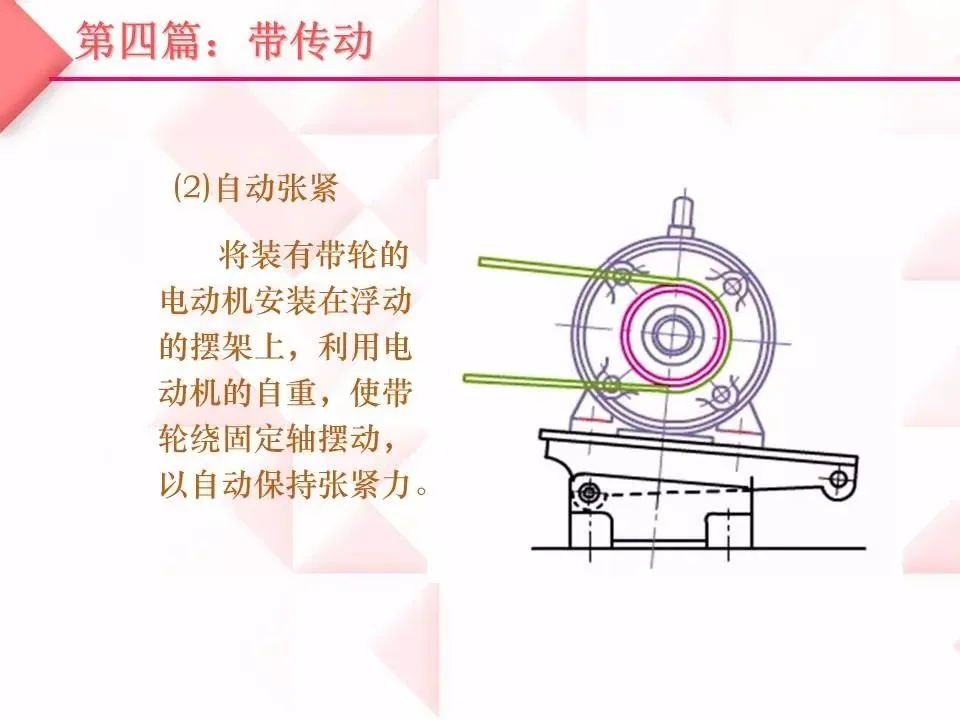

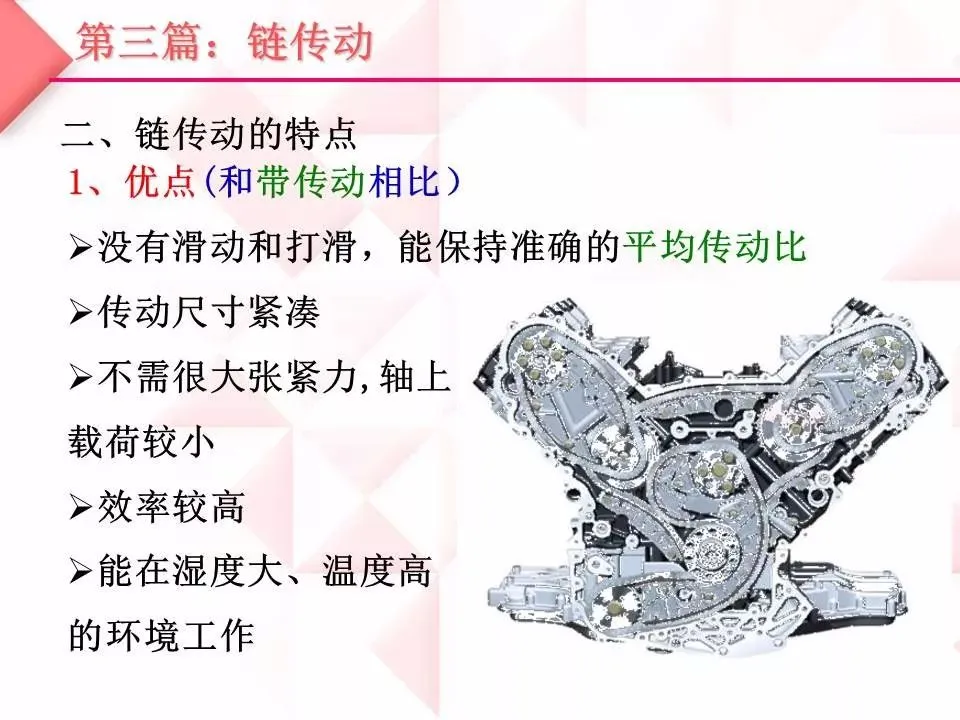

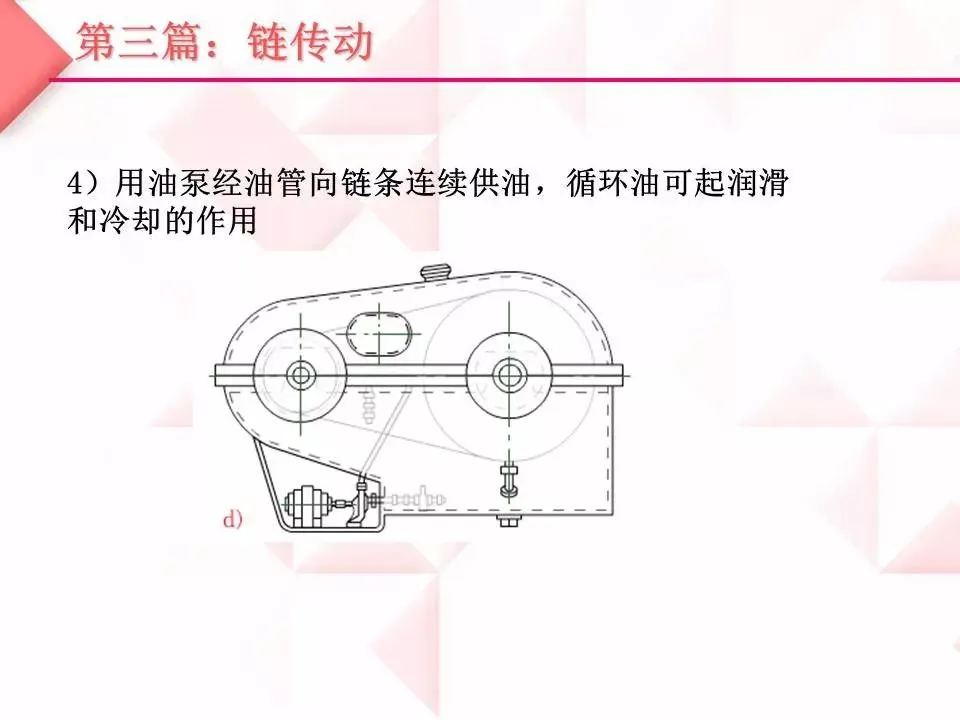

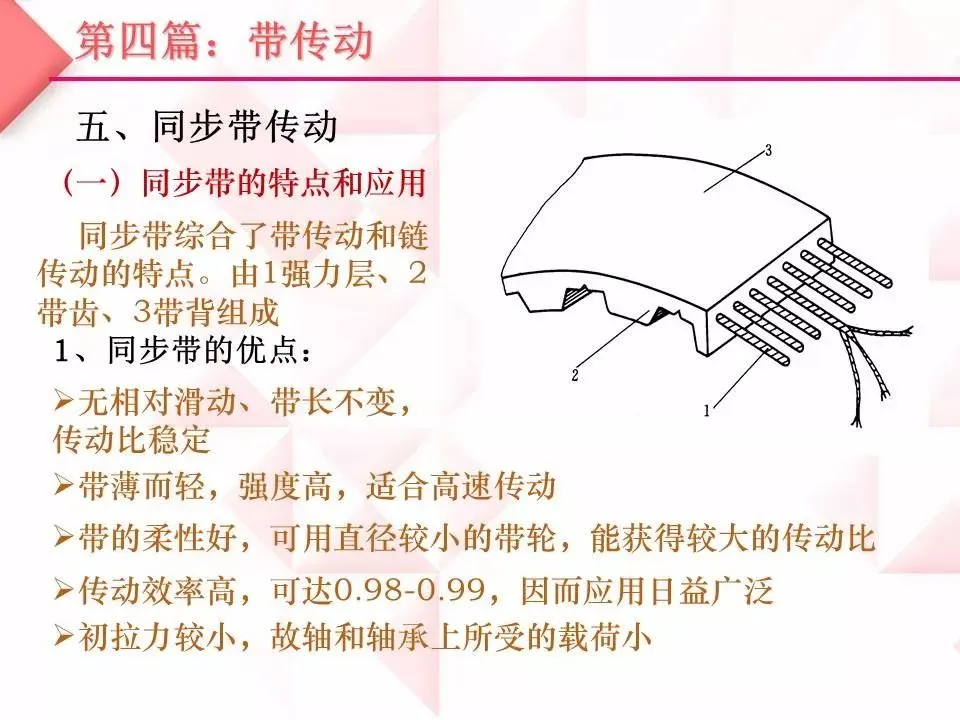

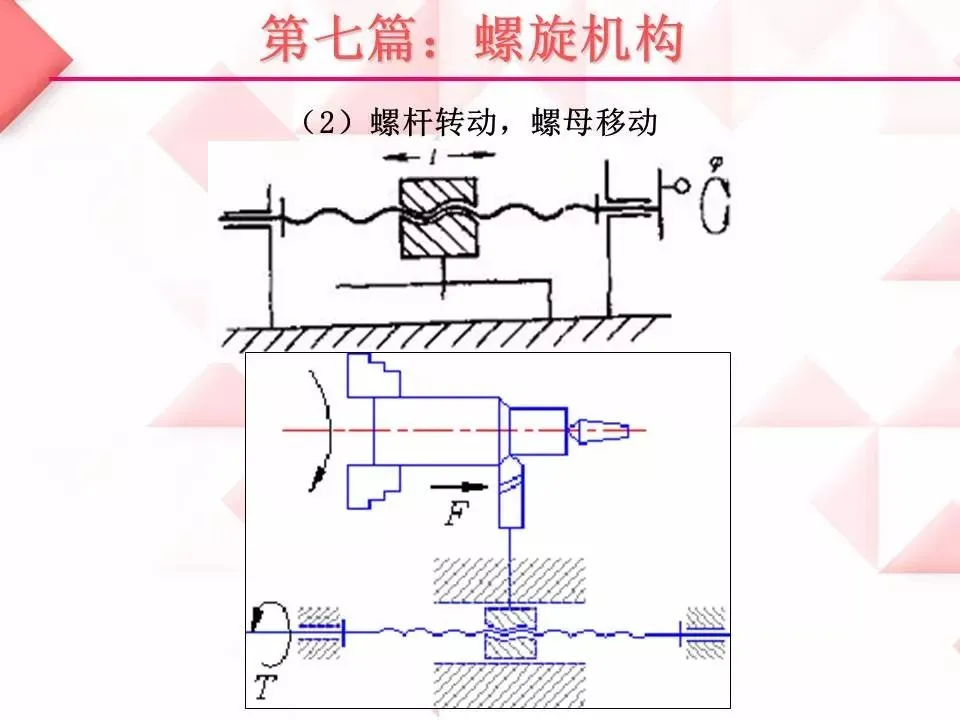

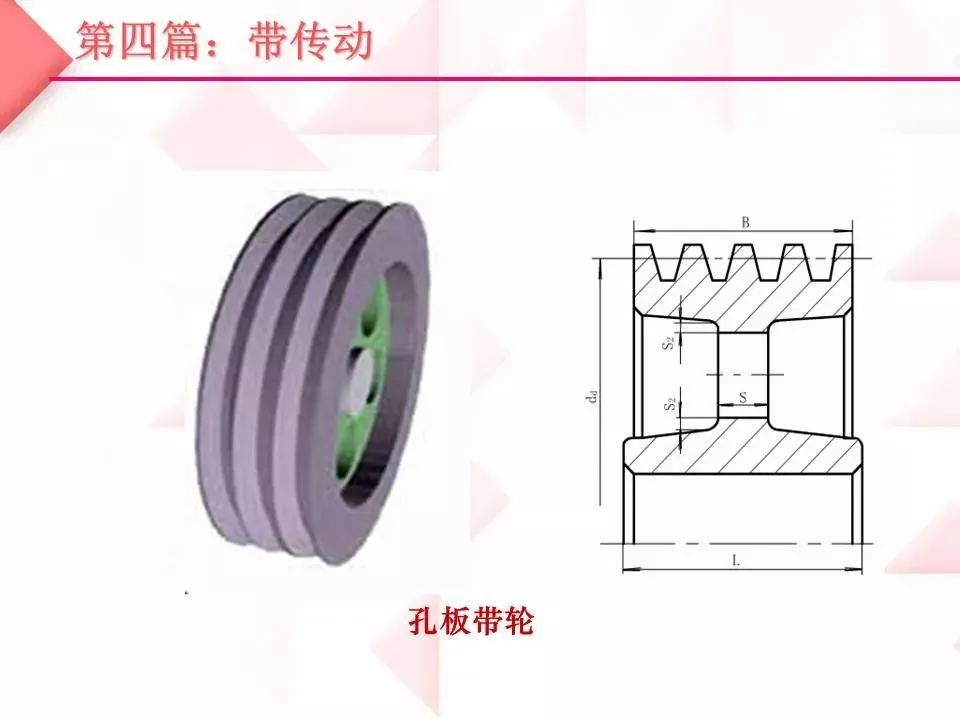

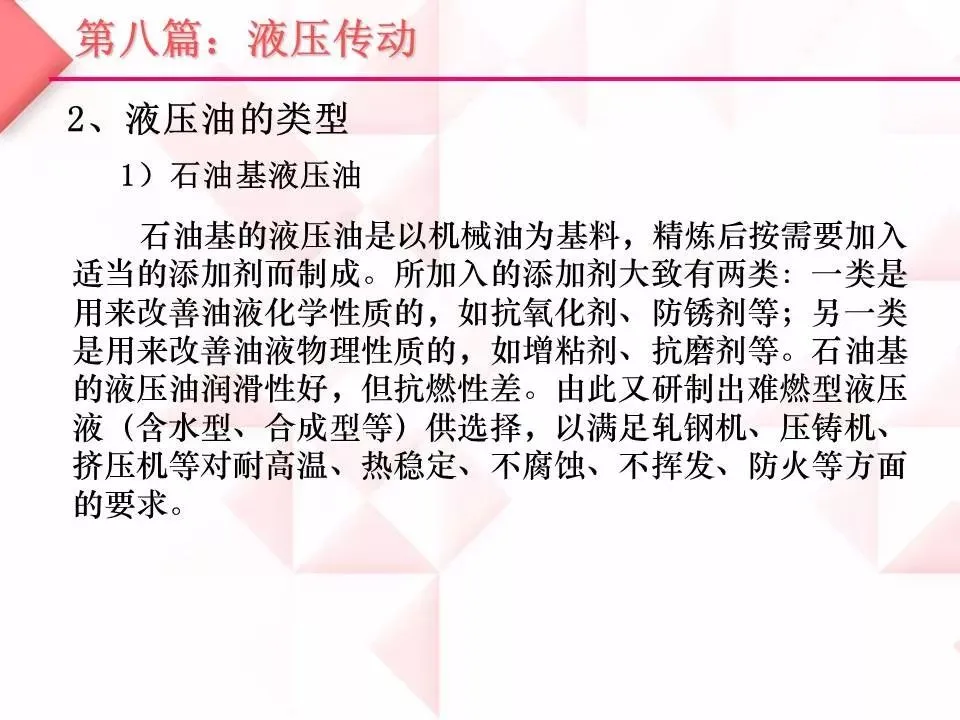

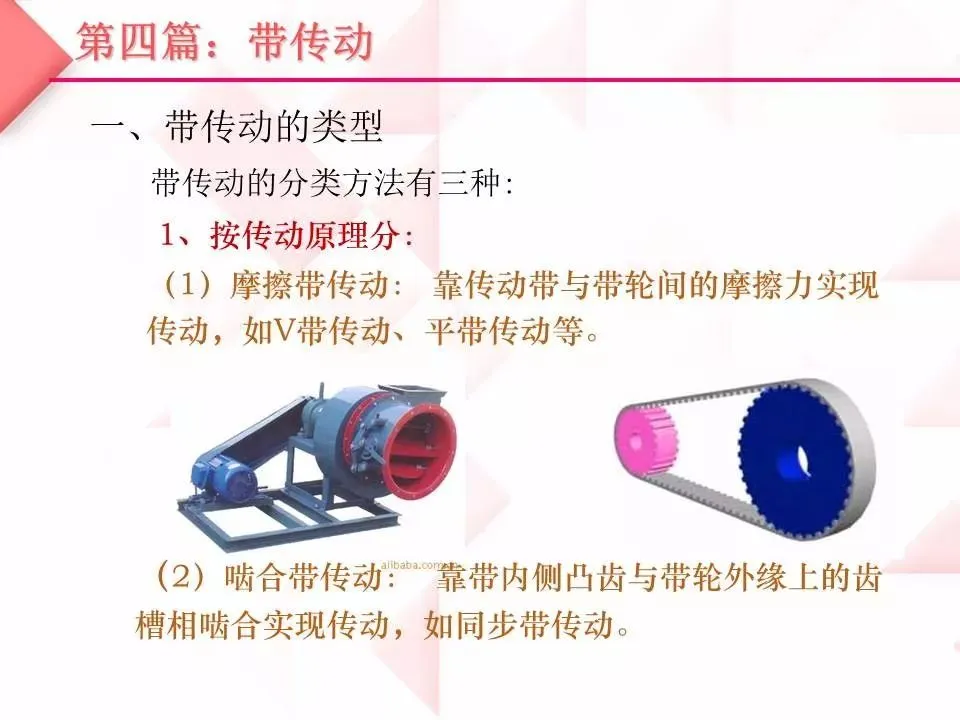

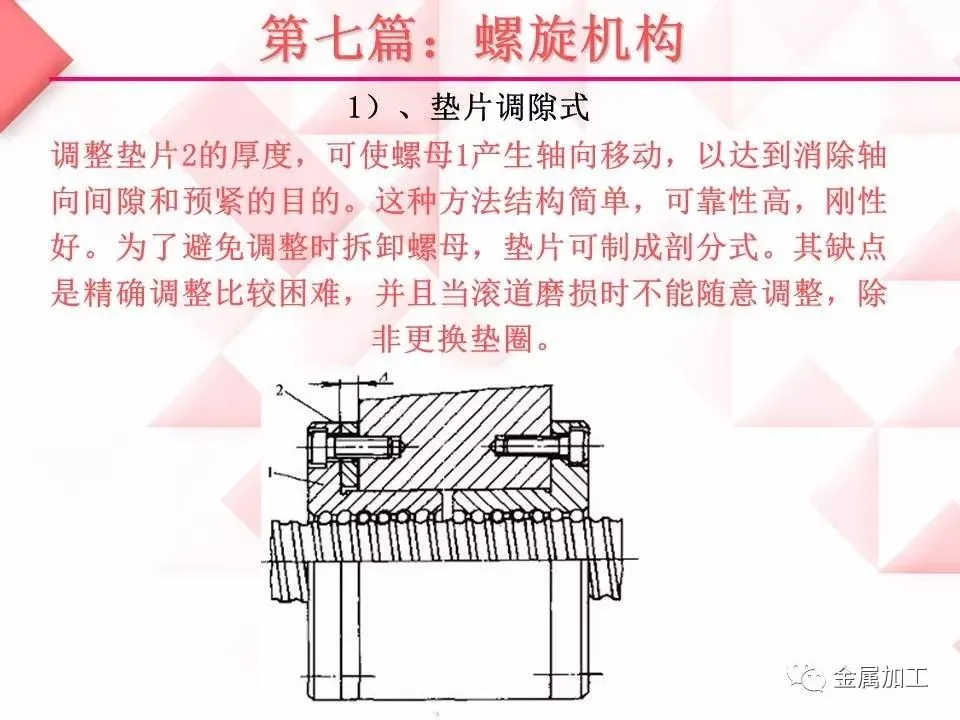

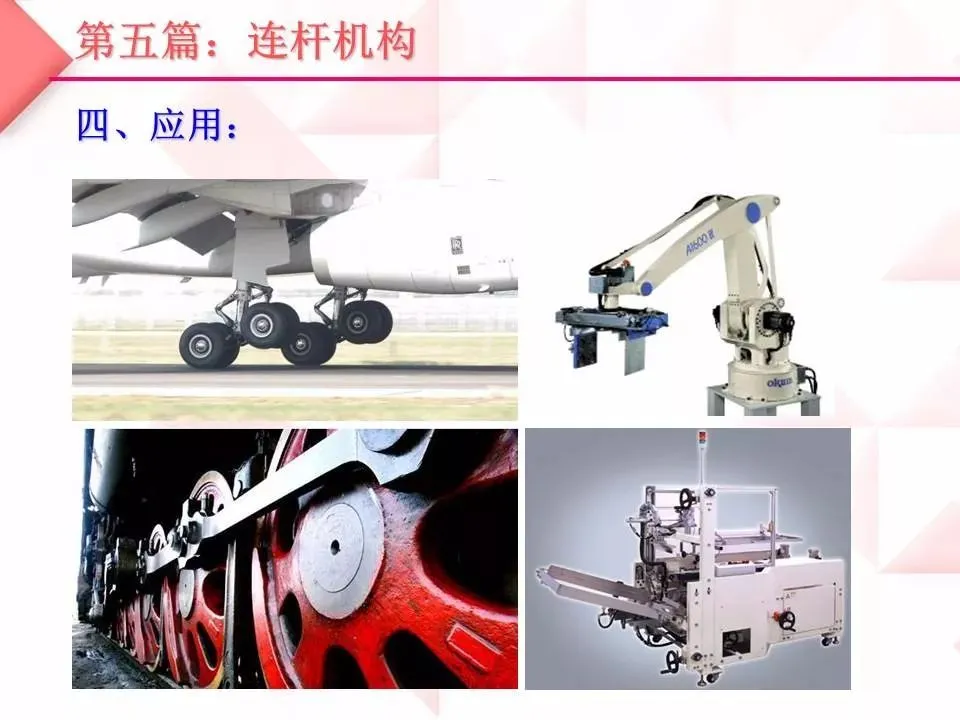

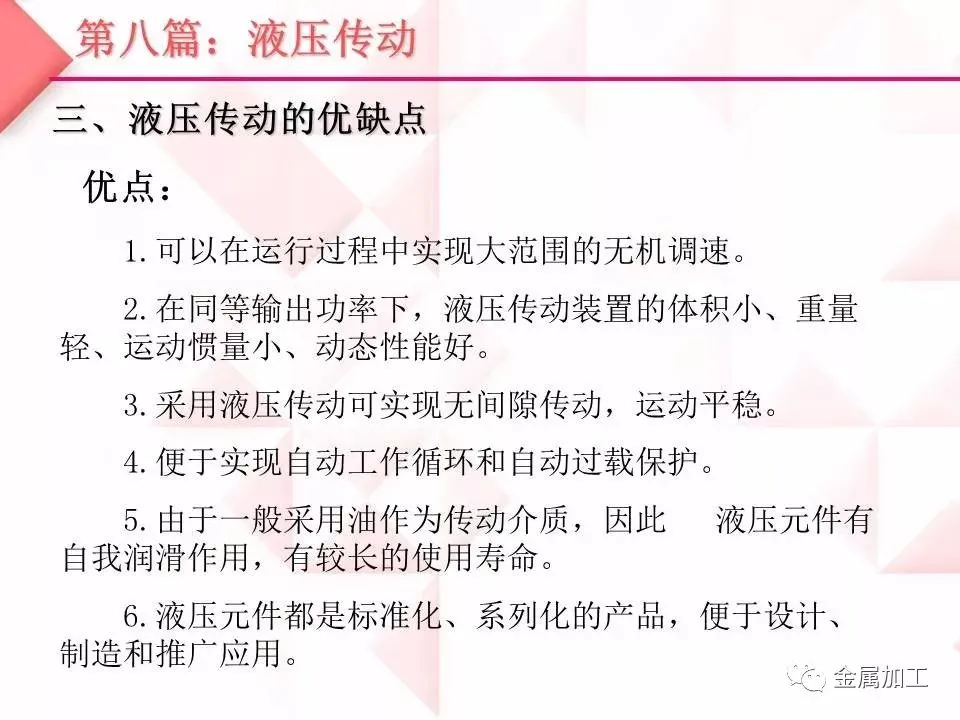

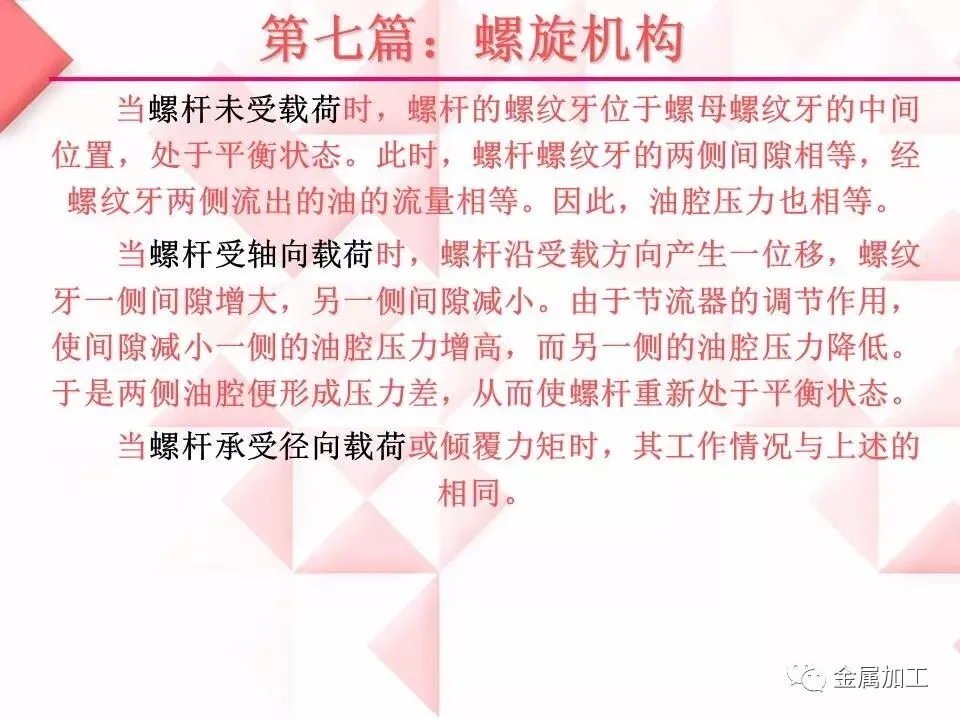

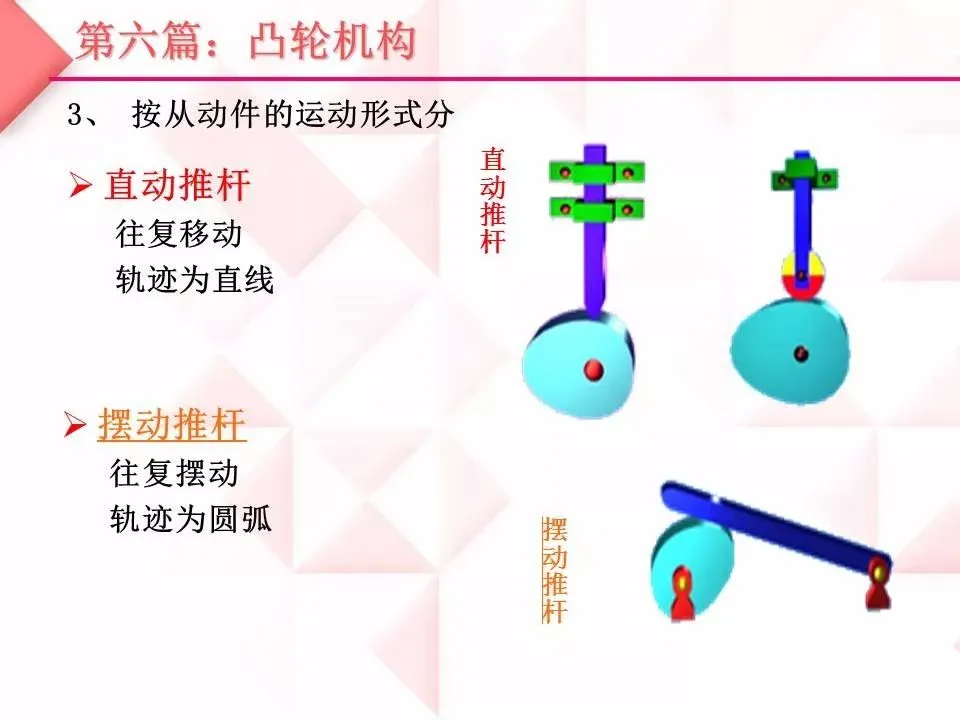

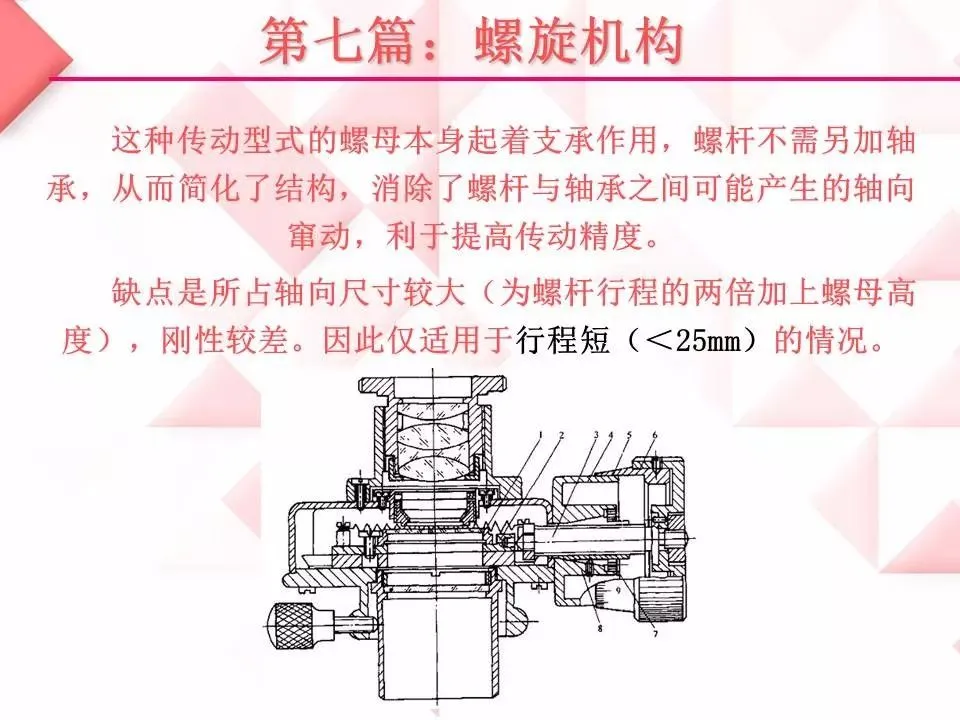

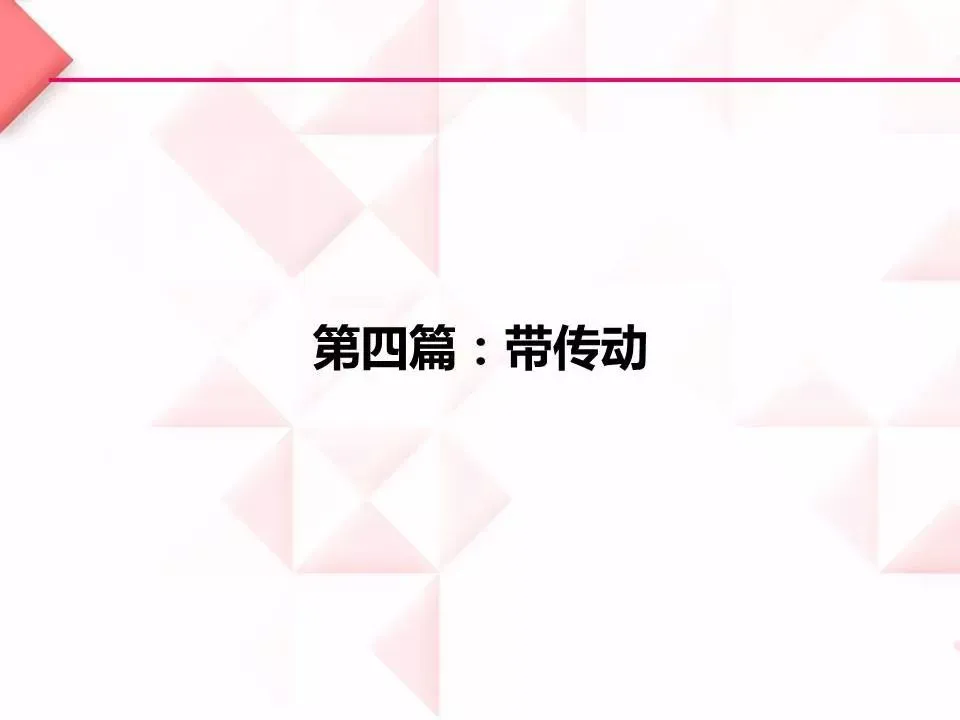

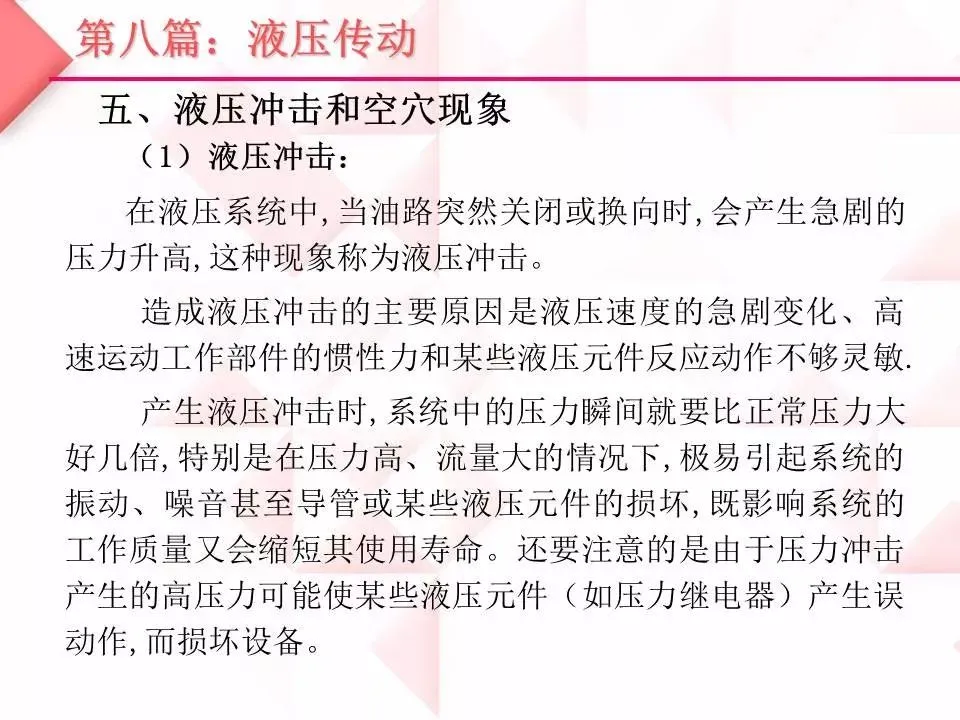

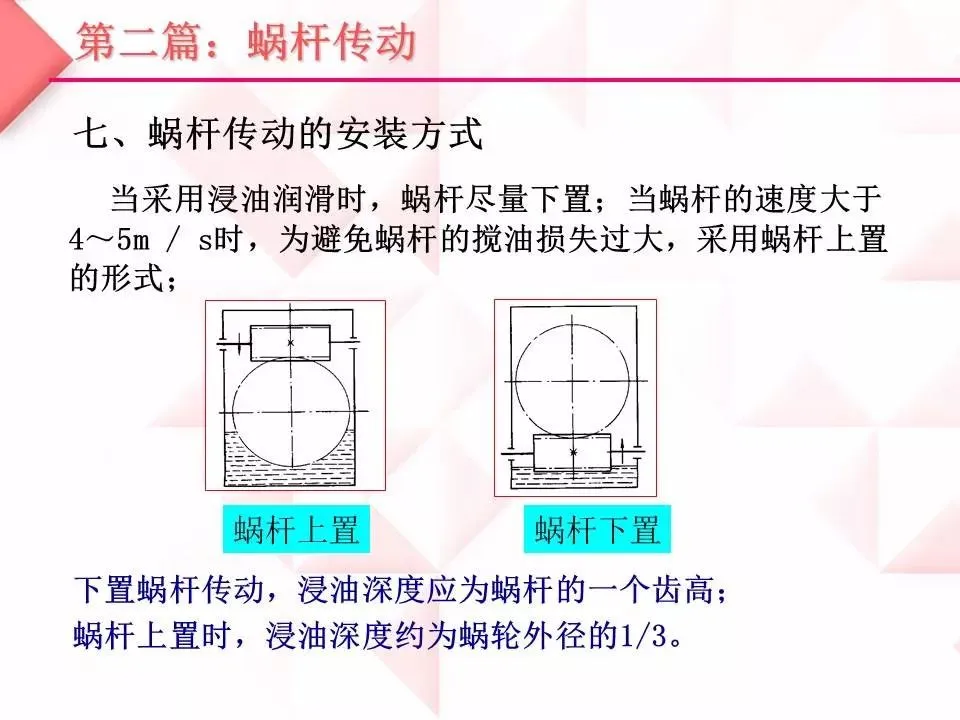

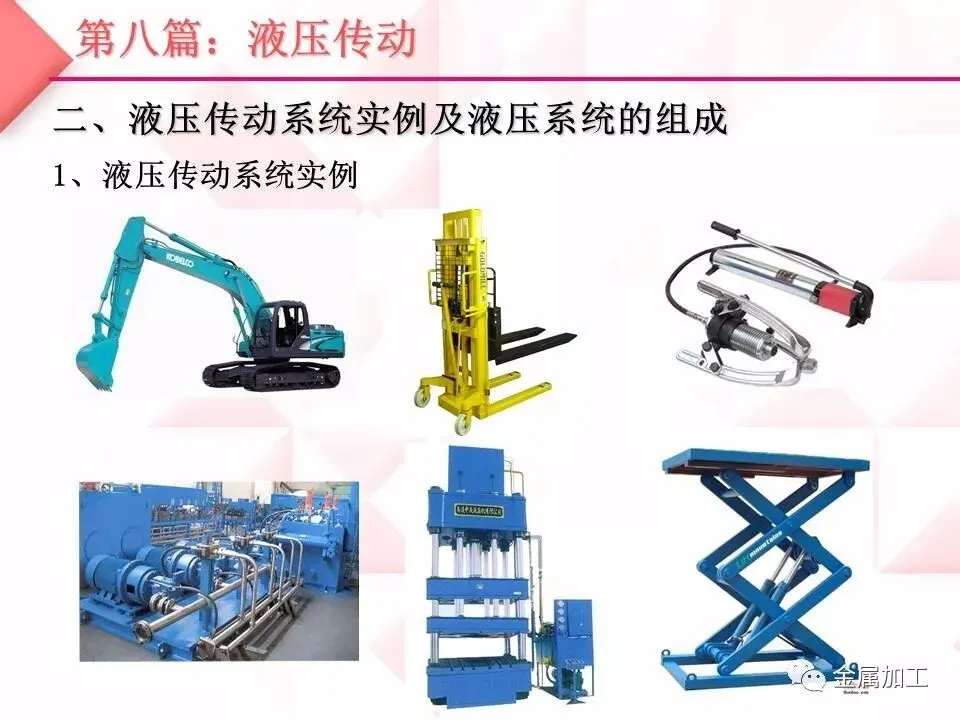

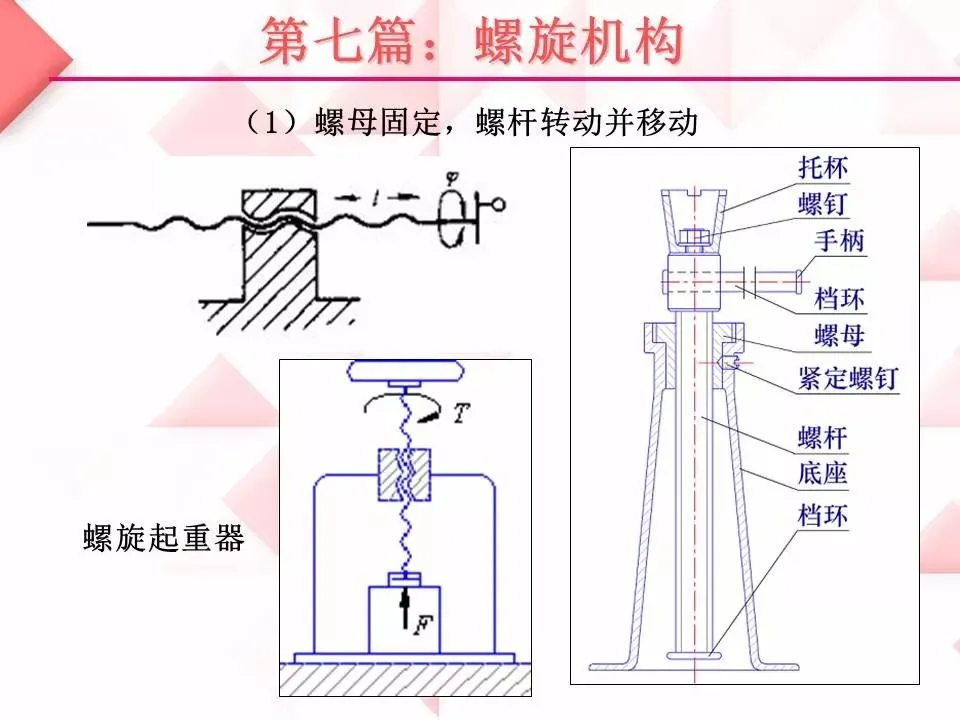

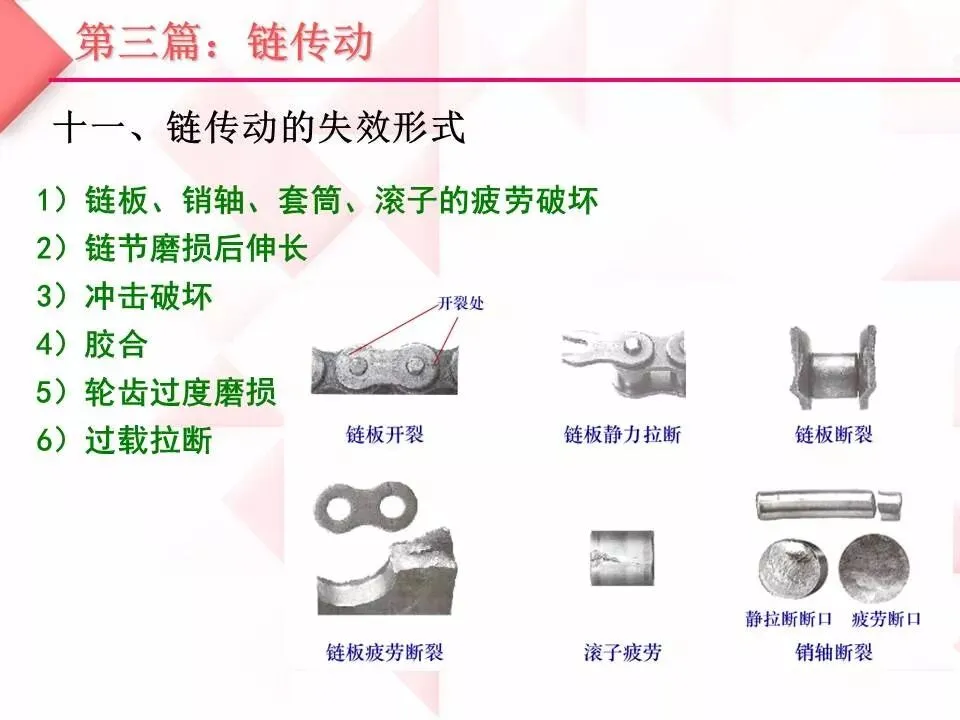

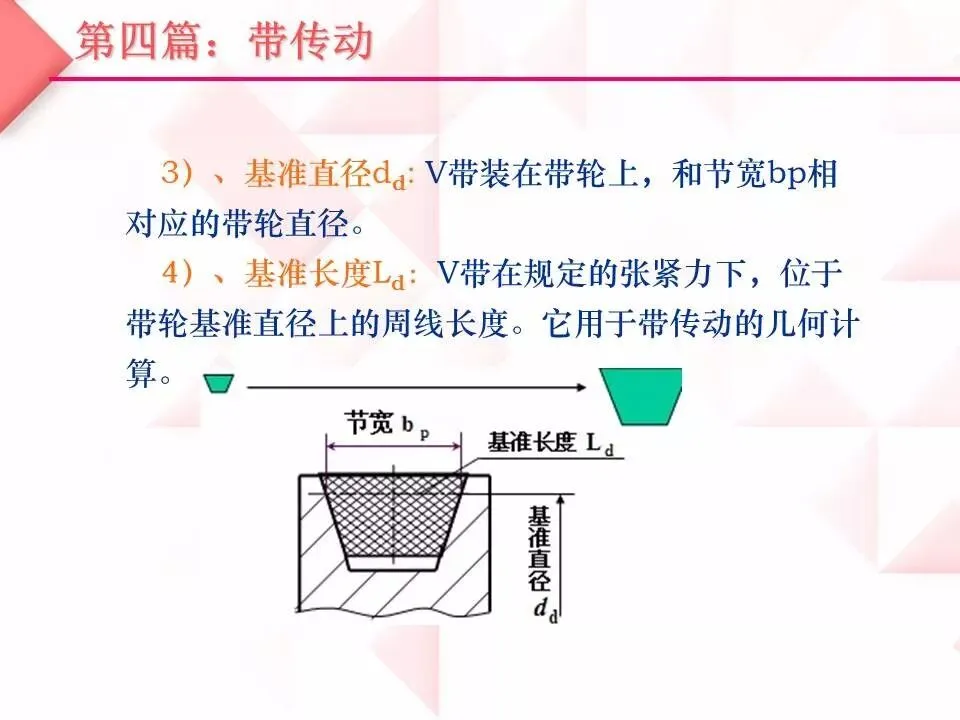

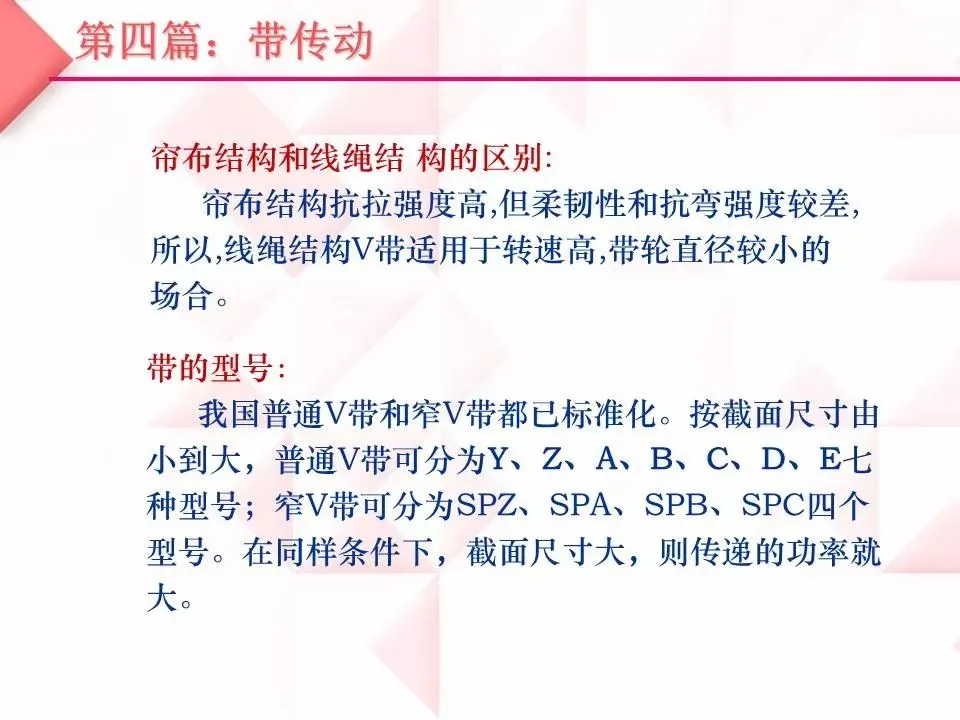

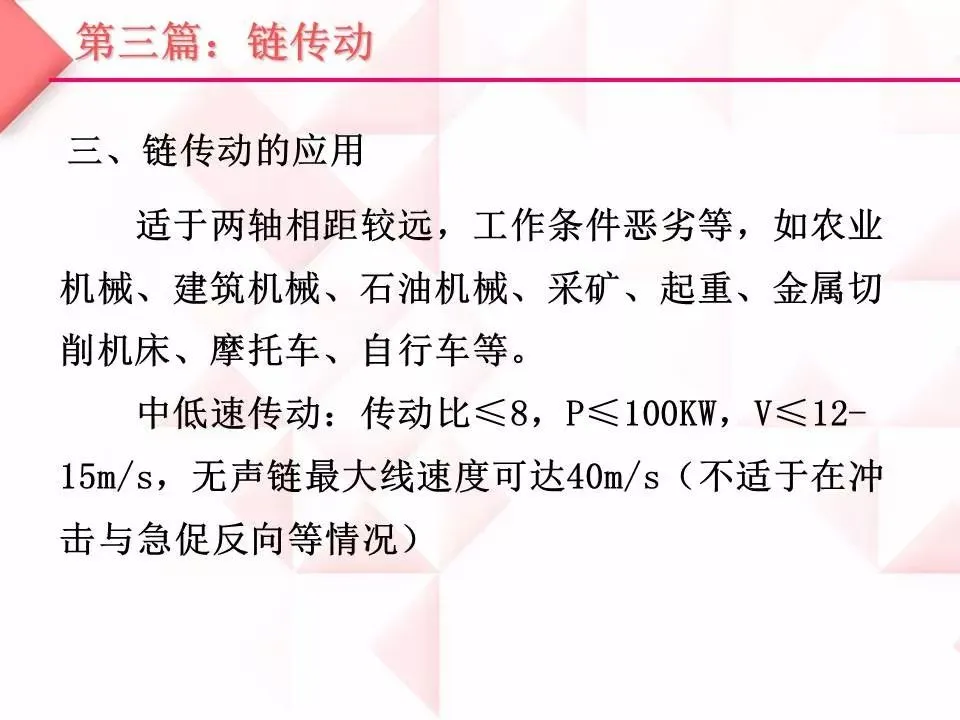

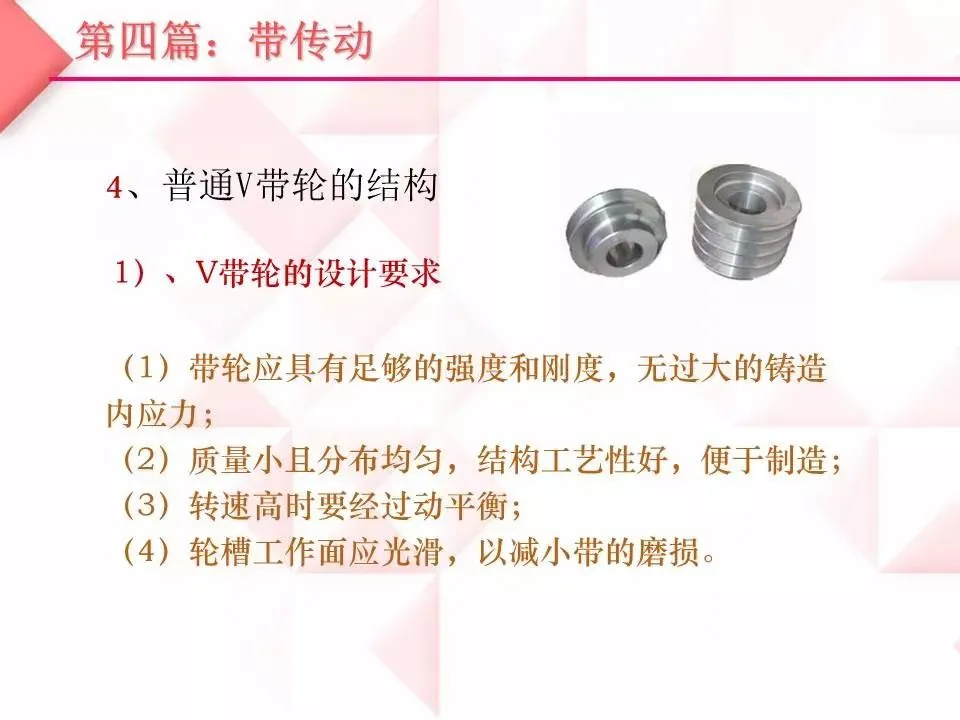

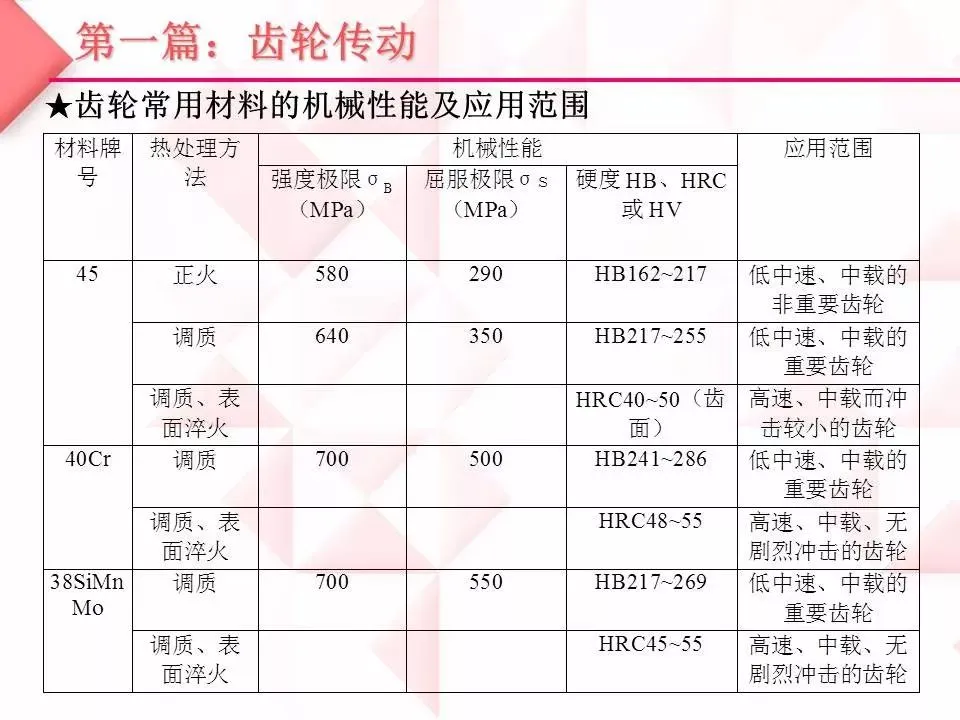

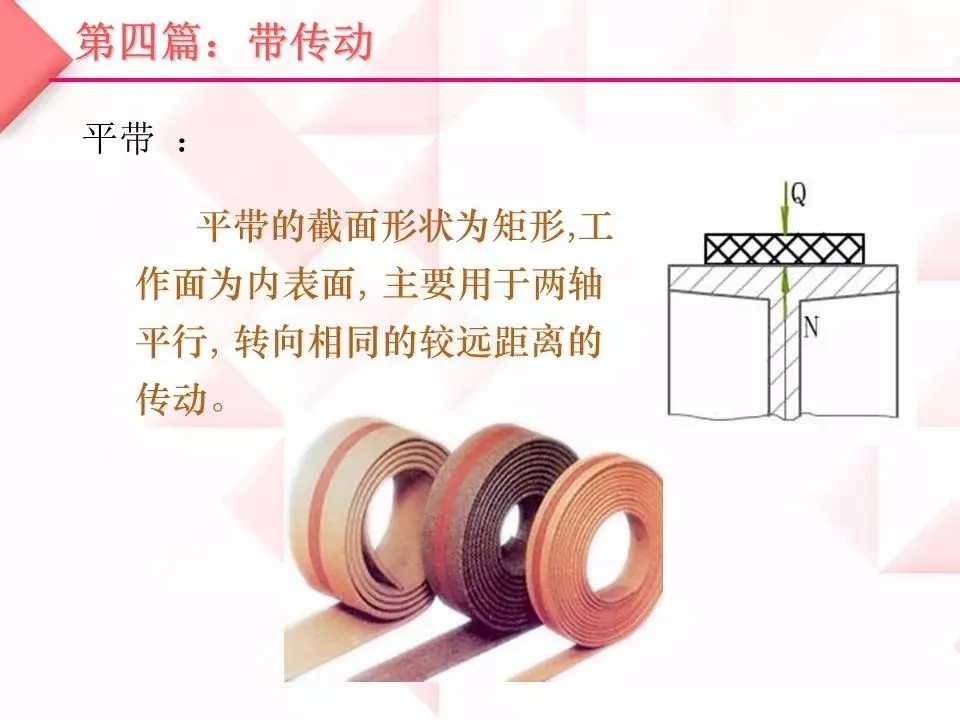

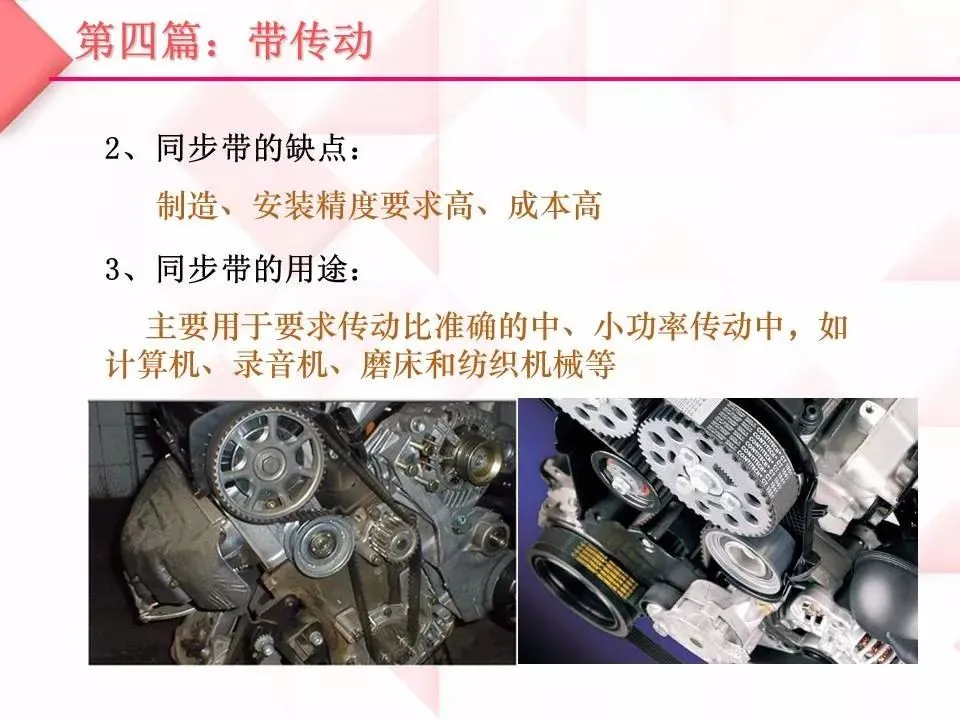

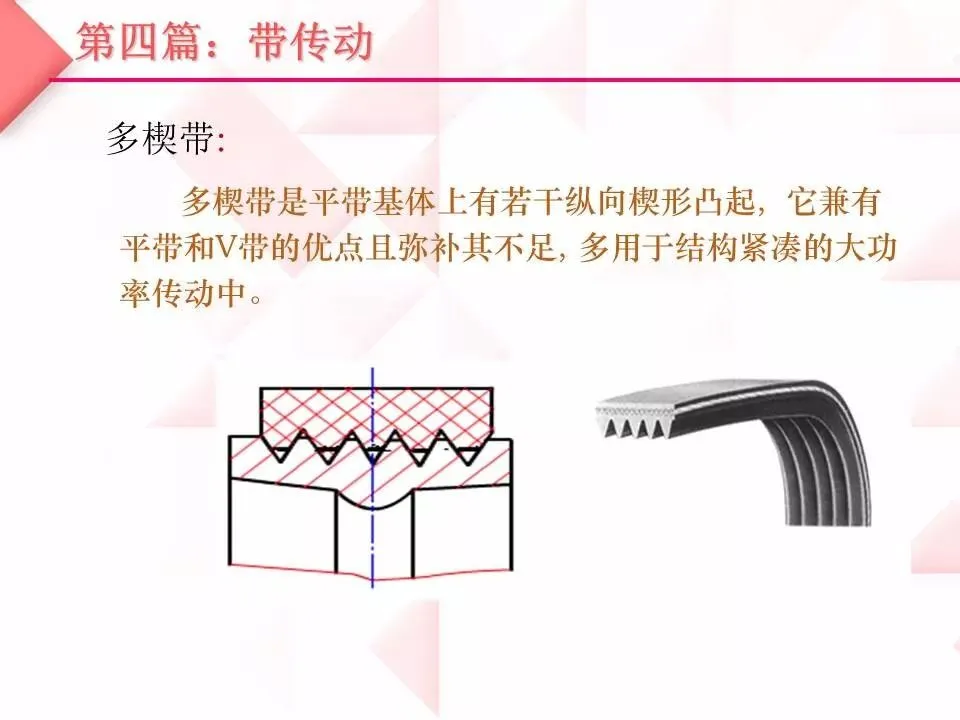

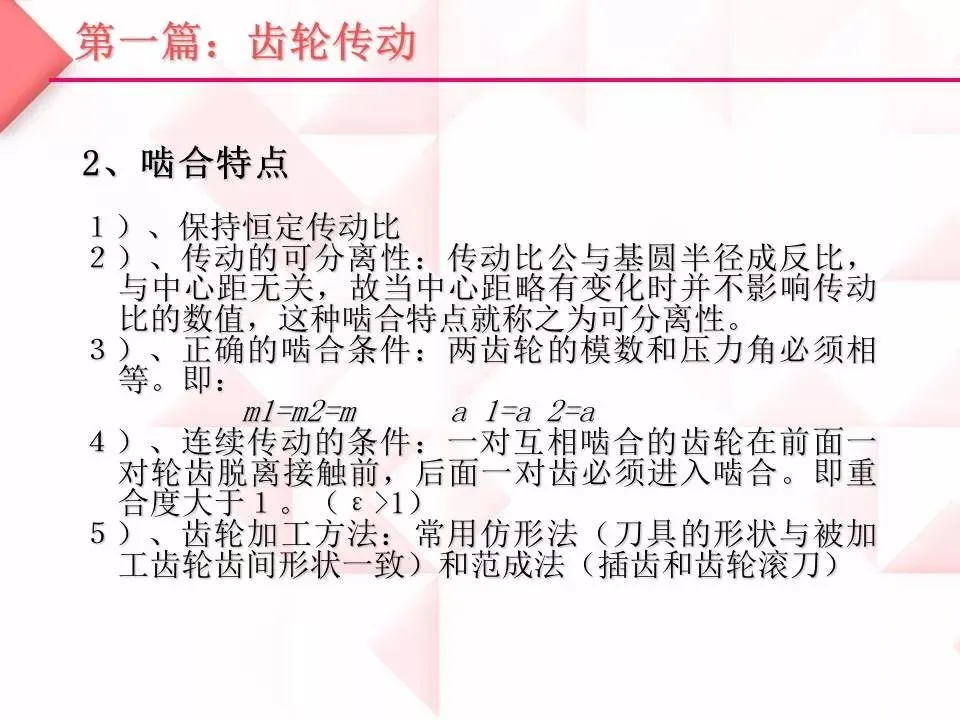

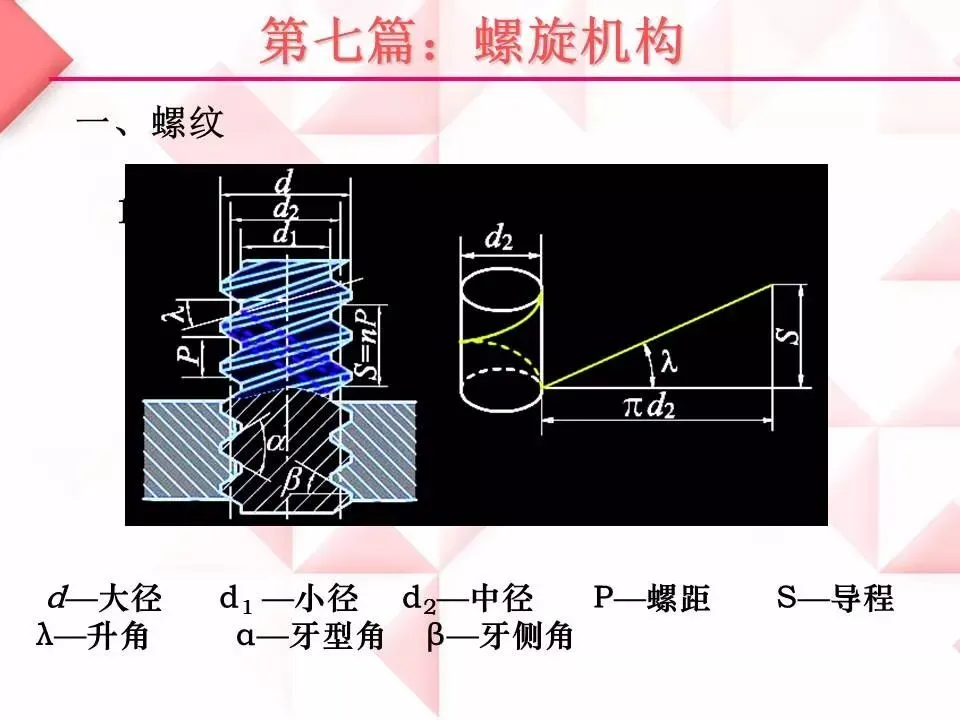

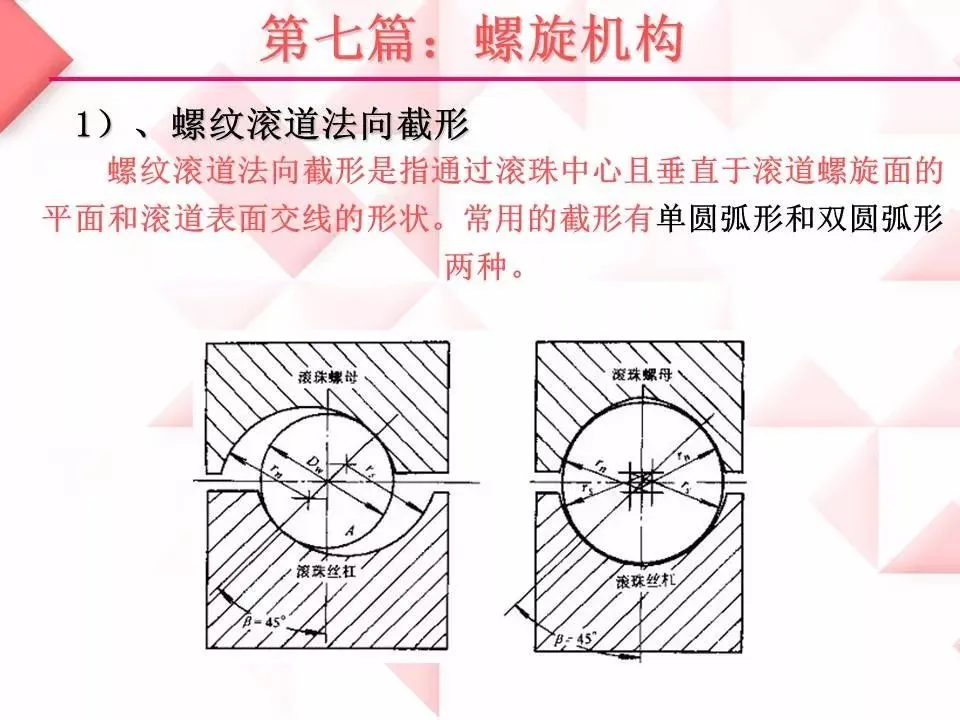

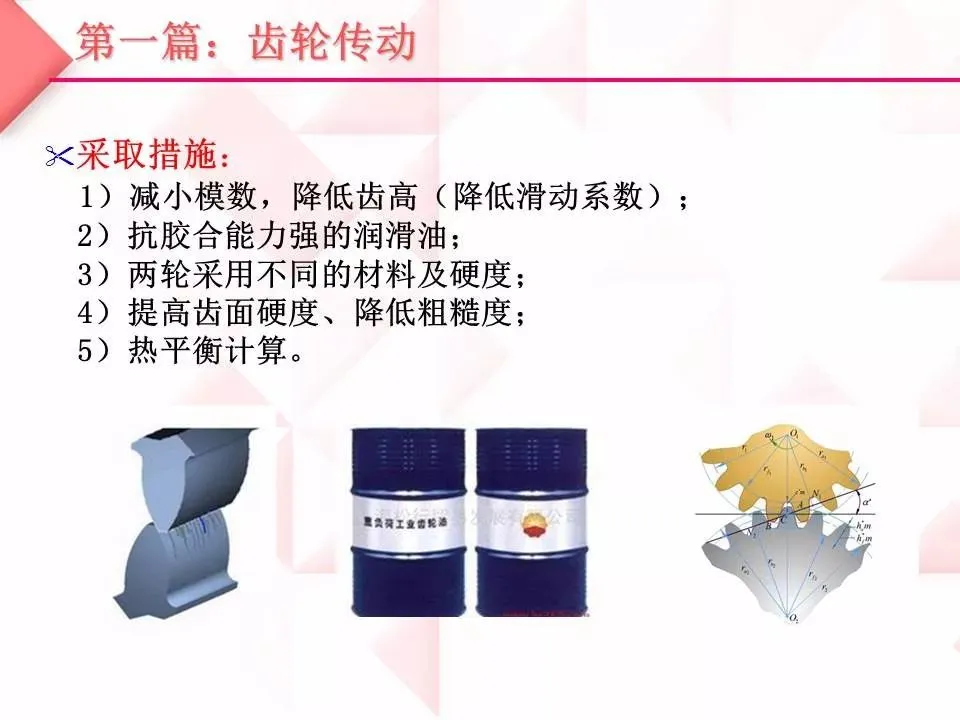

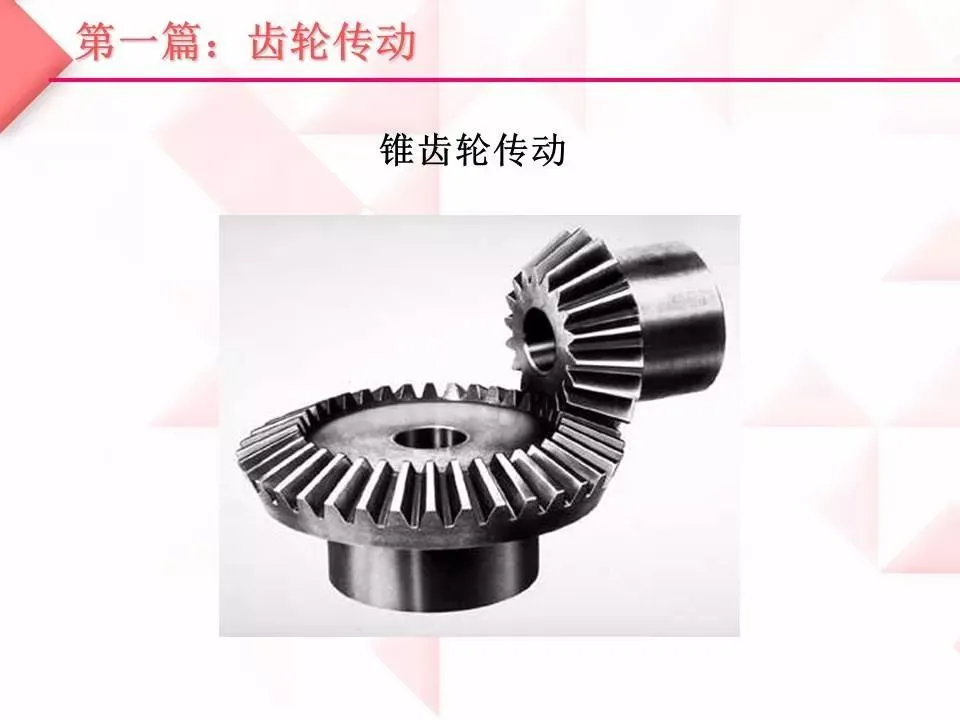

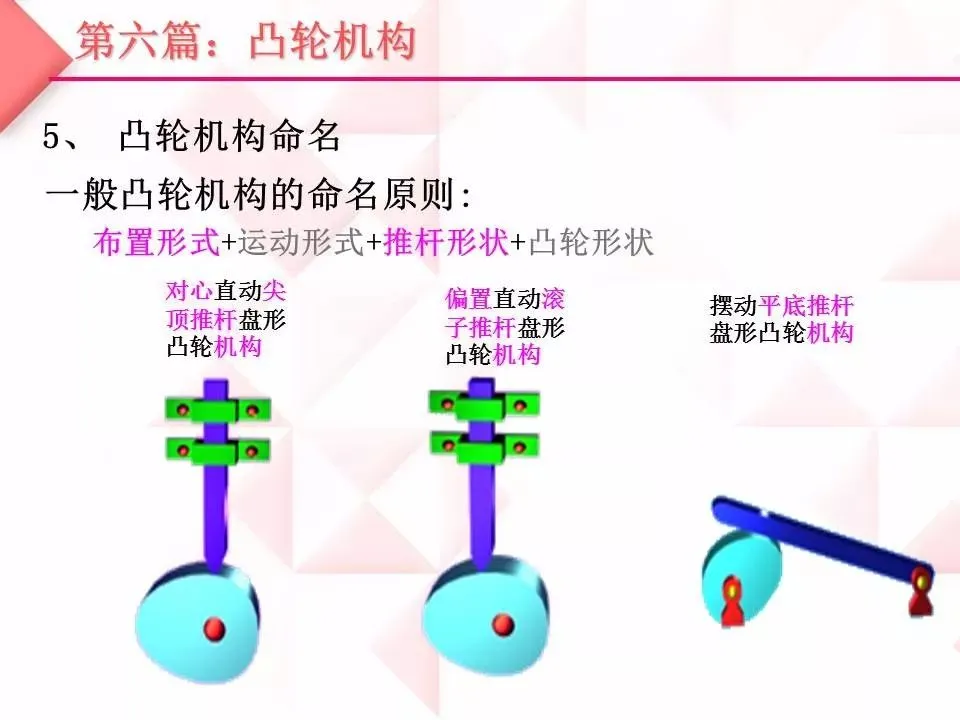

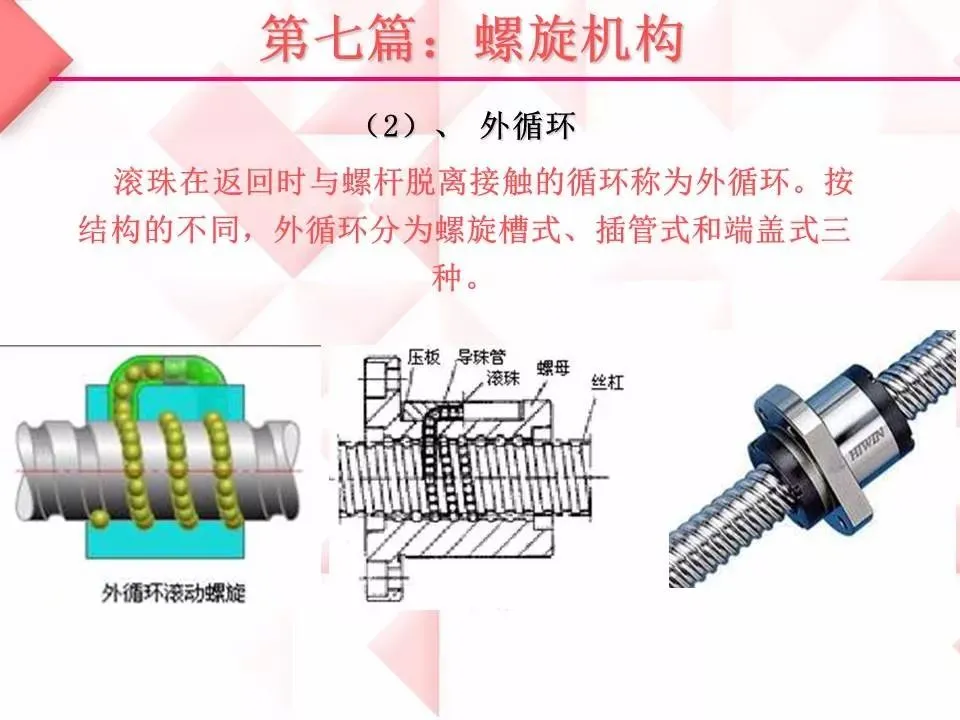

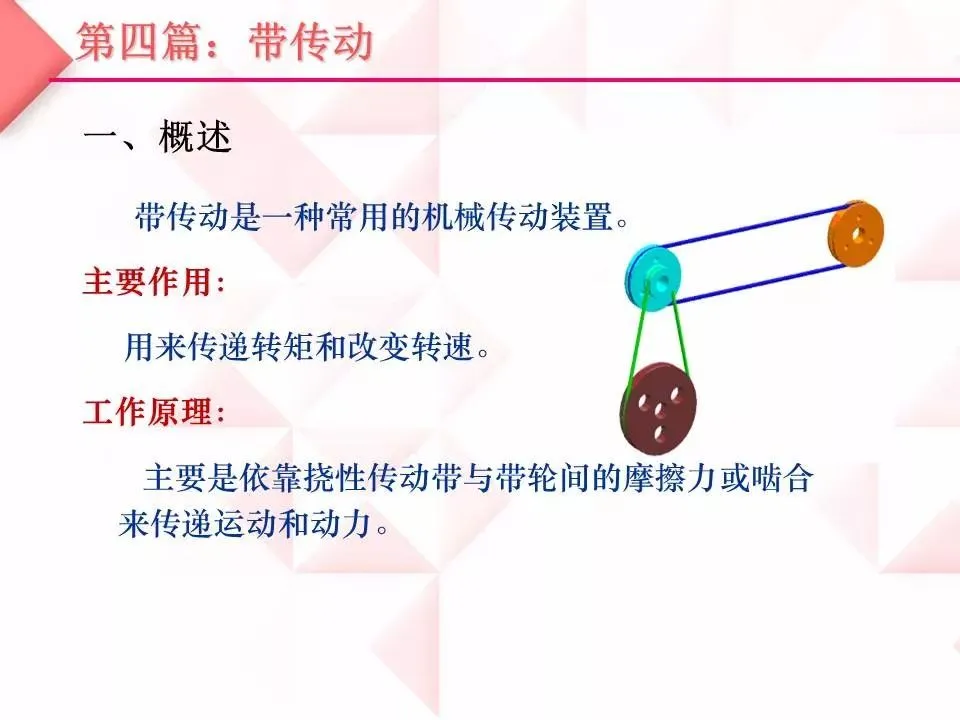

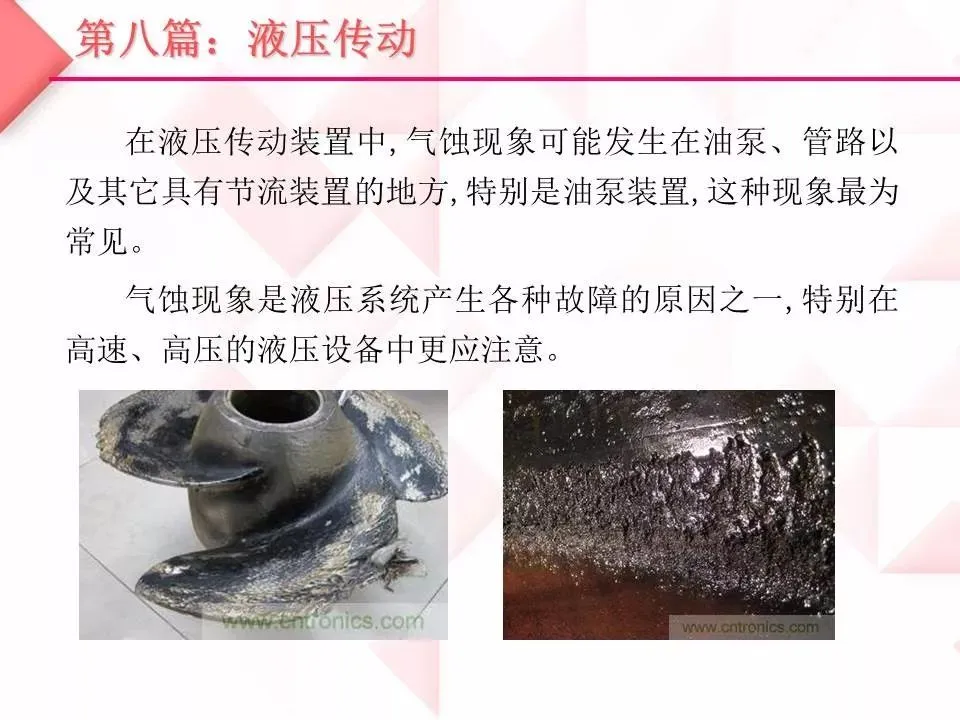

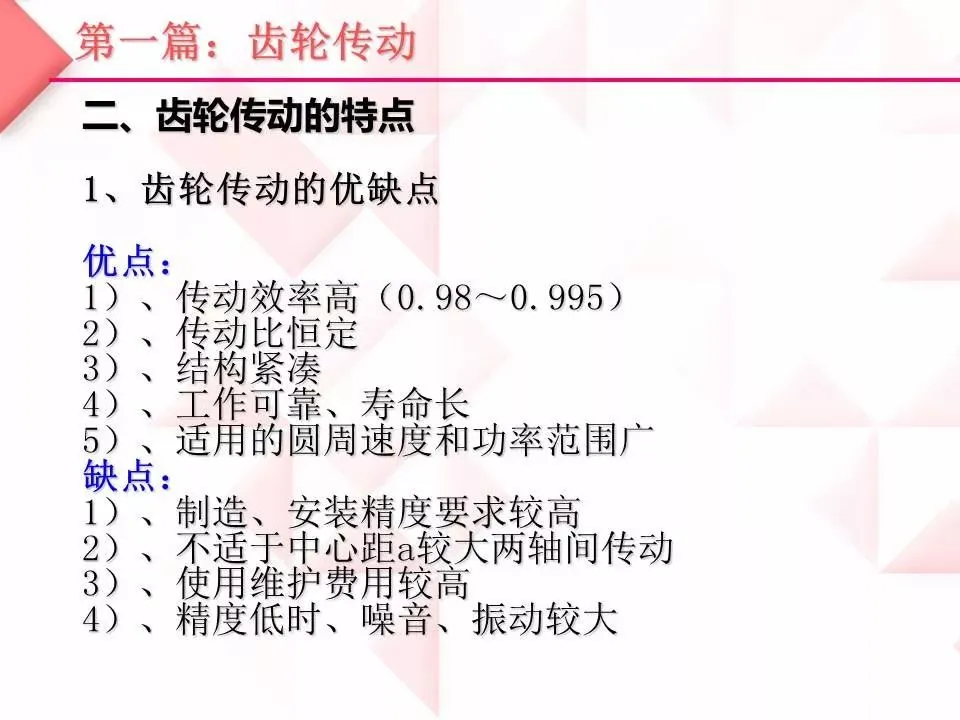

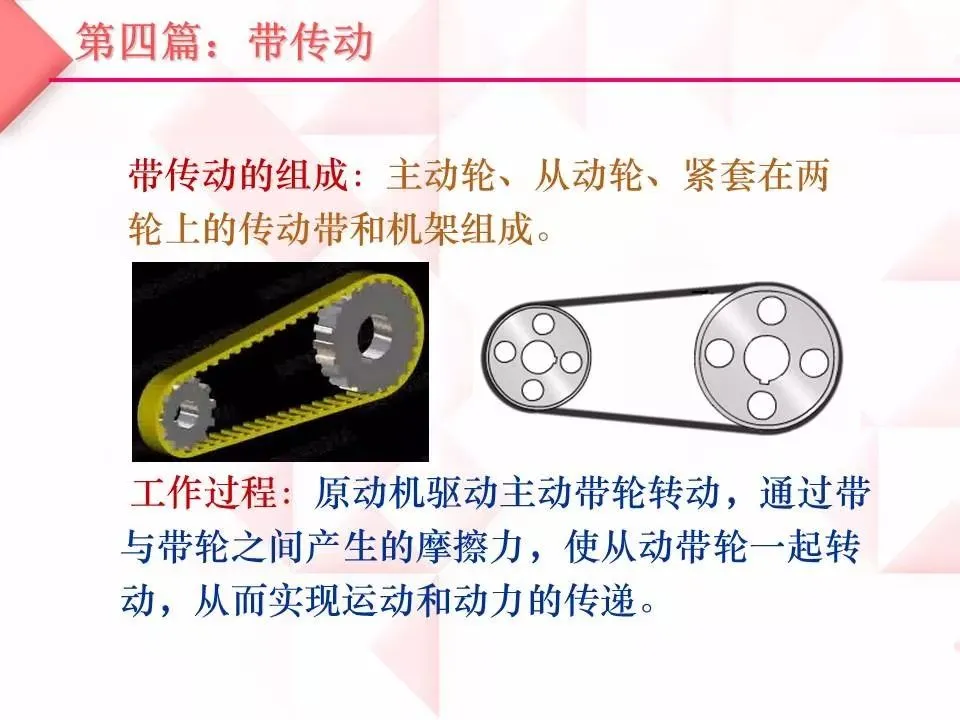

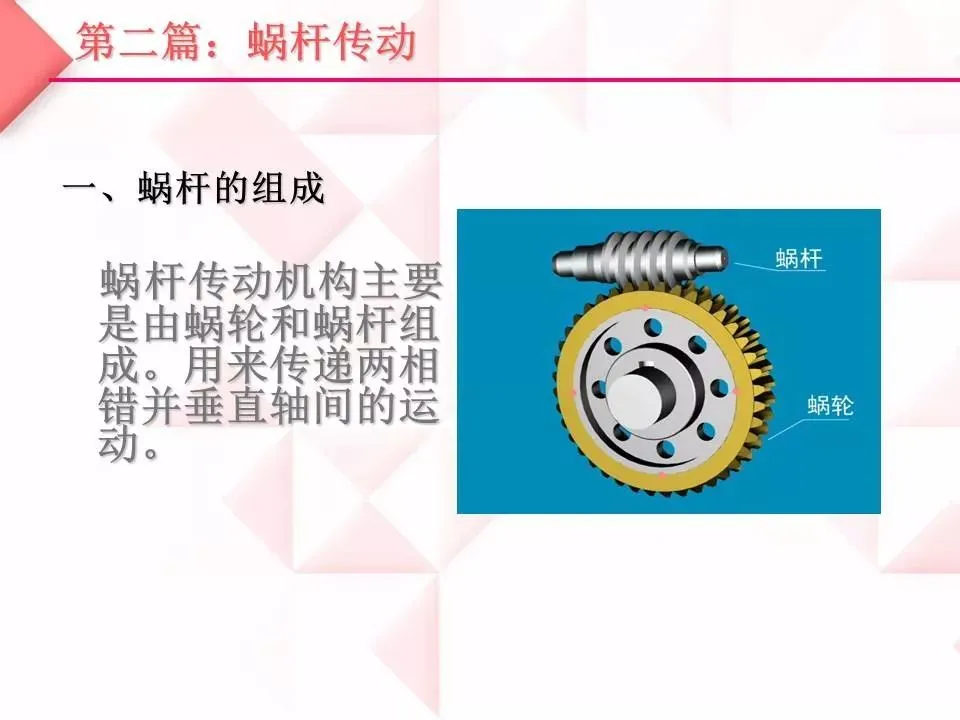

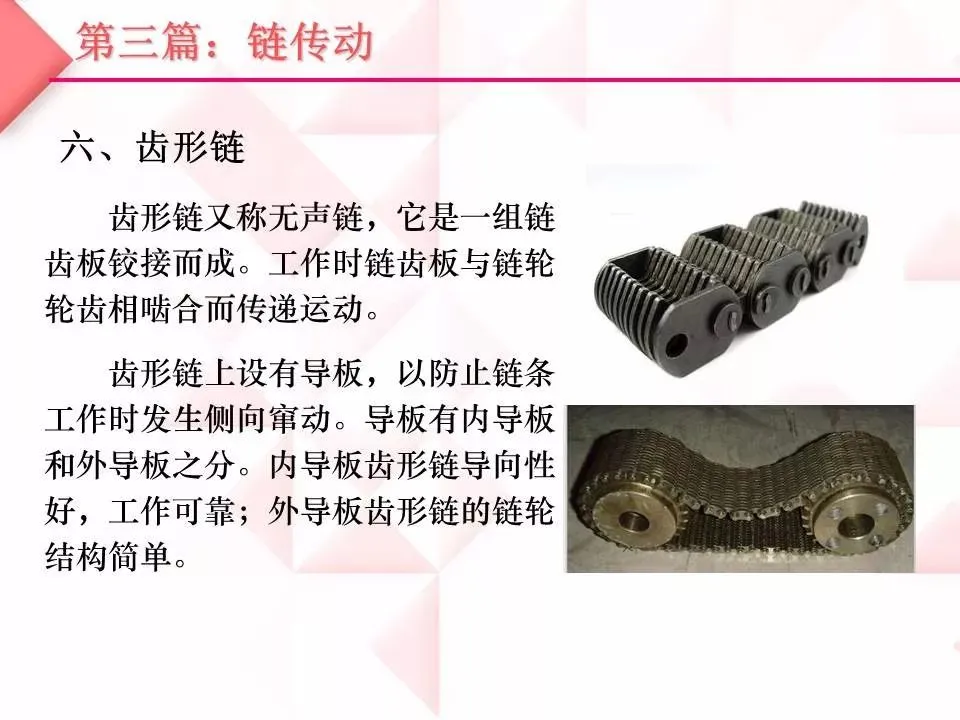

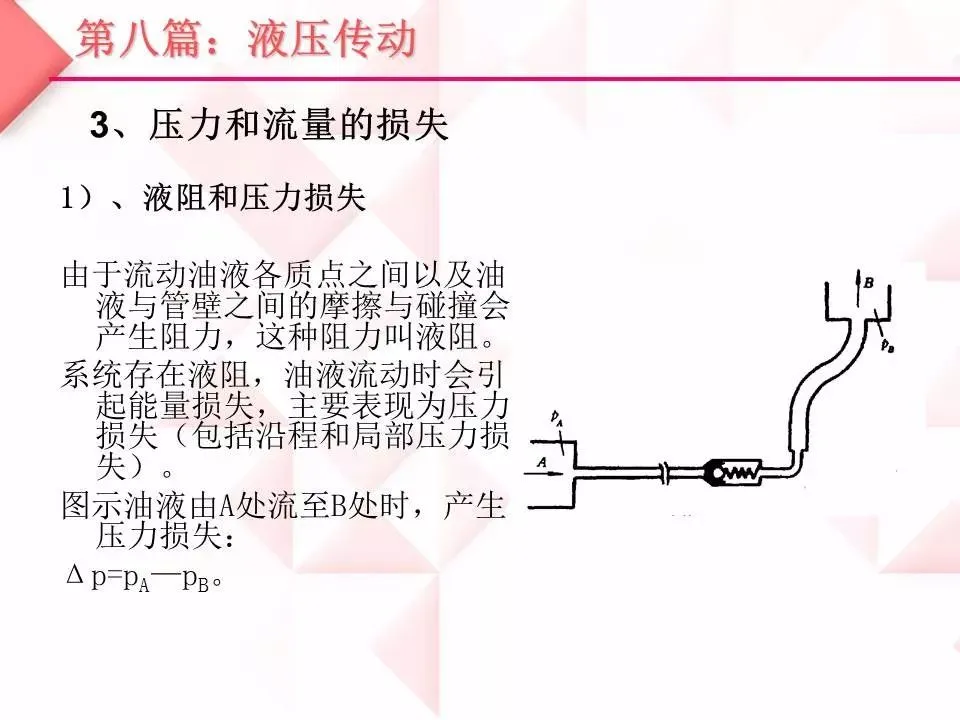

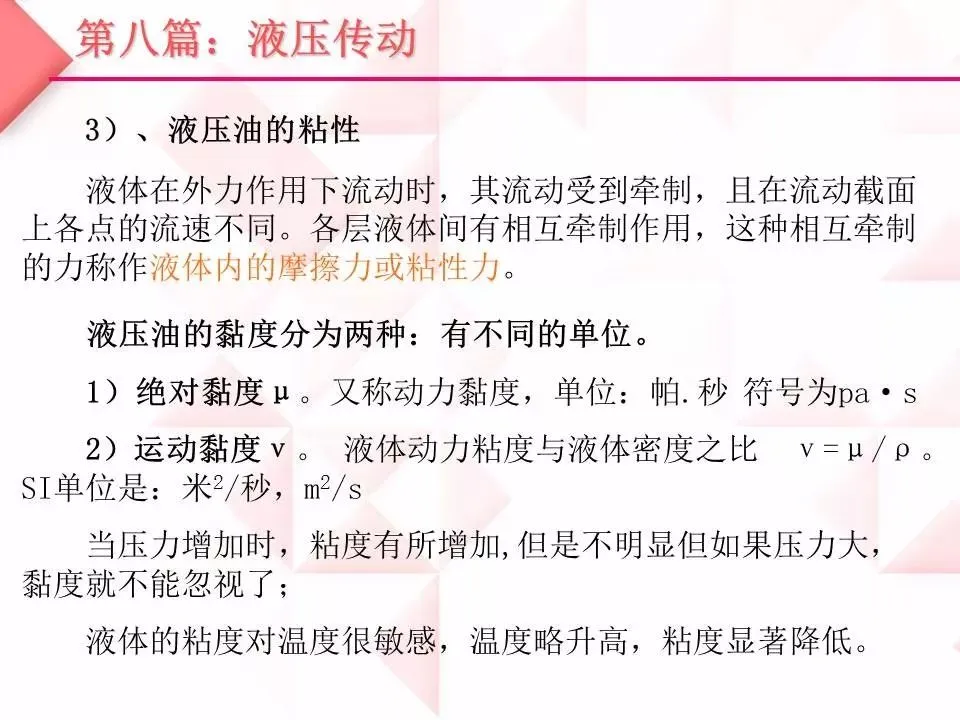

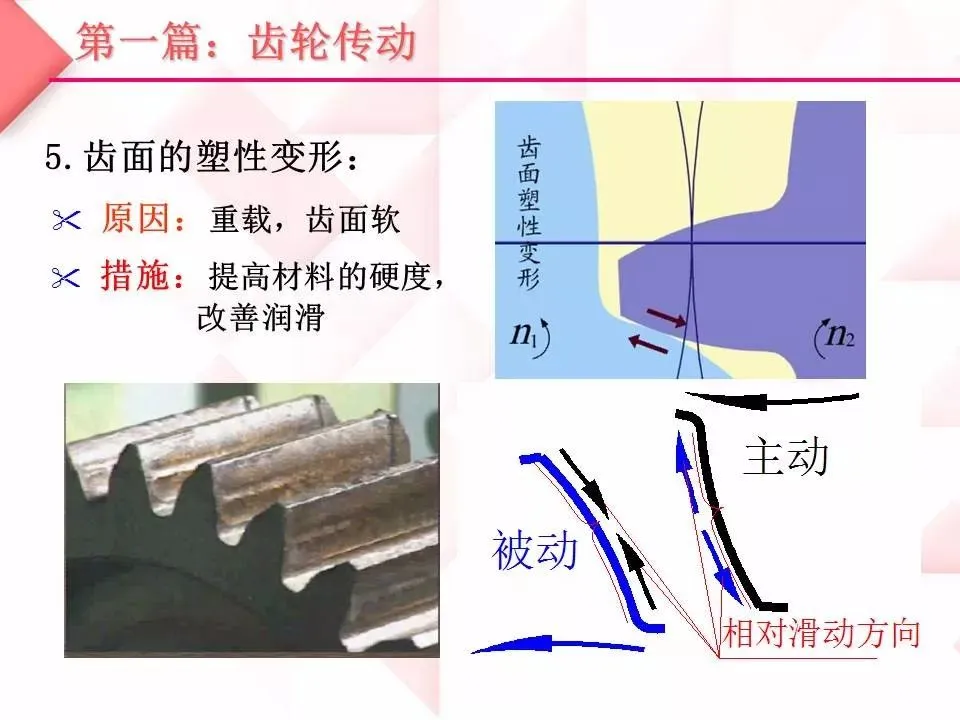

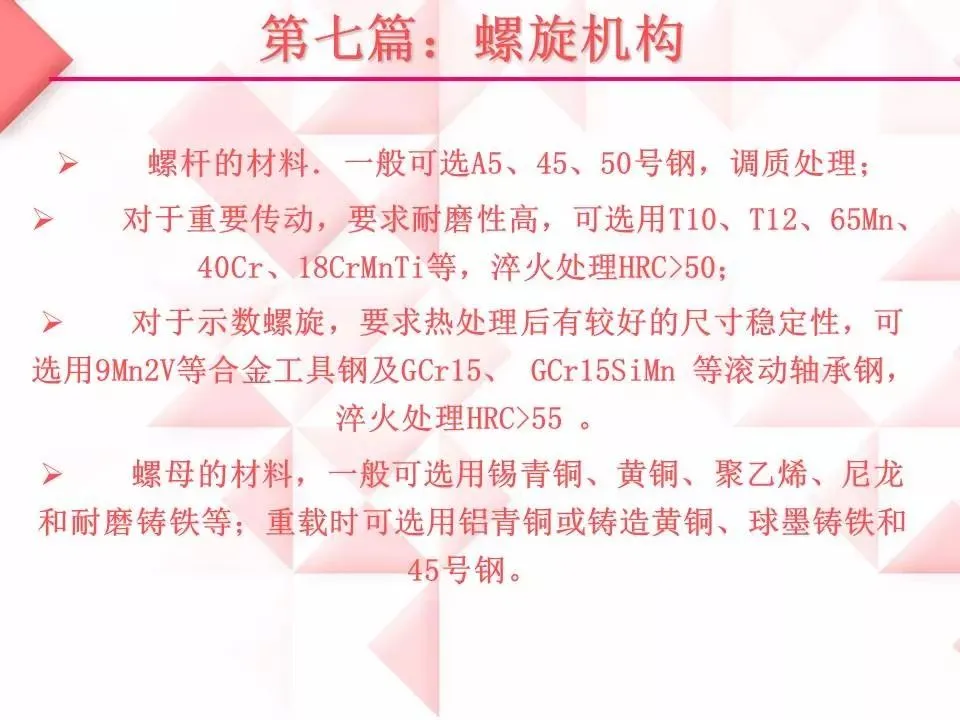

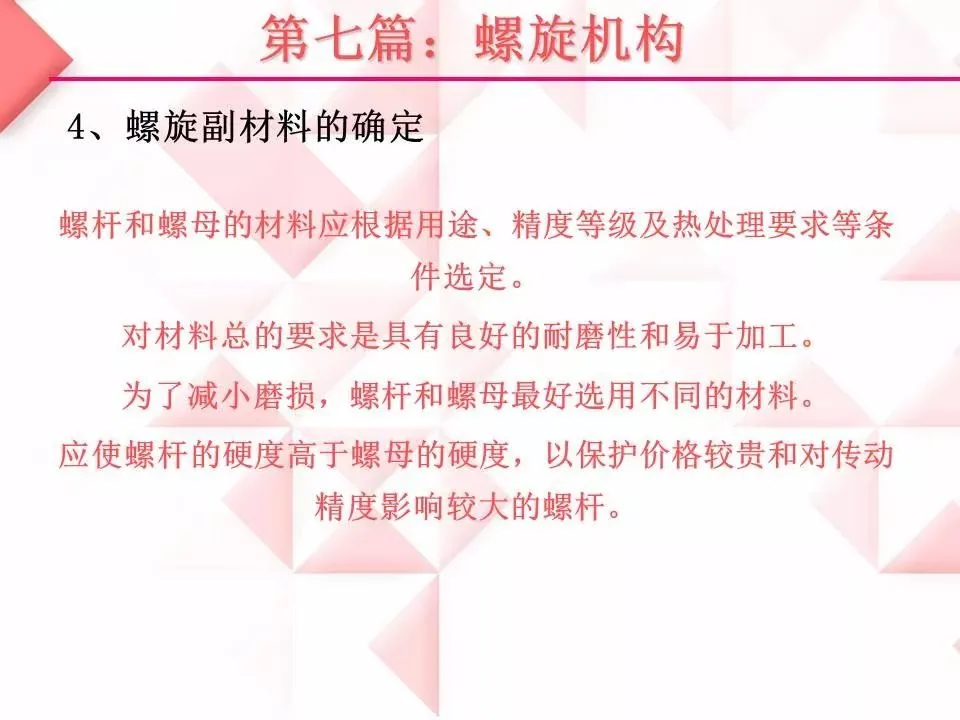

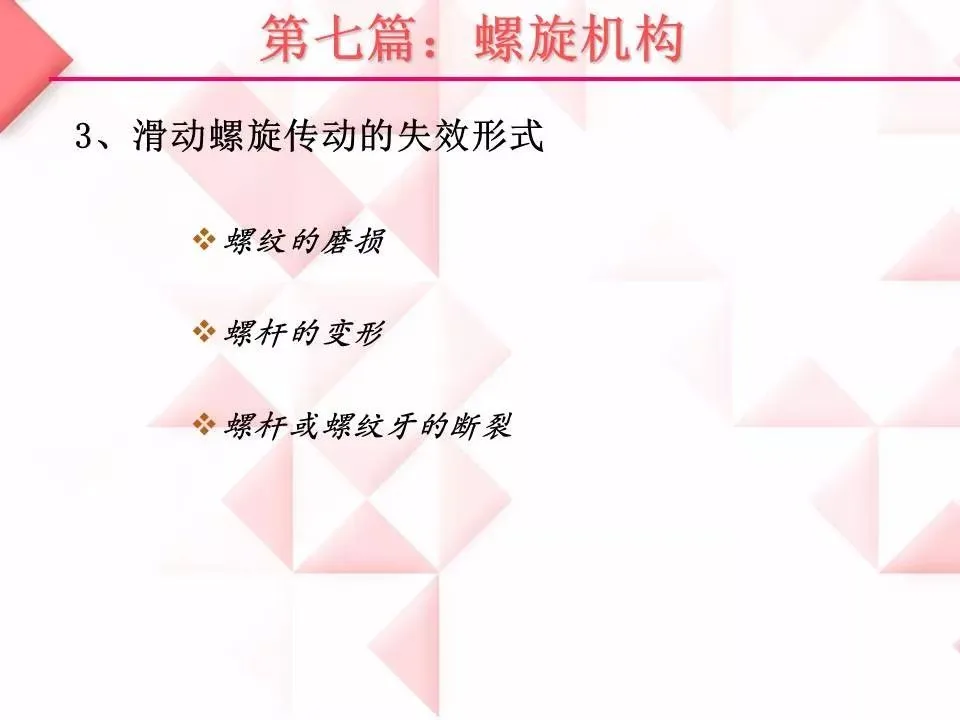

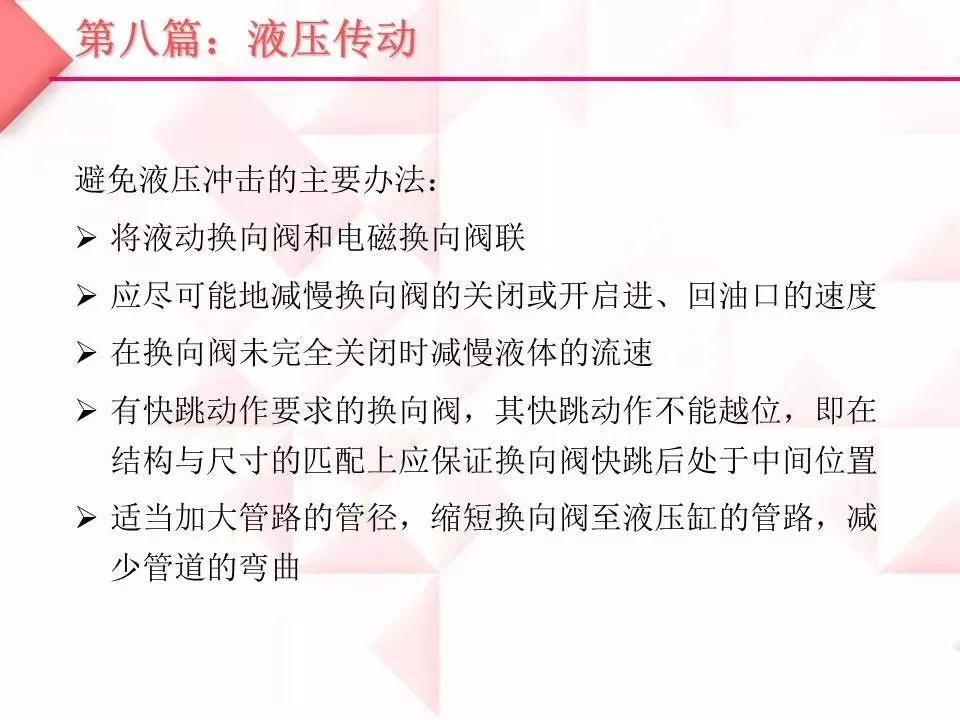

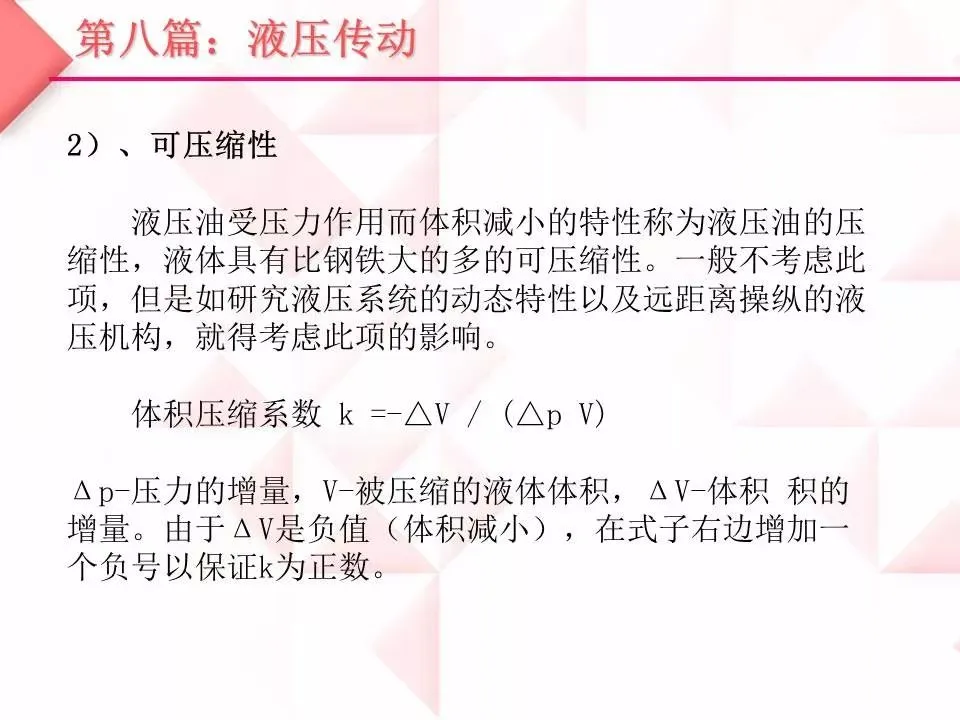

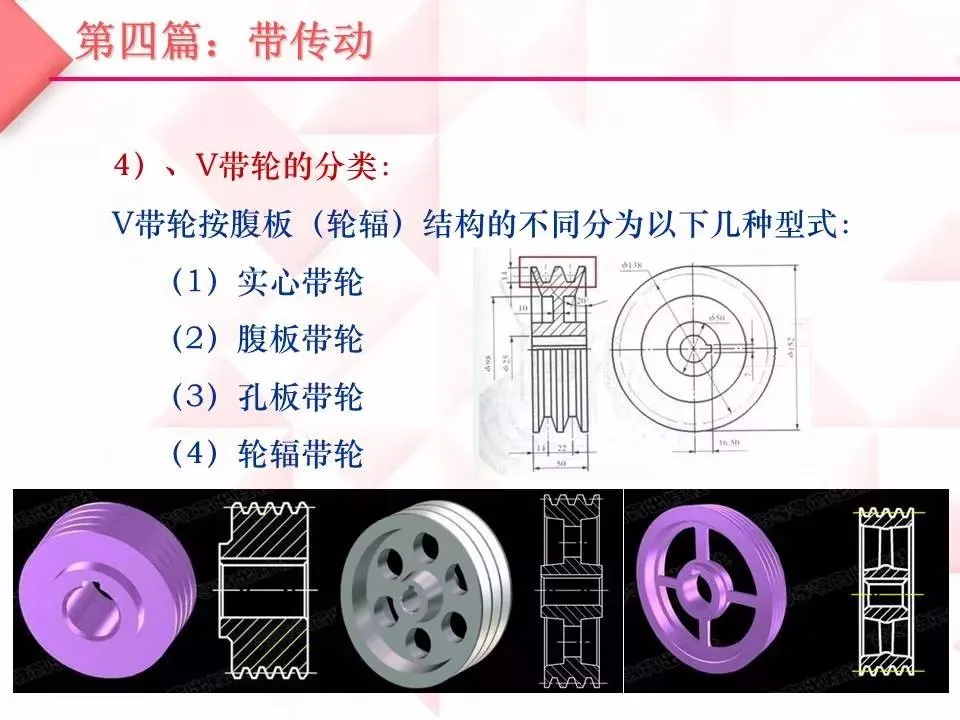

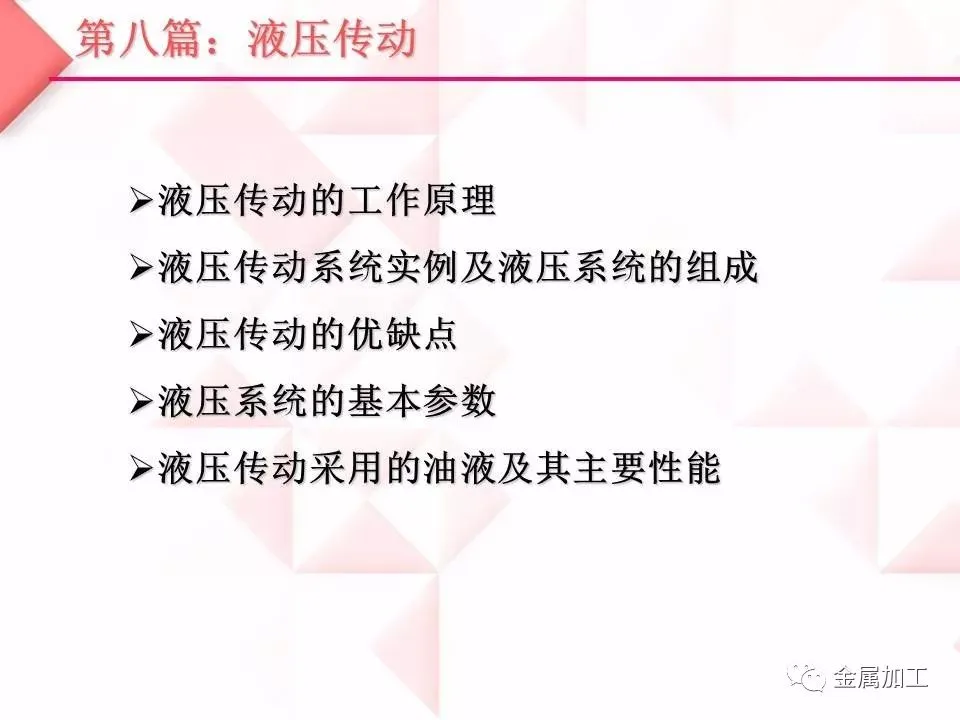

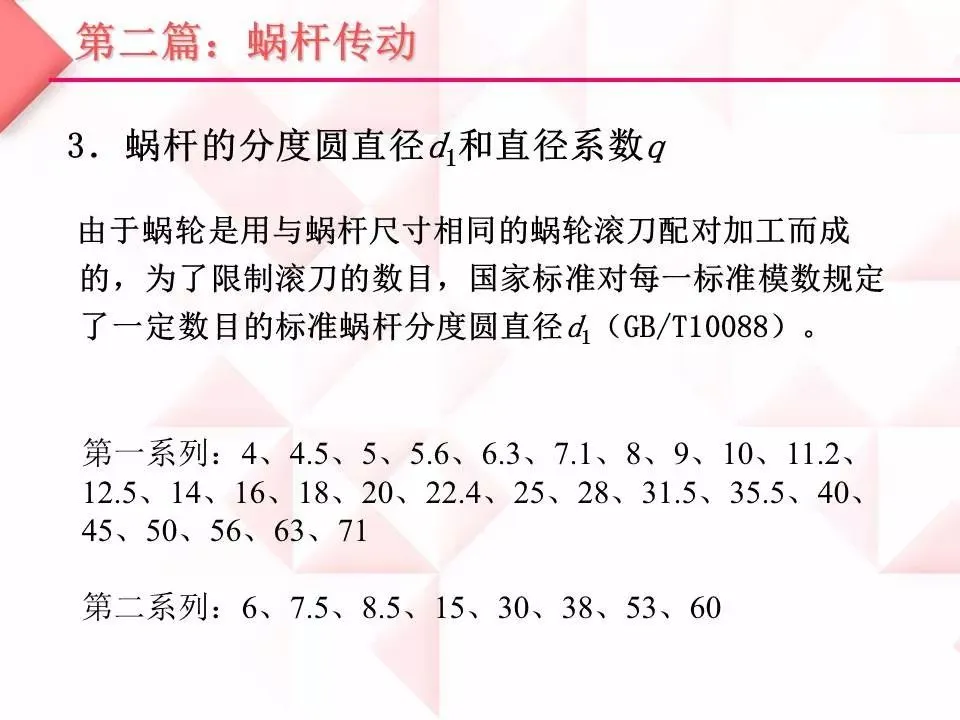

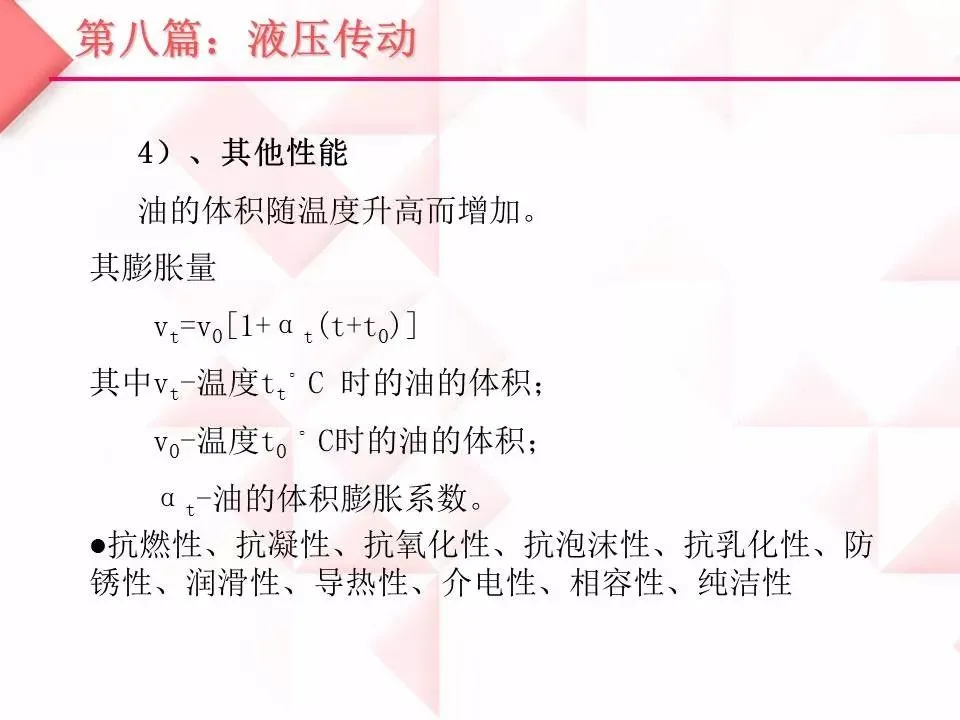

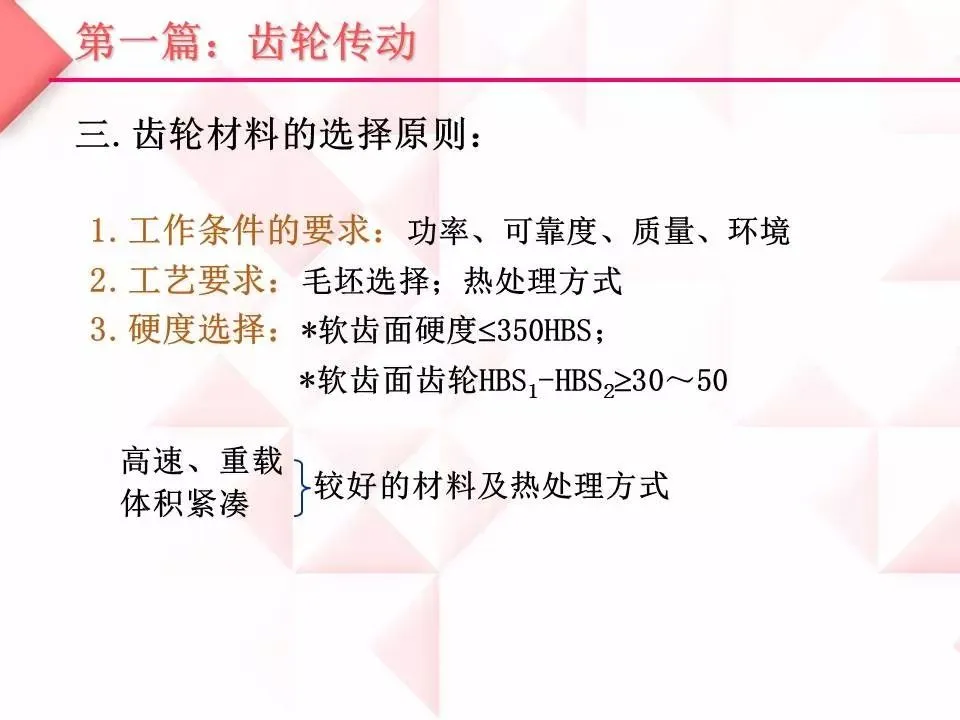

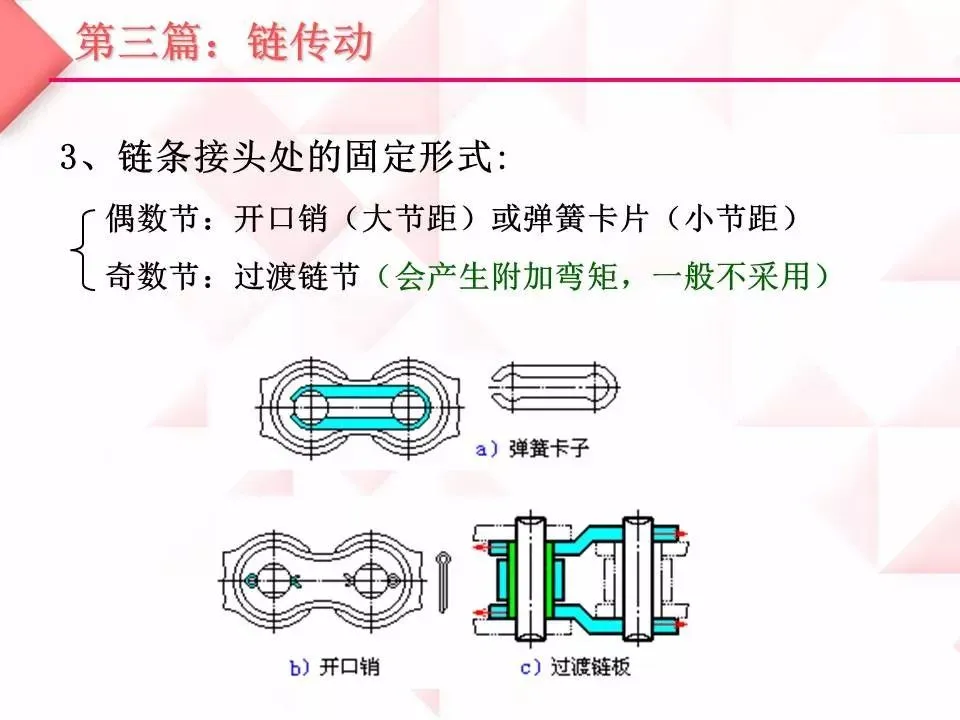

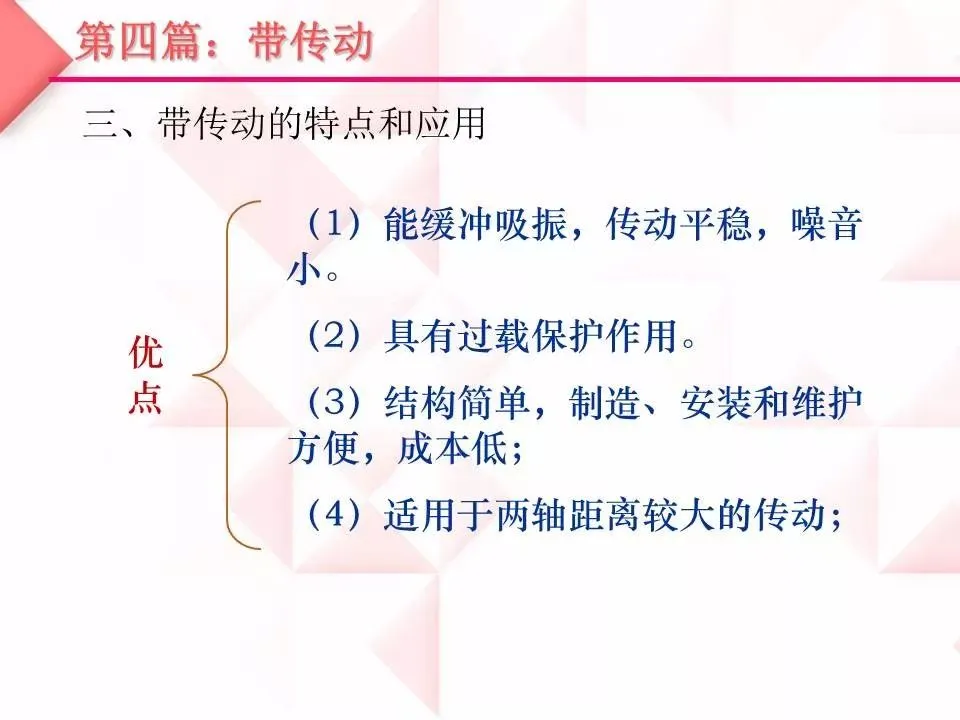

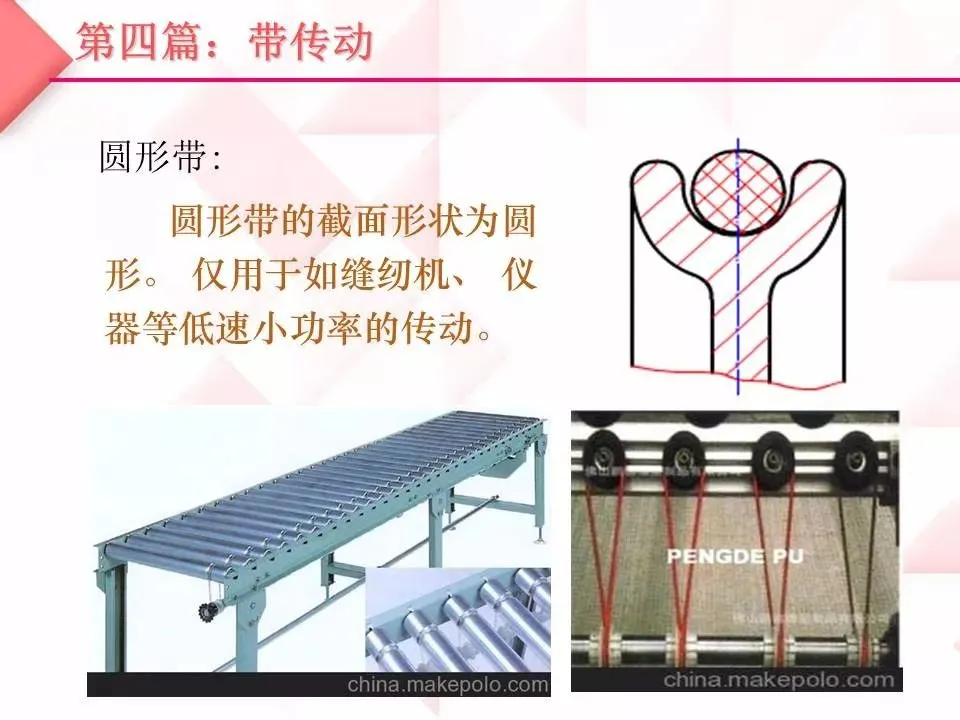

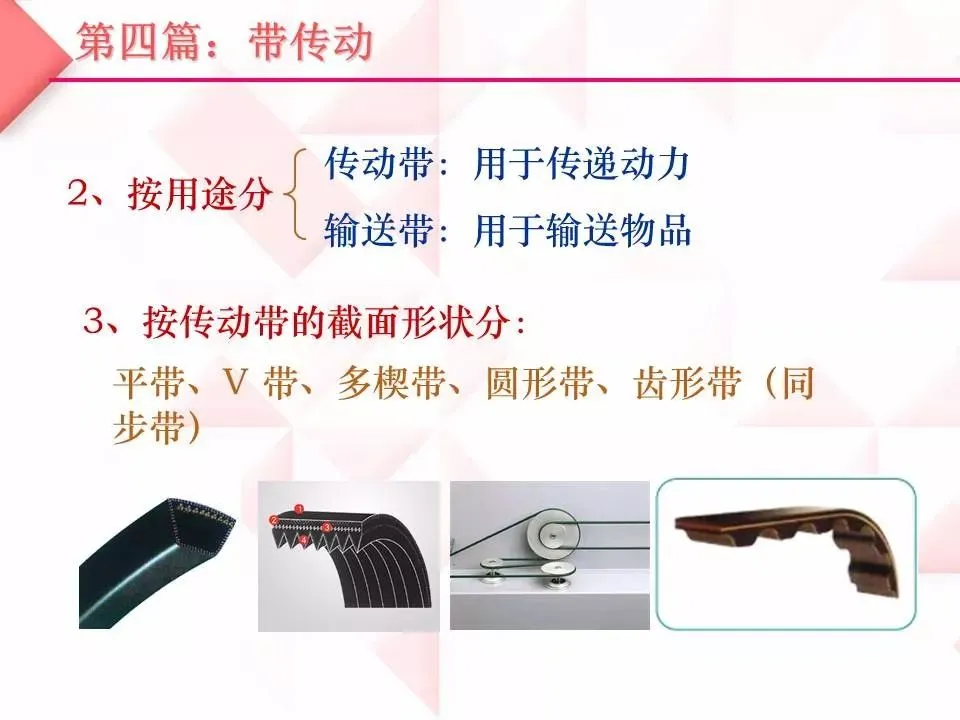

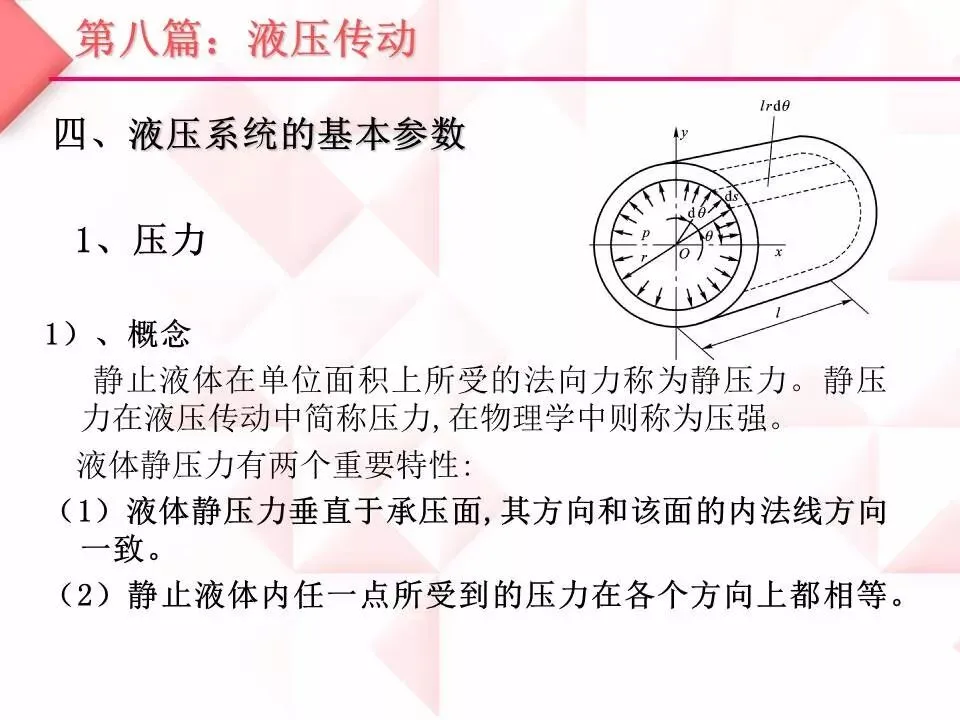

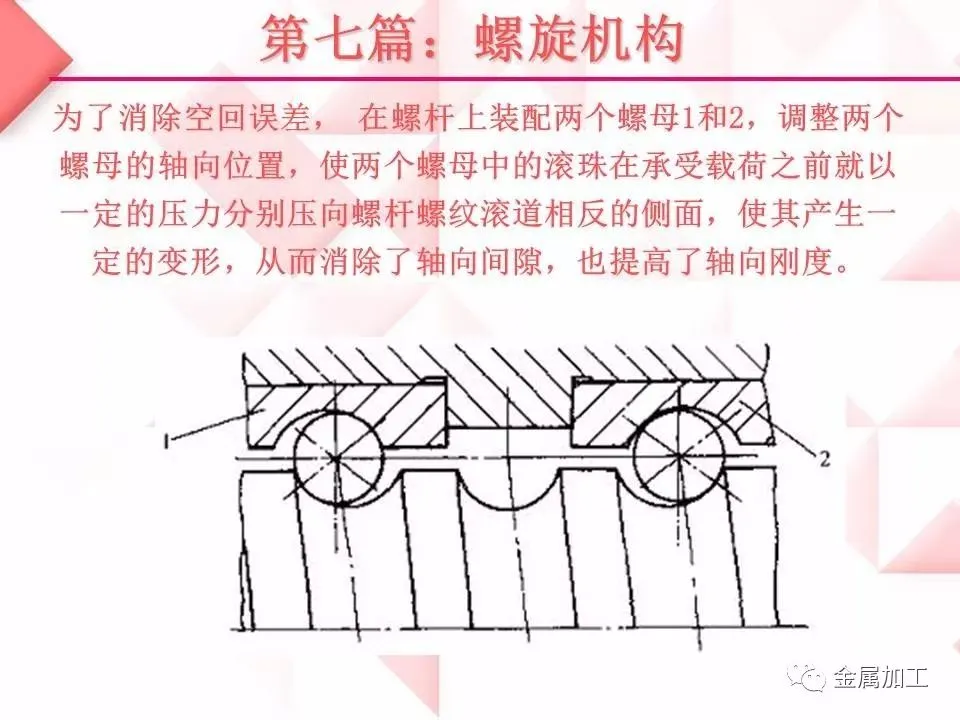

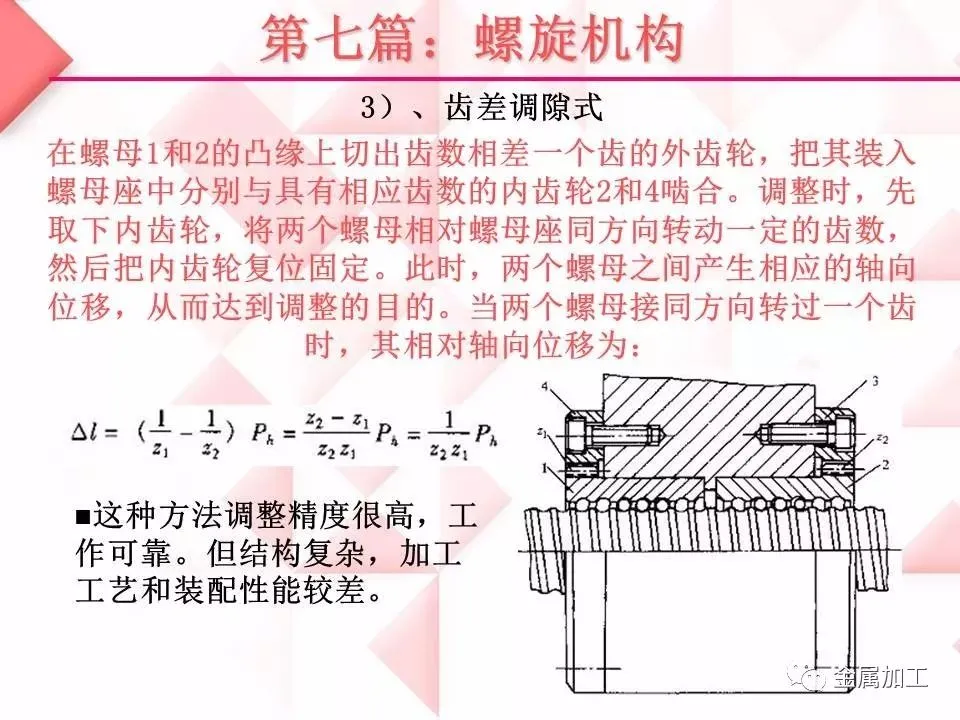

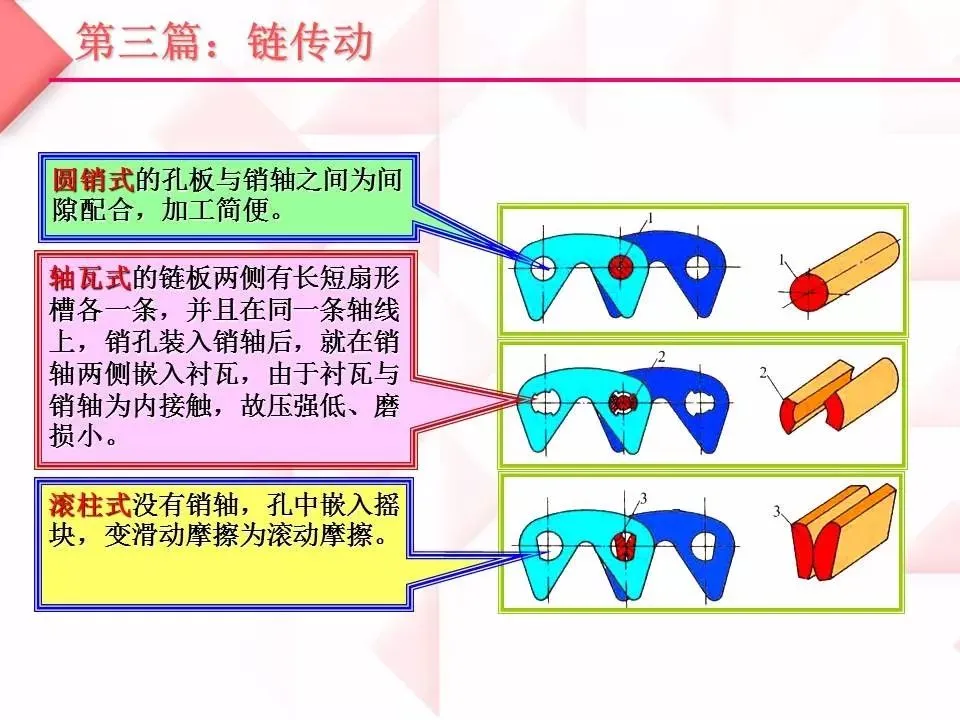

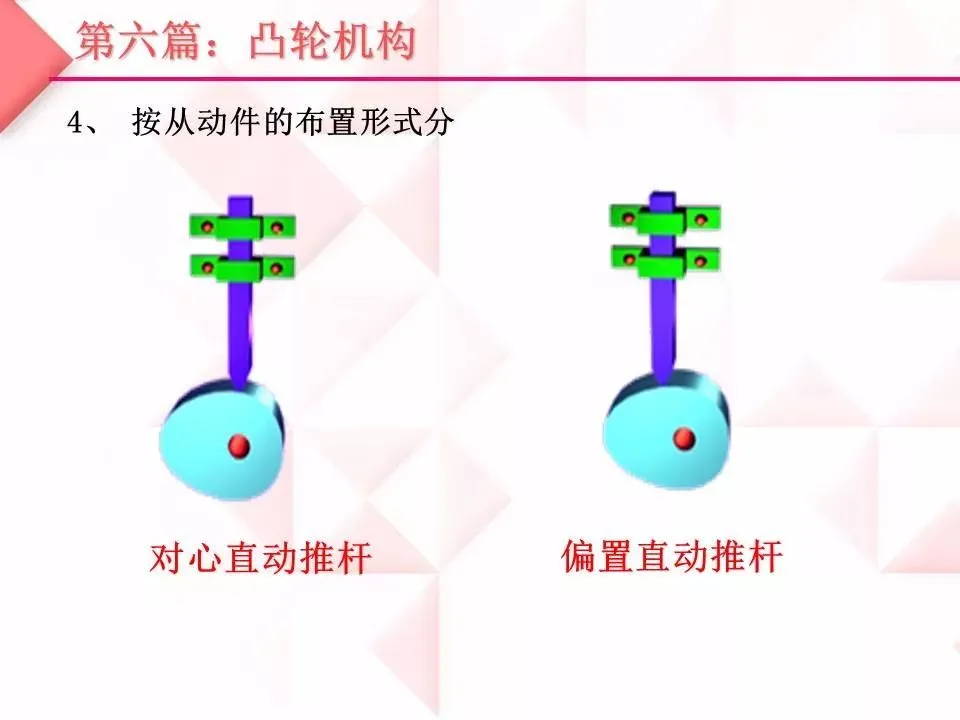

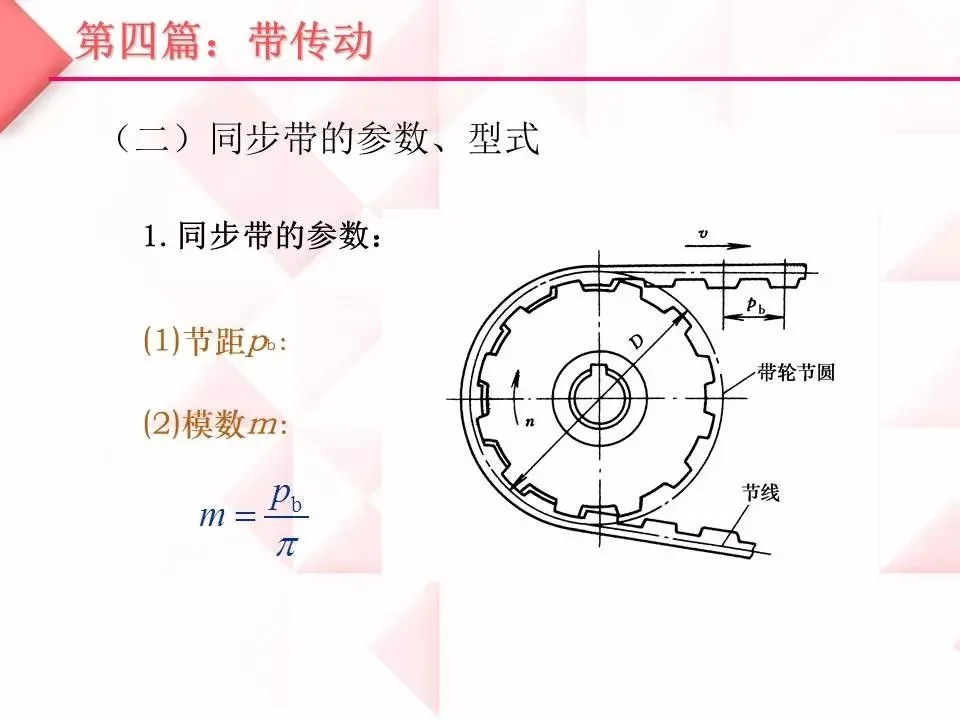

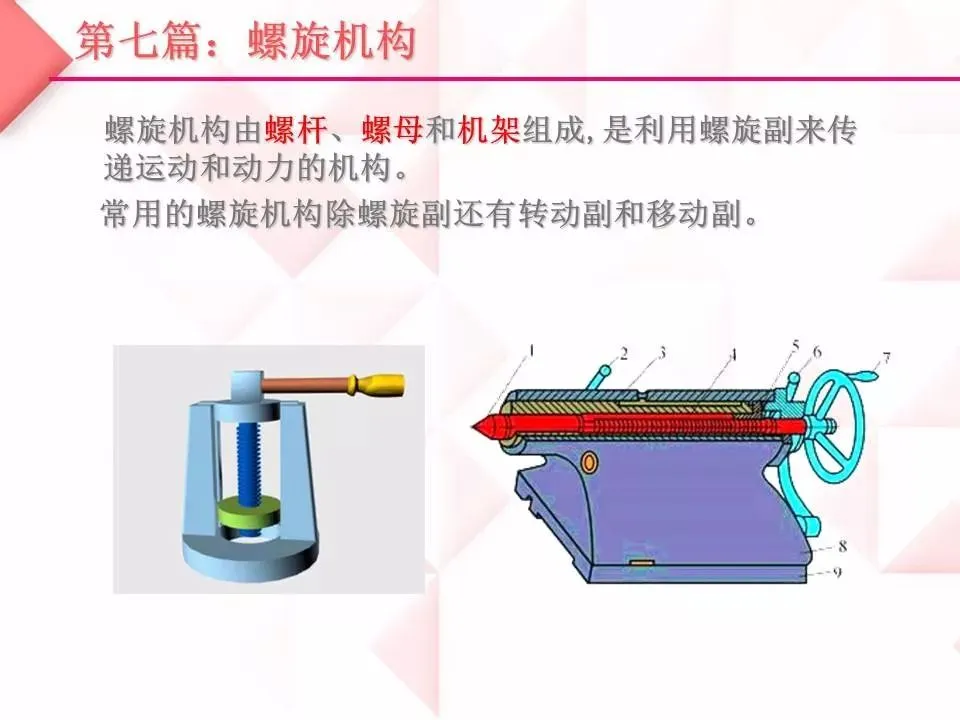

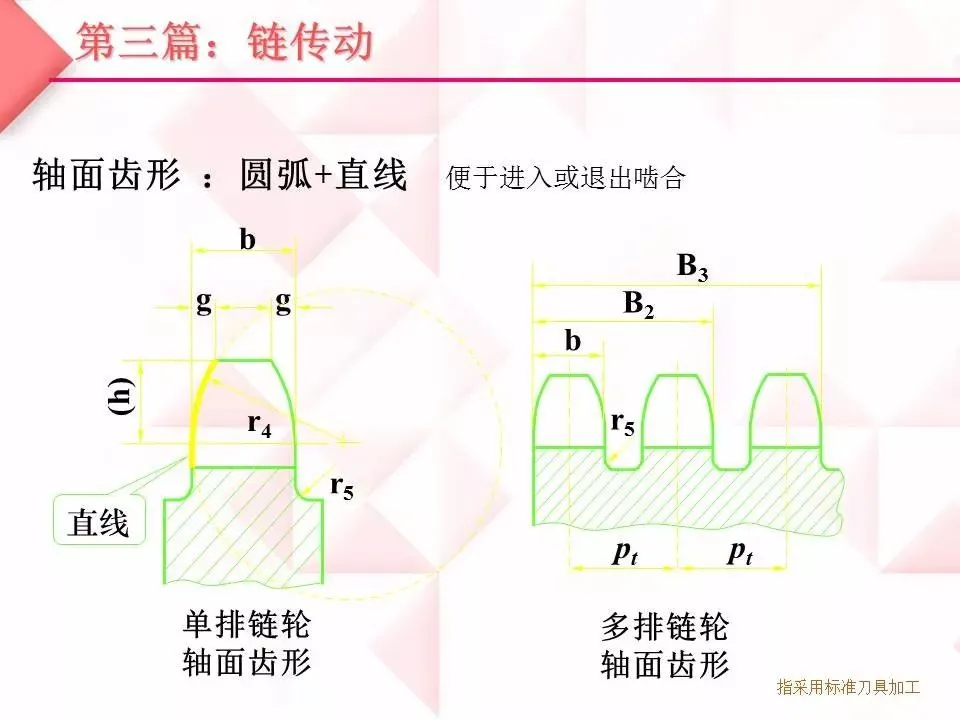

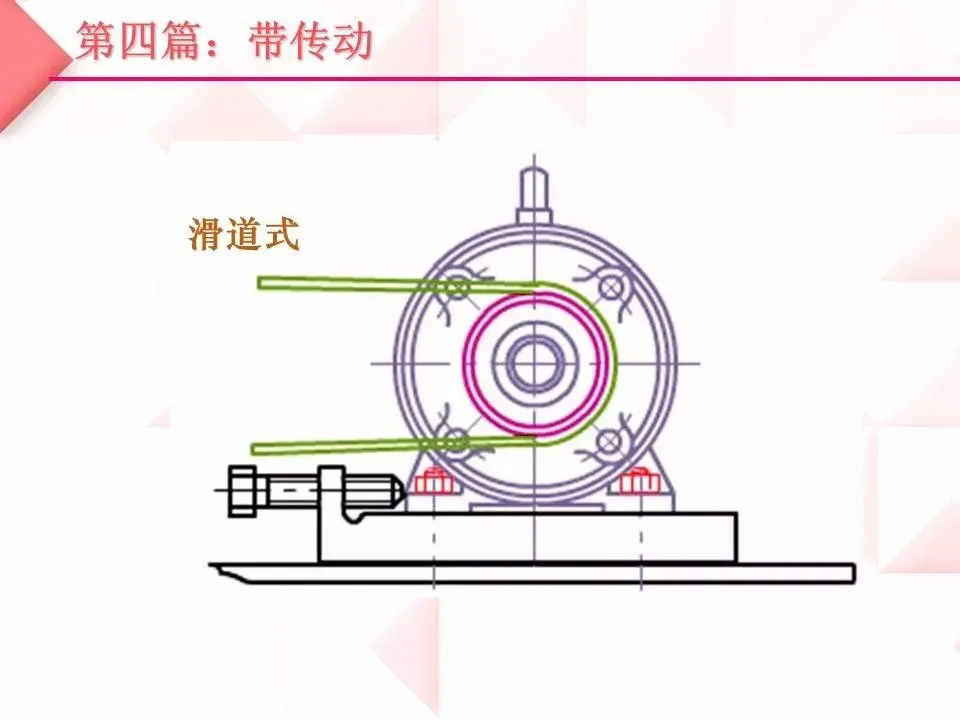

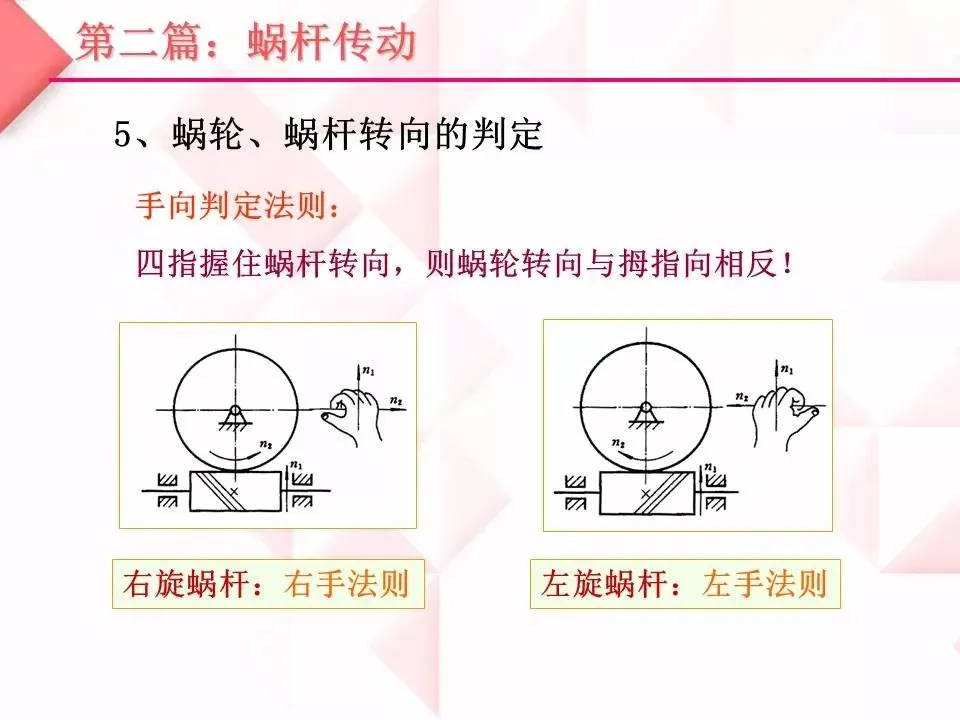

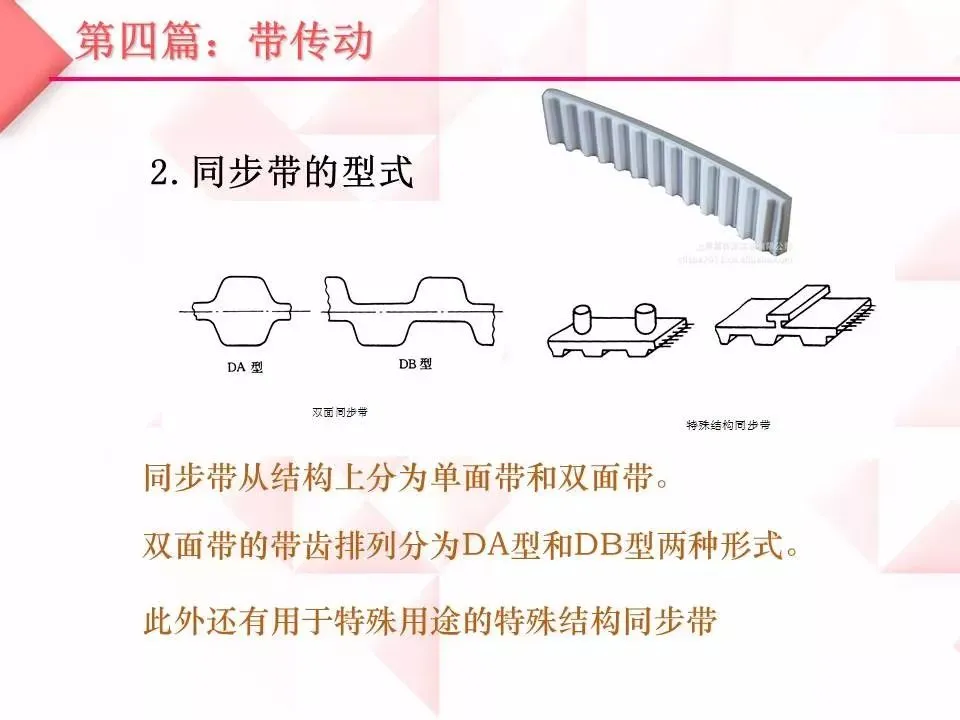

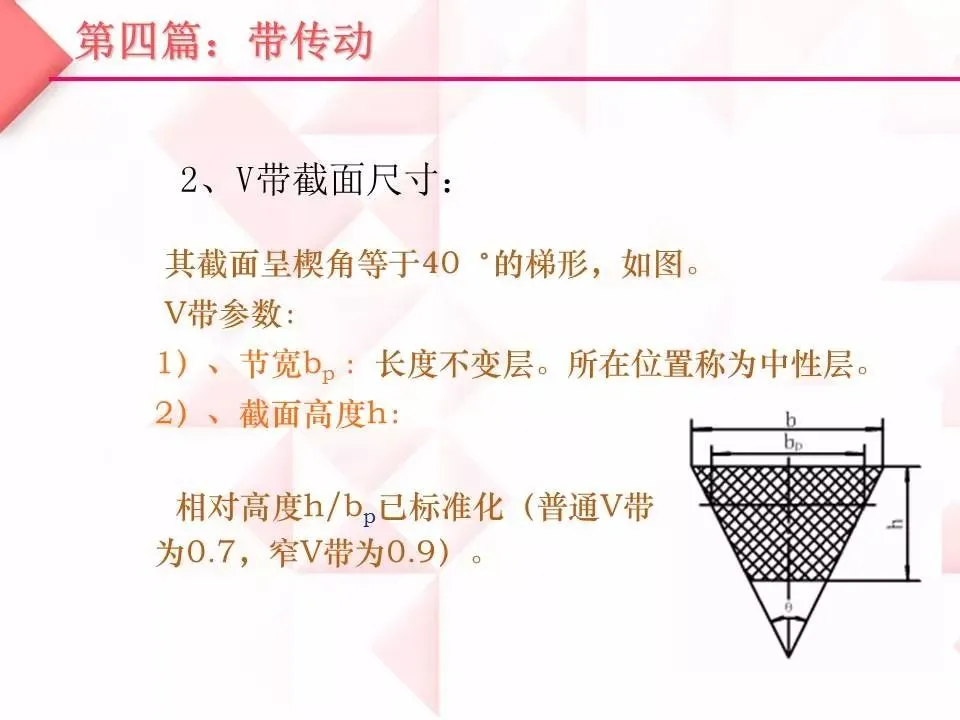

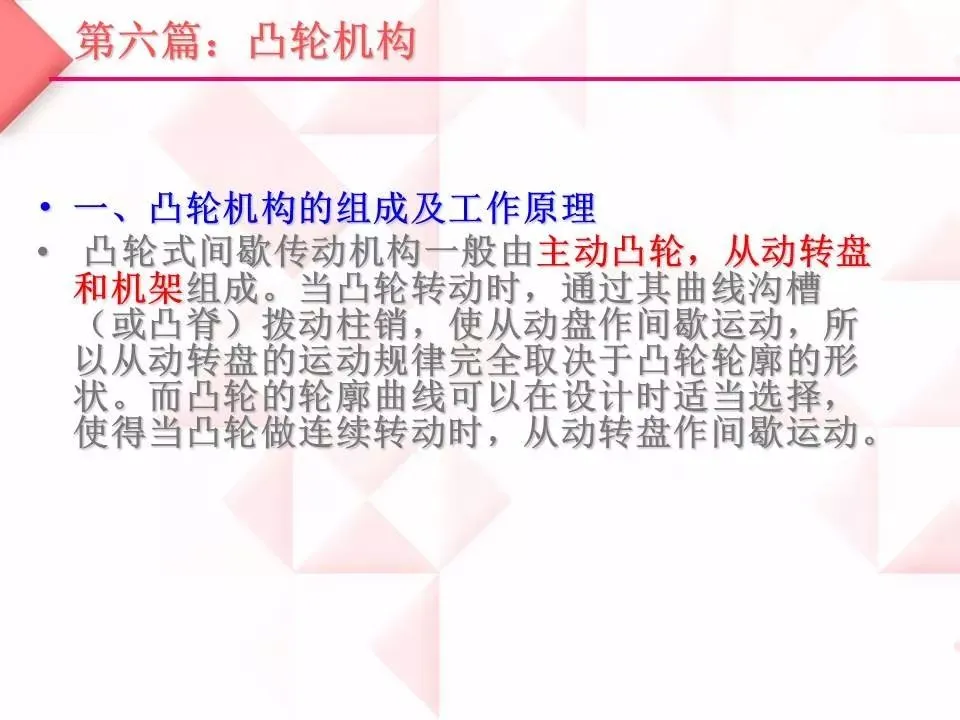

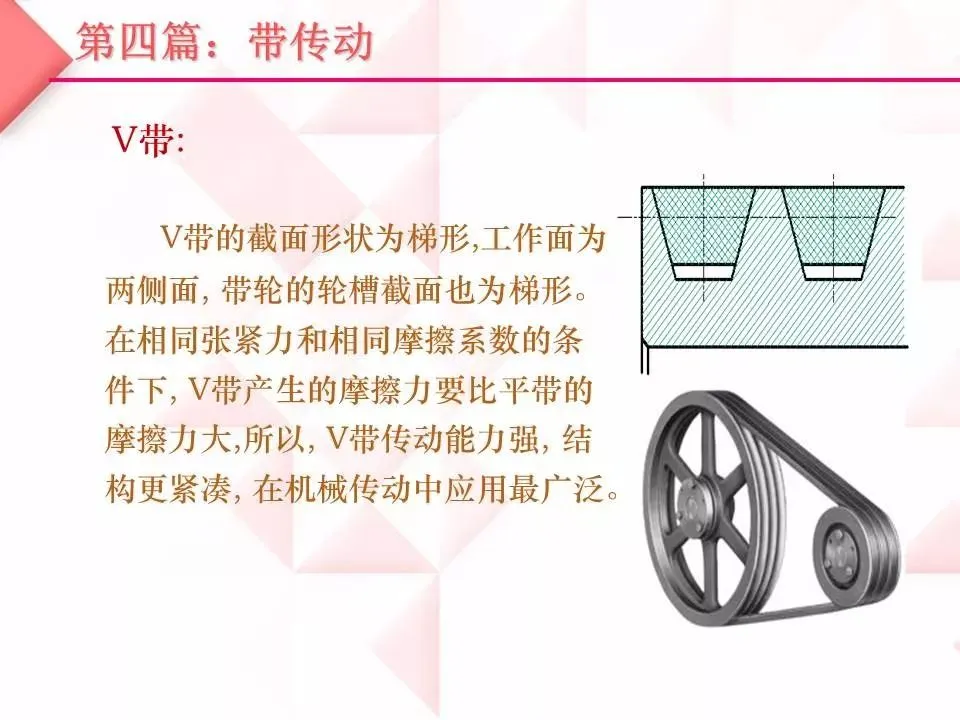

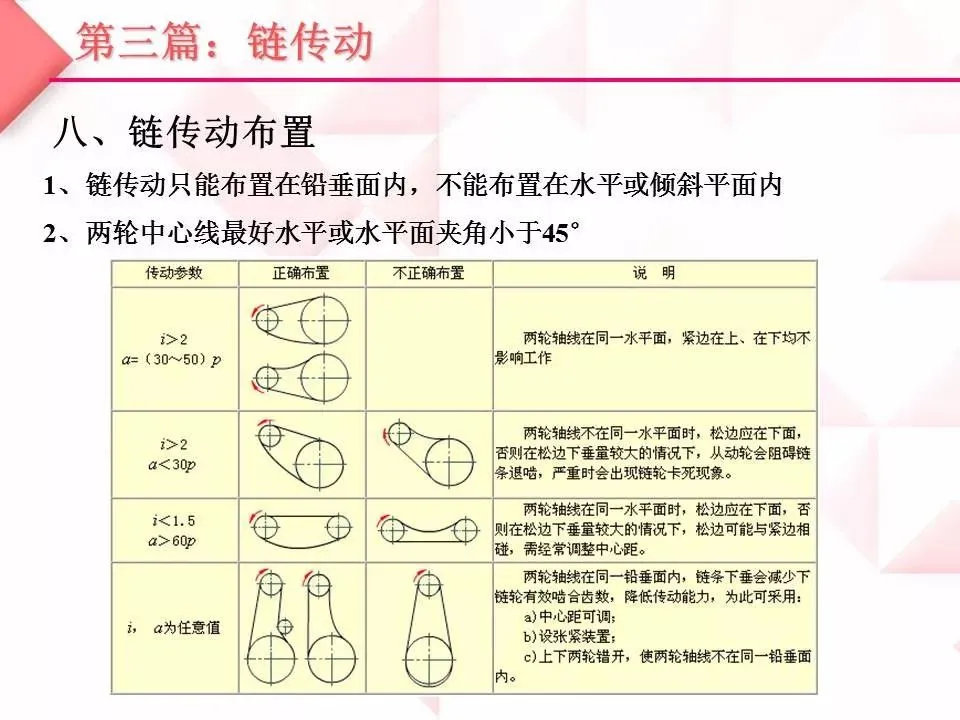

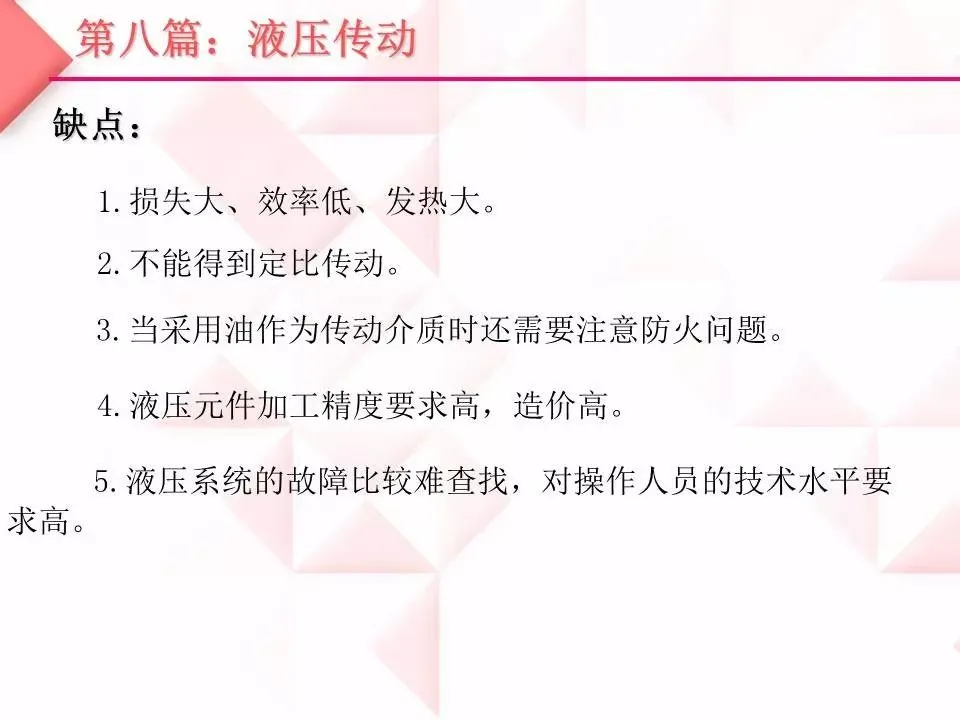

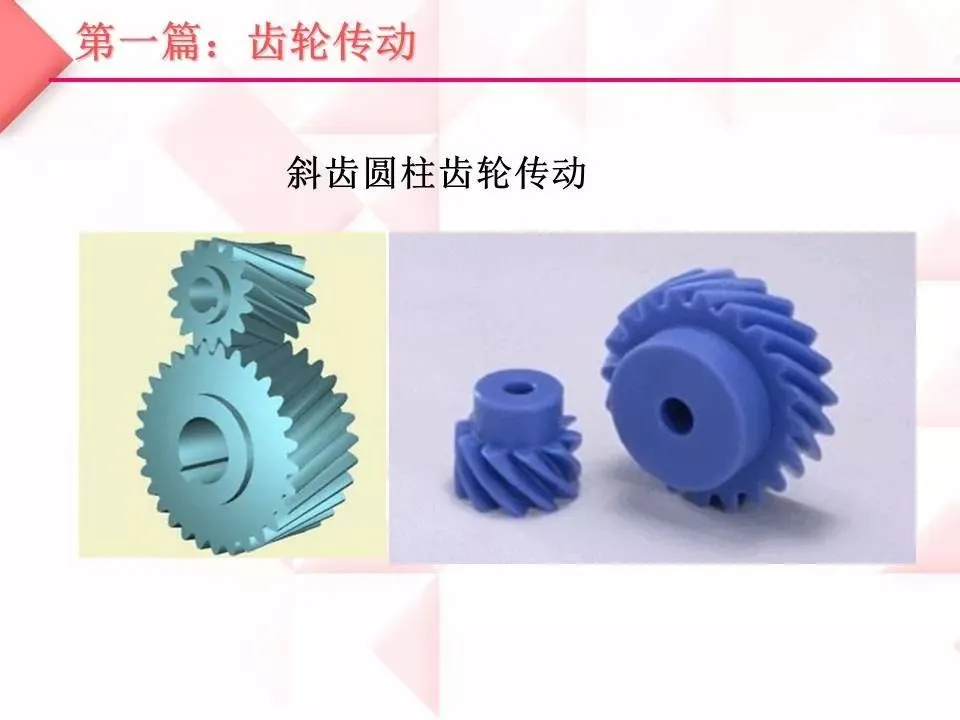

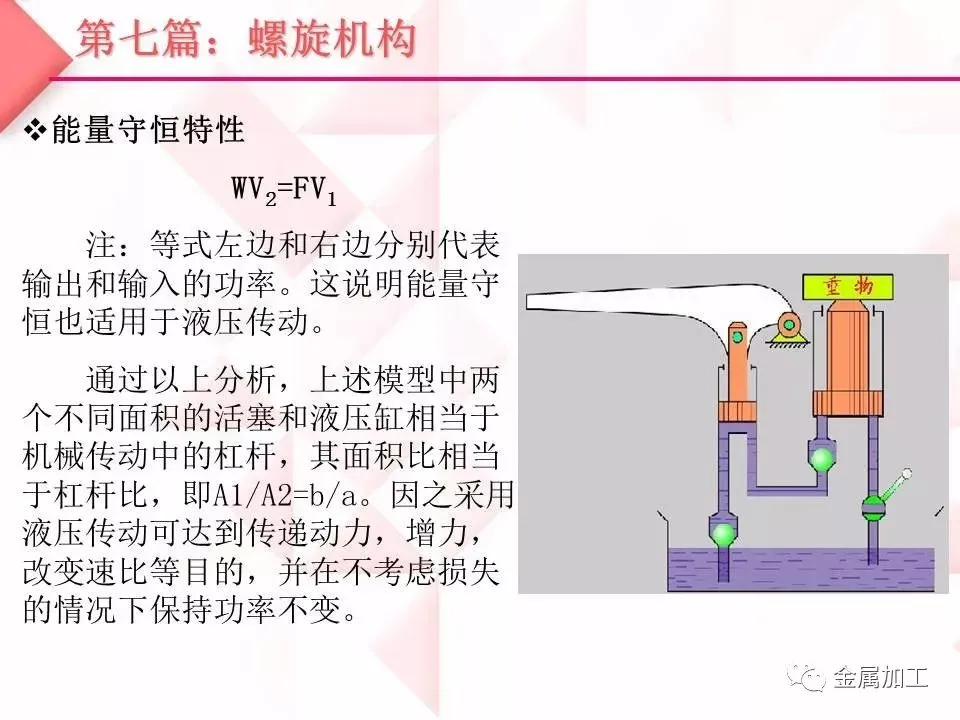

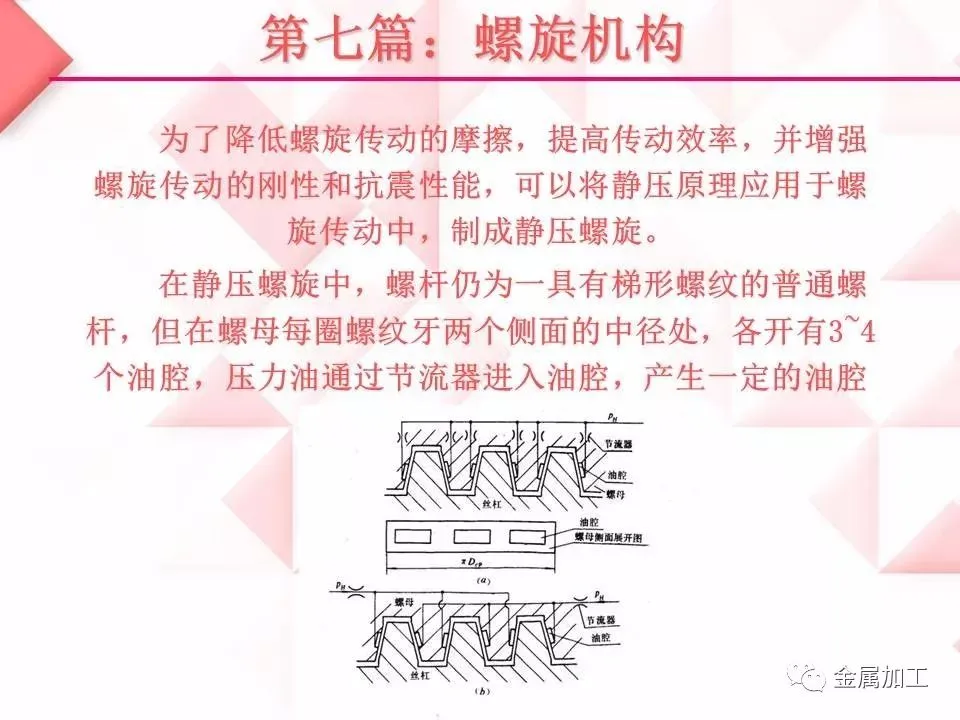

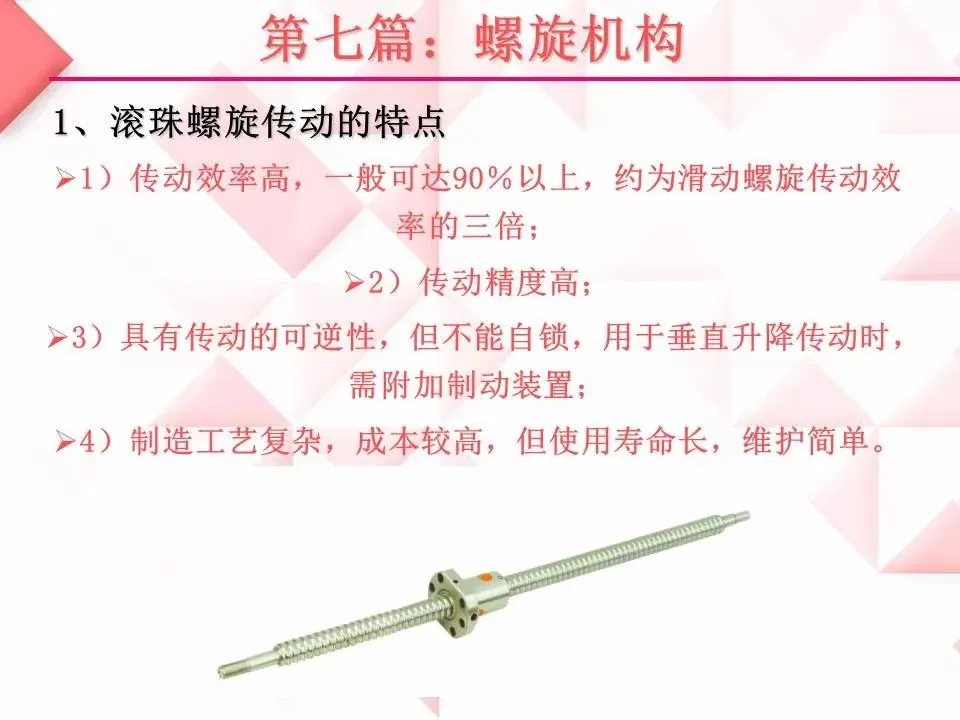

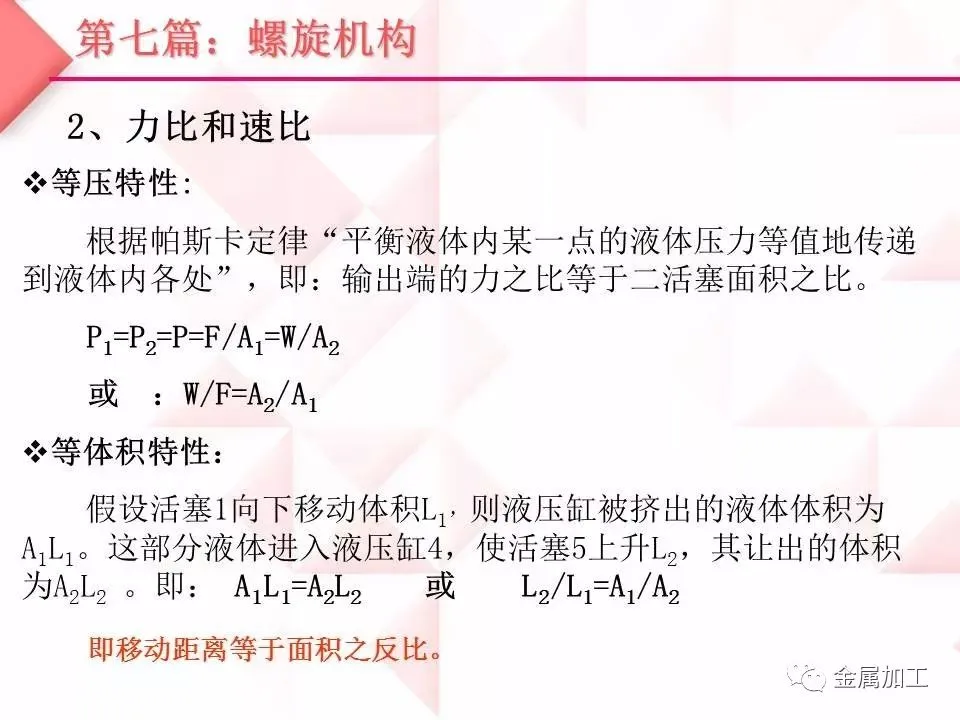

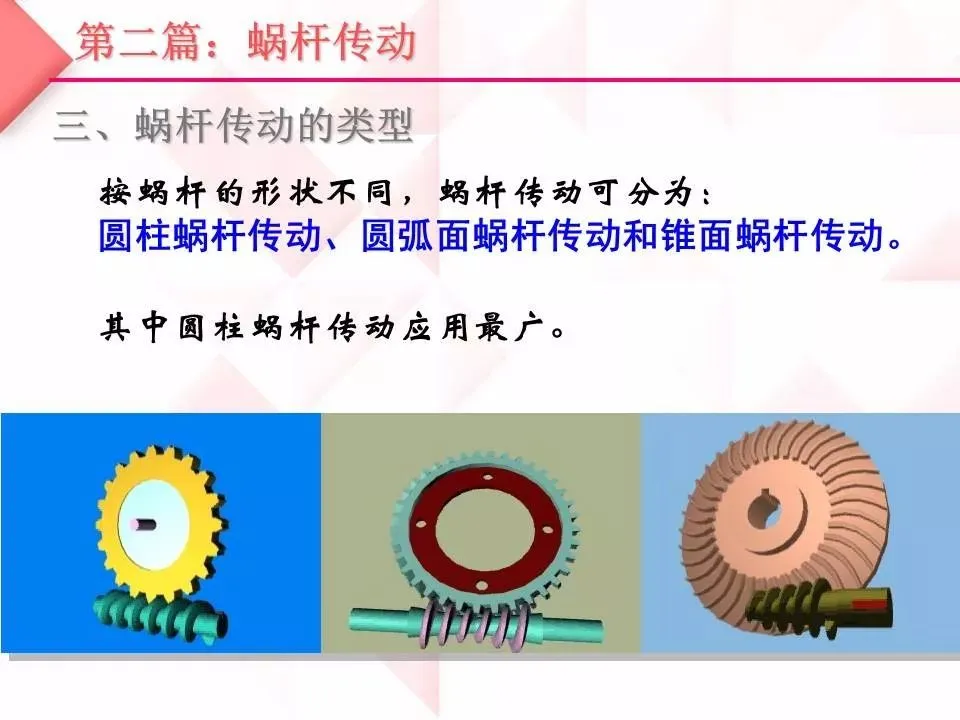

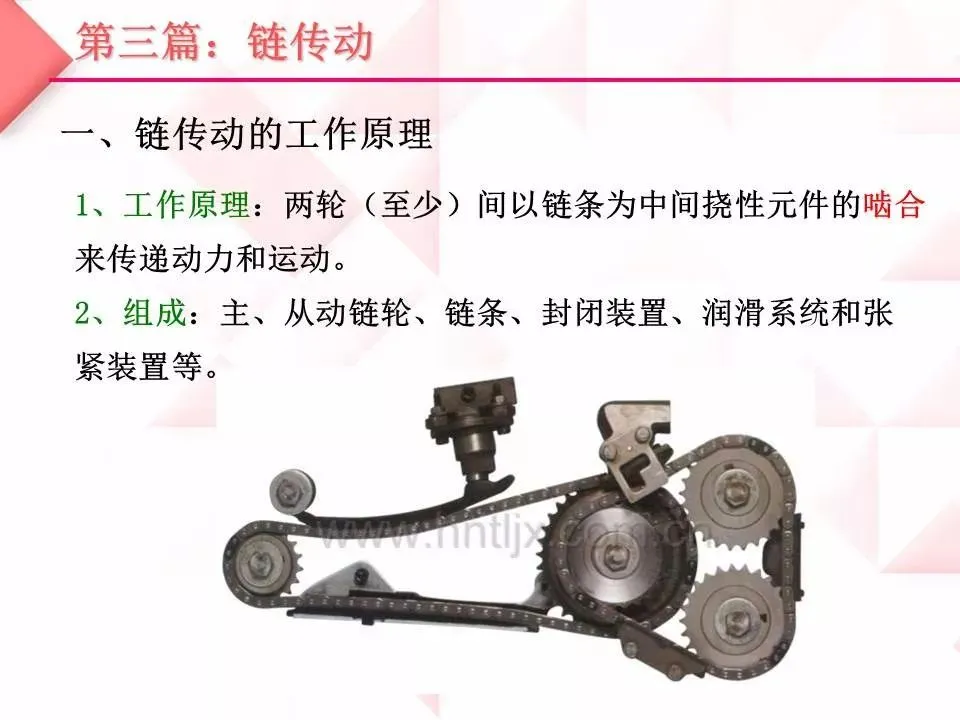

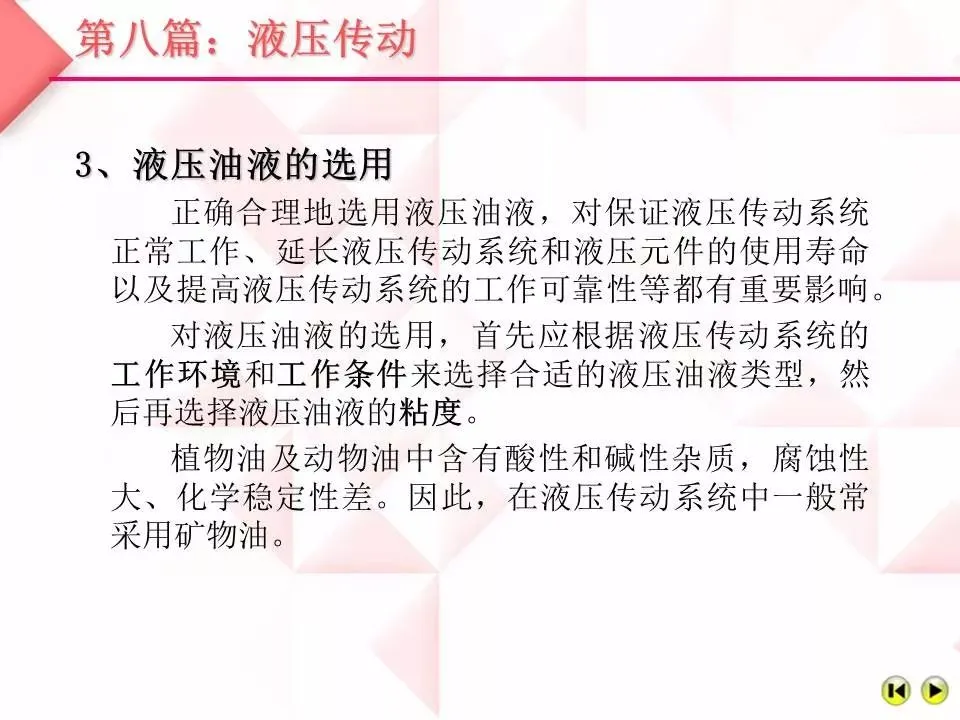

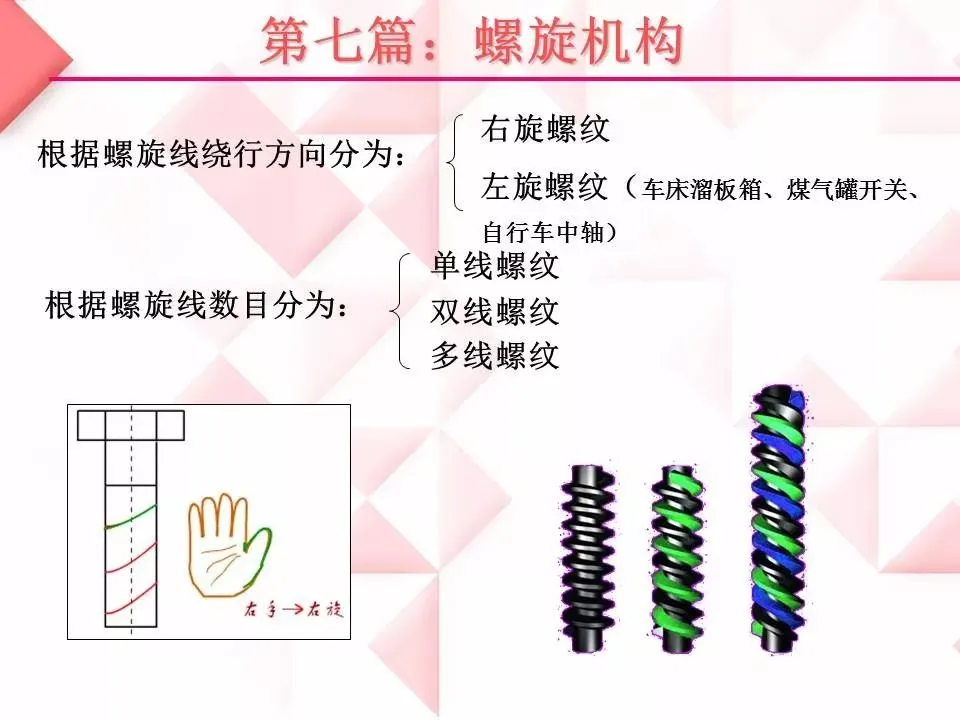

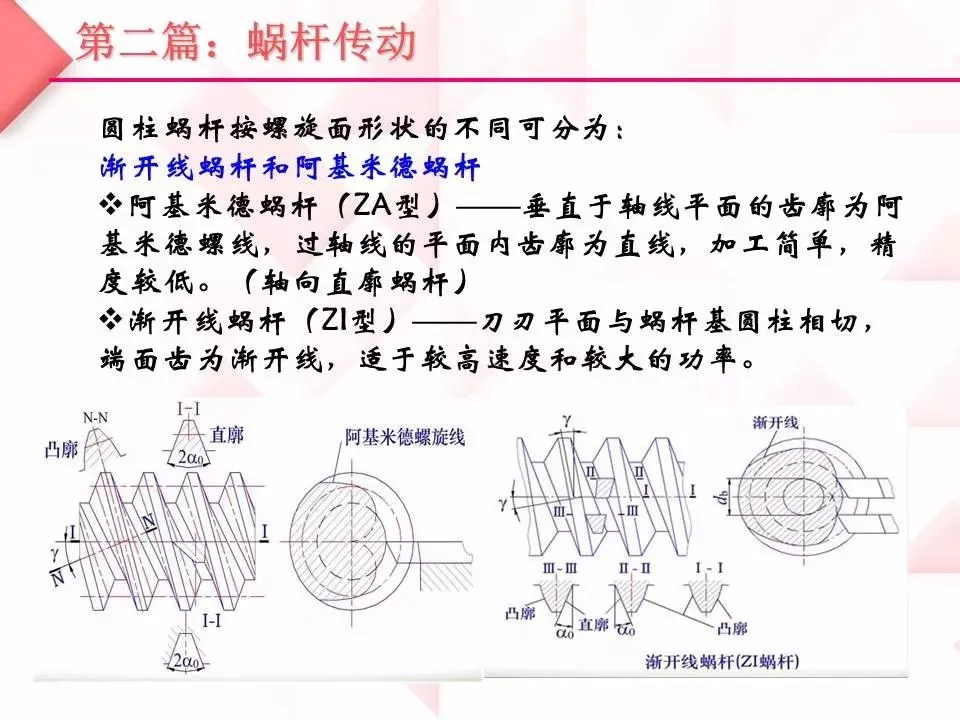

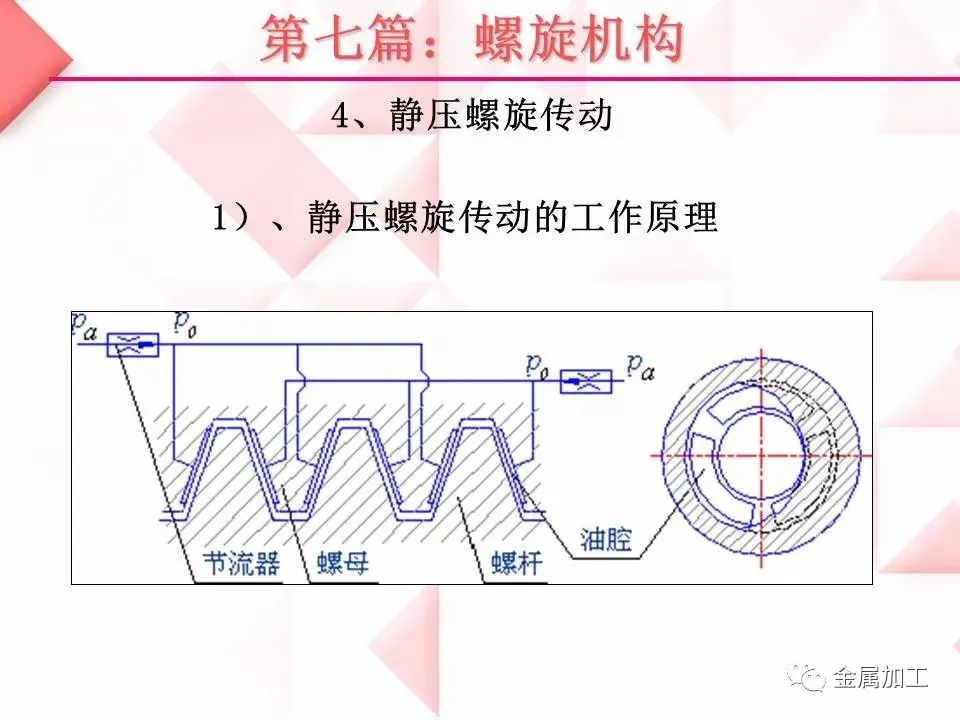

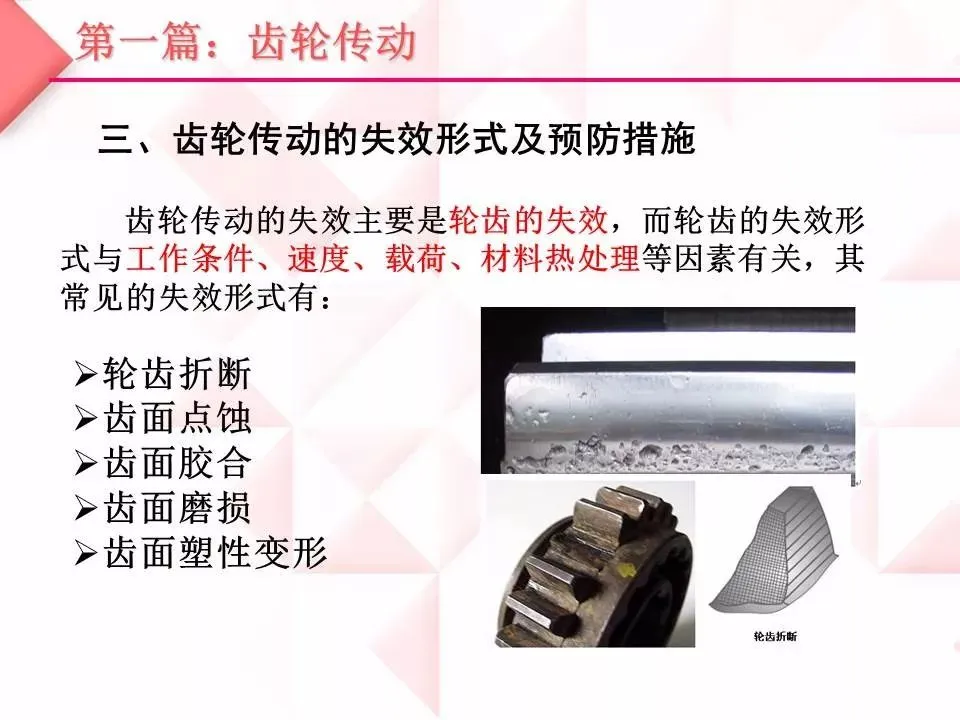

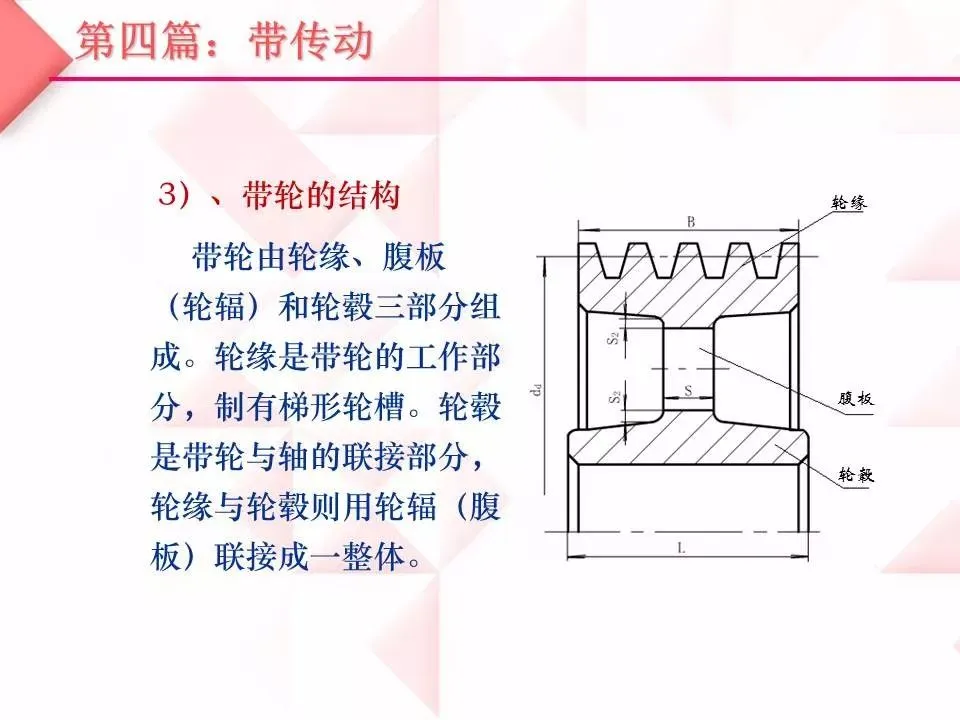

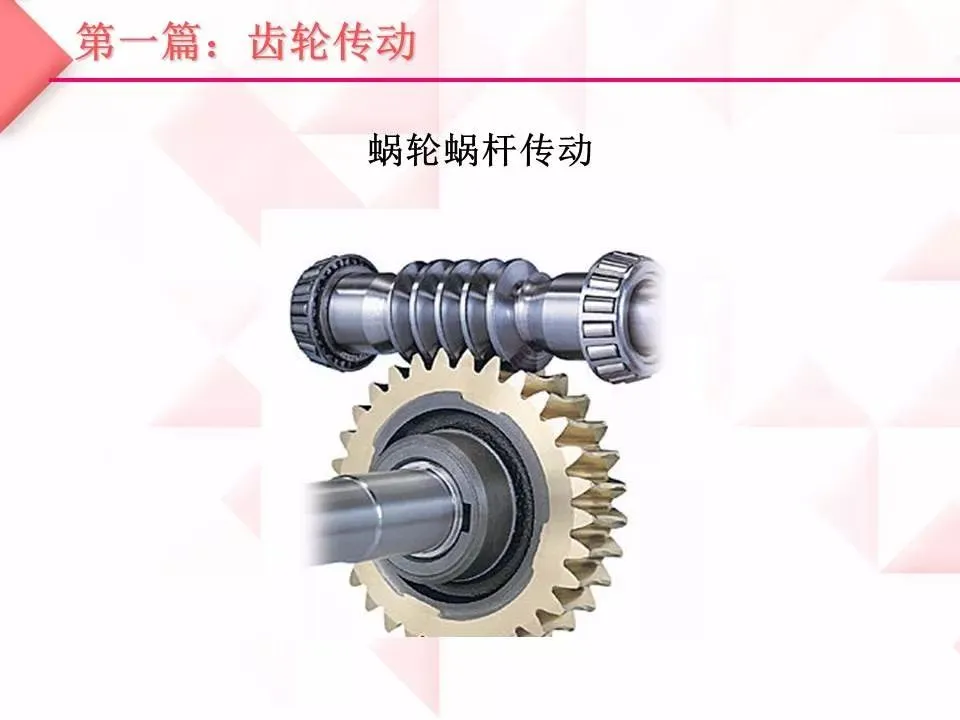

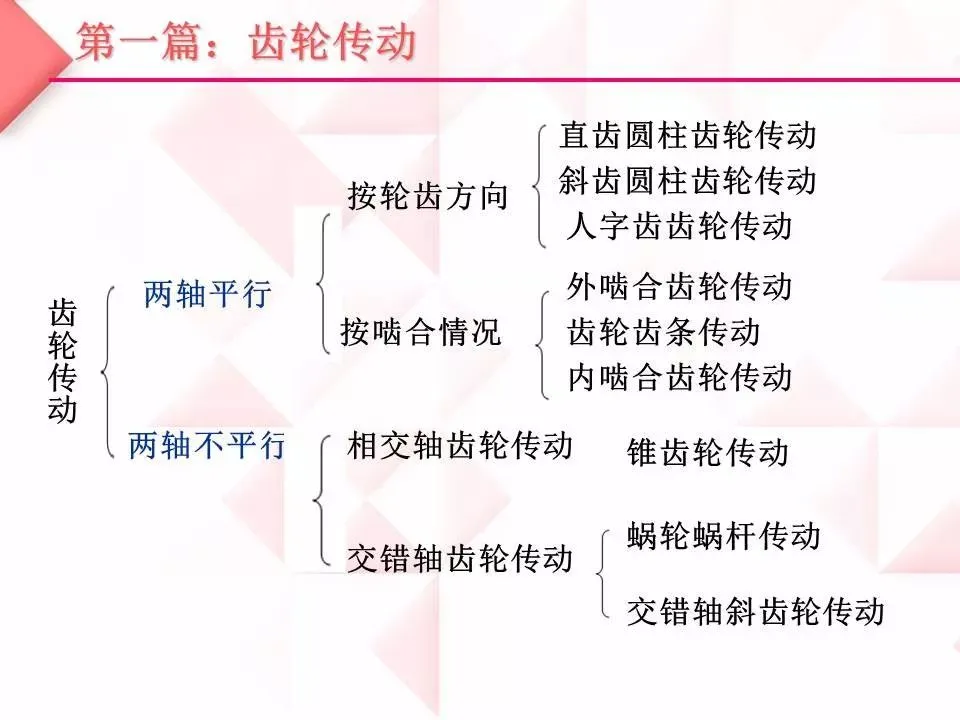

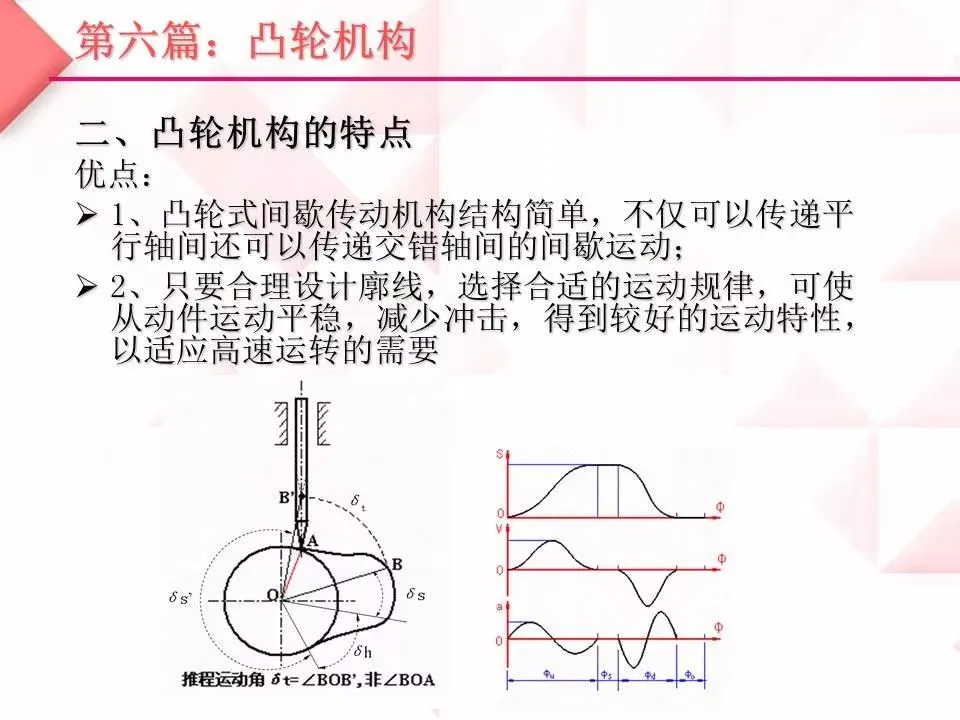

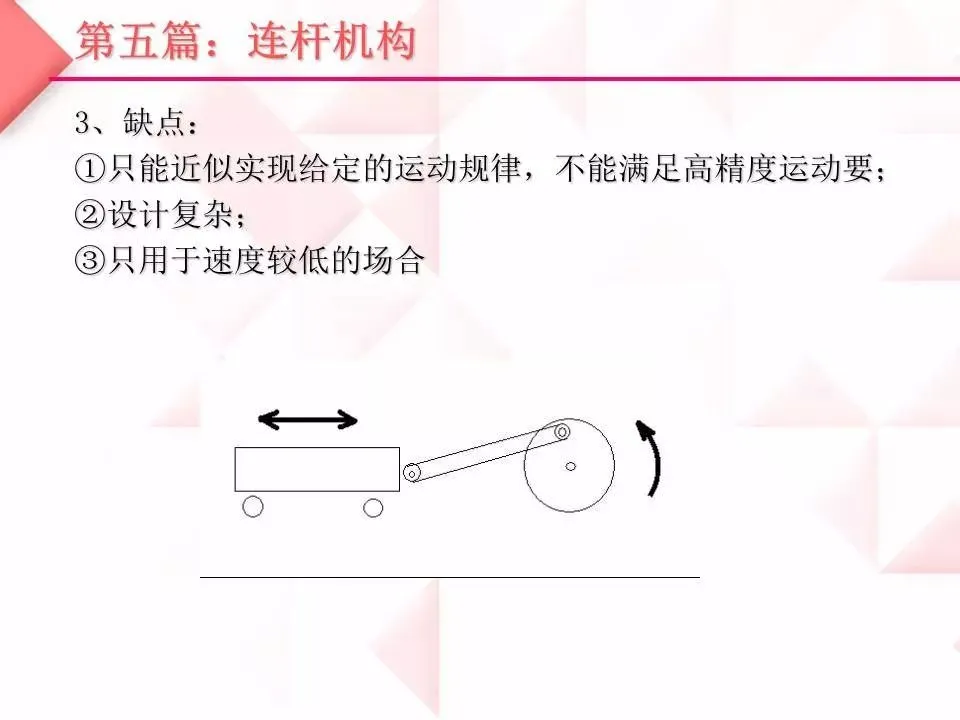

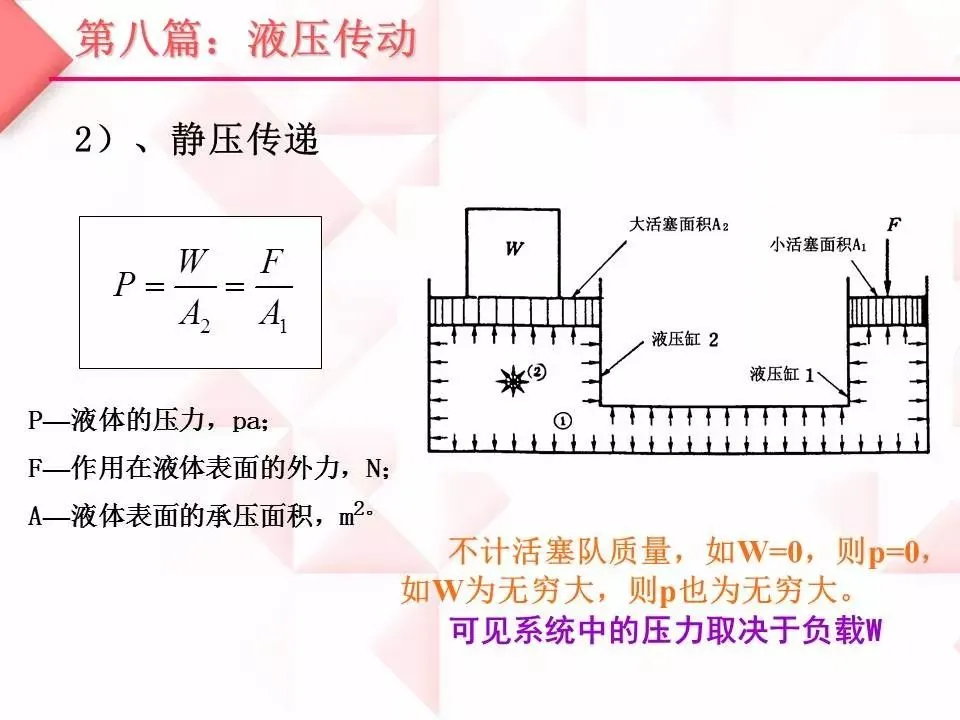

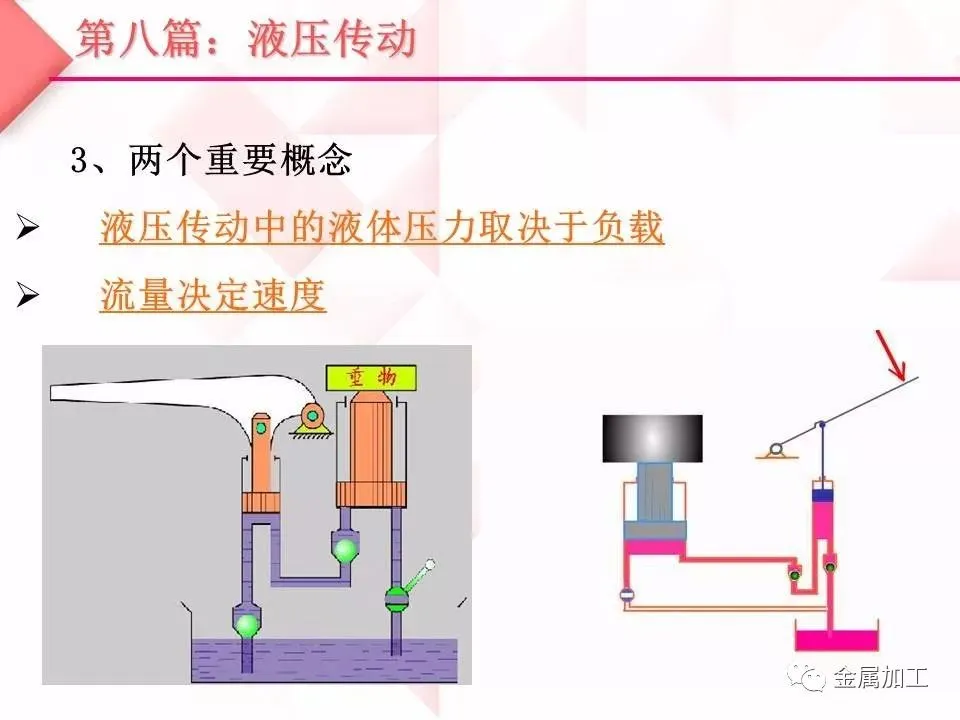

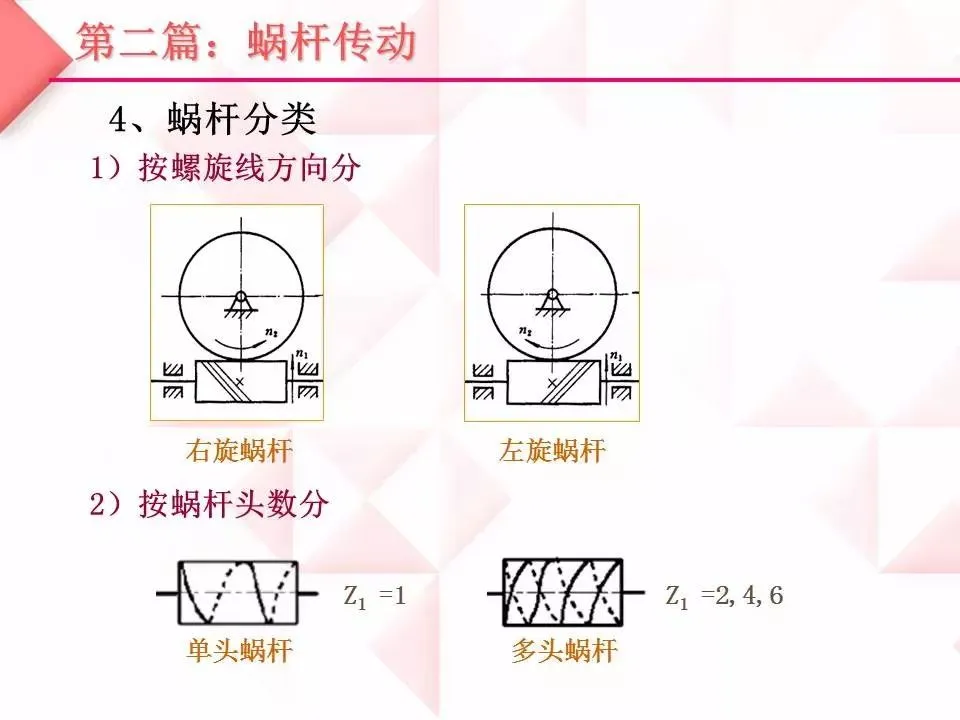

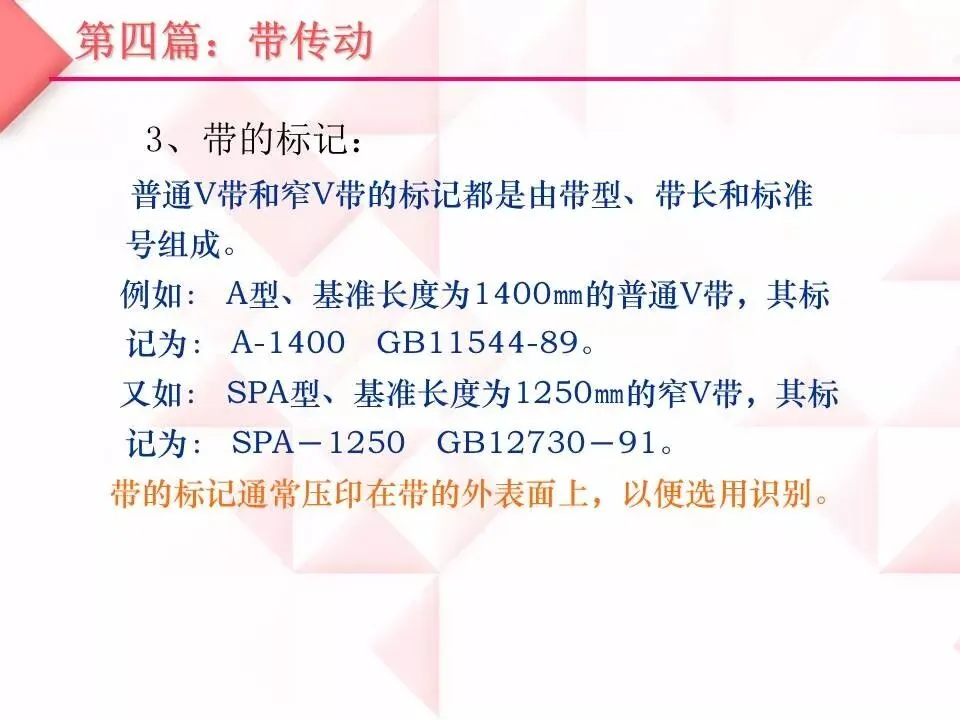

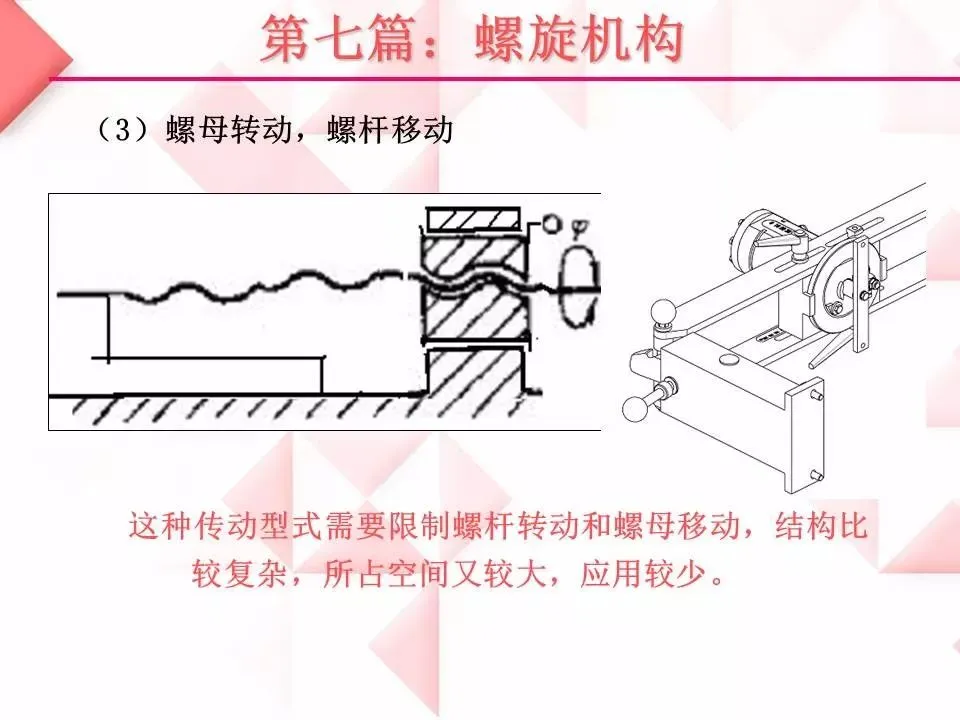

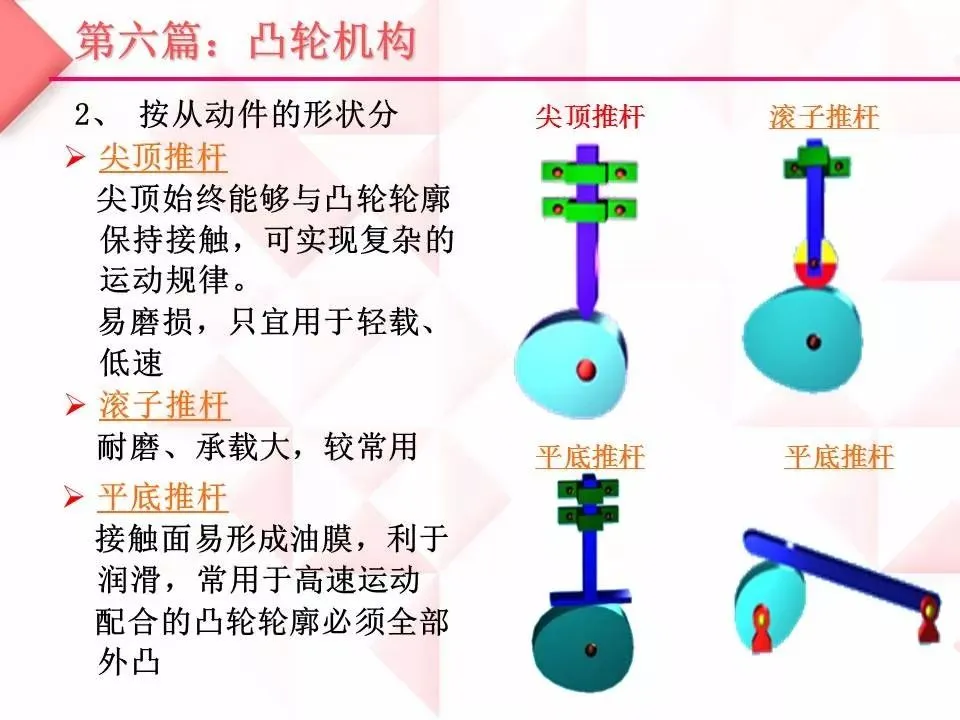

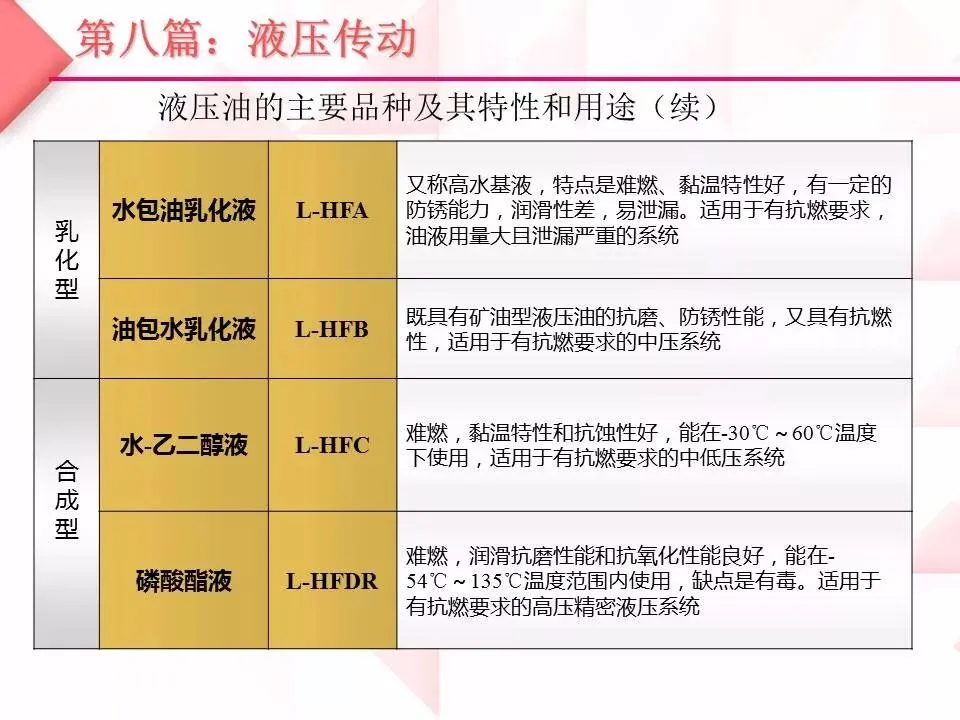

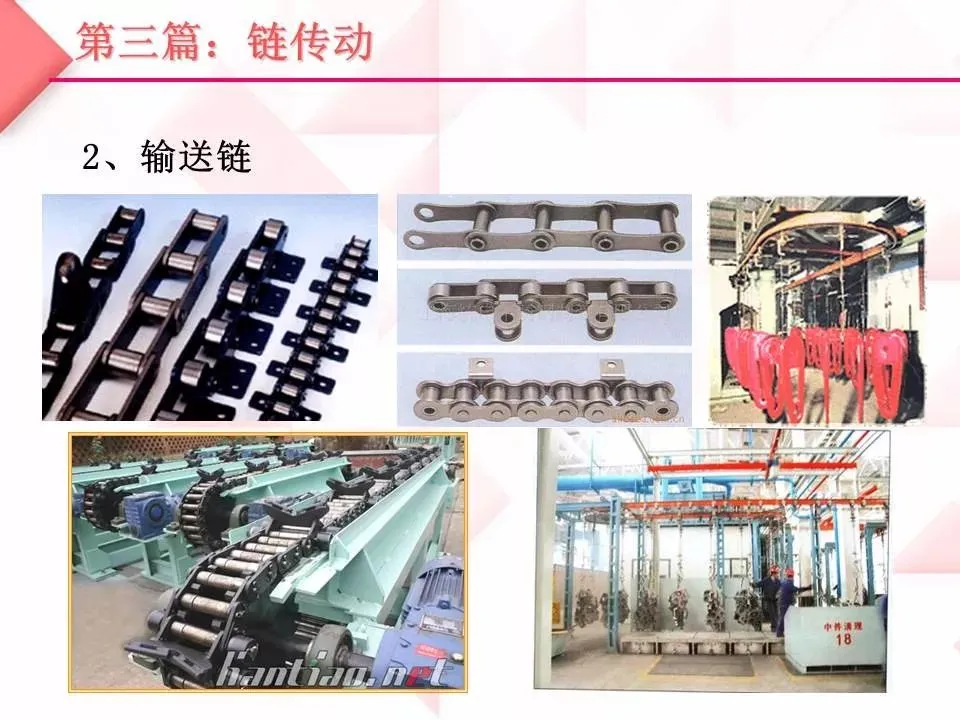

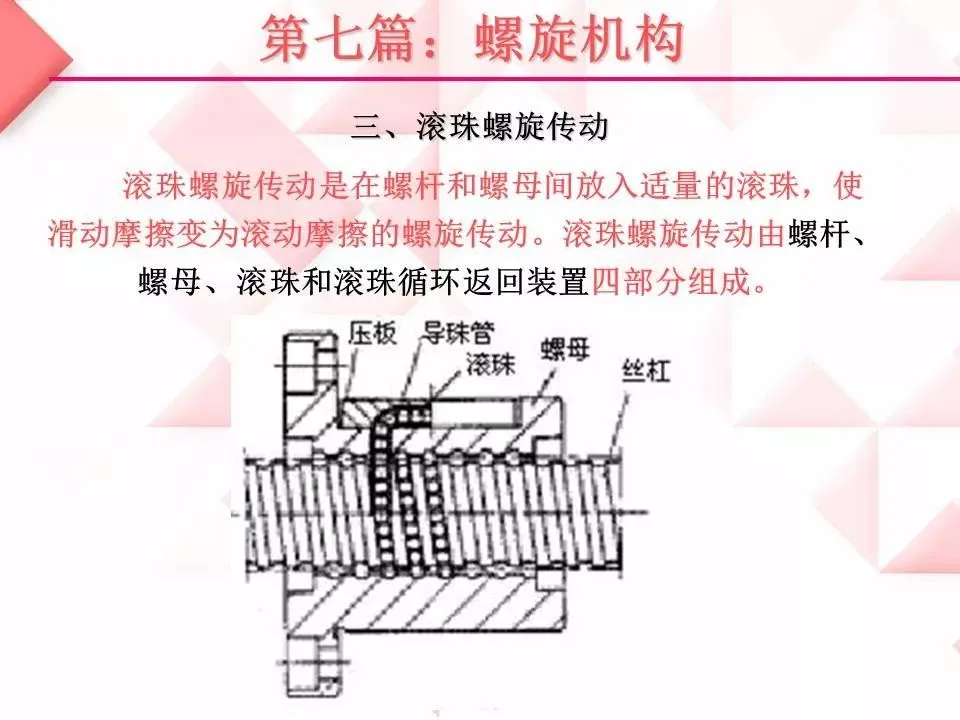

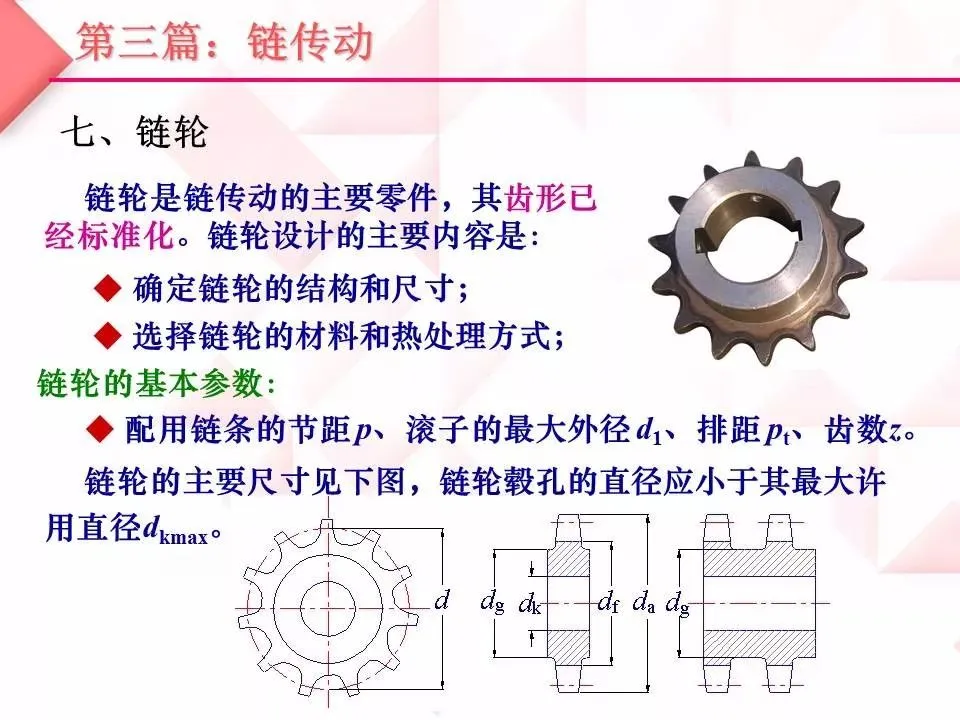

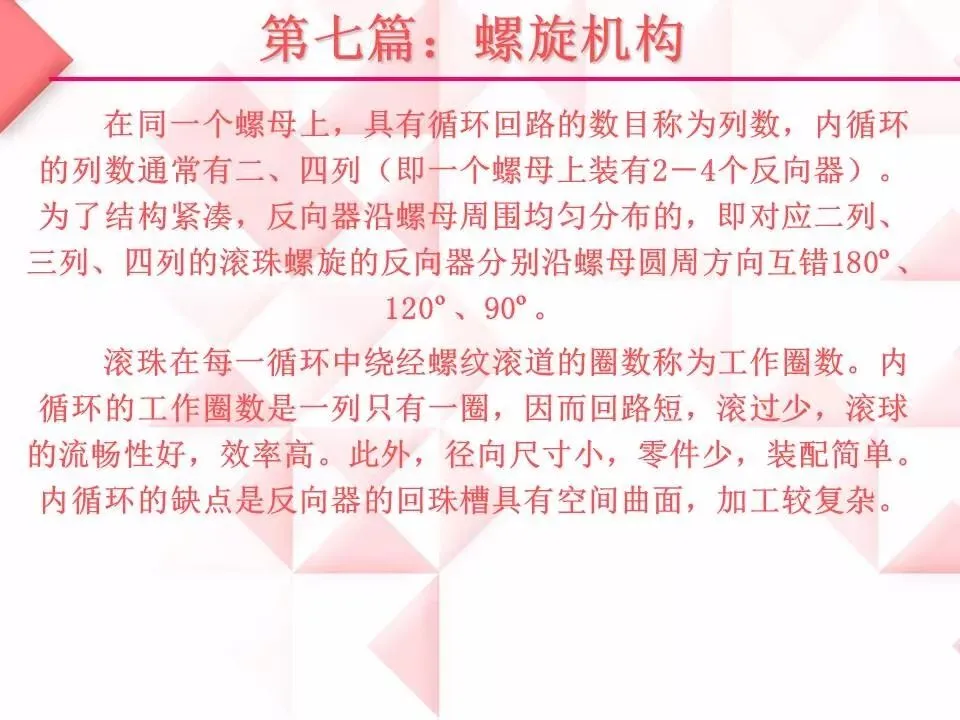

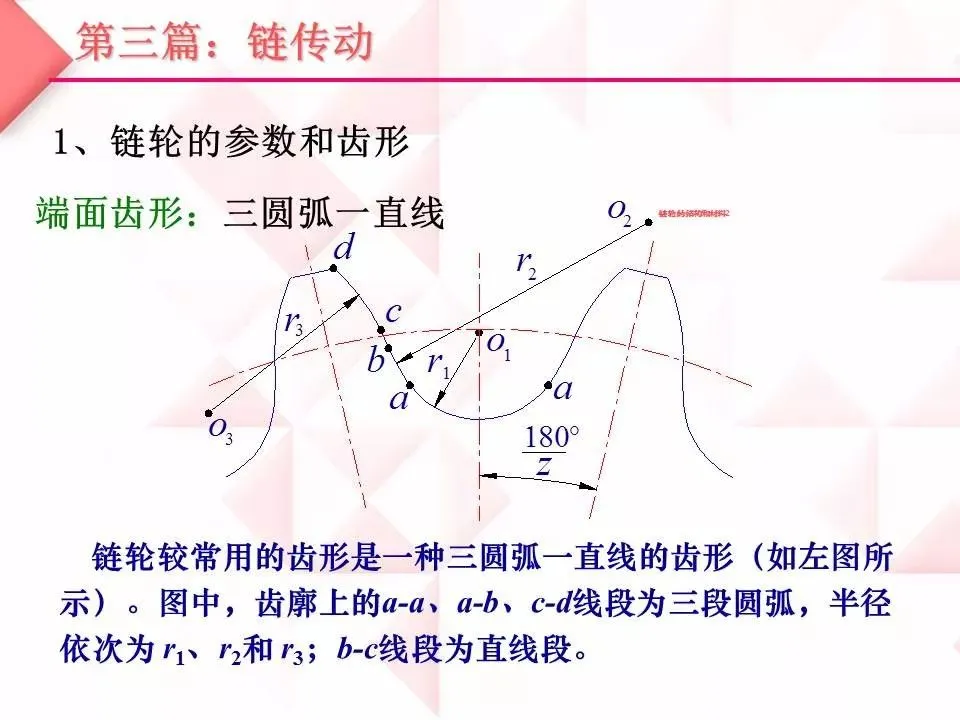

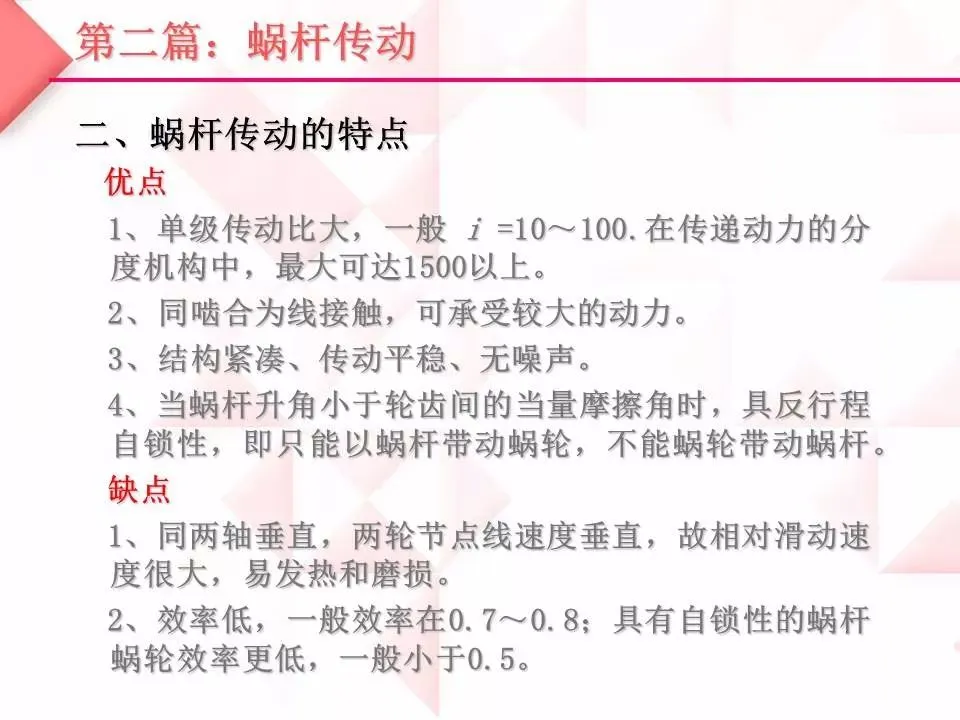

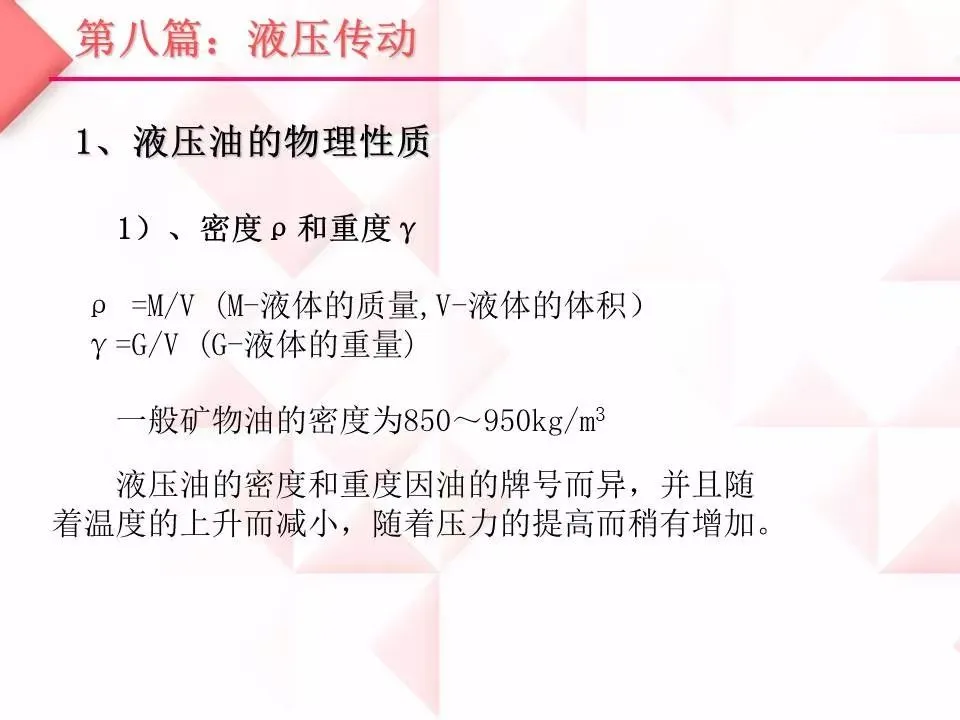

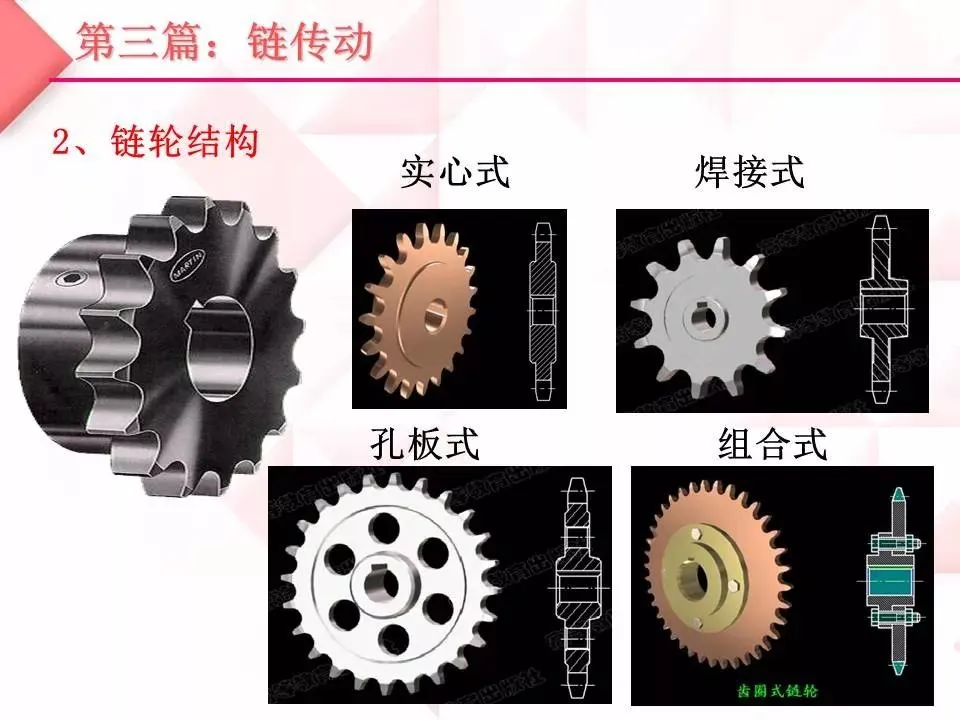

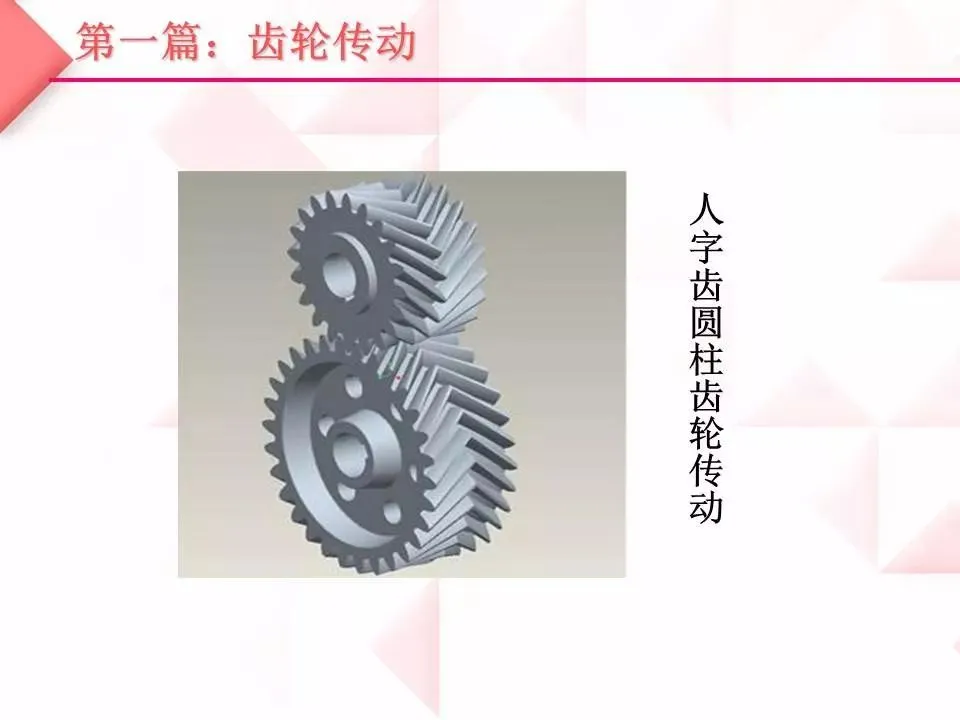

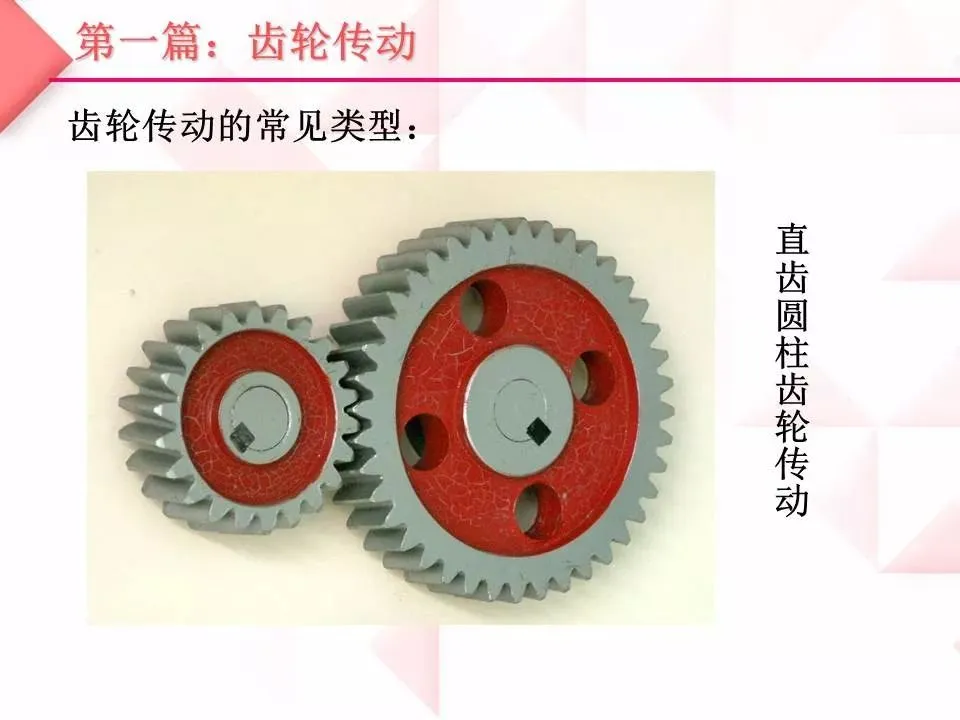

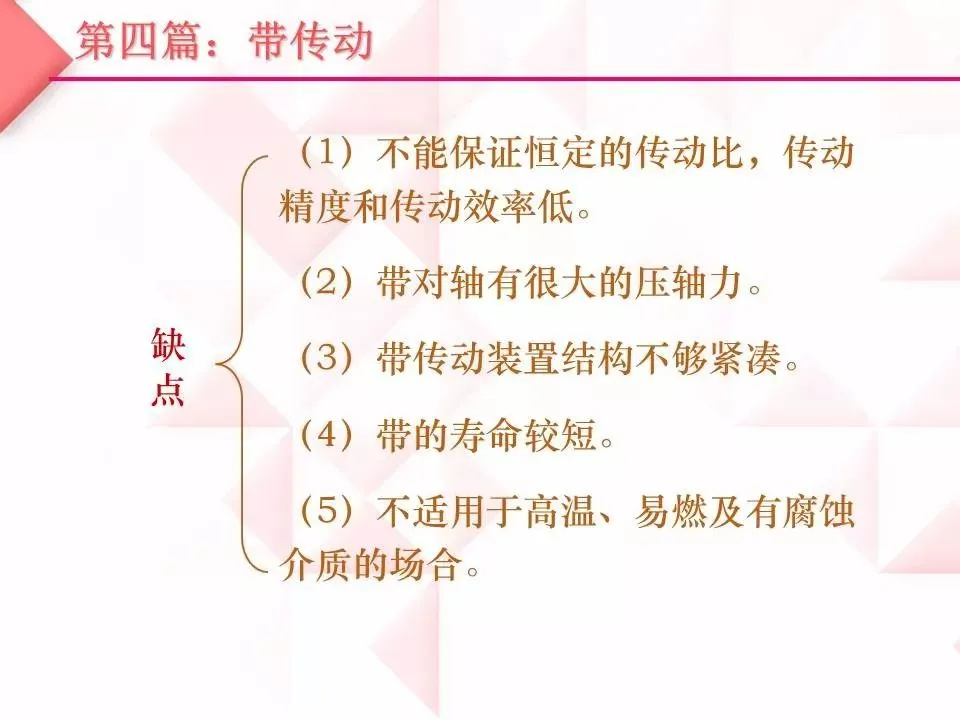

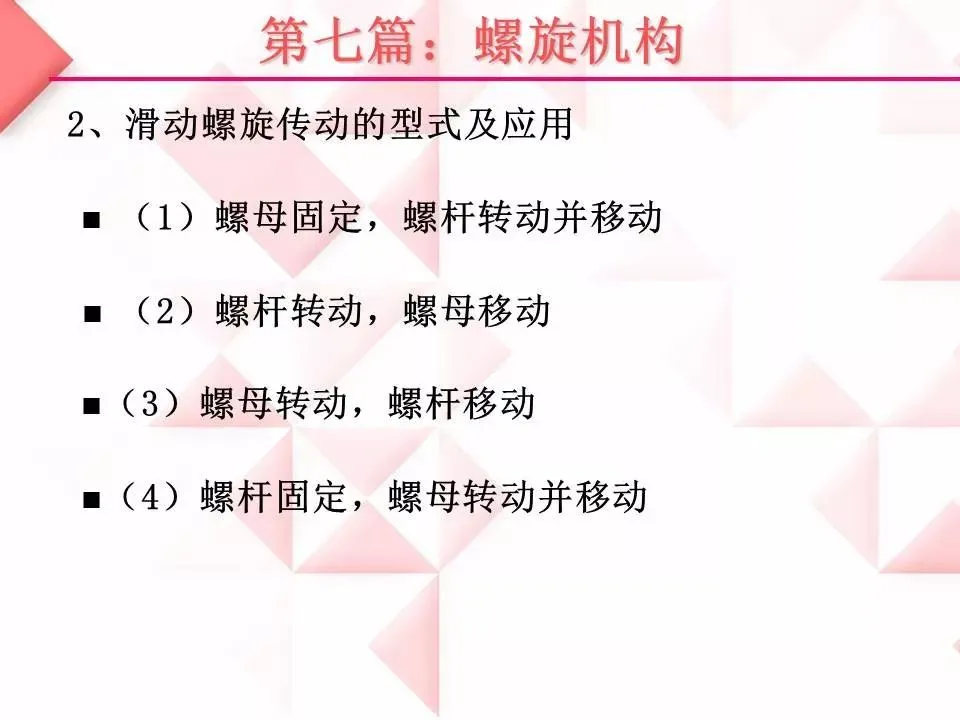

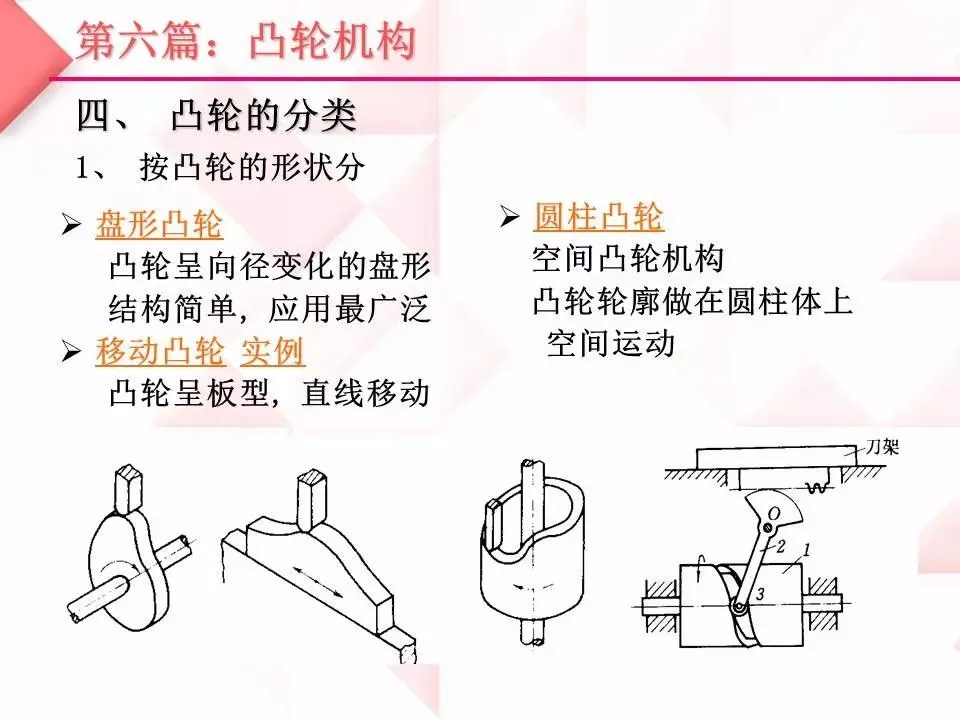

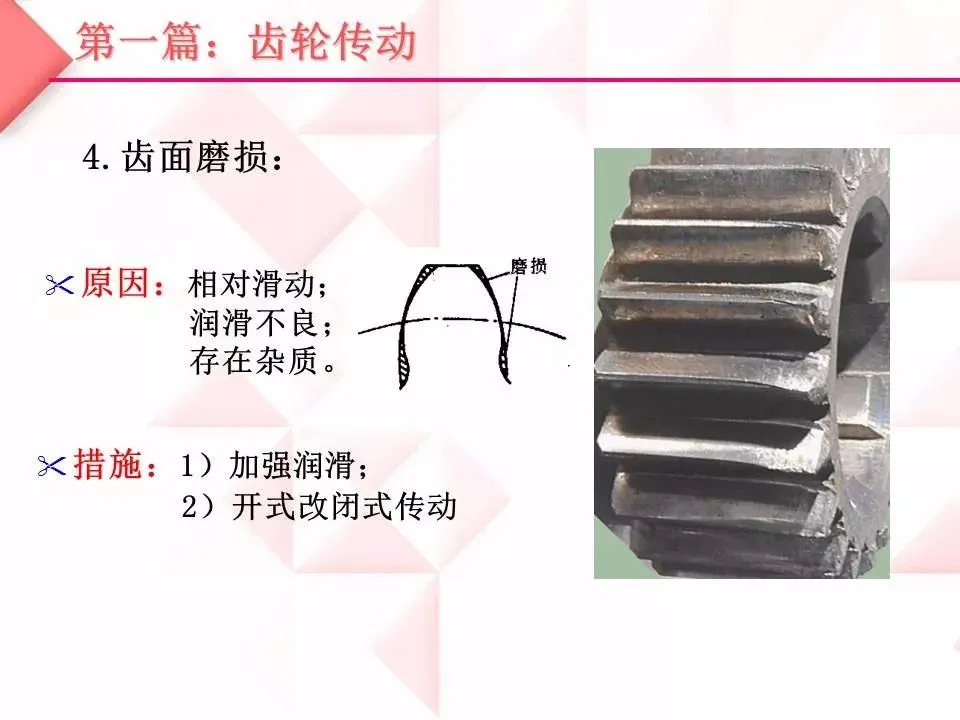

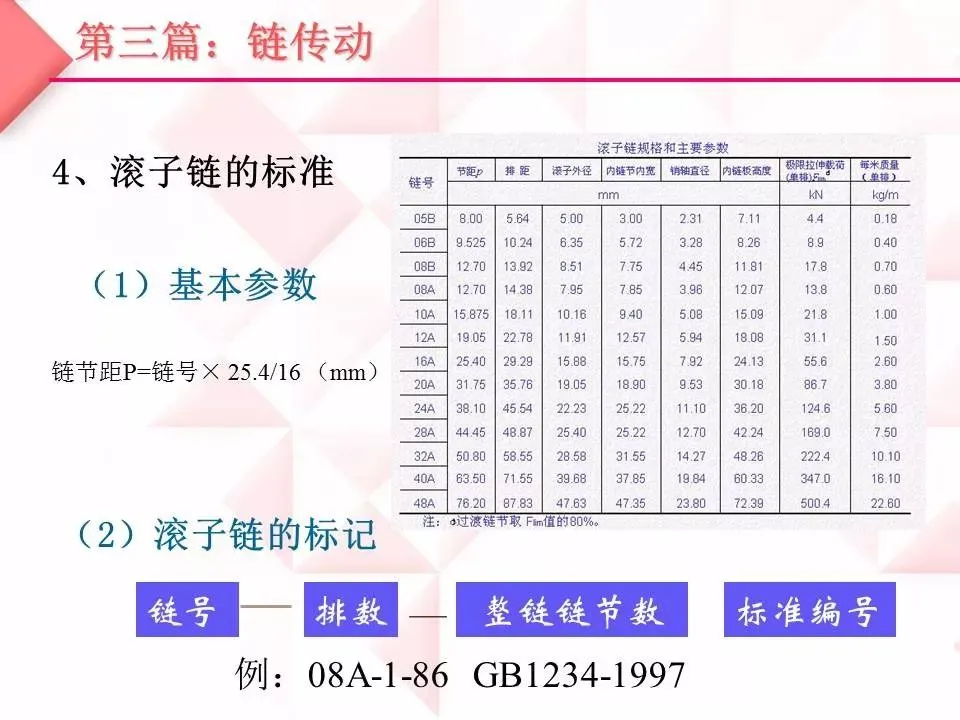

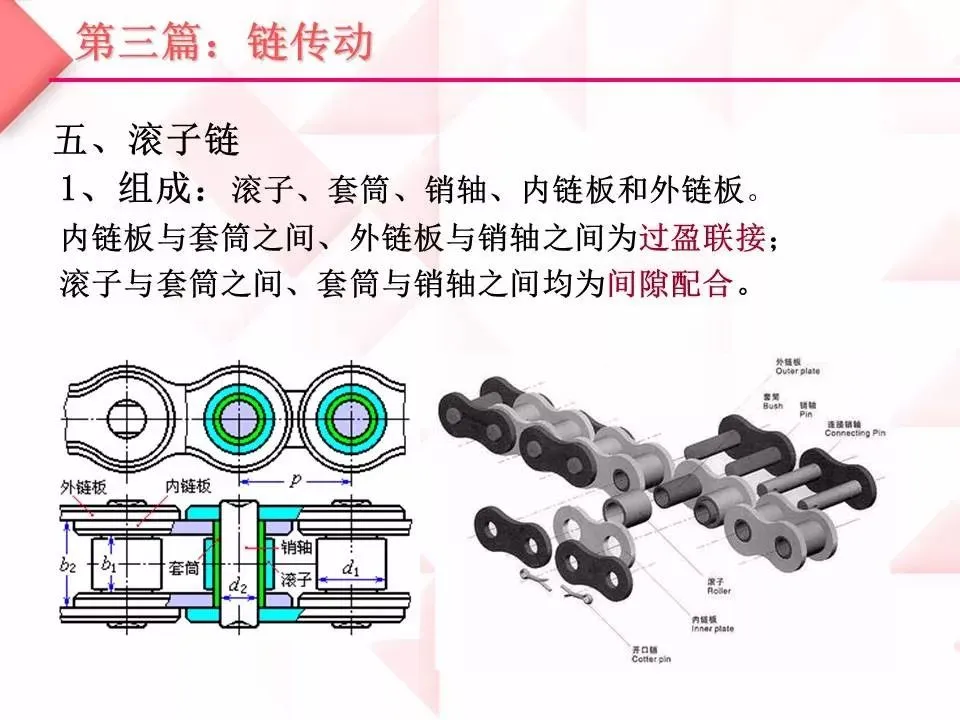

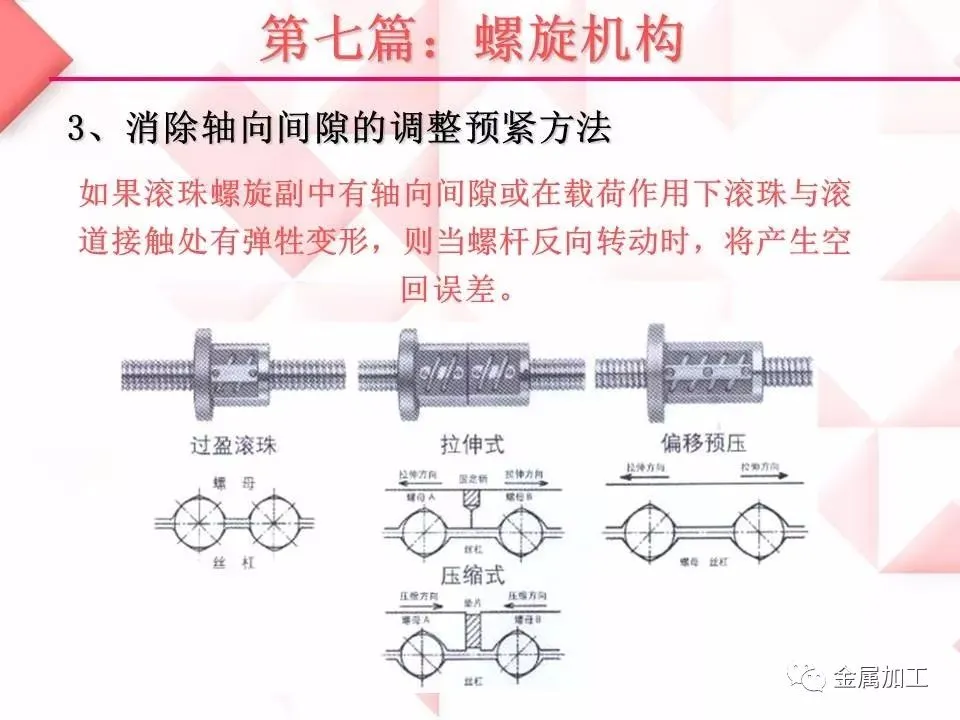

齿轮传动、蜗杆传动、链传动、带传动、连杆机构及其传动、凸轮机构、螺旋机构和液压传动八大机械传动知识培训PPT，绝对干货。

来源：金属加工

声明：本文所用视频、图片、文字如涉及作品版权问题，请第一时间告知，我们将根据您提供的证明材料确认版权并按国家标准支付稿酬或立即删除内容！
