汽车电子EMC设计测试基础(非常详细的PPT)

  • 2026-10-30 14:34:31

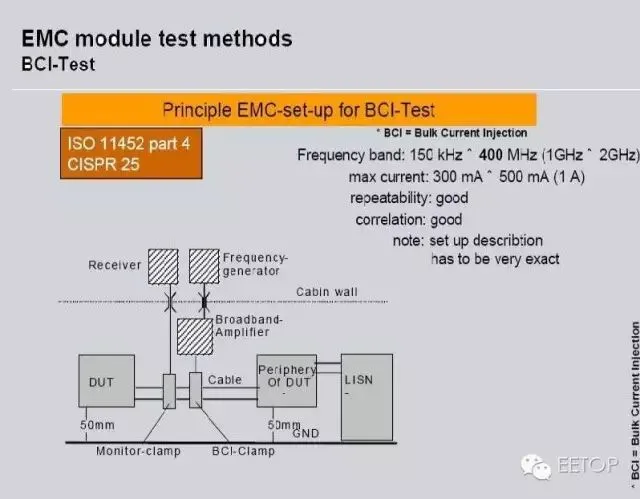

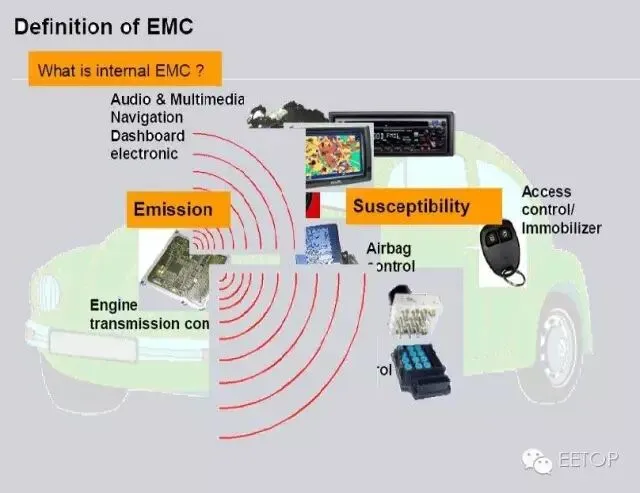

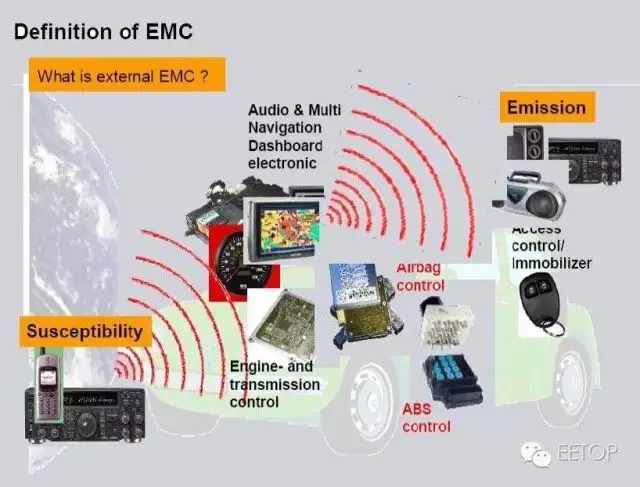

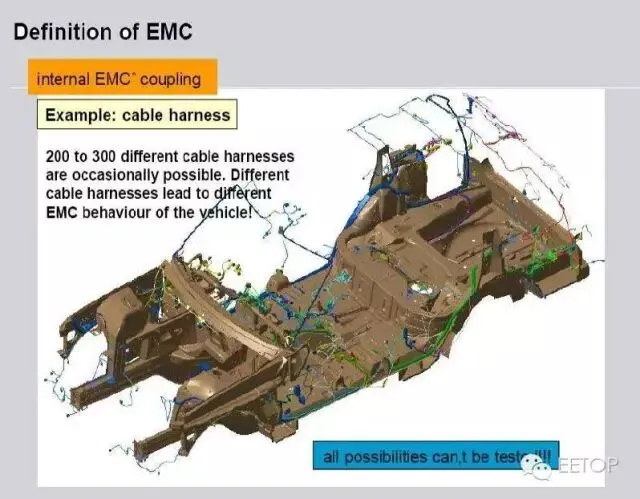

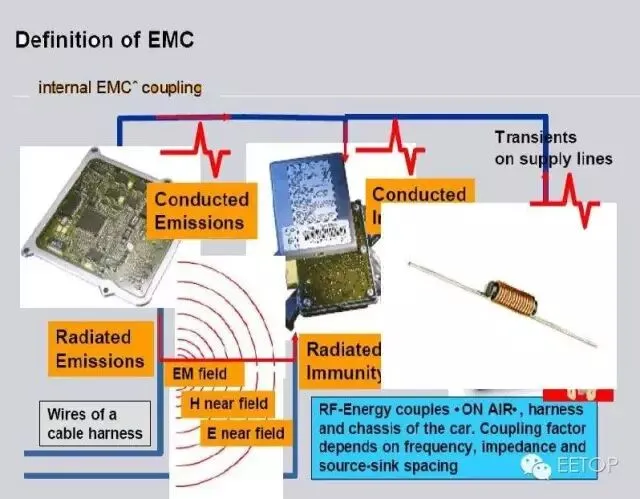

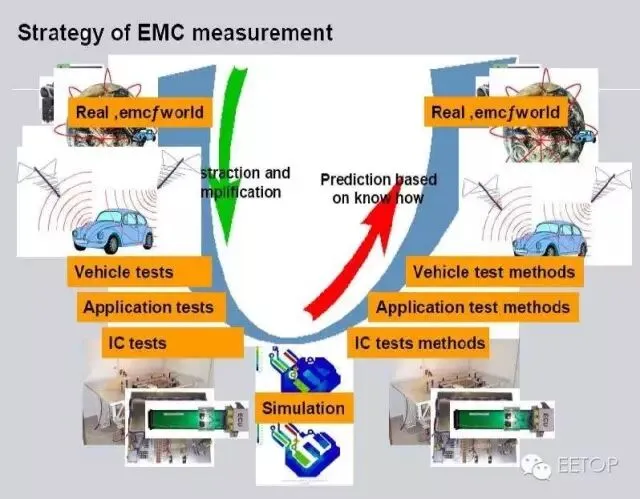

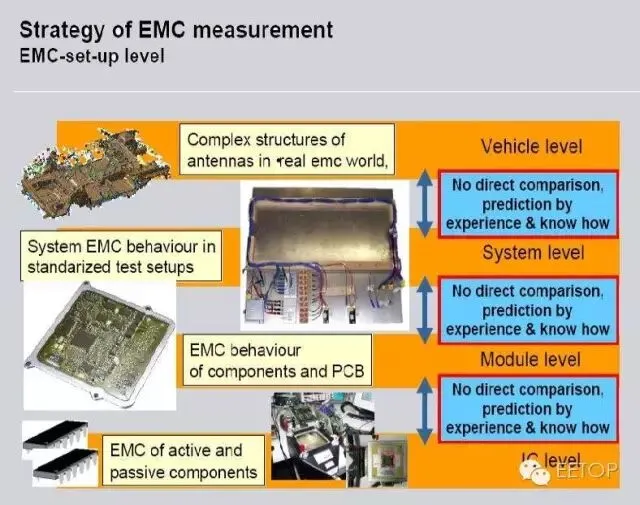

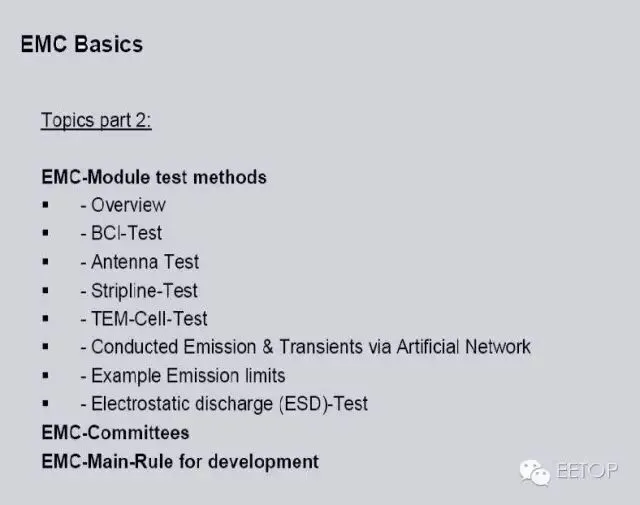

汽车电子EMC设计测试基础(非常详细的PPT)

由于页数较多，这里仅分享部分页面，有需要的请登录论坛下载

点击阅读原文登录论坛下载

如有需要完整版可以登录论坛下载

(第一次注册需要在电脑端进行）

https://bbs.eetop.cn/thread-218892-1-1.html

推荐海量芯片知识宝库--EETOP论坛:  https://bbs.eetop.cn

点击阅读原文登录论坛下载
