柱形图互补色填充详解|猪爸爸学Excel标准/基础图表

  • 2026-05-01 13:56:11
柱形图互补色填充详解|猪爸爸学Excel标准/基础图表

点击上方「猪爸爸学Excel」关注我

本节动图中，鼠标左键为黄色，右键为红色；
这一节是猪爸爸学excel标准/基础图表之柱形图互补色填充详解
今天是一篇柱形图基础讲解文章，又是每次只讲一个功能的时候了。
先简单说下，这个功能呢，必须是得Excel2016或以上版本才有的，如果版本稍微低了，那没有的哈。它最厉害的一点，就是可以对一个系列，设置2种颜色，从而更为突出的显示部分数据，超实用的说。
今天，我们就用2个例子，来详细的讲解演示这个功能。
实例1

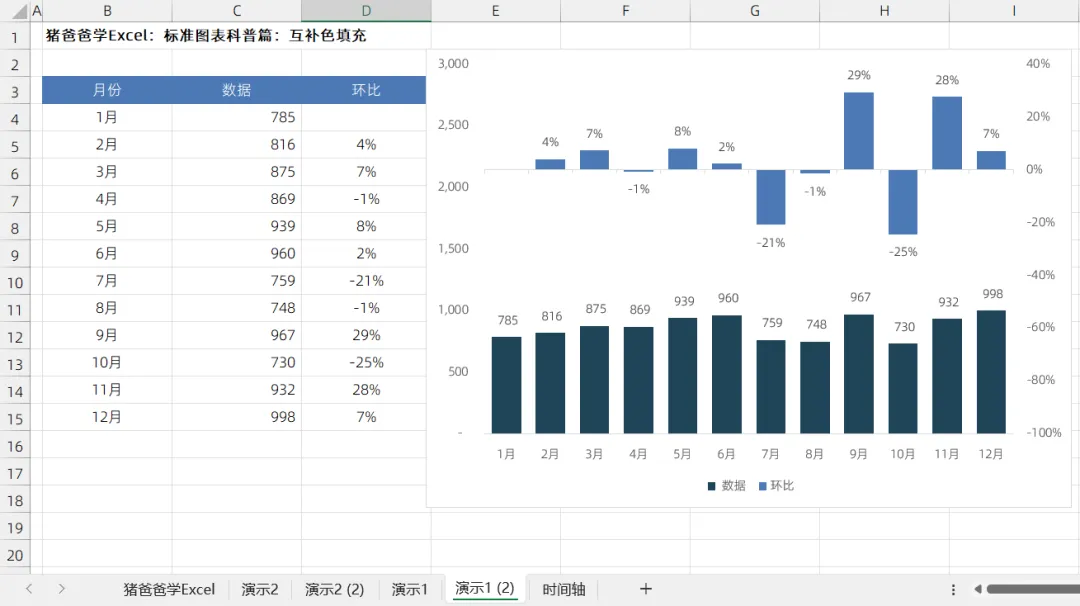

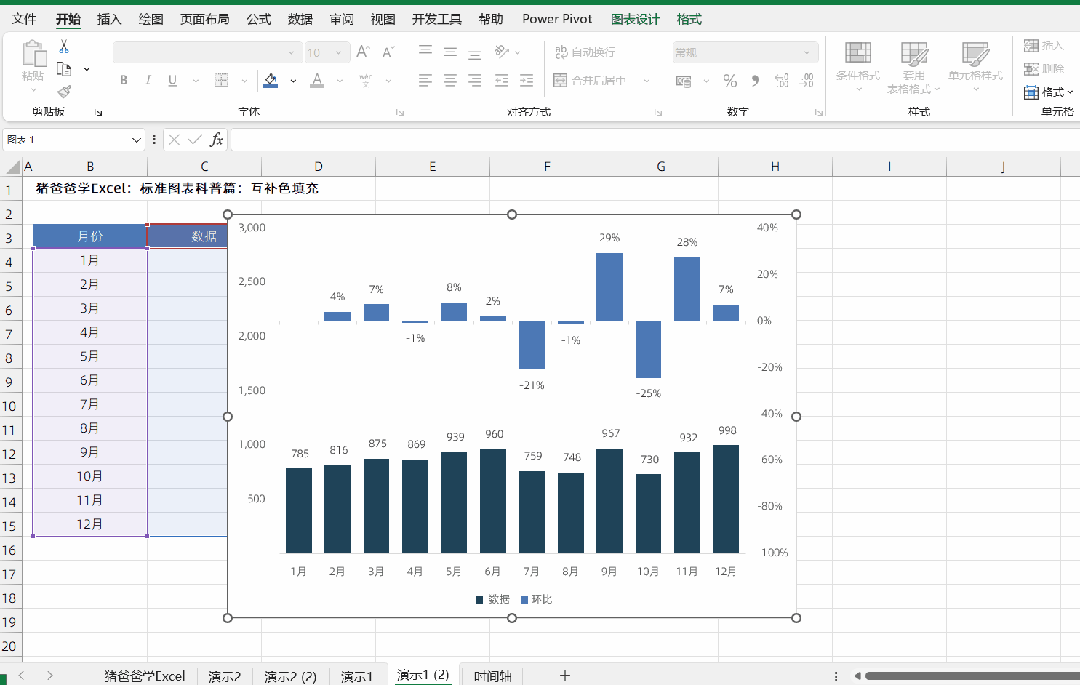

如图所示，为陈定定随意编造的一组数据，B列展示了1-12月对应数据，C列则为对应的环比增长，那么，我们先这样，再这样，然后那样（用B3：D15数据生成柱形图，C列在主轴，D列在次轴，手动调整主次坐标轴边界大小等等），就可以做出这么一款双层柱形图了。

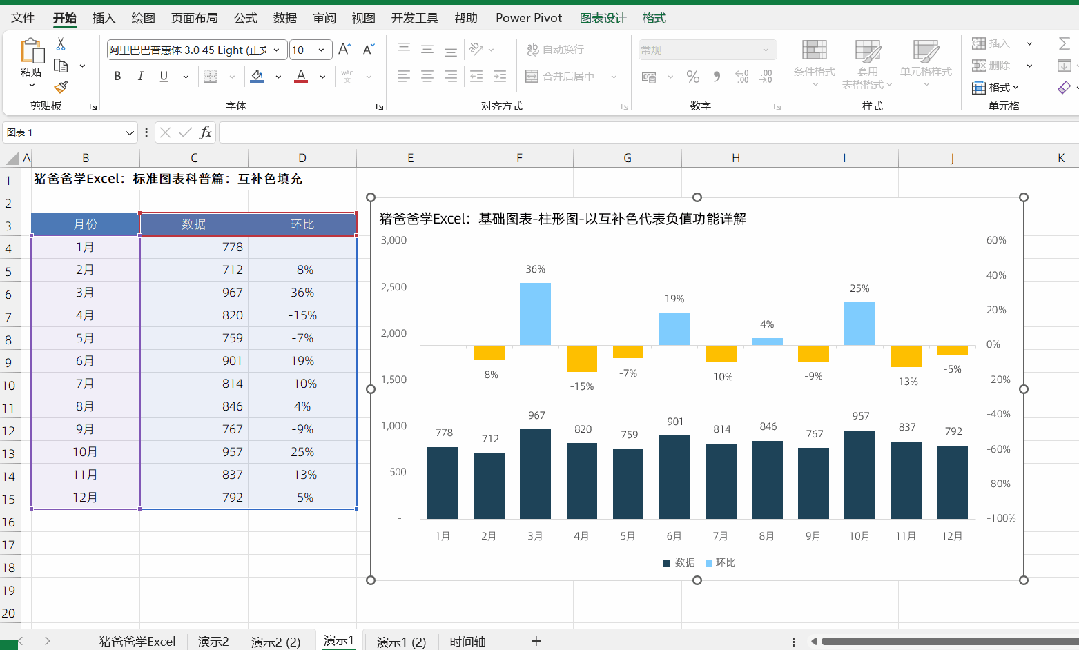

在完成了该款图表之后，接下来，点击选中“环比”系列，在设置窗格的【填充与线条】选项卡，勾选【填充】中的【以互补色代表负值】，之后在【颜色】处，我们先选择“正值”的颜色，再选择“负值”的颜色，搞定，就是这么简单。现在，哪些月份环比是增长的，哪些月份环比是下降的，就更加的清楚明了。
实例2
现在，让我们再来一个，很多小伙伴都不知道的，这个功能叫什么？【以互补色代表负值】，对吧？所以我们想当然的认为，那就是以0值为分界点了。但是！听我说听我说（有娃上幼儿园的可能知道这首歌~~），不一定，也可以是其他值来做划分的。

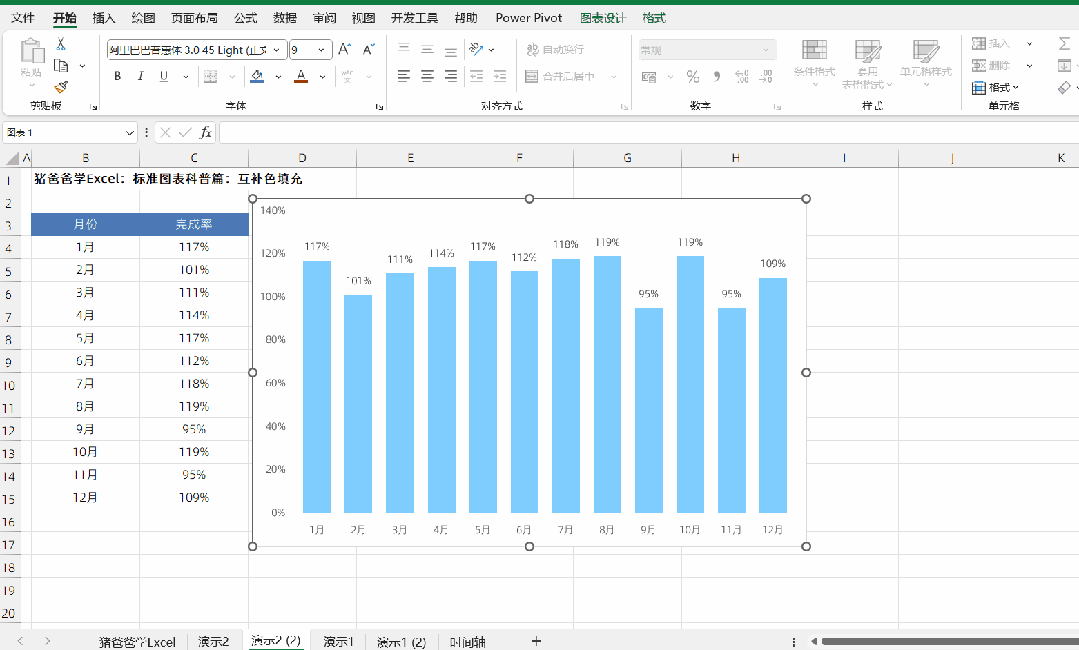

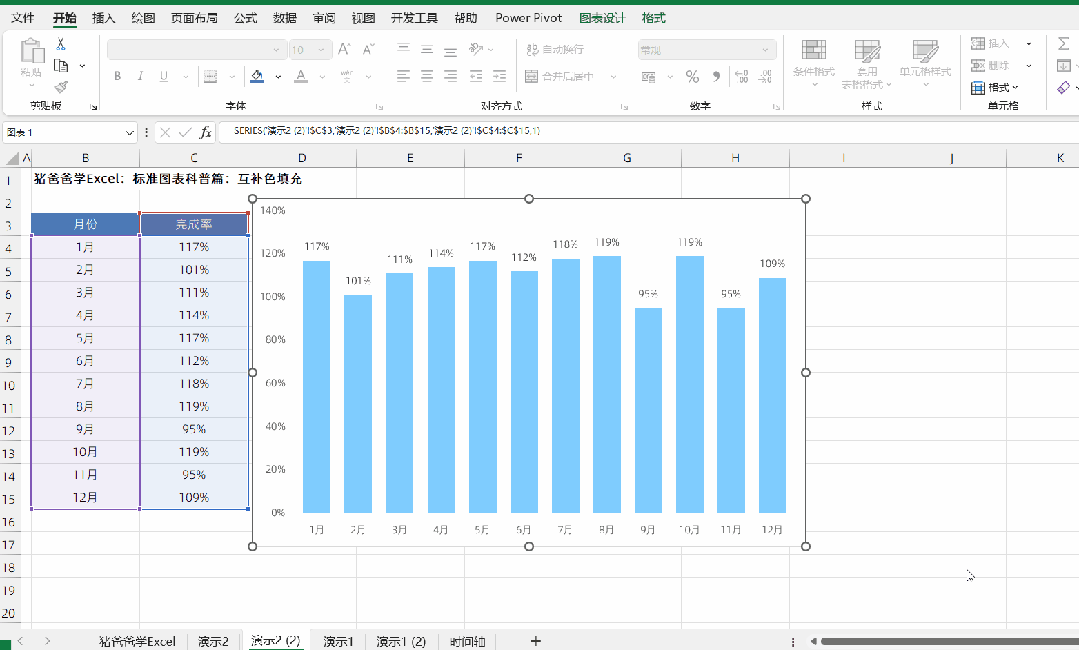

我们来看看实例2，如图所示，选中“完成率”系列，在设置窗格的【填充与线条】选项卡，勾选【填充】中的【以互补色代表负值】，依次设置颜色。可以见到，图表一点变化都没有！

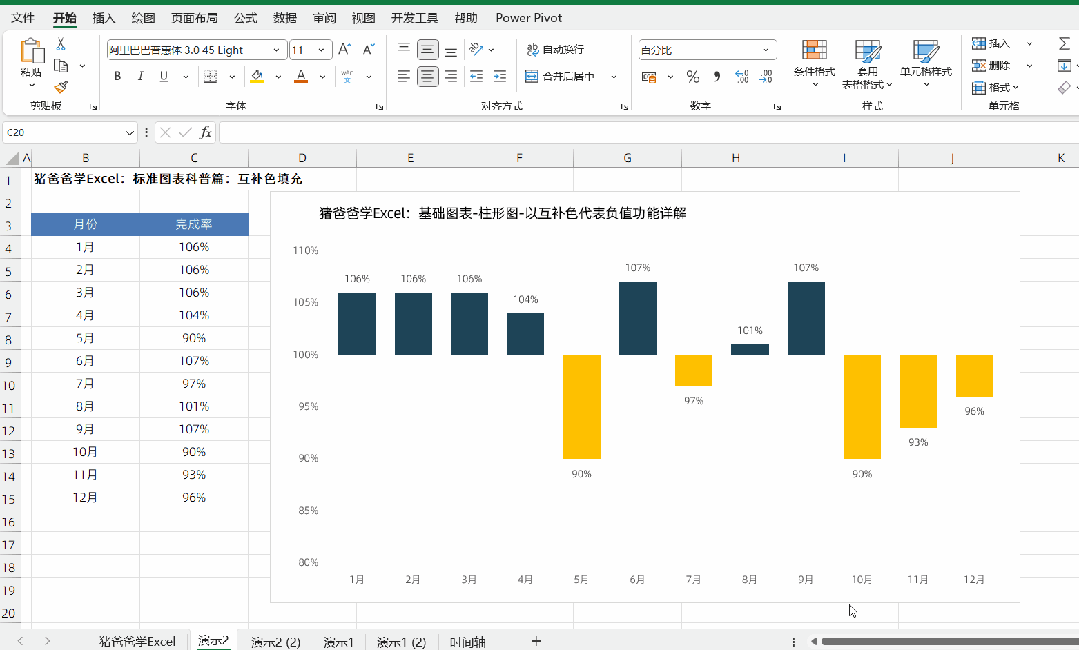

现在，见证奇迹的时刻到了，点击选中垂直轴，在设置窗格的【坐标轴选项】选项卡，找到【横坐标轴交叉】中的【坐标轴值】，填入0.98（假设98%以下的需要重点关注），再设置【边界】中的【最小值】为0.8，【最大值】为1.2(根据图表数据大小灵活设置哈)。可以看到，柱形自动区分成2种颜色了。
现在，我们就知道了，这个所谓的“负值”和我们在小时候上数字课的“负值”，是有些区别的哟，对于柱形图来说，我们可以通过设置垂直轴的【坐标轴值】，来人为的自定义划分这个分界点，怎么样，是不是感觉自己之前学的Excel，好像白学了呢~~
好了，今天的分享就到这里，下次再见。
记得将我【设为星标】，我们才能不失联哦~~
不想费脑子绘制图表，那么，来看看陈定定这些超精美的图表模板哟~
大脑：恩，看懂了~
手：你说啥？鼠标要点哪里？要怎么点击？
光看不练，上阵头晕，大家多多练习下，才能真正掌握哦~~
我的财宝吗？想要的话就给你吧，去找吧！我把世界的一切都放在那里~~
20年文章合集
今天的分享就到这里，我是热爱分享的猪爸爸陈定定，大家生活愉快~~
