Excel学习第29天:如何制作漏斗图

  • 2026-11-07 14:01:14
Excel学习第29天:如何制作漏斗图

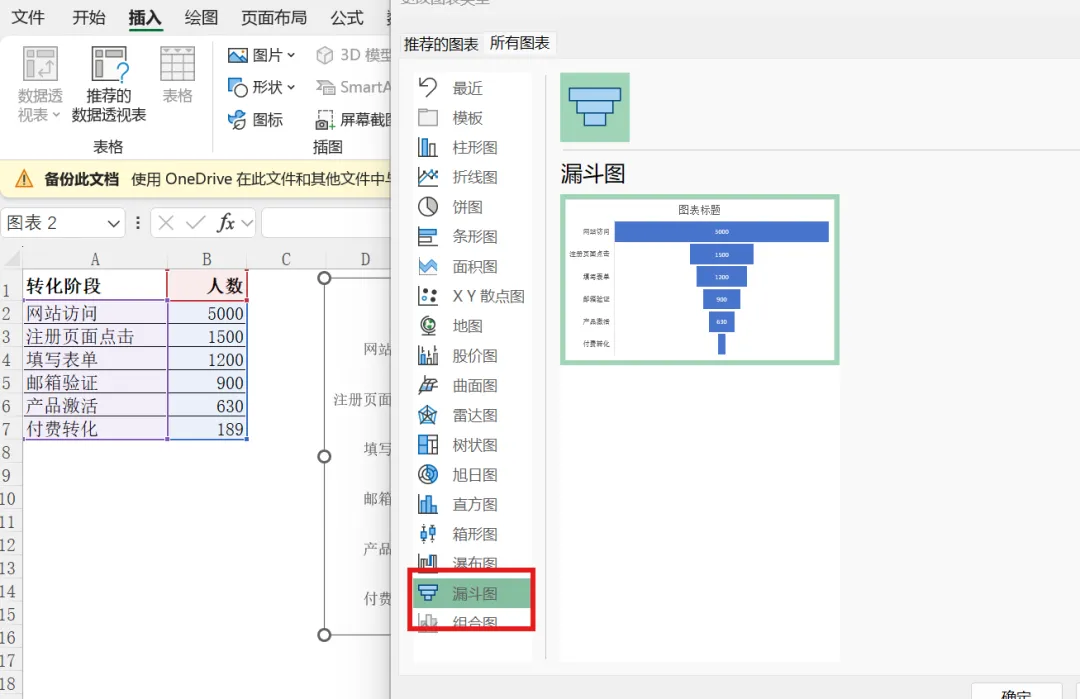

新版excel（win系统2019及之后版本）一般直接有漏斗图功能
旧版的excel如何制作漏斗图呢？

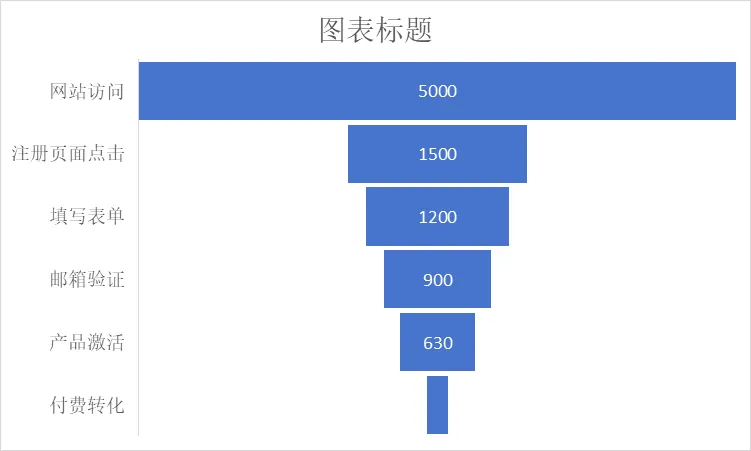

我们观察生成的图表：
可以发现，其实其基础依然是条形图，只不过条形图起始点不在零点。
所以我们选择堆积条形图，加一个辅助列。

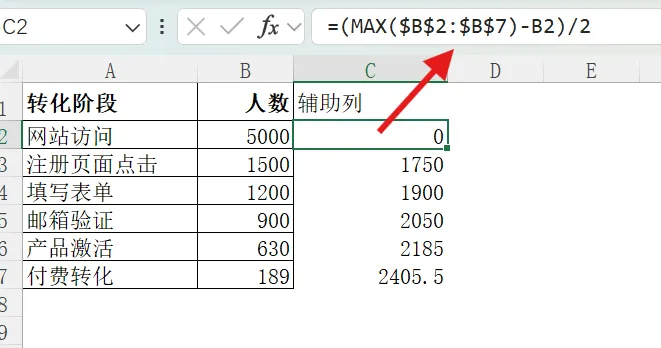

辅助列的算法：首先找到原始数据最大值，可以用max函数，也可以直接写5000,用5000减去原始值，之后除以2。这样的方式可以保证所有数据条都居中。

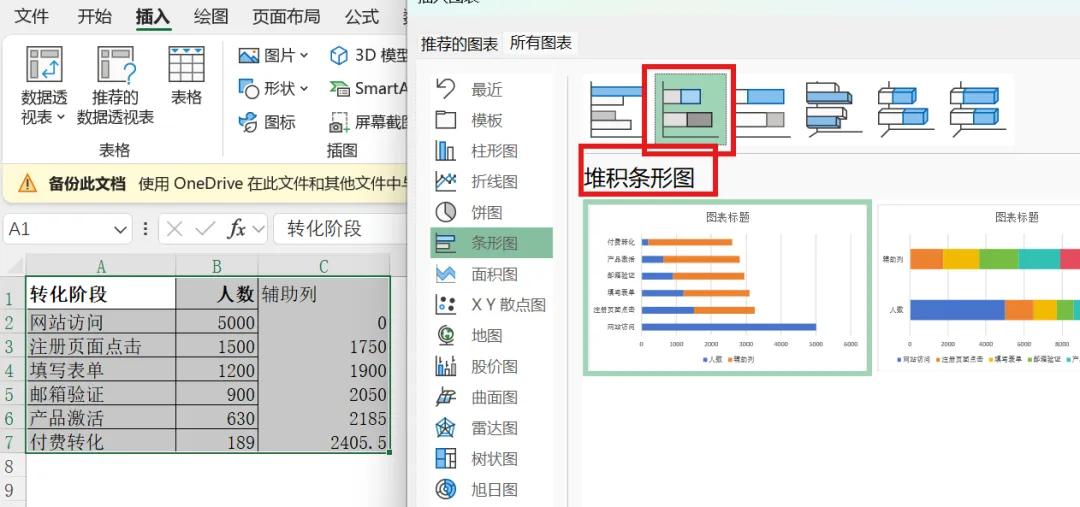

选中数据源，插入堆积条形图

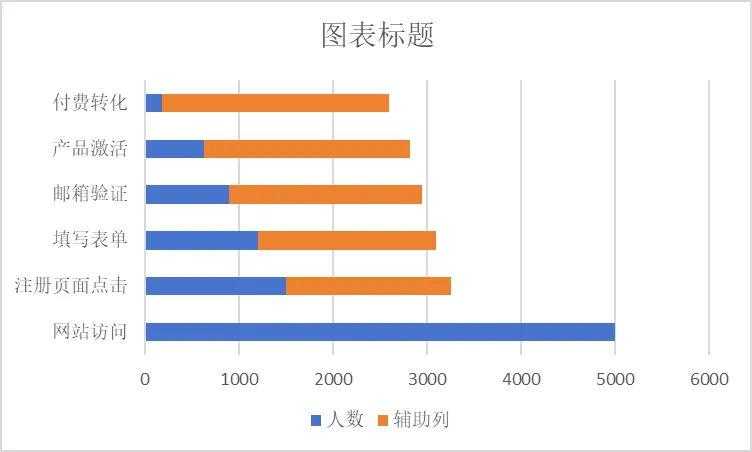

发现生成的图标和最终效果有不小差距

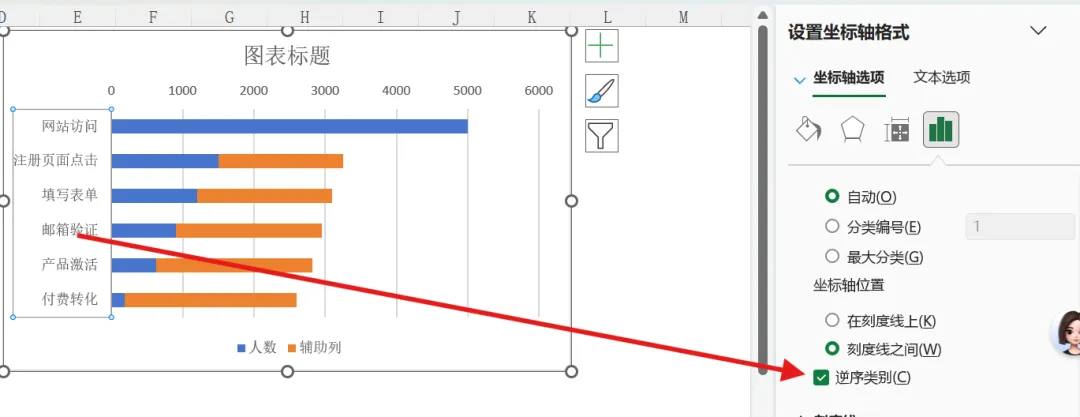

首先将垂直坐标轴顺序逆转，保证最大值在上面。当然也可以直接在数据源人数升序排列。

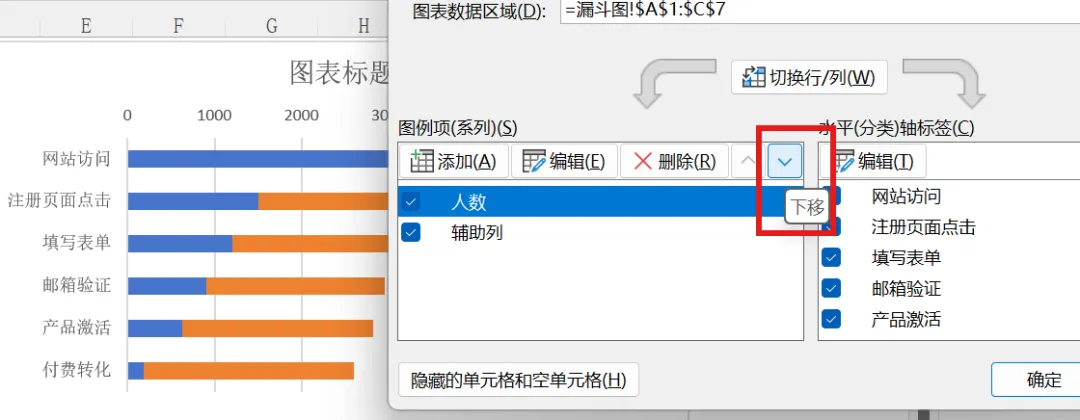

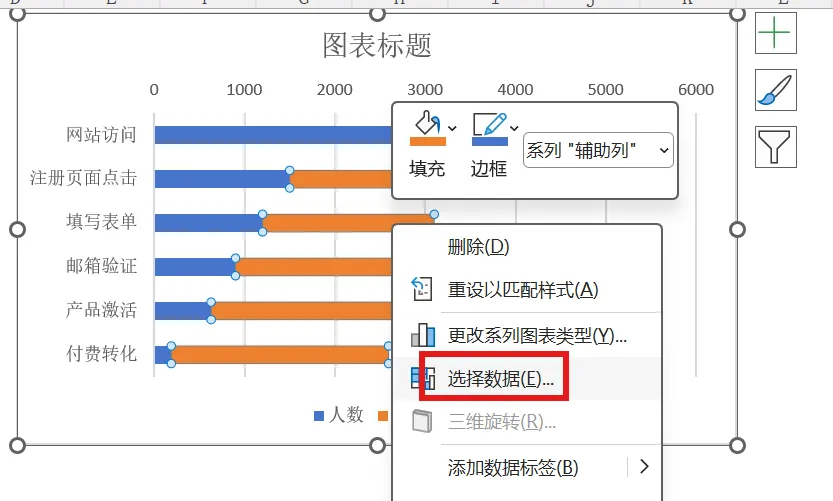

再选中任意系列，右键-选择数据
将“人数”下移

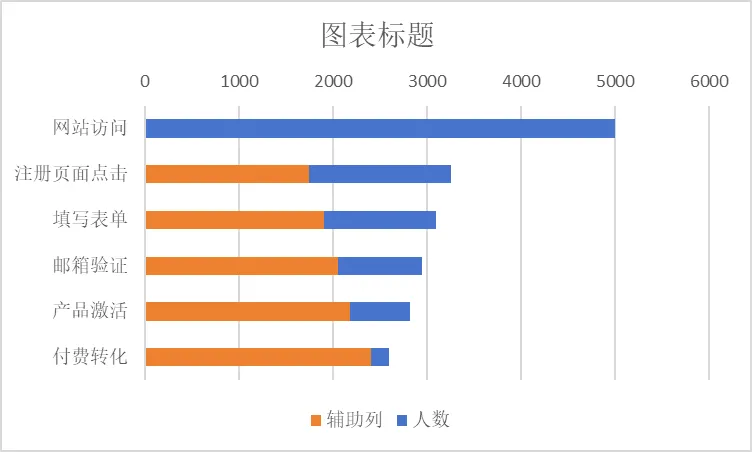

即可看见初步效果

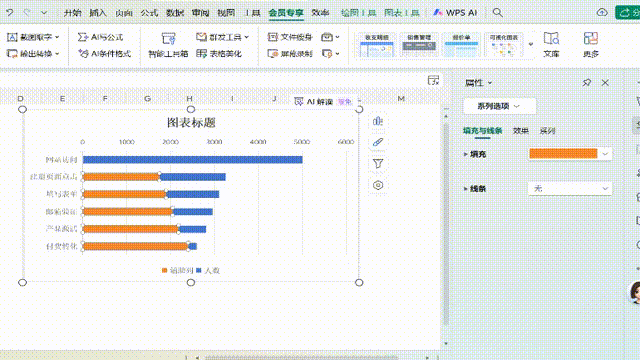

最后只需将辅助列颜色调整为无色，加上数据标签，去掉冗余元素，调整系列间距。即可得到与新版excel中完全一致的漏斗图。

有问题留言区交流

关注狸子，一起进步
