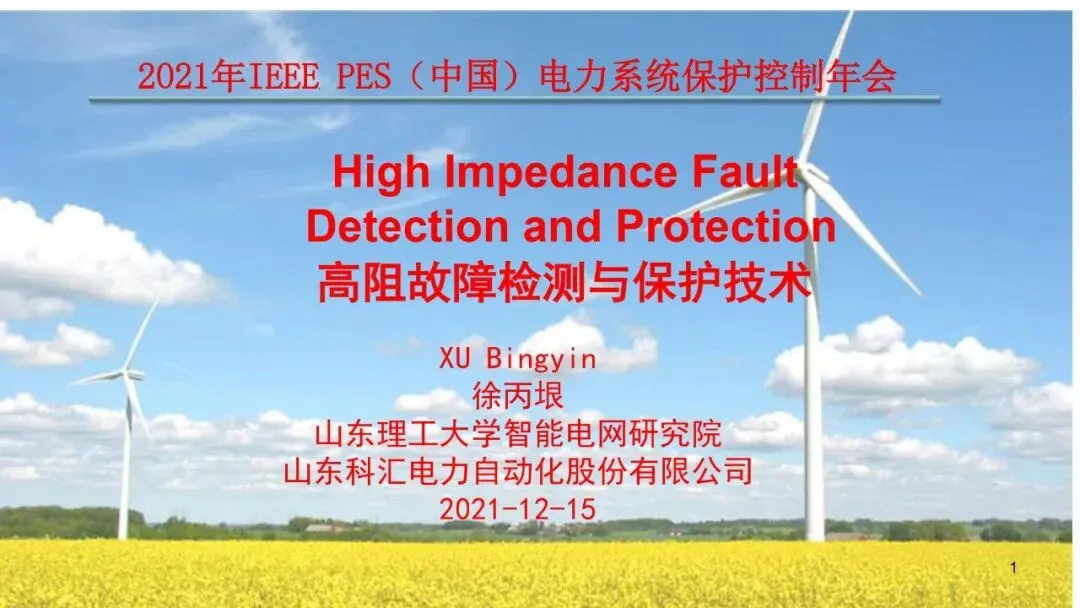

PPT丨高阻故障检测与保护技术

  • 2026-04-19 06:23:28

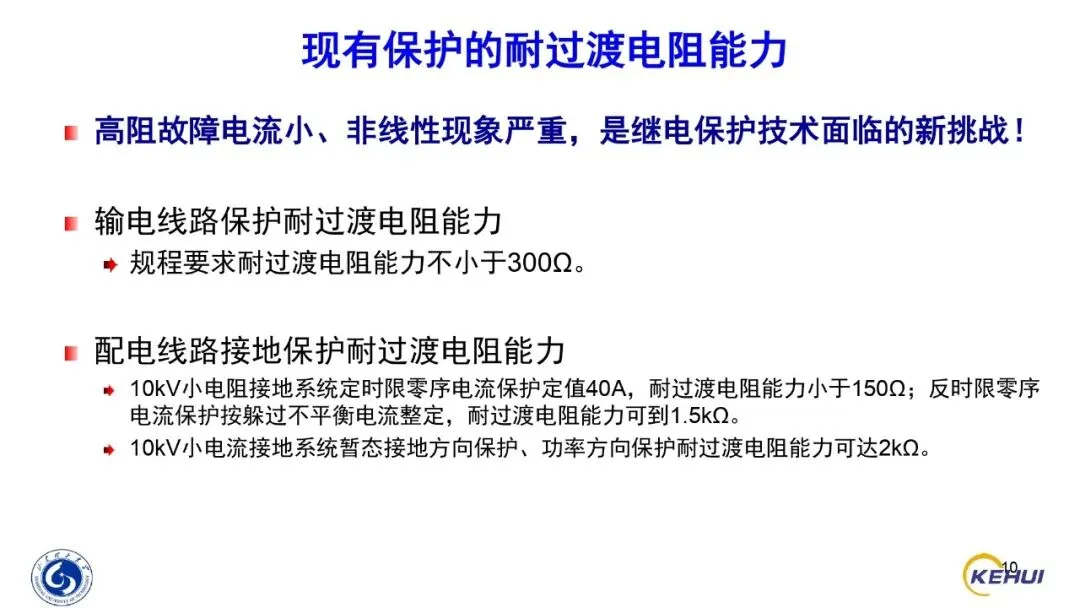

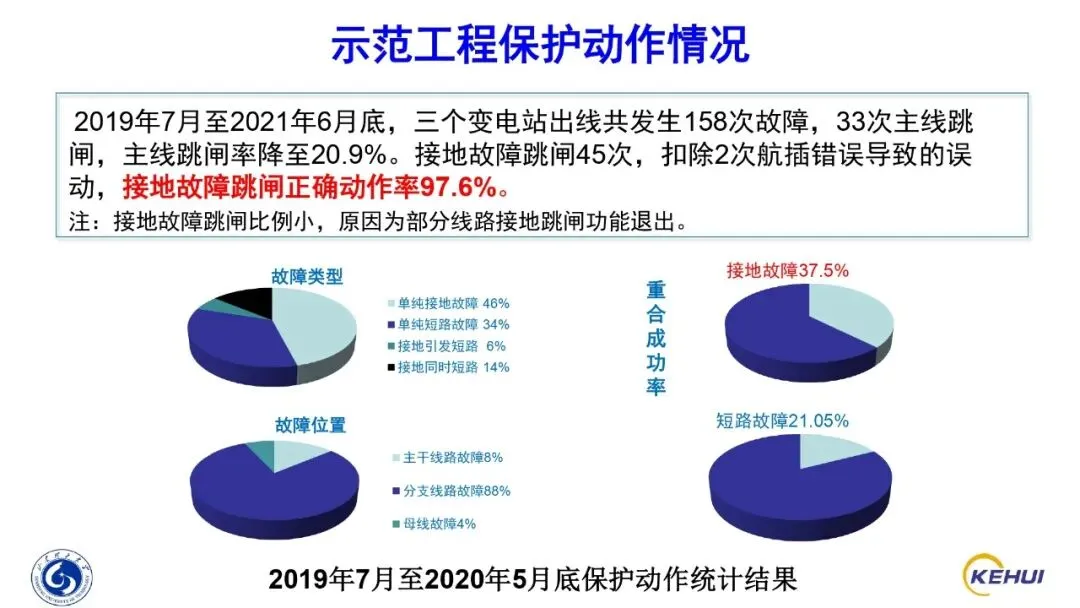

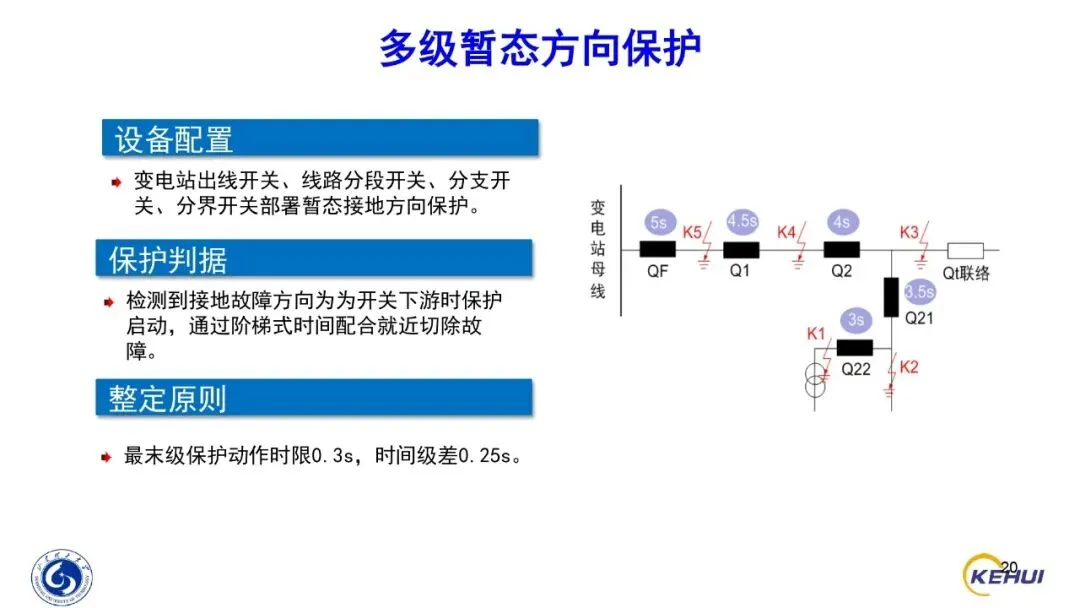

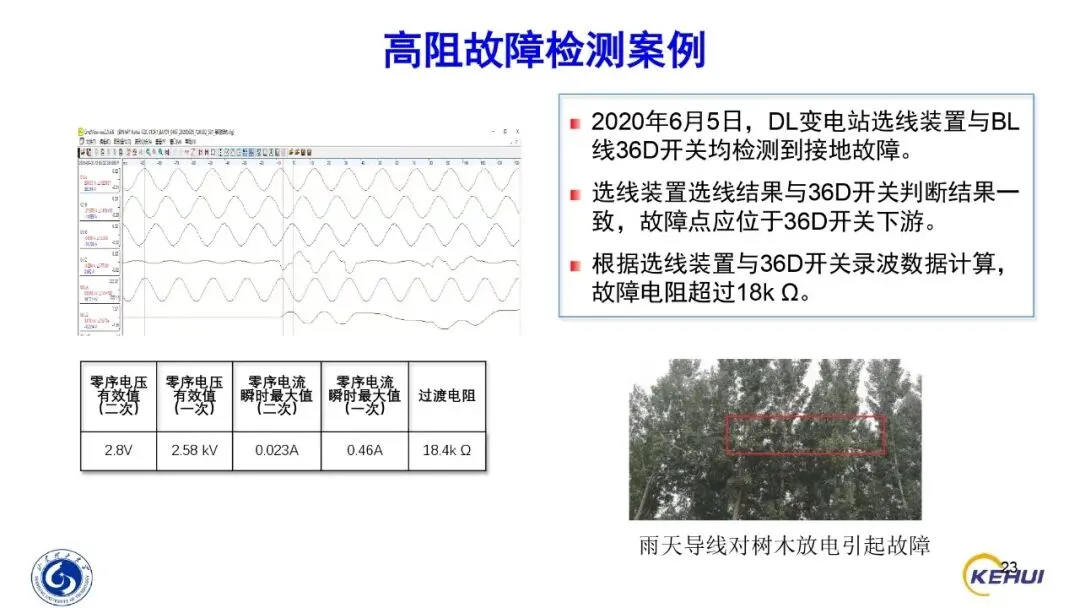

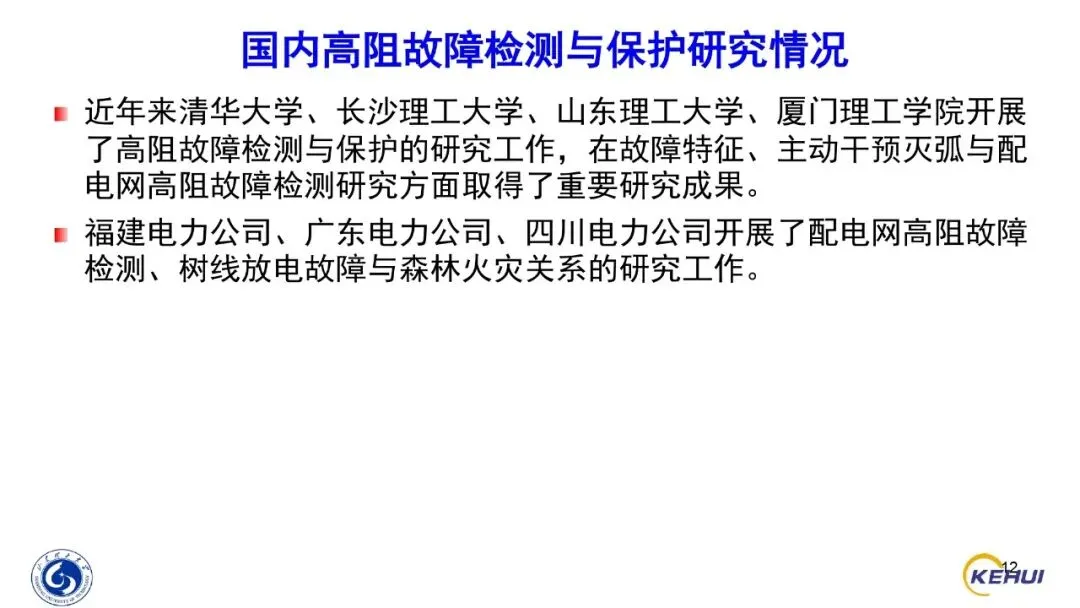

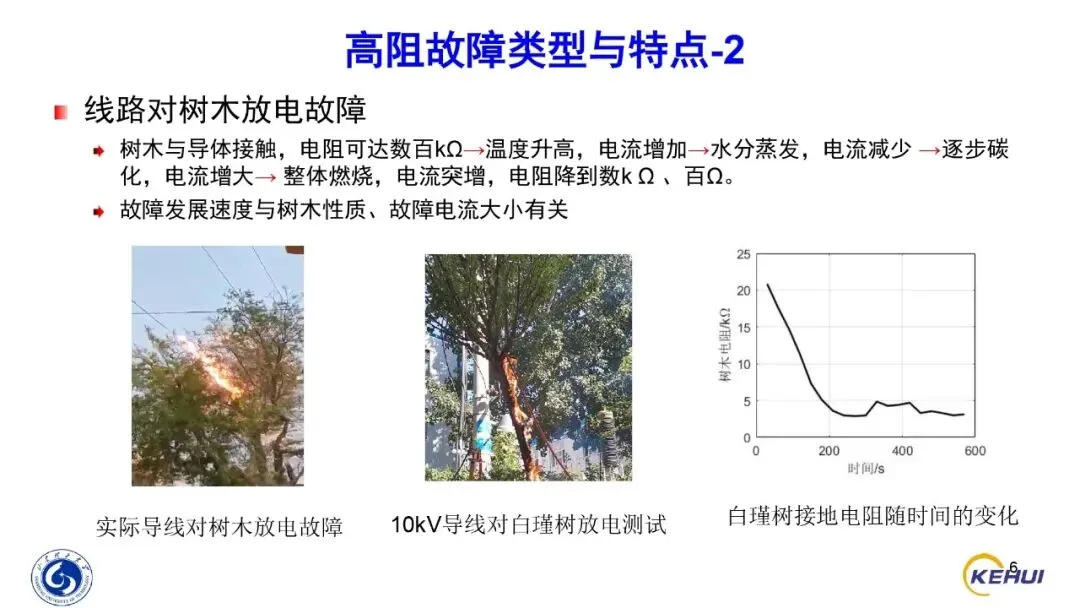

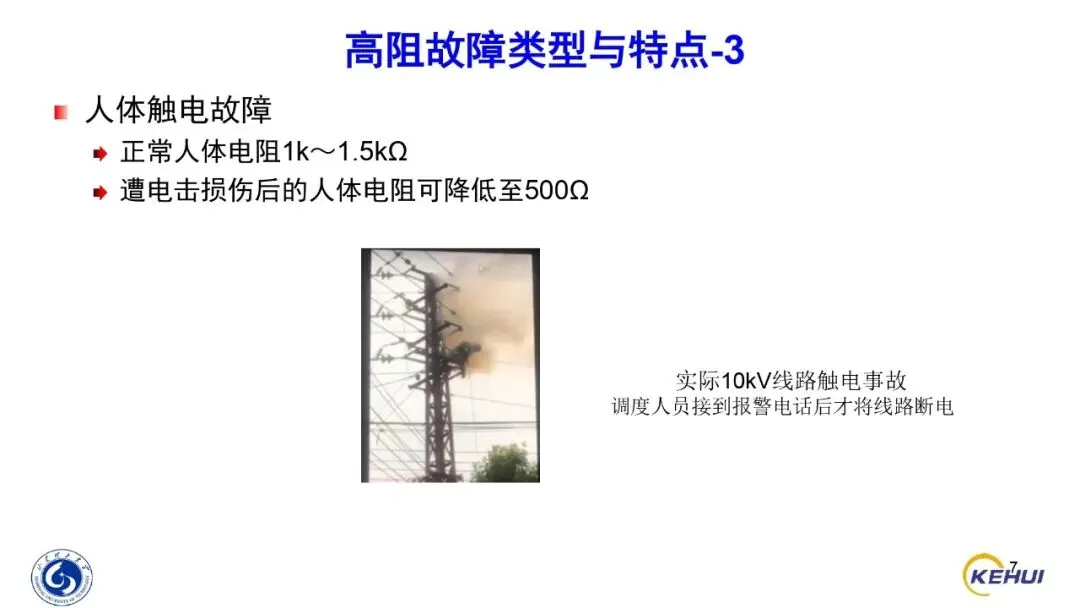

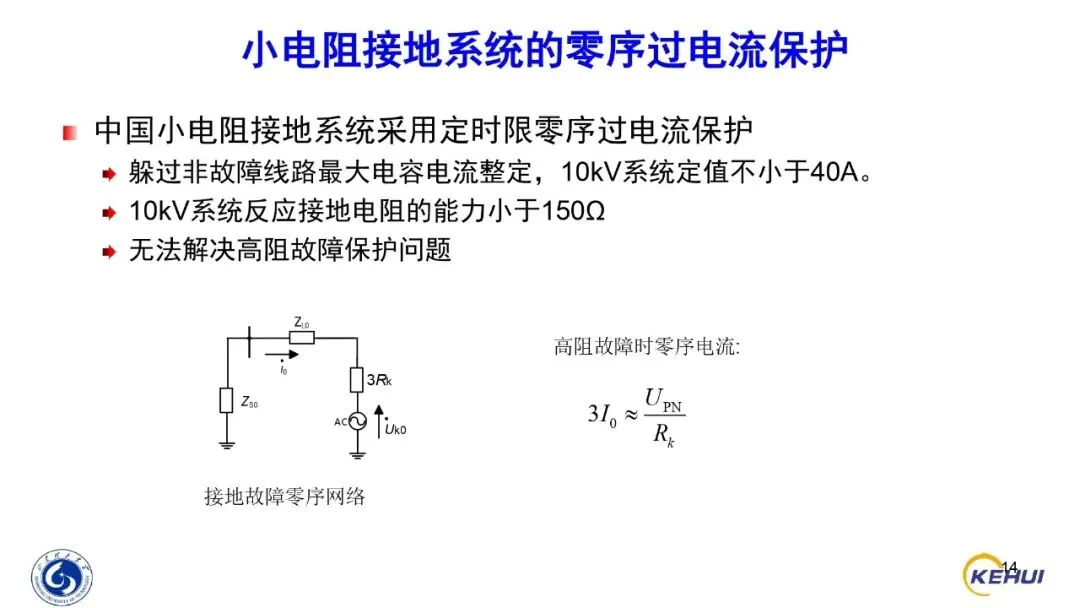

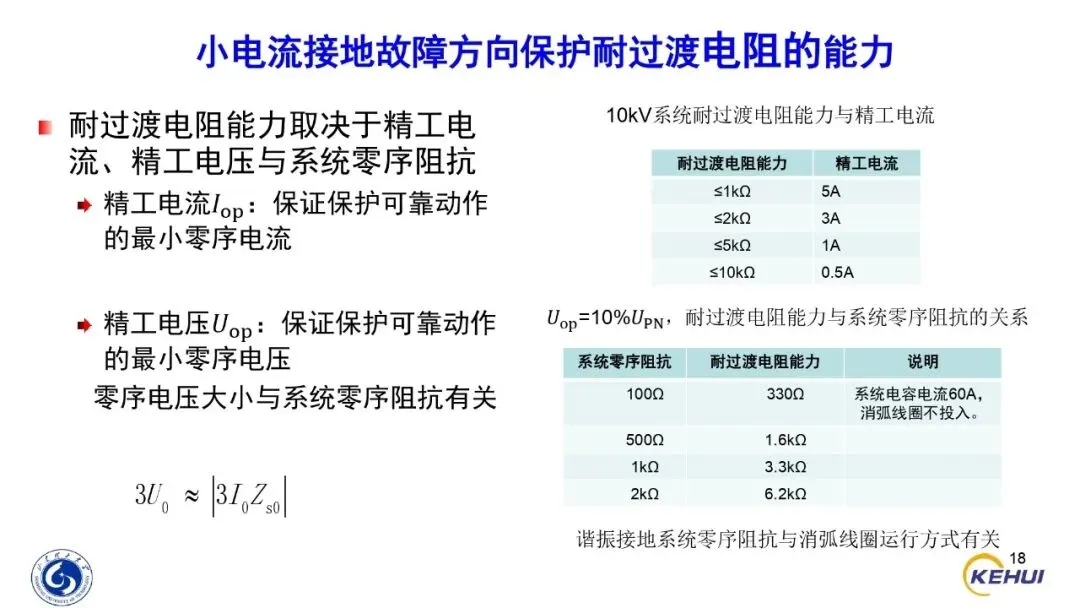

PPT丨高阻故障检测与保护技术

2021年12月15日-16日IEEE PES电力系统保护控制技术委员会通过线上召开“2021年IEEE PES电力系统保护控制技术委员会（中国）年会”。本次大会以“新型电力系统保护与控制”为主题，山东理工大学智能电网研究院徐丙垠教授做了题为“高阻故障检测与保护技术”的专题报告，小编征得专家同意，在此分享报告PPT，欢迎品读！

（本文来自山东理工大学智能电网研究院。本号所刊发文章仅为学习交流之用，无商业用途，向原作者致敬。因某些文章转载多次无法找到原作者在此致歉，若有侵权请告知，我们将及时删除，本文仅供学习交流、我们注重分享，勿作商用，版权归原作者。）

媒体转载请注明ID及微信二维码

本文来自网友投稿或网络内容，如有侵犯您的权益请联系我们删除，联系邮箱：wyl860211@qq.com 。
