培训PPT|工业过程控制阀和智能电气阀门定位器之概述(李宝华编写)

  • 2026-03-19 10:46:40
培训PPT|工业过程控制阀和智能电气阀门定位器之概述(李宝华编写)
戳↑↑↑蓝字“阀言堂”关注我们！咨询请+微信 famens01

新手必备工具书｜系列小讲堂｜调节阀运用

《工业过程控制阀和智能电气阀门定位器》上篇

作者：李保华｜2015.9月

一、概述

定义、分类、基本组成、行业划分、作用、发展。

二、控制阀结构

执行机构、附件、阀类型、阀体、阀盖、填料密封、阀内件、流量特性

三、控制阀原理

理论基础、流量计算、闪蒸和空化、噪声防治

四、控制阀的安全要求

安全概念、安全要求、试验、符合性评估和SIL认证

五、控制阀的技术要求

技术要求的标准、性能的技术要求、附加技术要求

六、控制阀的选择

应用要求、相关因素、计算选择、材料选择

七、控制阀的测试和安装

八、控制阀的维护

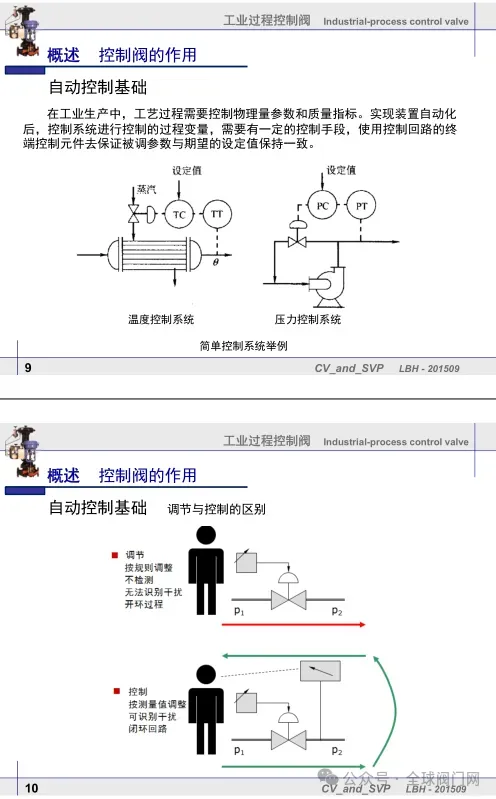

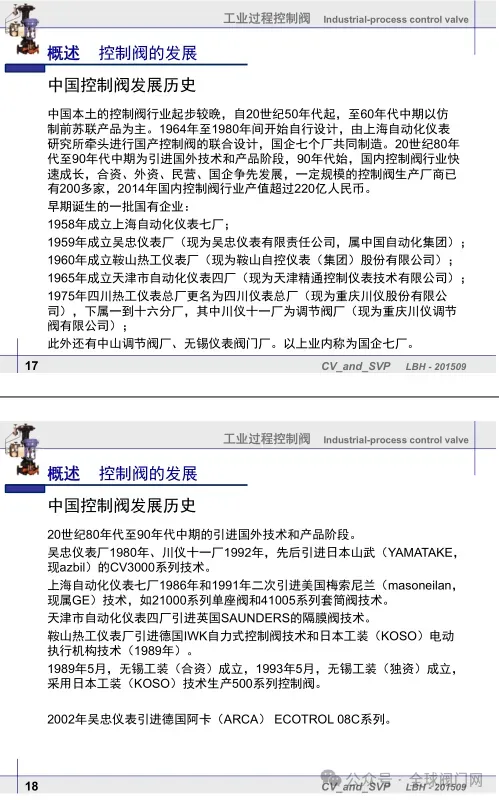

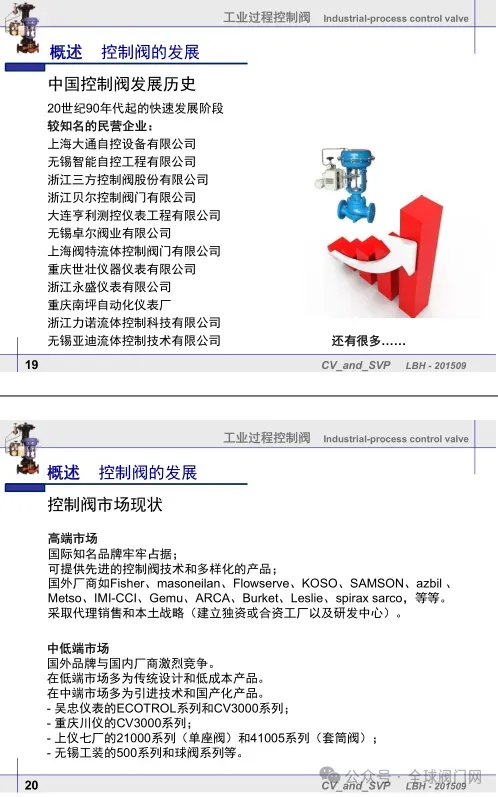

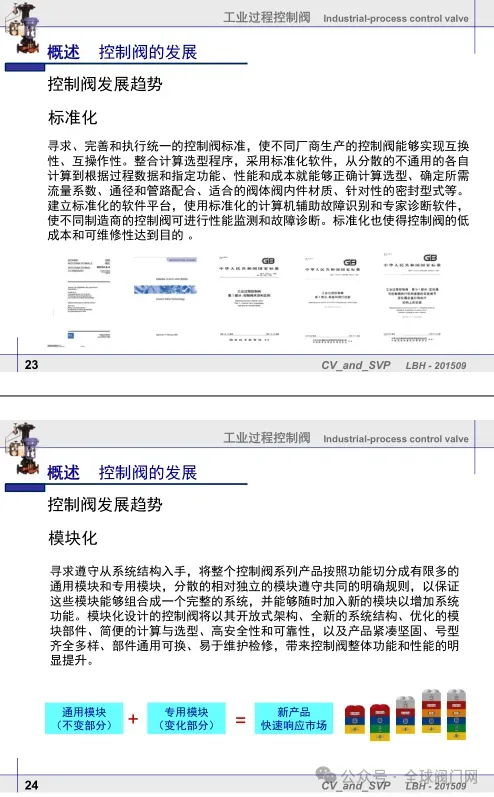

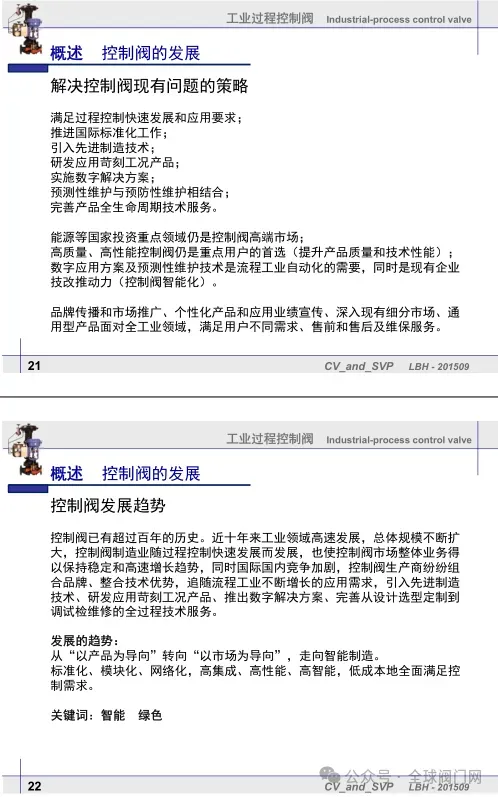

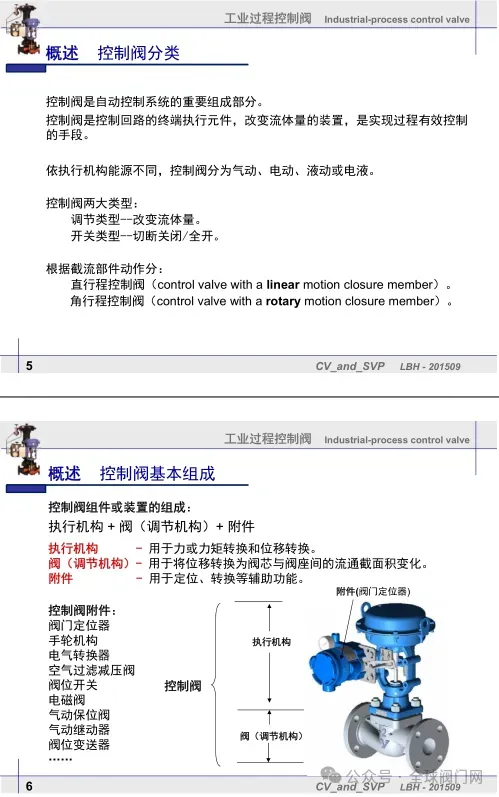

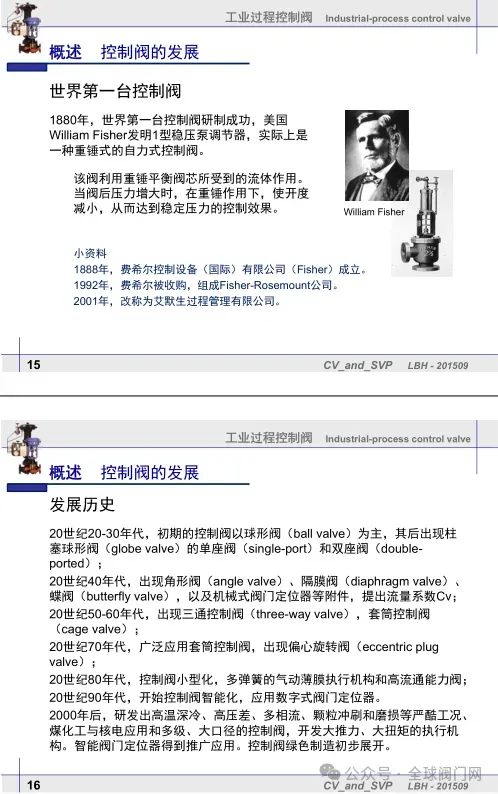

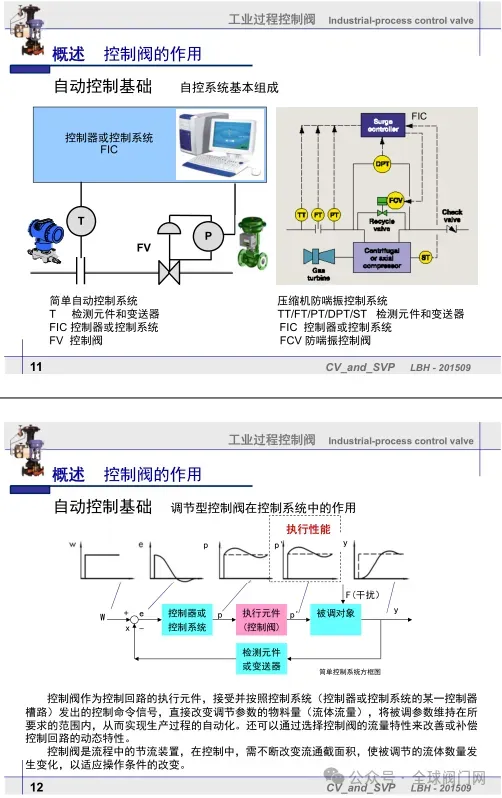

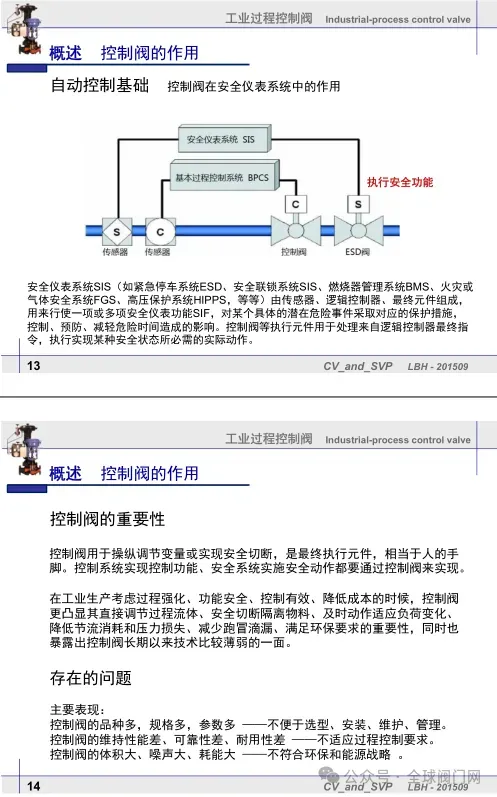

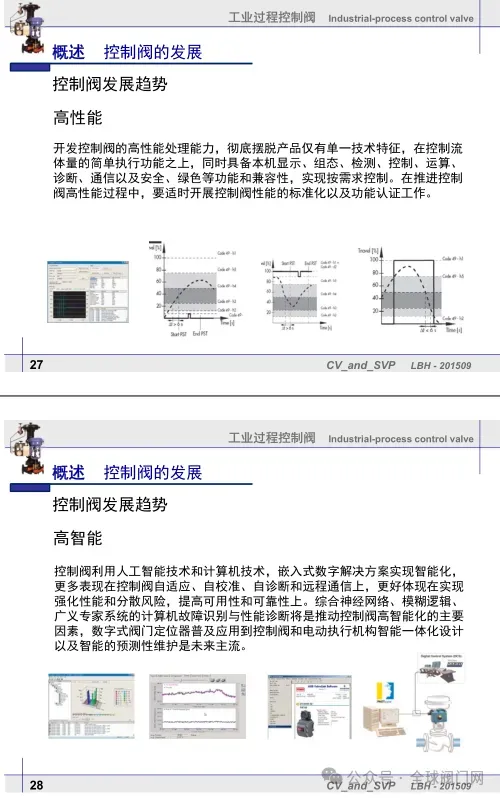

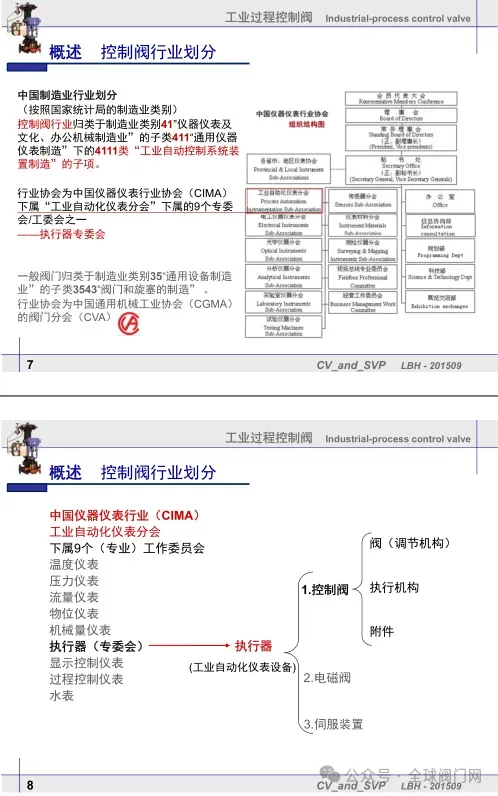

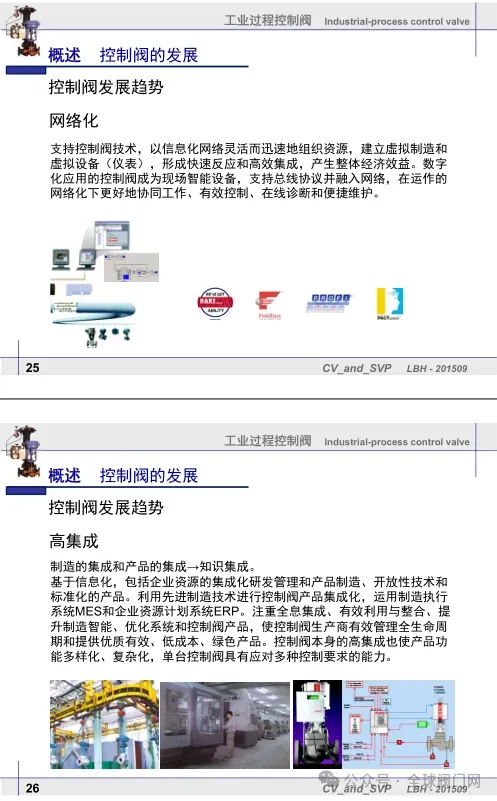

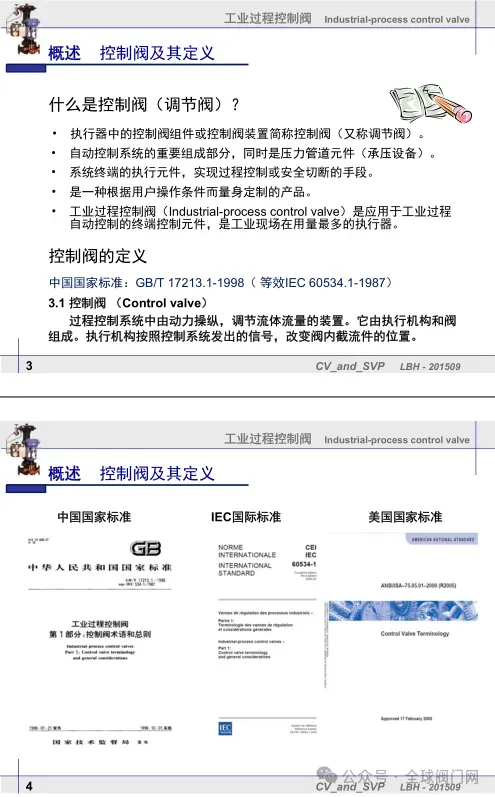

一、概述（P3-28）

未完待续

......

关注《阀言堂》，留言区回复“索取PPT”

我们将选取部分读者发放。

本文由【全球阀门网·阀言堂】综合/原创整理

 《阀言堂》公众号矩阵 :

全球阀门网｜阀遍天下｜无阀无天

今 日 说 阀｜阅 阀  三 章

网址：www.famens.com

电话：0571-8897 0062
←长按二维码即时咨询
