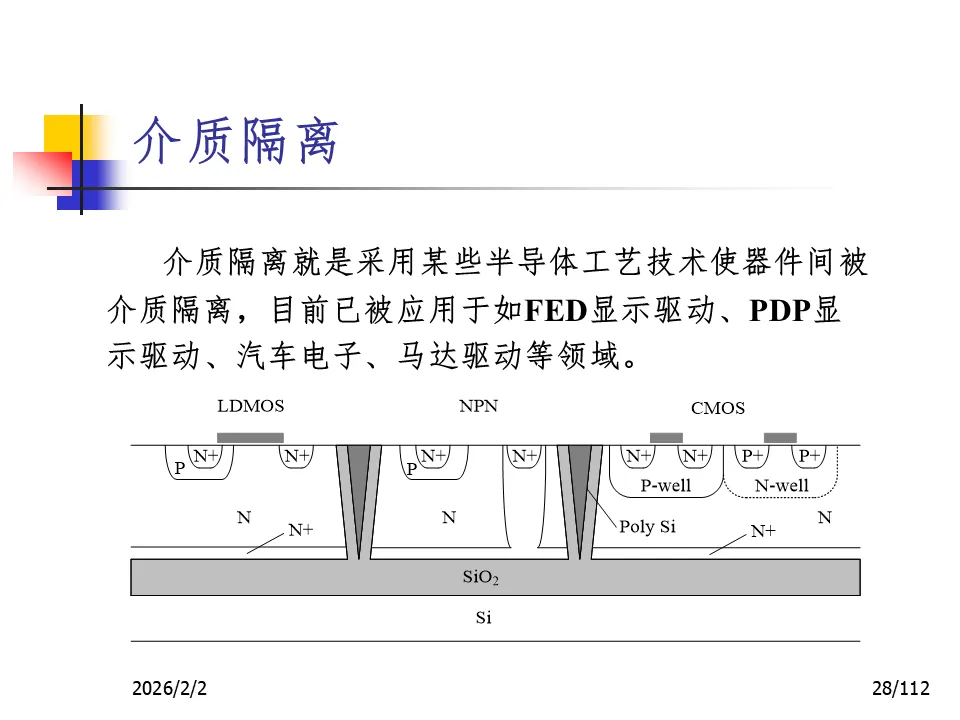

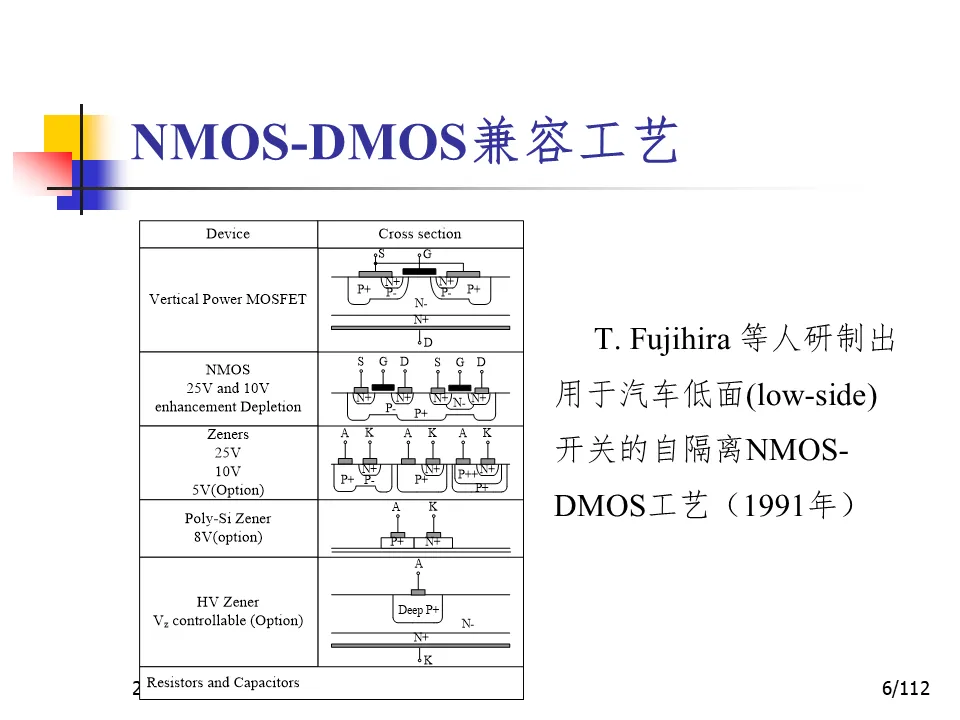

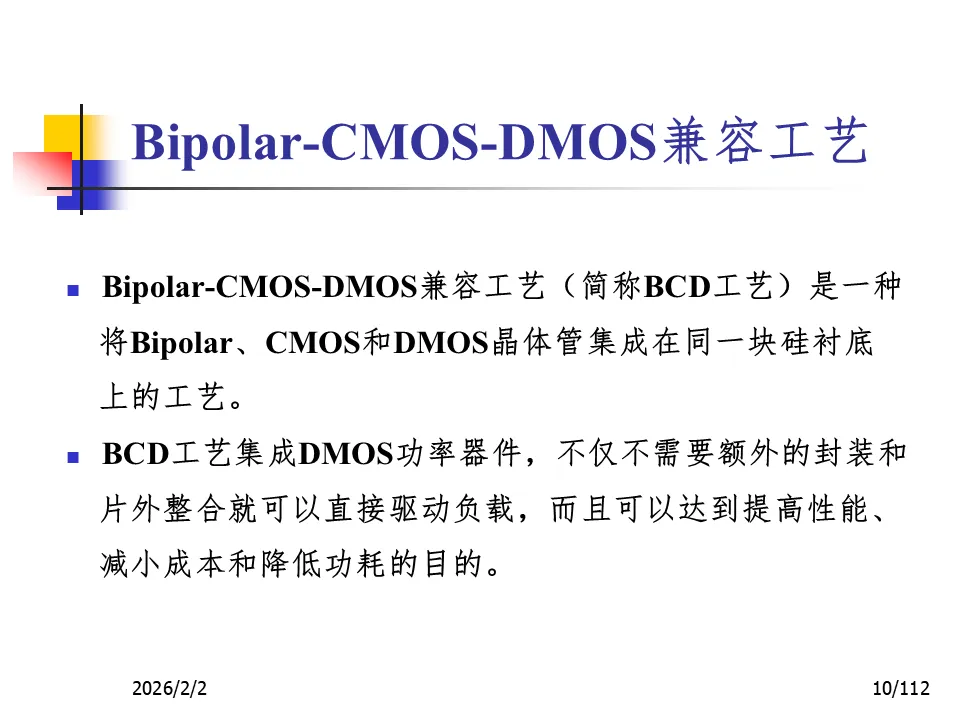

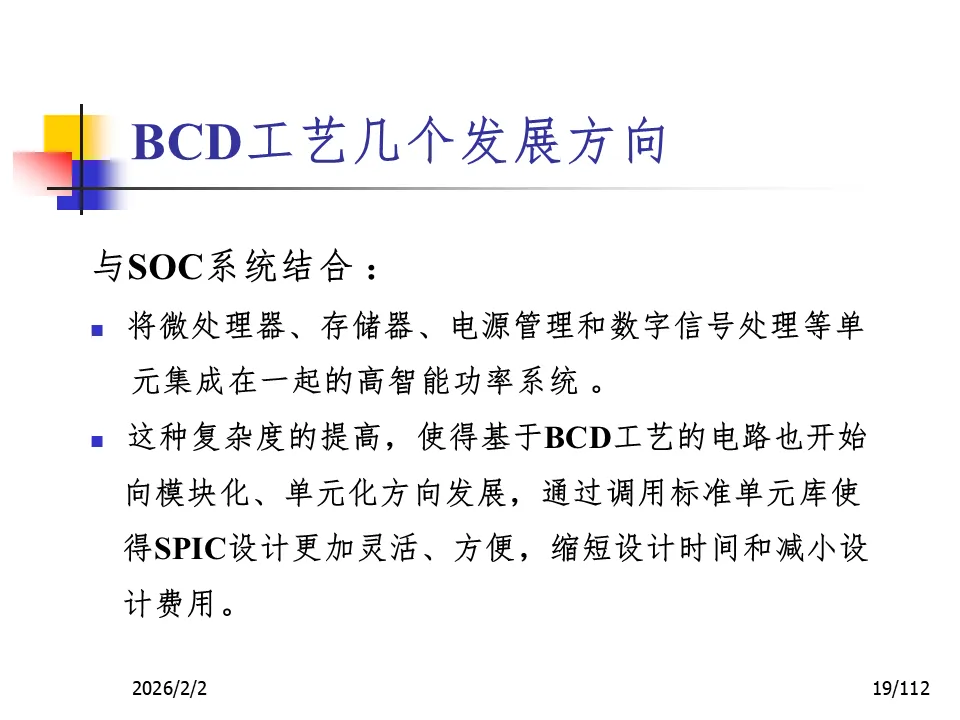

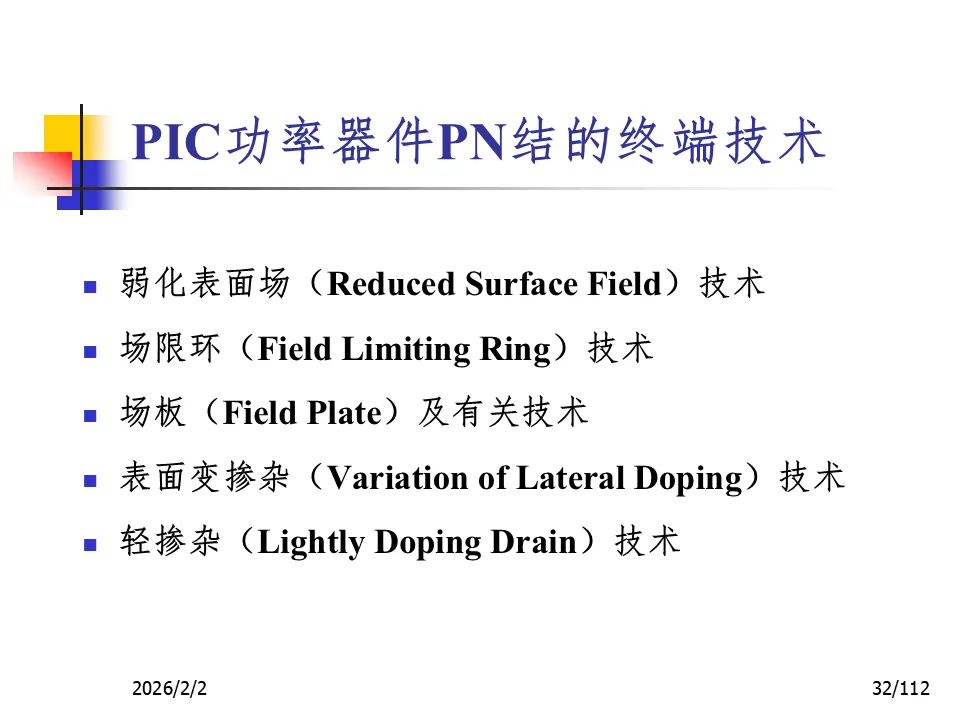

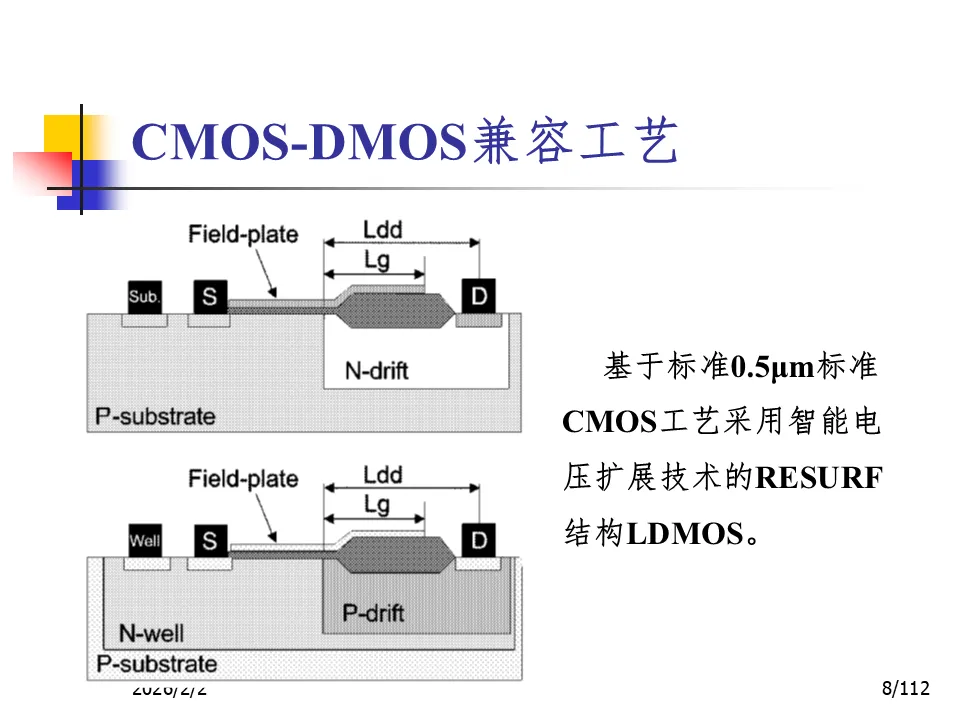

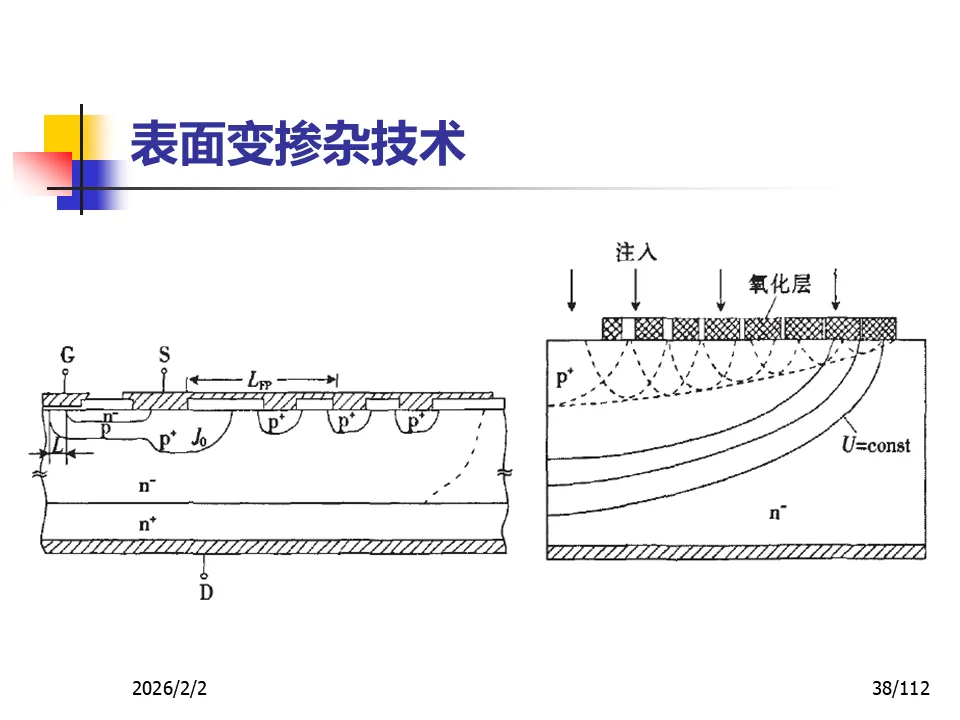

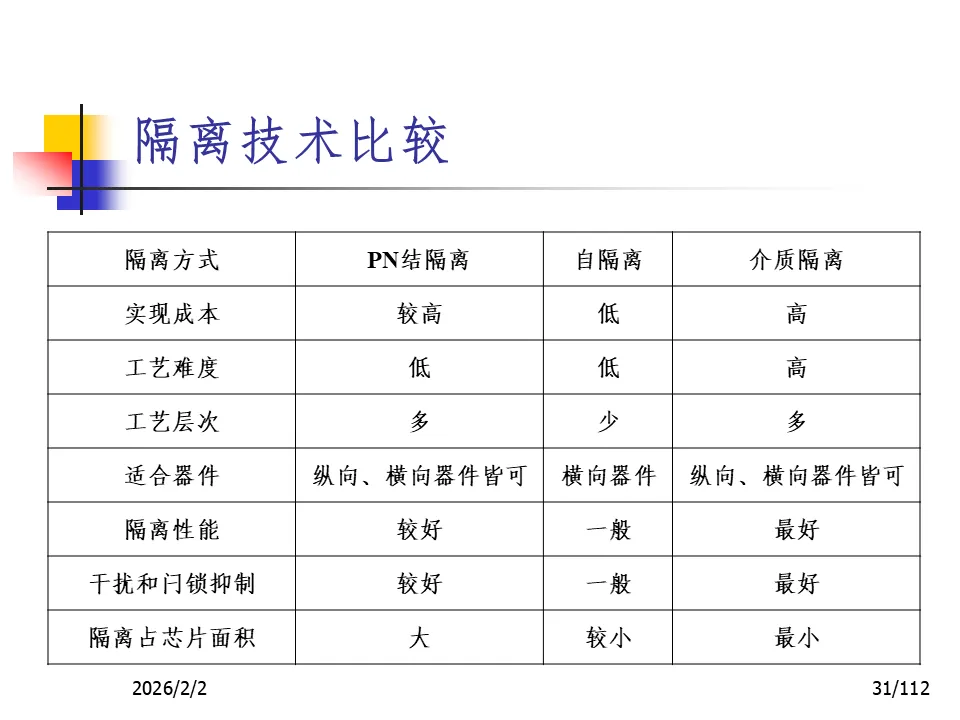

(干货|112页PPT)基本功率集成电路工艺

  • 2026-09-19 10:50:46
(干货|112页PPT)基本功率集成电路工艺

半导体芯路历程将持续分享行业内有意思、有价值、有深度的内容，期待您的关注，点赞和转发，您的每次点赞都将是我创作的不竭动力！

完整文档获取，请关注公众号后扫描下方二维码联系小编进行领取哦！
作者声明：以上文件来自网络，版权归原作者所有，仅做学习交流之用，如有侵权请联系小编进行处理！
本文来自网友投稿或网络内容，如有侵犯您的权益请联系我们删除，联系邮箱：wyl860211@qq.com 。
