装配图怎么画?有哪些技巧?70页PPT讲清楚了!

  • 2026-09-24 04:20:47

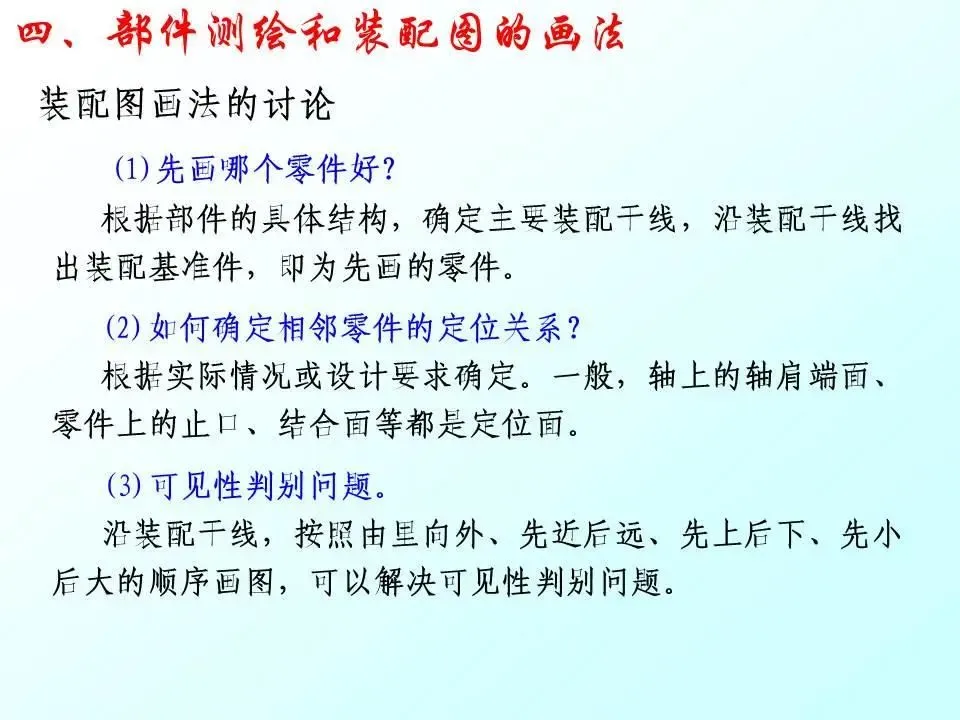

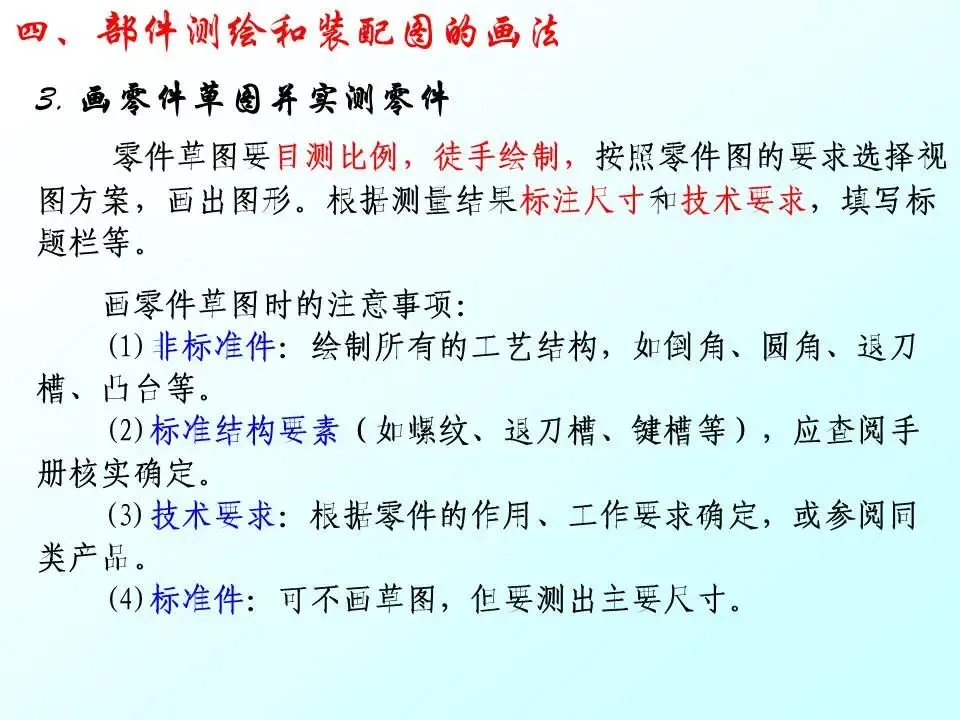

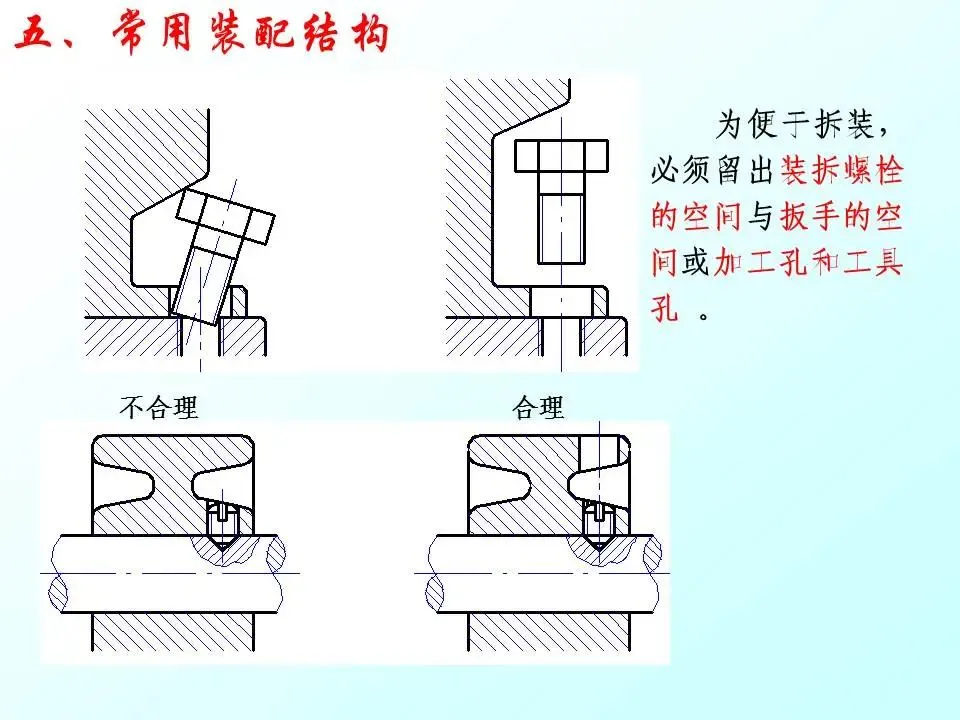

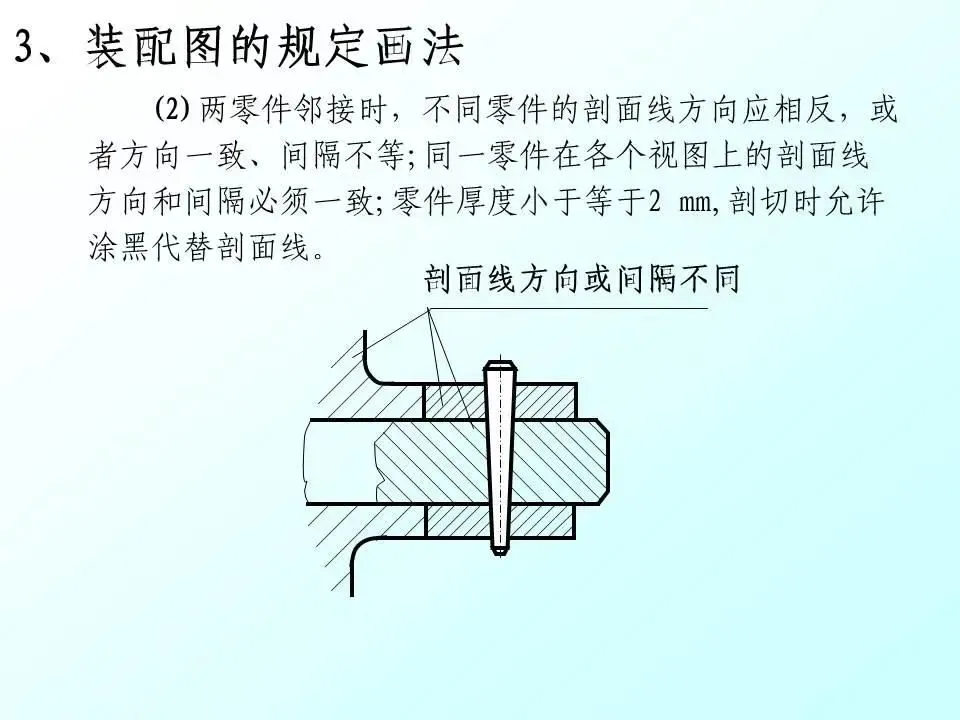

装配图怎么画?有哪些技巧?70页PPT讲清楚了!

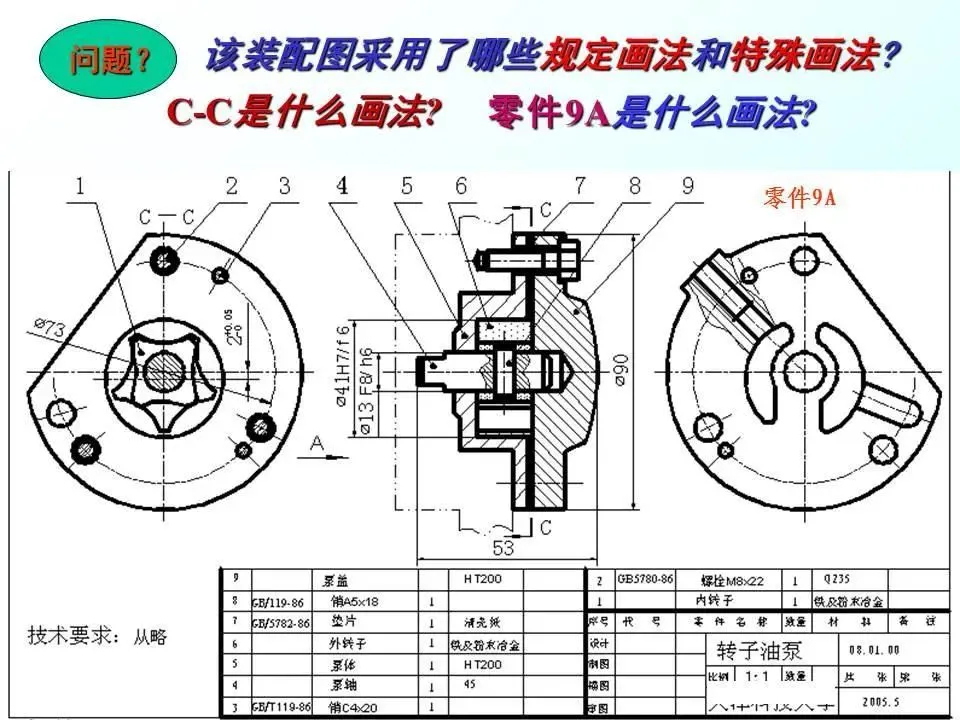

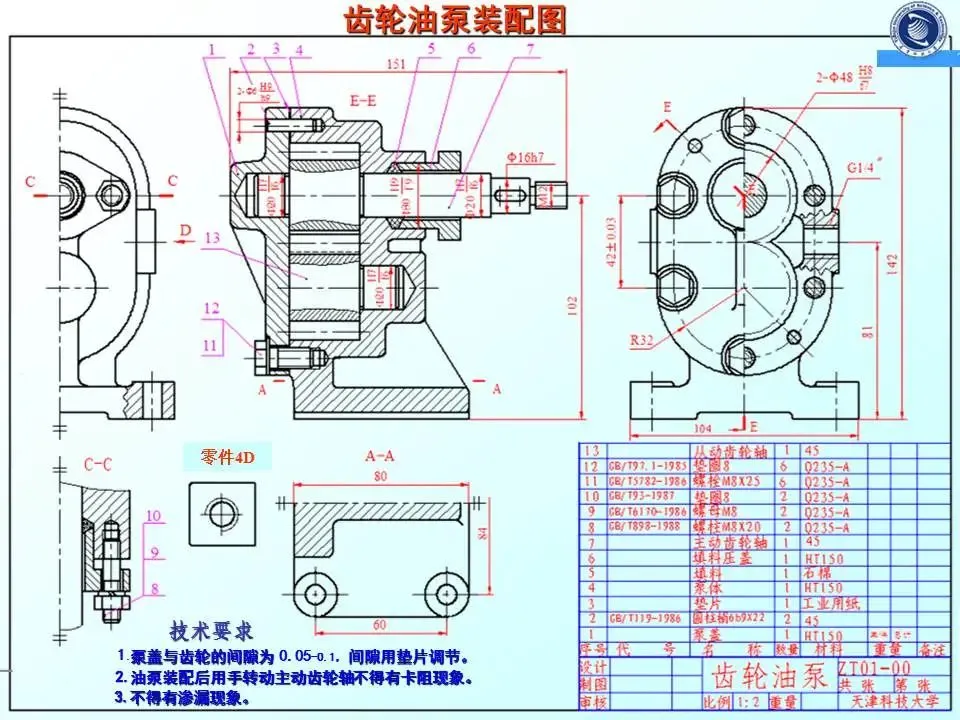

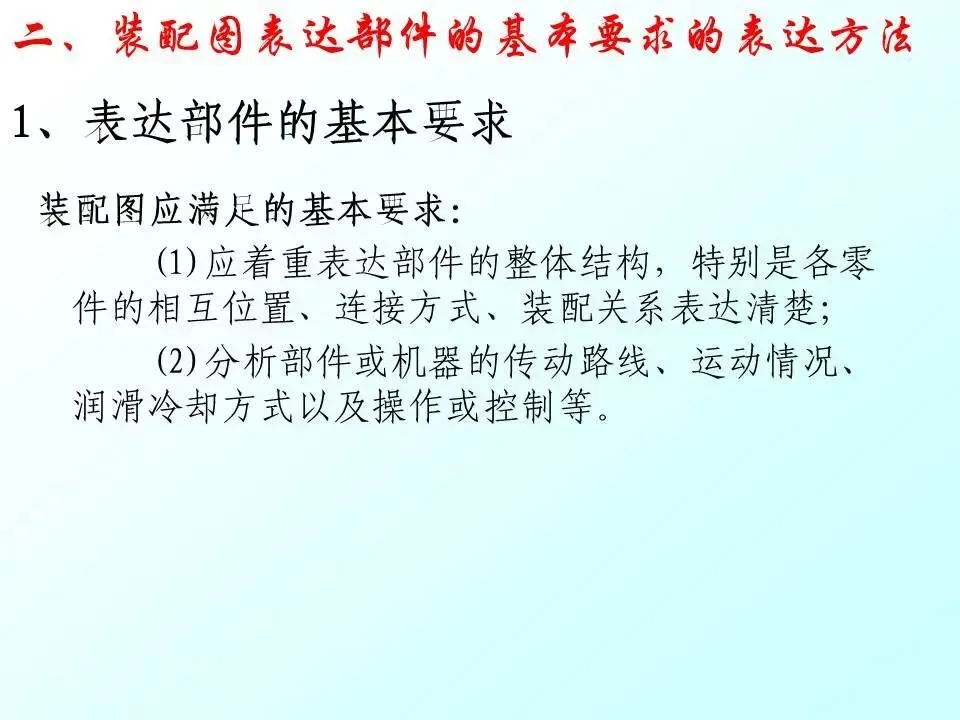

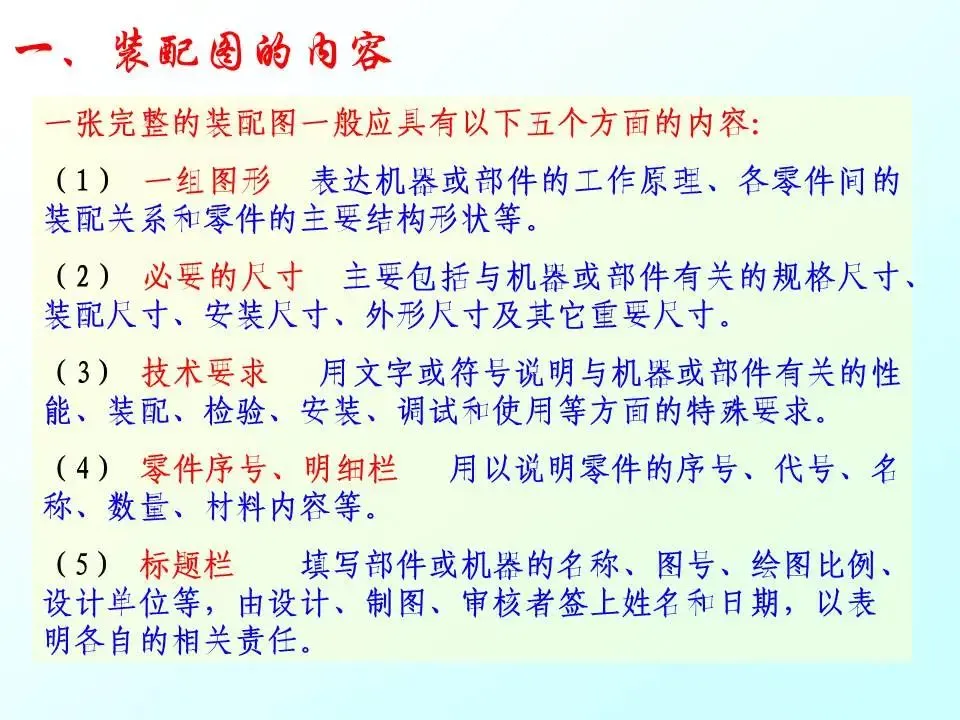

装配图是表达机器或部件的工作原理、运动方式、零件间的连接及其装配关系的图样，它是生产中的主要技术文件之一。那么你会画装配图吗？
