Excel的小浪漫

  • 2026-04-09 21:49:38
Excel的小浪漫
今天在抖音上看到一个Excel绘制的心形动态图表，感觉很有趣浪漫，在此特别记录一下，嘻嘻！
第一步：设置数据列表，以备图表的变化参数使用。

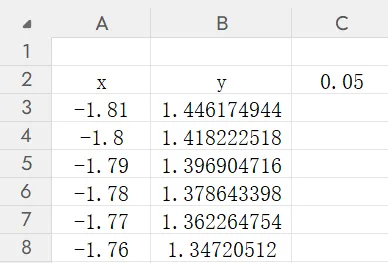

①如图所示，X列A3格设置起始数据-1.81，后使用填充里面的序列功能如“第二步”所示设置步长值和终止值分别为0.01、1.81，生成A列数据表。
第1步

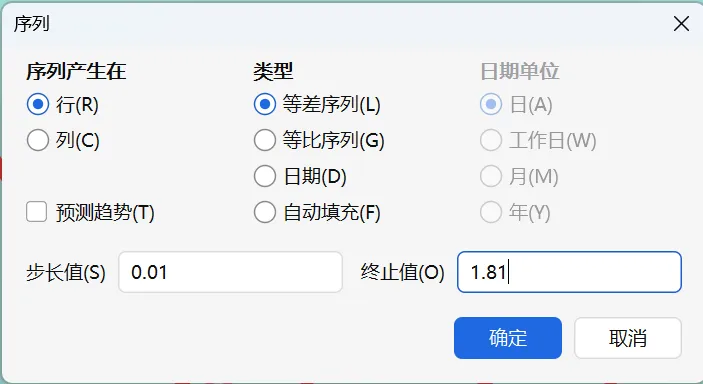

第2步
②编辑Y列数据，在B3单元格输入函数“(A3^2)^(1/3)+0.9*POWER(3.3-A3^2,0.5)*SIN($C$2*PI()*A3)”，这是图表能动的关键一步。
③编辑C2单元格，输入计算式=C2+0.05即可。
第二步：设置图表及格式。

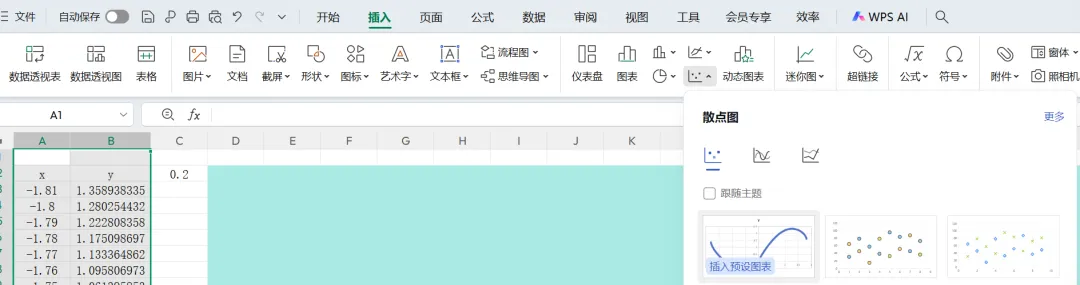

①选中A、B列数据，点击插入中的散点图选择“插入预设图表”即可。
②可根据自己喜好改变图表的颜色和底纹，后复制一个出来做“一箭穿心”的效果哈哈。

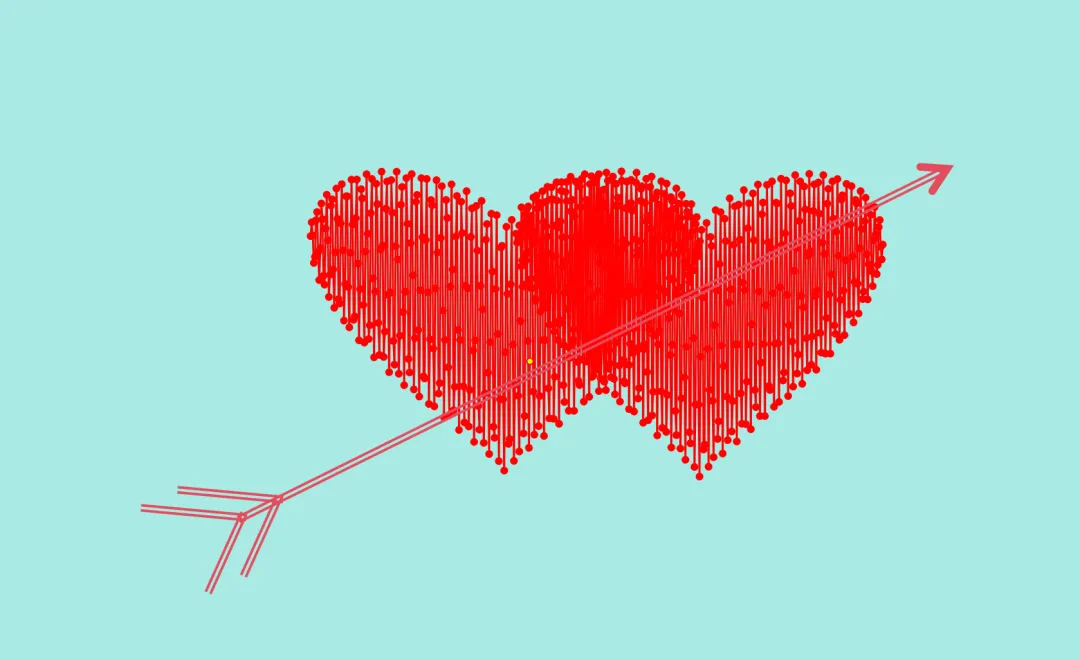

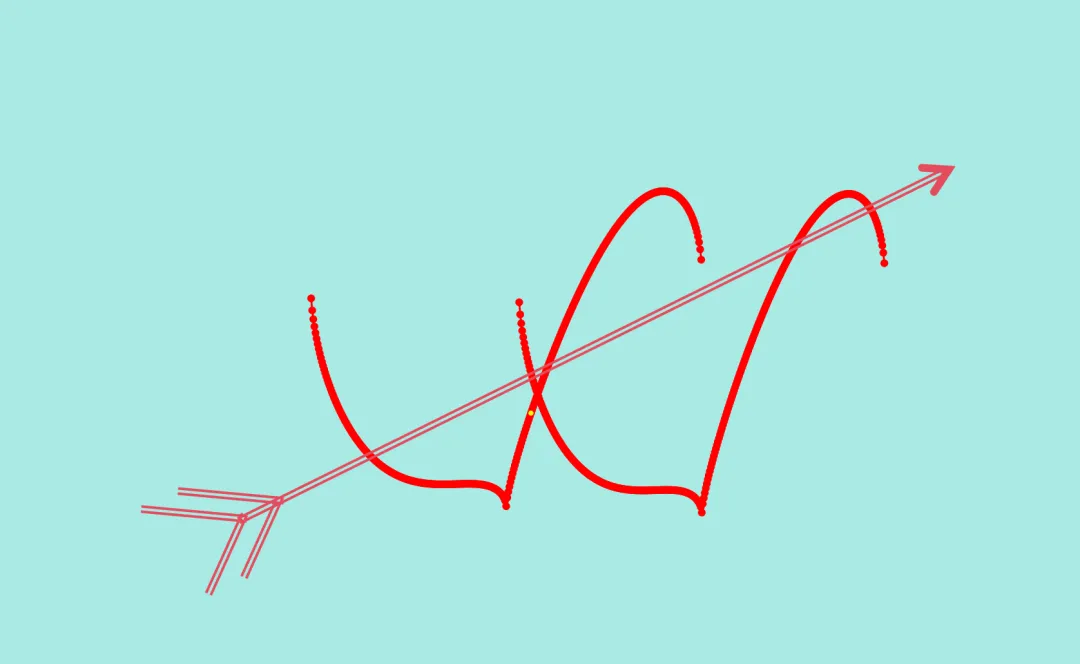

③利用线条功能绘制箭头形状，做加粗和改色处理，整体效果如下所示：
第三步：收获傻傻的快乐。
按住键盘F9即可收获一张动态的心形图表啦！！
动态播放视频放在另一个文章里面啦。
后面有时间可以尝试用ppt做这种效果会更好一些。
