50页PPT介绍滚动轴承,一文看懂~

  • 2026-11-04 19:42:59
50页PPT介绍滚动轴承,一文看懂~

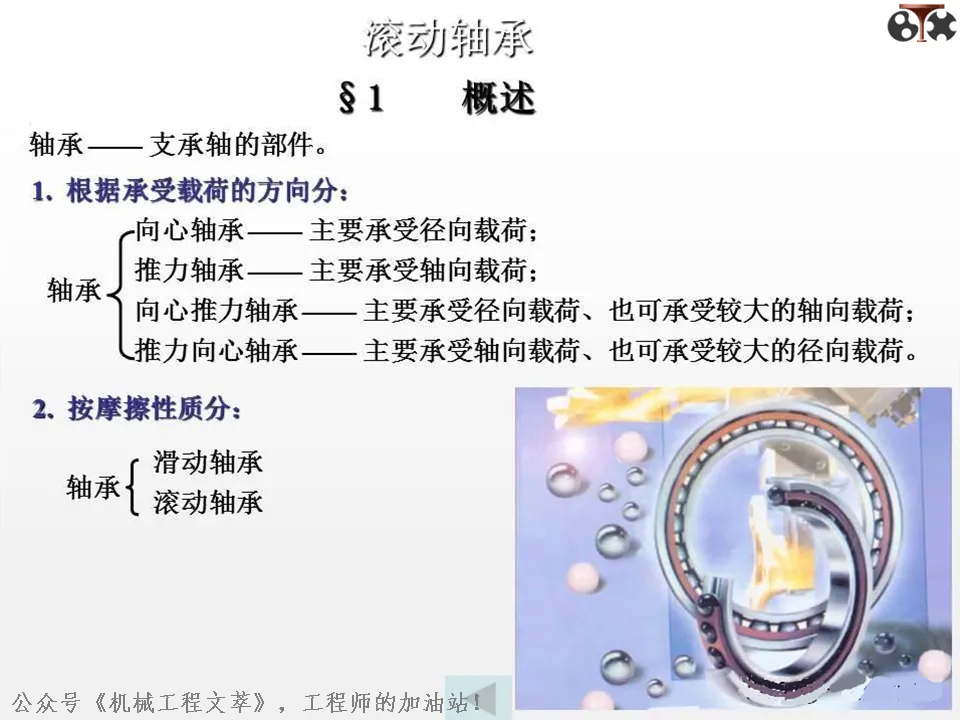

轴承的分类
按照摩擦性质的不同，轴承可以分为滚动轴承和滑动轴承。今天主要给大家介绍滚动轴承的知识。

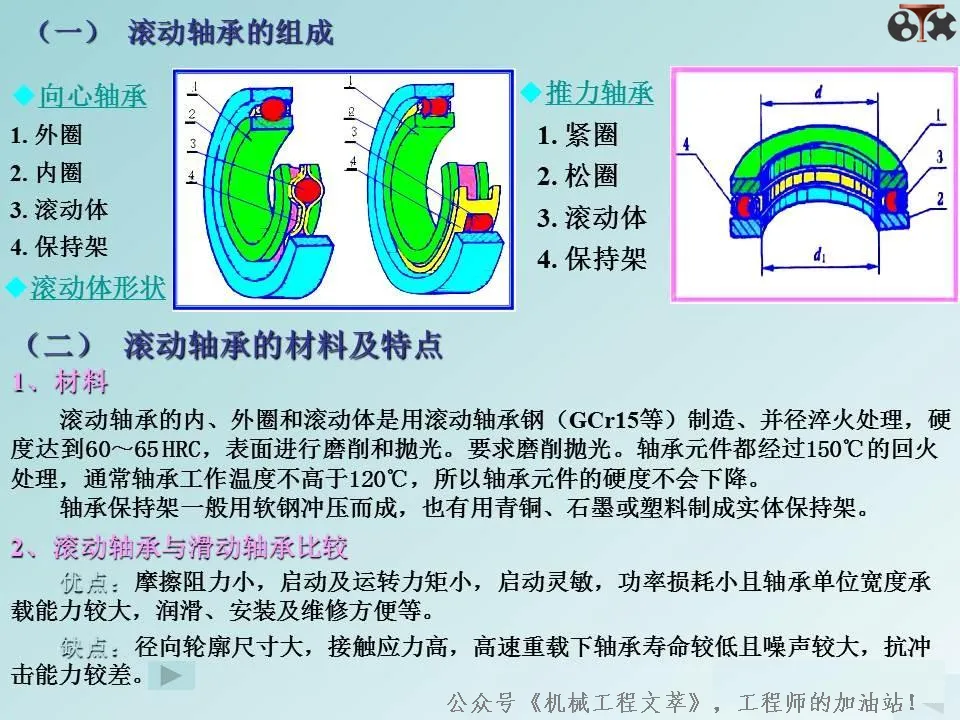

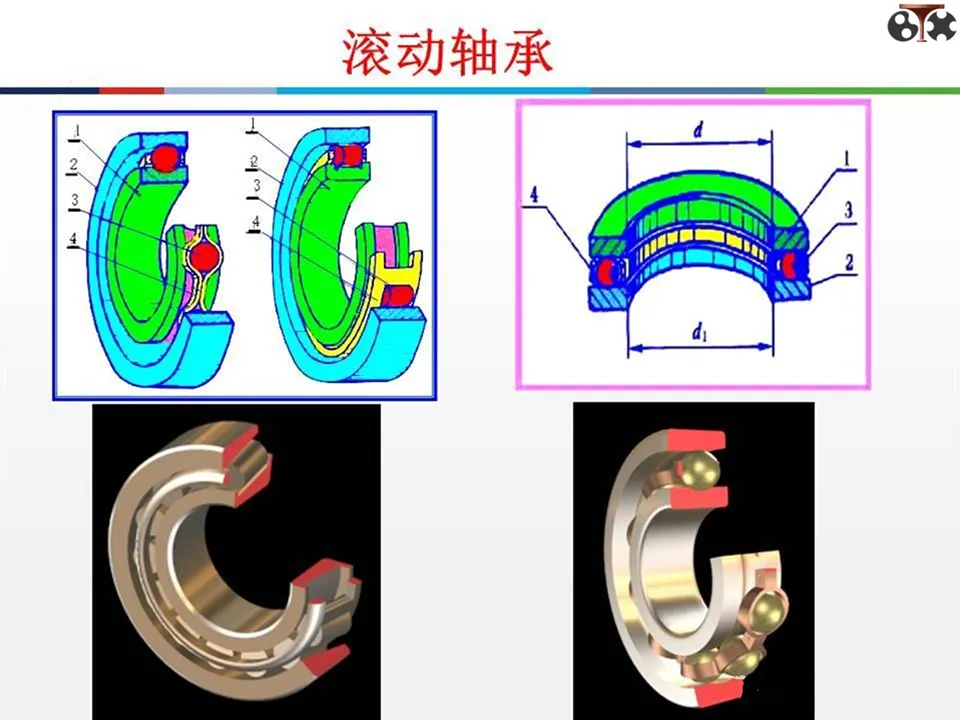

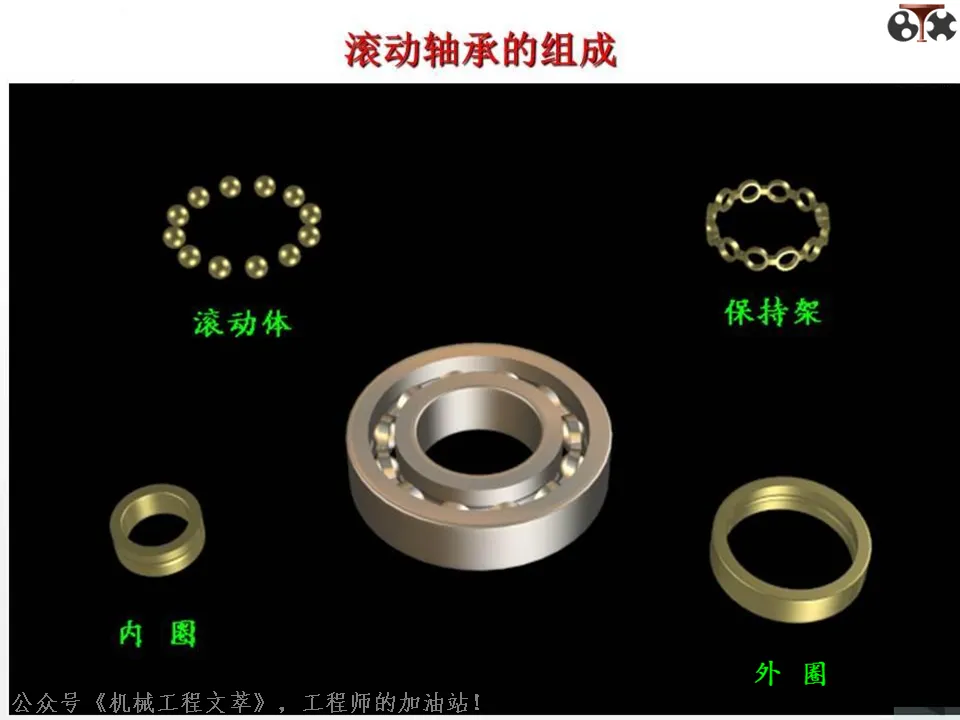

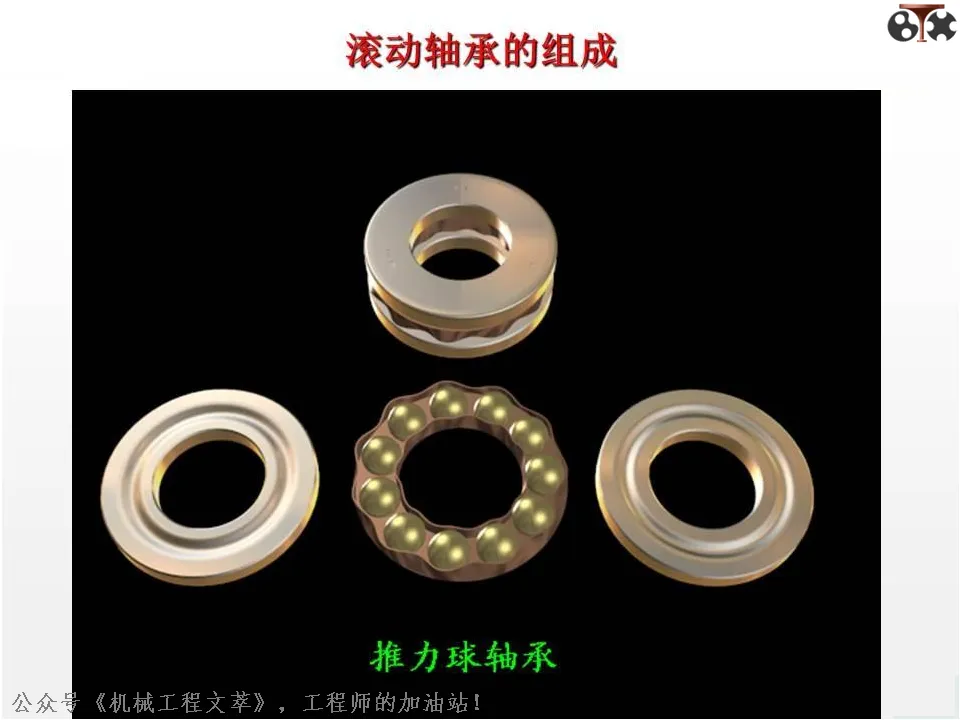

滚动轴承的组成
滚动轴承由滚动体、保持架、内圈和外圈四部分组成。

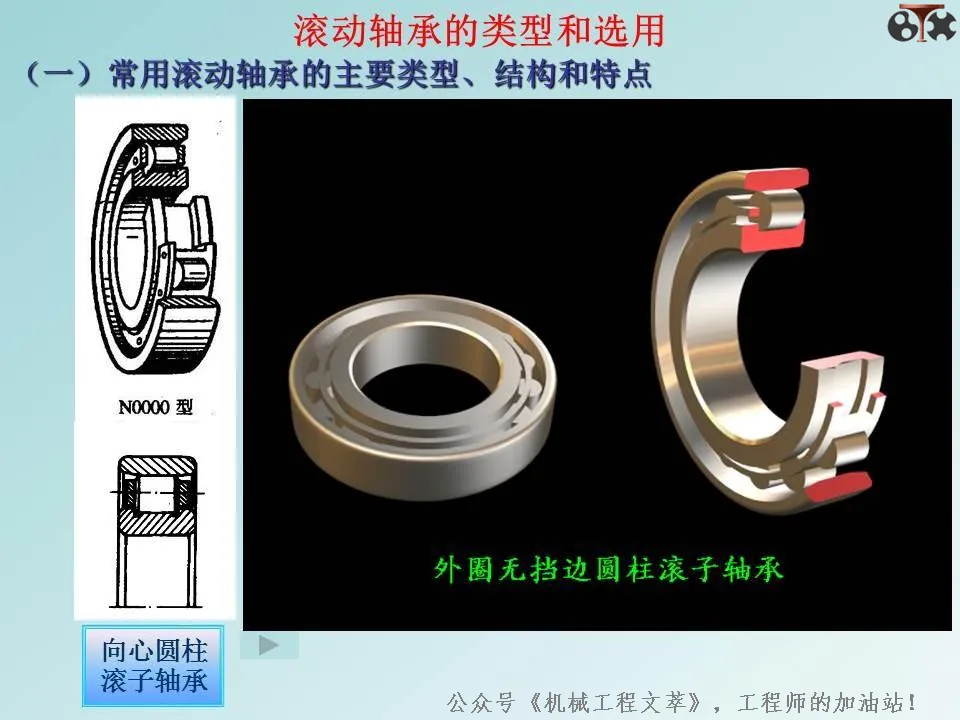

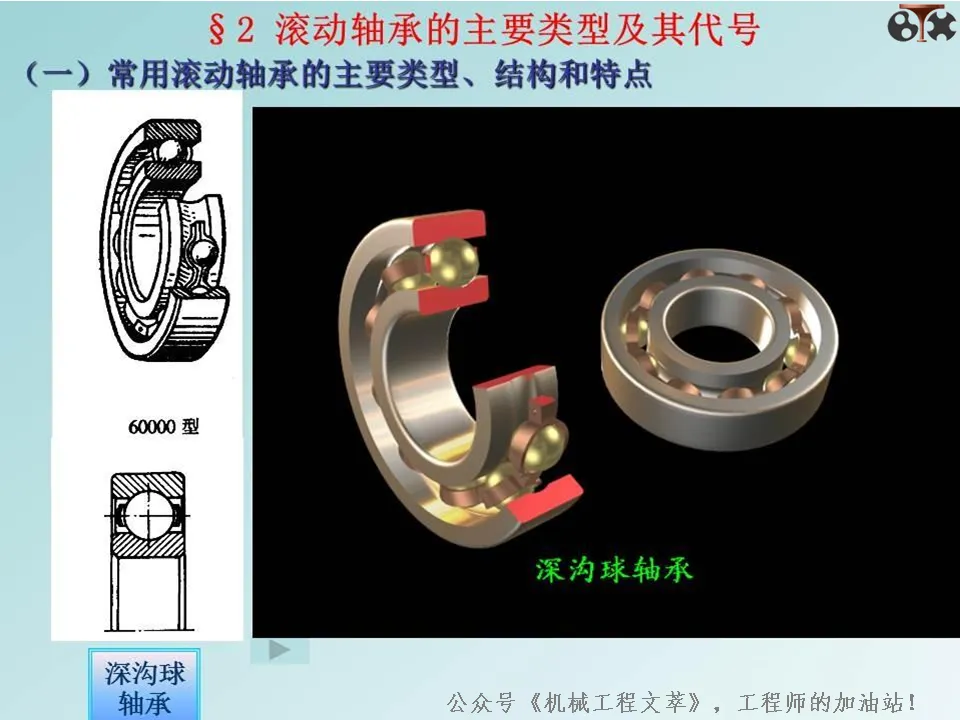

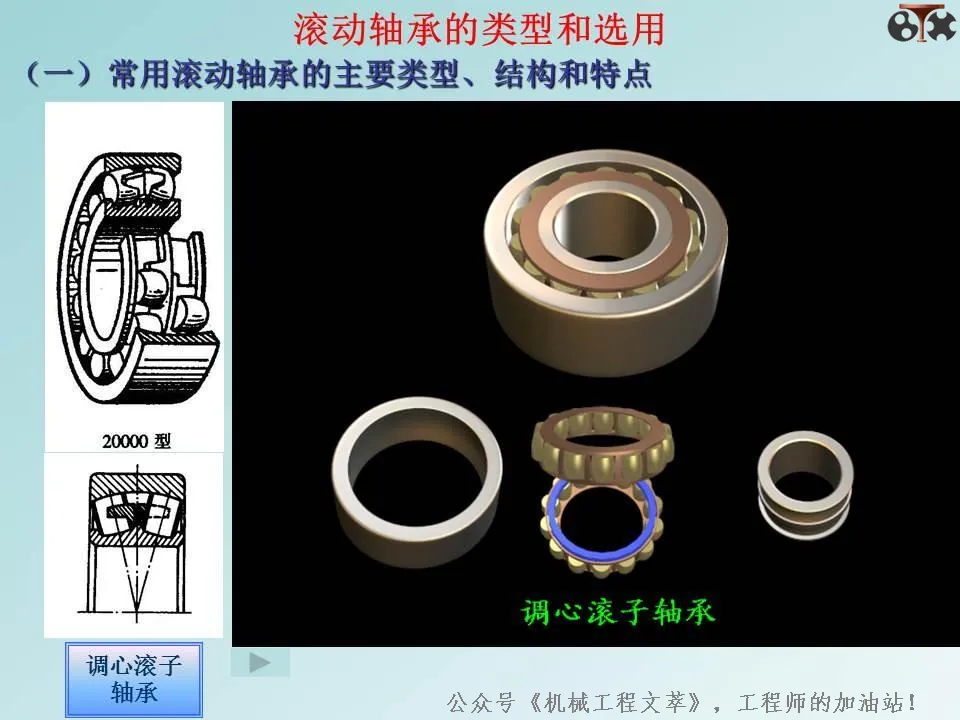

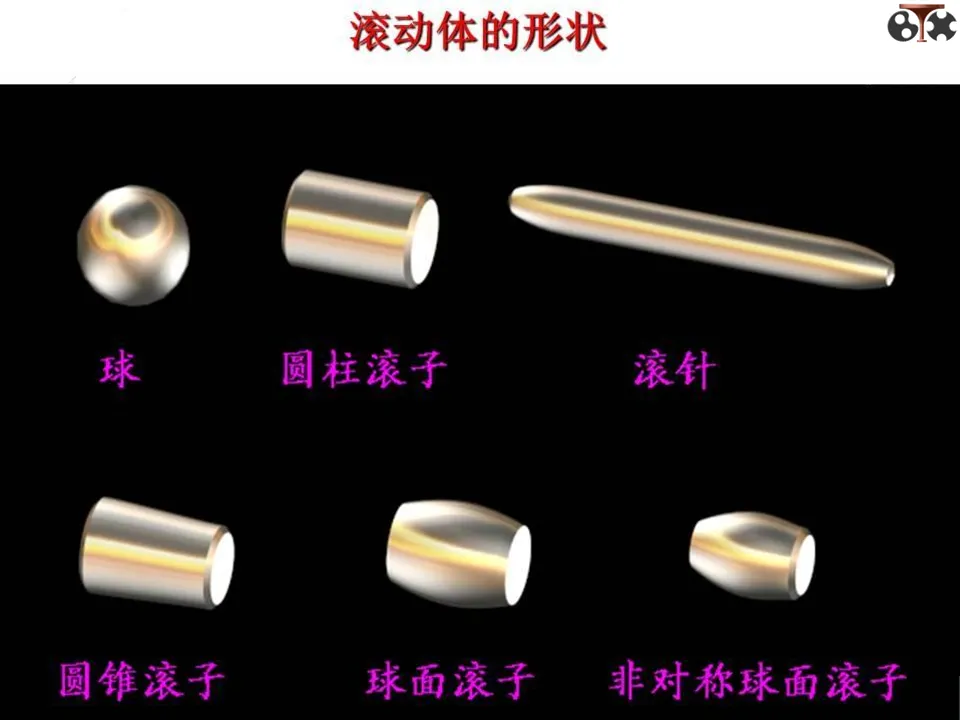

滚动体通常有六类结构，分别是球形、圆柱滚子、他针、圆锥滚子、球面滚子、非对称球面滚子。

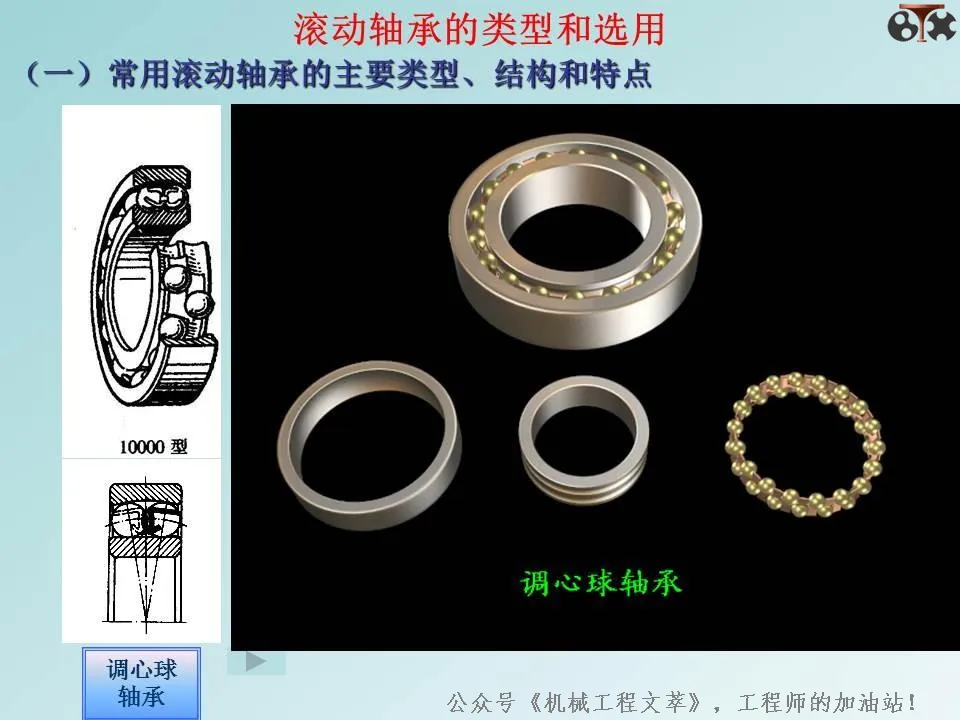

滚动轴承的选用

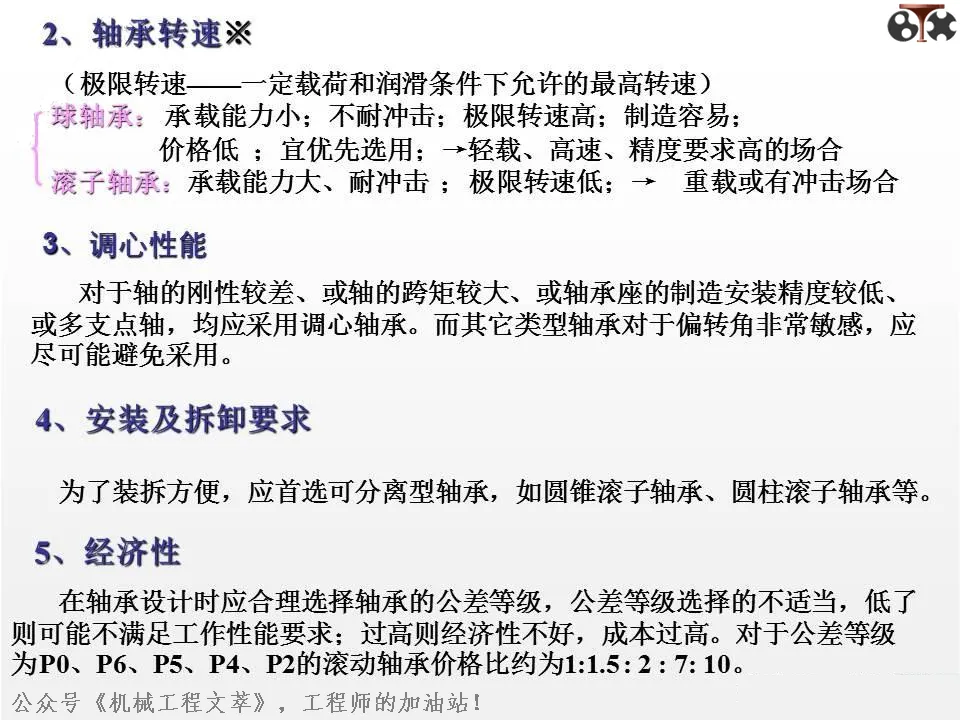

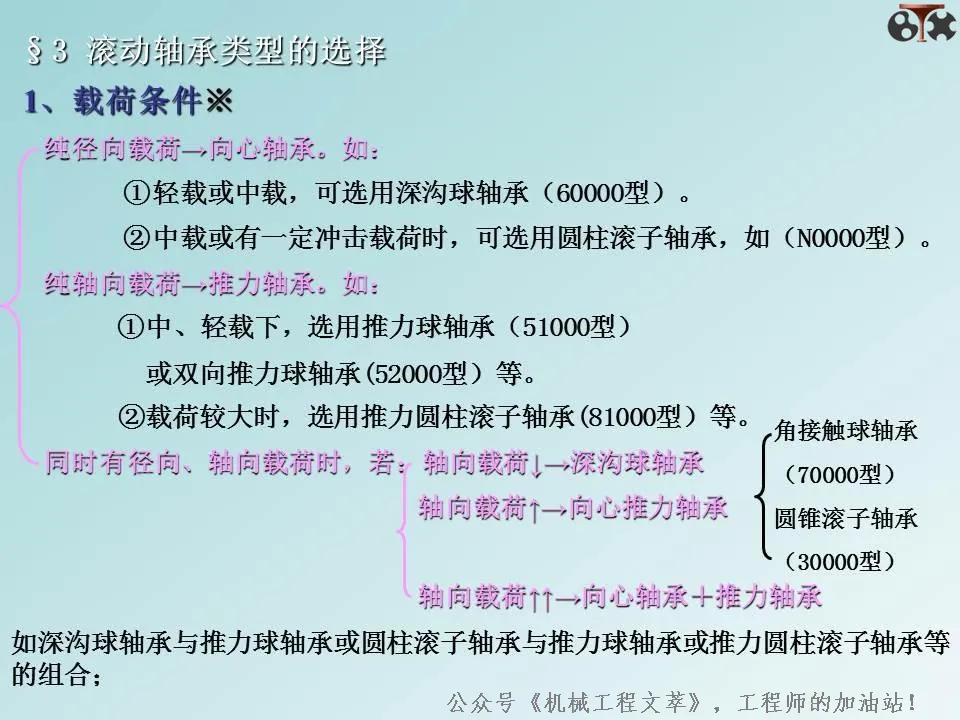

滚动轴承的选用要根据载荷种类、轴承转速、调心性能、安装及拆卸要求、经济性来决定。下文将会详细介绍。

50页PPT介绍滚动轴承

来源：机械工程文萃
