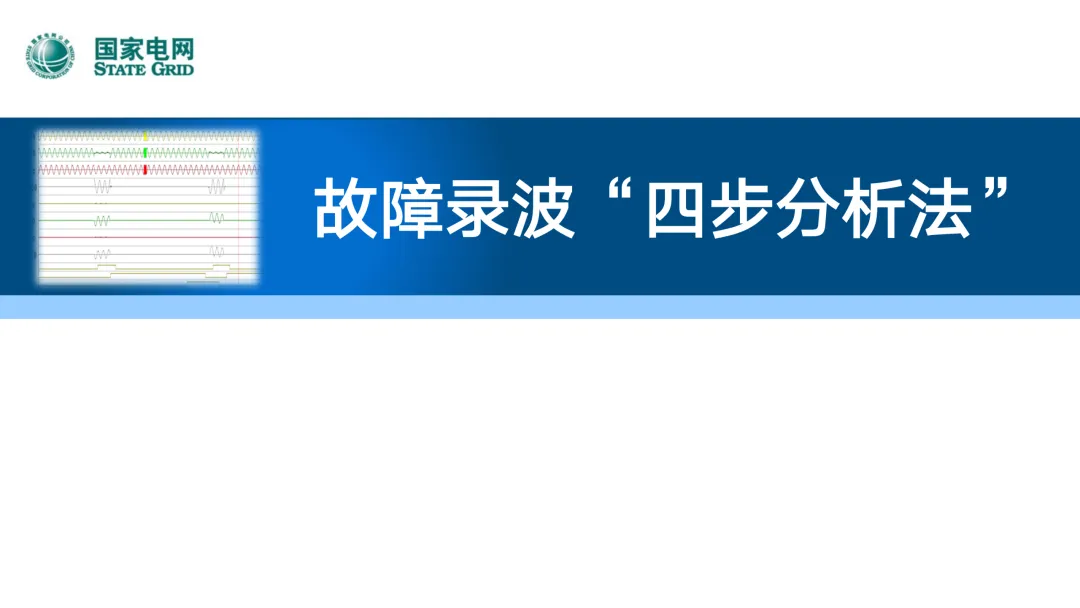

手把手教你故障录波“四步分析法“.ppt

  • 2026-04-26 06:34:37
手把手教你故障录波“四步分析法“.ppt

今天我们学习：

手把手教你故障录波“四步分析法“.ppt

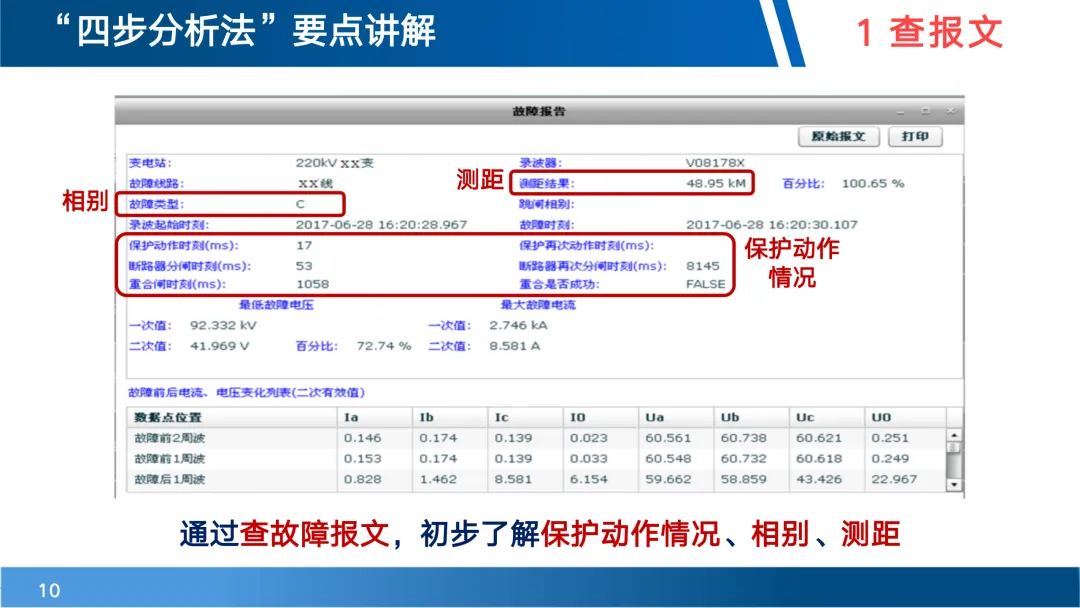

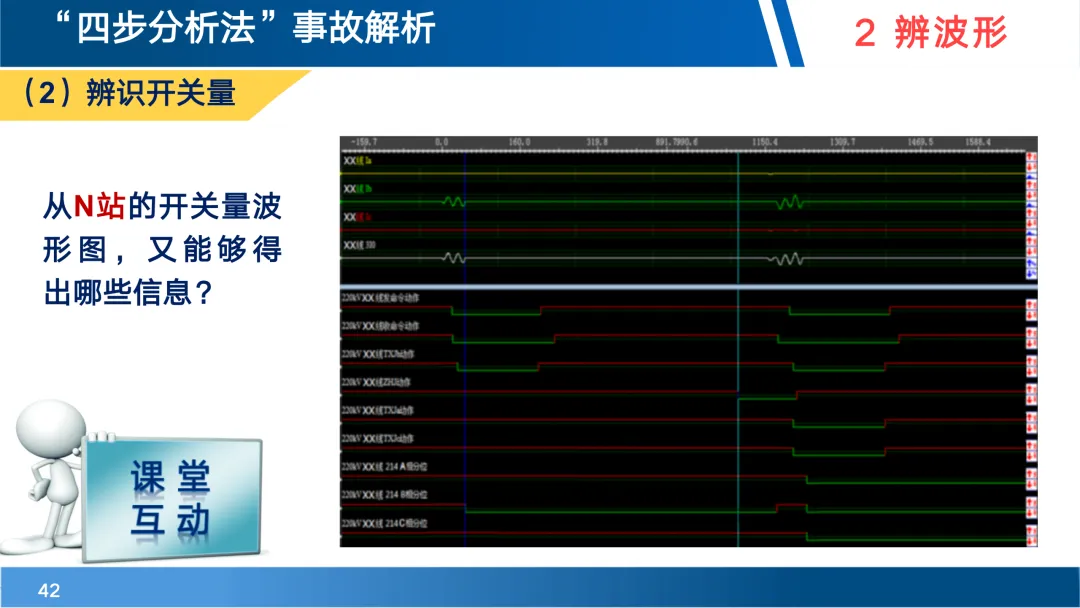

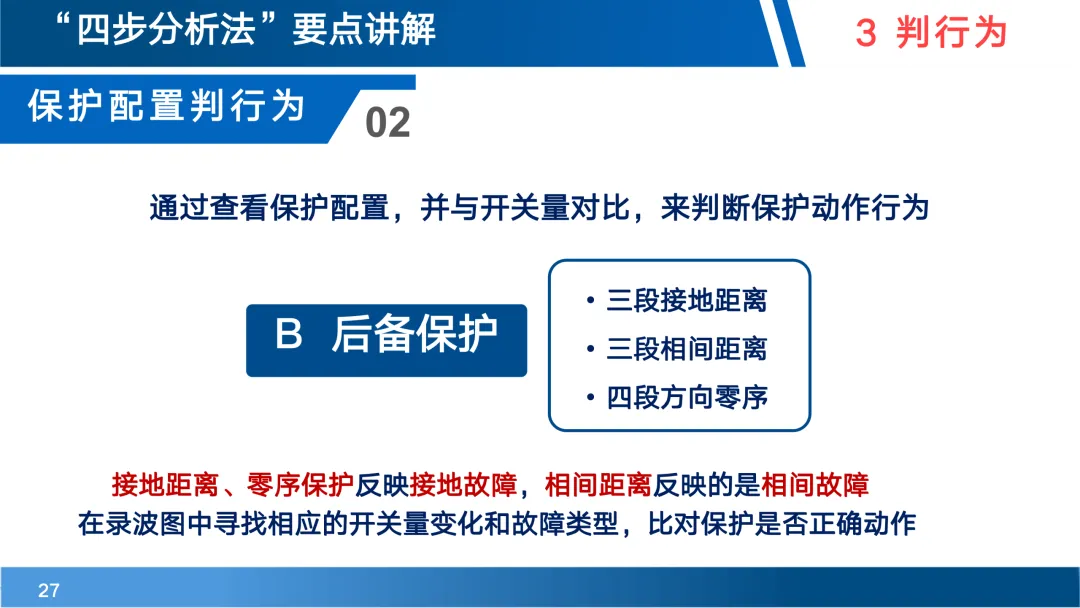

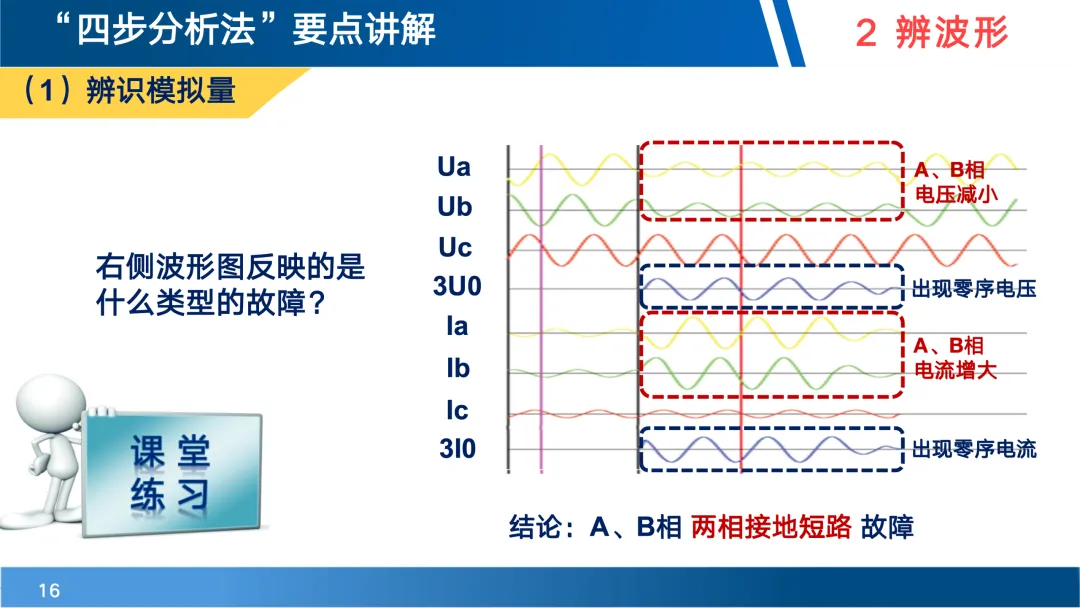

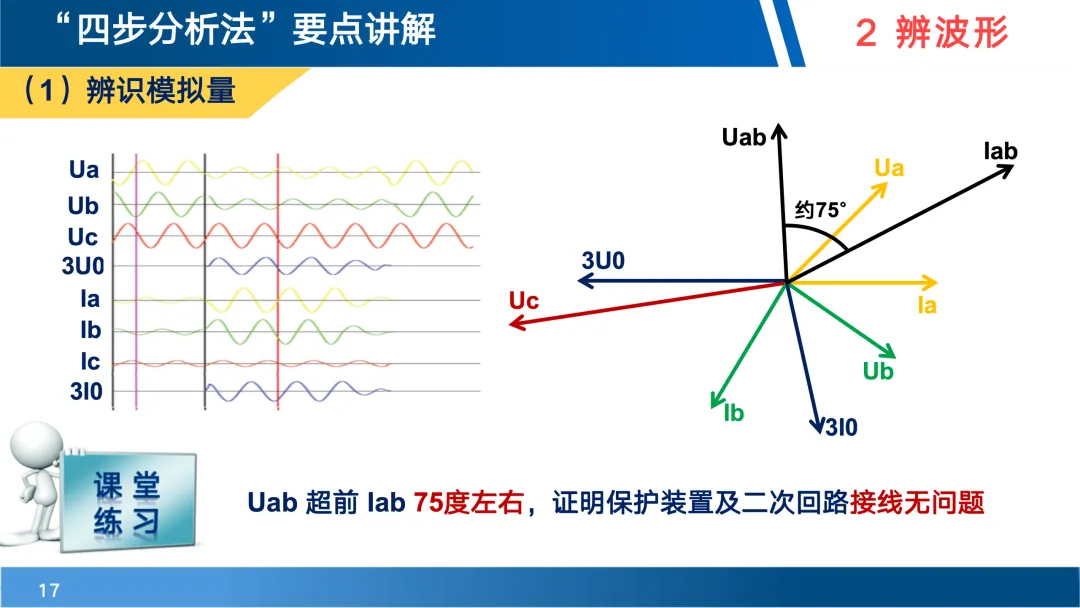

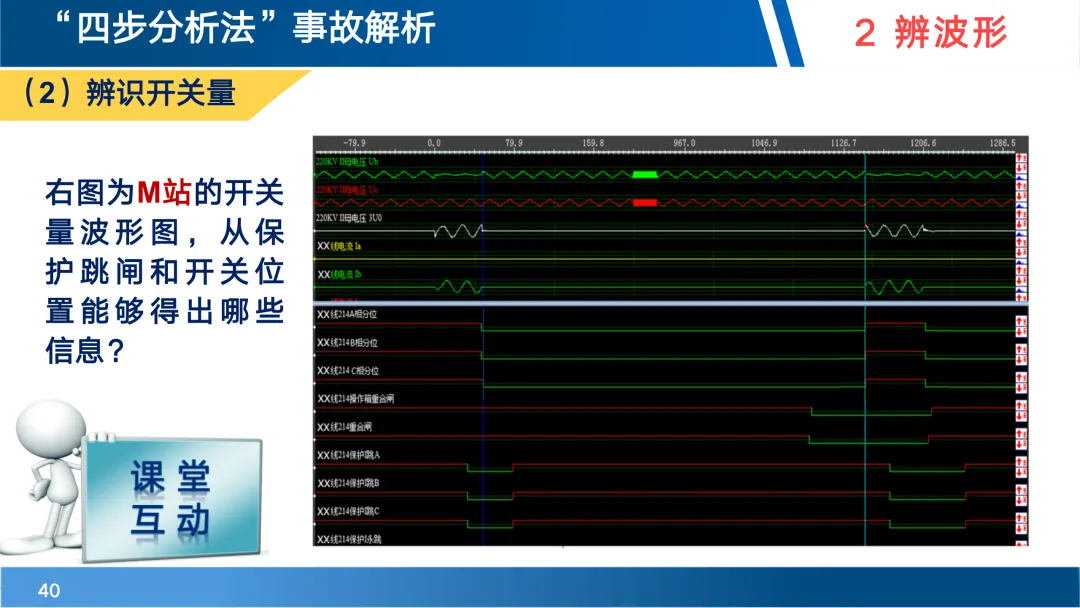

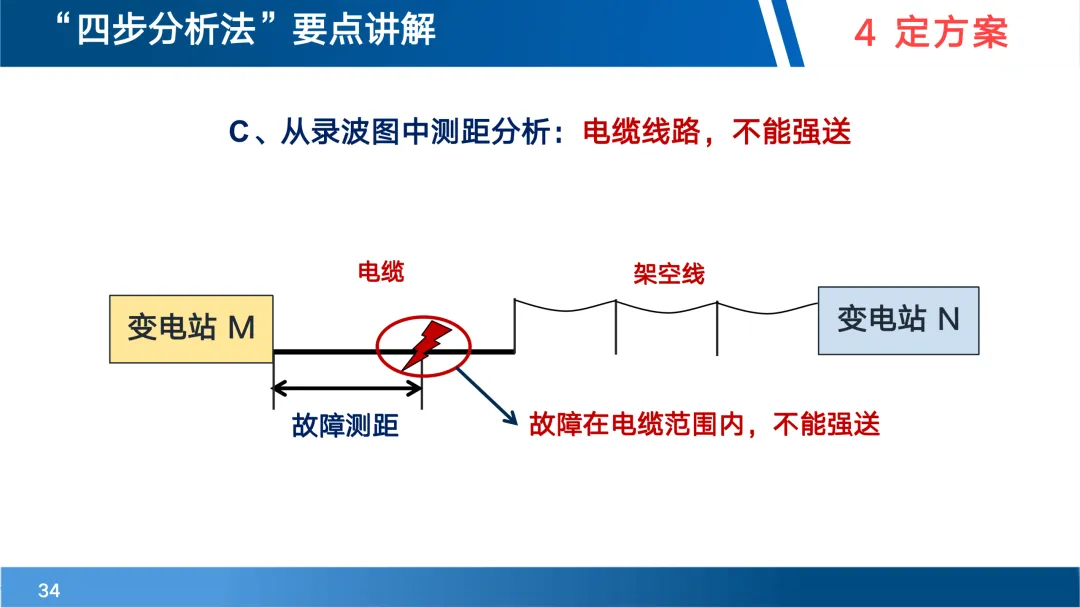

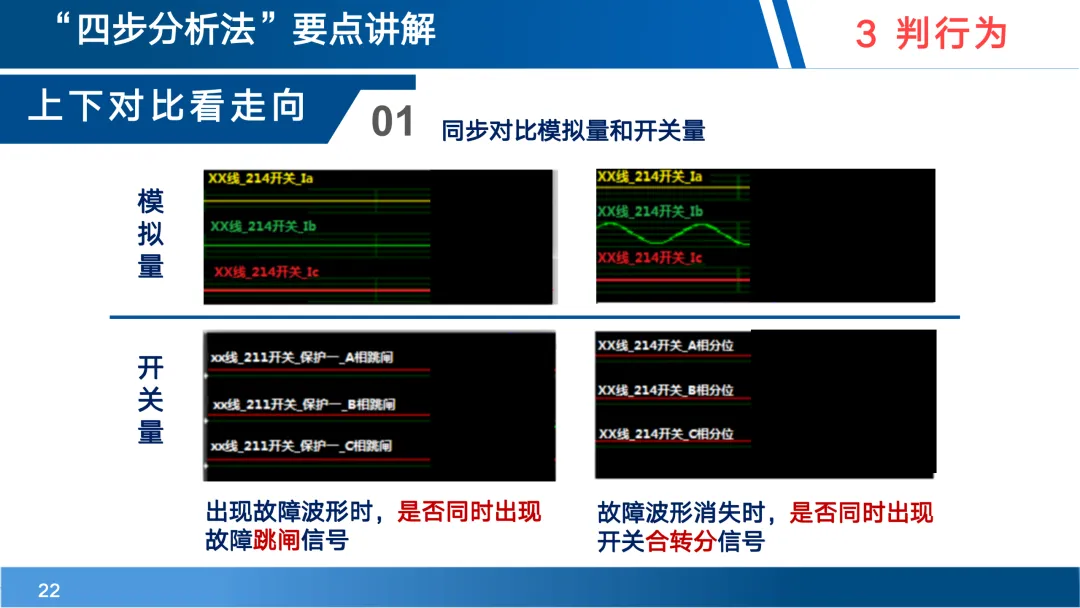

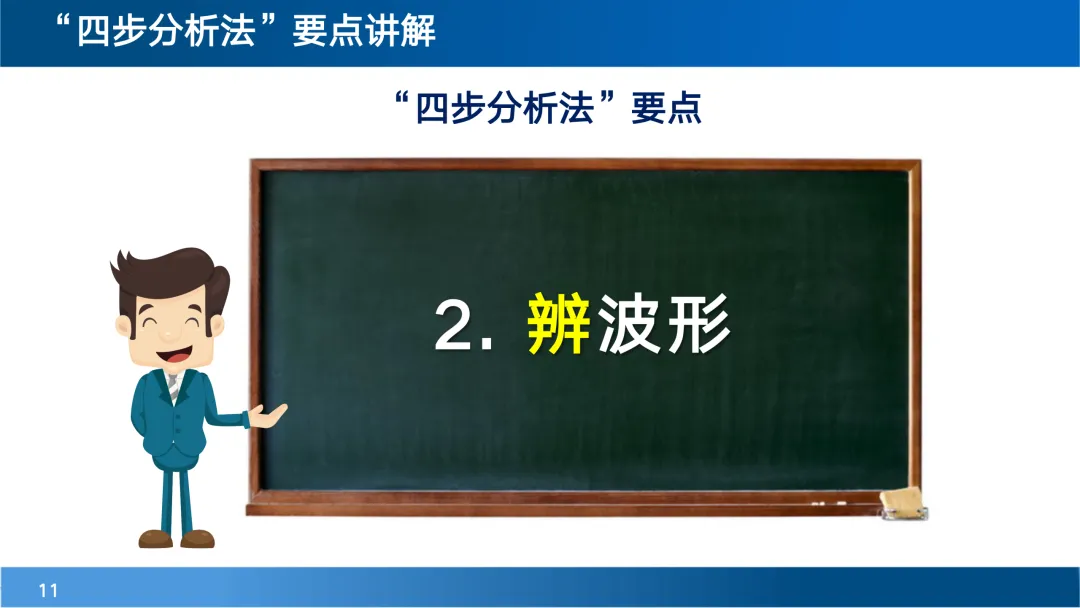

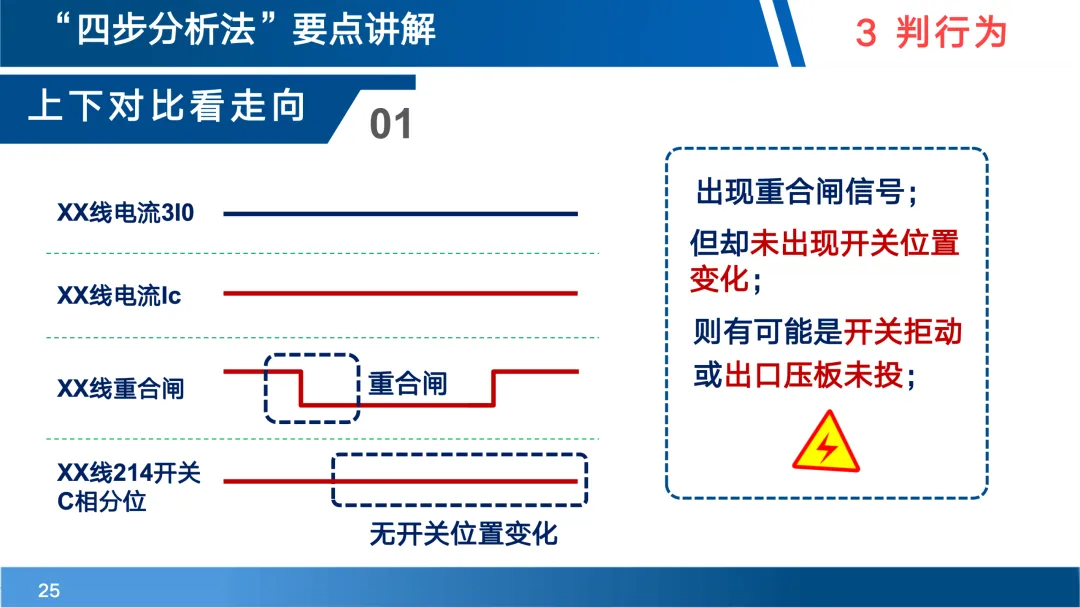

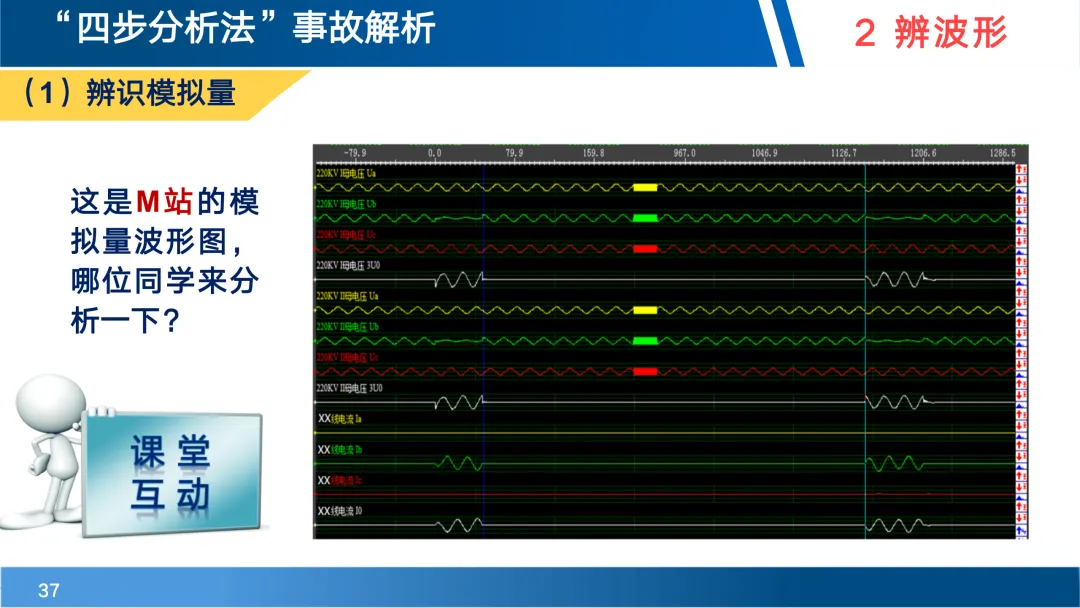

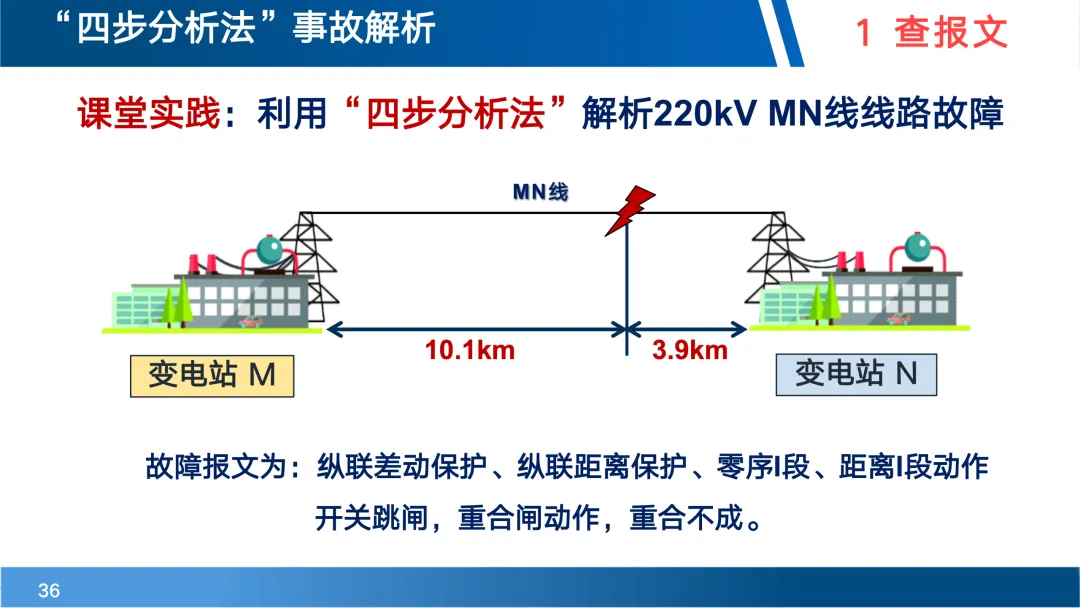

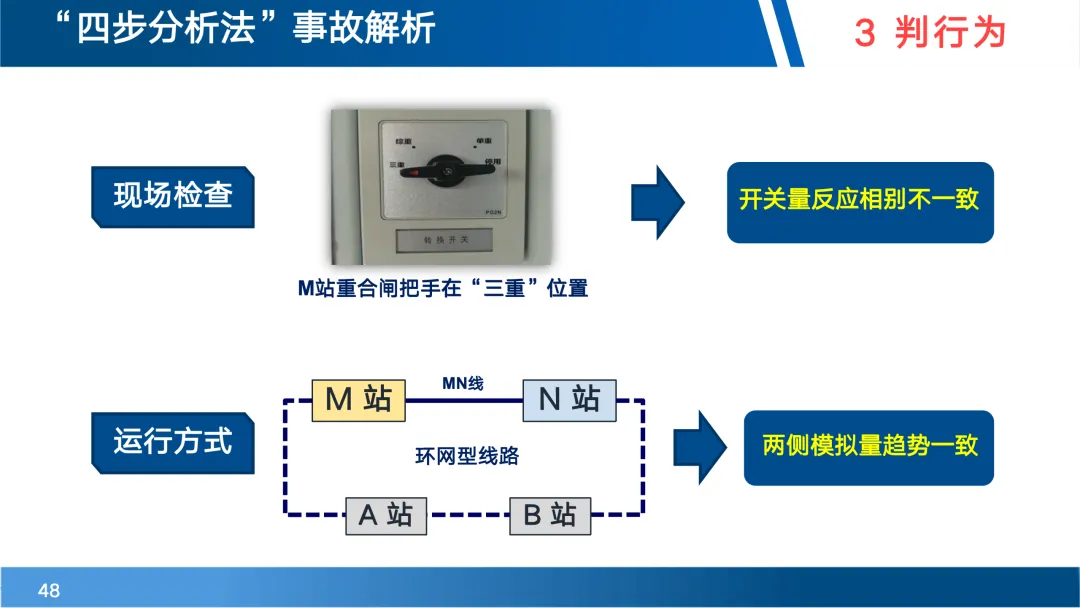

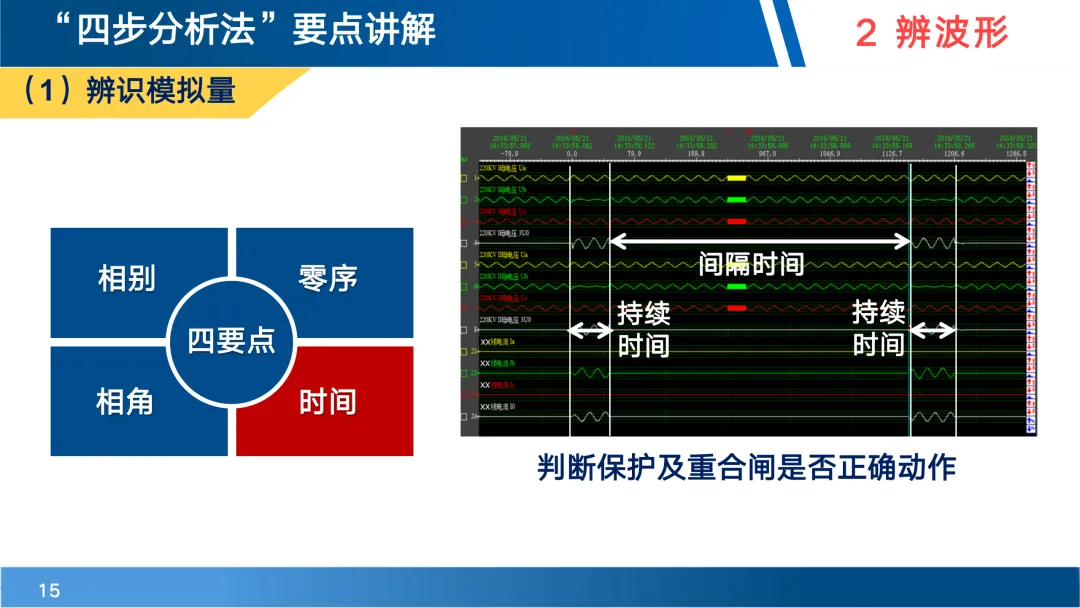

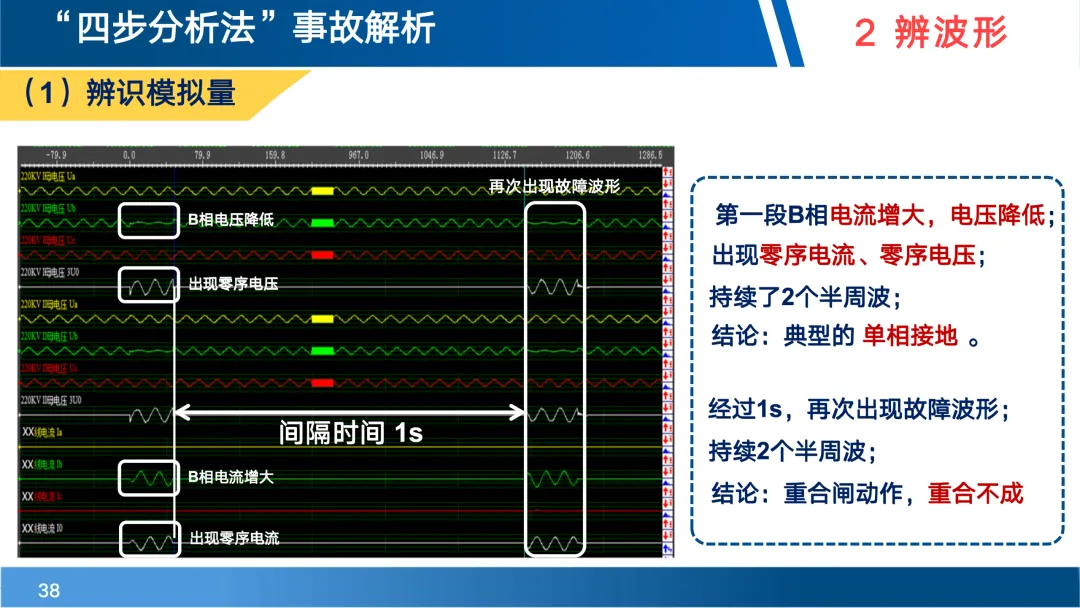

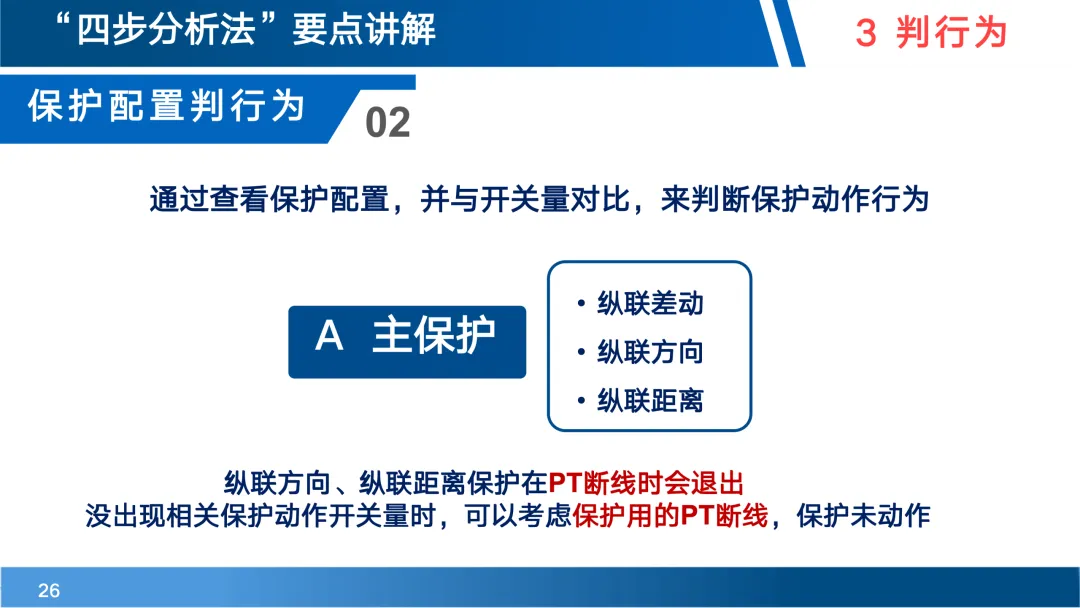

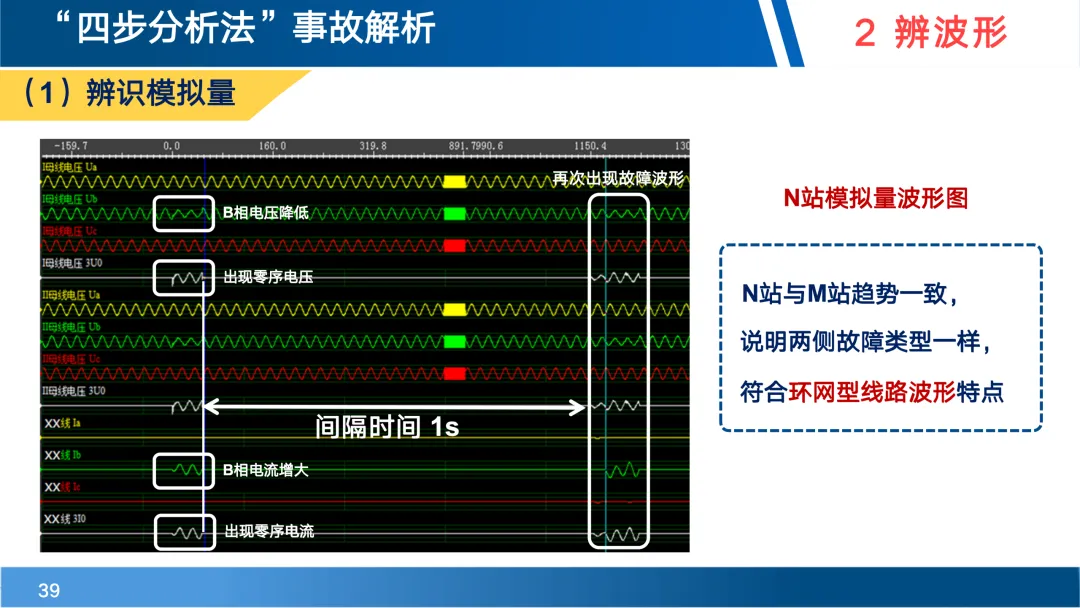

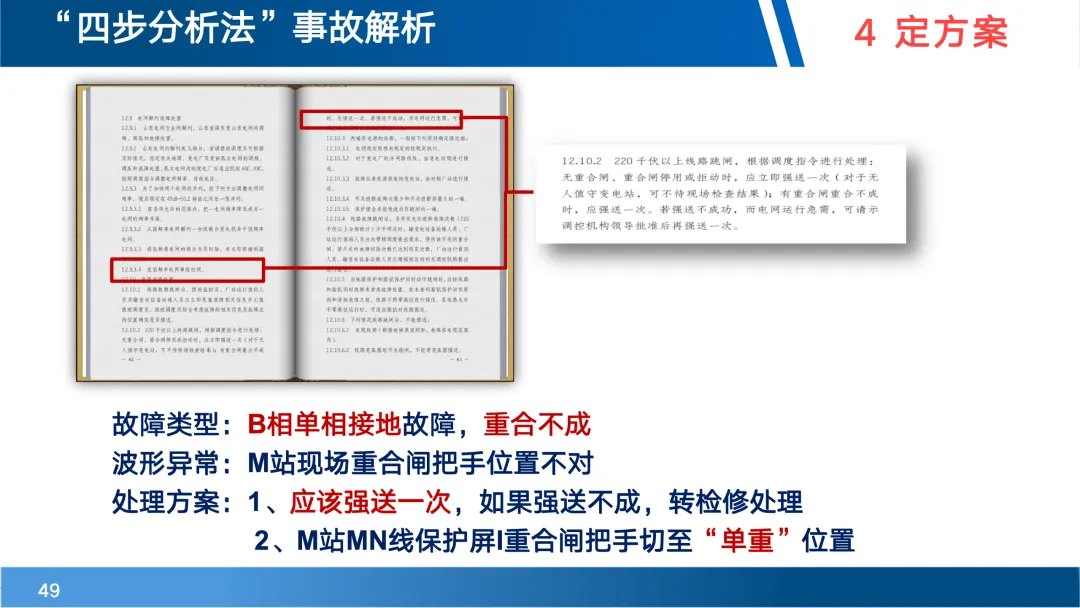

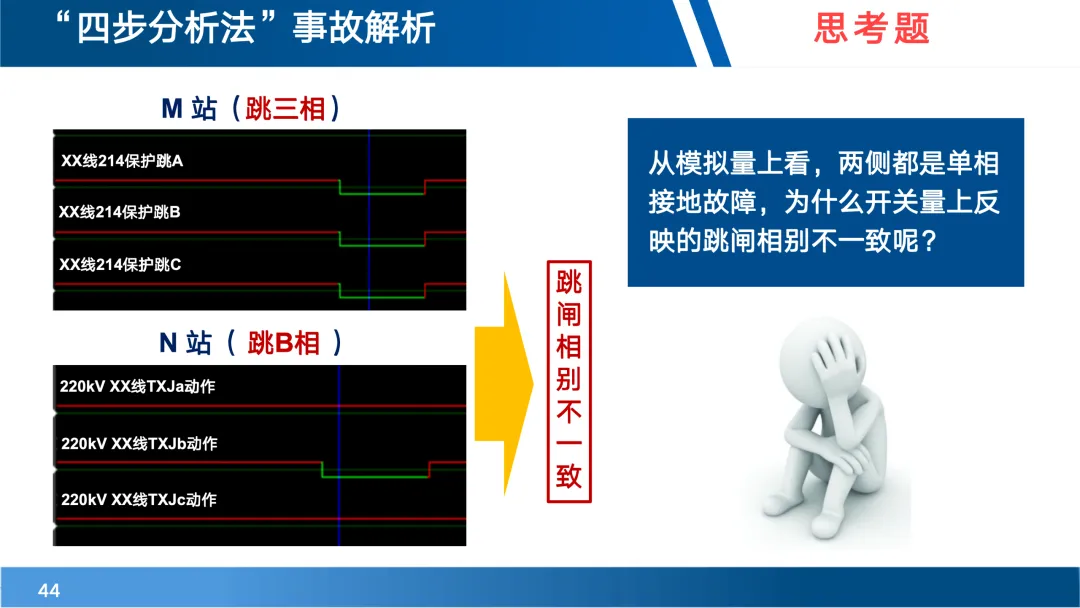

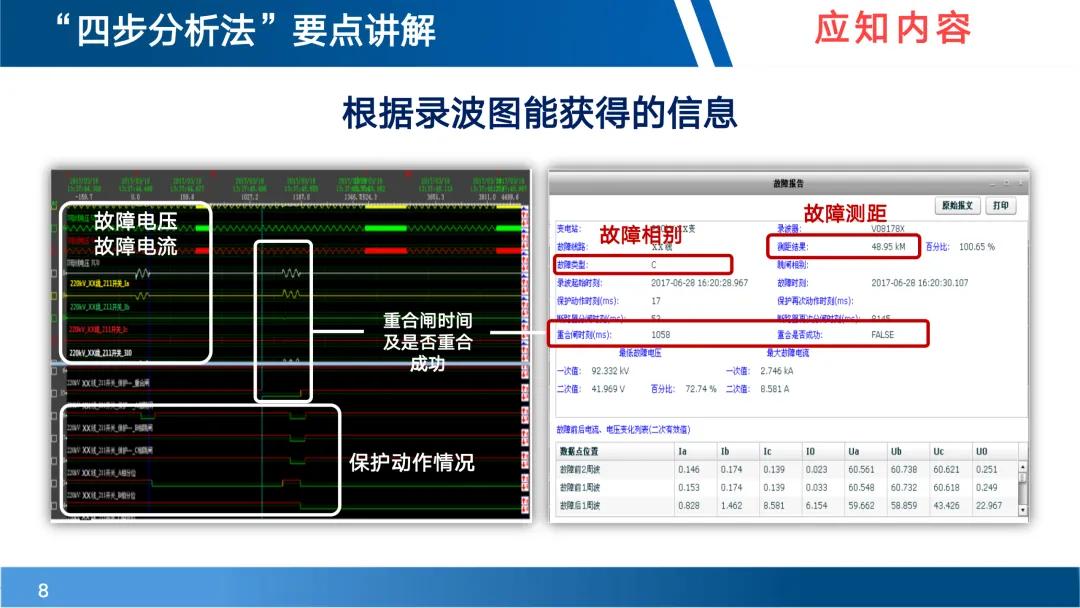

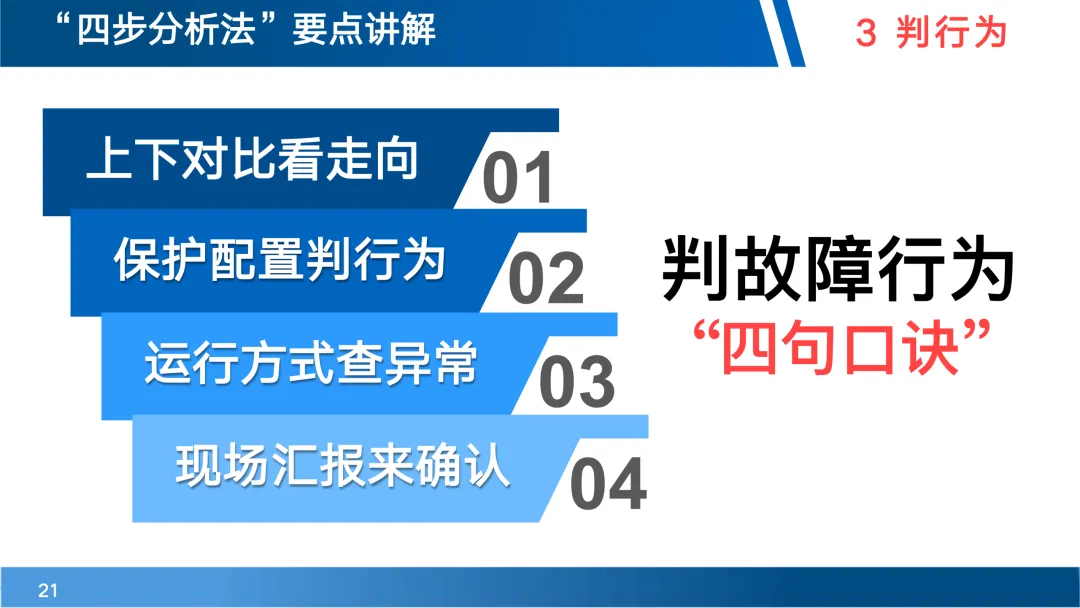

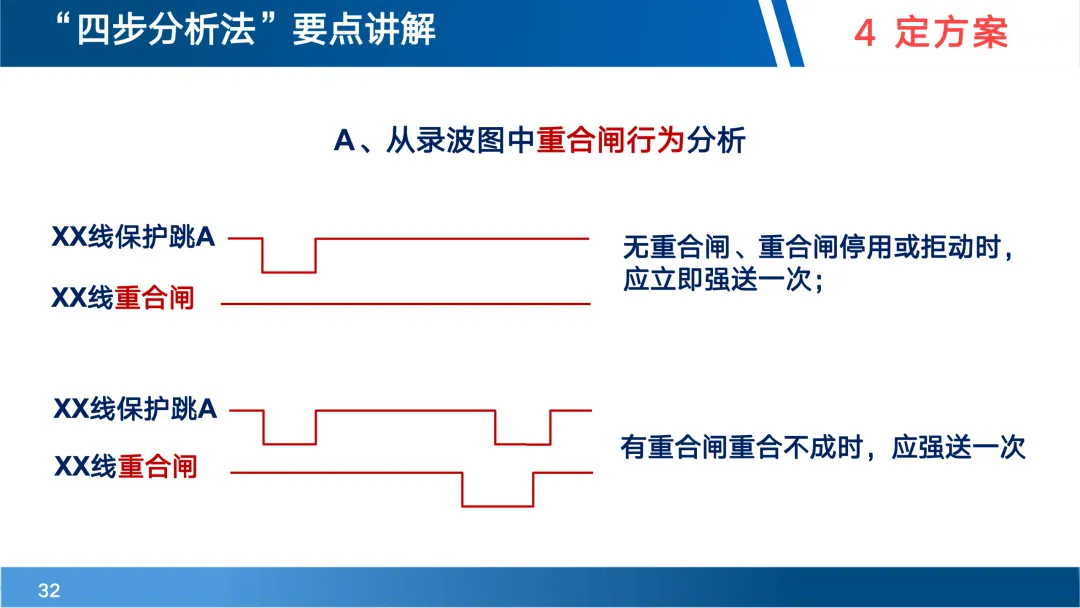

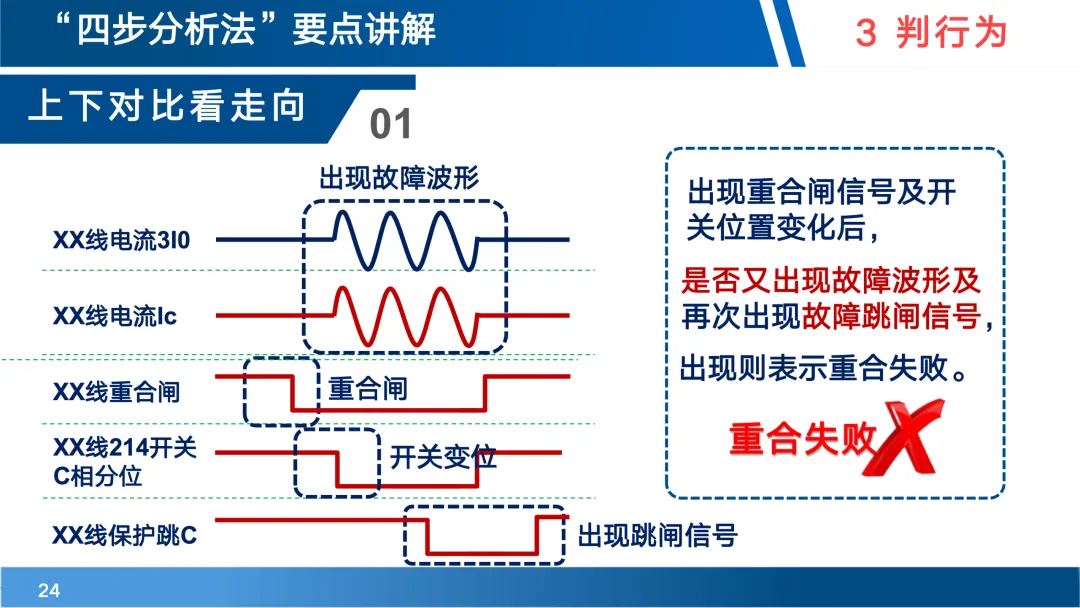

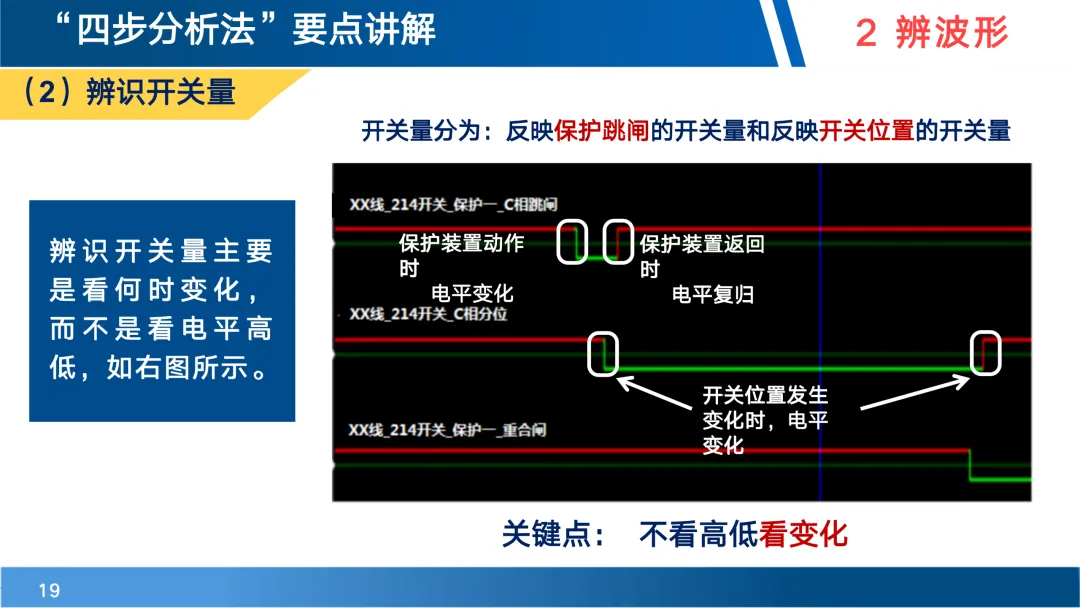

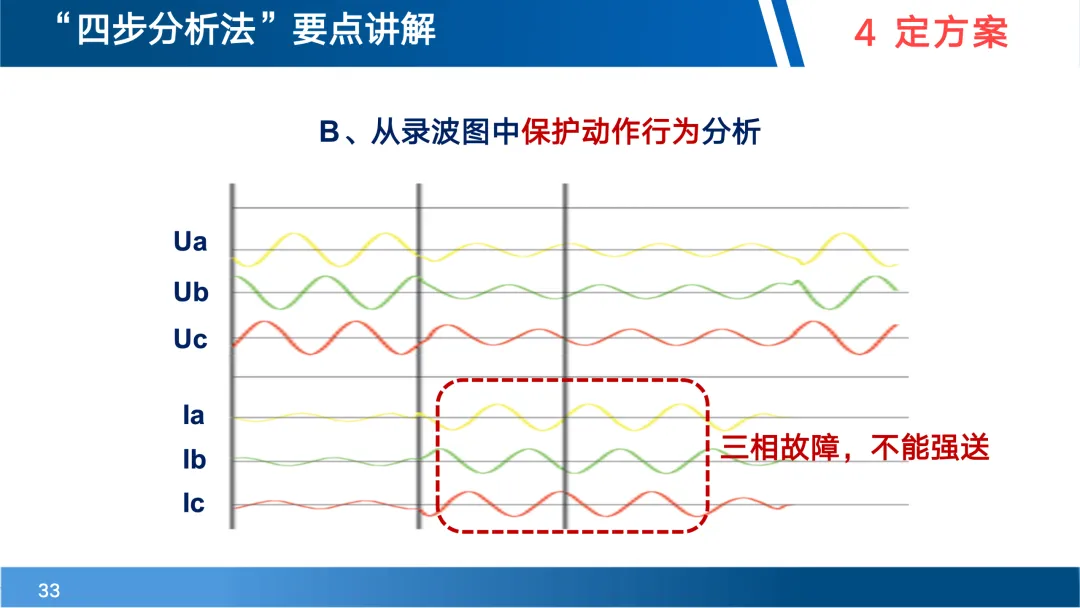

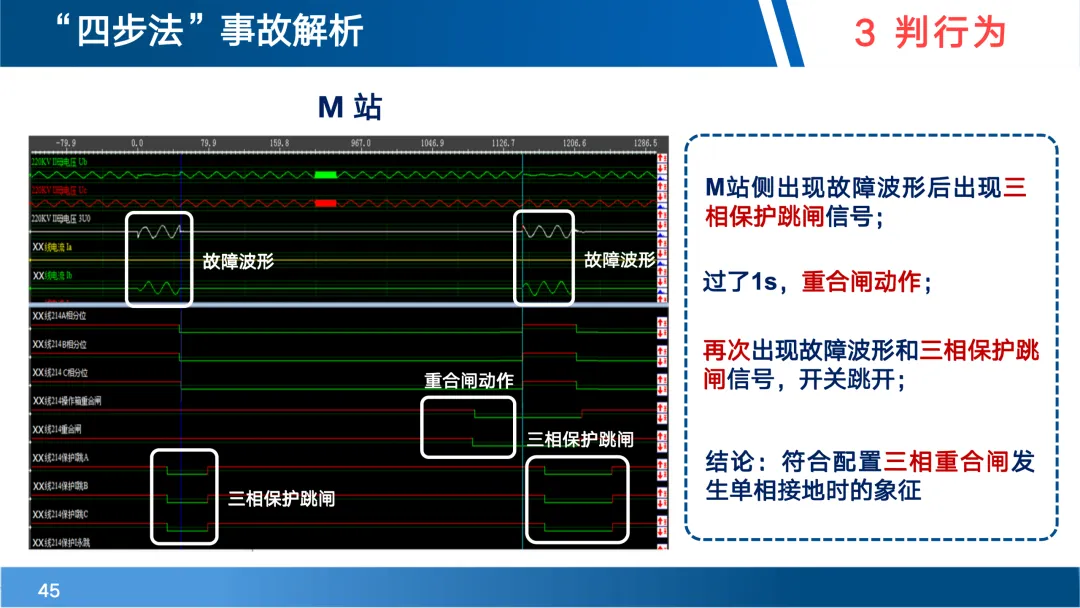

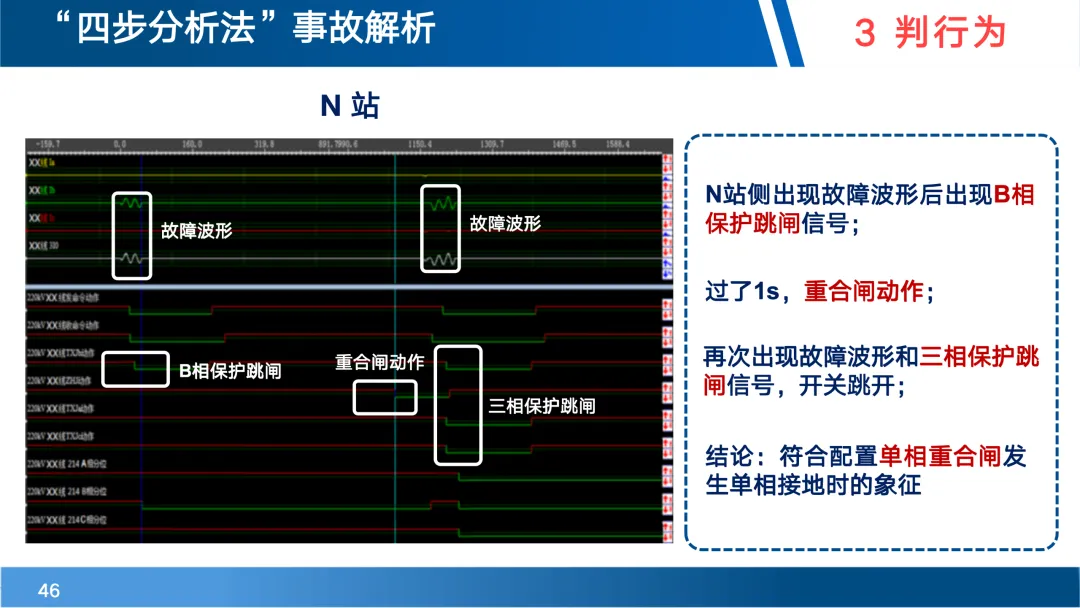

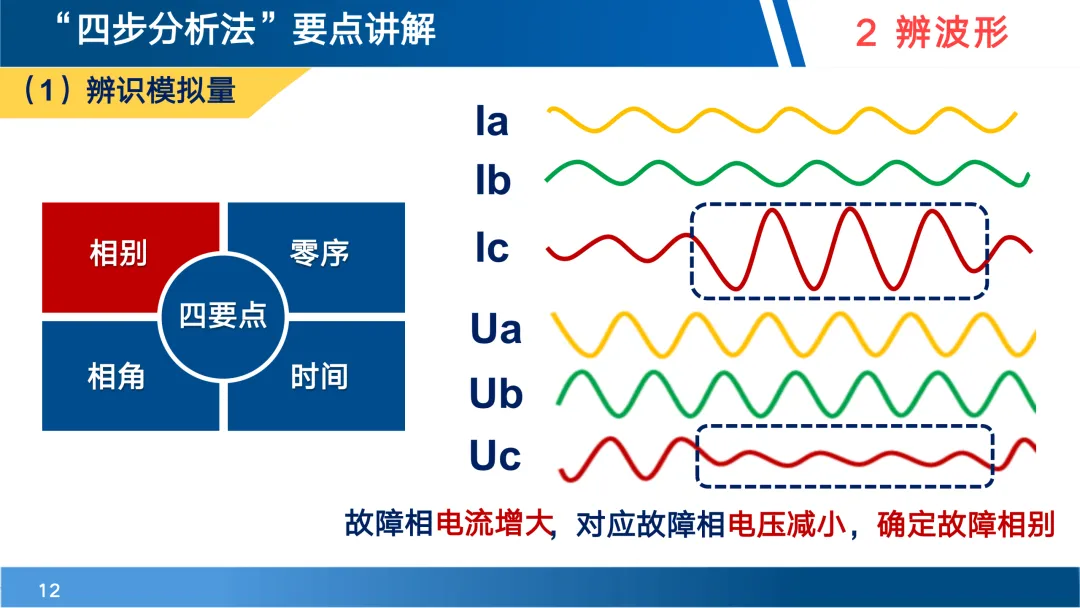

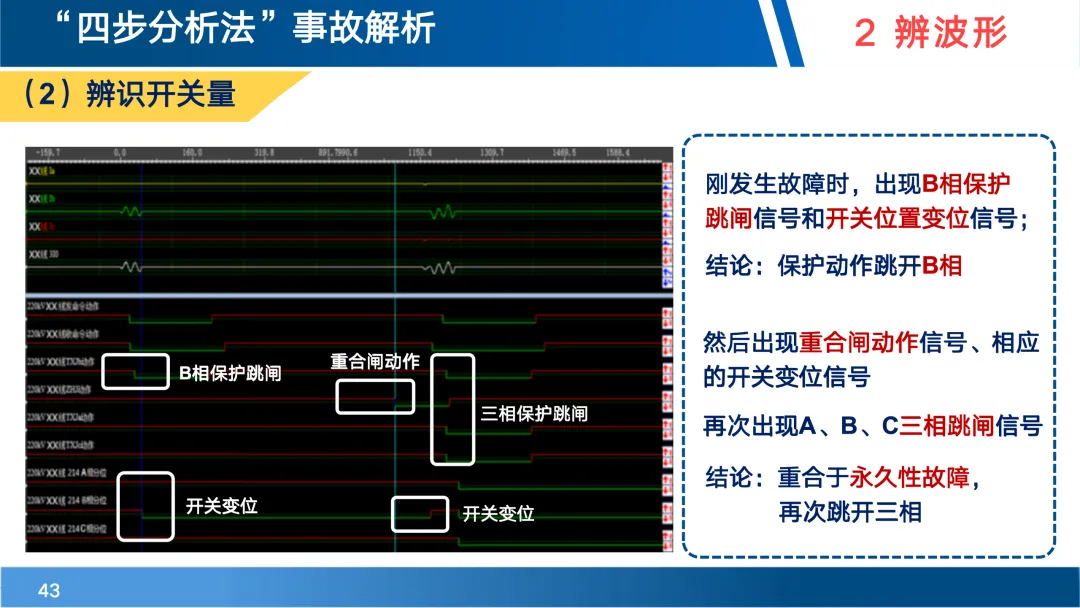

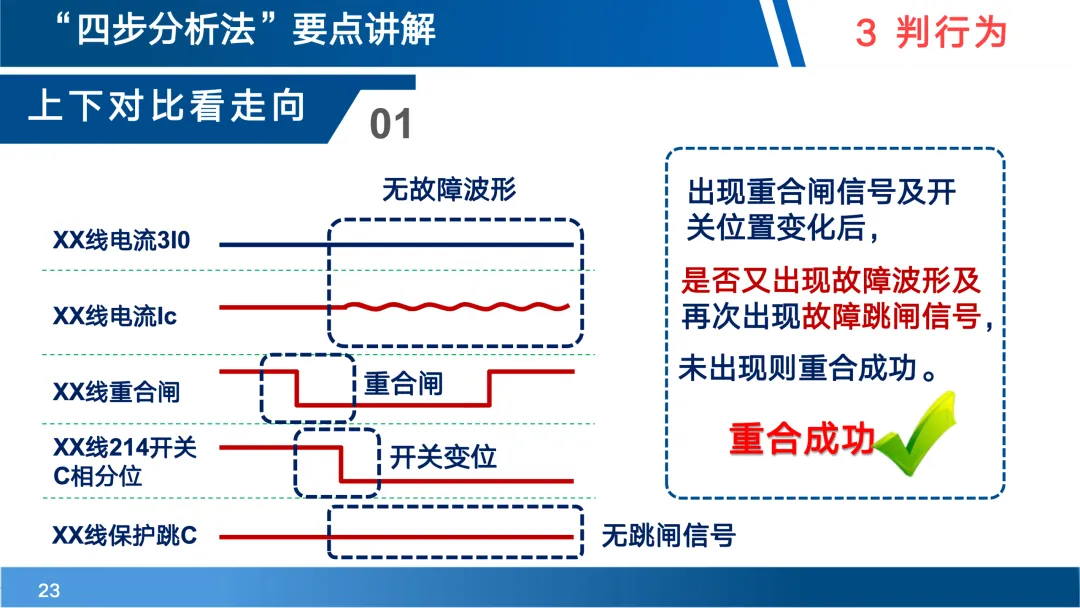

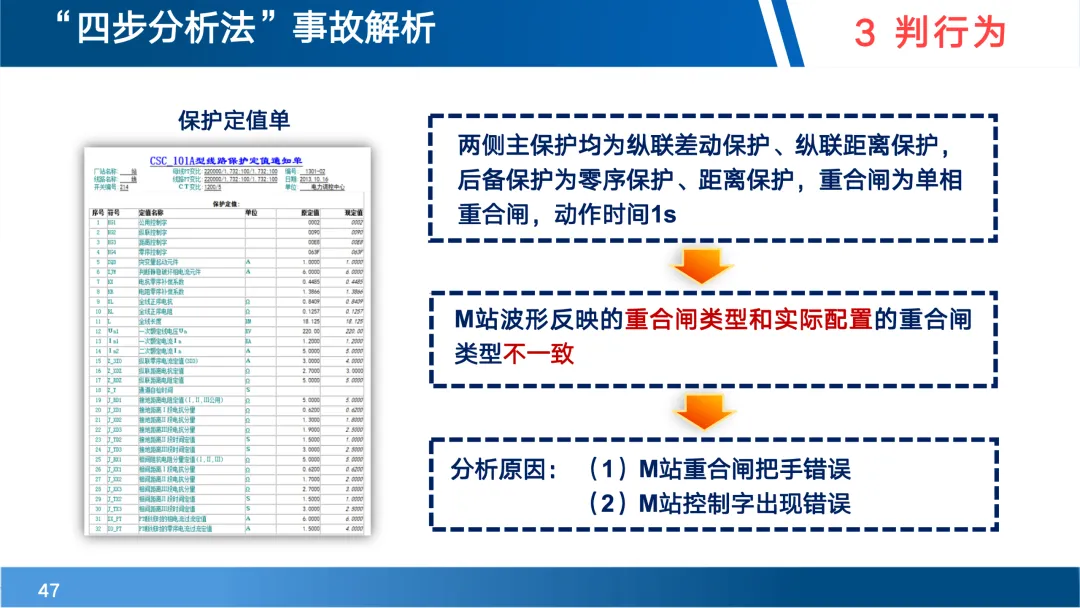

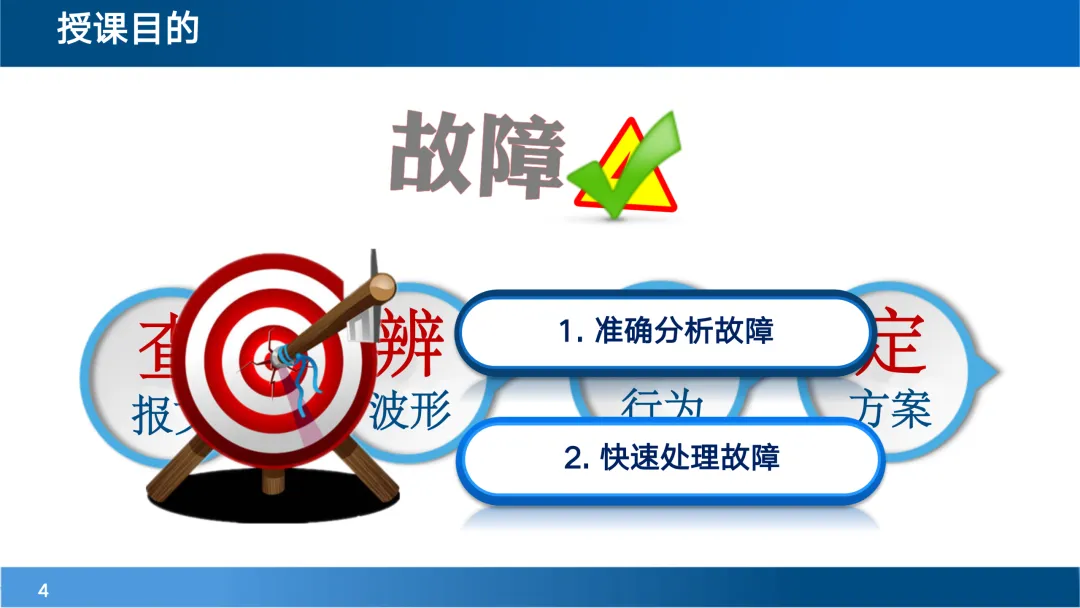

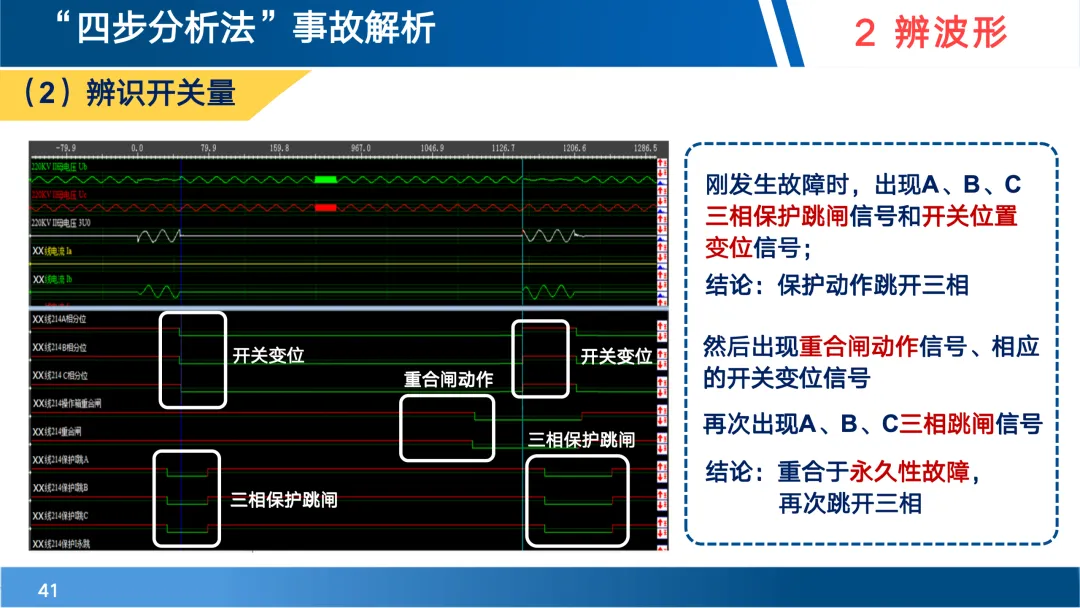

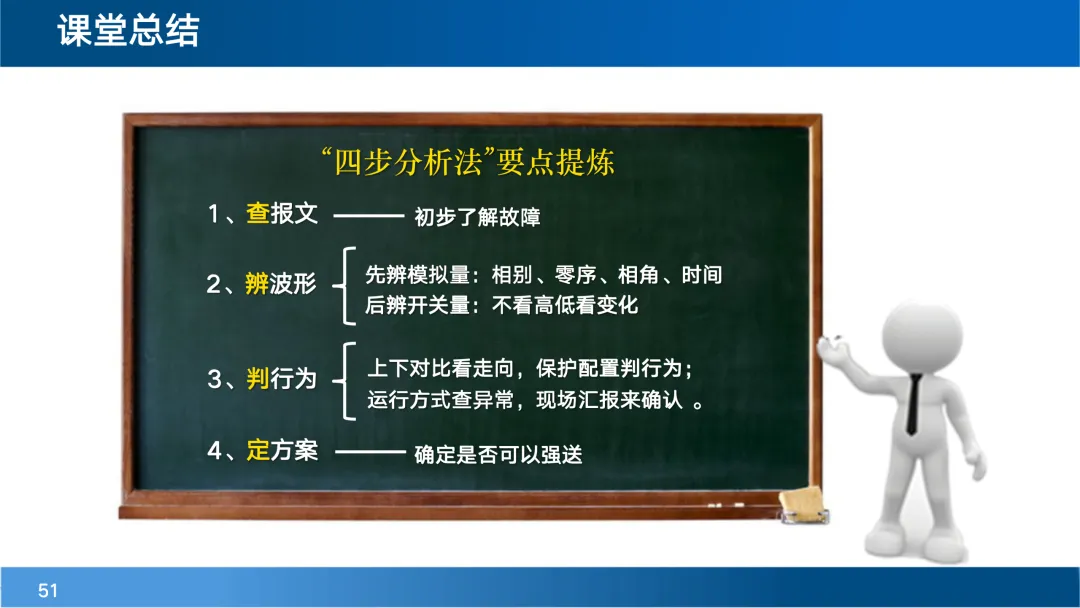

本文基于《故障录波“四步分析法”》技术资料，系统梳理了一套简明实用的分析方法——查报文、辨波形、判行为、定方案。通过真实220kV线路故障案例，带你一步步读懂录波图，掌握从故障识别到处置方案的全流程技巧。

> 无论你是继保人员、运行值班员，还是刚入行的电网新人，这篇“四步法”都将成为你手中最实用的工具卡。

资料已全部展示～
下载PPT文件可扫描二维码前往资料库下载
