210页机械传动知识培训PPT,绝对干货!

  • 2026-04-06 12:13:18
210页机械传动知识培训PPT,绝对干货!
点击上方蓝色字关注我们学UG~

吾思助理老师1分钟前

学习UG可以添加老师微信 ug5406 备注123 领取UG学习资料和加微信群学习哦！

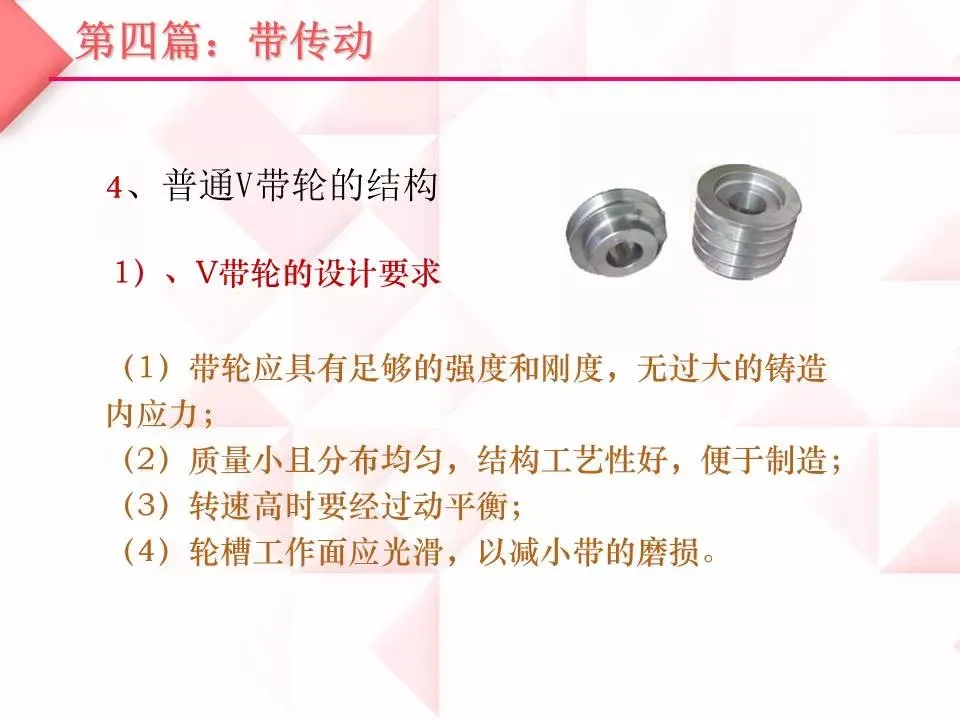

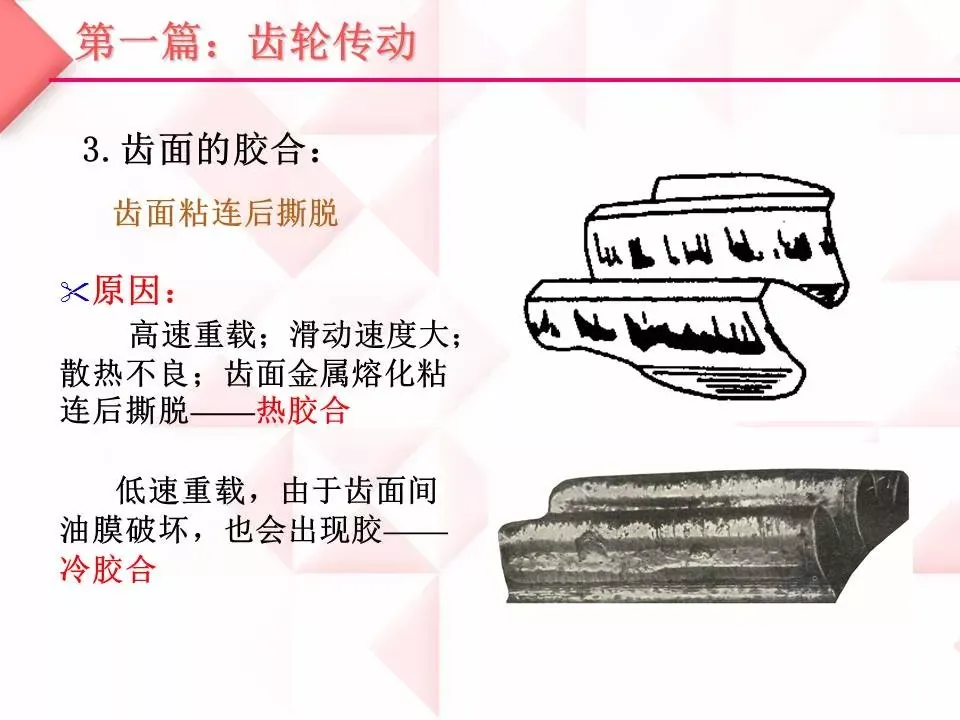

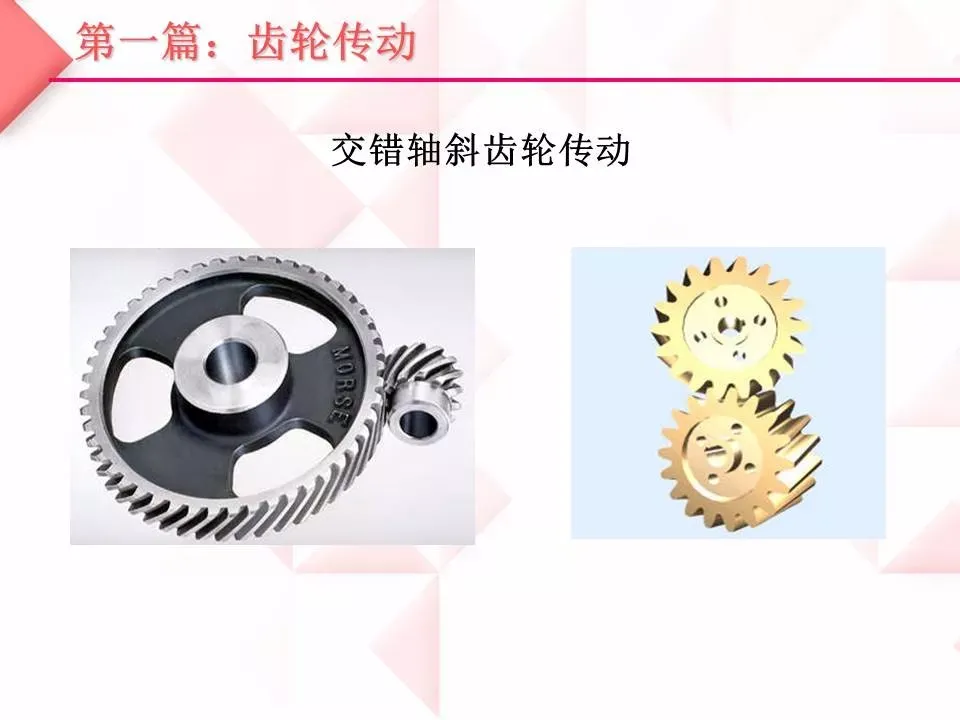

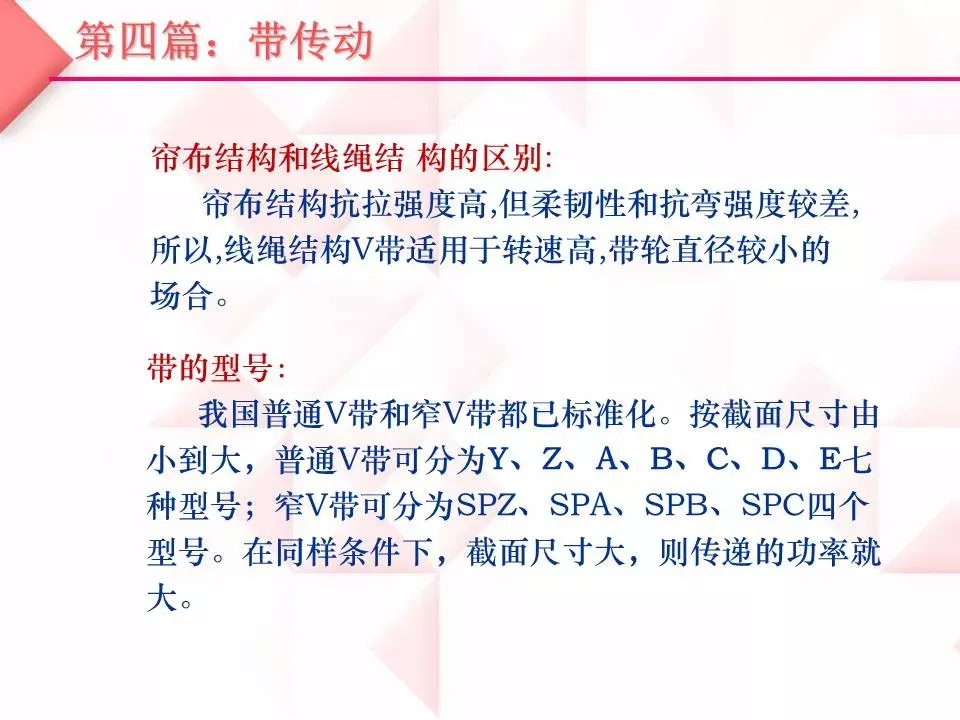

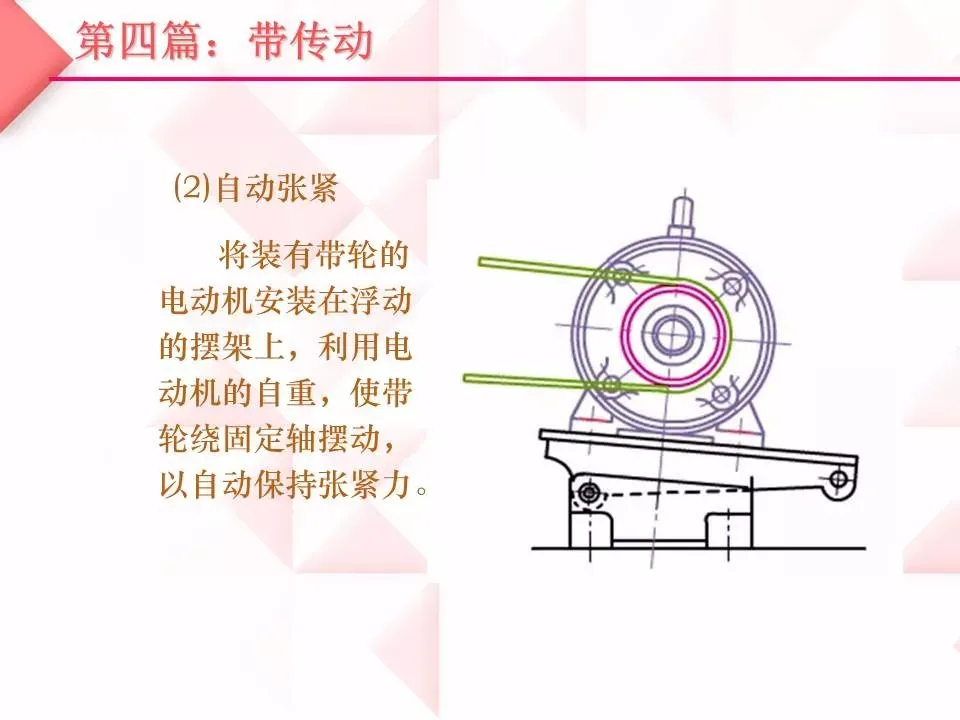

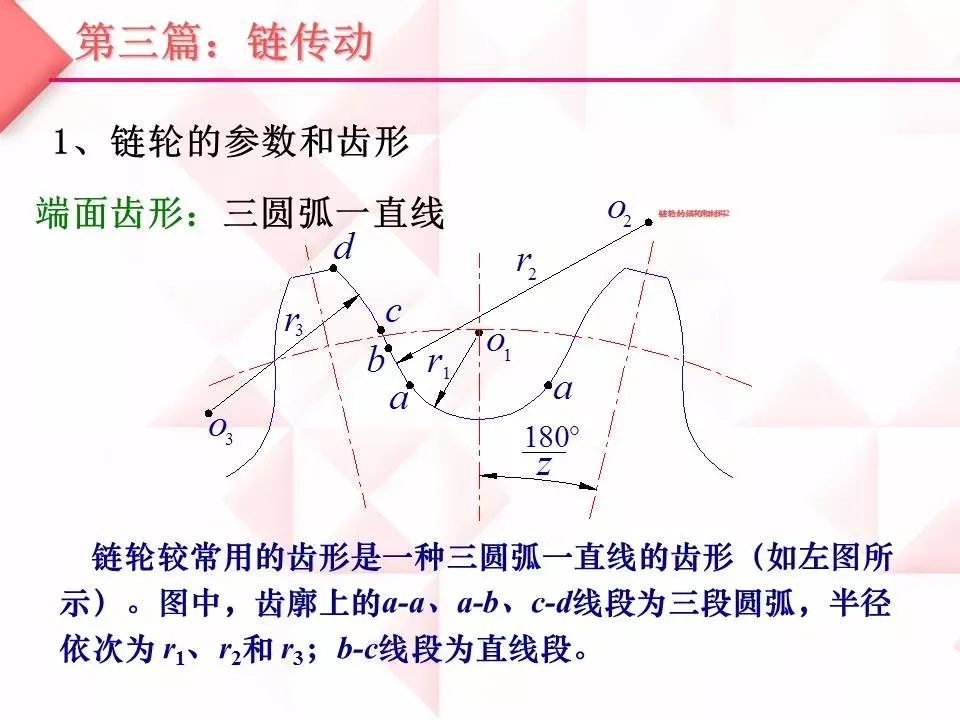

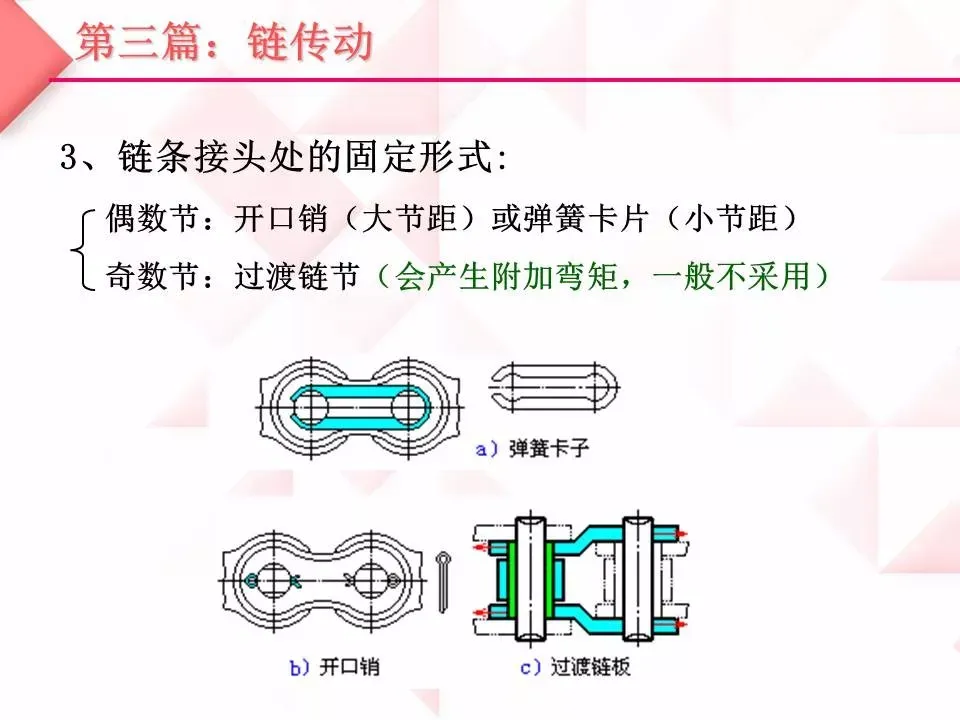

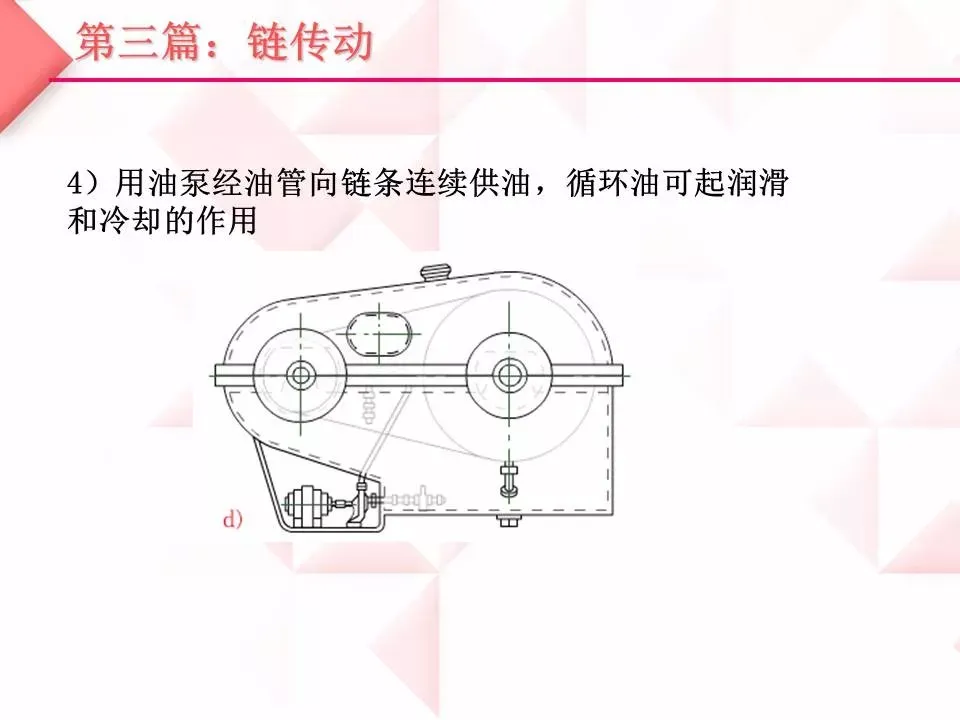

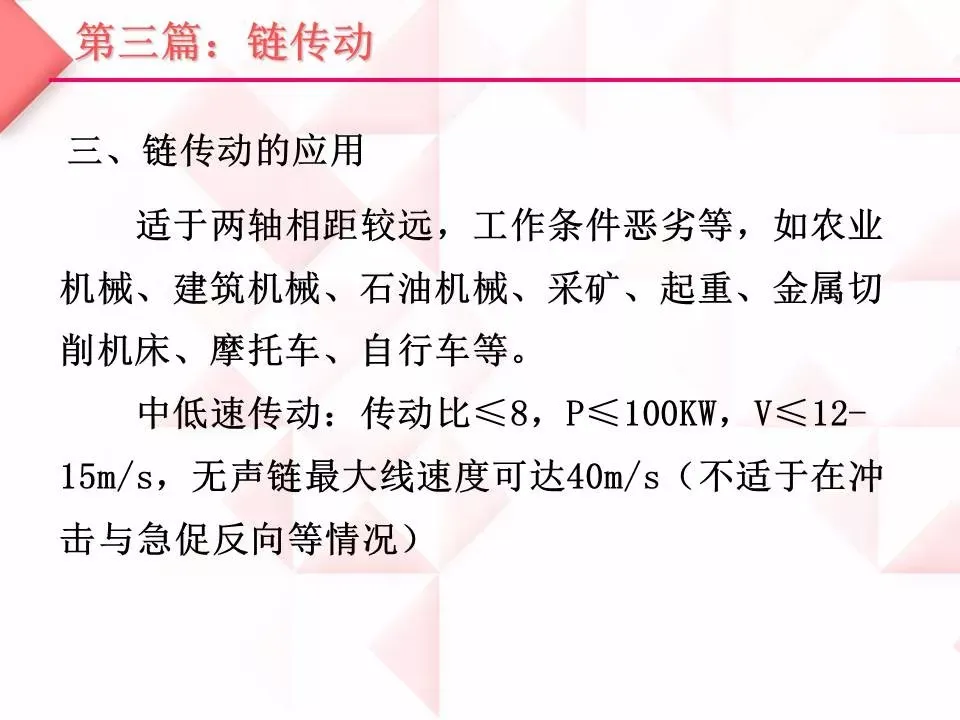

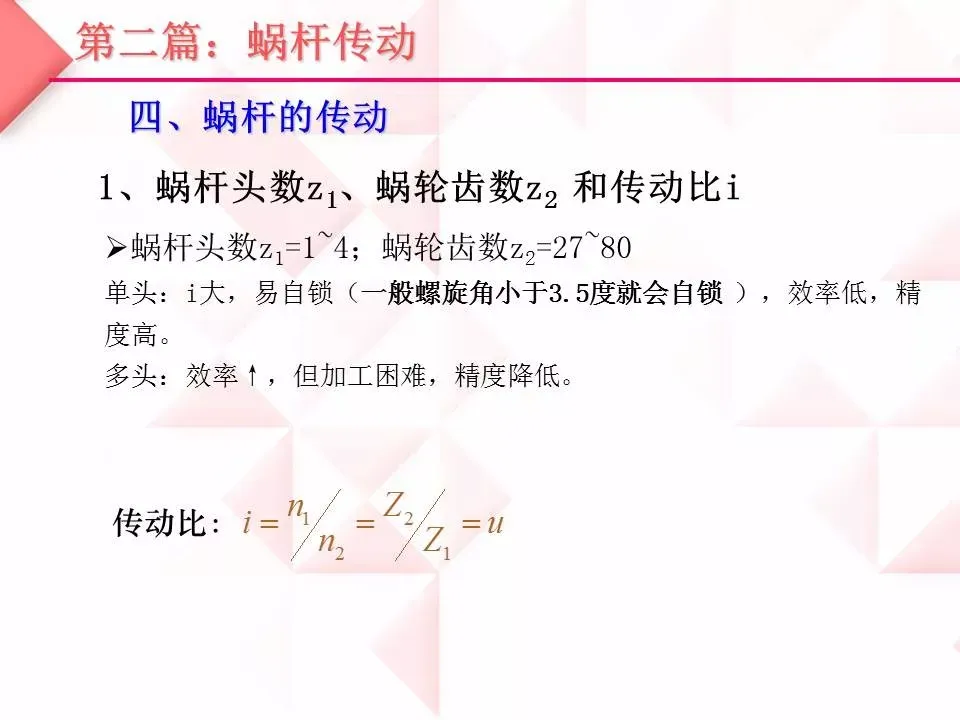

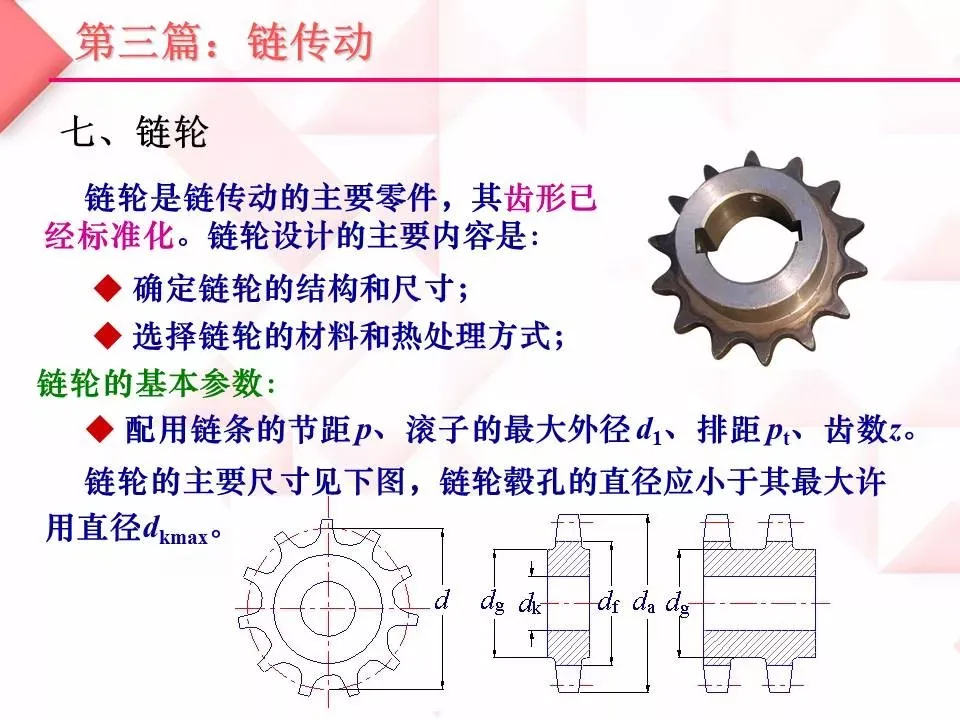

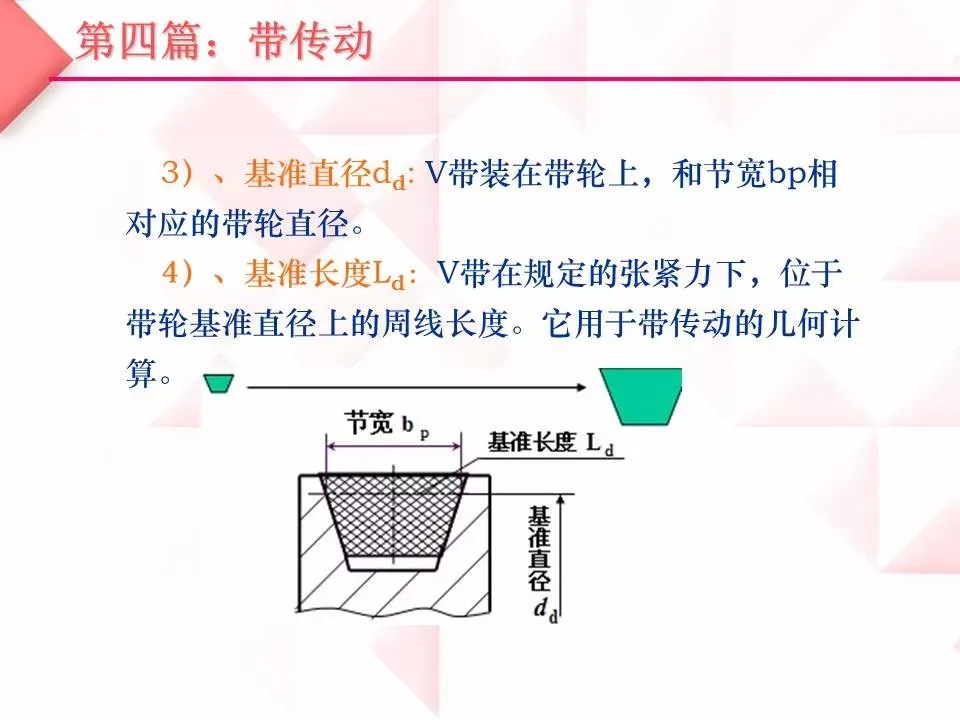

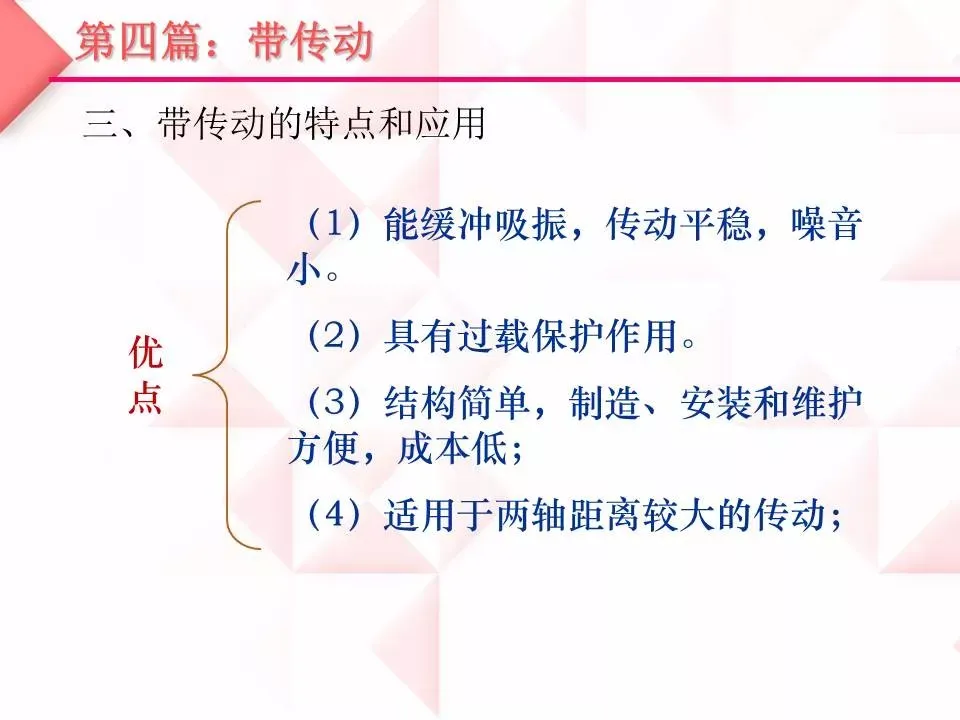

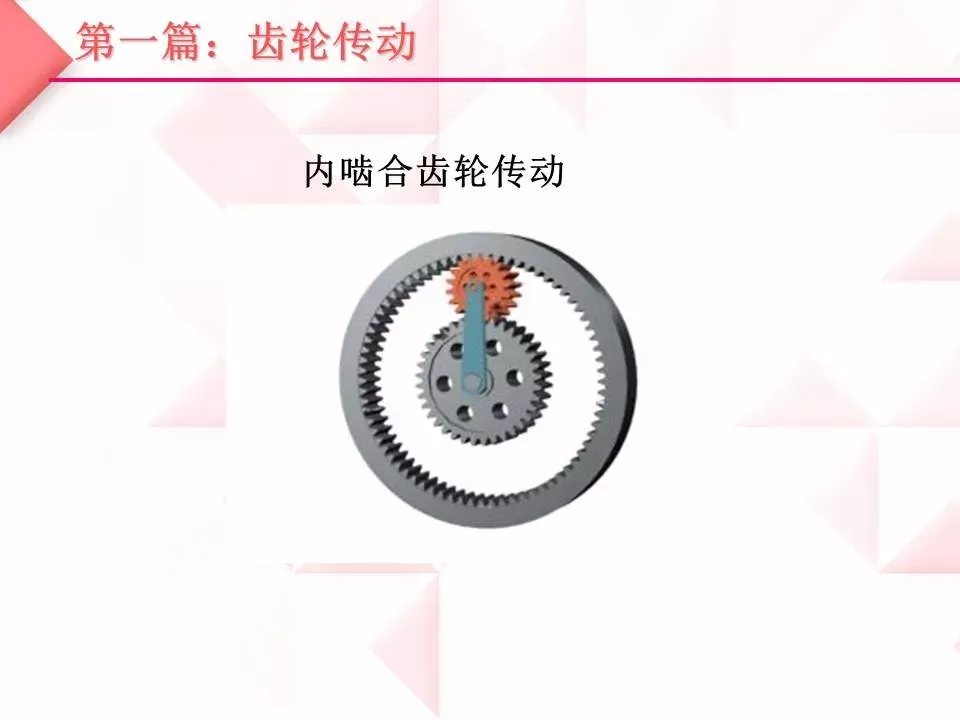

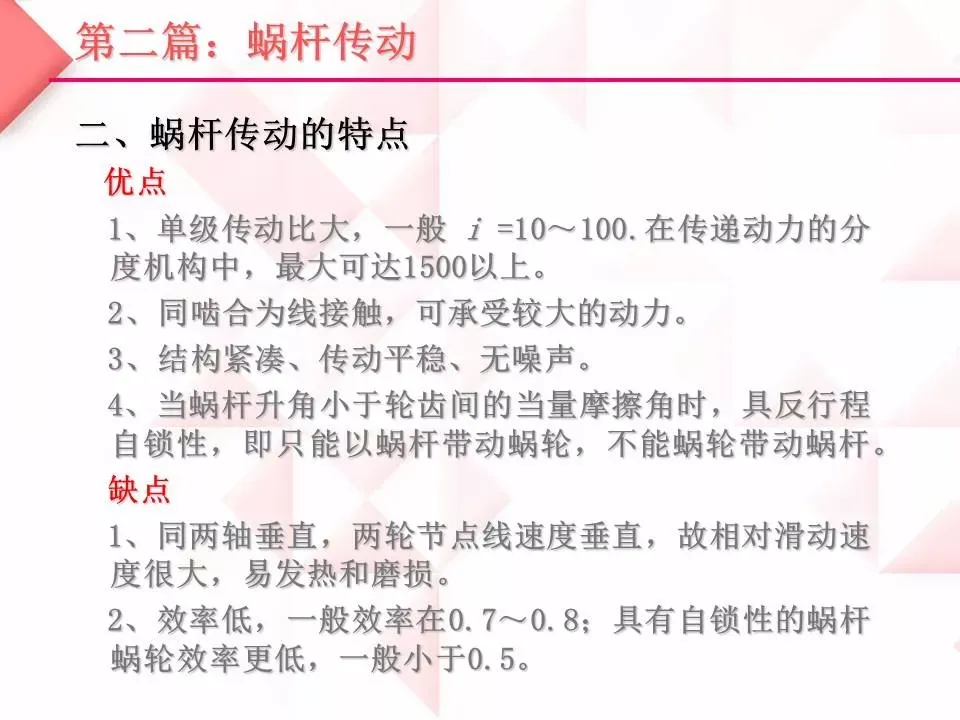

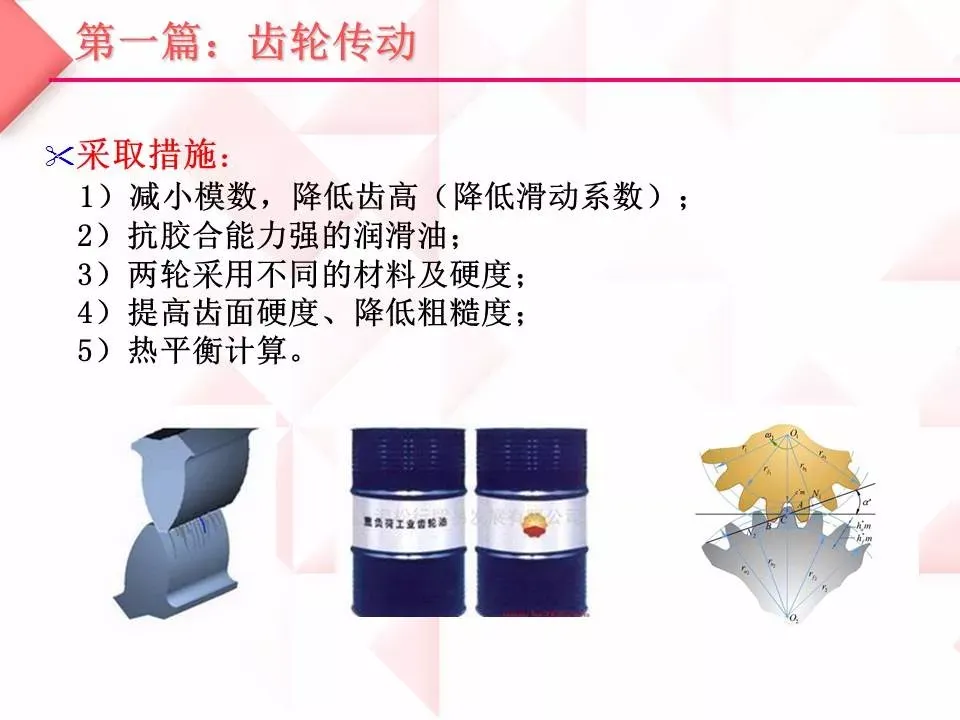

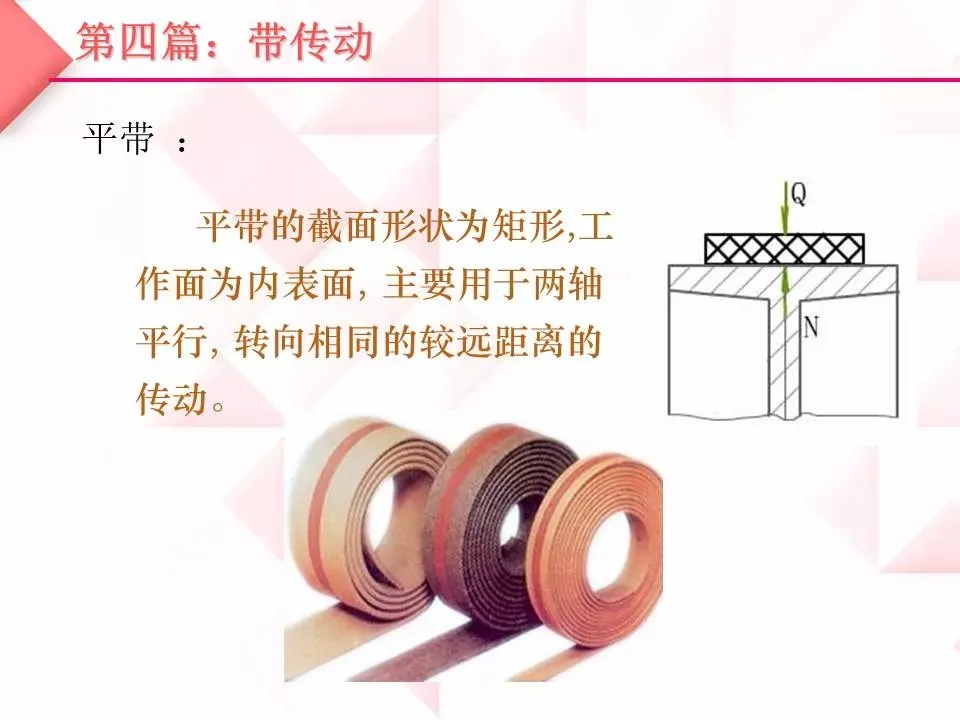

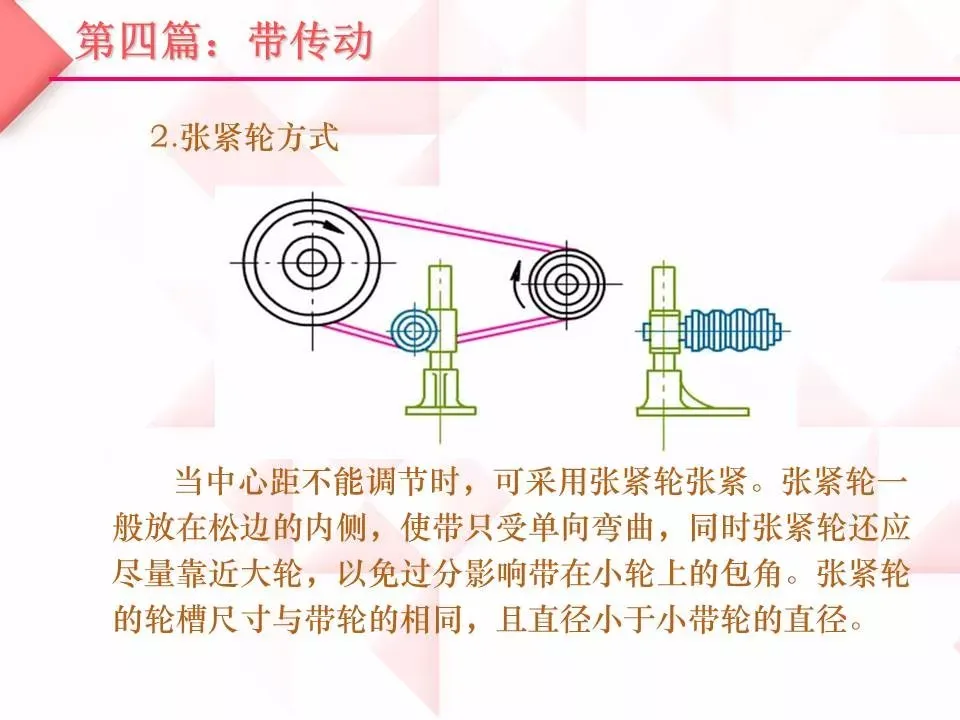

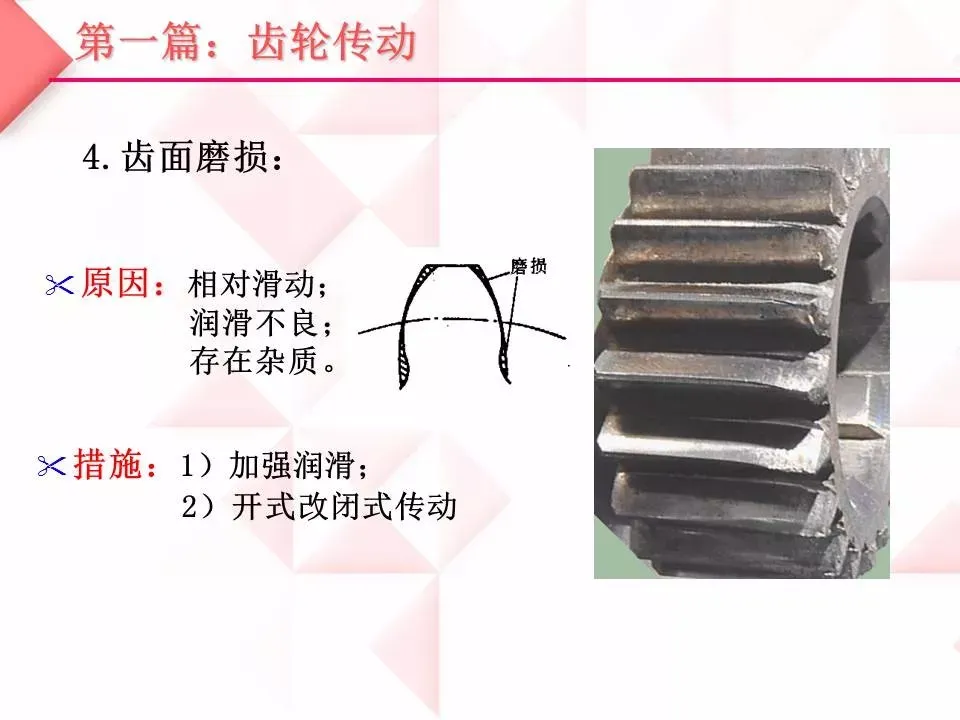

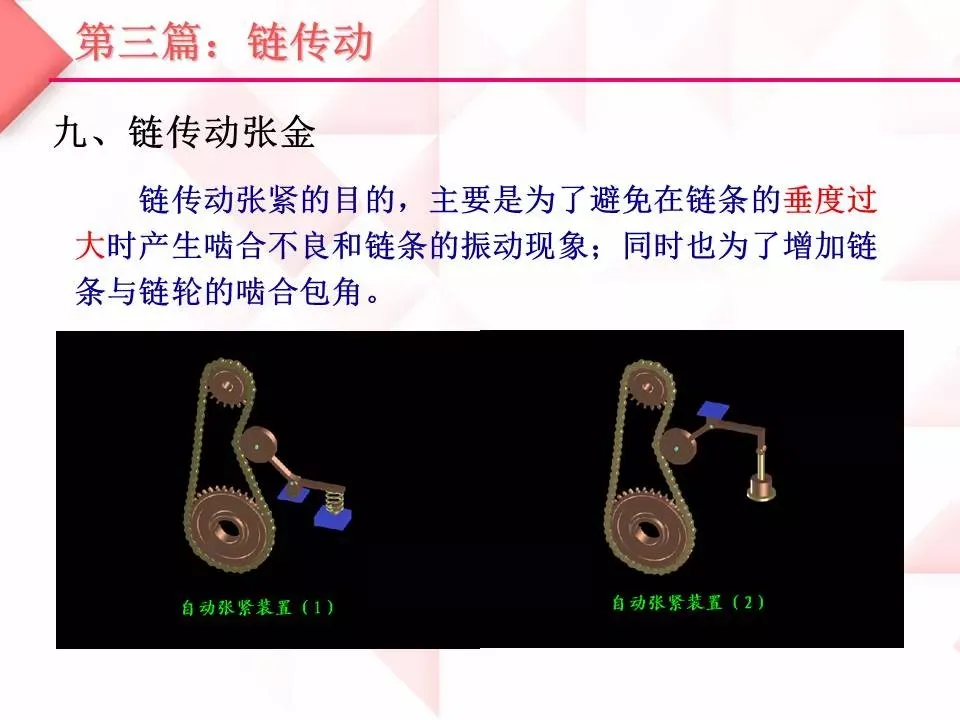

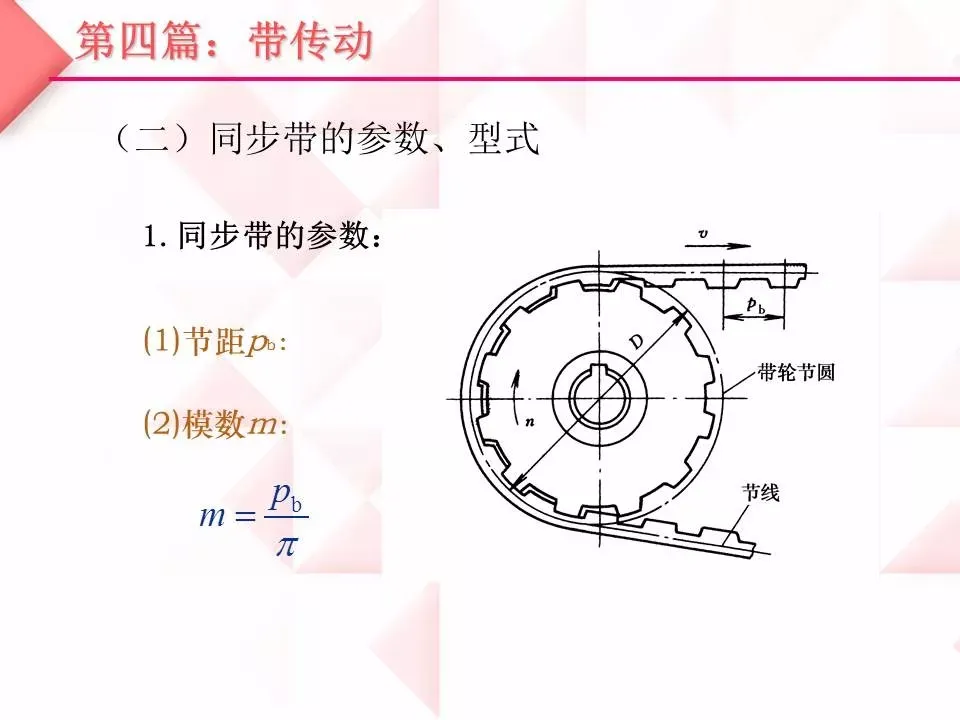

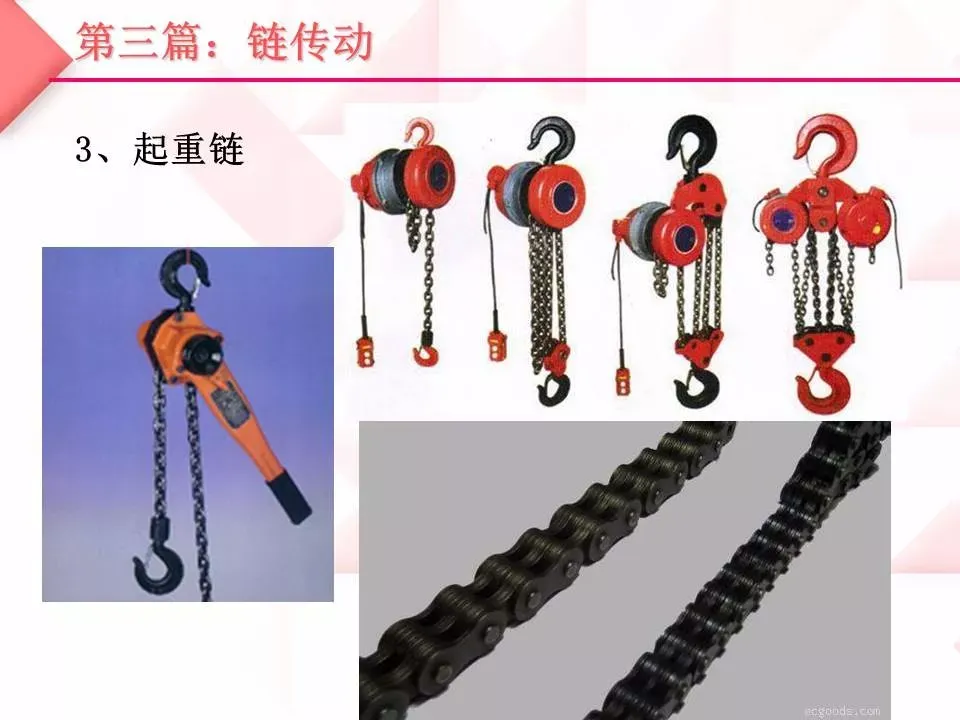

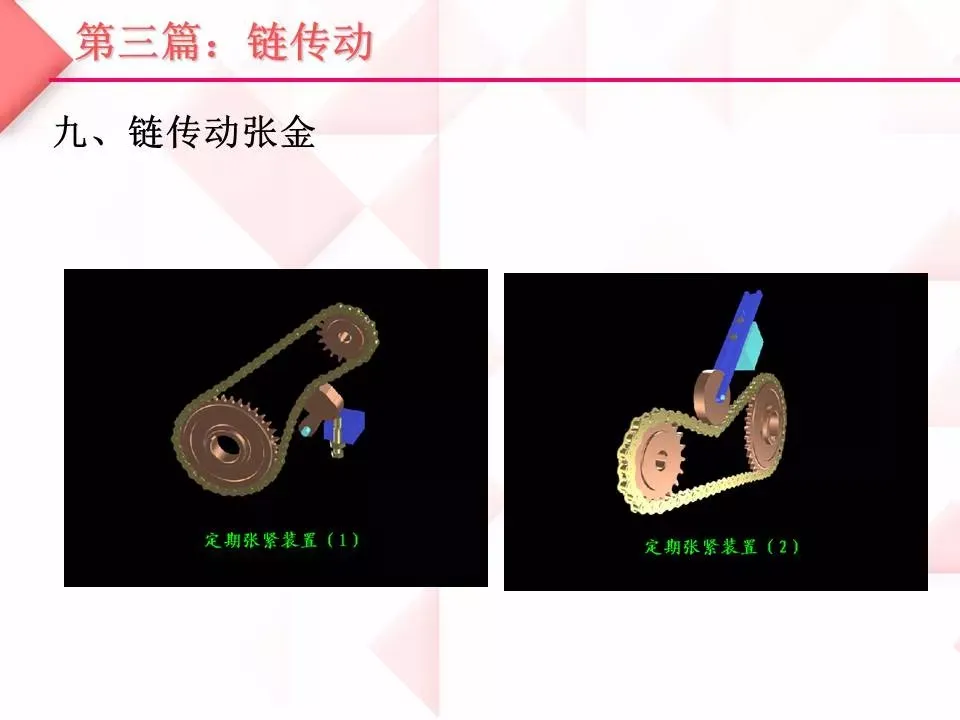

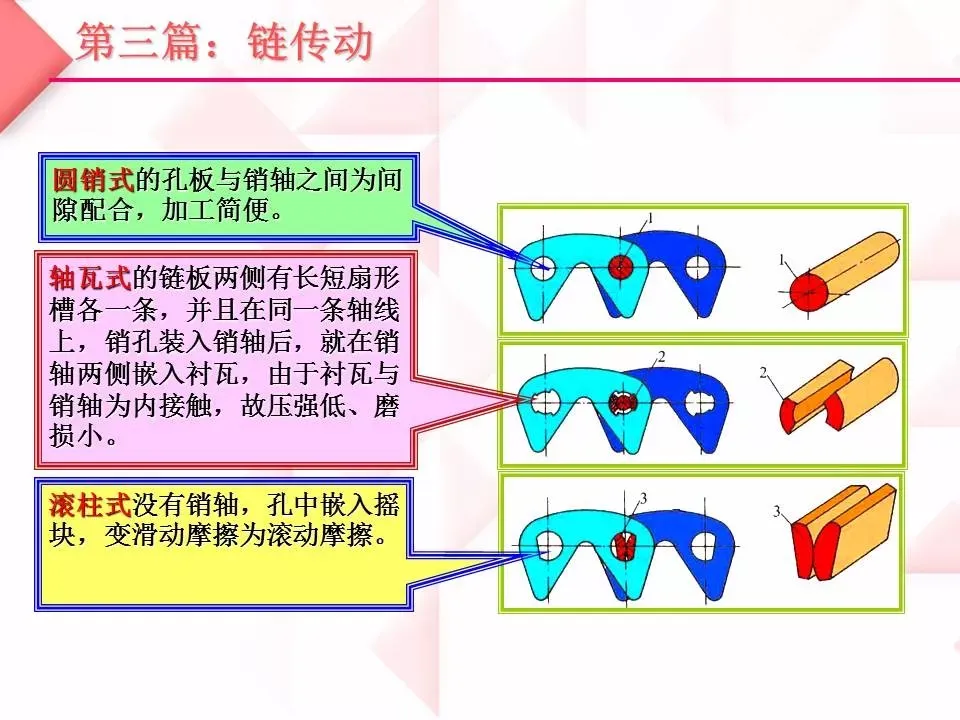

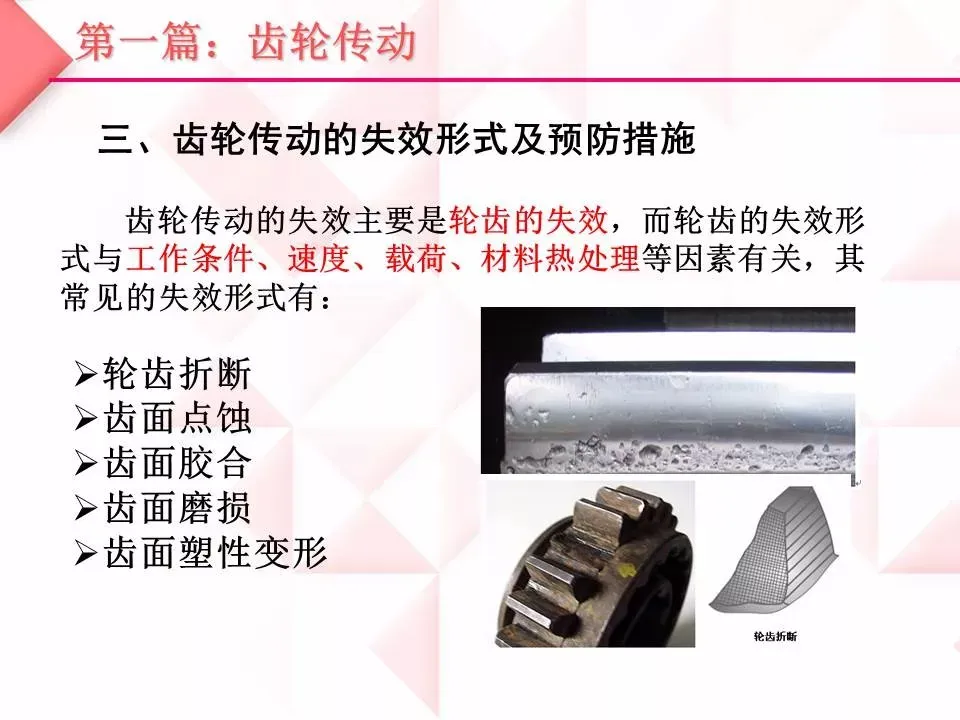

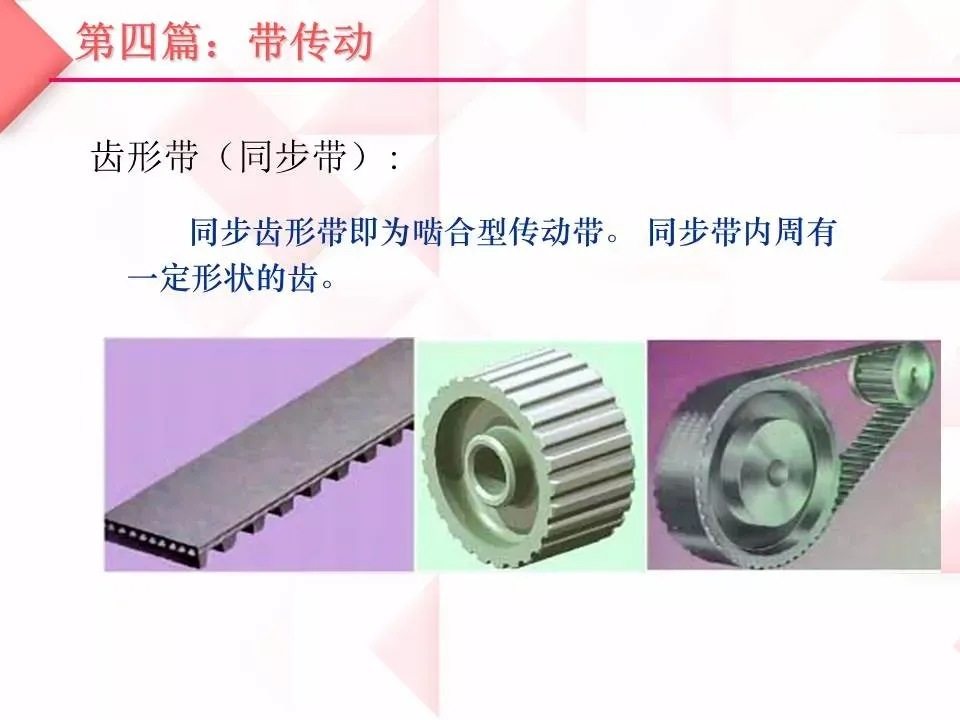

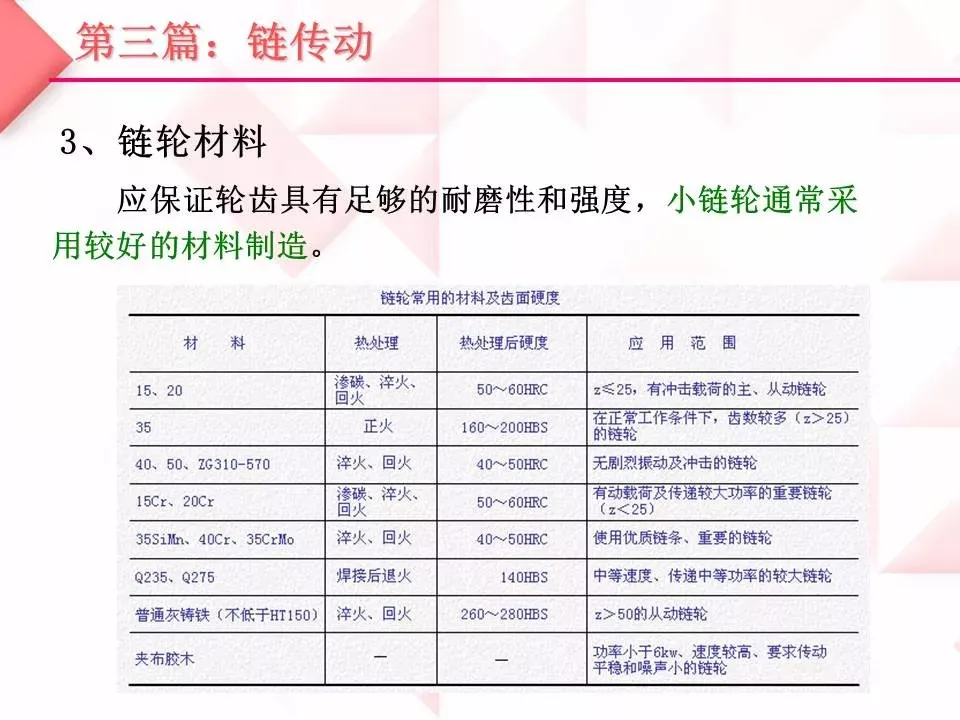

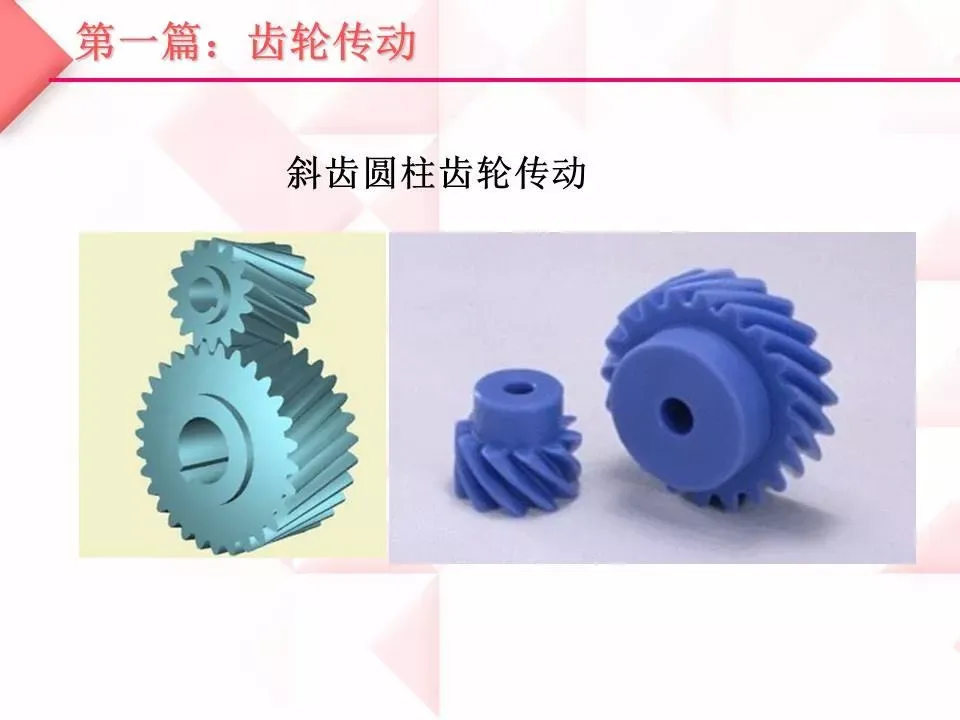

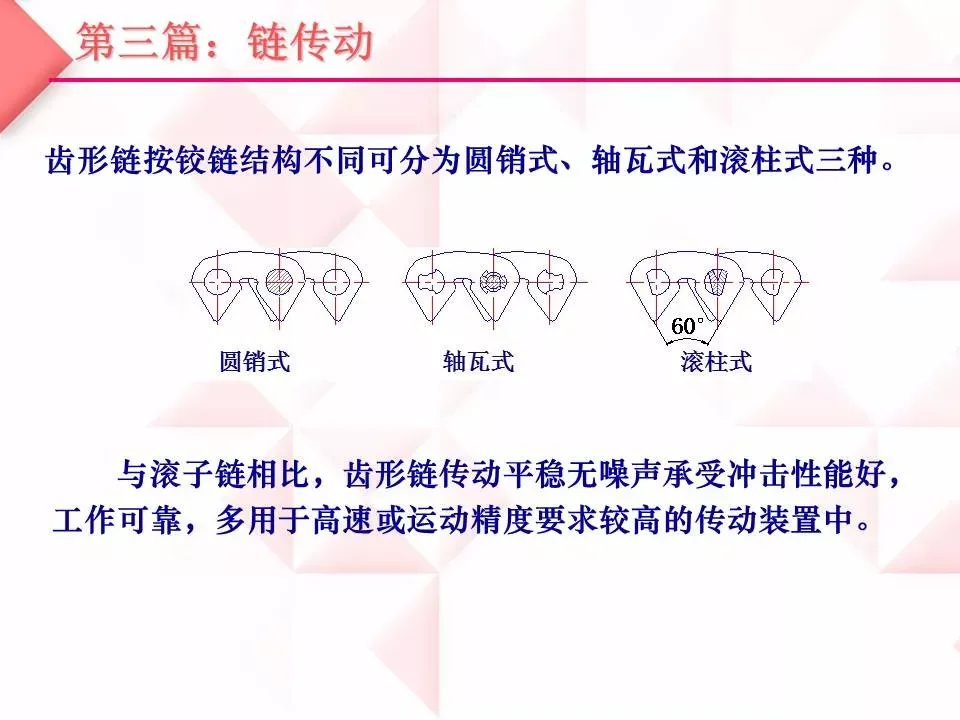

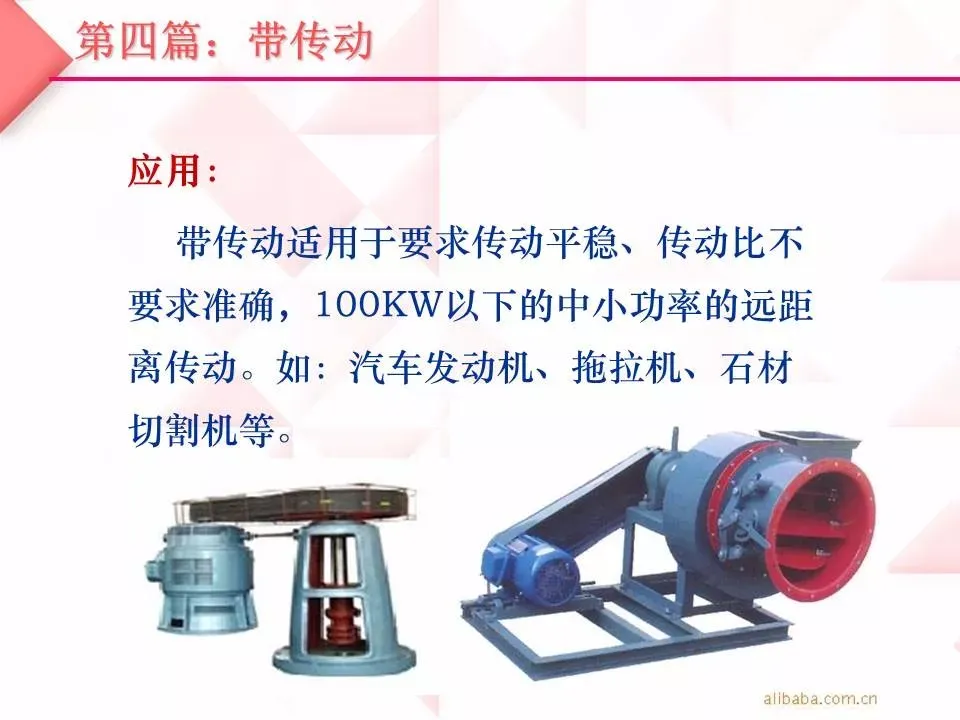

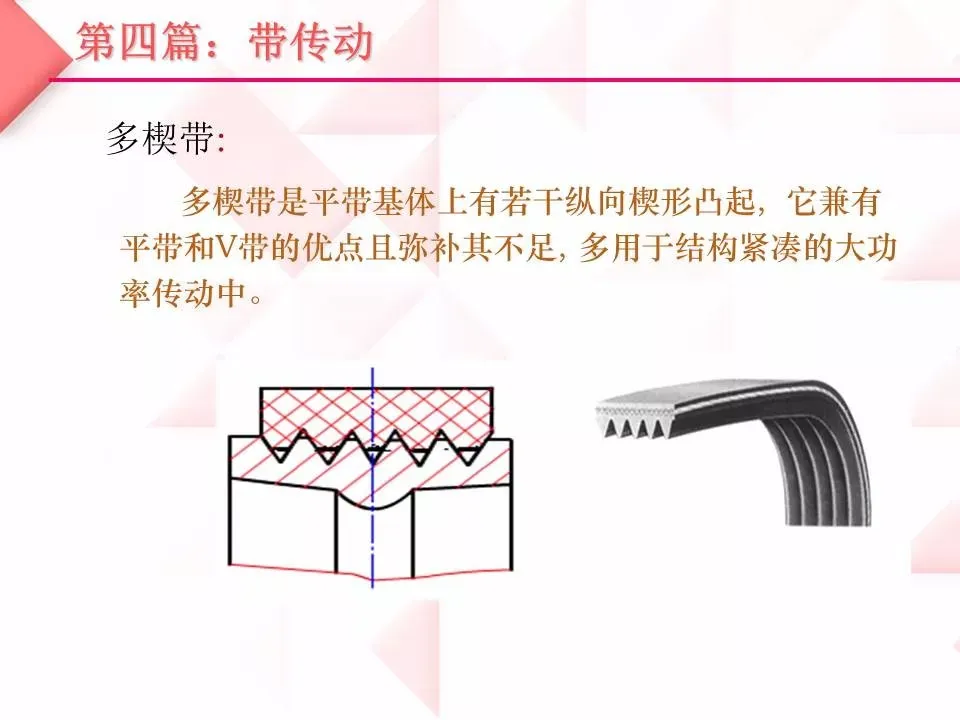

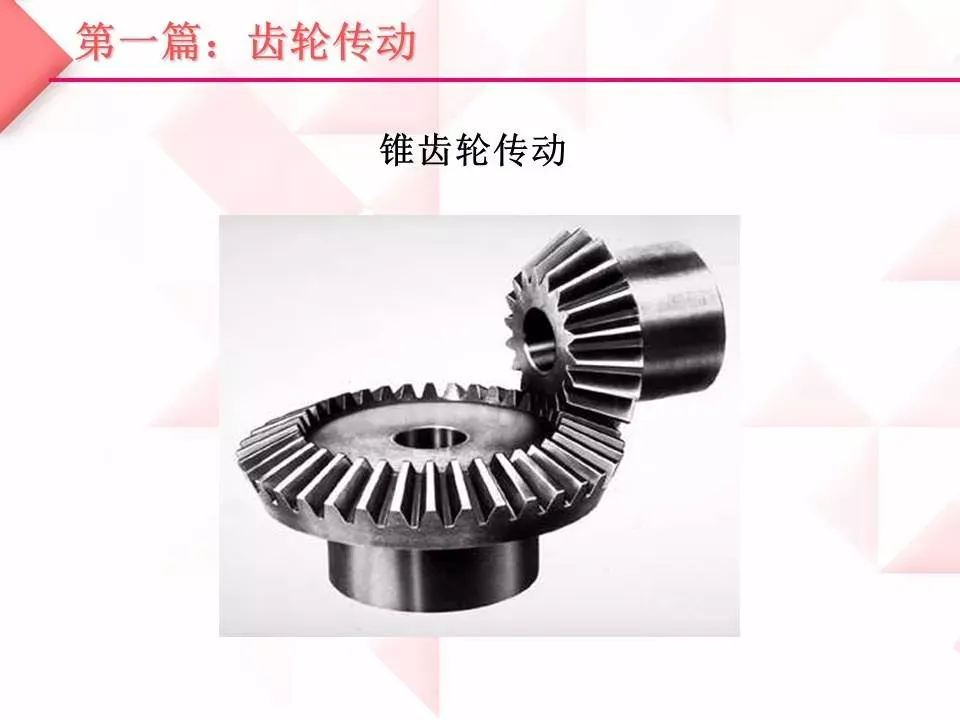

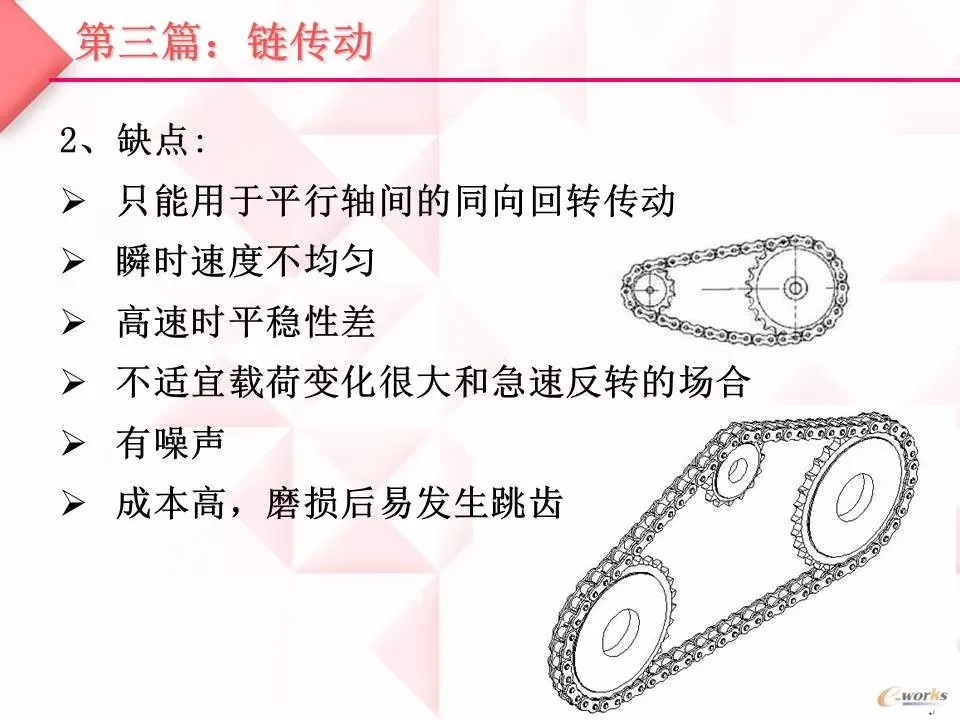

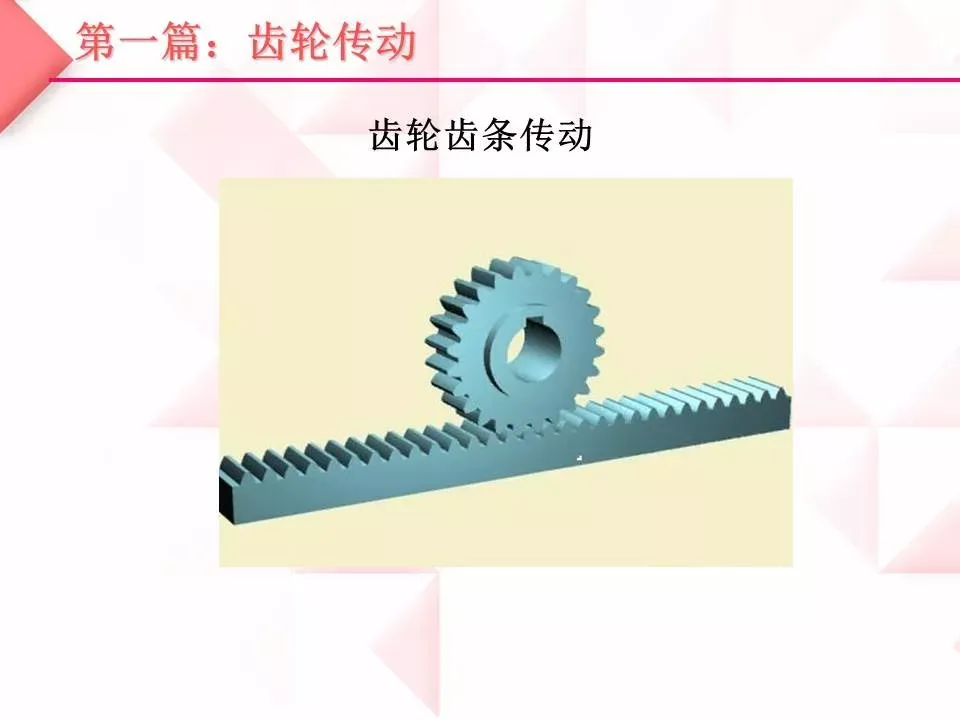

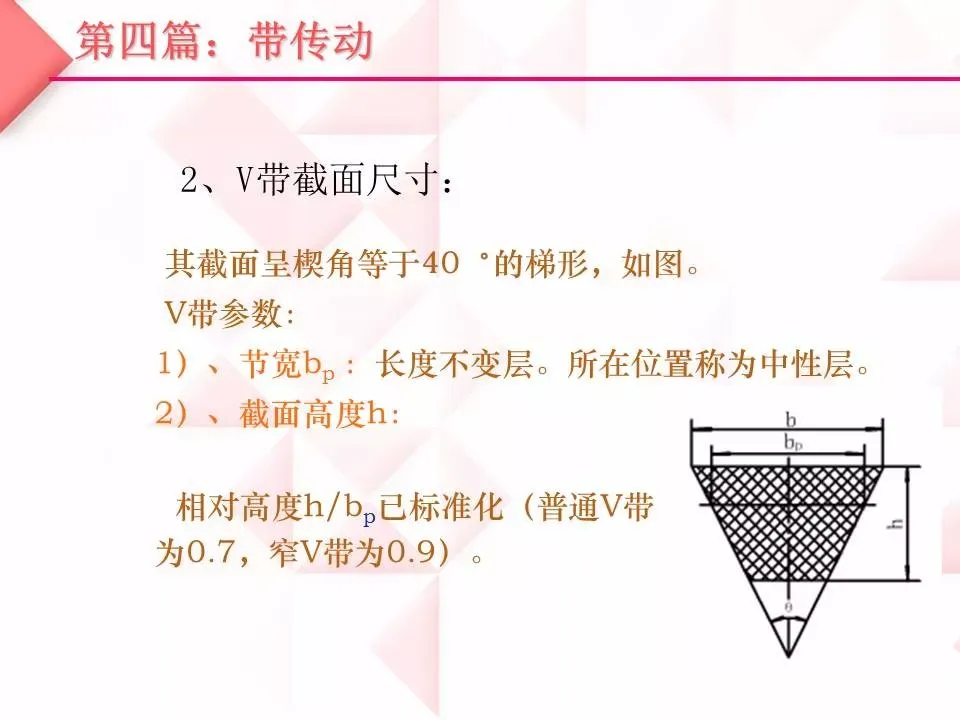

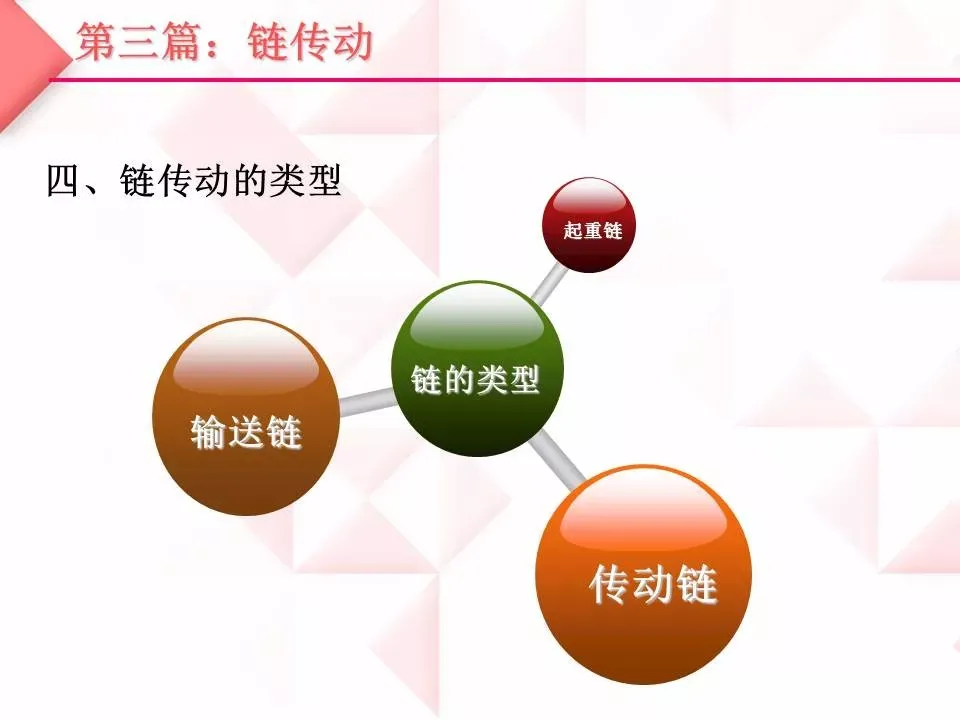

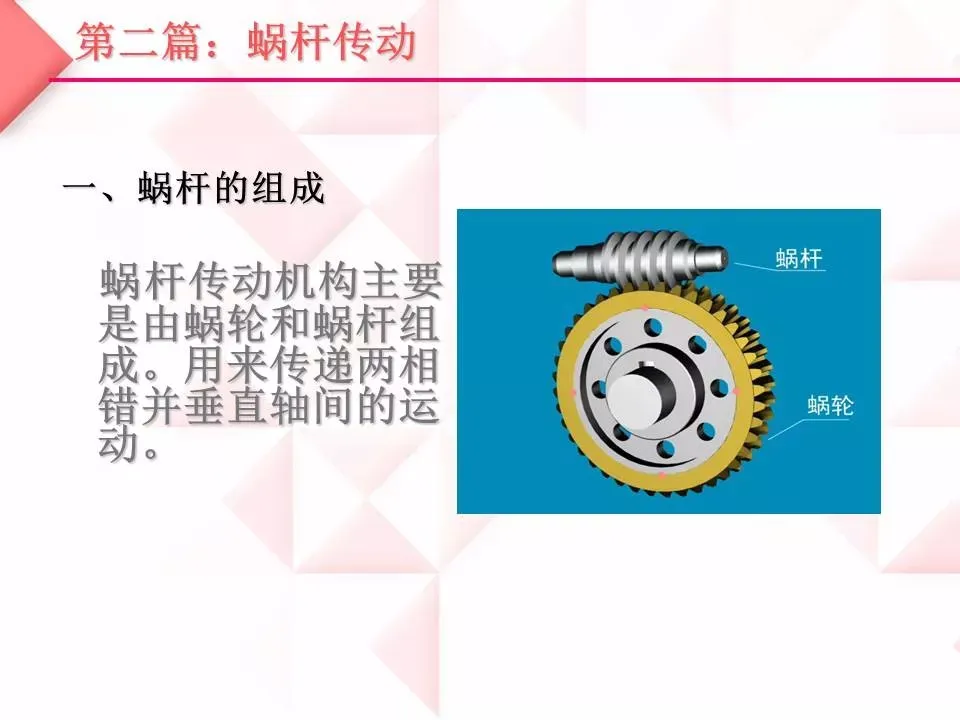

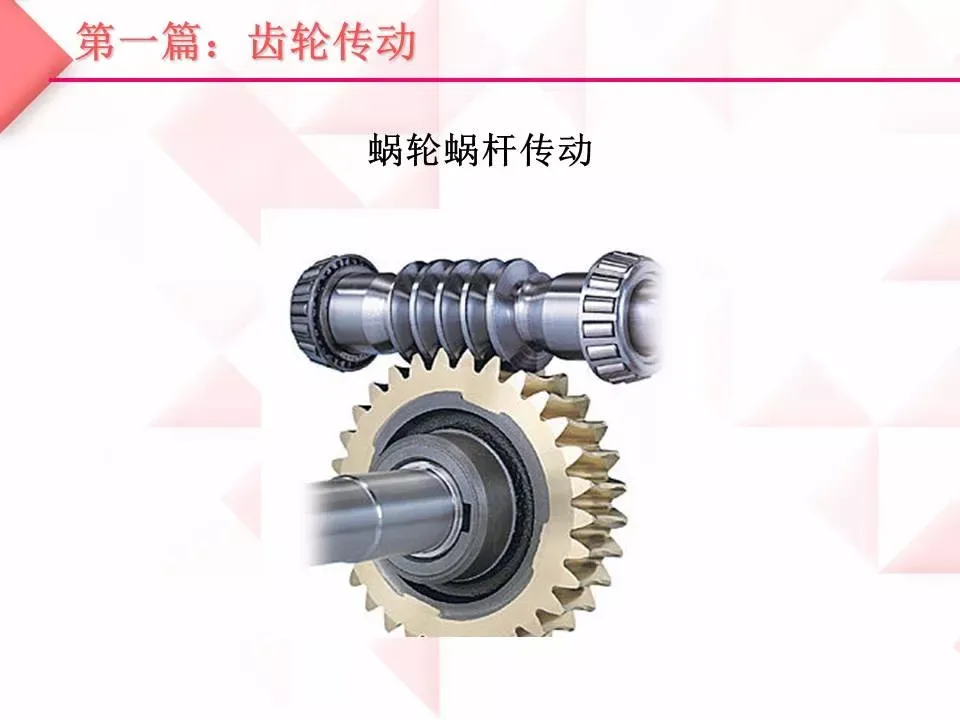

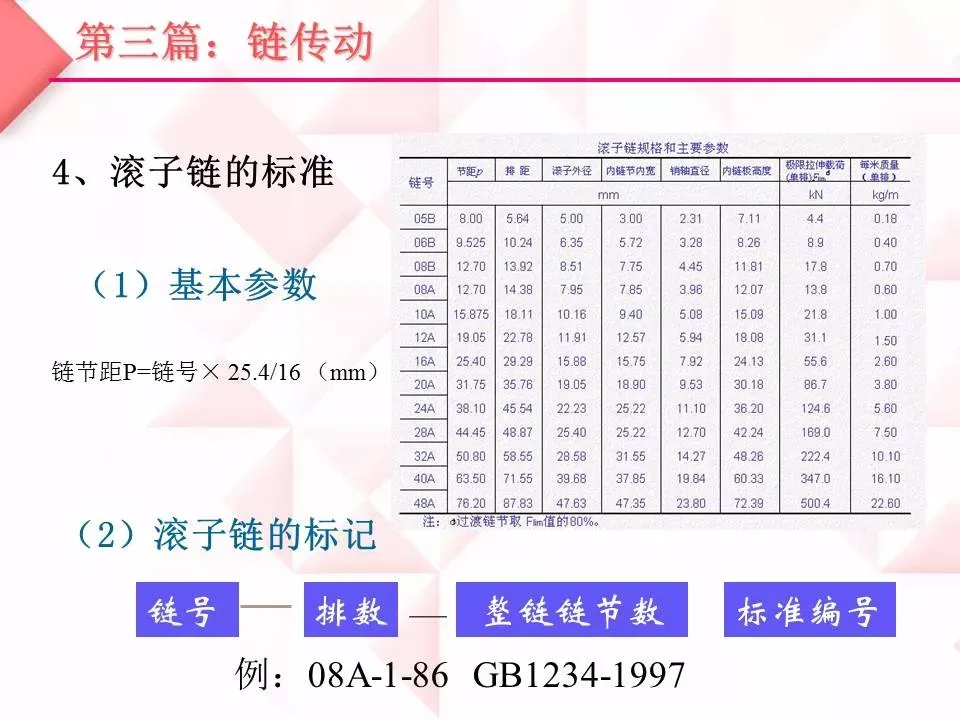

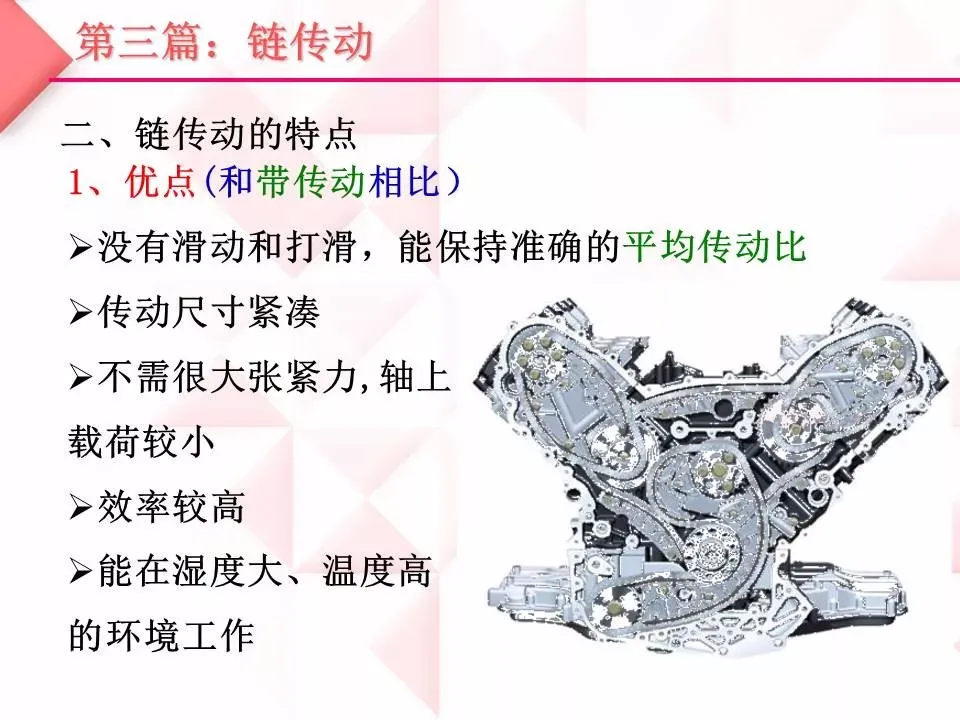

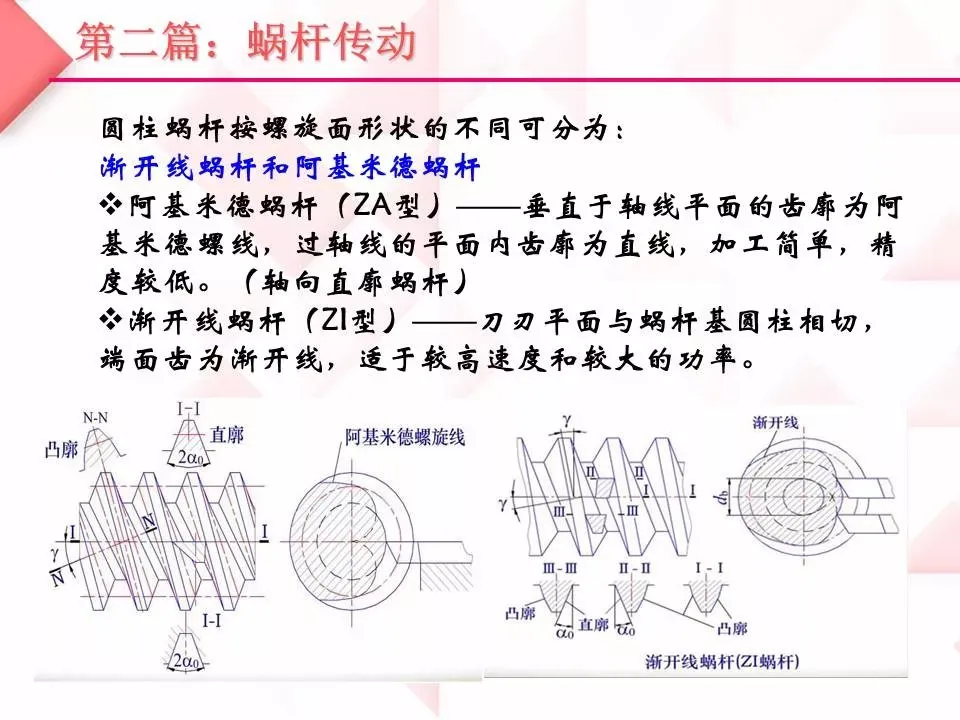

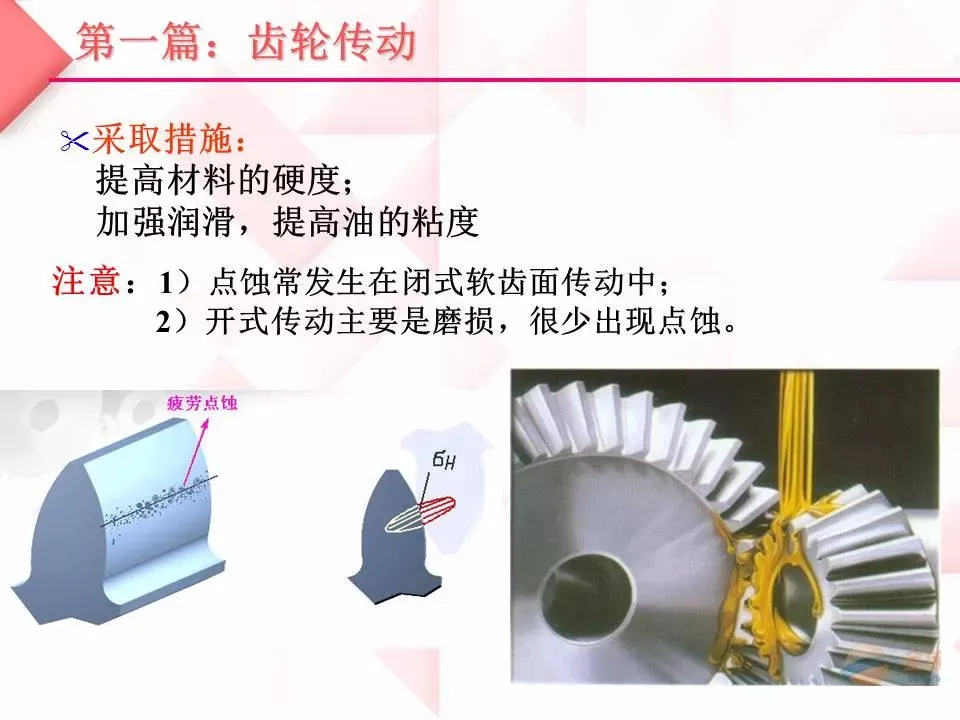

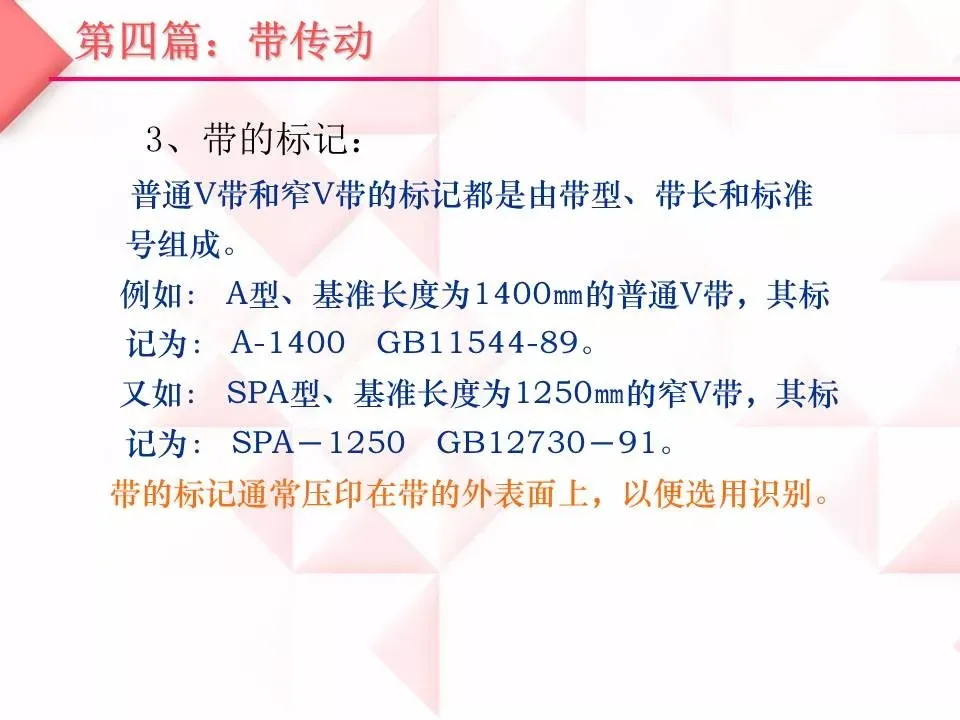

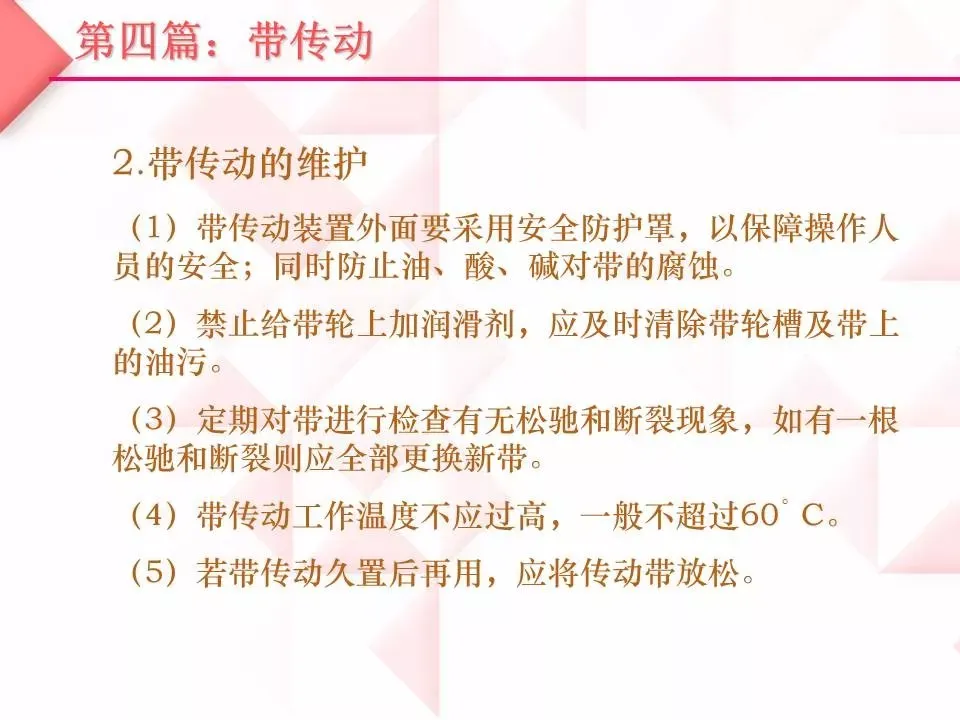

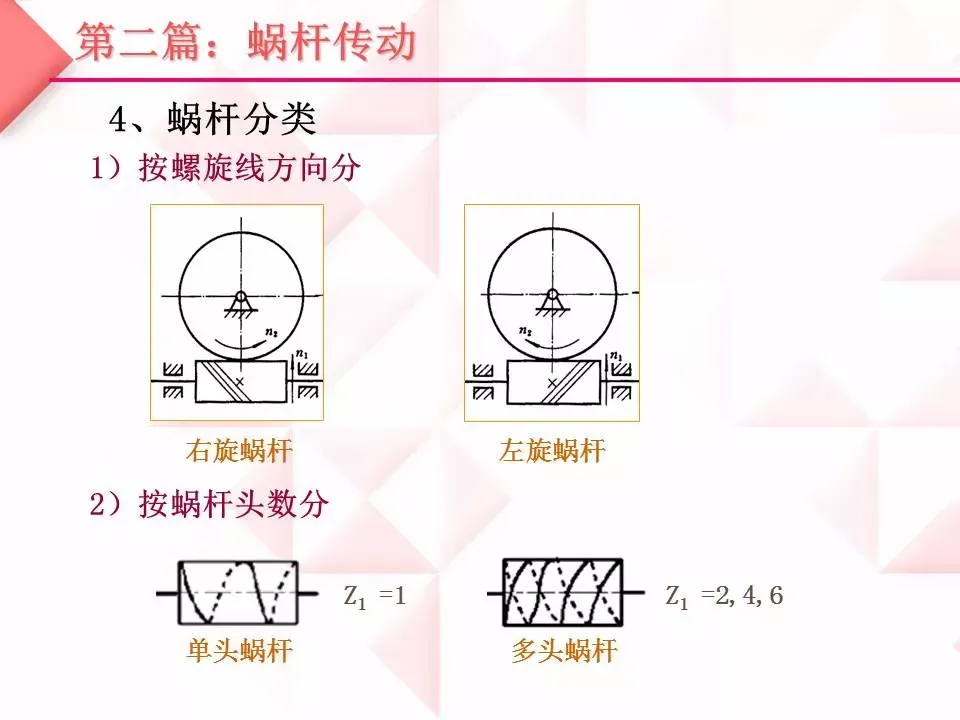

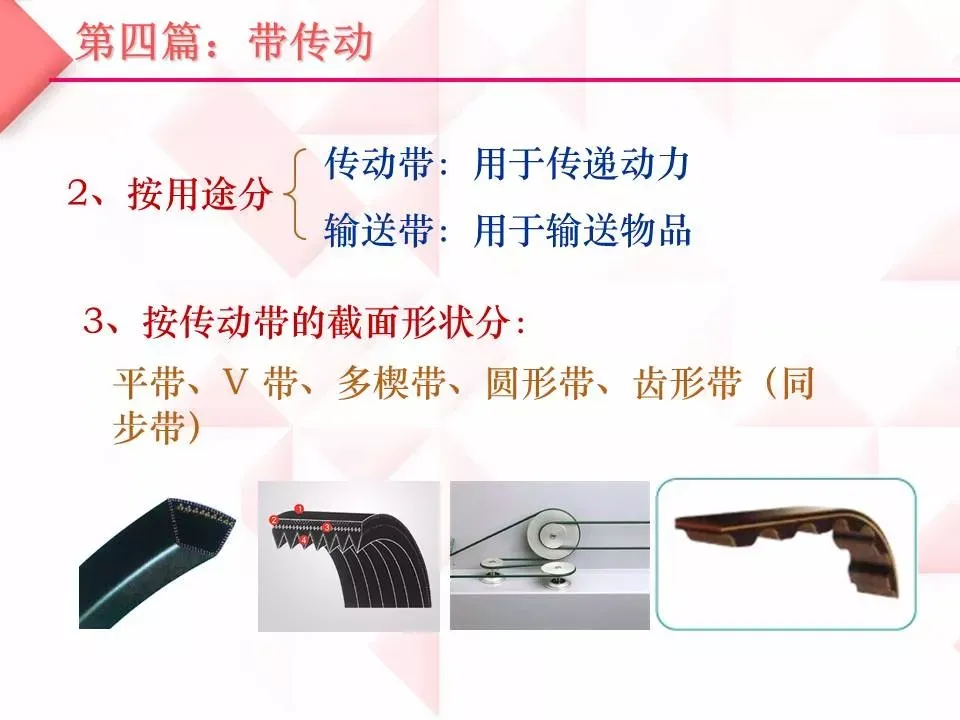

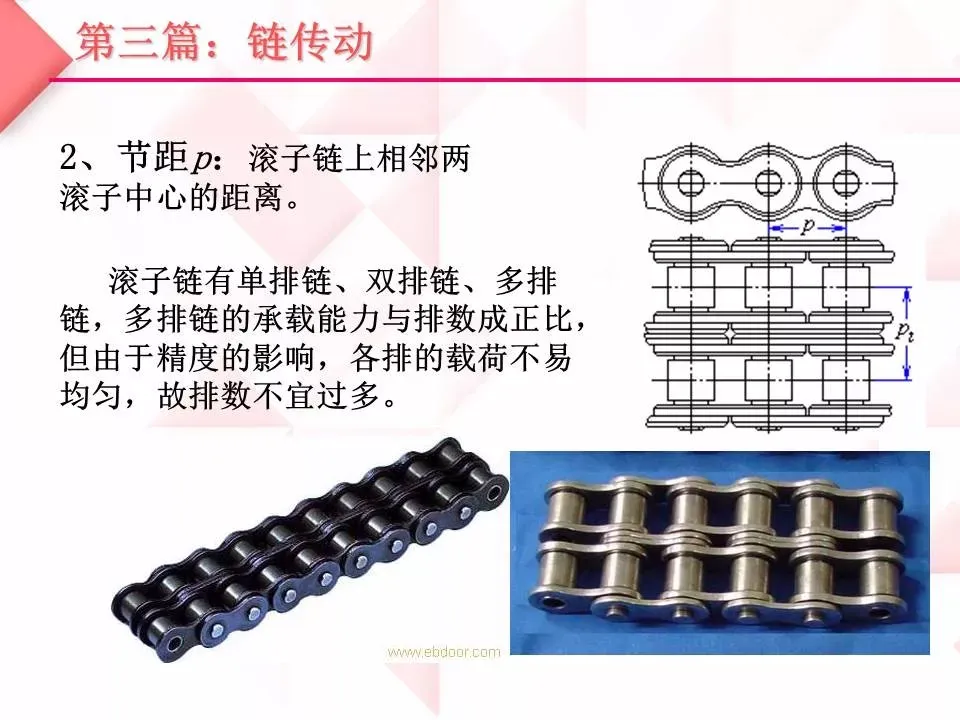

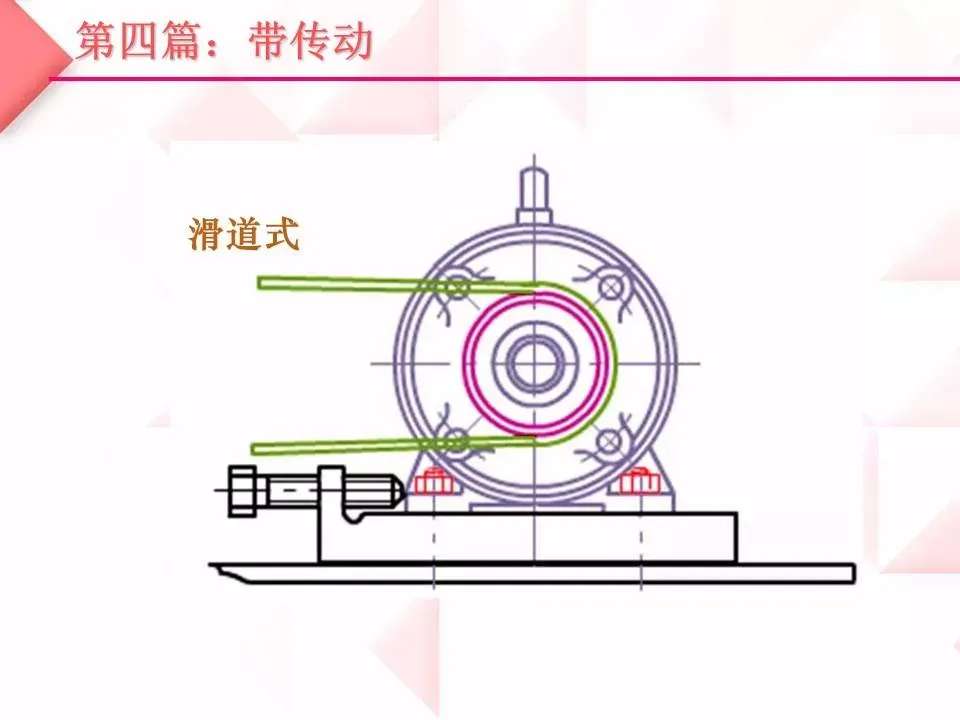

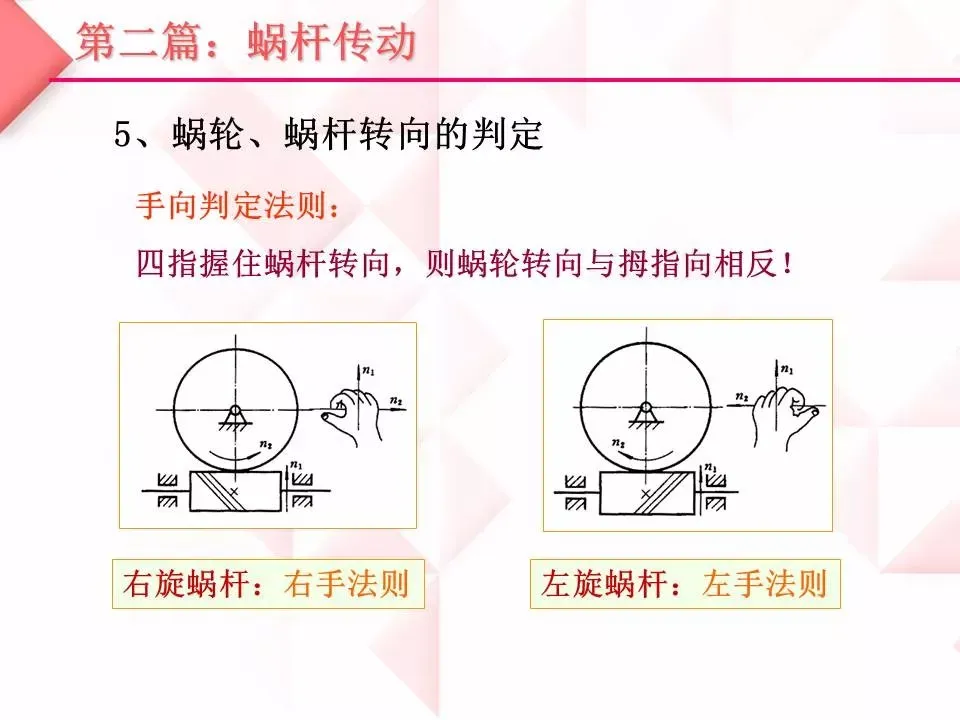

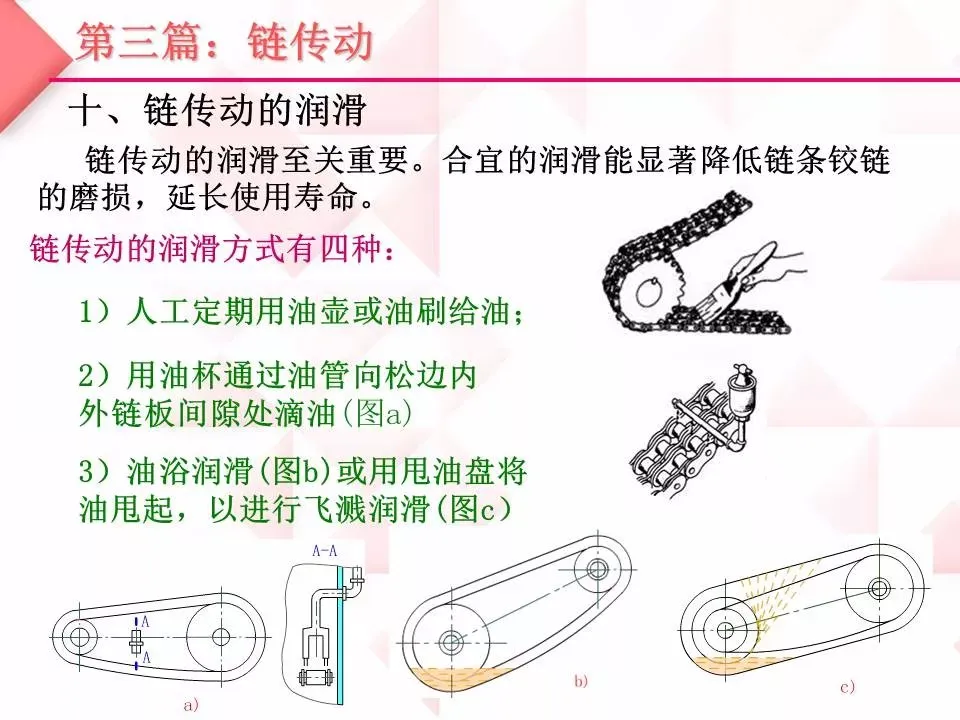

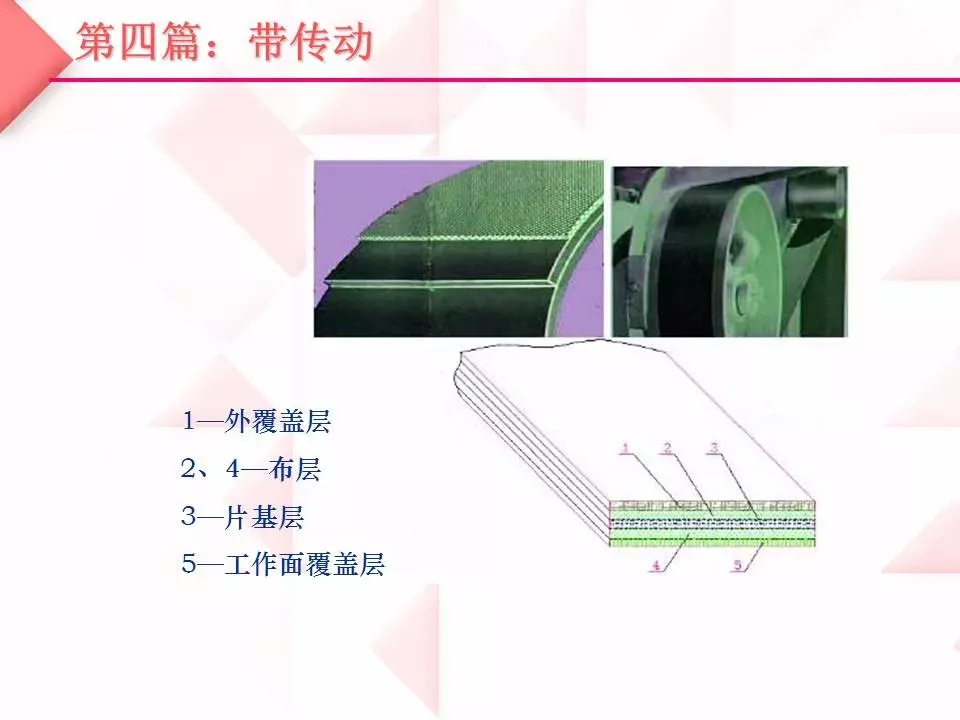

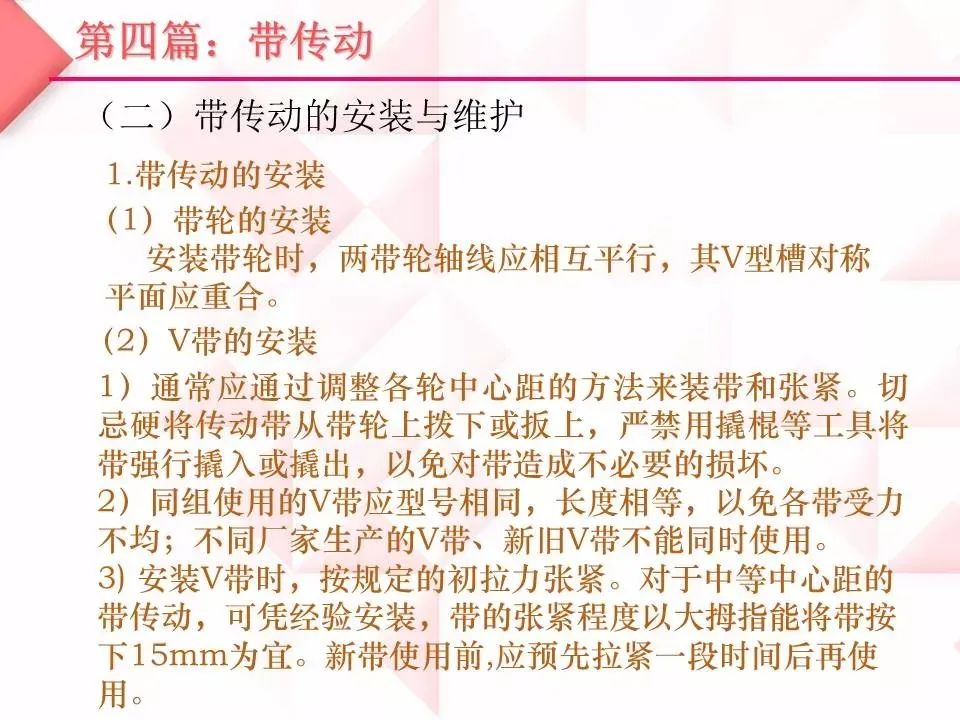

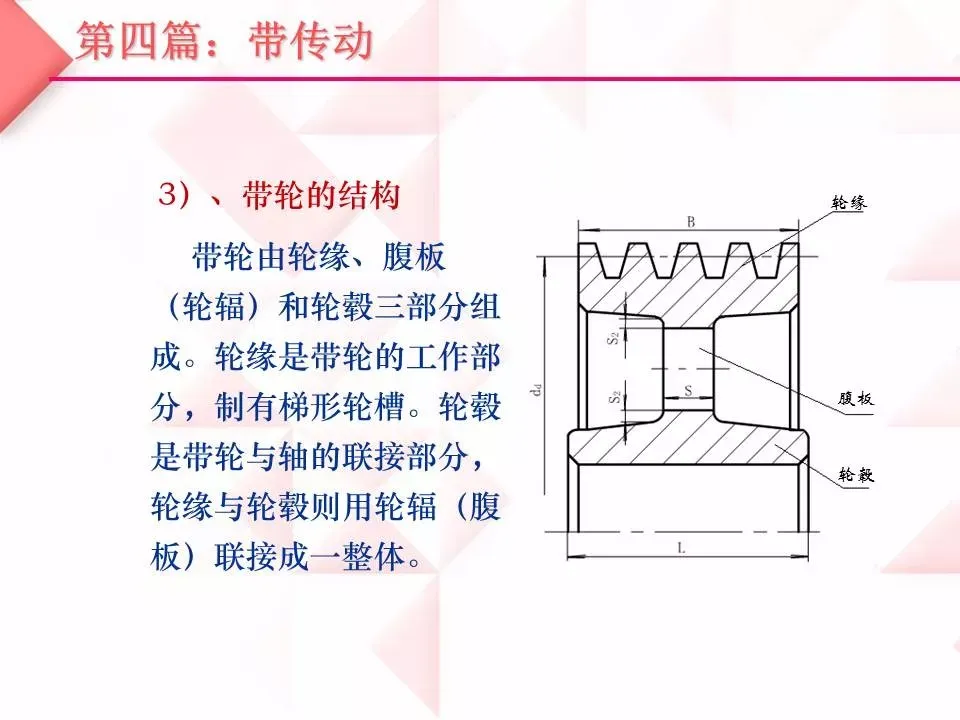

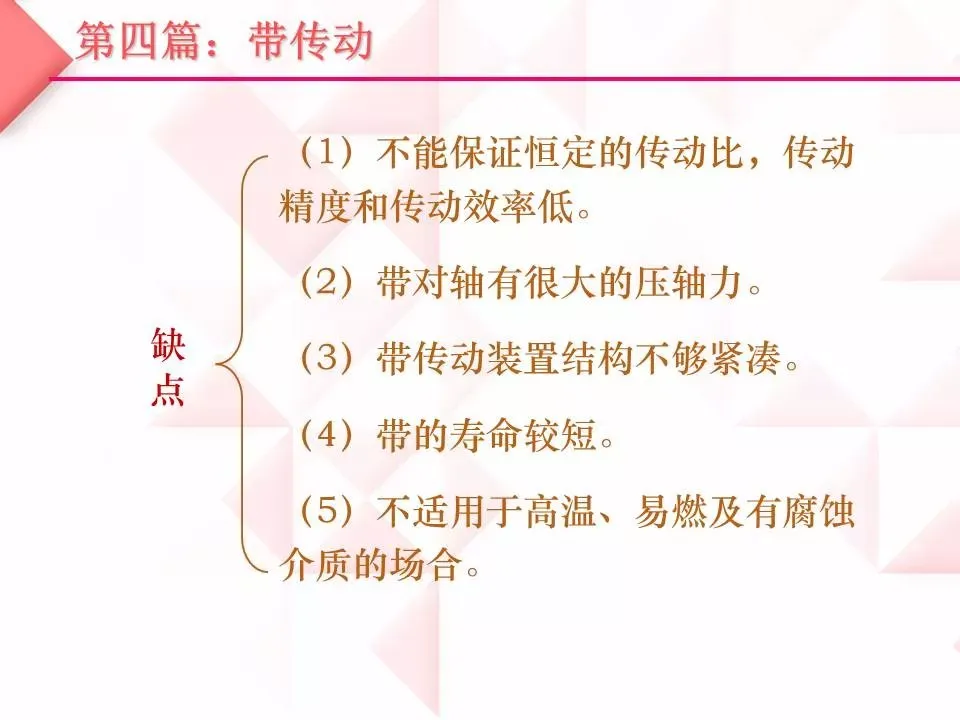

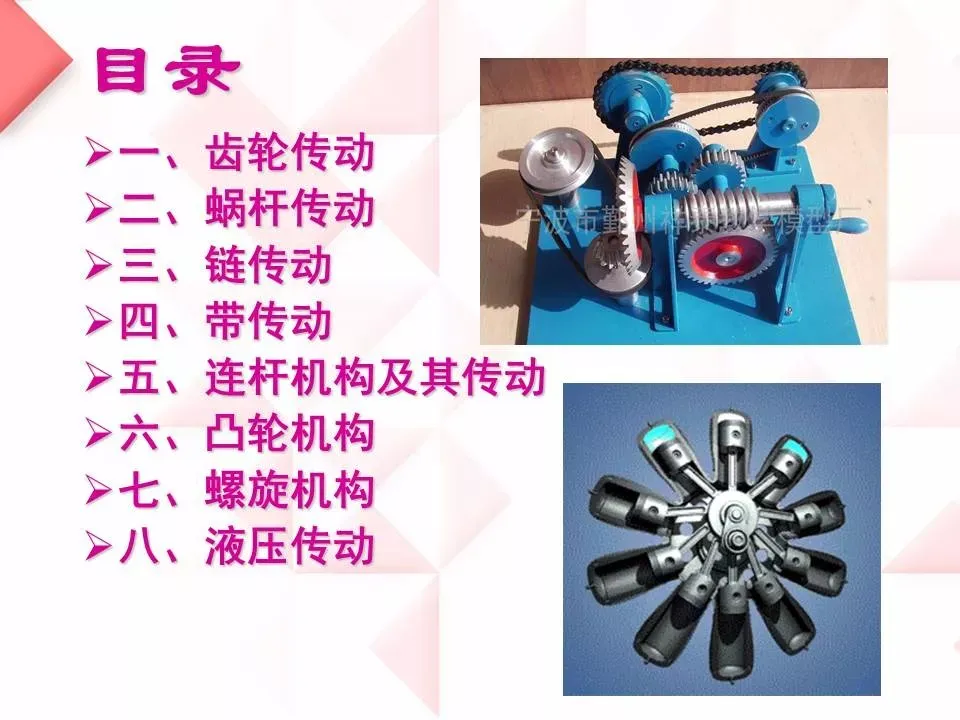

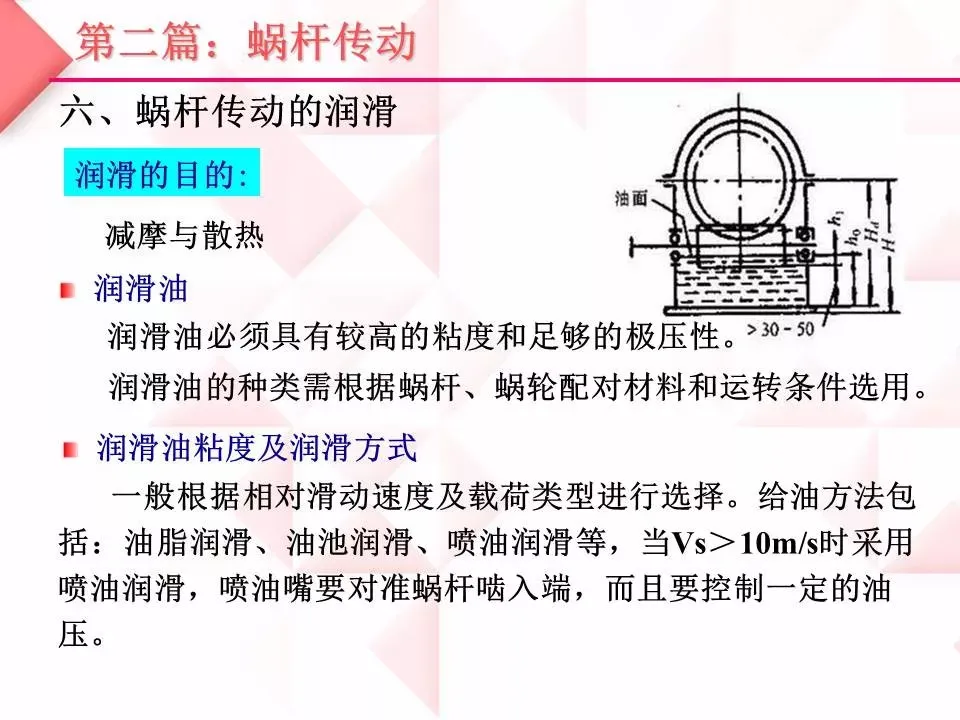

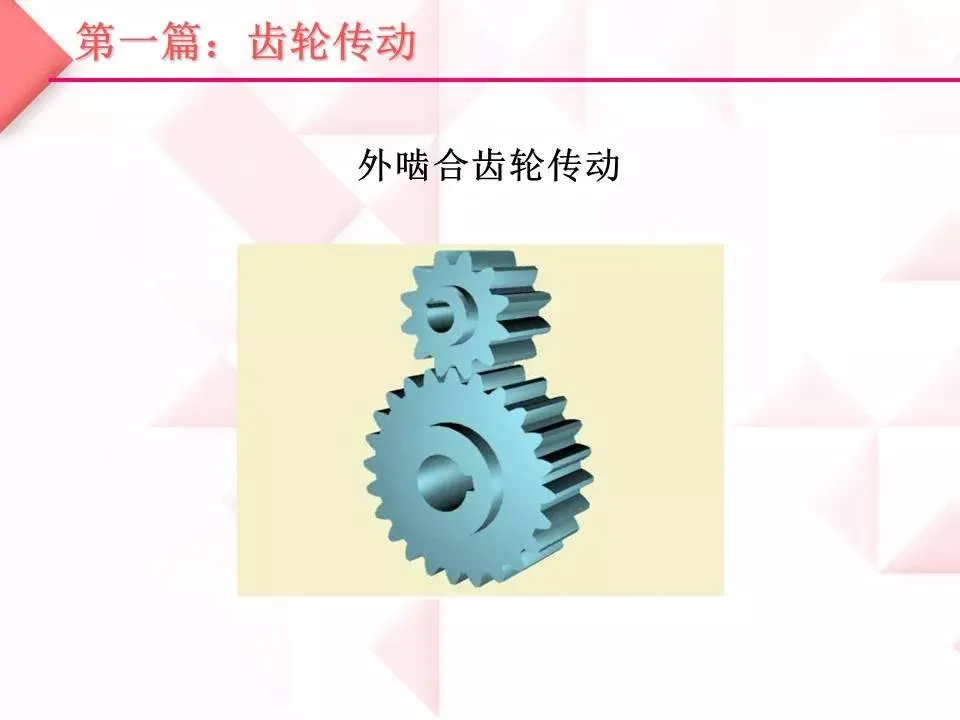

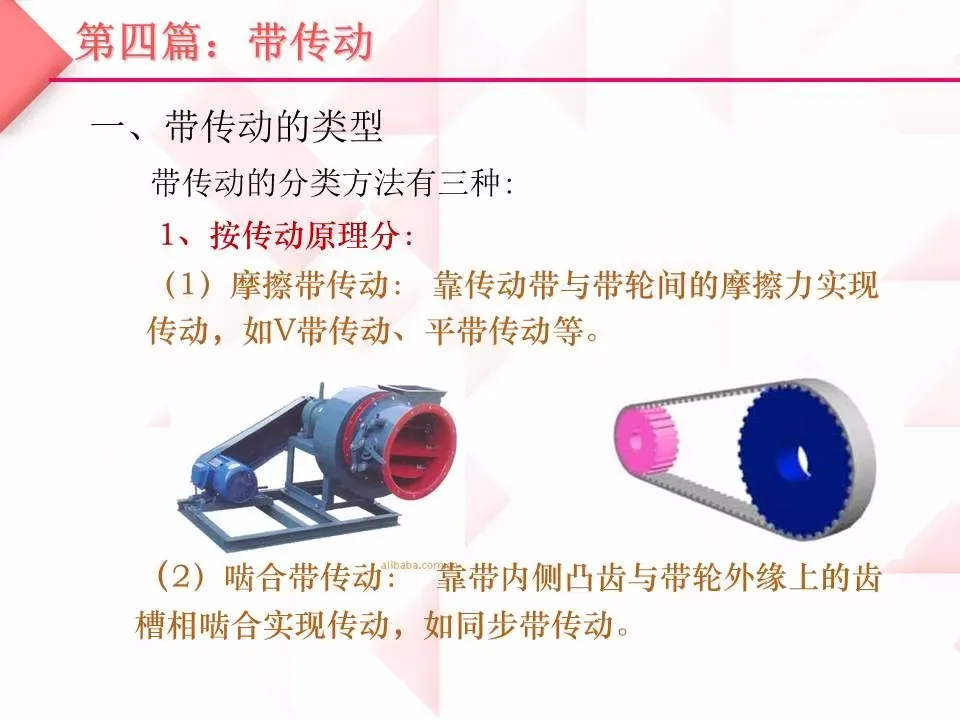

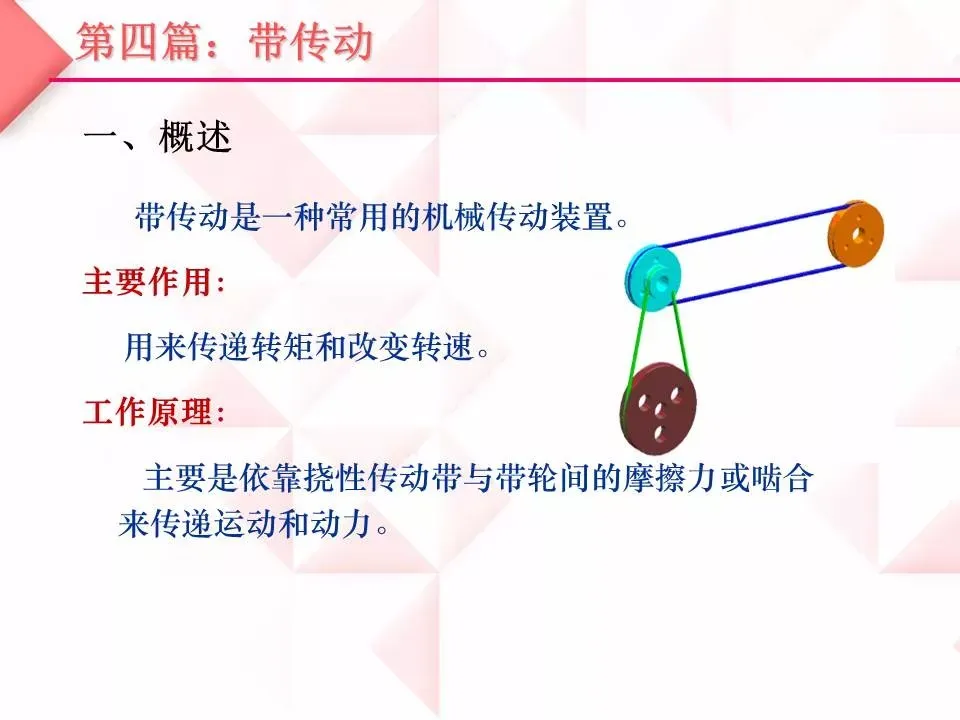

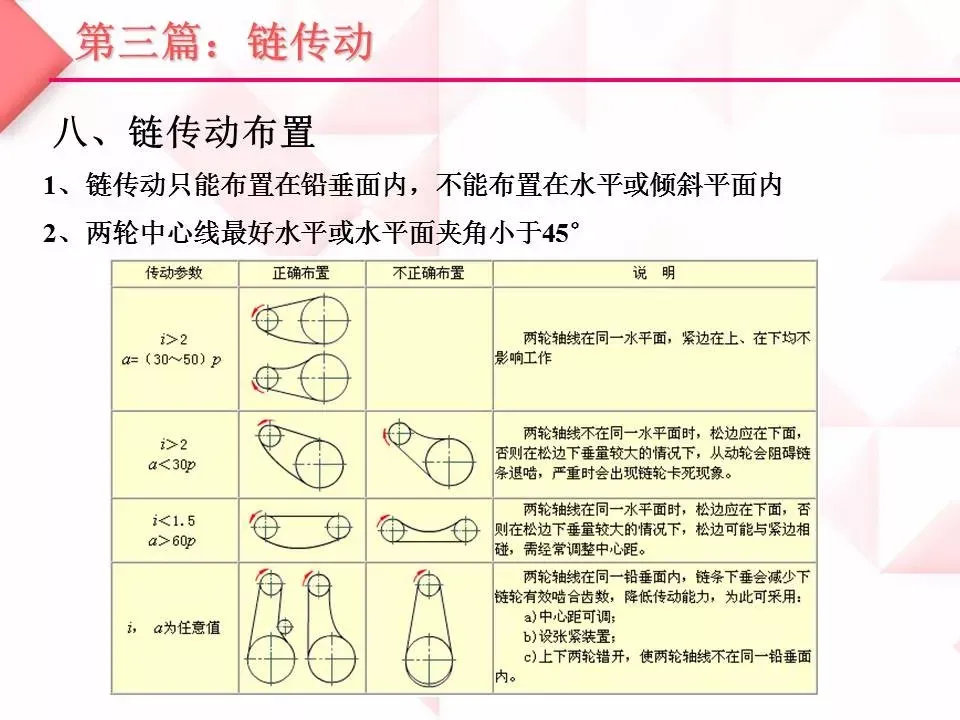

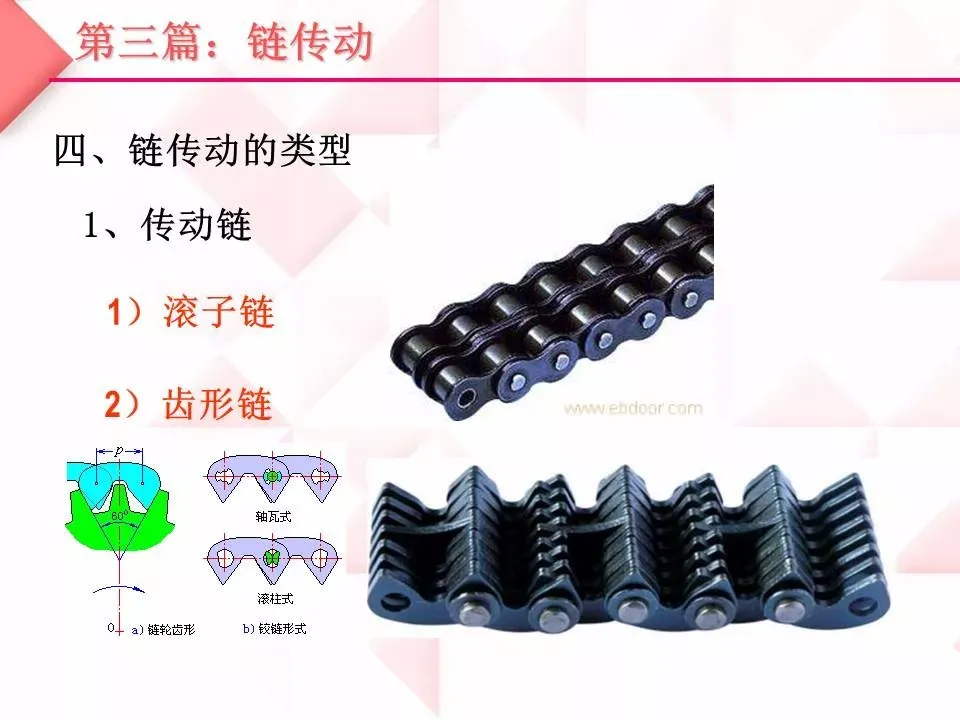

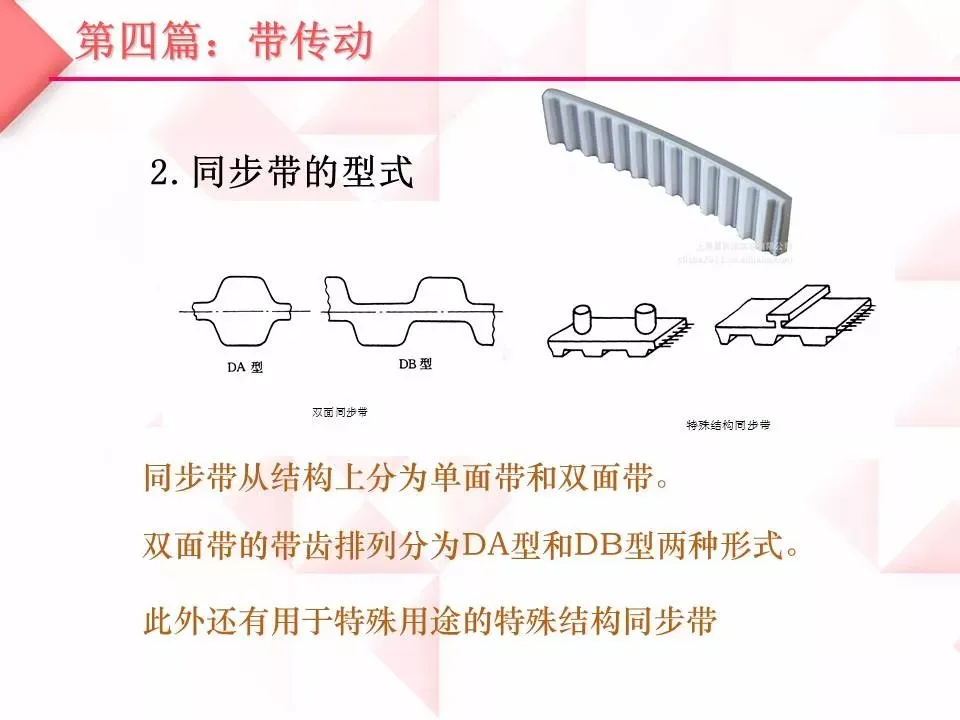

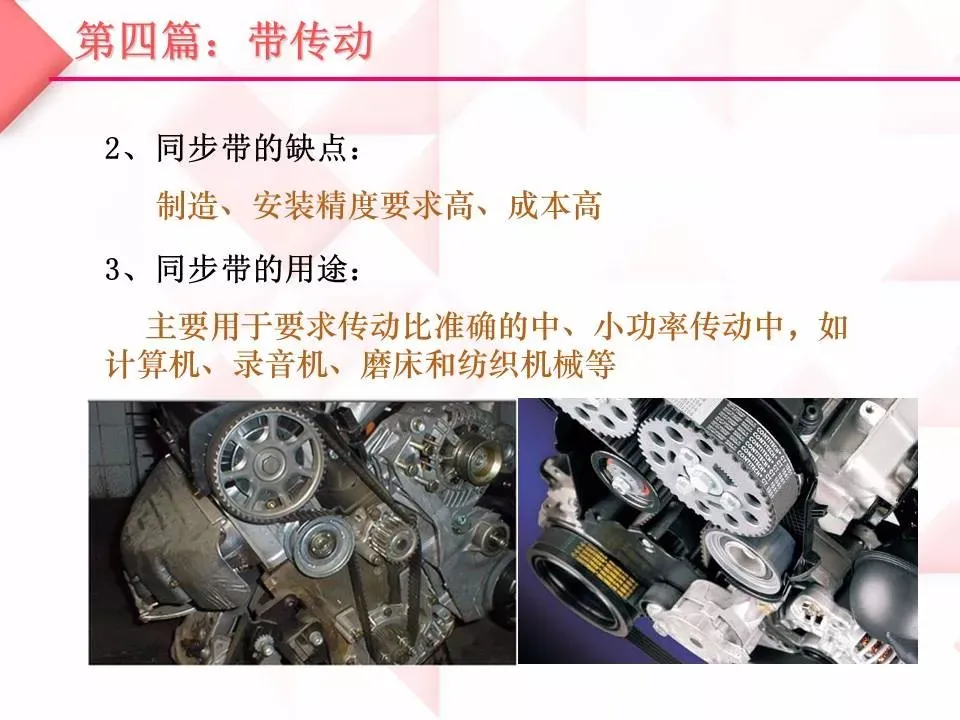

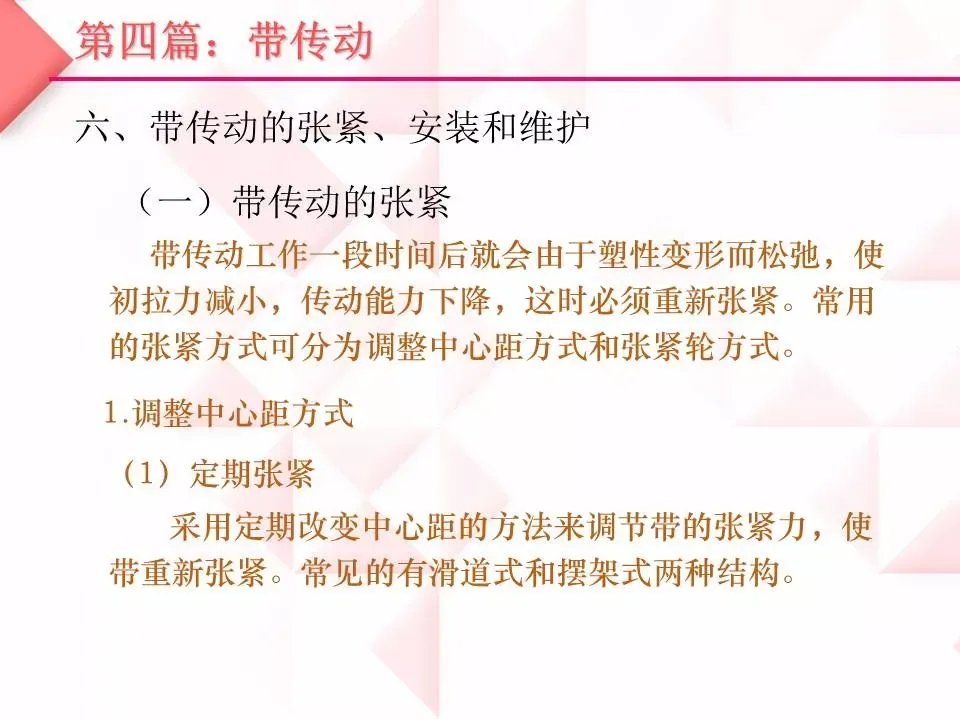

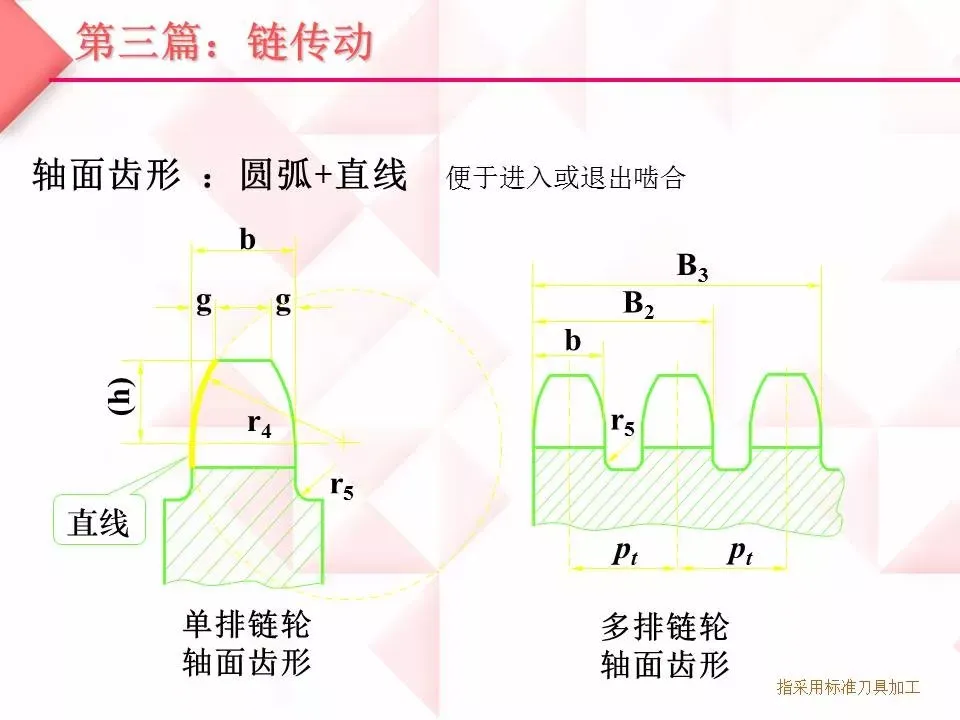

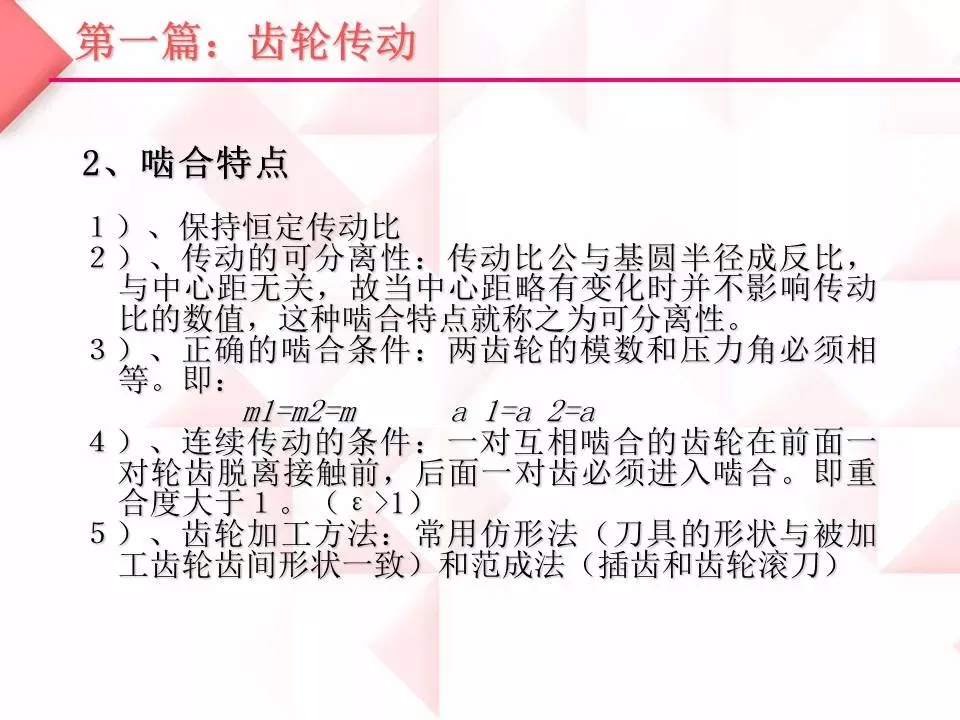

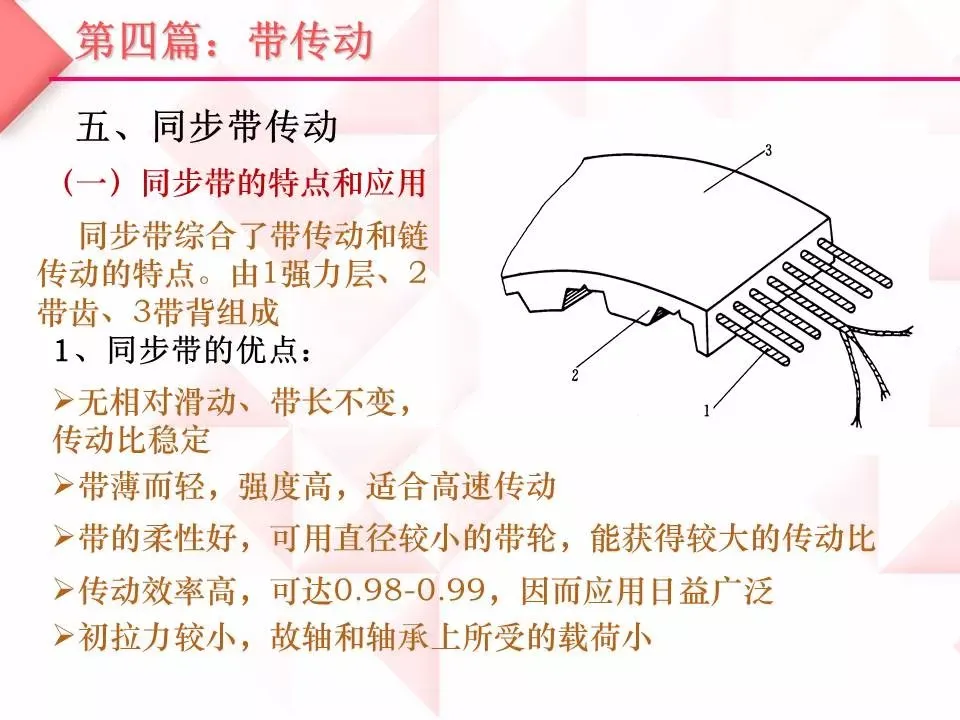

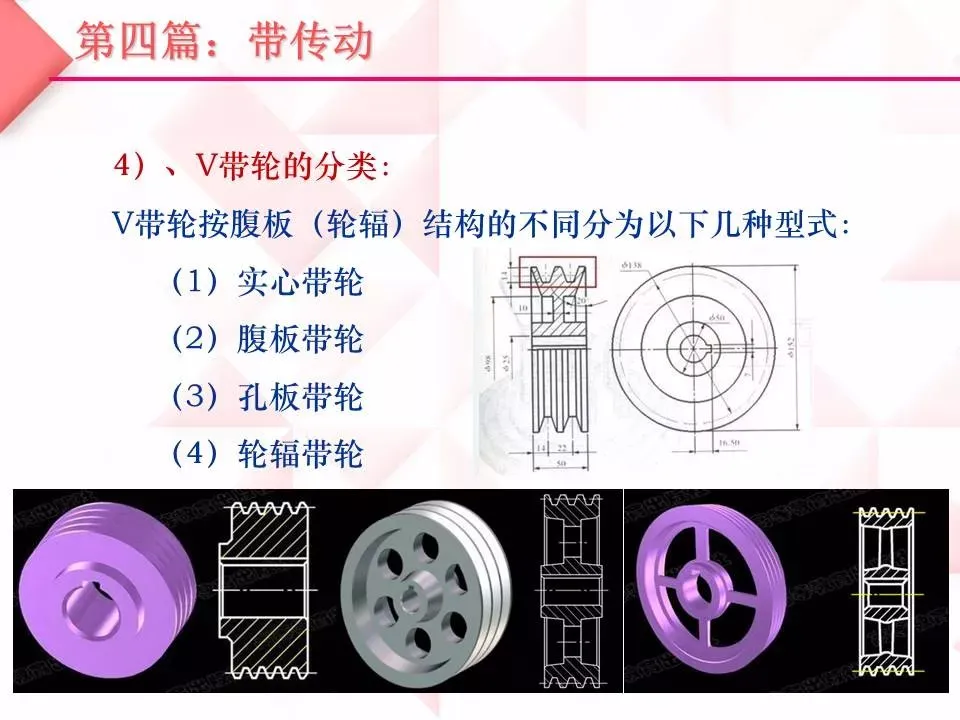

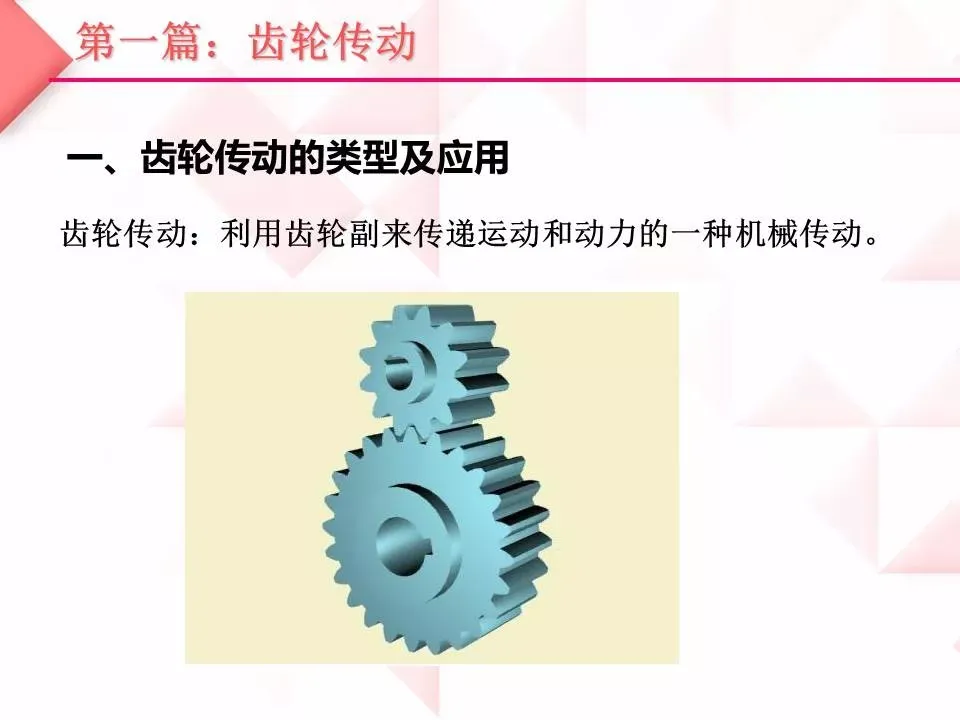

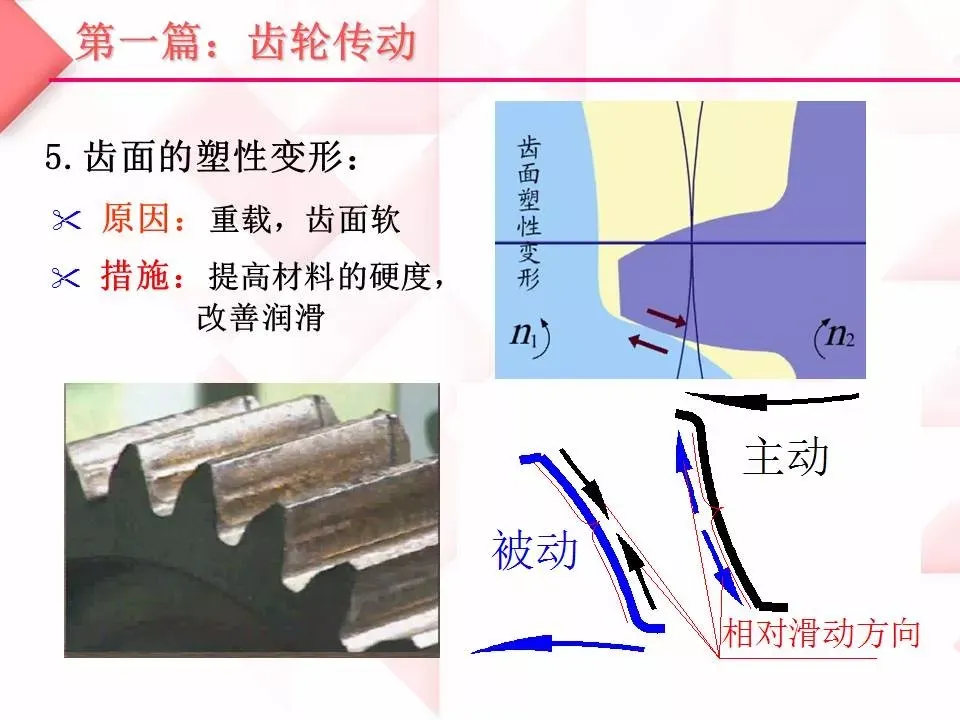

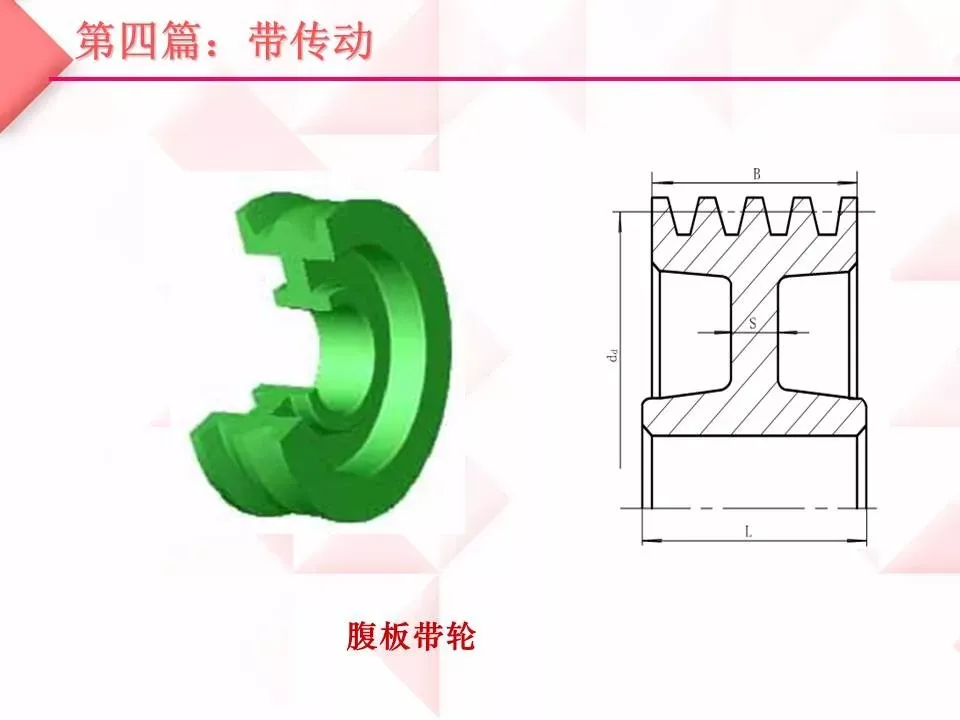

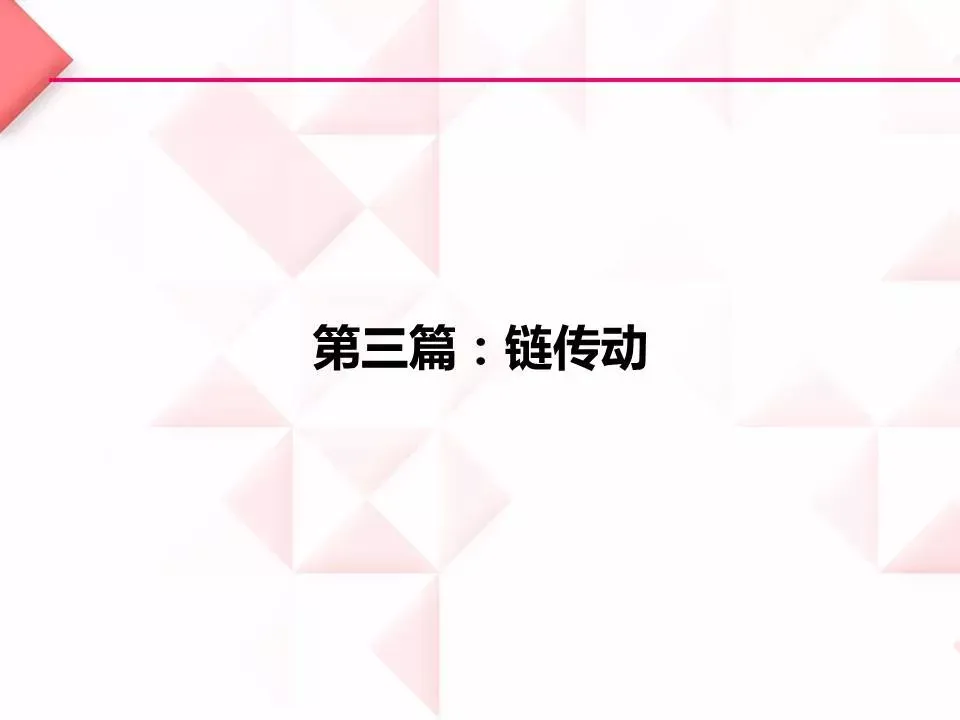

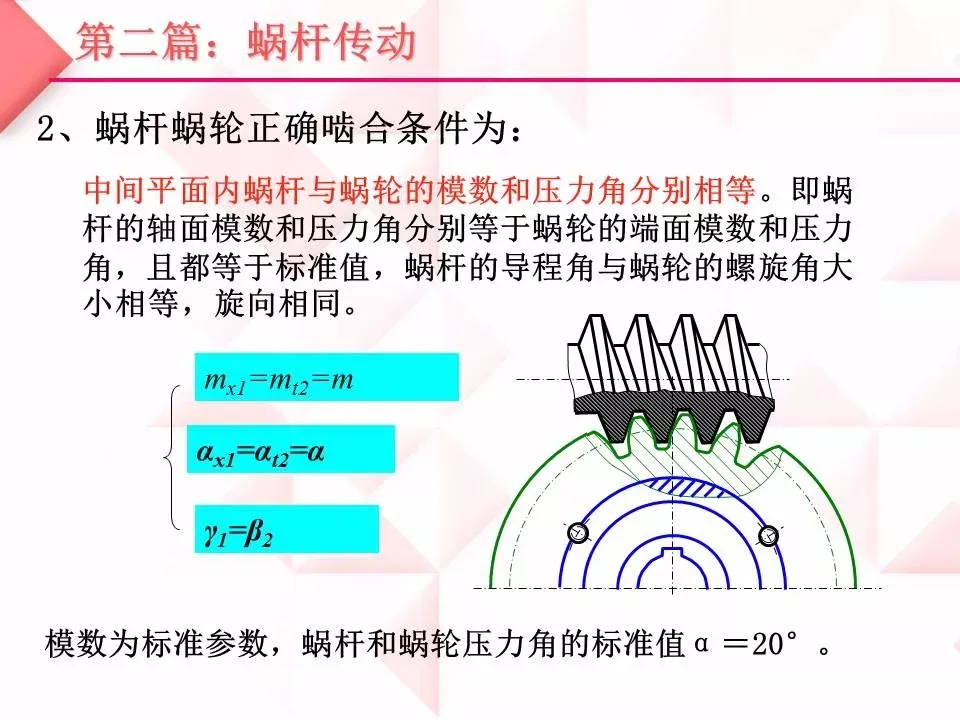

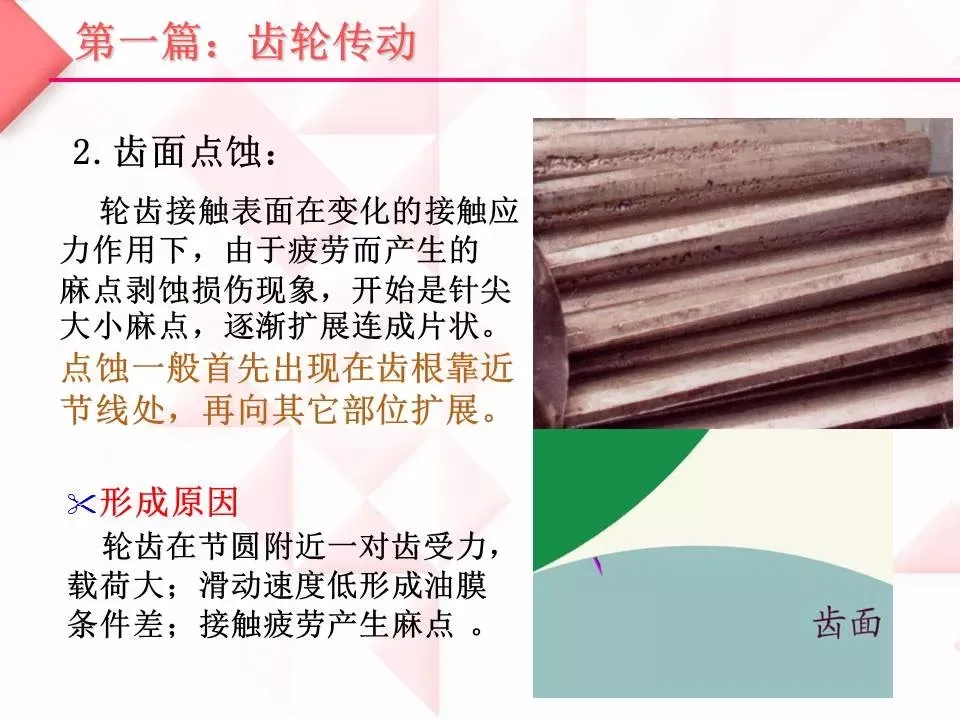

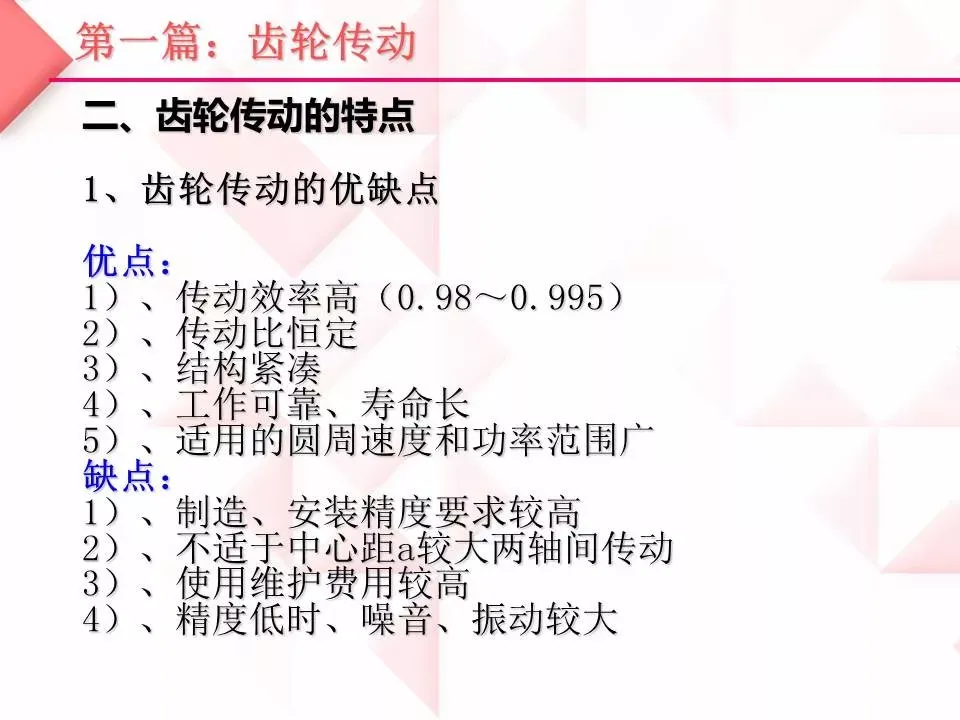

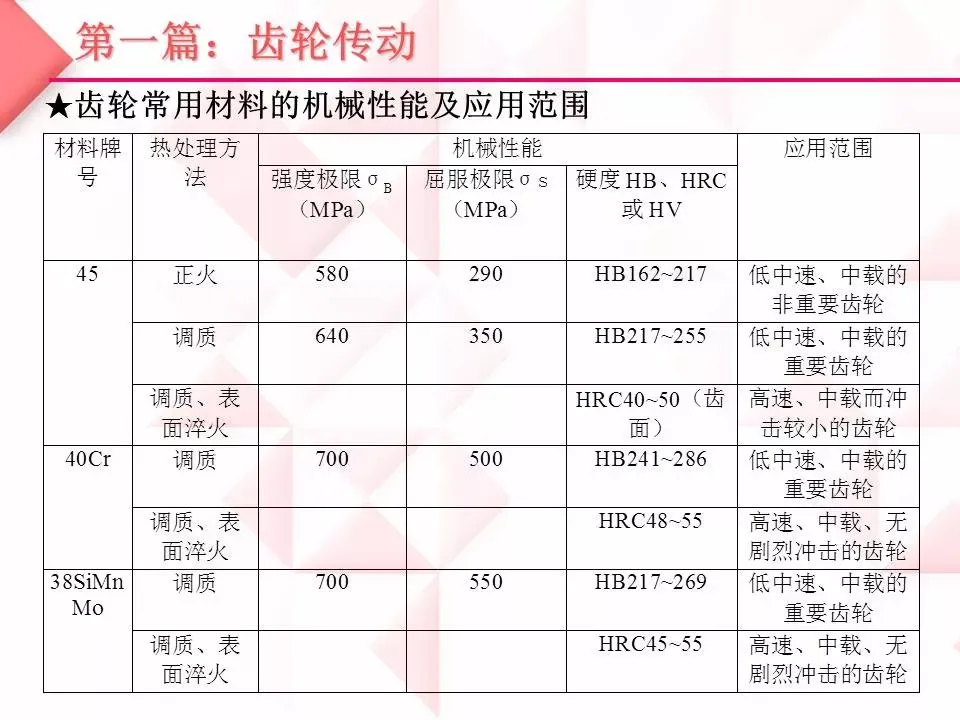

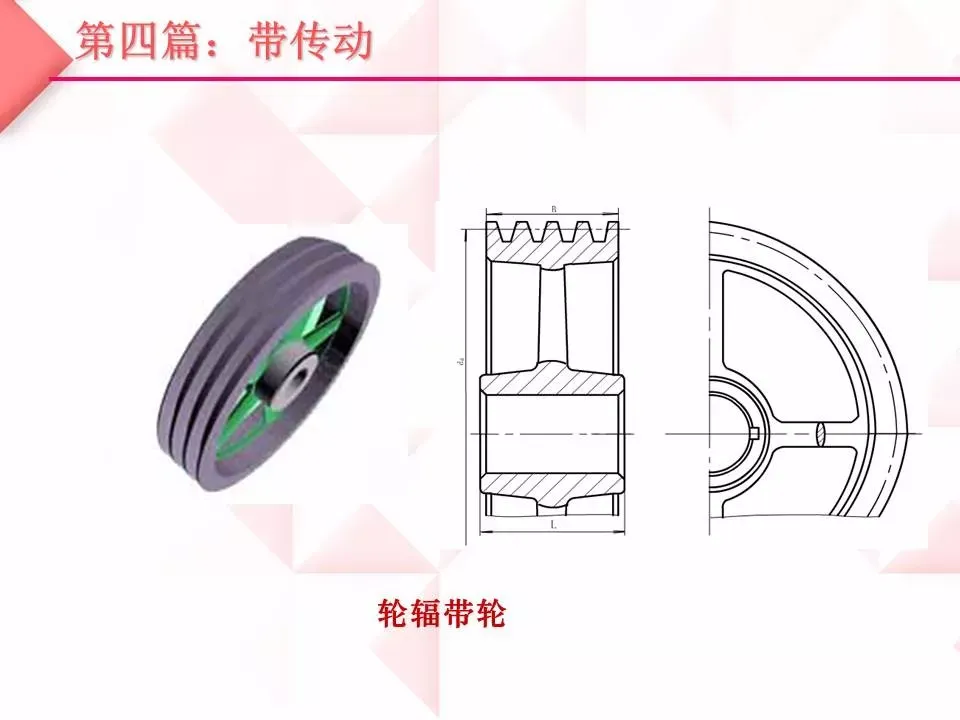

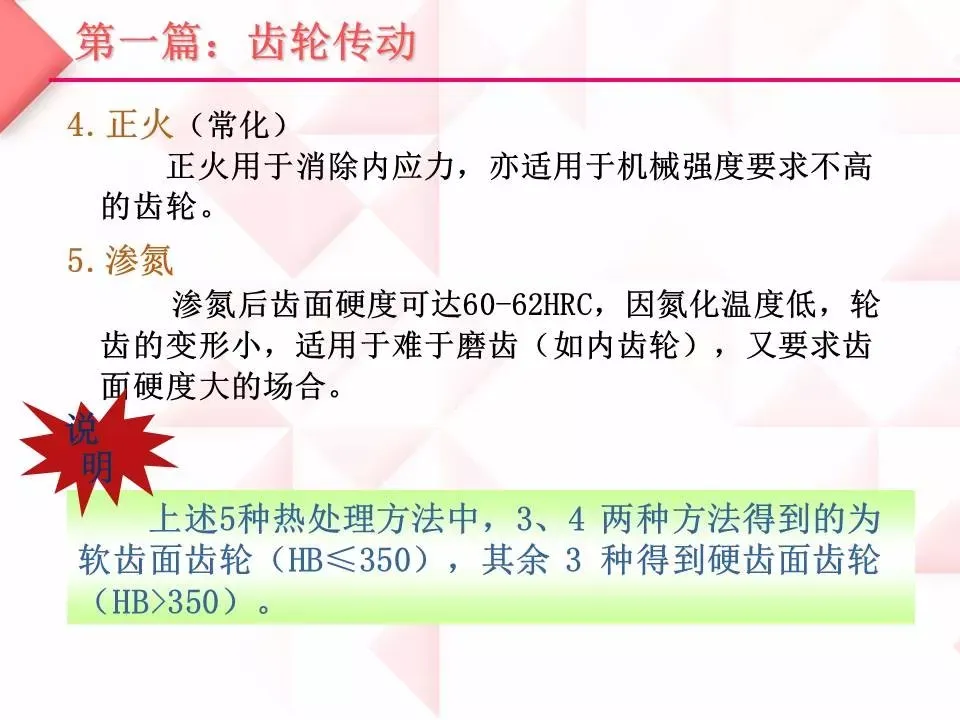

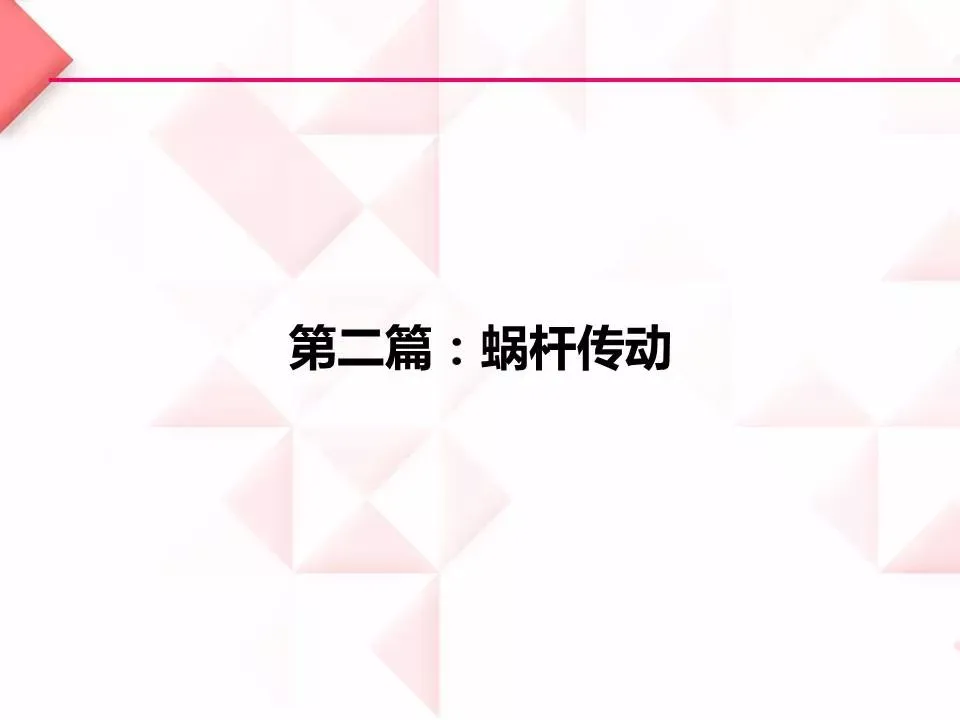

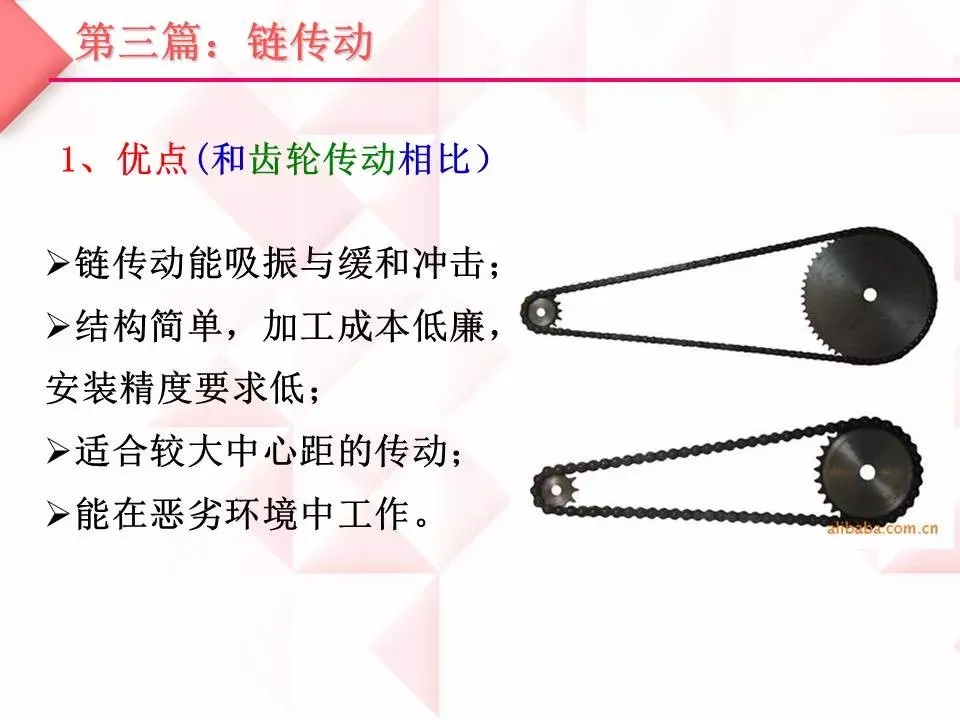

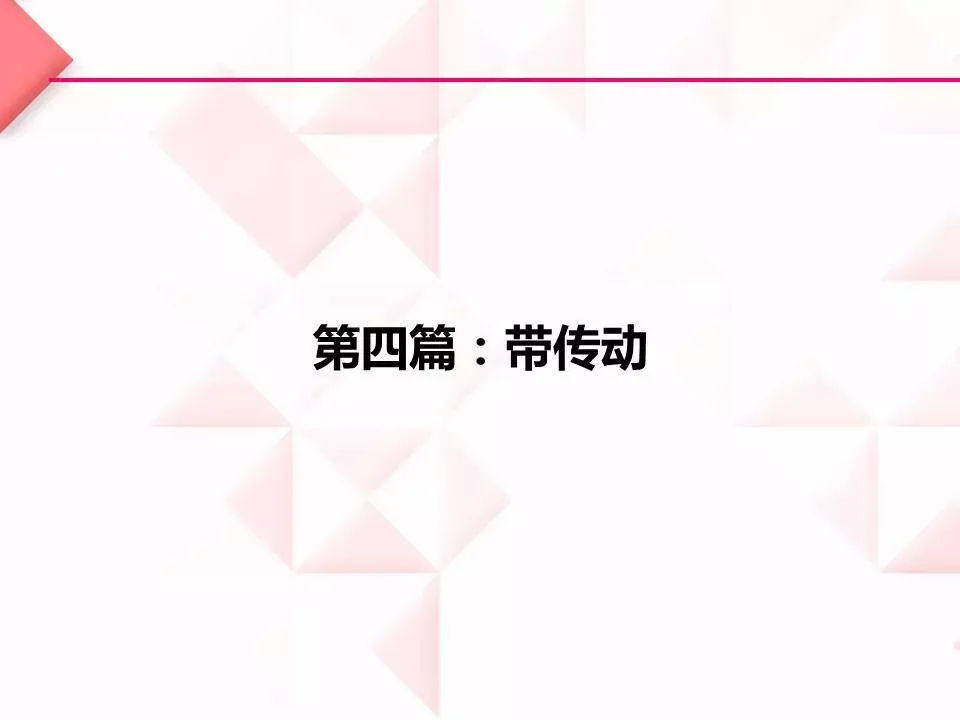

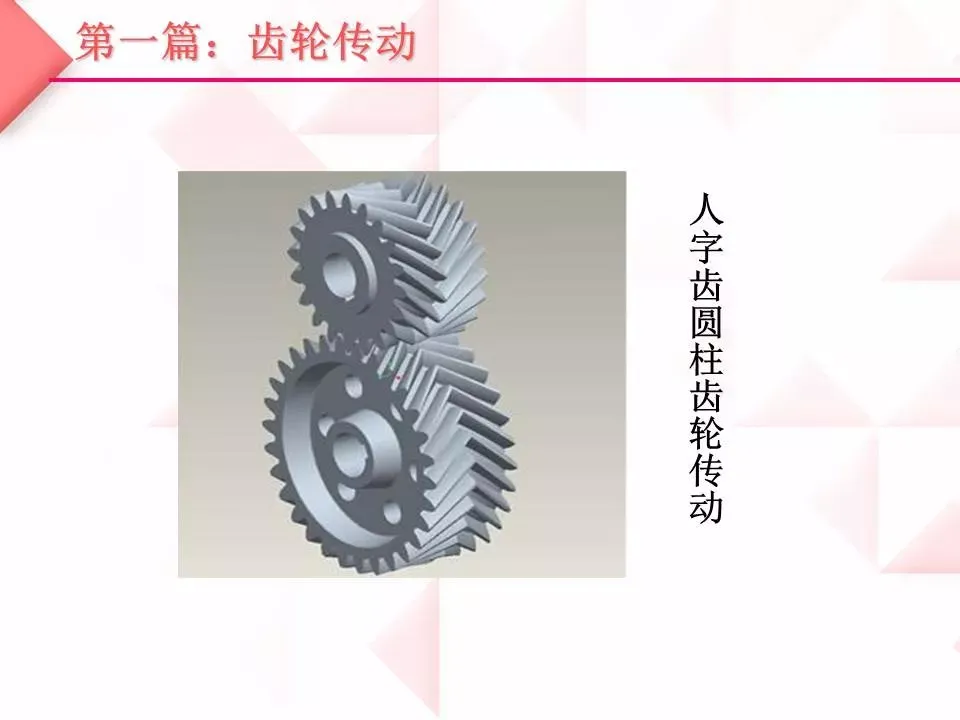

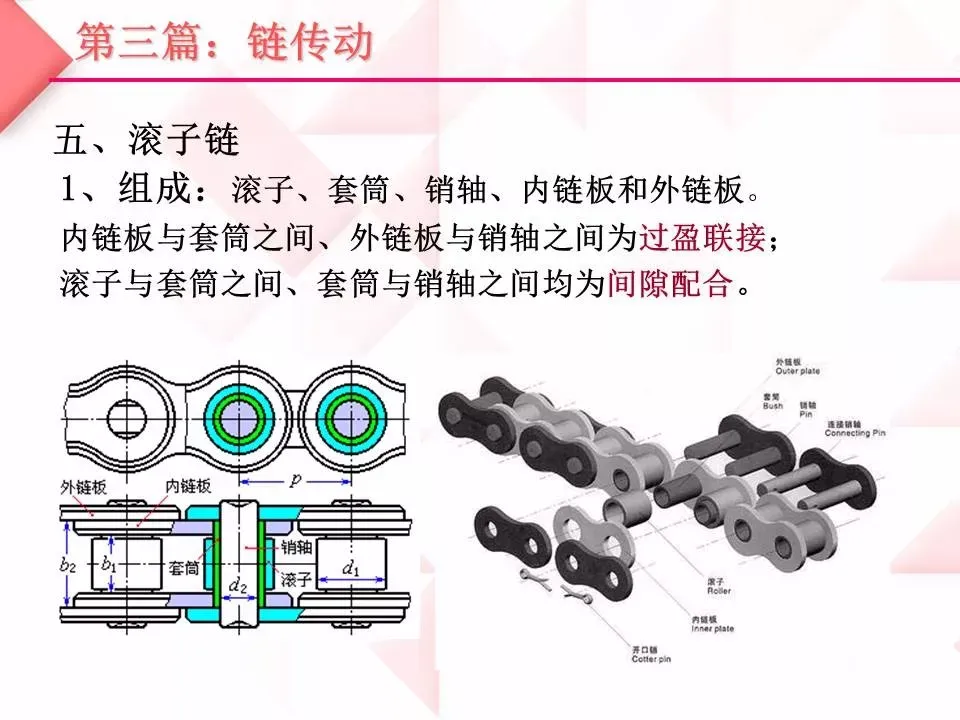

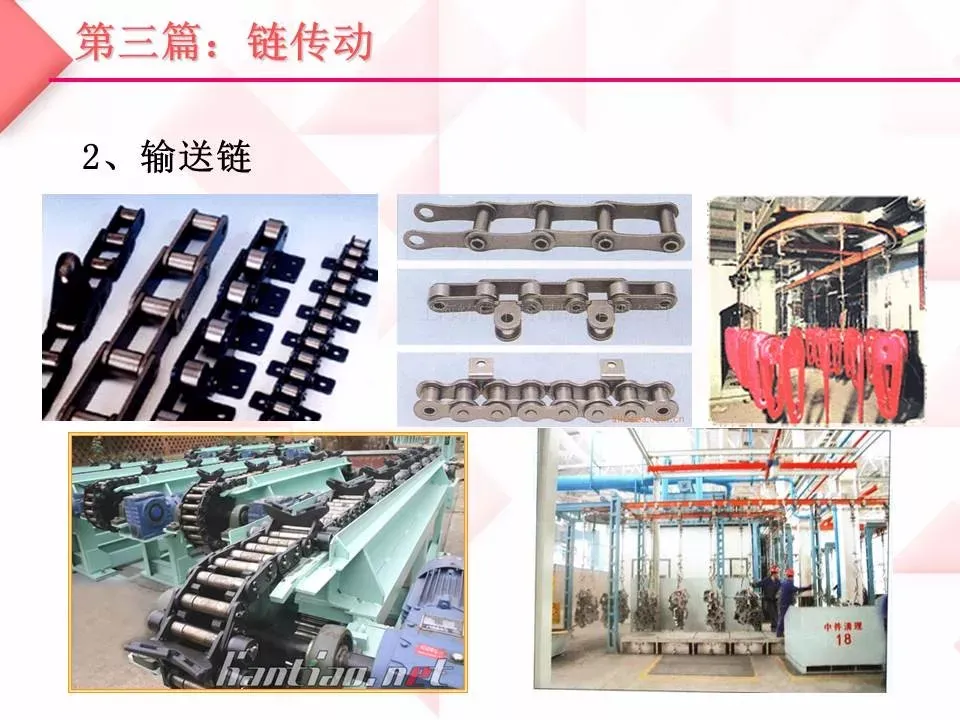

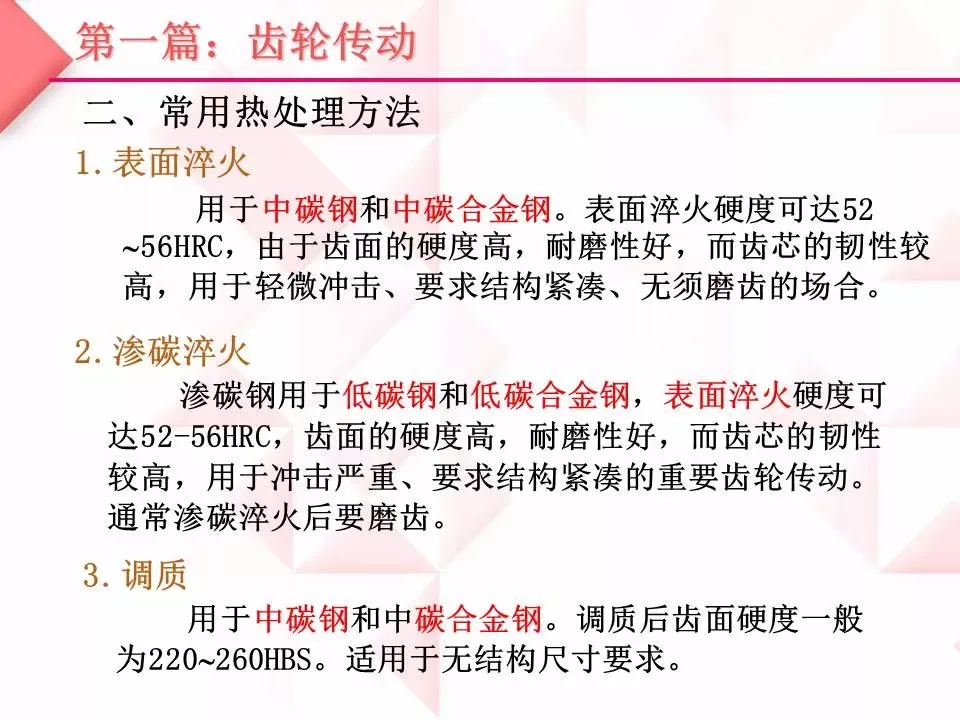

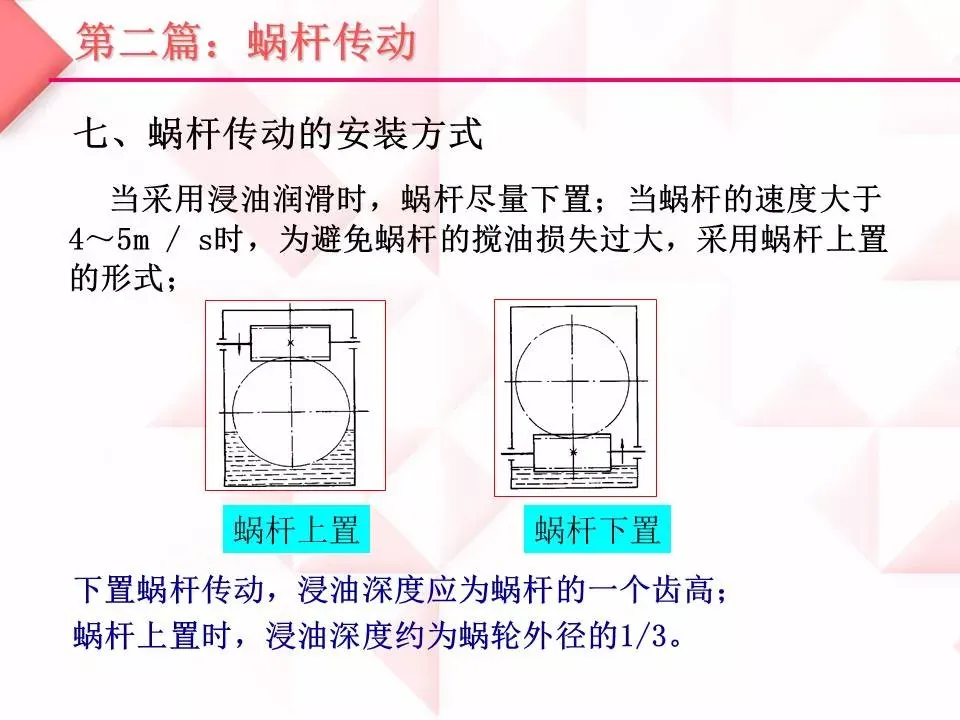

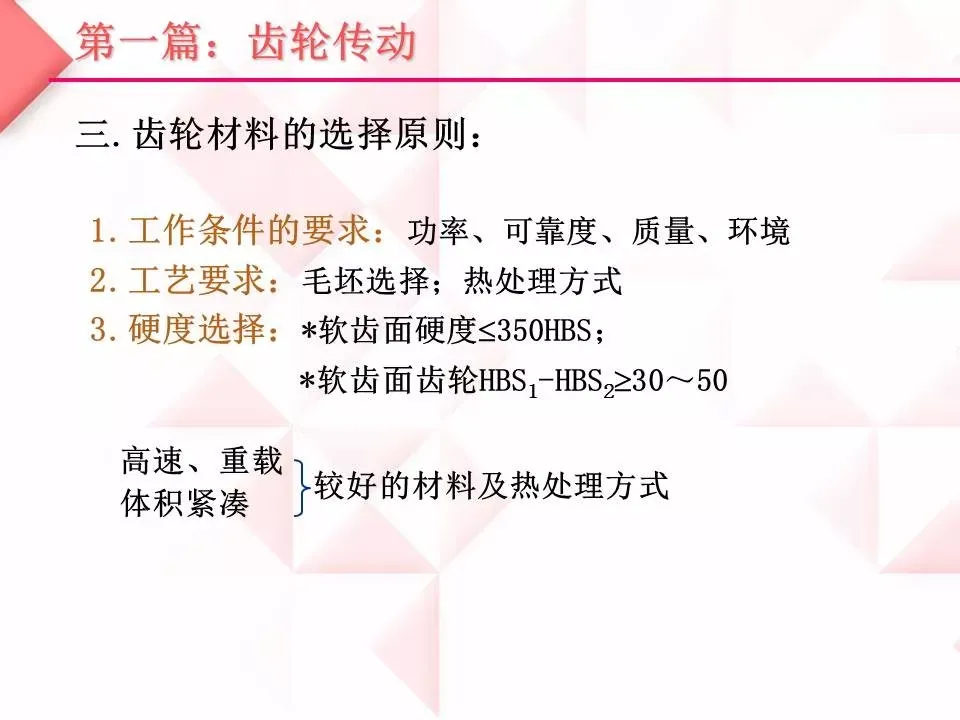

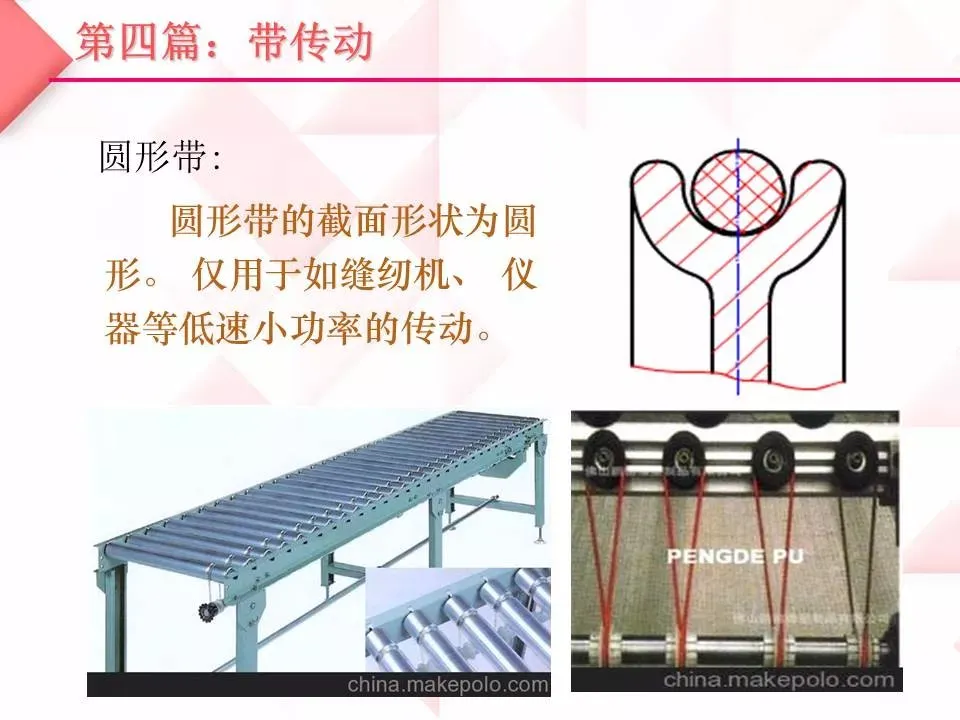

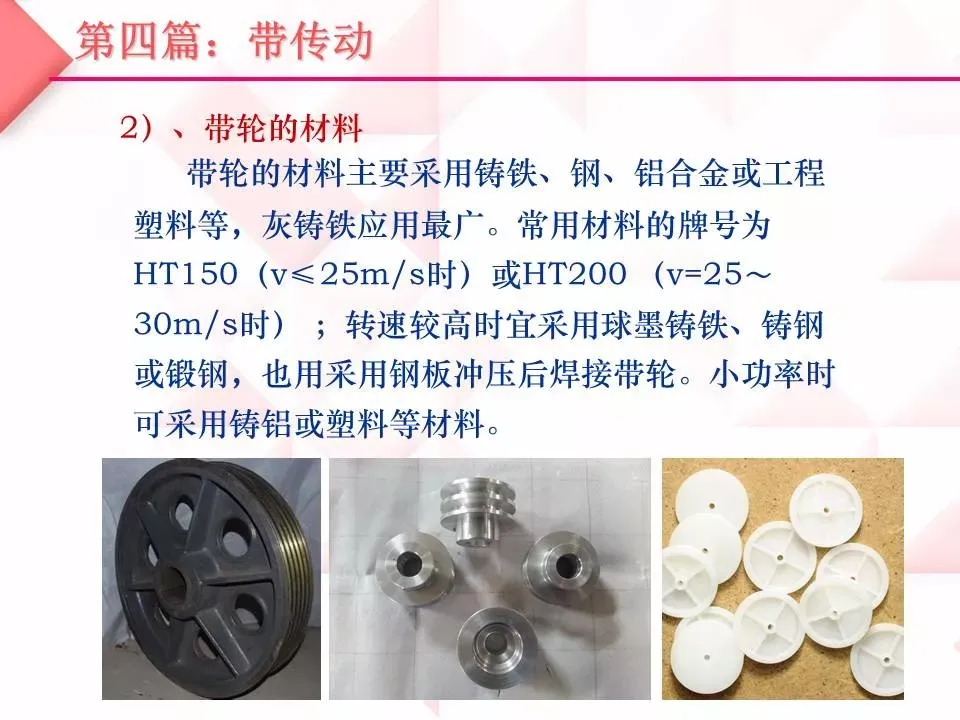

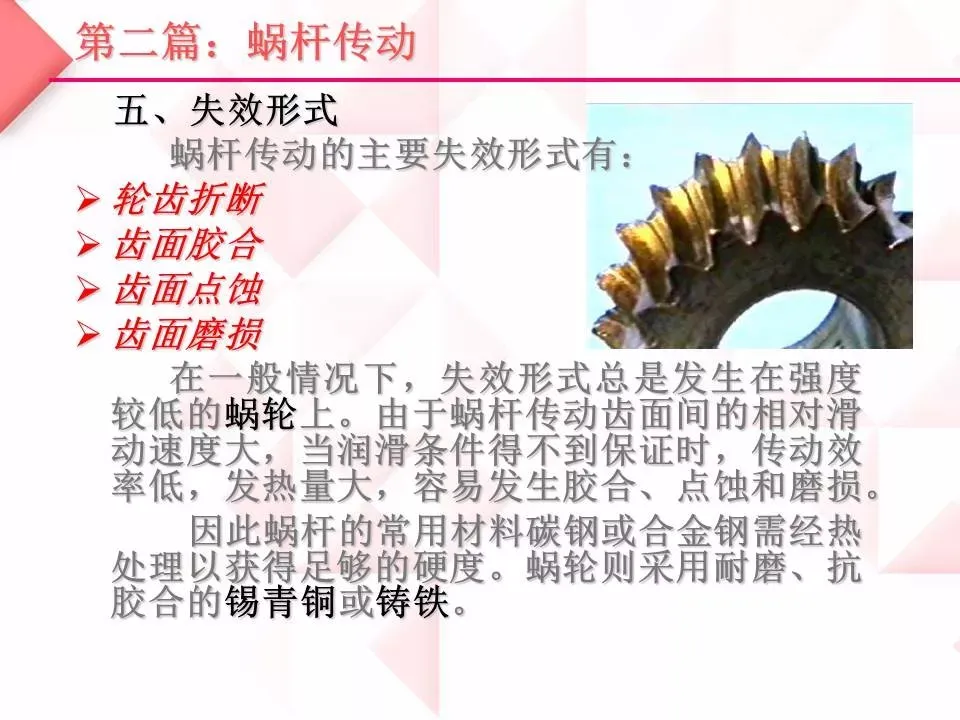

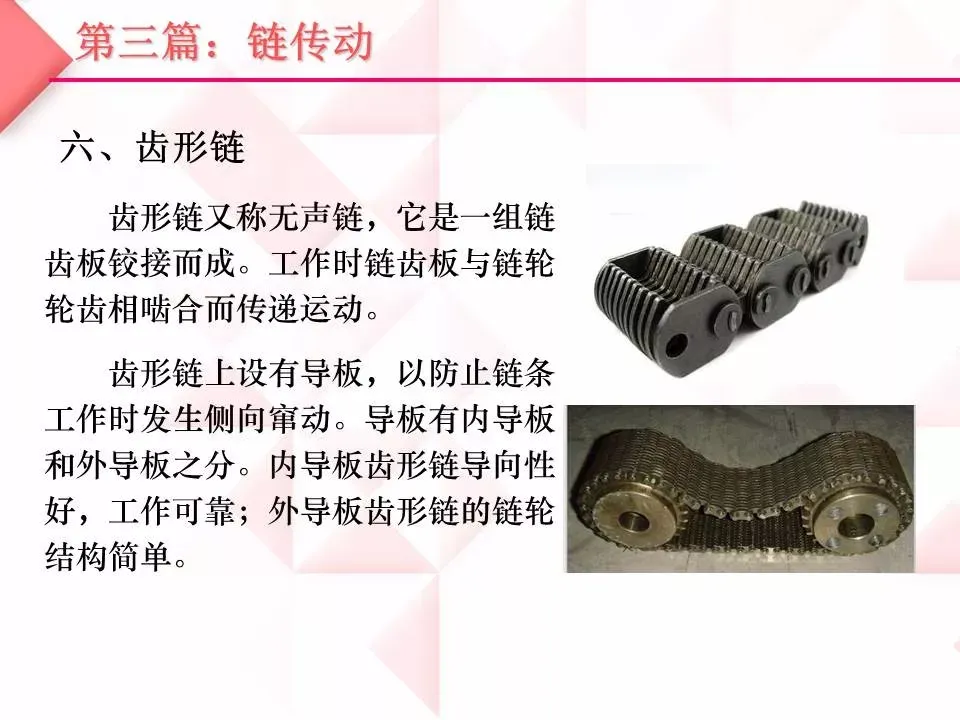

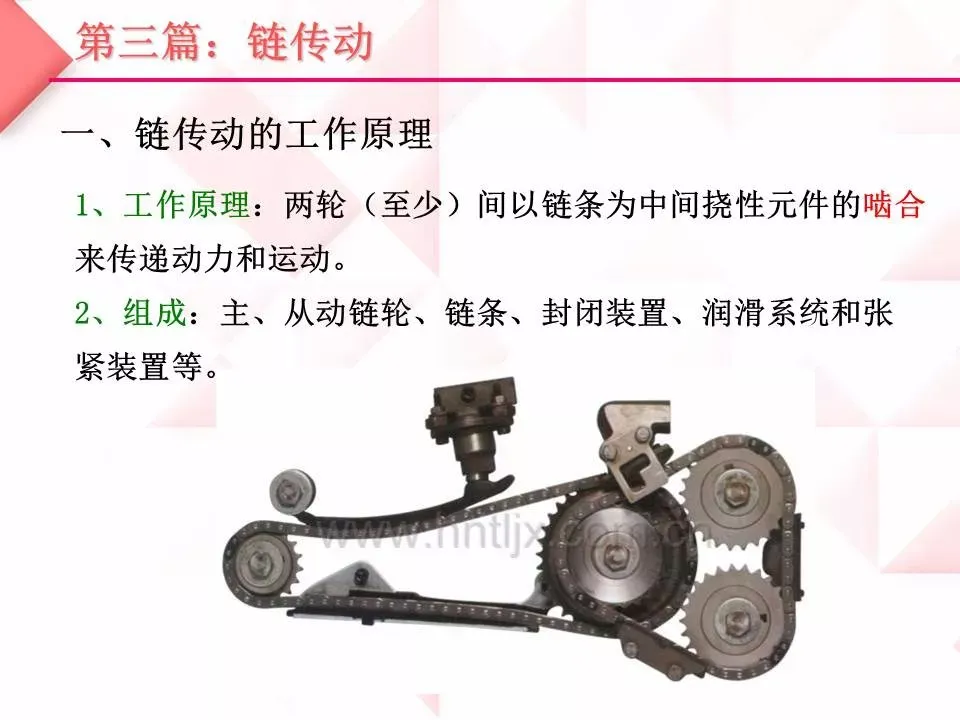

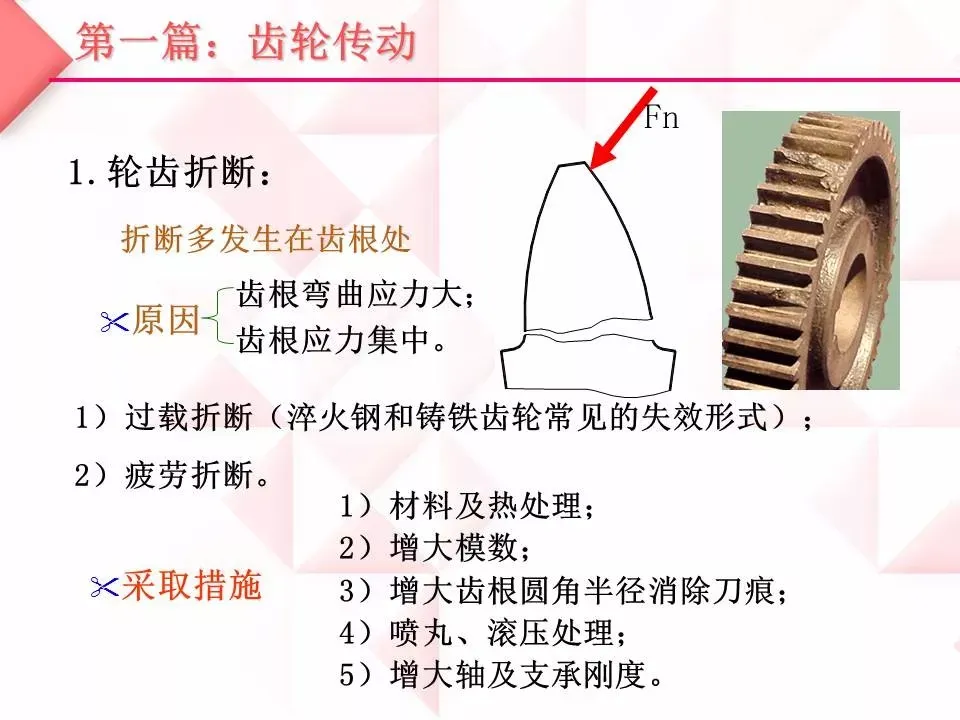

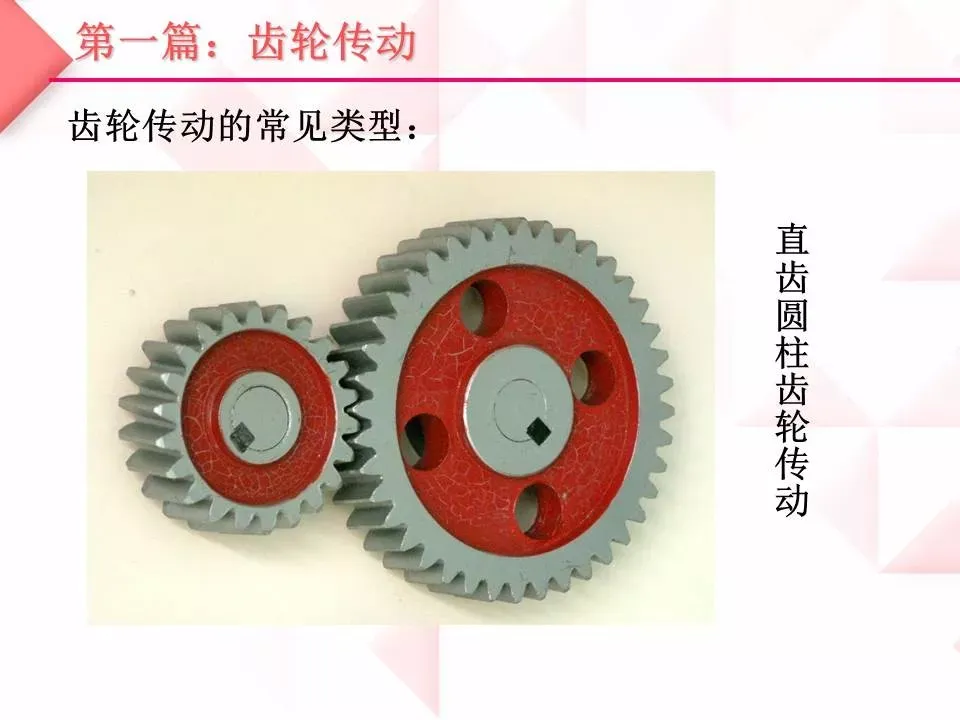

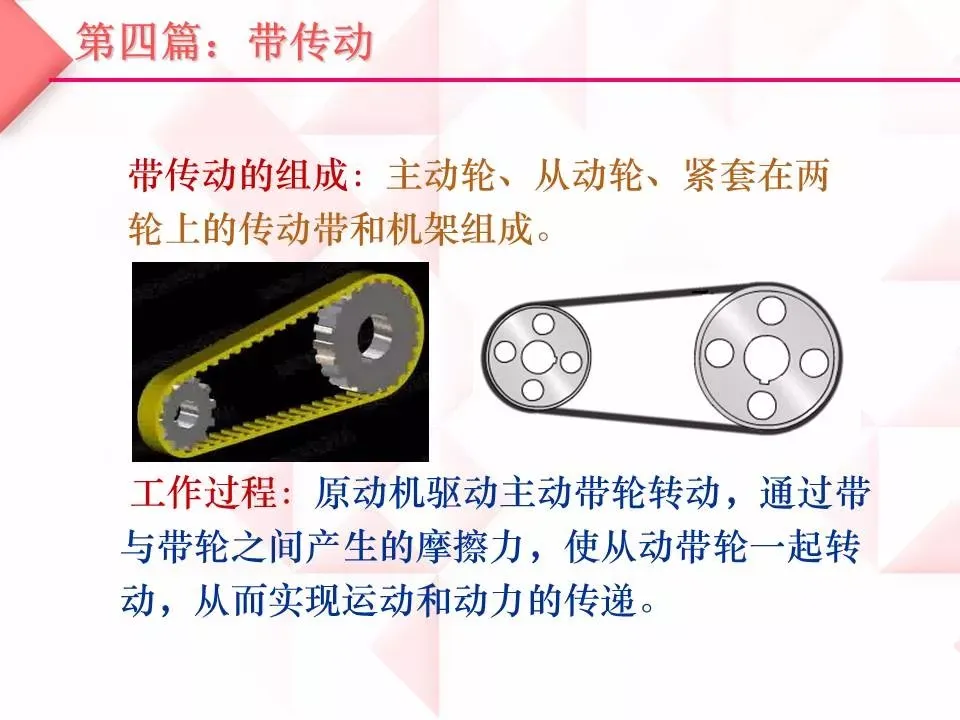

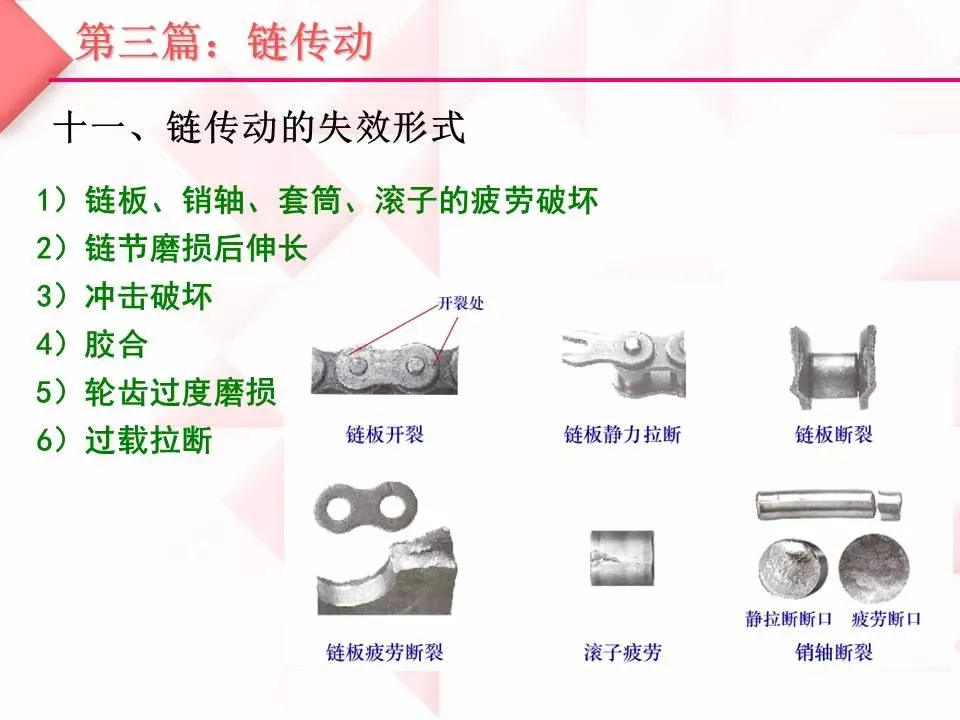

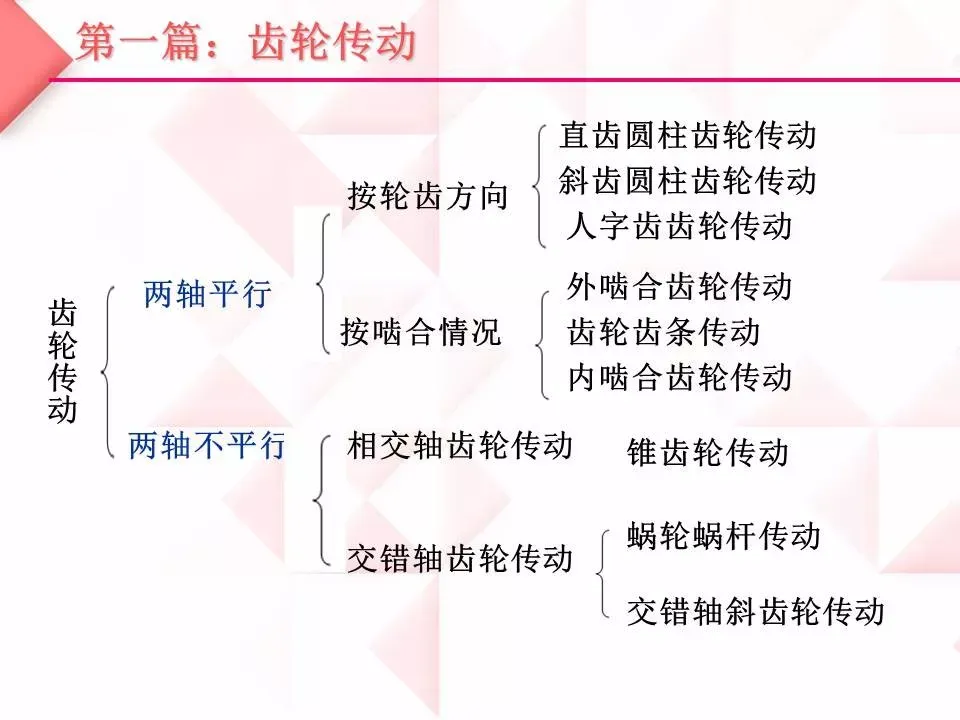

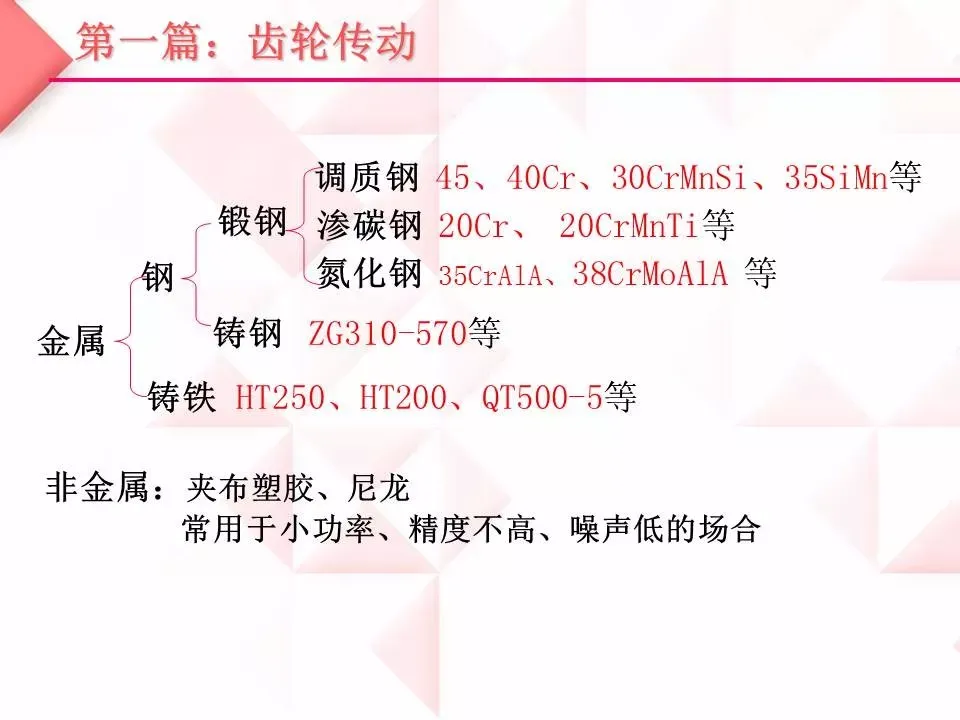

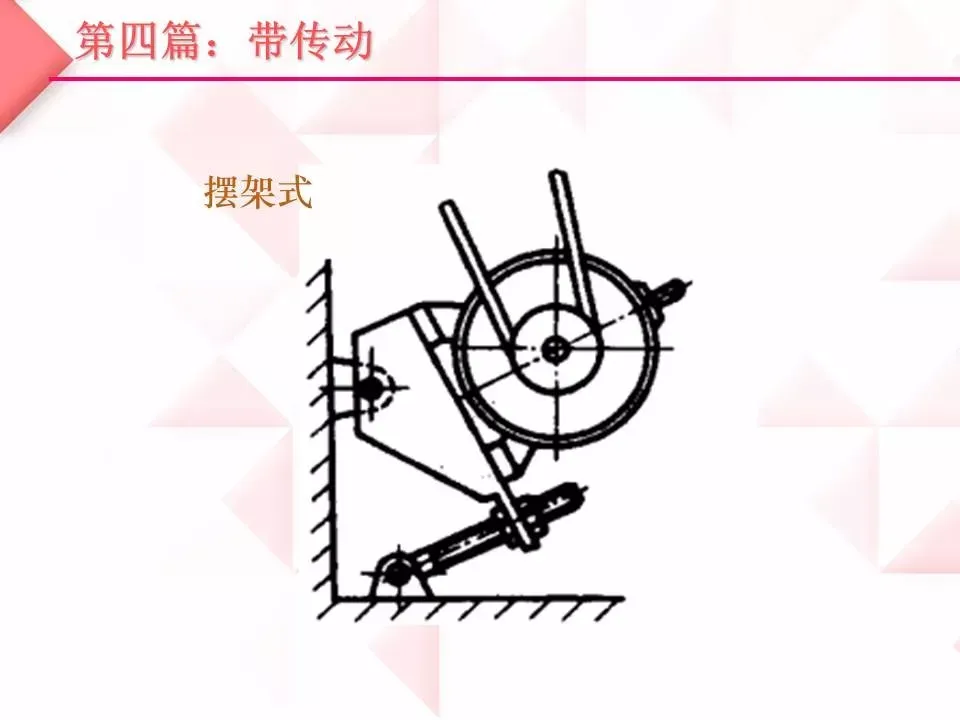

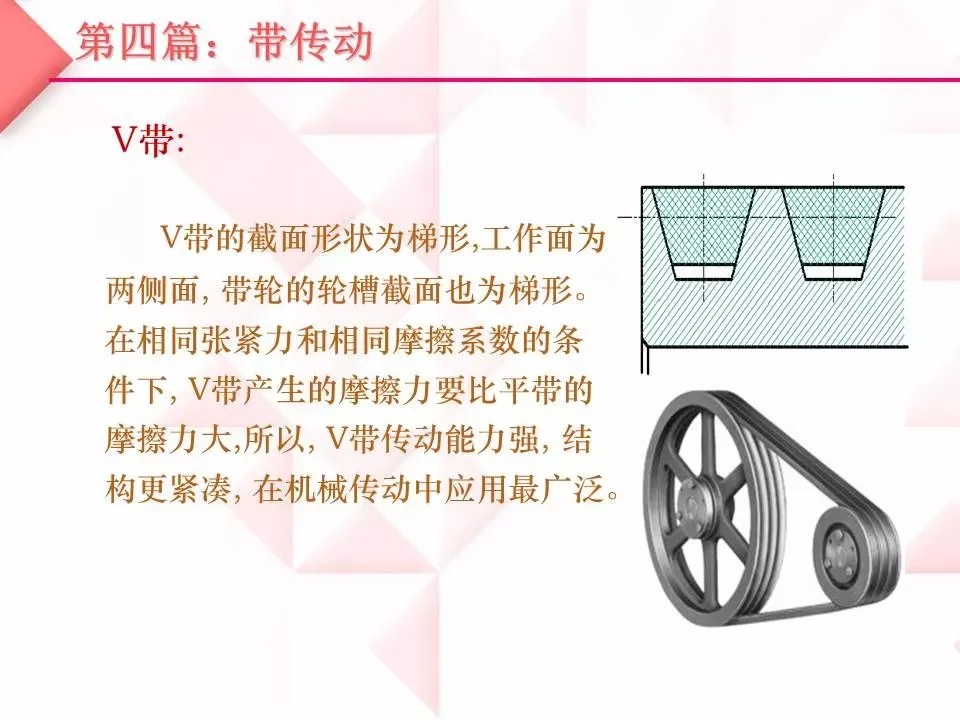

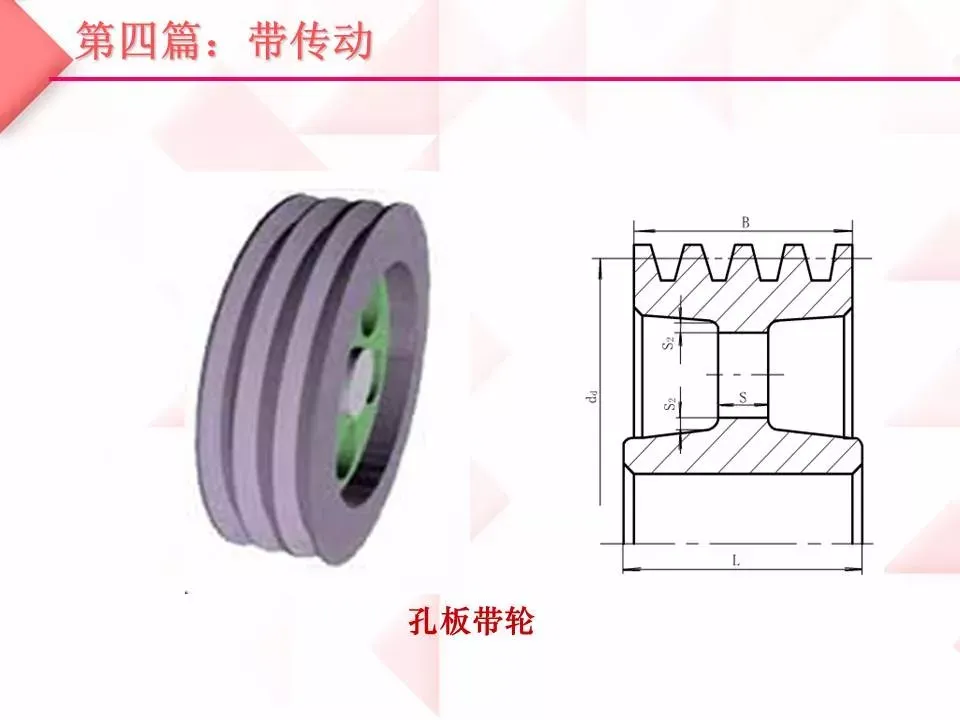

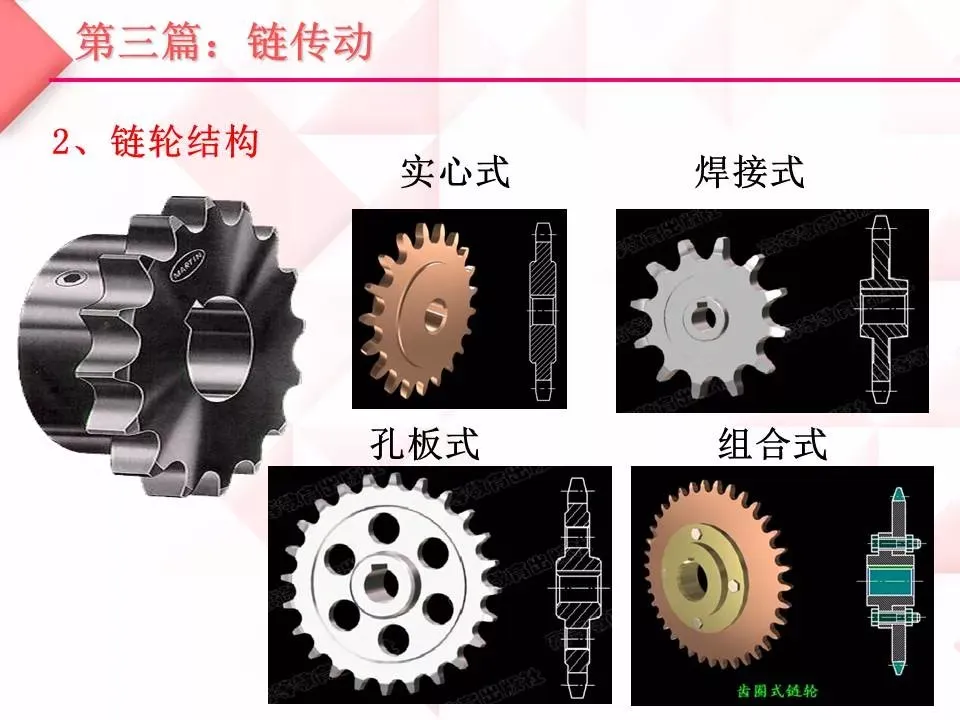

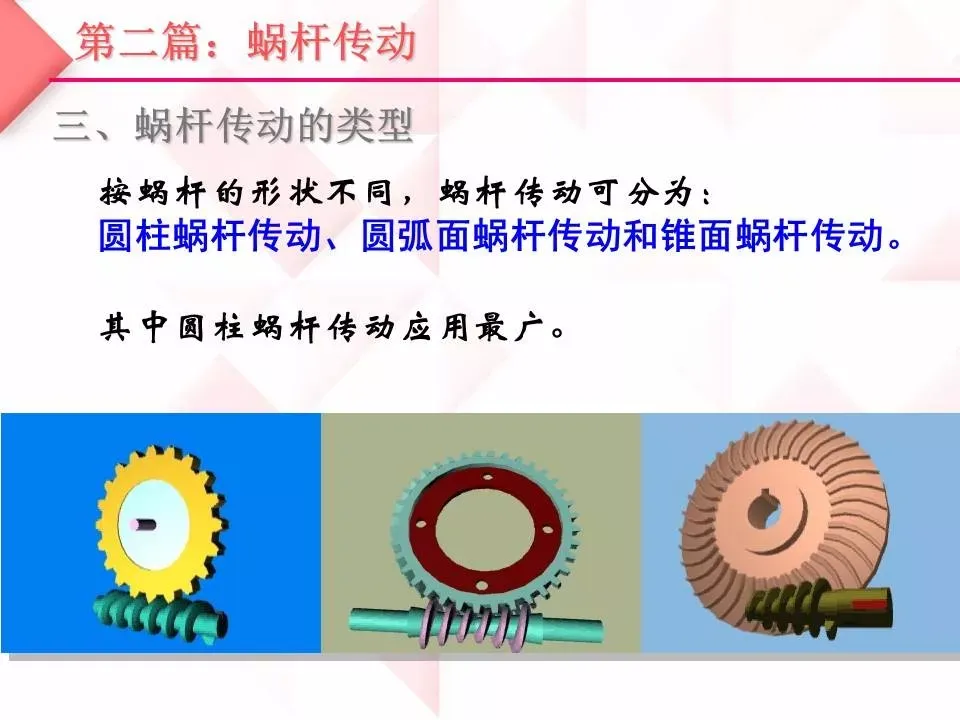

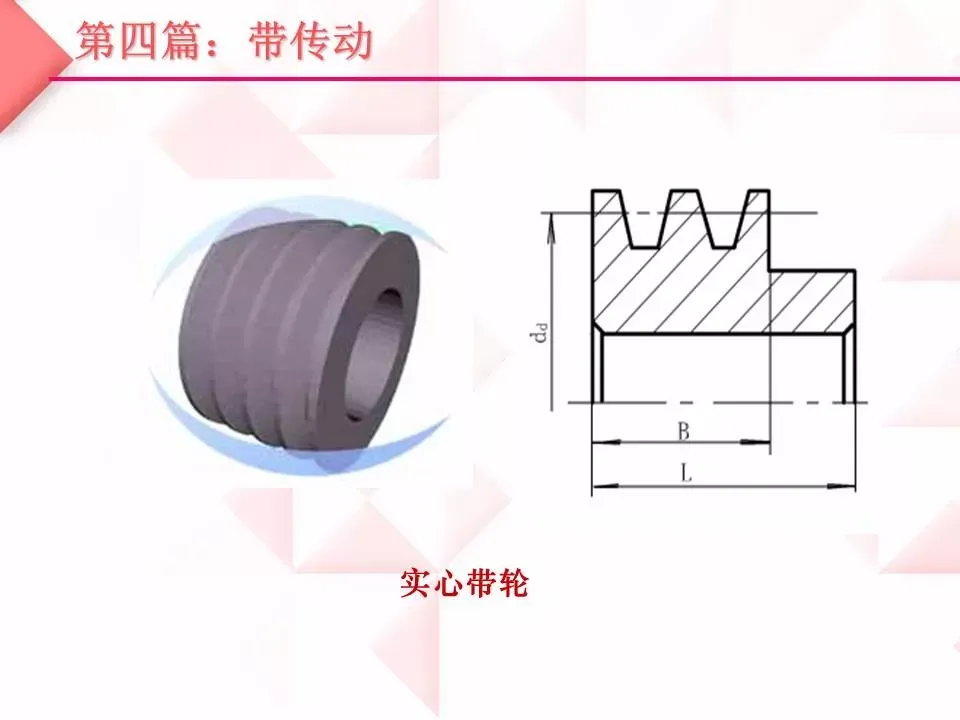

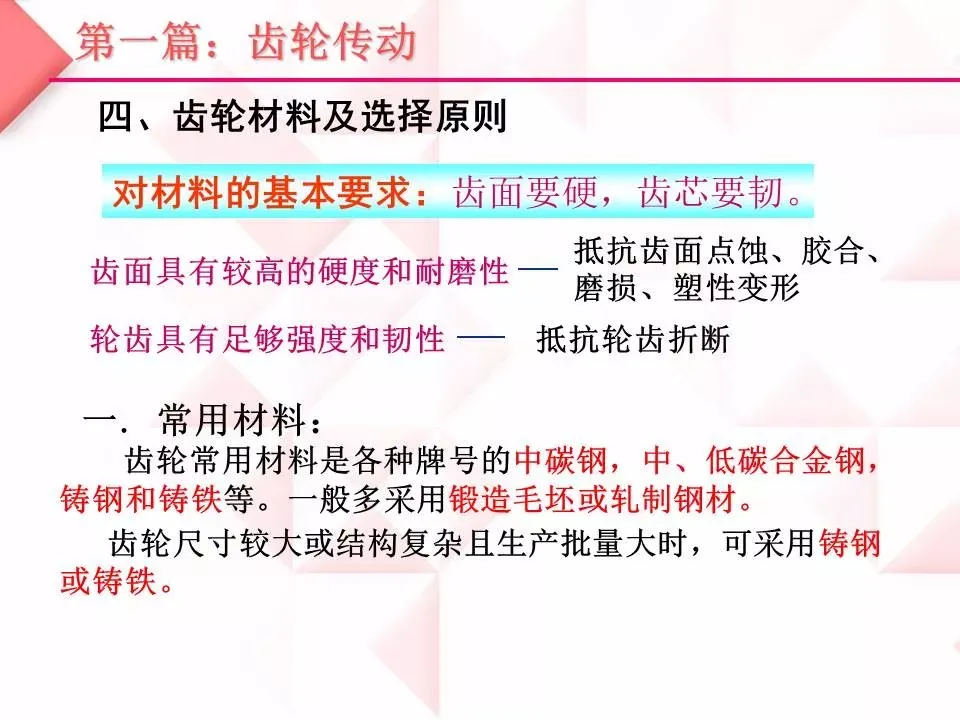

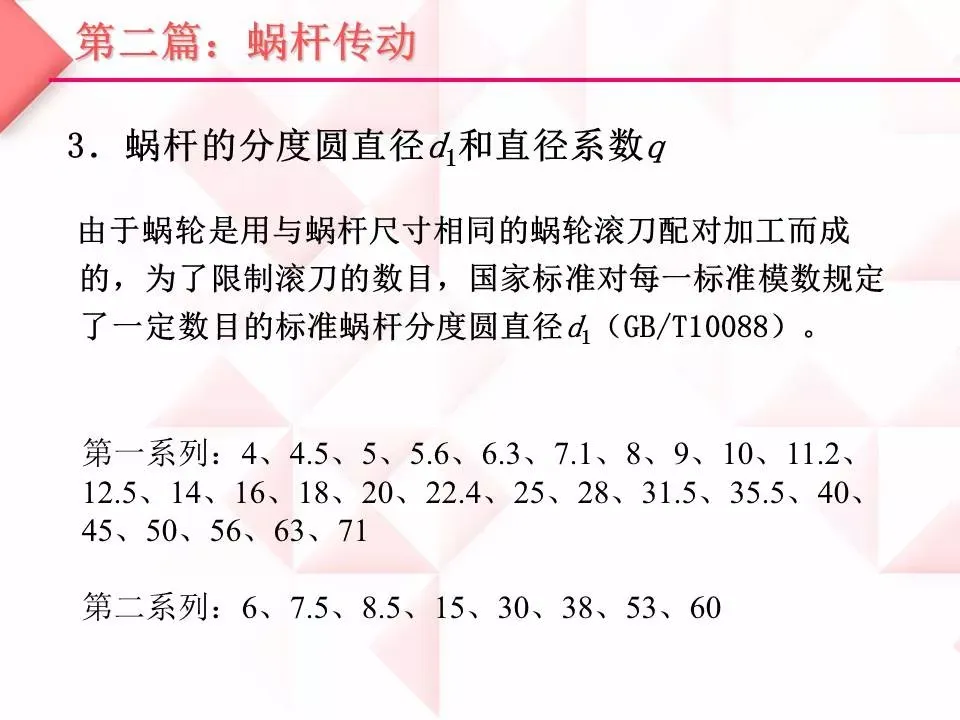

机械传动在机械工程中应用非常广泛，今天分享一篇齿轮传动、蜗杆传动、链传动、带传动、连杆机构及其传动、凸轮机构、螺旋机构和液压传动八大机械传动知识培训PPT，绝对干货。

转自网络，侵删

本文来自网友投稿或网络内容，如有侵犯您的权益请联系我们删除，联系邮箱：wyl860211@qq.com 。
