第134期软件与制图技巧:PPT如何导出sci投稿要求的高分辨率图片

  • 2026-11-09 21:33:10
第134期软件与制图技巧:PPT如何导出sci投稿要求的高分辨率图片

第134期软件与制图技巧

PPT如何导出sci投稿要求的高分辨率图片

对于大部分科研人来说，PPT绝对是刚需神器！不管是实验示意图、数据组合图、流程模型图，大家都习惯用PPT、WPS快速排版制图，操作简单、上手零门槛，轻松搞定论文配图的基础制作。但很多学者都会卡在图片导出这最后一步！

熟知SCI期刊对配图画质有着严苛标准，主流普通期刊要求图片分辨率不低于300dpi，而顶刊、高水平核心期刊更是要求达到600dpi高清标准。可默认设置下，PPT/WPS导出的图片普遍模糊、分辨率不达标，频繁出现画质压缩、细节丢失、边缘锯齿等问题，直接导致论文初审被返修、拒稿，白白耽误投稿进度。

明明图做得规整美观，却因为分辨率不达标影响投稿，属实太可惜！针对科研人这个高频痛点，今天就给大家整理了一套零难度高清导出方案。

核心步骤

01

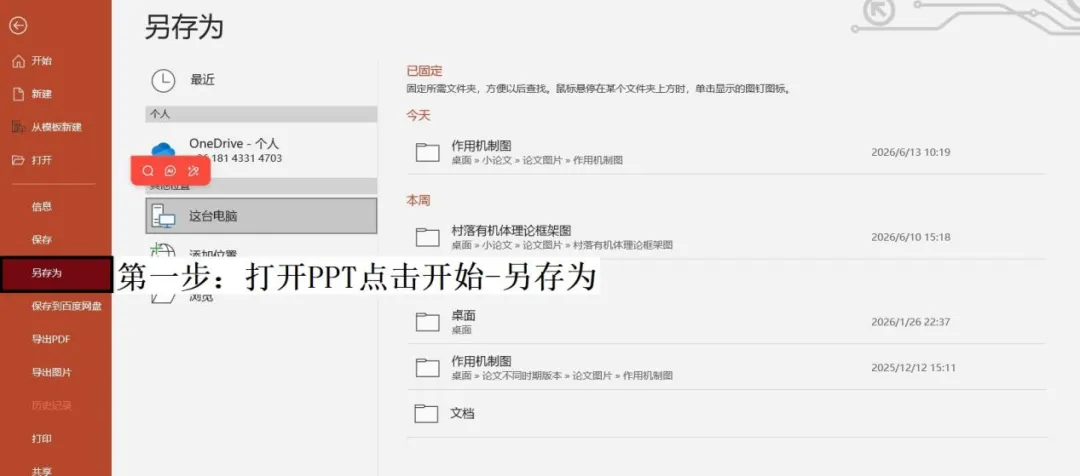

第一步

02

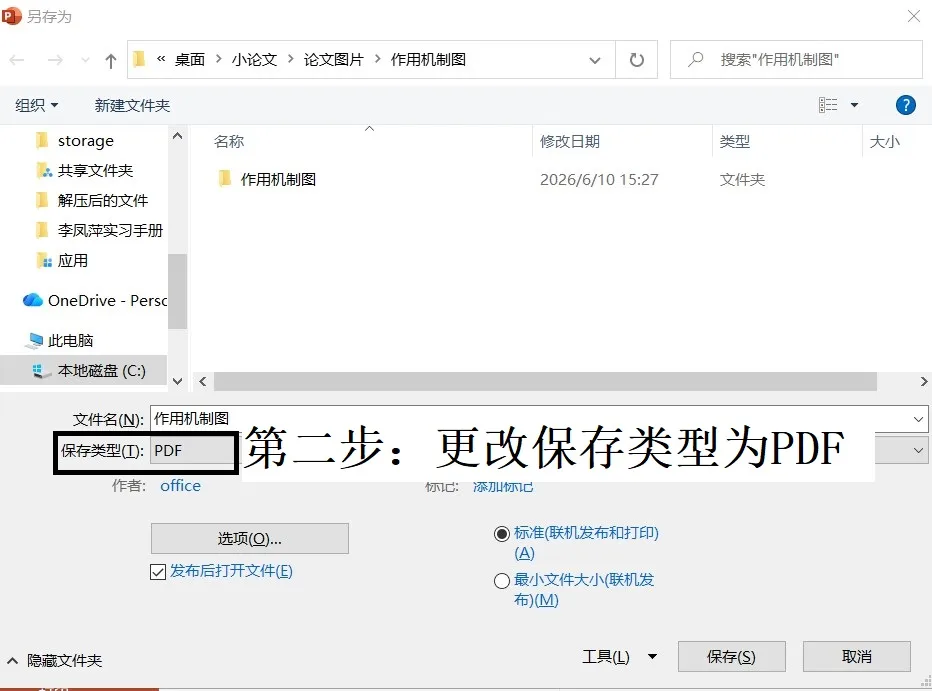

第二步

03

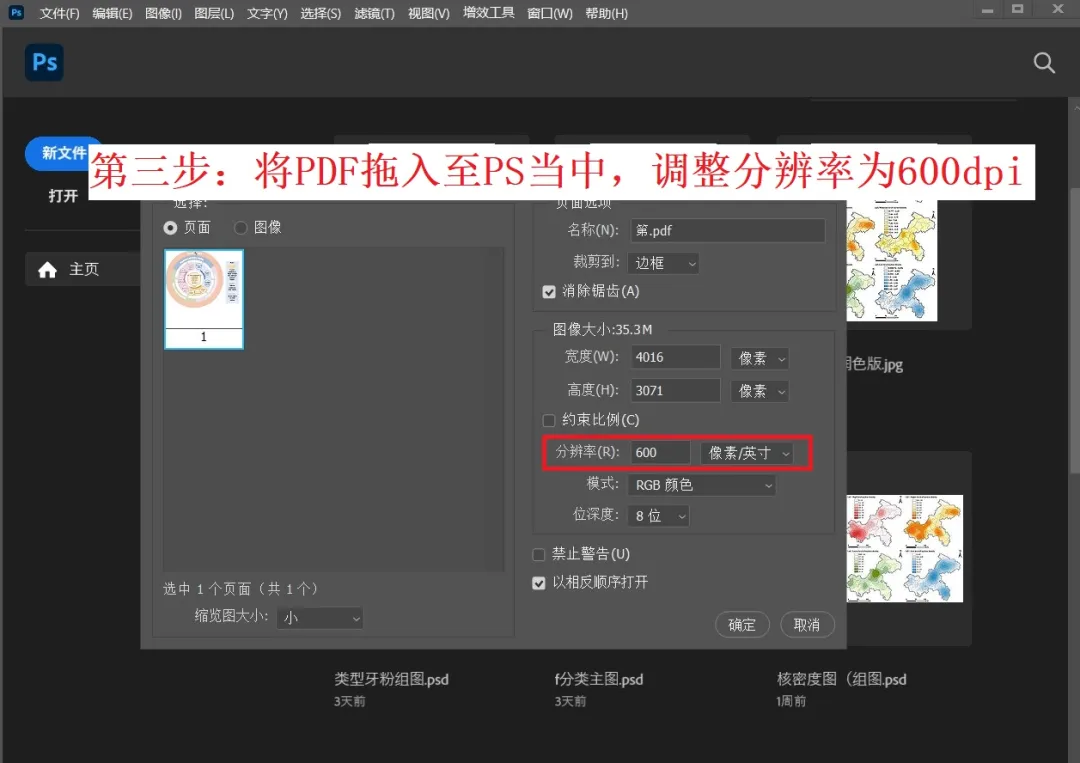

第三步

04

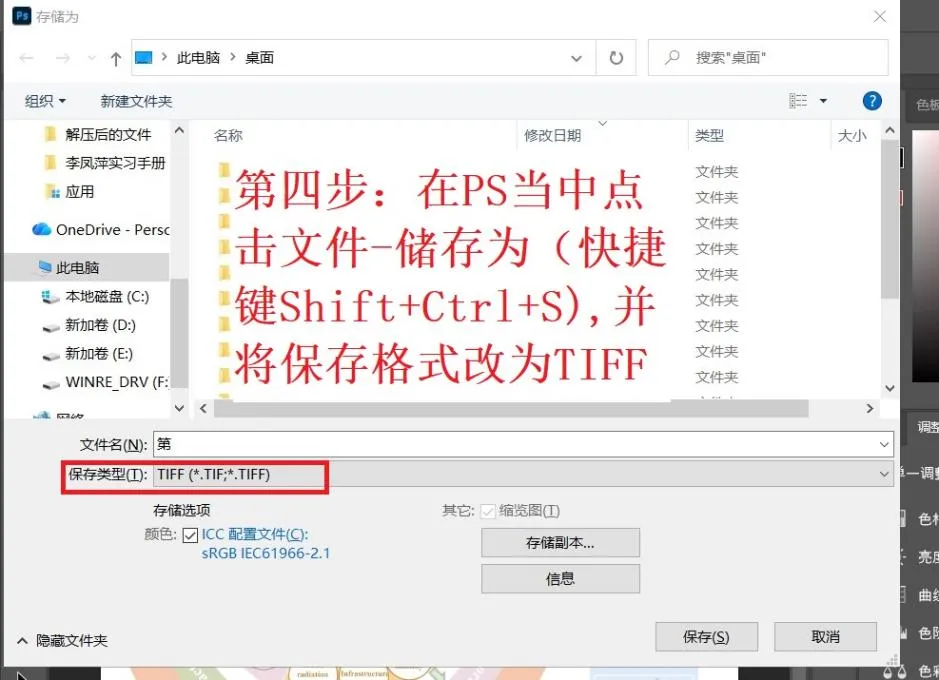

第四步

05

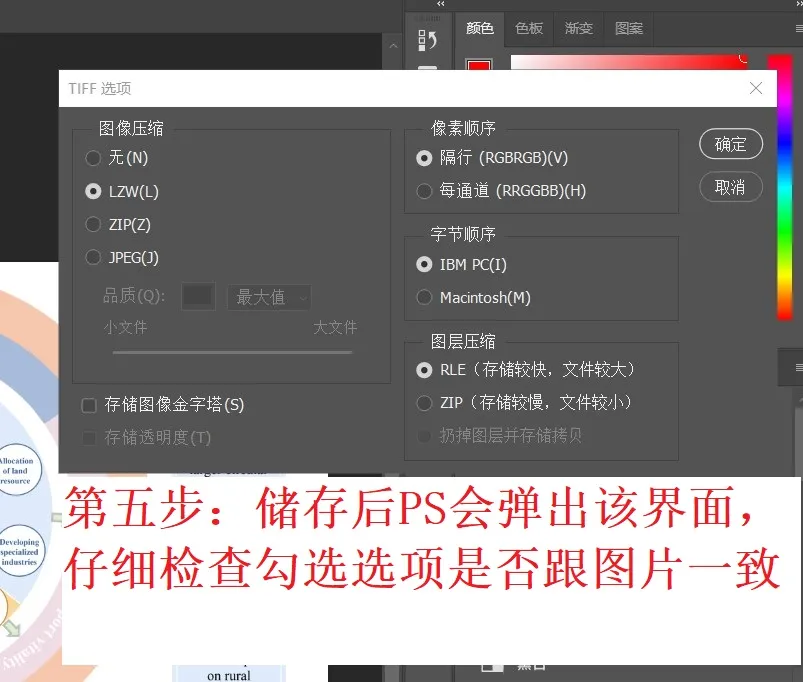

第五步

06

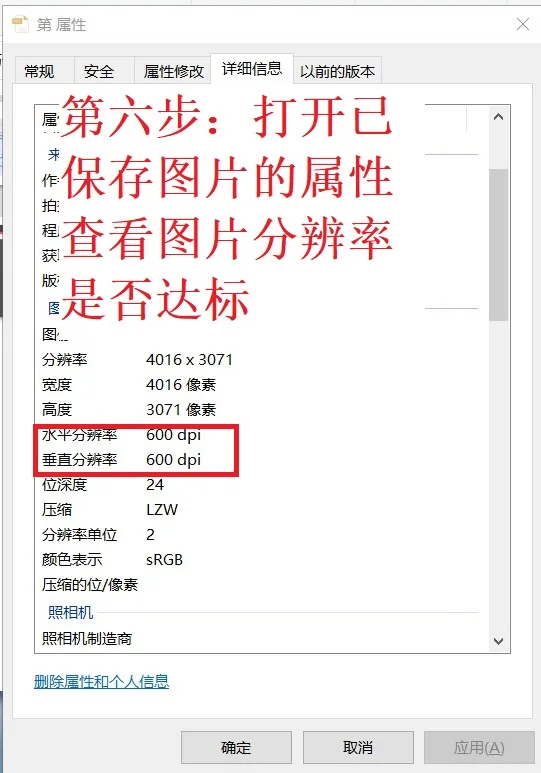

第六步

本期

供稿：李凤萍

排版：马小翔

审核：李月臣教授、刘春霞教授
