1MWh集装箱式储能系统设计方案.ppt

  • 2026-10-28 03:59:25
1MWh集装箱式储能系统设计方案.ppt

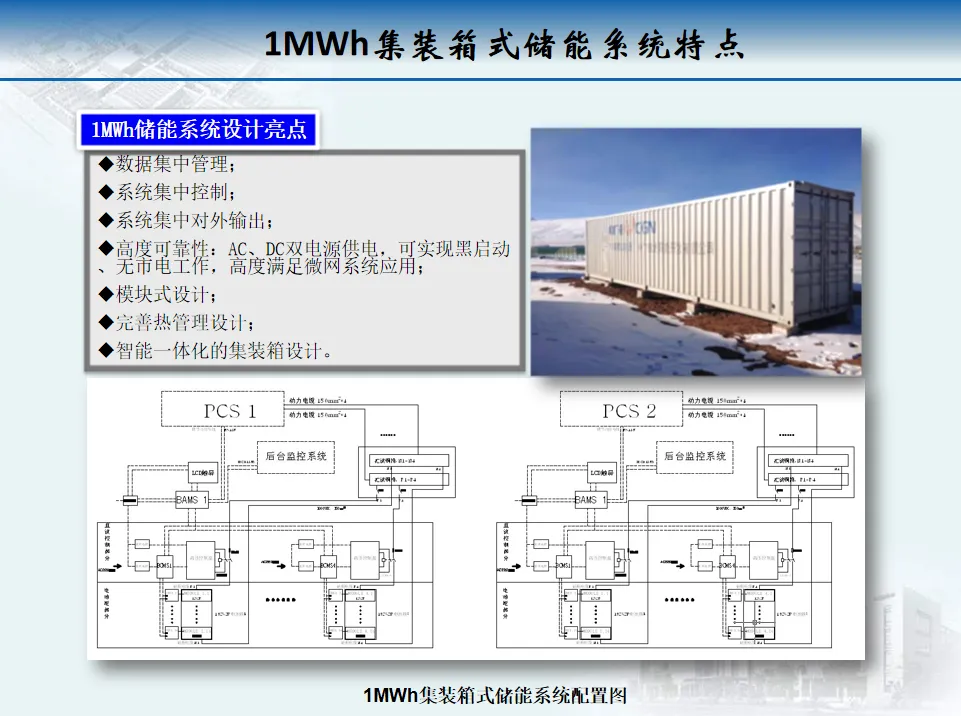

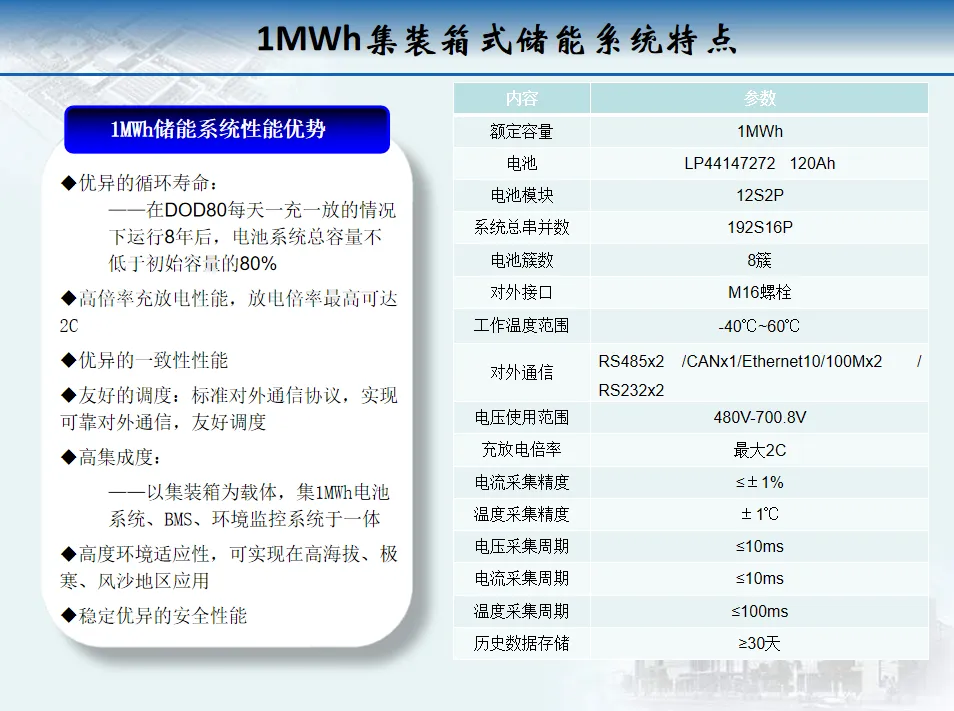

这份 1MWh 集装箱式储能系统设计方案，直接给出可落地的高海拔、极寒环境整机参数与工程化解决方案。系统采用 LP44147272-120Ah 电芯，以 12S2P 成模块、192S16P 整串、8 簇并联构成 1MWh 容量，电压范围 480V–700.8V，最大充放电倍率 2C，在 DOD80 每日一充一放条件下，8 年后容量保持率不低于 80%。

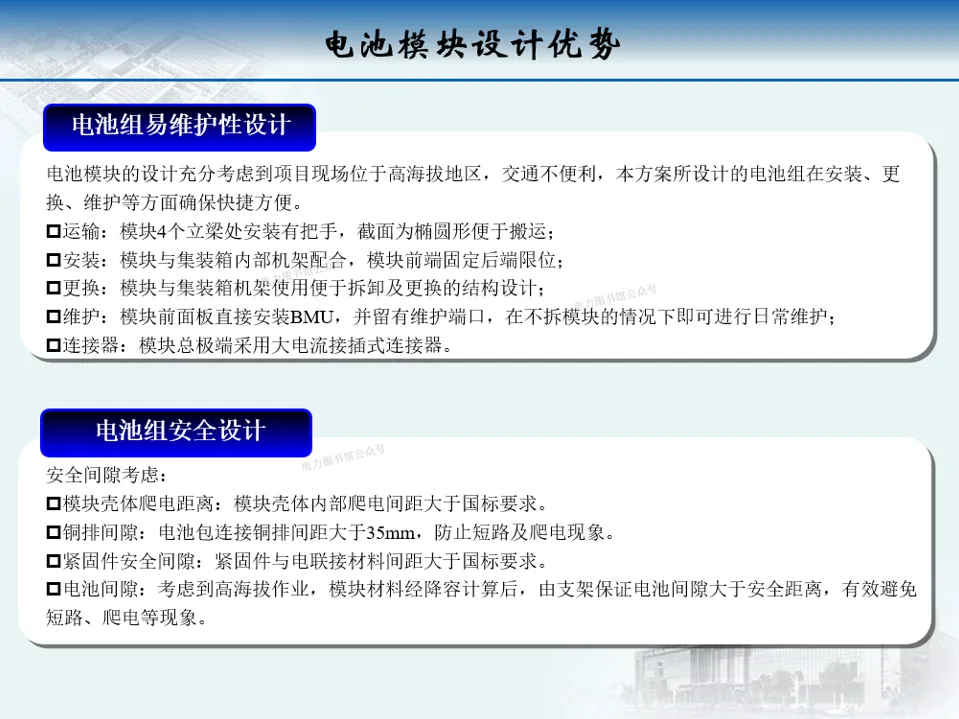

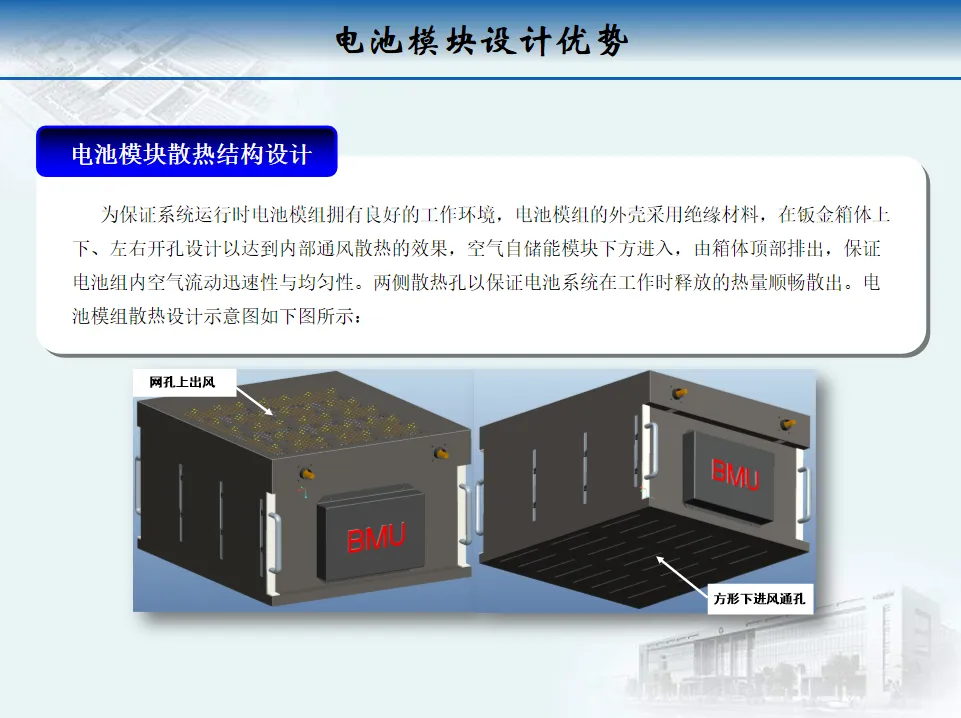

电池模块做三项关键结构优化：上下左右开孔形成自下而上通风散热；支架设 6 根支撑柱，预留 2mm 单侧间隙抑制鼓包，高海拔负压 30 天实验最大鼓胀量仅 0.8mm；模块配搬运把手、快拆结构与前置 BMU，现场免拆维护。
页数太多不在一一叙述.......

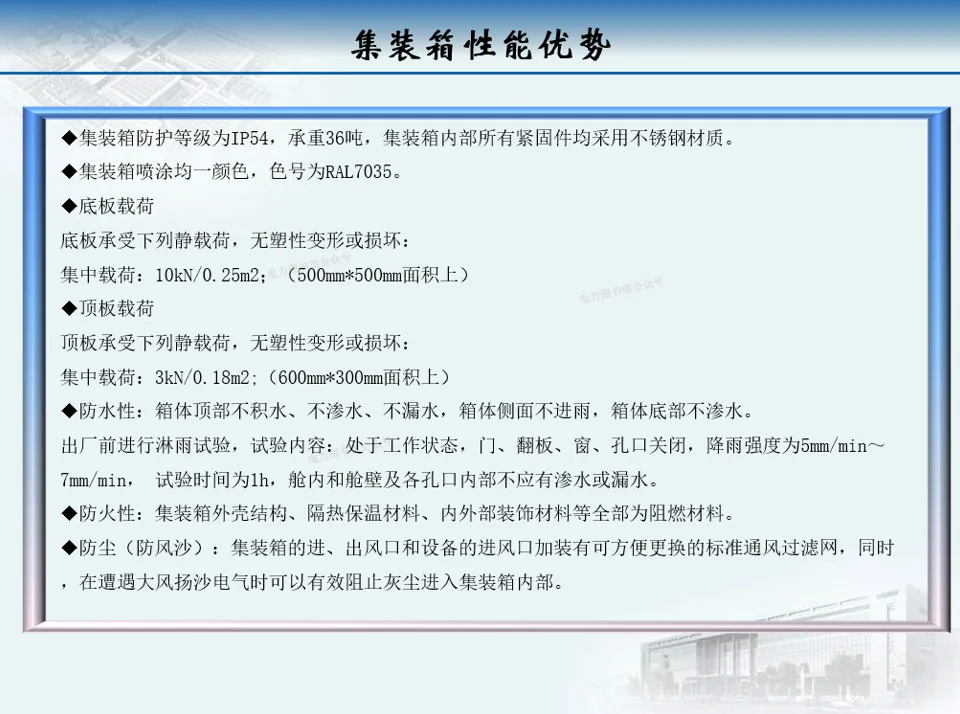

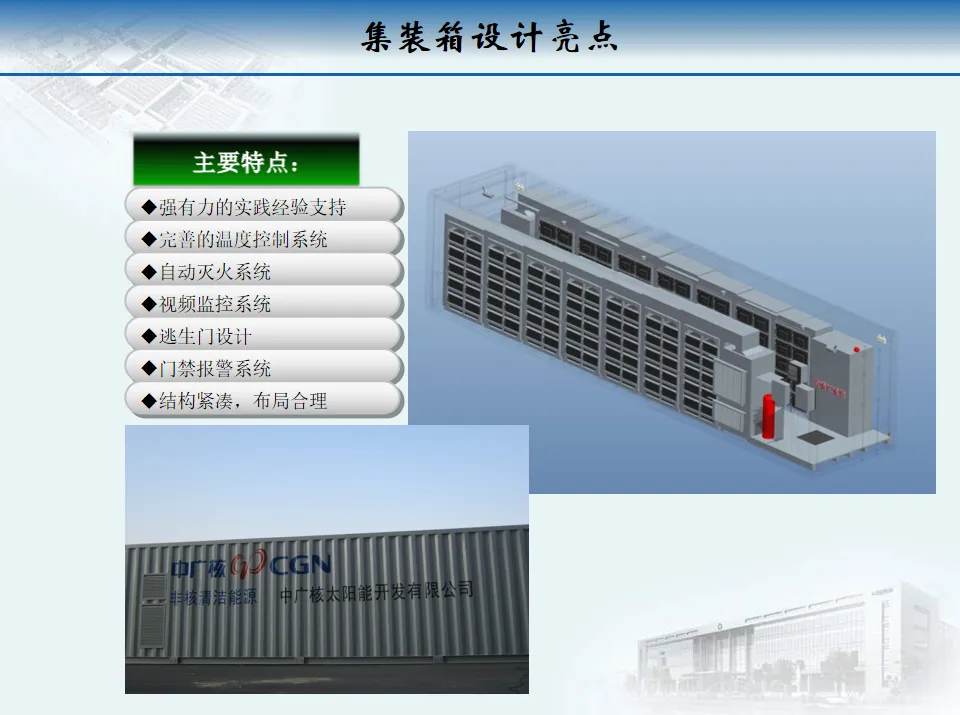

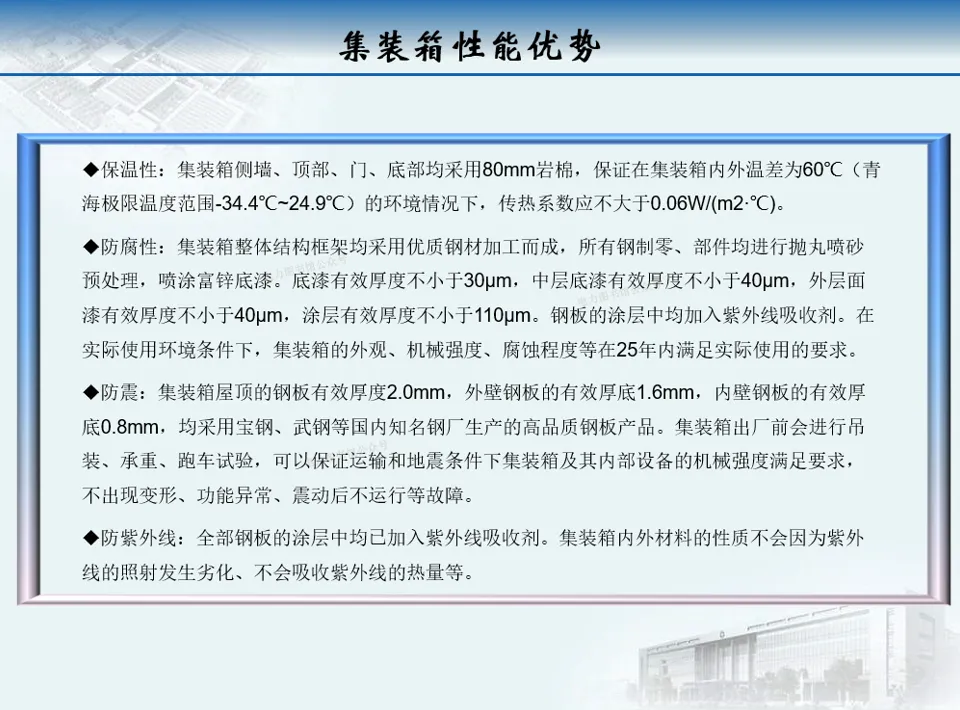

集装箱采用 80mm 岩棉保温，传热系数≤0.06W/(m²・℃)，可耐受 - 40℃~60℃环境；框架防腐涂层总厚≥110μm，25 年不失效；内置七氟丙烷自动灭火、门禁报警、双接地点防雷，设应急逃生门。

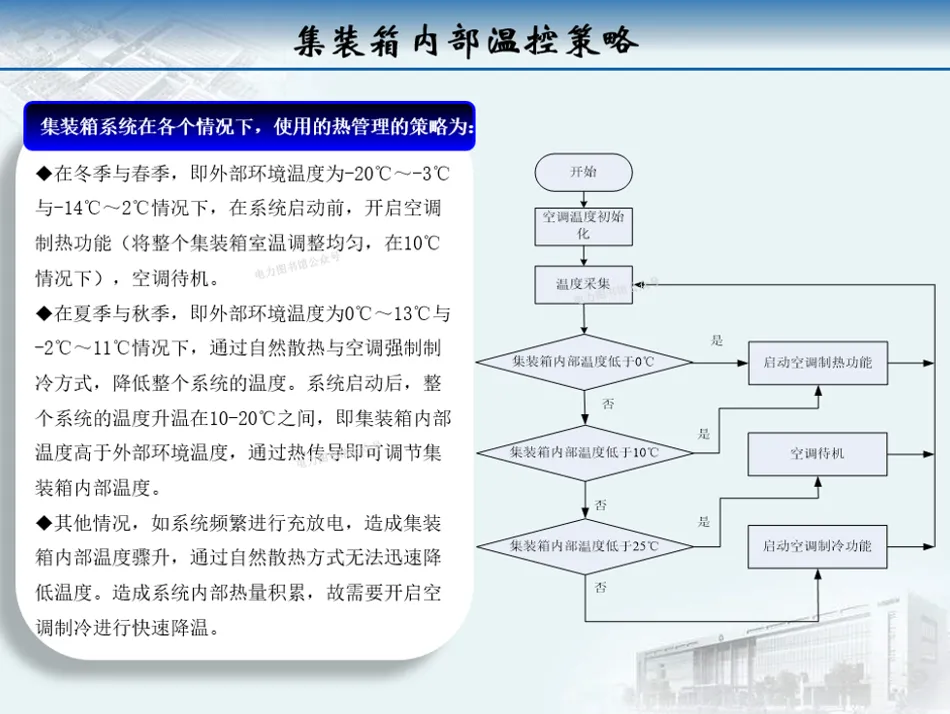

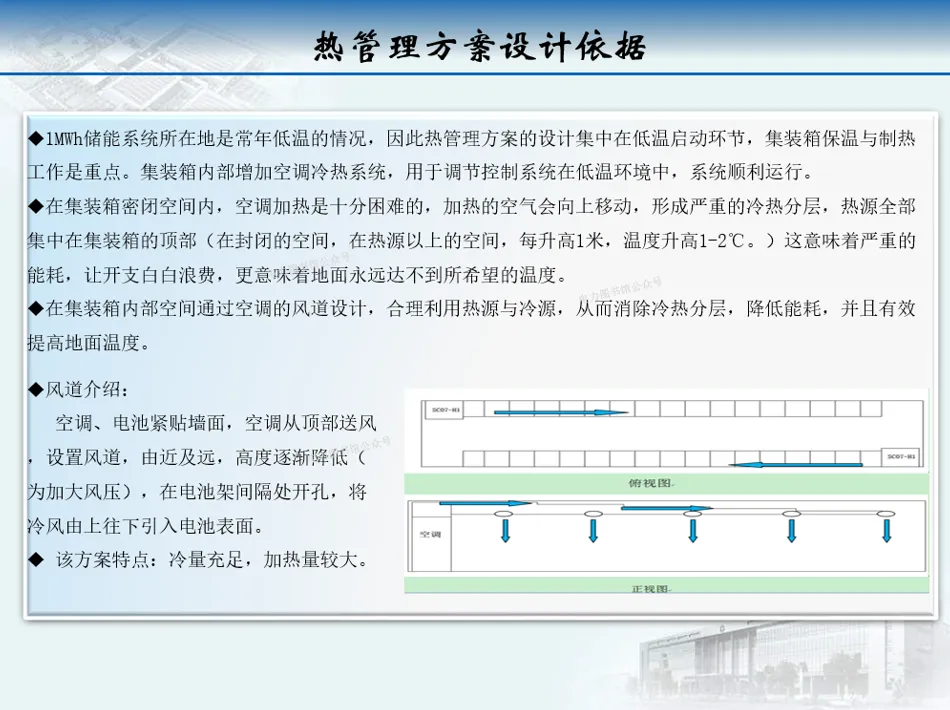

热管理针对极寒优化，用空调 + 定向风道消除冷热分层，-30℃环境下 24 小时可将舱内升温至 0℃启动阈值，整机热损耗约 10kW，1C 充放电自然通风下温升约 14℃。系统支持 RS485/CAN/Ethernet 多协议对接，数据存储≥30 天，适配高海拔、风沙、极寒场景，是工商业与新能源配储的标准化整机方案。
