阀门培训PPT|系列知识大全4:阀门的选用,检验和安装,保养,操作,检修

  • 2026-11-08 17:07:46
阀门培训PPT|系列知识大全4:阀门的选用,检验和安装,保养,操作,检修
戳↑↑↑蓝字关注全球阀门网旗下《现身说阀》！咨询请+微信 famens01

#阀门运用｜#阀门市场｜#阀门技术

阀门知识简介大全目录：

  1. 阀门的功能、

  2. 阀门的分类、

  3. 阀门的基本参数、

  4. 阀门的编号、

  5. 阀门的结构及应用

    闸阀、截止阀/节流阀、球阀、蝶阀、旋塞阀、止回阀、减压阀、安全阀

  6. 阀门的选用、

  7. 阀门的检验和安装、

  8. 阀门的保养、

  9. 阀门的操作、

  10. 阀门的检修

连载回顾：

阀门PPT｜1：阀门的功能、分类、基本参数、编号

阀门PPT｜2：闸阀,截止阀/节流阀,球阀,蝶阀的结构及应用

阀门PPT｜3：旋塞阀,止回阀,减压阀,安全阀的结构及应用

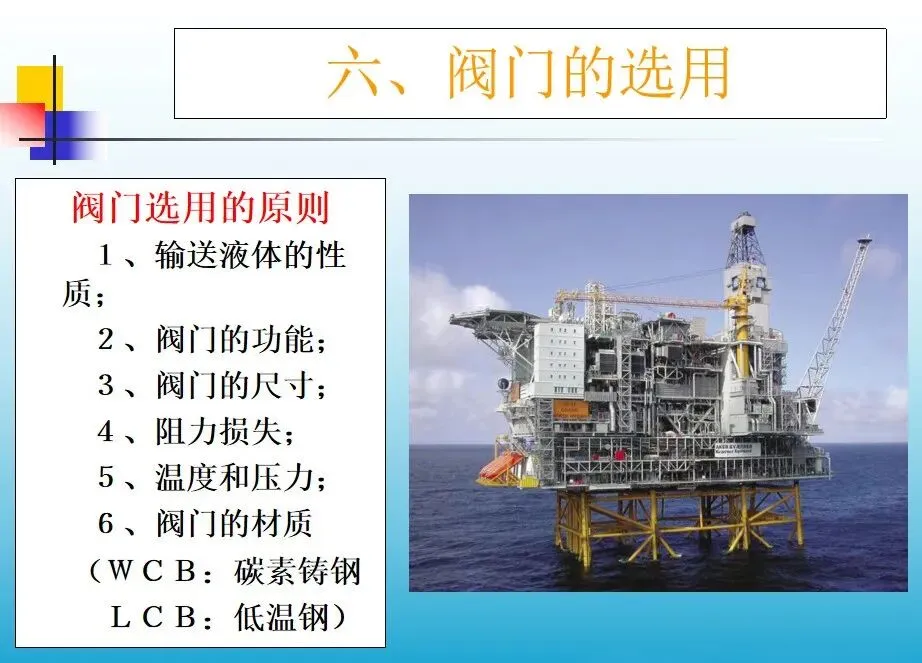

六、阀门的选用

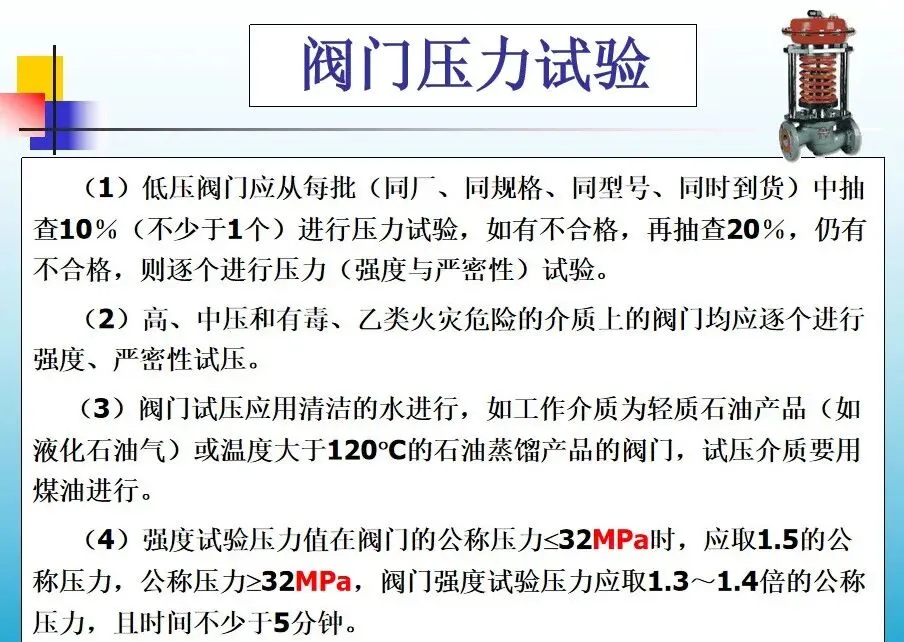

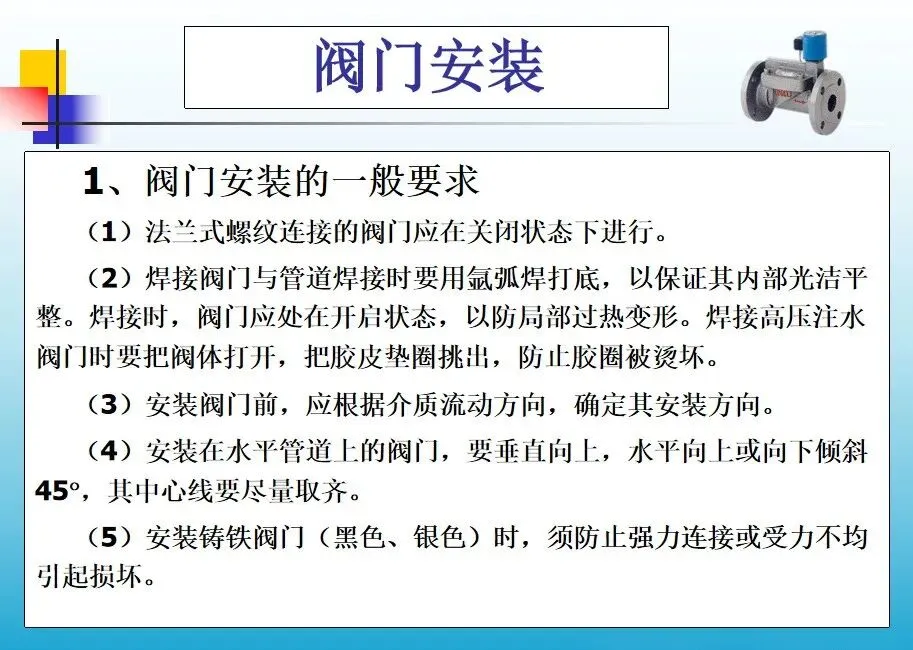

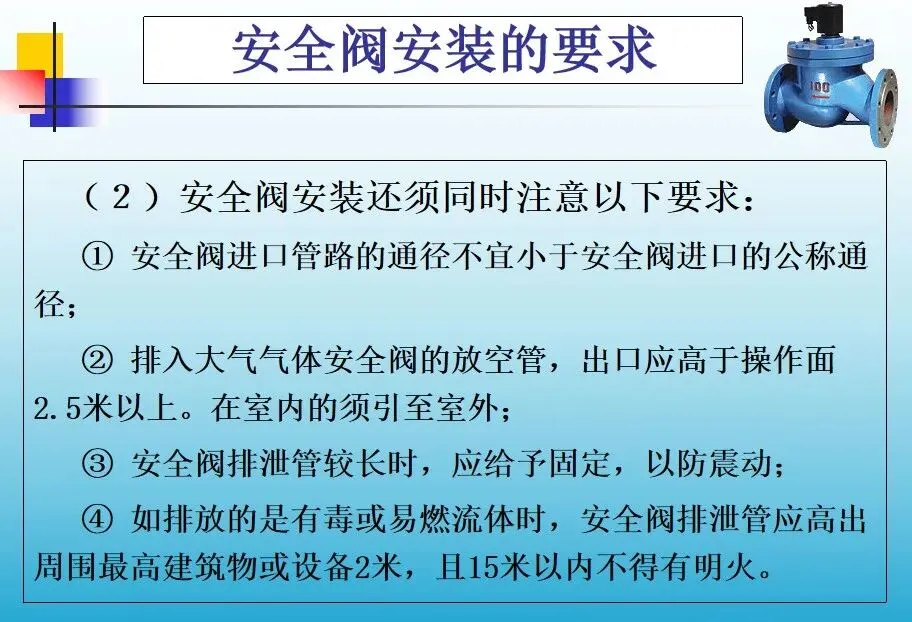

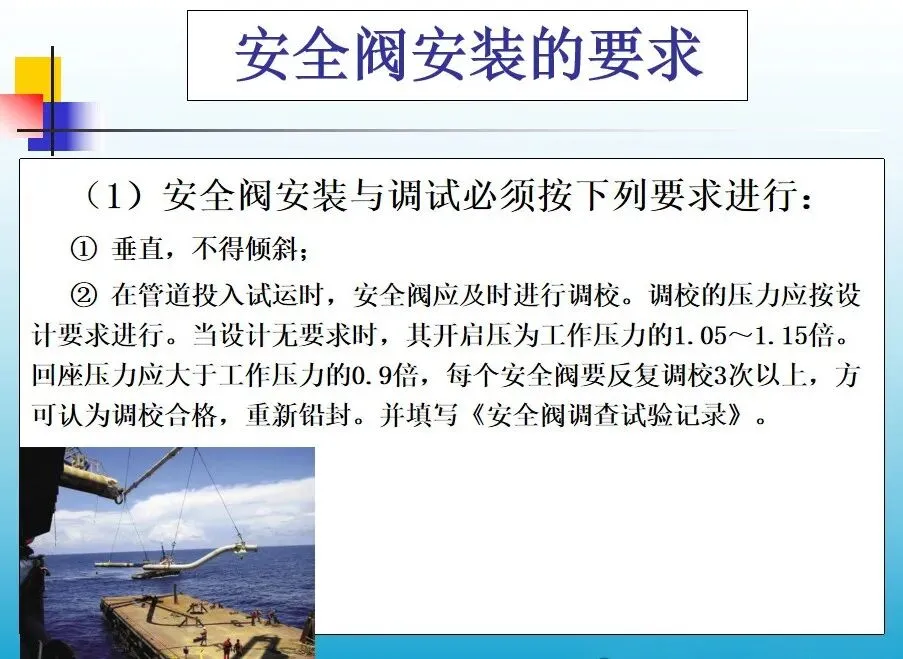

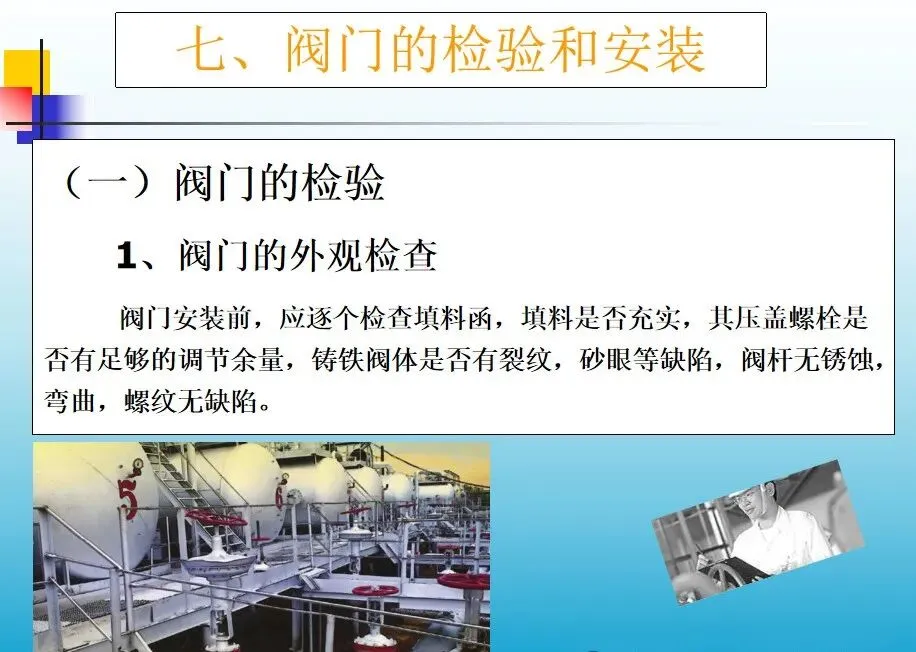

七、阀门的检验和安装

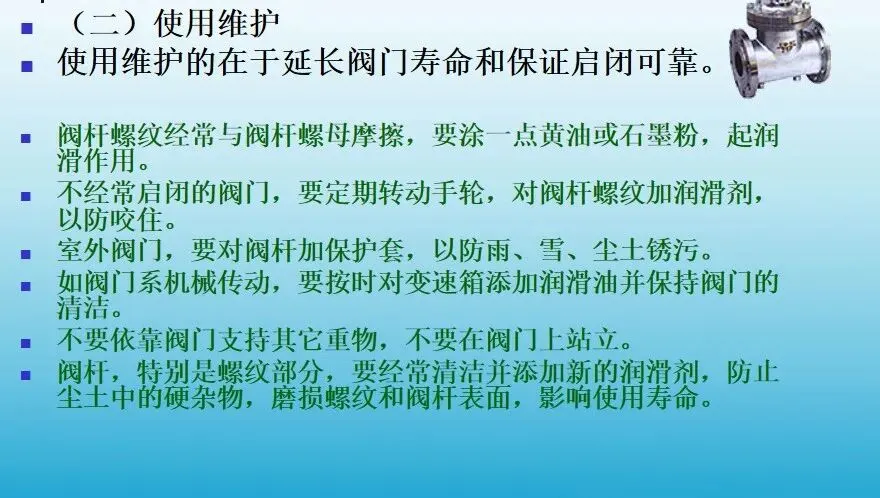

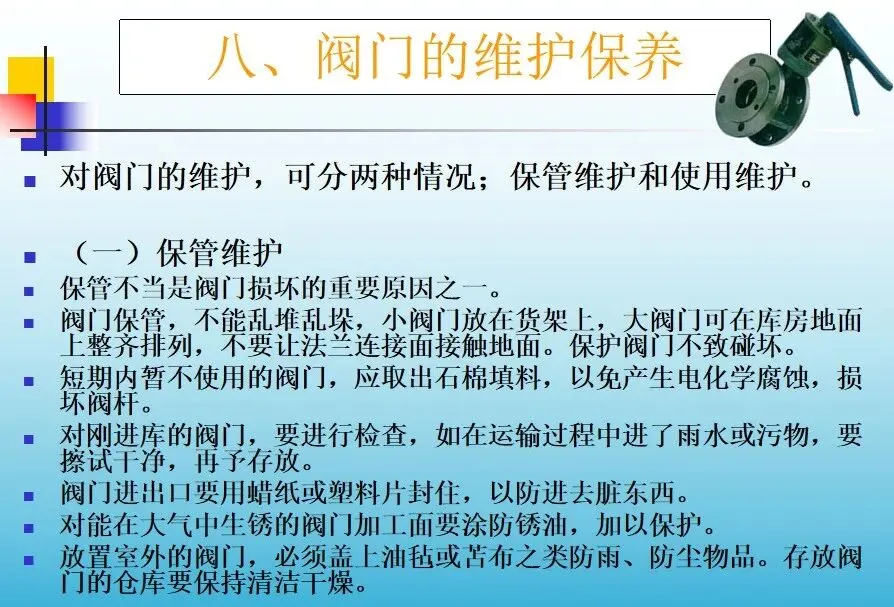

八、阀门的维护保养

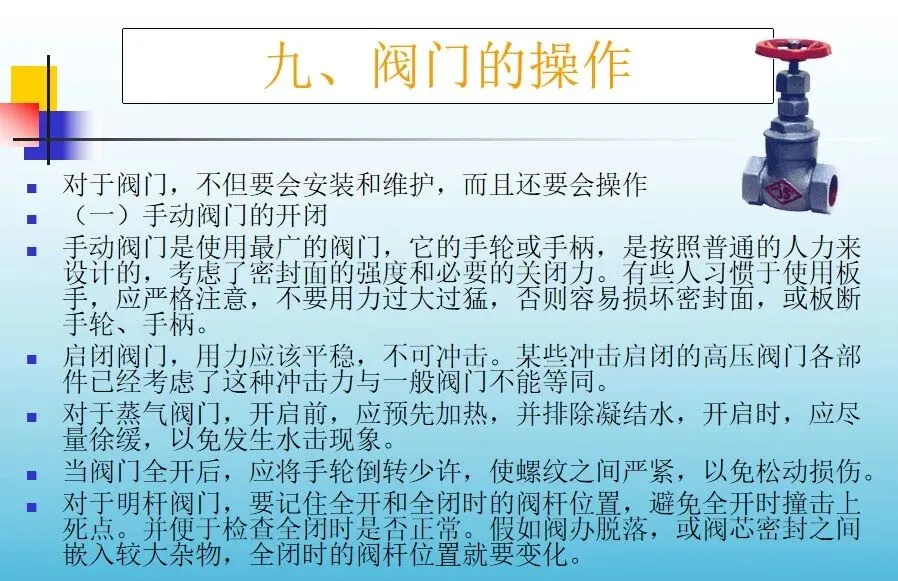

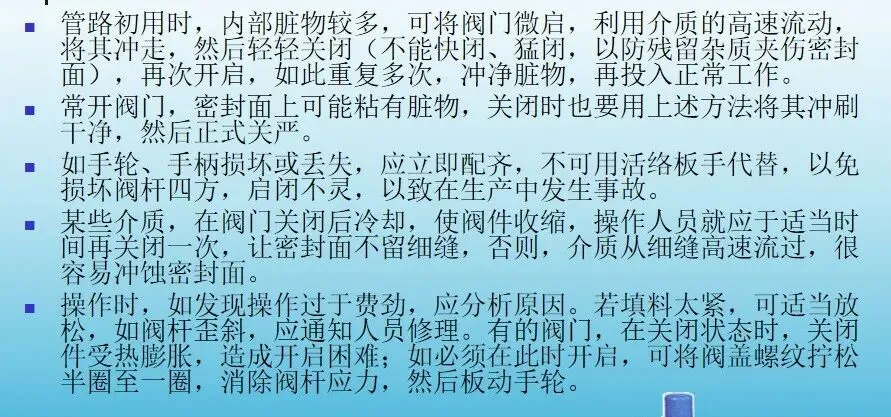

九、阀门的操作

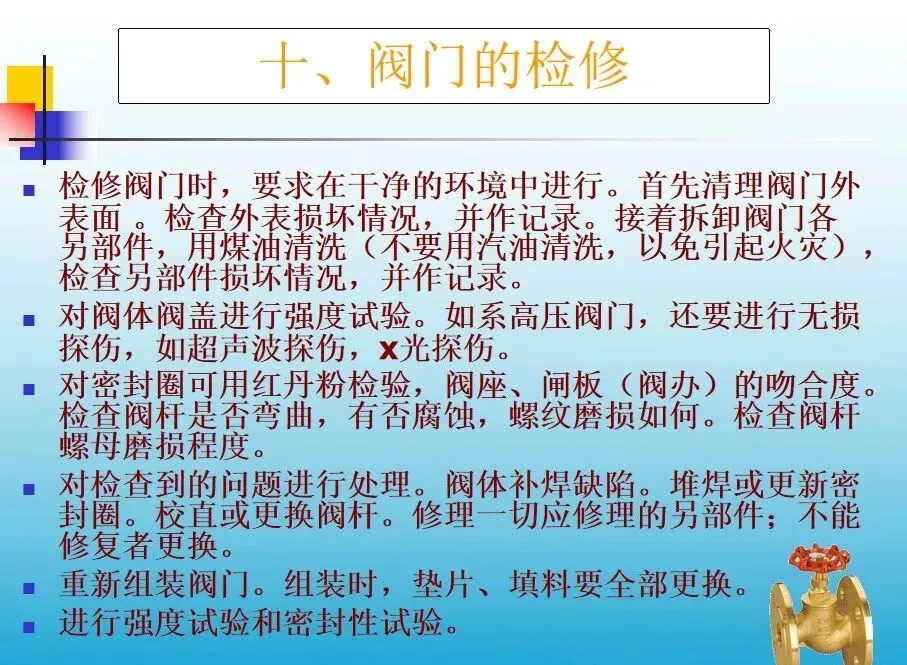

十、阀门的检修

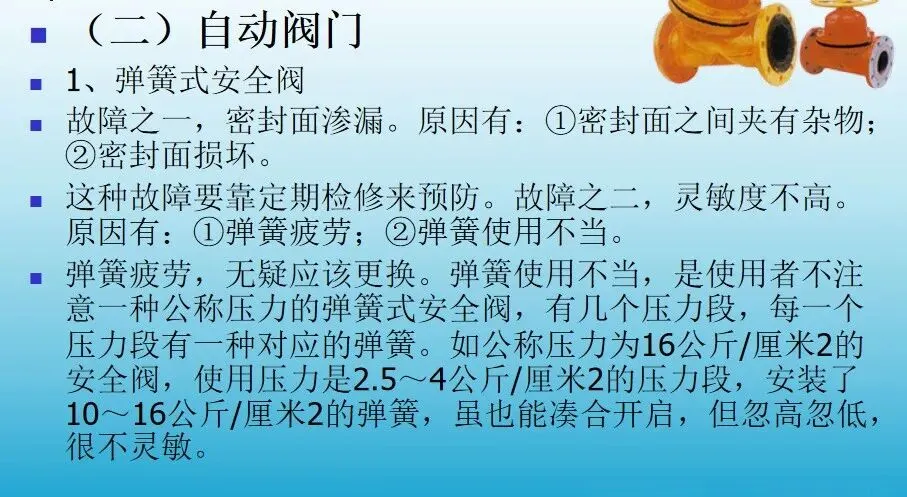

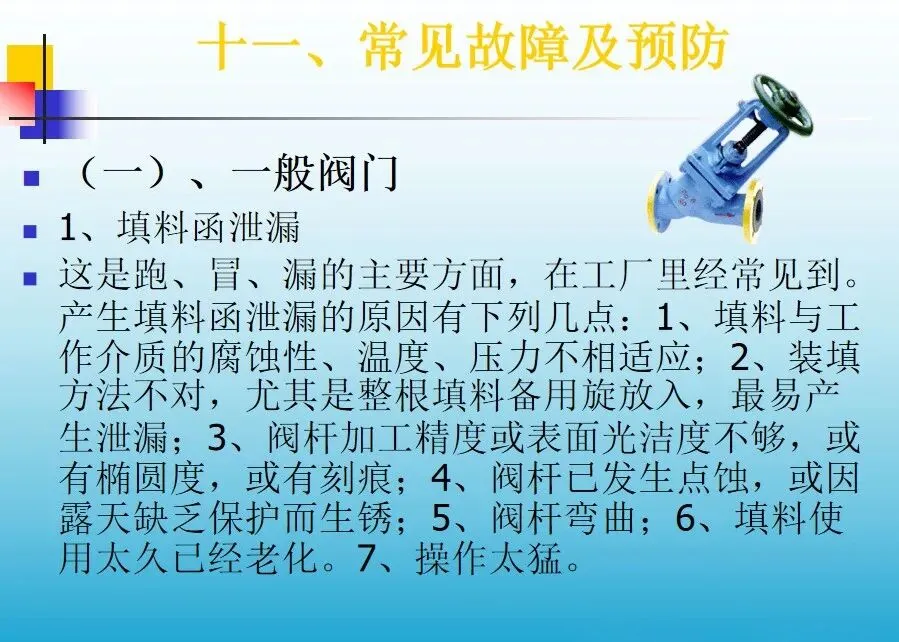

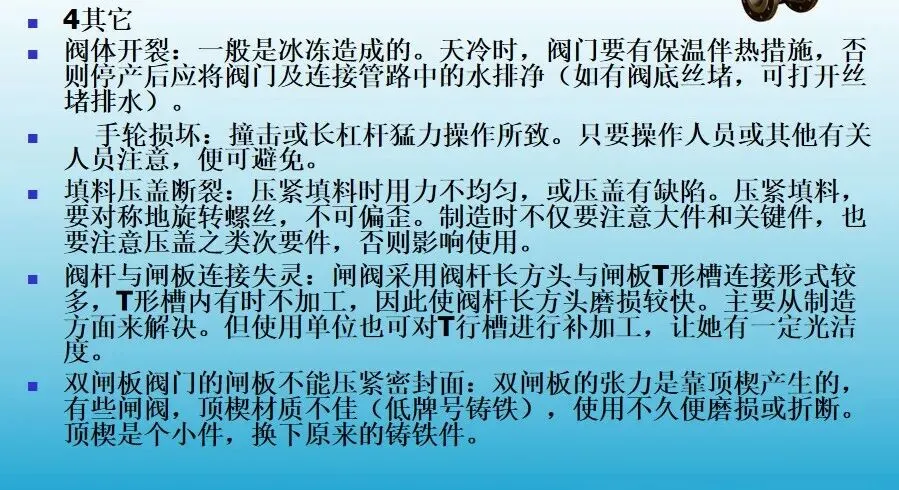

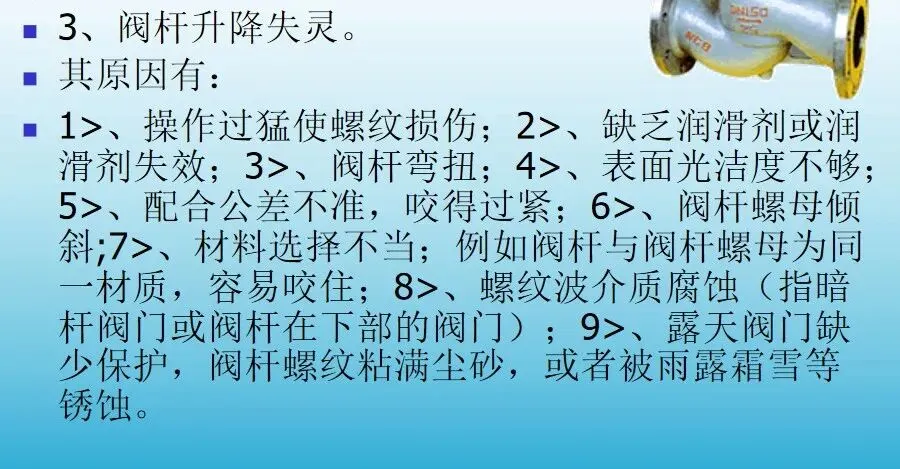

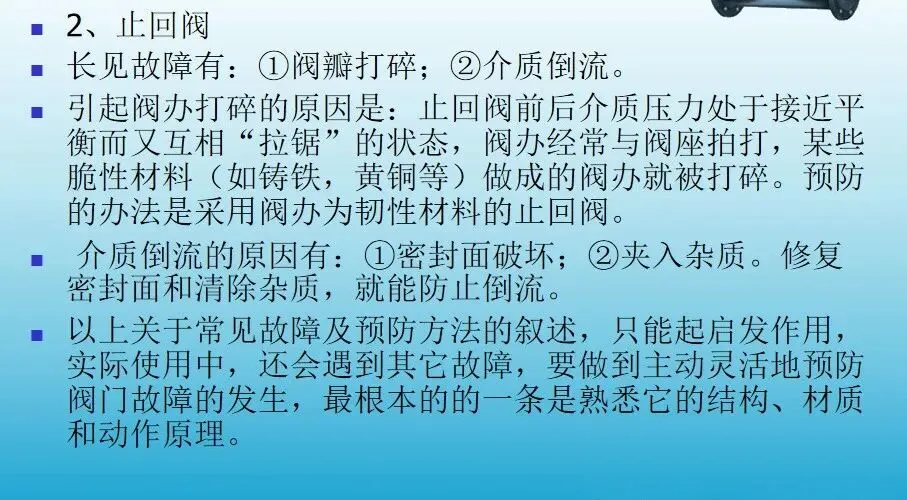

十一、阀门故障及预防

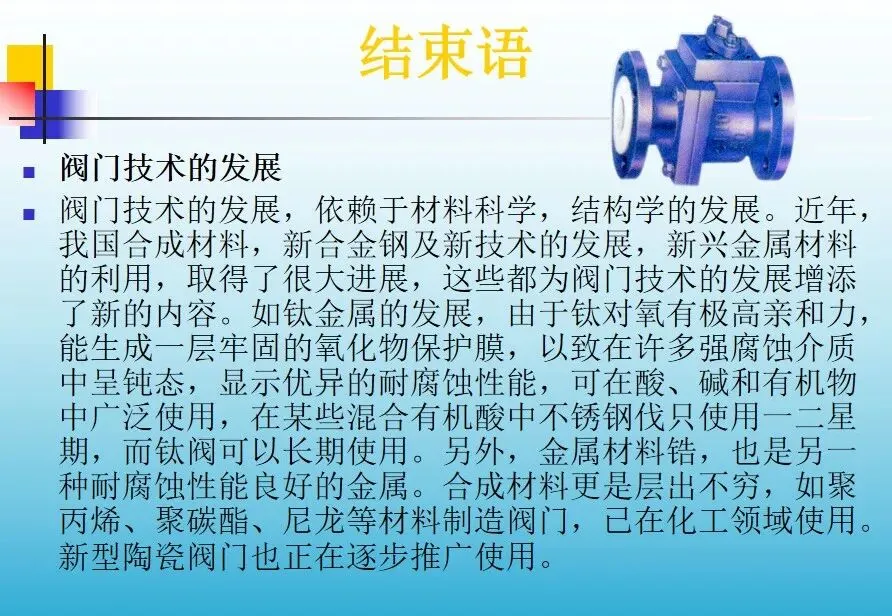

结束语
