装配图画法技巧:70页PPT讲透

  • 2026-10-25 22:41:32
装配图画法技巧:70页PPT讲透

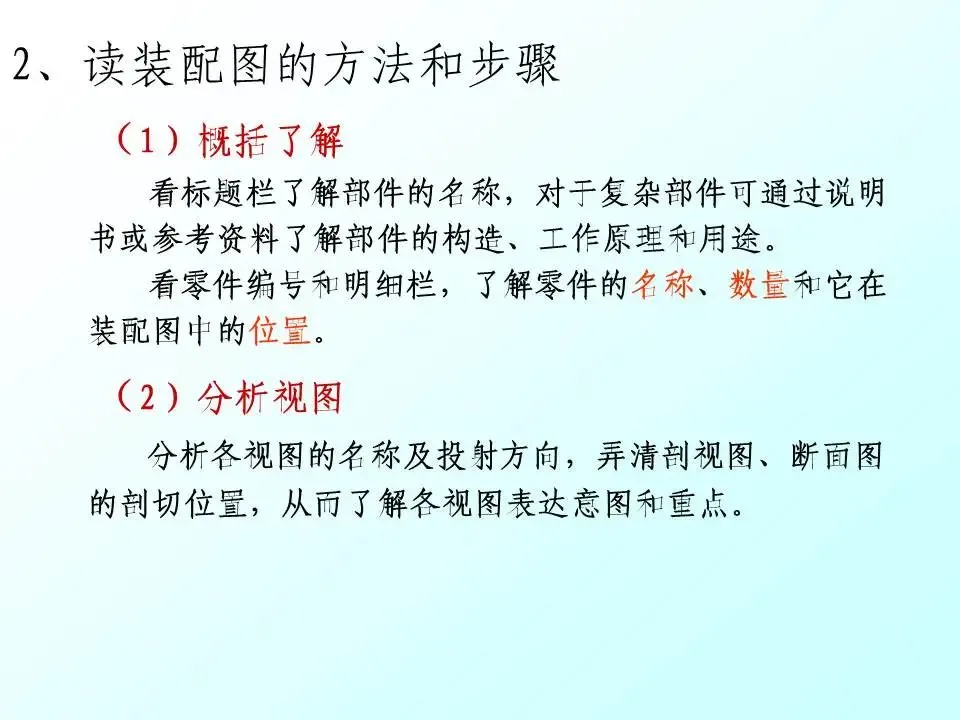

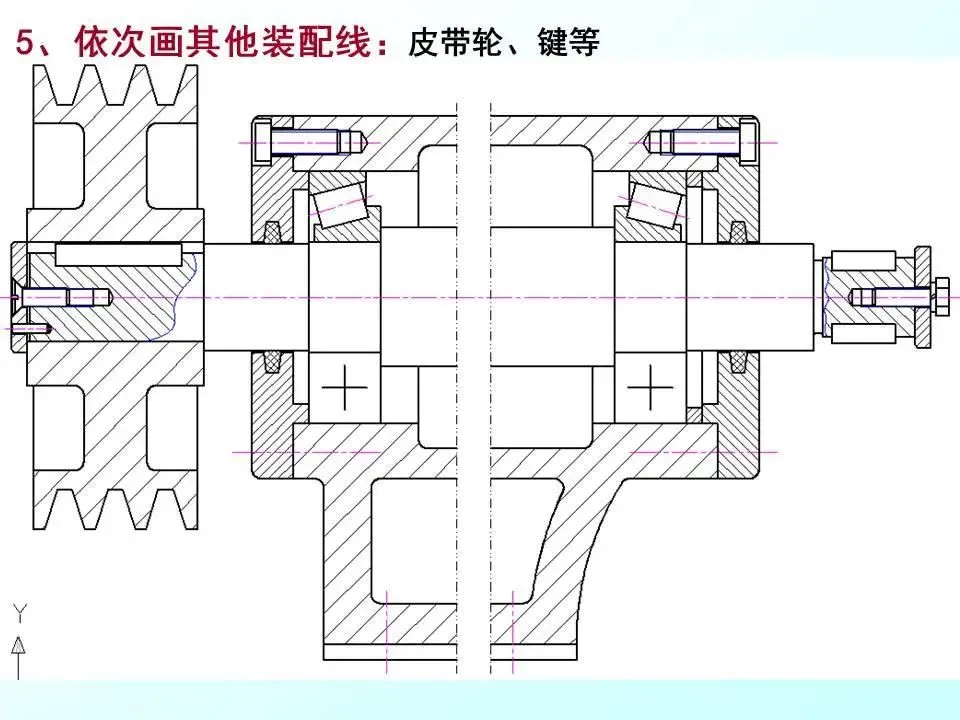

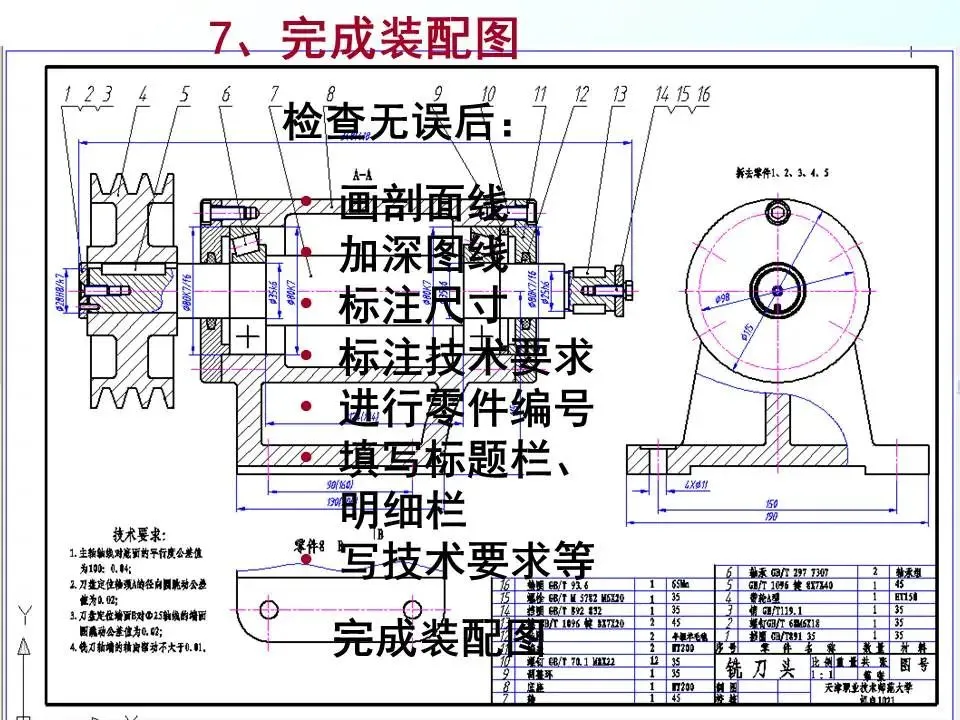

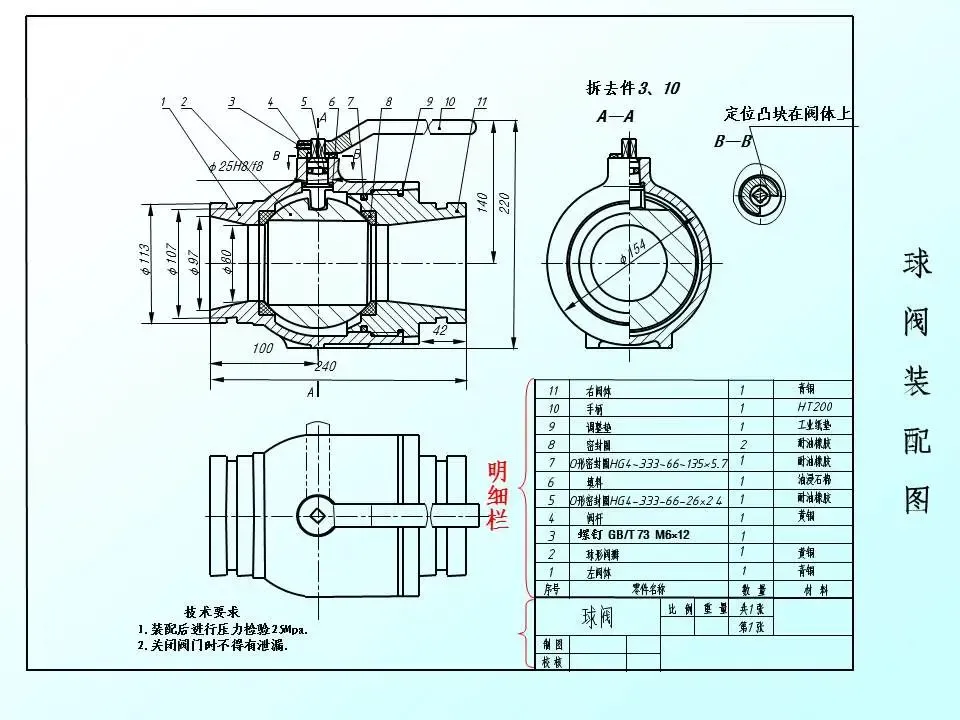

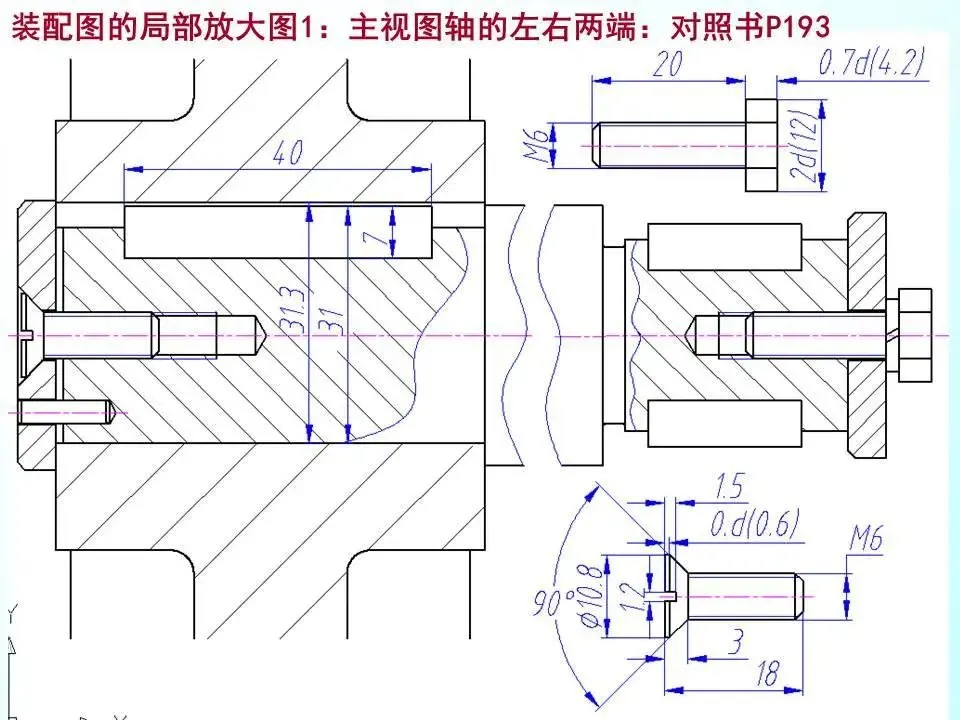

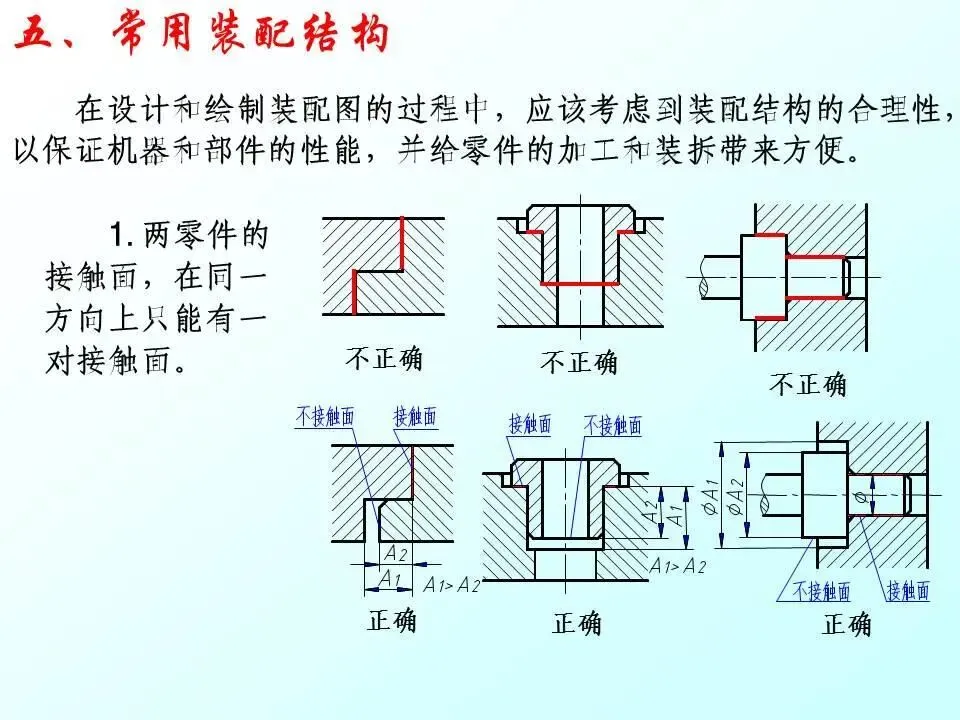

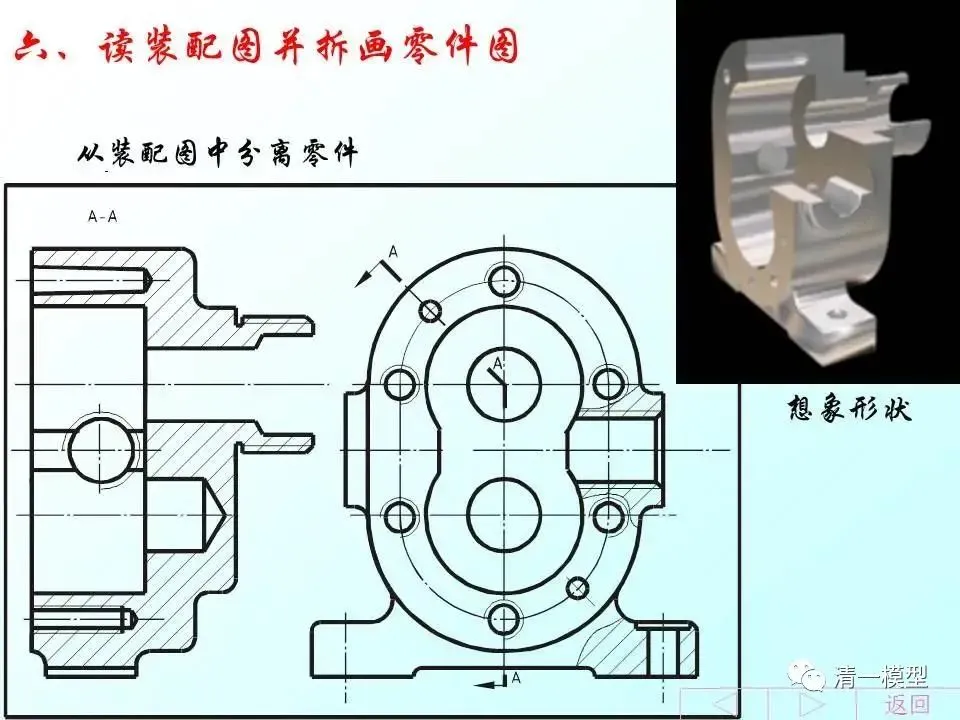

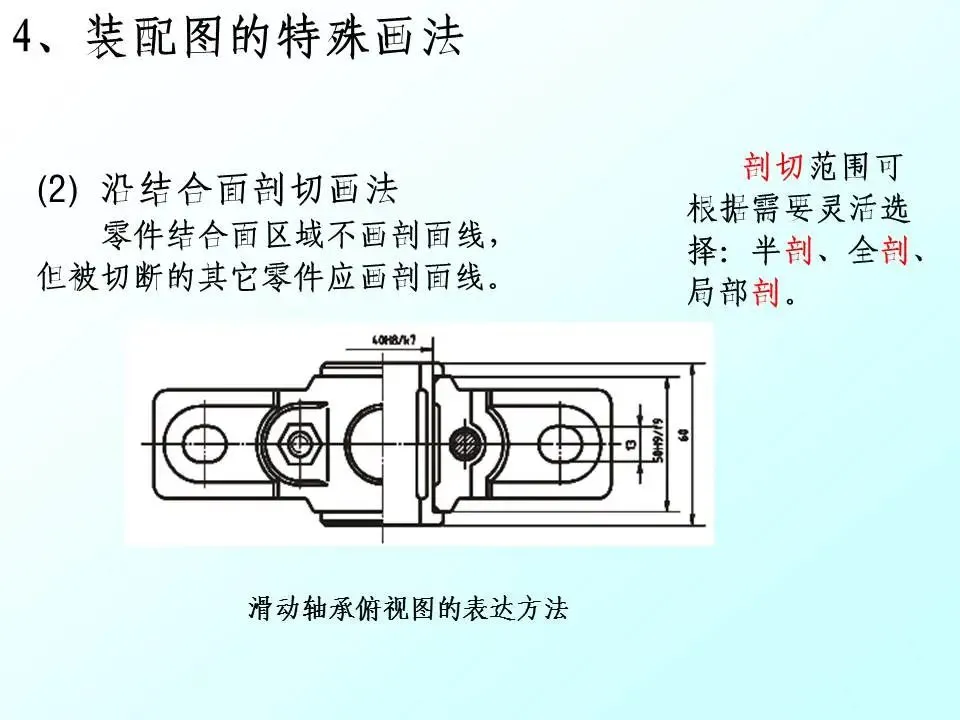

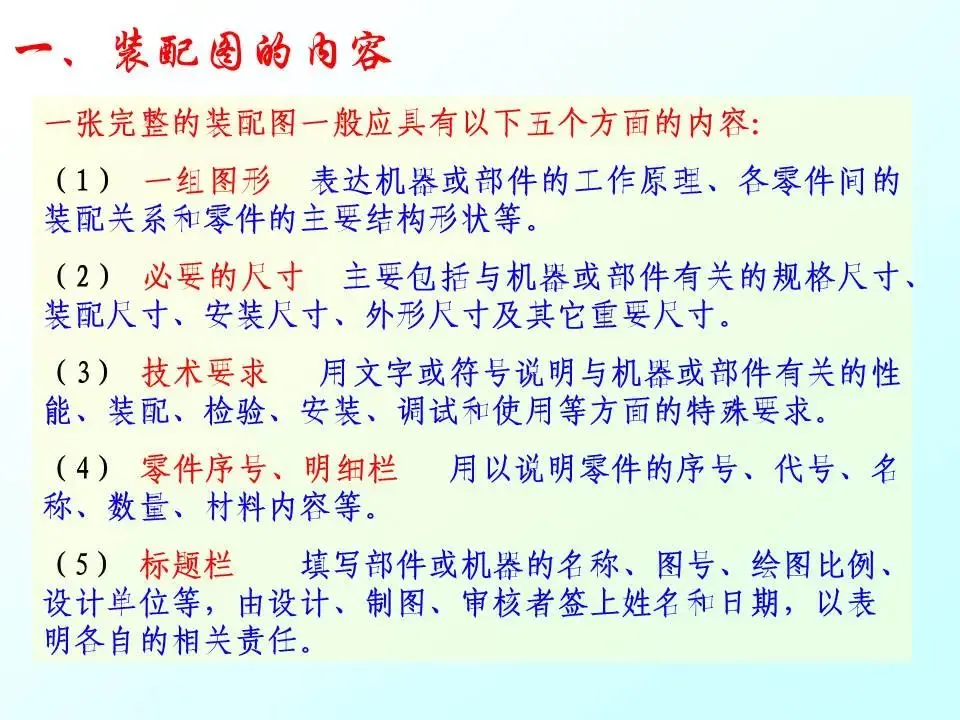

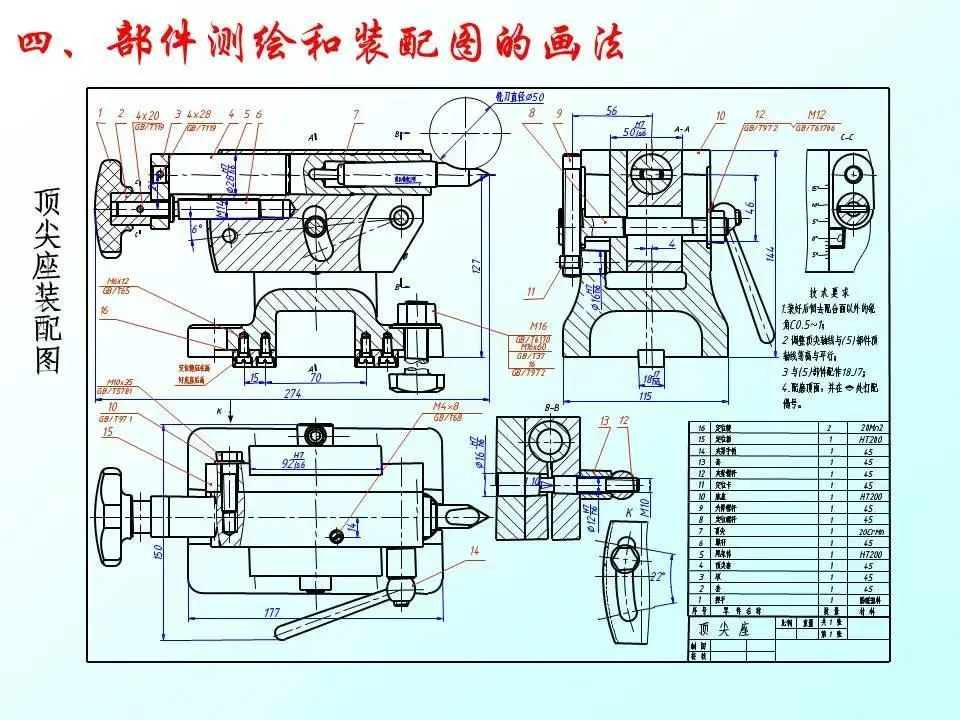

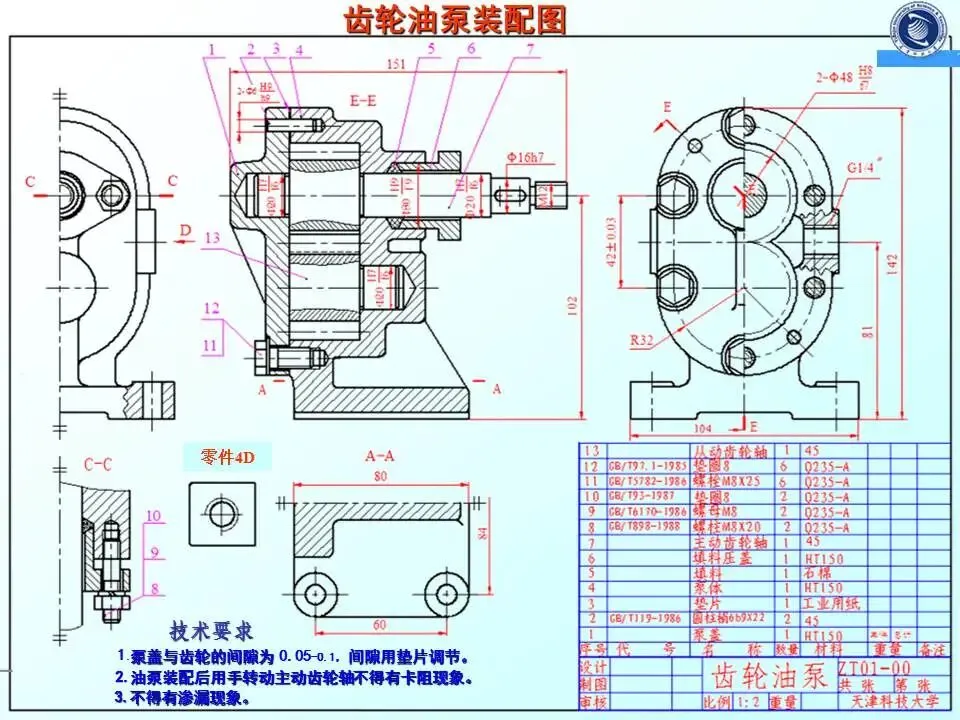

装配图是表达机器或部件的工作原理、运动方式、零件间的连接及其装配关系的图样，它是生产中的主要技术文件之一。那么你会画装配图吗？
-THE END-
