SolidWorks*Excel+VBA-说说单位

  • 2026-11-09 12:12:27
SolidWorks*Excel+VBA-说说单位
sw的单位系统很方便，一键切换，相信大家都不陌生。
但是到了VBA里，变成了系统单位和用户单位。

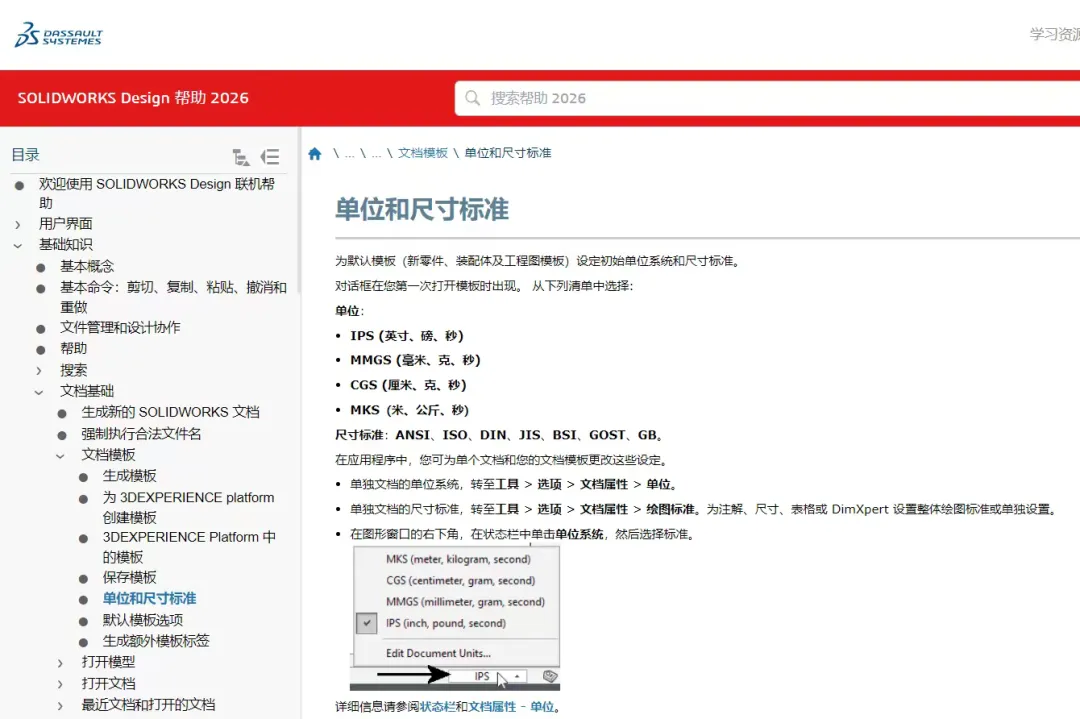

先说用户单位，就是开篇提到可见可直接设置的单位。
然后这个系统单位，是程序内置的，没法设置，也找不到。

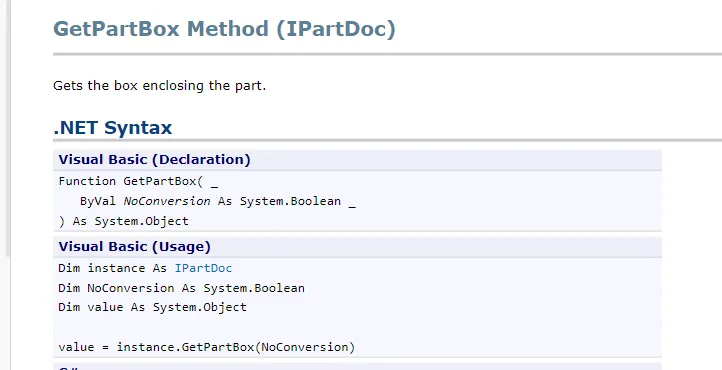

举个例子，getpartbox方法，获取模型xyz边界数据。

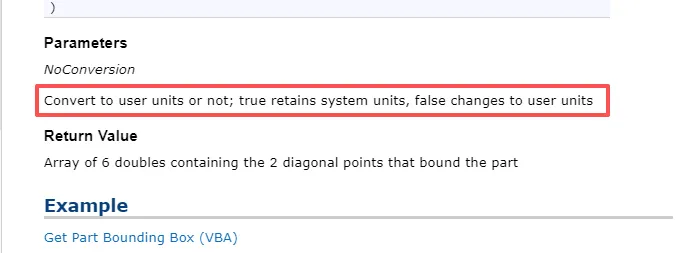

它有个布尔参数，true或false，用来控制输出的数据是依据系统单位还是用户单位。

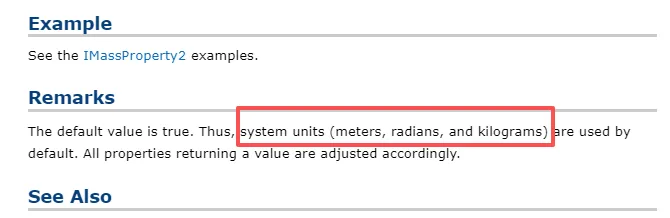

但是吧，官方的帮助文档做的一言难尽，系统单位到底是啥？米？千米？英寸？……虽然实际测试可以确认系统单位中长度采用的米，不过总觉得不靠谱。
于是，在帮助文档中翻了N多个units相关的文档，终于在某个不起眼的犄角旮旯找到了。
大部分sw API程序方法用的都是系统单位，少部分可供设置切换。
